Need advice attaching drip trays to Keezer

HomeBrewTalk.com - Beer, Wine, Mead, & Cider Brewing Discussion Community.

Help Support Homebrew Talk:

bd2xu

Well-Known Member
Joined
Jul 26, 2012
Messages
952
Reaction score
52
Location
Atlanta

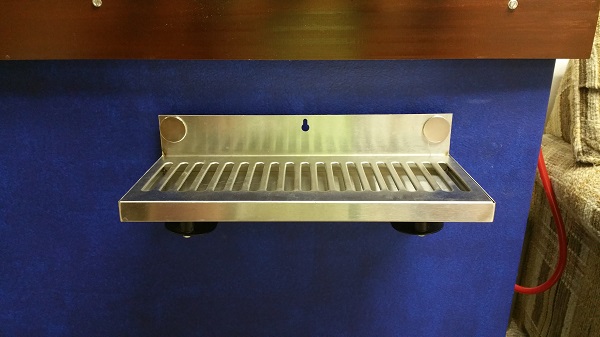

Need a little advice here, I have a Keezer I built, it has six taps that I drilled through a 2 x 4 collar. For drip tray, I didn’t want to spend the crazy money for a 22 inch drip tray so I bought two, 12 inch drip trays from Kegco, they are the wall mount version, see picture. To attach them, I read where someone used a bunch of thin rare earth magnets that they glued to the drip tray using metal epoxy. I got 10, 1 inch round magnets and glued five to each drip tray. It worked at first, but when I pull the drip trays off the magnets pop off of the drip tray, the metal epoxy is not holding them on. These wall mount drip trays have screw holes where I could hang them if I dare to drill metal screws into the Keezer. But of course I don’t want to destroy my Keezer by hitting a line.

Any thoughts? These trays are pretty heavy and I thought I would add several more magnets to each, but the bigger problem is getting the magnets to adhere to the tray.


OP
bd2xu

bd2xu

Well-Known Member
Joined
Jul 26, 2012
Messages
952
Reaction score
52
Location
Atlanta
If I use a very short screw do you think it will be safe?


jack13

Supporting Member
HBT Supporter
Joined
May 31, 2016
Messages
2,567
Reaction score
4,279
Location
Delaware, United States of America
I used about a dozen of rare earth magnets (link below), adhered to back of trays with krazy glue. My trays aren't as deep as yours, so less leverage when pushed on and thus less force on magnets. But judging by how tough it is for me to take my trays off, I think they'd be strong enough for your setup.

https://www.homedepot.com/p/MASTER-...rth-Magnet-Discs-6-per-Pack-07046HD/202526367

And if you're missing a Five of Hearts...

OP
bd2xu

bd2xu

Well-Known Member
Joined
Jul 26, 2012
Messages
952
Reaction score
52
Location
Atlanta
Ha good eye on the card. The problem I am having is not the magnet sticking to the fridge it’s the magnets staying glued to the drip tray. I used to part metal epoxy which I thought would be the best thing but maybe I will try it with superglue.


mongoose33

Well-Known Member
Joined
Dec 16, 2015
Messages
8,017
Reaction score
7,574
Location
Platteville, WI

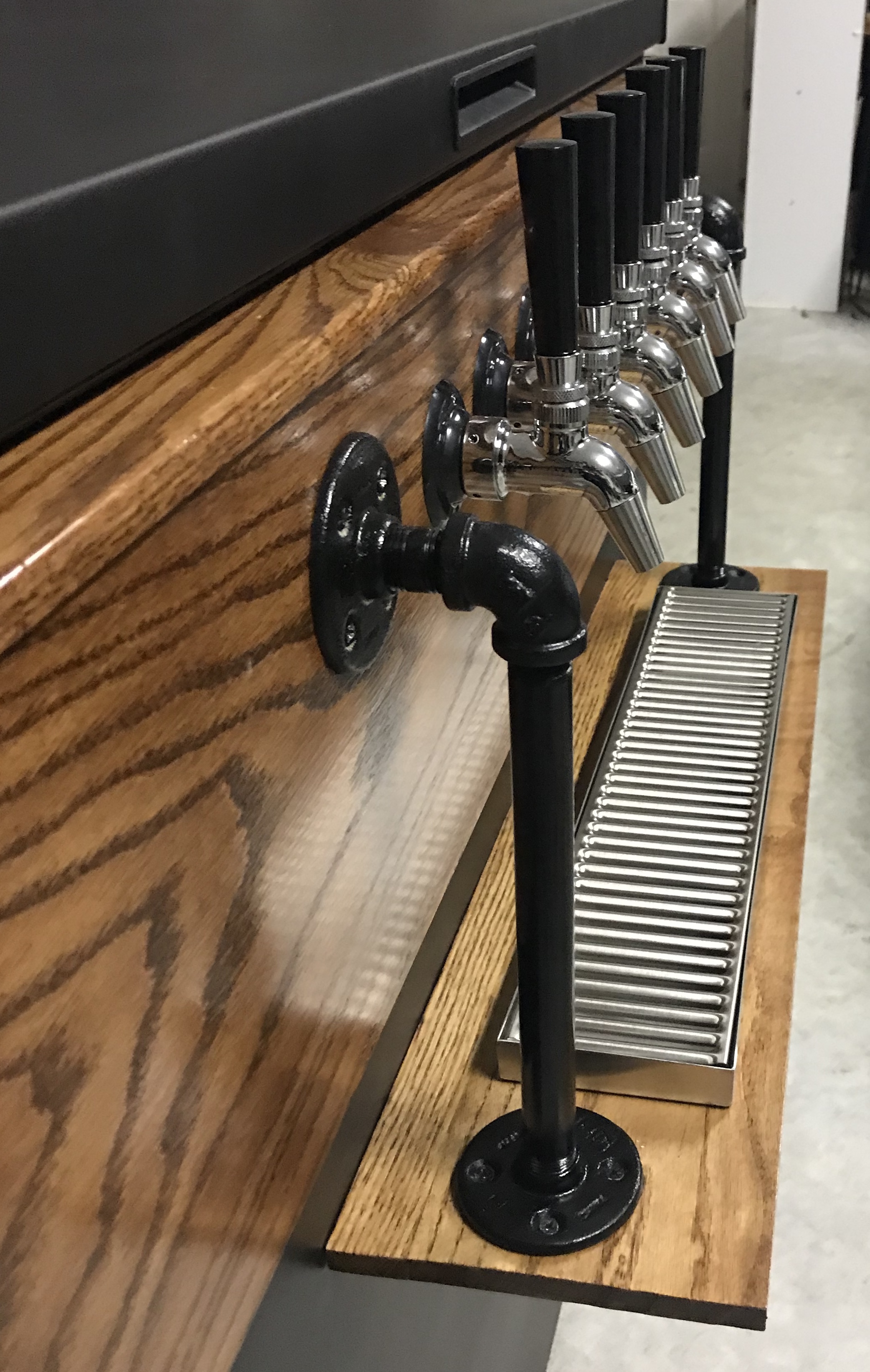

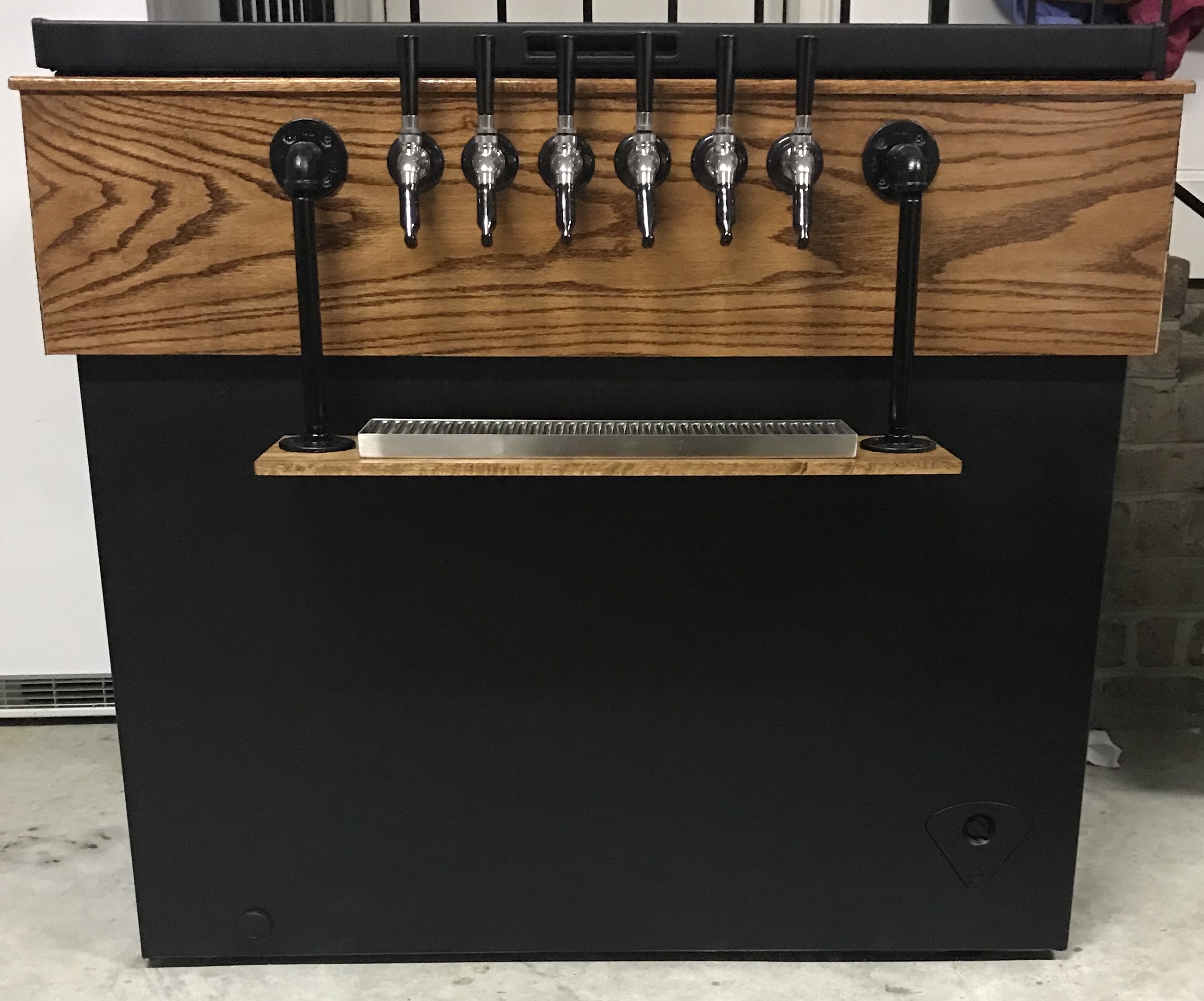

Maybe this will give you an idea.

BTW, one other thing you could do is suspend a sort of caddy from the collar to hold the trays.


OP
bd2xu

bd2xu

Well-Known Member
Joined
Jul 26, 2012
Messages
952
Reaction score
52
Location
Atlanta
Nice the paper towel holders are a great idea. How do you have the magnets fastened to the tray? Do you just put one on each side to hold each other and inside one sticks to fridge? So simple!


mongoose33

Well-Known Member
Joined
Dec 16, 2015
Messages
8,017
Reaction score
7,574
Location
Platteville, WI
Nice the paper towel holders are a great idea. How do you have the magnets fastened to the tray? Do you just put one on each side to hold each other and inside one sticks to fridge? So simple!
The two circular ones you see in the last pic hold the drip tray to the paper towel holders. I'd thought about adding screws to the paper-towel-holders, but this works and it's unsightly.

The keezer in the pics was painted with chalkboard paint; old freezer, dinged up, that's how I camouflaged that. I now have a new one, and the paper-towel holders sometimes want to slide a bit, so I put a neodymium magnet under each to support them, and they don't go anywhere. And you can't see them.

BTW, once you get the drip trays on there, however you do it, you might look at this as well:

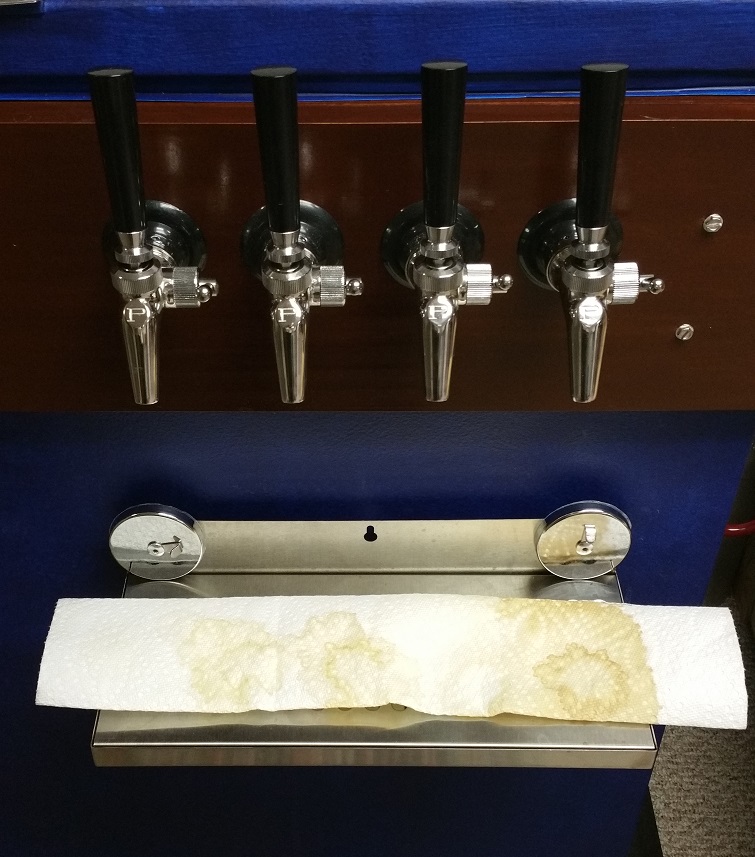

A piece of paper towel, folder over, will catch drips. I don't have to remove the drip tray to clean it, and when I have friends over I just remove the paper towel so it looks nicer. And I don't spend much time rinsing out that drip tray.


Attachments

OP
bd2xu

bd2xu

Well-Known Member
Joined
Jul 26, 2012
Messages
952
Reaction score
52
Location
Atlanta
That looks great and I would have been able to use a much less expensive surface mount. Might switch to this long term.

OP
bd2xu

bd2xu

Well-Known Member
Joined
Jul 26, 2012
Messages
952
Reaction score
52
Location
Atlanta
The two circular ones you see in the last pic hold the drip tray to the paper towel holders. I'd thought about adding screws to the paper-towel-holders, but this works and it's unsightly.

The keezer in the pics was painted with chalkboard paint; old freezer, dinged up, that's how I camouflaged that. I now have a new one, and the paper-towel holders sometimes want to slide a bit, so I put a neodymium magnet under each to support them, and they don't go anywhere. And you can't see them.

BTW, once you get the drip trays on there, however you do it, you might look at this as well:

View attachment 640630

A piece of paper towel, folder over, will catch drips. I don't have to remove the drip tray to clean it, and when I have friends over I just remove the paper towel so it looks nicer. And I don't spend much time rinsing out that drip tray.

love the washer


Noob_Brewer

Well-Known Member
Joined
Mar 4, 2019
Messages
702
Reaction score
781

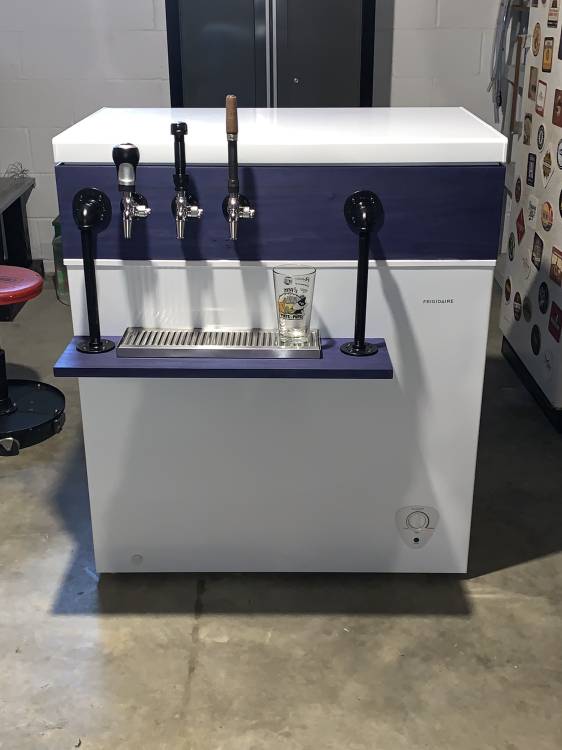

I copied the drip tray technique in post #8. The original thread is here: https://www.homebrewtalk.com/forum/threads/first-keezer-build.668002/ FWIW, I got a 19x4" stainless steel drip tray for my 6 tap keezer build for 15.99+ S&H so it was 22.99 from barproducts.com. I think I saw @Bobby_M recommending that in some thread here in the HBT abyss lol. Its great. Sorry for the low-res pics.


Attachments

Last edited:

Soulshine2

Well-Known Member
Joined
Jan 28, 2017
Messages
2,127
Reaction score
984
Location
Grant
If I use a very short screw do you think it will be safe?
I would do that . Find some 1/2 inch long sheet metal screws at your local hardware store. I doubt youll hit a line with those.


h22lude

Well-Known Member
Joined
Dec 27, 2010
Messages
3,427
Reaction score
427
Location
lincoln
Here's the final product once I put a skirt around the rinser that matches the collar:

View attachment 640733
Do you keep your tap list on all the time? I'd find it annoying to turn the TV on and off when I want to see what is on tap. I'd like to keep it on all the time but would think that would damage the screen some how (maybe burn in isn't a thing anymore).


mongoose33

Well-Known Member
Joined
Dec 16, 2015
Messages
8,017
Reaction score
7,574
Location
Platteville, WI
Do you keep your tap list on all the time? I'd find it annoying to turn the TV on and off when I want to see what is on tap. I'd like to keep it on all the time but would think that would damage the screen some how (maybe burn in isn't a thing anymore).
No--there is a button switch around the lower back right side. Click it and the monitor is on in a second.

I pretty much know where everything is, the screen is more for those who aren't the brewer. :)


h22lude

Well-Known Member
Joined
Dec 27, 2010
Messages
3,427
Reaction score
427
Location
lincoln
No--there is a button switch around the lower back right side. Click it and the monitor is on in a second.

I pretty much know where everything is, the screen is more for those who aren't the brewer. :)
Are you using a Fire Stick or Raspberry Pi?


day_trippr

"Now brewing exclusively with Hydrohydroxic Acid"
Joined
May 31, 2011
Messages
35,055
Reaction score
16,878
Location
Stow, MA
I'm using a Fire Stick. I didn't want to get into doing the work with raspberry pi.
That was actually for mongoose33.
I don't know how one could do something similar with a Firestick...

Cheers!
