Now that Biermuncher's gone all fancy smancy and glossy magazine quality with his projects, I figured there was a vacancy in the "hack and slash" method of DIY builds.

Yooper so wonderfully gifted me with a corona mill, and I decided to throw together a little "station" for it.

(And before you dis the corona, I betcha don't realize that Charlie Papazian has been using the same Corona Mill he started doing allgrain with and HE gets 87% efficieny...so bite me :D)

Anyhoo, this is what I came up with.

Living in my loft I have very few tools, and little space for them...about the only power tool I have is a drill.



One of my ubiquitous soysauce buckets is the base of it. The mill sits on a cheap pressboard shelf I got at the hardware that I drilled through with a holesaw. A folger's plastic coffee container is used to keep the grain from flying all over the place (it's glued in place with "amazing goop")



The bucket is notched (using a coping saw) to seat the shelf into.


OP
Revvy

Revvy

Post Hoc Ergo Propter Hoc
Lifetime Supporter
Joined
Dec 11, 2007
Messages
41,296
Reaction score
3,724
Location
"Detroitish" Michigan

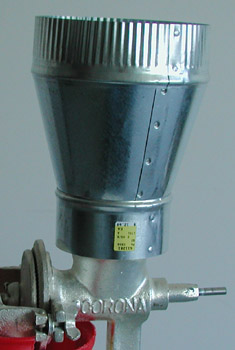

While at the hardwarestore getting the shelf and goop I came across this drain thingy....I thought it would make a great hopper...And it did.



The smaller side was a wee bit too large to fit the corona, so I used some gaffer's tape to build it up enought for a snug fit.



And here with the drill in place it's all set to go....



The red of the folgers can and the red of the drill complement each other nicely, don'tja think???

:mug:


boo boo

Well-Known Member
Joined
Jun 6, 2005
Messages
4,164
Reaction score
46
Location
Hearts's Delight, Newfoundland
hey. I've been using a porkert, which is a corona knockoff, for over 3 years now. I have got over 80% efficiency regularly, but knocked it back to 75% because I found it had a better taste due to less astringency from the torn/shredded husks.

I have no plans on getting a new mill either.

OP
Revvy

Revvy

Post Hoc Ergo Propter Hoc
Lifetime Supporter
Joined
Dec 11, 2007
Messages
41,296
Reaction score
3,724
Location
"Detroitish" Michigan
hey. I've been using a porkert, which is a corona knockoff, for over 3 years now. I have got over 80% efficiency regularly, but knocked it back to 75% because I found it had a better taste due to less astringency from the torn/shredded husks.

I have no plans on getting a new mill either.

So what's your milling setup look like?

I still need to do something for the flying bits...I know some users use plastic bags over the front end.

OP
Revvy

Revvy

Post Hoc Ergo Propter Hoc
Lifetime Supporter
Joined
Dec 11, 2007
Messages
41,296
Reaction score
3,724
Location
"Detroitish" Michigan
I remember your pics!!!! Your postings were my inspiration for my build....I actually though about doind something similar with metal that you did, and then I noticed the coffee can was the right height for my mill.

Thanks for the inspiration!!!


Zymurgrafi

Well-Known Member
Joined
Feb 19, 2007
Messages
2,426
Reaction score
19
Location
NEK, VT
hey, looks fairly familiar
(post picture here of mine when sober enough to take one)

Only my hopper will hold up to 20 or so lb. of grains. It is a former water cooler jug attached to a quaker oats tub with duct tape of course...

My only advice. Make your shield (folgers can) go a little higher. Depending on your drill you will have a lot of grain fly out of there. I have been using a corded drill lately and the grain flies. Seems to have boosted my efficiency too...

OP
Revvy

Revvy

Post Hoc Ergo Propter Hoc
Lifetime Supporter
Joined
Dec 11, 2007
Messages
41,296
Reaction score
3,724
Location
"Detroitish" Michigan
hey, looks fairly familiar
(post picture here of mine when sober enough to take one)

Only my hopper will hold up to 20 or so lb. of grains. It is a former water cooler jug attached to a quaker oats tub with duct tape of course...

My only advice. Make your shield (folgers can) go a little higher. Depending on your drill you will have a lot of grain fly out of there. I have been using a corded drill lately and the grain flies. Seems to have boosted my efficiency too...
I've seen some with water jugs hoppers...I was going to go that route when I saw the nifty choo choo train looking thing, and thought that would be good enough...I thought a larger hopper full of grains woul be too top heavy.

I'm thinking of putting an over shield on top of the folger's can to totally encase the front of it...until then I'll just cover with a bag...

OP
Revvy

Revvy

Post Hoc Ergo Propter Hoc
Lifetime Supporter
Joined
Dec 11, 2007
Messages
41,296
Reaction score
3,724
Location
"Detroitish" Michigan
I must get a camera. Mine makes yours look store made.
My middle name should be cheap
Oh so you're saying your junk is fuglier than mine????

Bring it ON!!!!!!! :D

I hereby dub this the ugliest milling station thread...

Sadly living here I no longer have a ton of "junk" to cobble stuff together with..I used to have an entire spare bedroom piled hight with "Parts" and that was before I discovered this hobby...I keep thinking about all the stuff I used to accumulate...some if it may have come in handy in brewing...


Otis The Drunk

Well-Known Member
Joined
Jun 2, 2007
Messages
172
Reaction score
1
Location
Texas Panhandle
Nice, I'm going to have to look into doing just like you guys are doing.... I've been using a corona mill for close to 20 years and regularly get between 75% - 80% efficiency.

OP
Revvy

Revvy

Post Hoc Ergo Propter Hoc
Lifetime Supporter
Joined
Dec 11, 2007
Messages
41,296
Reaction score
3,724
Location
"Detroitish" Michigan
Nice, I'm going to have to look into doing just like you guys are doing.... I've been using a corona mill for close to 20 years and regularly get between 75% - 80% efficiency.
How do you use yours? Yesterday was the first time I used mine and knew half way through the grain, that I needed to rig something a little more stable up...hence the...oh geez, I need to name it or something don't I?


niquejim

Burrowing Owl Brewery
Lifetime Supporter
Joined
Jul 9, 2007
Messages
2,370
Reaction score
60
Location
Cape Coral Florida
Nice, I'm going to have to look into doing just like you guys are doing.... I've been using a corona mill for close to 20 years and regularly get between 75% - 80% efficiency.
I get 83% every time(after a year of F'ing with it)
Mine is a bucket( with the bottom cut out and a slot on top for the 1x2 that holds the mill) in another bucket with a large kitchen garbage bag wrapped around the mill to stop the grain from flying

OP
Revvy

Revvy

Post Hoc Ergo Propter Hoc
Lifetime Supporter
Joined
Dec 11, 2007
Messages
41,296
Reaction score
3,724
Location
"Detroitish" Michigan
I get 83% every time(after a year of F'ing with it)
I'm glad you mentioned this...But mine didn't come with instructions or a parts list...so I can't figure out how to "f" with it....how to set the gap...

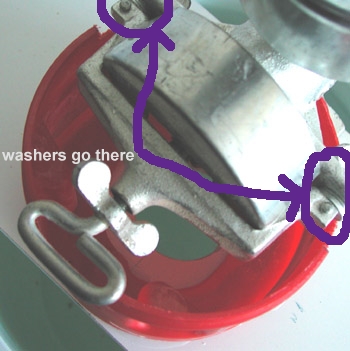

I followed suggestions on here about putting some washers on the two fasteners that hold the front plate on....but just what does this big wing nut thingy in the front do?



WDC

Well-Known Member
Joined
Mar 5, 2008
Messages
73
Reaction score
0
Location
DC, DC
Nice setup Revvy. You've convinced me it is possible to switch to uncrushed bulk grain without going into debt. I think I can ... I think I can...


Zymurgrafi

Well-Known Member
Joined
Feb 19, 2007
Messages
2,426
Reaction score
19
Location
NEK, VT
once you set the gap with some washers you use the nut in front to tighten the plates together. The wingnut then locks it in position. Play around with it. I was using it for a year or so and getting 60% efficiency. On a whim I tightened the nut up a bit when milling one day. That batch I had 70% efficiency!

OP
Revvy

Revvy

Post Hoc Ergo Propter Hoc
Lifetime Supporter
Joined
Dec 11, 2007
Messages
41,296
Reaction score
3,724
Location
"Detroitish" Michigan
once you set the gap with some washers you use the nut in front to tighten the plates together. The wingnut then locks it in position. Play around with it. I was using it for a year or so and getting 60% efficiency. On a whim I tightened the nut up a bit when milling one day. That batch I had 70% efficiency!
Thanks!!!

I got what looked like a decent crush on the batch I brewed with it yesterday and I hot the FG dead on...

WDC, my understanding is that even though it gets trashed a lot by the rolling mill diehards, the corona, prokert and other mills make great beer with some fiddling and tweaking...and like I said earlier I heard an old basic brewing podcast with Charlie Papazian, and he likes his, and gets great efficiency...In fact at the time of the interview he had just discovered rice hulls, and had started throwing a handfull or two in with his grain.

I figure if it works out, then I'd save the 200 bucks I would spend on a roller mill for grain, and stuff...


niquejim

Burrowing Owl Brewery
Lifetime Supporter
Joined
Jul 9, 2007
Messages
2,370
Reaction score
60
Location
Cape Coral Florida
once you set the gap with some washers you use the nut in front to tighten the plates together. The wingnut then locks it in position. Play around with it. I was using it for a year or so and getting 60% efficiency. On a whim I tightened the nut up a bit when milling one day. That batch I had 70% efficiency!
Thanks!!!

I got what looked like a decent crush on the batch I brewed with it yesterday and I hot the FG dead on...

WDC, my understanding is that even though it gets trashed a lot by the rolling mill diehards, the corona, prokert and other mills make great beer with some fiddling and tweaking...and like I said earlier I heard an old basic brewing podcast with Charlie Papazian, and he likes his, and gets great efficiency...In fact at the time of the interview he had just discovered rice hulls, and had started throwing a handfull or two in with his grain.

I figure if it works out, then I'd save the 200 bucks I would spend on a roller mill for grain, and stuff...

That's the F'ing with it I was talking about

They come with instructions???:confused:

OP
Revvy

Revvy

Post Hoc Ergo Propter Hoc
Lifetime Supporter
Joined
Dec 11, 2007
Messages
41,296
Reaction score
3,724
Location
"Detroitish" Michigan
That's the F'ing with it I was talking about

They come with instructions???:confused:
I know that's what you were referring to, that's why I'm trying to figure out how to f with mine....:D

um maybe not instructions but a parts list so I don't keep calling that big thing in the front the "wing nut thingamajig."


dontman

Well-Known Member
Joined
Oct 11, 2008
Messages
2,401
Reaction score
33
Location
Philly, PA
Thanks for the tip about the washers. I have been adjusting the mill several times over the course of the grinding. This sounds like just the fix. I was already planning on hitting the True Value tomorrow to get the drill fittings to go power on the mill.

I ground up 10 lbs yesterday by hand. While I was doing it I decided that it was the last time.

OP
Revvy

Revvy

Post Hoc Ergo Propter Hoc
Lifetime Supporter
Joined
Dec 11, 2007
Messages
41,296
Reaction score
3,724
Location
"Detroitish" Michigan
Thanks for the tip about the washers. I have been adjusting the mill several times over the course of the grinding. This sounds like just the fix. I was already planning on hitting the True Value tomorrow to get the drill fittings to go power on the mill.

I ground up 10 lbs yesterday by hand. While I was doing it I decided that it was the last time.
There's a couple of threads on here that they recommended the washers...or even little nylon spacers...

Wow cranking 10 pounds..I dub thee arms of steel!


pen25

Well-Known Member
Joined
Jun 29, 2008
Messages
973
Reaction score
4
Location
tulsa, ok
have you guys thought about mic the washers to find the proper spacing? granted more involved such as plate ware and all but might be a good start for people. maybe even looking at using spacer shims for better settings? look on mcmaster carr for shim stock.


boo boo

Well-Known Member
Joined
Jun 6, 2005
Messages
4,164
Reaction score
46
Location
Hearts's Delight, Newfoundland
have you guys thought about mic the washers to find the proper spacing? granted more involved such as plate ware and all but might be a good start for people. maybe even looking at using spacer shims for better settings? look on mcmaster carr for shim stock.

Although I put them on mine years ago on advise from another site, I doubt if I really need it because the mill is adjustable by the screw through the wing nut. But as mine is set to a good crush for me, I don't want to fart with it.


wilserbrewer

BIAB Expert Tailor
HBT Sponsor
Joined
May 25, 2007
Messages
11,261
Reaction score
2,840
Location
New Jersey
Corona Mill Bucket Mount V. 1.0

I like my mill mounted permanently to the bucket. Once the grain is milled, remove hopper and drill,
and dump the grain out the front of the bucket. A small scrap of 2X4and six drywall screws are all
that's required.




wilserbrewer BIAB Bags, Hop Bags and Ratchet Pulleys for sale
Expert tailor and supplier of custom sized, top quality BIAB bags, hop bags and ratchet pulleys at reasonable pricing

http://biabbags.webs.com/


Yooper

Ale's What Cures You!
Staff member
Admin
Mod
Lifetime Supporter
Joined
Jun 4, 2006
Messages
74,903
Reaction score
12,756
Location
UP/Snowbird in Florida
Wow- that's looking good Revvy. I'm glad that you have found a use for the corona mill. My barley crusher works great- I ran some grain though it to see how the crush was with the factory settings, but I haven't brewed yet. I'm hoping to on Wednesday this week.

My crushing station is uglier than yours- but I do have a nice shiny BC sitting on a bucket. I'll try to take a picture when I crush on Tuesday night.


bradsul

Flyfisherman/brewer
Lifetime Supporter
Joined
Sep 12, 2006
Messages
4,889
Reaction score
42
Location
Ontario, Canada
I don't use them anymore, but my porkert was what got me started into AG brewing and I loved it. I only moved to a monster mill because I fell into a nice motor and some birthday money. Here is my ugly junk setup!



Here it is upgraded to control some of the mess, as you can see it still got covered in dust so I ended up throwing a garbage bag over the entire works so I could avoid having to wear a respirator. :D


OP
Revvy

Revvy

Post Hoc Ergo Propter Hoc
Lifetime Supporter
Joined
Dec 11, 2007
Messages
41,296
Reaction score
3,724
Location
"Detroitish" Michigan
I don't use them anymore, but my porkert was what got me started into AG brewing and I loved it. I only moved to a monster mill because I fell into a nice motor and some birthday money. Here is my ugly junk setup!



Here it is upgraded to control some of the mess, as you can see it still got covered in dust so I ended up throwing a garbage bag over the entire works so I could avoid having to wear a respirator. :D


Yeah Brad, you're was one of the first setups I found when I was searching for info on it....Your and booboos, and the guy that has a page on tweaking croronas off site.

OP
Revvy

Revvy

Post Hoc Ergo Propter Hoc
Lifetime Supporter
Joined
Dec 11, 2007
Messages
41,296
Reaction score
3,724
Location
"Detroitish" Michigan
Do any of you have pictures of the gap in your plates? All the picts I've seen shows the blast shield on...nothing with the gap in the grinding plate.


Otis The Drunk

Well-Known Member
Joined
Jun 2, 2007
Messages
172
Reaction score
1
Location
Texas Panhandle
How do you use yours? Yesterday was the first time I used mine and knew half way through the grain, that I needed to rig something a little more stable up...hence the...oh geez, I need to name it or something don't I?
I have mine clamped to a piece of steel and grind into a bucket with a garbage bag over the whole thing so that I don't lose any grain. I use a 5 gallon plastic water bottle with the bottom cut out as a hopper and a 1/2 inch chuck drill... (I have burned up a couple of 3/8 chucked drills to the point of smoking)

As far as my grind, I grind 1/3 granules, 1/3 husk, 1/3 flour.
I Batch sparge (because I am basically lazy) but I sparge painfully slow (2 hours).

As far as a name for your creation, Looks like a Choo - Choo to me.... Run with it.


wilserbrewer

BIAB Expert Tailor
HBT Sponsor
Joined
May 25, 2007
Messages
11,261
Reaction score
2,840
Location
New Jersey
Revvy,

The way my mill is adjusted, the gap in the grinding plates is almost nill, maybe the width of a credit card. Running the milll empty at the end of a run, the plates will actually clack together intermittantly. I believe some of the crushed grain actually exits via the grooves b/w the plates??


rod

beer -just brew it
Joined
Dec 17, 2005
Messages
1,213
Reaction score
5
Location
brantford,ontario
i just tighten mine until i don't see any uncrushed grains then back off 1/4 turn.
i usually get into the 80's for effeciency.
30 minutes grinding each brew day by hand is good excercise for my bad rotator cuff


niquejim

Burrowing Owl Brewery
Lifetime Supporter
Joined
Jul 9, 2007
Messages
2,370
Reaction score
60
Location
Cape Coral Florida
Wow- that's looking good Revvy. I'm glad that you have found a use for the corona mill. My barley crusher works great- I ran some grain though it to see how the crush was with the factory settings, but I haven't brewed yet. I'm hoping to on Wednesday this week.

My crushing station is uglier than yours- but I do have a nice shiny BC sitting on a bucket. I'll try to take a picture when I crush on Tuesday night.

Why didn't you try to use it Yoop?
I get it, you must be one of those "rich city folk";)

I thought about getting a roller mill, but with 83% efficiency why change
