My Stirplate... Cheap and Easy Build...

Homebrew Talk - Beer, Wine, Mead, & Cider Brewing Discussion Forum

Help Support Homebrew Talk:

bobz

Member
Joined
Jul 24, 2008
Messages
21
Reaction score
0
Location
Lakewood
The stir plate should be loosely covered for air movement. I use a aquarium pump to provide oxygen to the propagation process inside the flask covered with a sandwich baggy.
Bad things fall don't crawl up. I try to stay under the crabtree effect. There is a great deal of understanding to be acquired. Google aerobic yeast propagation.
bobz


Kayos

Well-Known Member
Joined
Dec 27, 2006
Messages
1,364
Reaction score
8
Location
Santa Clarita
Sorry, new to this...What do you do when it starts offgassing(sp?) Co2?
It needs O2 - that's the point of the stirplate, O2 exchange and suspension. Just cover loosely with some foil (preferably sanitized - just spray some on) and let it do it's thing.


StoneFan

Member
Joined
Nov 2, 2008
Messages
24
Reaction score
0
So I stopped by radio shack today and picked up this guy:

http://www.radioshack.com/product/index.jsp?productId=3012598

I got it to turn off and on by the push button......but I don't have any control over speed

I wired it up basically like a regular pot. The two tabs on top didn't do anything with my continuity tester. The middle of the three seemed to be the constant. The outer two toggled with the pushbutton.

Any ideas?


cms

Well-Known Member
Joined
Jan 26, 2011
Messages
169
Reaction score
2
Location
Lees Summit
Just saw a youtube video this morning and felt inspired. Made this while my kids were napping...


(https://picasaweb.google.com/lh/photo/UHIbmBqL90YohizqQMLjOXgWzBLAmVYM23lJu_h_3KY?feat=directlink)
The box and the fan came out of an old Shuttle PC that was in the trunk of my car for the last year waiting to be recycled. I had a dead hard drive that I yanked the magnet from. I had a spare on/off button from a previous project. The DC9V power adapter was from a box of old adapters (I'm a pack rat for that sort of stuff) - I think it used to be for an answering machine. The magnet is nearly flush with the top of the case so I could either shim between the fan and the tabs on the box to lower it, or (what I'll end up doing) get some rubber pads for each screw location so the vessel I'm stirring will be less likely to slide around.

I didn't bother balancing the washer (eyeballed and CA glued to the fan blade) since I figured I could just balance the magnet later. I would do that differently next time since the magnet sort of self-centers on the washer. In the end, I was able to balance it reasonably well in a few tries.

I don't have a flask or stir bar to test it out with but I figure it will work pretty well. If I need to add a pot for speed control, then I will probably have to buy one. I also have another power adapter in my box that is one of those universal numbers. So I could use the voltage settings as the speed control.

Total cost: Free!


Daniel82

Well-Known Member
Joined
Aug 23, 2010
Messages
64
Reaction score
0
Location
Hattiesburg, MS
I've used a 5.7v, 10v, and 12v power supply to see which one works the best. The 5.7v works but only gets a inch dimple or so for a vortex. The 12v throws the bar immediately. The 10v spins for a few seconds before it throws the bar.

The bar is 2 x 3/8. I think its probably too large but its the only one I have and they are expensive since the shipping on them is alot and I don't want to pay another $17 to see if it fixes the problem.

Any suggestions on what to do to perhaps make the 10v work or should I just settle on the 5.7v.


TripleHopped

Well-Known Member
Lifetime Supporter
Joined
Aug 26, 2009
Messages
277
Reaction score
25
I've used a 5.7v, 10v, and 12v power supply to see which one works the best. The 5.7v works but only gets a inch dimple or so for a vortex. The 12v throws the bar immediately. The 10v spins for a few seconds before it throws the bar.

The bar is 2 x 3/8. I think its probably too large but its the only one I have and they are expensive since the shipping on them is alot and I don't want to pay another $17 to see if it fixes the problem.

Any suggestions on what to do to perhaps make the 10v work or should I just settle on the 5.7v.
Use the 5.7v. All you need is the yeast to stay up in suspension.


butler1244

Well-Known Member
Joined
Jan 18, 2011
Messages
63
Reaction score
0
Ok I will the vortex just looks so cool though
I thought the same thing and didn't want to settle for the 9v since the vortex harldly came down an inch. I just stacked two hard drive magnets and went with a 12v...the vortex hits bottom now


Flomaster

Well-Known Member
Joined
Nov 5, 2010
Messages
2,084
Reaction score
38
Location
Orange
throwing bar = weak magnets, double or triple those bad boys up

-=Jason=-


Snafu

Well-Known Member
Joined
Apr 9, 2009
Messages
906
Reaction score
23
Location
Richmond, VA
I've used a 5.7v, 10v, and 12v power supply to see which one works the best. The 5.7v works but only gets a inch dimple or so for a vortex. The 12v throws the bar immediately. The 10v spins for a few seconds before it throws the bar.

The bar is 2 x 3/8. I think its probably too large but its the only one I have and they are expensive since the shipping on them is alot and I don't want to pay another $17 to see if it fixes the problem.

Any suggestions on what to do to perhaps make the 10v work or should I just settle on the 5.7v.
You can also check the yellow pages for local lab supply shops, I found one right around the corner from my office (they typically don't advertise) and paid 2 bucks each. I've asked for a catalog to see what else they have. :D


camiller

Well-Known Member
Joined
Apr 12, 2007
Messages
1,907
Reaction score
50
Location
Omaha, NE
throwing bar = weak magnets, double or triple those bad boys up

-=Jason=-
Could also mean that the magnets are not quite lined up directly across the center of the fan such that at lower speed the bar doesn't get thrown but at faster speed it does.

Joined
Oct 31, 2010
Messages
2,803
Reaction score
41
Location
Lititz
I've been doing a bit of reading and looking at different designs to build a stir plate and a question comes to mind right away: is there any reason people are not removing the "fins" from the fan to reduce the workload on the motor within the enclosure or is anyone drilling/cutting "exhaust" holes for the air flow to move and keep the circuit board cool for those using an LM317 solution?

OP
Anthony_Lopez

Anthony_Lopez

Well-Known Member
Joined
Mar 2, 2008
Messages
1,534
Reaction score
29
Location
Groton, MA
I've been doing a bit of reading and looking at different designs to build a stir plate and a question comes to mind right away: is there any reason people are not removing the "fins" from the fan to reduce the workload on the motor within the enclosure or is anyone drilling/cutting "exhaust" holes for the air flow to move and keep the circuit board cool for those using an LM317 solution?
You could definitely do either of those, but it's just a matter of effort. I'd prefer to not risk ruining a fan.


FrewBrew

Well-Known Member
Joined
Sep 13, 2005
Messages
265
Reaction score
4
Location
Claymont, DE
So Im sitting around the other day going through my computer closet saying to myself "I bet I could make myself a stir plate out of a fan and some rare earth magnets." Before I bothered planning it out I searched real quick and you went ahead and wrote it all up for me.

Thanks for the great write up, Im stopping by the shack tomorrow!


Homercidal

Licensed Sensual Massage Therapist.
Lifetime Supporter
Joined
Feb 10, 2008
Messages
33,310
Reaction score
5,717
Location
Reed City, MI
throwing bar = weak magnets, double or triple those bad boys up

-=Jason=-
Which is why I have ordered some magnets off ebay, even though I have TONS of the hard drive magnets laying around the house and work.

I got a whole bunch for a few dollars. I'll probably even invest in a PWM circuit to control the speed with. The simple Potentiometer I am currently using works fine, but the PWM is nearly infinitely variable, and only costs a few dollars.


Flomaster

Well-Known Member
Joined
Nov 5, 2010
Messages
2,084
Reaction score
38
Location
Orange
Homercidal said:
Which is why I have ordered some magnets off ebay, even though I have TONS of the hard drive magnets laying around the house and work.

I got a whole bunch for a few dollars. I'll probably even invest in a PWM circuit to control the speed with. The simple Potentiometer I am currently using works fine, but the PWM is nearly infinitely variable, and only costs a few dollars.
I need to look into that PWM option

-= Jason =-


eppo

Well-Known Member
Joined
Apr 24, 2009
Messages
466
Reaction score
5
Hard drive magnets work fine.
Just an FYI, I used to use some cheap ebay stir bar, I lost it and picked up a 1 inch Fisher stir bar. This one is a lot heavier and much stronger! I can't throw it, even at high speed!


Homercidal

Licensed Sensual Massage Therapist.
Lifetime Supporter
Joined
Feb 10, 2008
Messages
33,310
Reaction score
5,717
Location
Reed City, MI
Hard drive magnets work fine.
Just an FYI, I used to use some cheap ebay stir bar, I lost it and picked up a 1 inch Fisher stir bar. This one is a lot heavier and much stronger! I can't throw it, even at high speed!
Yeah, that's what I thought when I built mine, but after several uses, it tends to throw the bar, and it's MUCH easier to line up a couple of round magnets than to find the magnetic center of hard drive magnets.

Well, we'll see anyway. I haven't had time to actually load them up yet, but theoretically it should work much better. And I might buy a larger stir bar and pass my small one down to my buddy...

OP
Anthony_Lopez

Anthony_Lopez

Well-Known Member
Joined
Mar 2, 2008
Messages
1,534
Reaction score
29
Location
Groton, MA
FYI- most commercial stir plates use bar magnets like the ones listed in the original post


Homercidal

Licensed Sensual Massage Therapist.
Lifetime Supporter
Joined
Feb 10, 2008
Messages
33,310
Reaction score
5,717
Location
Reed City, MI
I need to look into that PWM option

-= Jason =-
I bought a Futurekit DC Motor Control Circuit to power my Boil Kettle. The idea was that swapping a resistor allows the timer to work well for powering an SSR connected to the 220V heating element, allowing a precise boil rate on the cheap.

The circuit, as designed, works for controlling 12V DC motor speeds, like those used in computer fans. After I built the circuit (it was not prebuilt, like I thought, but only took 1/2 hour to solder together including getting out the soldering iron and stuff and putting it away again). I tested on a computer fan and the fan smoothly goes from very nearly nothing to full speed. Not like the potentiometer that I stole from some other project, which has a "lowish" setting and a very small range.

it works so well that I'm considering buying a few to save on shipping (The circuit costs less than $8, but the shipping doubles that) and building a few more stirplates, and of course I'll need another one for the BK!

Here is a link to a place selling the kit. There are others selling the same thing:

http://www.bakatronics.com/shop/item.aspx?itemid=383


camiller

Well-Known Member
Joined
Apr 12, 2007
Messages
1,907
Reaction score
50
Location
Omaha, NE
FYI- most commercial stir plates use bar magnets like the ones listed in the original post
Currently the original post points to these at K&J Magnetics, but those are magnetized through the 1/8" thickness such that the large flat faces are the poles. I am thinking that if you really want a bar magnet, this one or this one would be better since they are magnetized along the long axis. Or maybe this one which is flatter.


Schnitzengiggle

Well-Known Member
Joined
Feb 19, 2009
Messages
2,560
Reaction score
40
Location
Tucson
FWIW, K&J Magnetics may not be the cheapest, but they have great service, fast shipping, and quality magnets. I used them when building my stirplate.


Hebby

Active Member
Joined
Feb 24, 2011
Messages
29
Reaction score
2
Location
Torrance
Just finished making this last night. Took about 45 minutes. Used solder and shrink wrap for all the connections. I used a 12V Linksys router power supply. I haven't received my magnets yet but they should be here soon. Thanks for the post it made it easy to put together.


Cranapple

Active Member
Joined
Nov 4, 2010
Messages
40
Reaction score
2
Location
Dover
Thanks a ton Anthony, I built this in my spare time over the last couple of weeks. It was a wicked fun project, as I've been wanting to start learning a little bit about electricity (I'm a mechanical guy) and I was able to do an "electronics" project related to beer! Total cost was $20-$25 (I burned out my first potentiometer and had to buy an extra package of quick disconnects.)

Mine works great, although the 1" stir bar only creates about a 1" deep vortex at full speed (even in a 1/2 gallon growler though). I know that's sufficient for what it needs to do, but I'll probably still switch it out with an 8-12V power supply if I find one for free somewhere.

I'm going to try my first yeast starter this weekend, on my first lager. I hope that's not too much new stuff in one try, lol.

OP
Anthony_Lopez

Anthony_Lopez

Well-Known Member
Joined
Mar 2, 2008
Messages
1,534
Reaction score
29
Location
Groton, MA
Currently the original post points to these at K&J Magnetics, but those are magnetized through the 1/8" thickness such that the large flat faces are the poles. I am thinking that if you really want a bar magnet, this one or this one would be better since they are magnetized along the long axis. Or maybe this one which is flatter.

I agree. those would work as well. I used the ones listed in the orginal post because I wanted to use a high voltage power supply and have two stacks of magnets. I personally like this one for a long bar application. I'll order a few and see what I get...

Joined
Oct 31, 2010
Messages
2,803
Reaction score
41
Location
Lititz
I just harvested 6 magnets from some hard drives on the way to be destroyed at work and it got me thinking when I was stripping these down to the bare chassis - is anyone using the motor from the drive that spins the platter?

OP
Anthony_Lopez

Anthony_Lopez

Well-Known Member
Joined
Mar 2, 2008
Messages
1,534
Reaction score
29
Location
Groton, MA
I just harvested 6 magnets from some hard drives on the way to be destroyed at work and it got me thinking when I was stripping these down to the bare chassis - is anyone using the motor from the drive that spins the platter?
A few of our electrical engineers and I tried to do that last year and we couldn't figure it out. Granted we only spent 15-20 minutes messing with it. From what I remember, they are only meant for very high RPM with light loads.


weconway

Well-Known Member
Joined
Dec 19, 2010
Messages
49
Reaction score
2
Location
Marietta
This has been on my "to make" list for a while. I've been collecting components for a few weeks.

I wired everything up tonight to make sure it would work. Well I couldn't get the scavenged fan to start turning on its own power, and the vortex it created was a bit weak.

So I dove into the donor scrap PC that gave up the HD magnets, and found this guy:



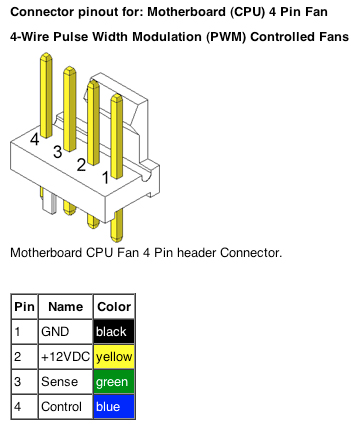

It works awesome now. Sometimes you just need a bigger hammer.

I don't know why I thought that puny fan would work. Now I just need to build the enclosure and wire it up.

William


FrewBrew

Well-Known Member
Joined
Sep 13, 2005
Messages
265
Reaction score
4
Location
Claymont, DE
I built one this weekend using a spare 5.25" fan. It was a bit of a tight fit, but it worked. The tension of the case was enough to hold the fan in place and didn't necessitate any bolts.

Great DIY thread, seems like this would go great in a FAQ.


wegz15

Well-Known Member
Joined
Oct 1, 2009
Messages
599
Reaction score
15
Location
Northbrook
Ok, So I have a question. I just built one of these. I'm using half inch rare earth magnets from the hardware store. I used a pvc coupler to get the magnets off the fan like the fella at stir starters. I don't have a stir bar yet. For now I am tinkering with a 1 inch bolt with the head cut off.

I tried using this with a glass jar and it seems like there is not enough magnet power. Would the magnets get a better grip on an actual stir bar? What am I doing wrong??

OP
Anthony_Lopez

Anthony_Lopez

Well-Known Member
Joined
Mar 2, 2008
Messages
1,534
Reaction score
29
Location
Groton, MA
It depends on the strength of your magnet and the distance between the magnet and the bar. I wouldn't give up on your magnet until you have your stir bar.


camiller

Well-Known Member
Joined
Apr 12, 2007
Messages
1,907
Reaction score
50
Location
Omaha, NE
Ok, So I have a question. I just built one of these. I'm using half inch rare earth magnets from the hardware store. I used a pvc coupler to get the magnets off the fan like the fella at stir starters. I don't have a stir bar yet. For now I am tinkering with a 1 inch bolt with the head cut off.

I tried using this with a glass jar and it seems like there is not enough magnet power. Would the magnets get a better grip on an actual stir bar? What am I doing wrong??
It depends on the strength of your magnet and the distance between the magnet and the bar. I wouldn't give up on your magnet until you have your stir bar.
Yeah, what he said. The stir bar is itself magnetic so the magnets on your stir plate should grip it better than just a bolt.


Cranapple

Active Member
Joined
Nov 4, 2010
Messages
40
Reaction score
2
Location
Dover
I'm not sure if this applies to you or not wegz15, but I had an issue with mine where I actually had my drive magnets TOO close to the top of the box. Mine worked with bolts/solid carbide cutting tools/paperclips, pretty much anything; but only when I put in a 1/2" to 5/8" spacer on top of my project box. The magnet was pulling down so hard that the friction was keeping the items from moving. If I picked up the flask/growler I was testing with, the objects all of a sudden started spinning as the fan motor was able to move.

I found this to be a problem even with my teflon-coated magnet, the forces were just too great and it wouldn't turn. It did work once I put water/wort in the flask, since that lubricated the bottom of the stir bar enough to let it spin.

Hopefully this helps someone else if it doesn't help you.


wegz15

Well-Known Member
Joined
Oct 1, 2009
Messages
599
Reaction score
15
Location
Northbrook
I had water in my mason jar. I didn't want to use my flask with a bolt to avoid scratching. I ordered two stir bars, 1" and 2". I'll have to try giving it more space. Thanks for all the suggestions and feedback


Hebby

Active Member
Joined
Feb 24, 2011
Messages
29
Reaction score
2
Location
Torrance
Just finished mine using the magnets from Ace Hardware previously listed in this post. 6 of them were less than $5. Used a linksys 12V power supply from an old wireless router. 1 inch bar works great 2 gets thrown. Photos are on minimum power. Thanks for the writeup on this.









Flomaster

Well-Known Member
Joined
Nov 5, 2010
Messages
2,084
Reaction score
38
Location
Orange
Hebby said:
Just finished mine using the magnets from Ace Hardware previously listed in this post. 6 of them were less than $5. Used a linksys 12V power supply from an old wireless router. 1 inch bar works great 2 gets thrown. Photos are on minimum power. Thanks for the writeup on this.
How many magnets did you use on each side maybe double up for the two inch bar?

-= jason =-
