My shameless Jester rip-off Keezer build

Homebrew Talk - Beer, Wine, Mead, & Cider Brewing Discussion Forum

Help Support Homebrew Talk:

BigLuke

Well-Known Member
Joined
Feb 25, 2011
Messages
79
Reaction score
5
Location
Chattanooga
First, I would like to thank Jester and everyone else that posted their Keezers to provide the motivation to start with this obsession.

After lurking on here for over a year and reading hundreds of posts for inspiration, I have finally decided to share my work.

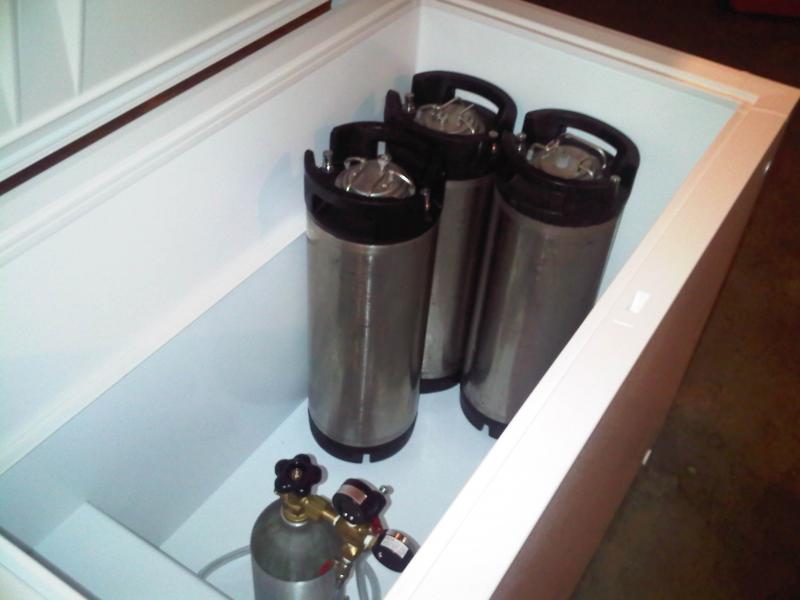

It started life as a 14cf GE chest freezer from Lowes.

With some goodies from various vendors and a manifold found on ebay for a steal, I was on my way.

To help protect the bottom of the freezer I decided to use the 1/2" foam flooring tiles in the bottom. These can be picked up at any sporting goods store for arround $20. You can see the black diamond plate pattern between the kegs and the manifold. As you can see I was opperating with picknick taps while this was under construction.


Attachments

OP
BigLuke

BigLuke

Well-Known Member
Joined
Feb 25, 2011
Messages
79
Reaction score
5
Location
Chattanooga
I started building the cabinet first using red oak. I need to find a good lumber yard before I start my next project as the "big box" stores' selection looked more like propellers than straight lumber. I ended up having to go to 4 differents stores to find all of the materials to use on this project.

I started by building the sides first, then the front.

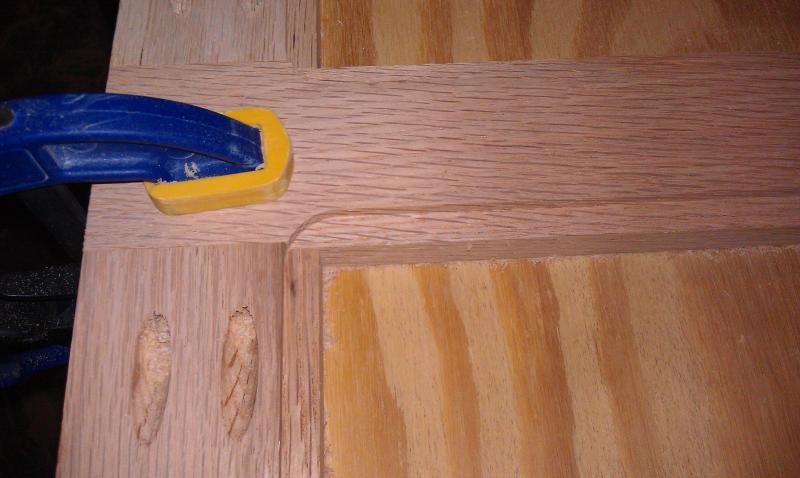

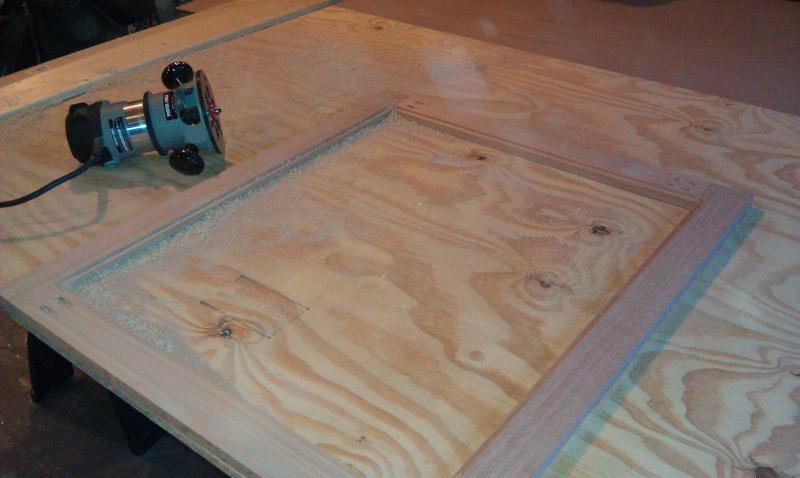

Using a router and a rabbett bit i was able to cut out the recess for the 1/4" oak plywood panels.

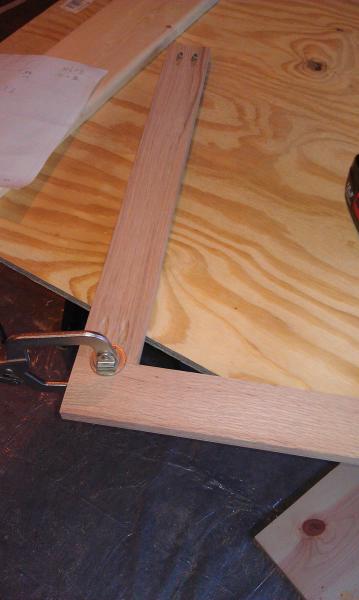

The Kreg Jig really came in handy for this project.

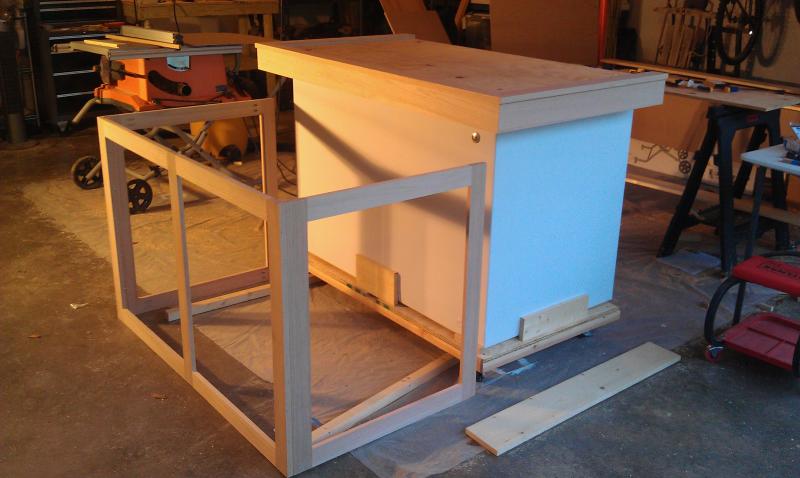

Everything is starting to come together now.

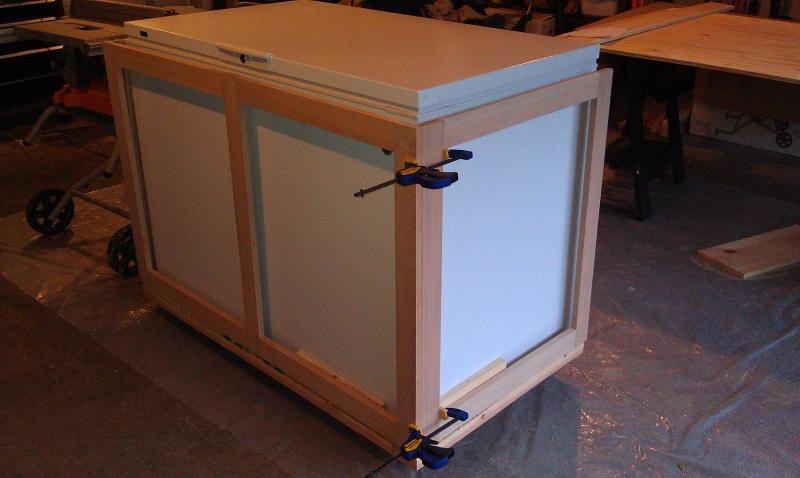

Mocked up with the panel inserts.

OP
BigLuke

BigLuke

Well-Known Member
Joined
Feb 25, 2011
Messages
79
Reaction score
5
Location
Chattanooga
Next I started on the bar top. Like many of the builds on here i also started with 1/2" ply attached with 1/4" bolts and t-nuts.

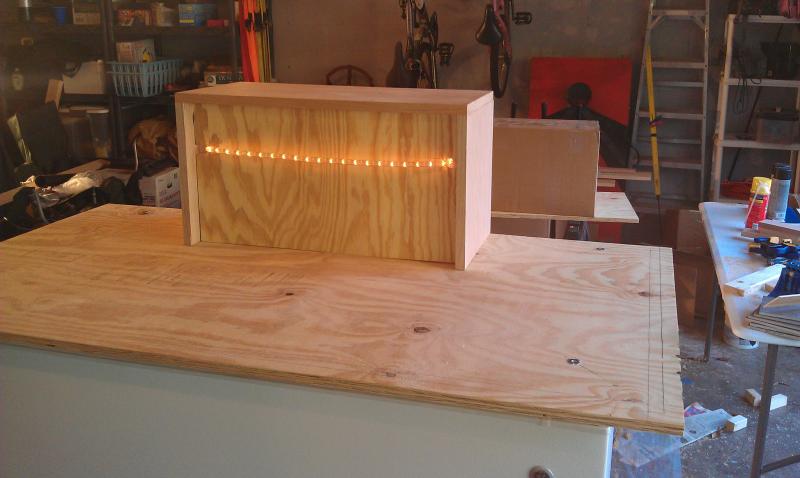

The start of the coffin and lights.

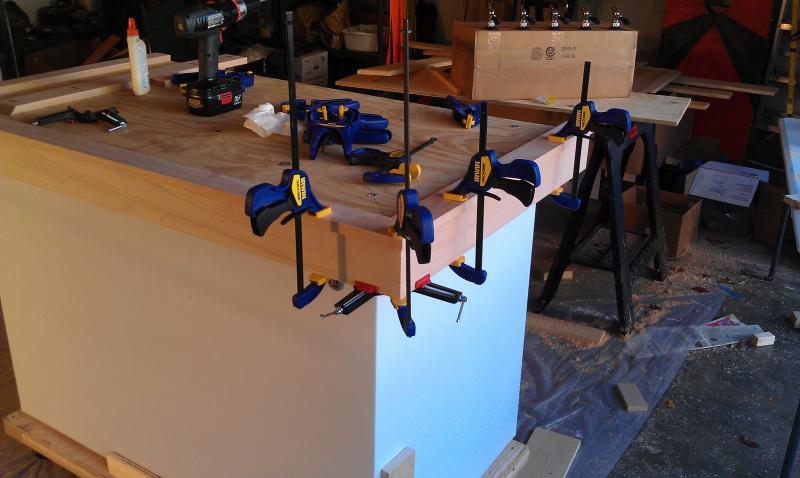

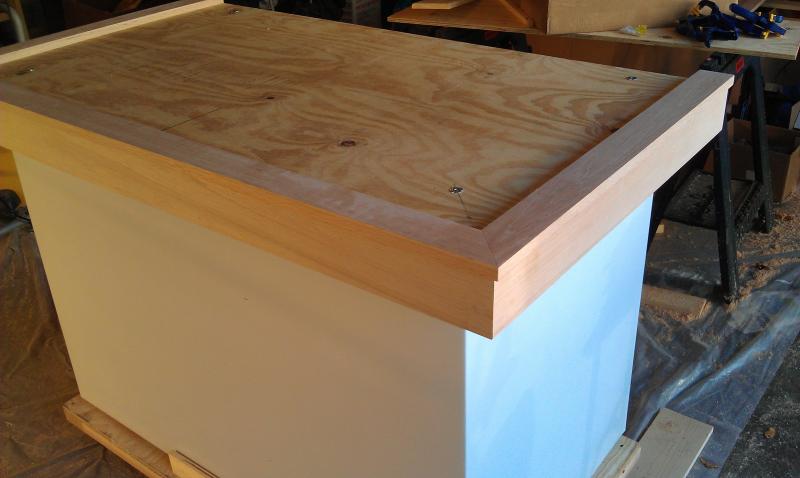

Starting the side rails.

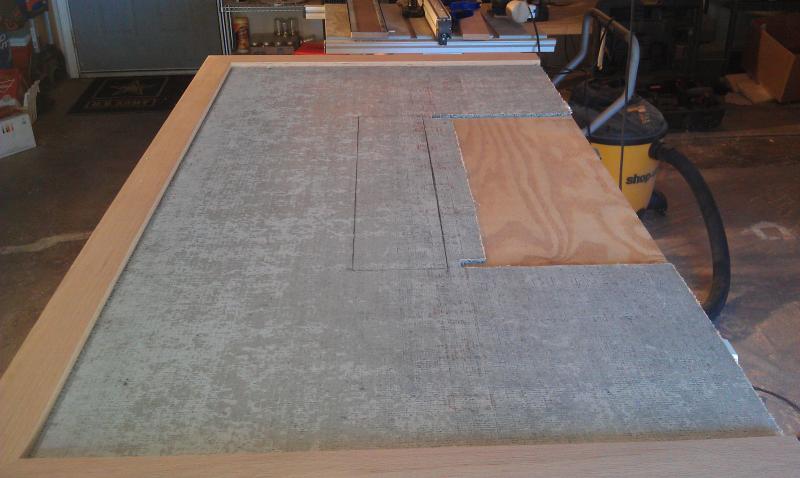

Sizing up the tile.

Attaching the lower boards.

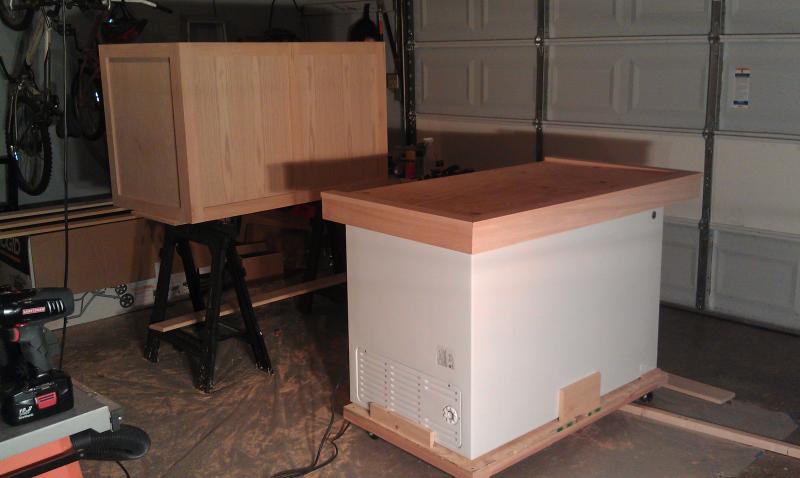

Rails complete.

OP
BigLuke

BigLuke

Well-Known Member
Joined
Feb 25, 2011
Messages
79
Reaction score
5
Location
Chattanooga
With much of the construction complete, it was now time to work on much of the finsih work.

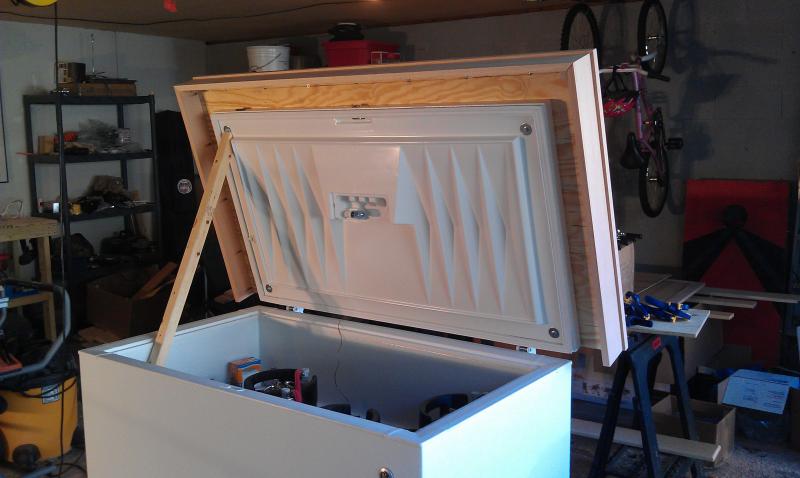

The lid open with its kickstand. Note the pocket holes on the rail skirts.

Next came final assembly of the cabinet.

The cabinet with the inserts installed.

I think SWMBO approves.


BeerG0ggles

Active Member
Joined
May 13, 2011
Messages
39
Reaction score
1
Location
BMFK
Less pictures of the keezer and more pictures of the bike!

Oops, wrong forum

Keezer looks t1ts my man!

Cheers

Sent from my iPad using HB Talk

OP
BigLuke

BigLuke

Well-Known Member
Joined
Feb 25, 2011
Messages
79
Reaction score
5
Location
Chattanooga
Things are really starting to come together.

The cabinet complete and the start of the backerboard.

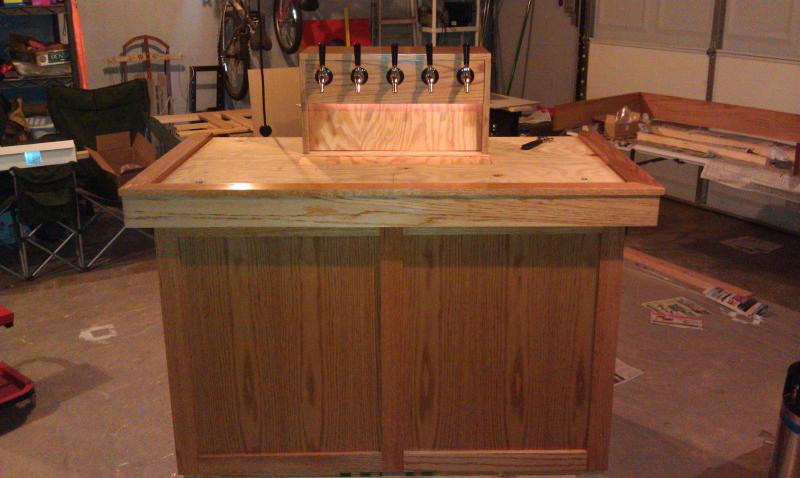

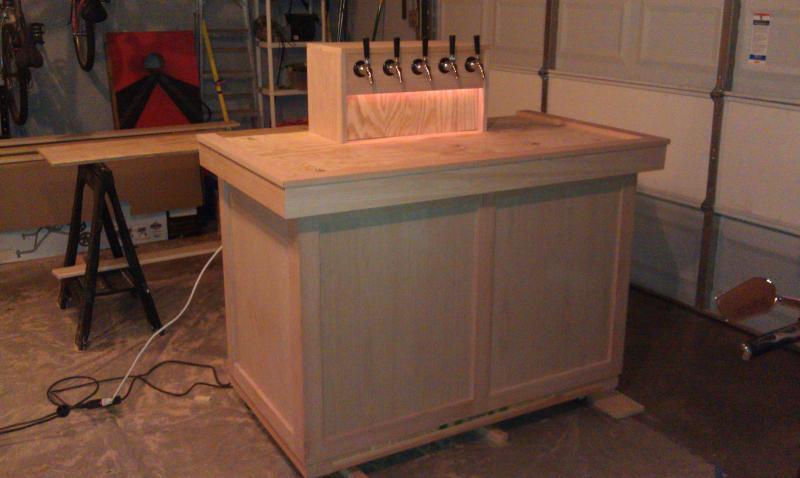

With the tower and taps attached.

Perlicks ready for beer.

Enjoying a homebrew.

Do you think she likes it?

OP
BigLuke

BigLuke

Well-Known Member
Joined
Feb 25, 2011
Messages
79
Reaction score
5
Location
Chattanooga
Using a 5" battery powered skilsaw with an old blade turned backwards made easy work of cutting out the backerboard.

My "detailed" plans.

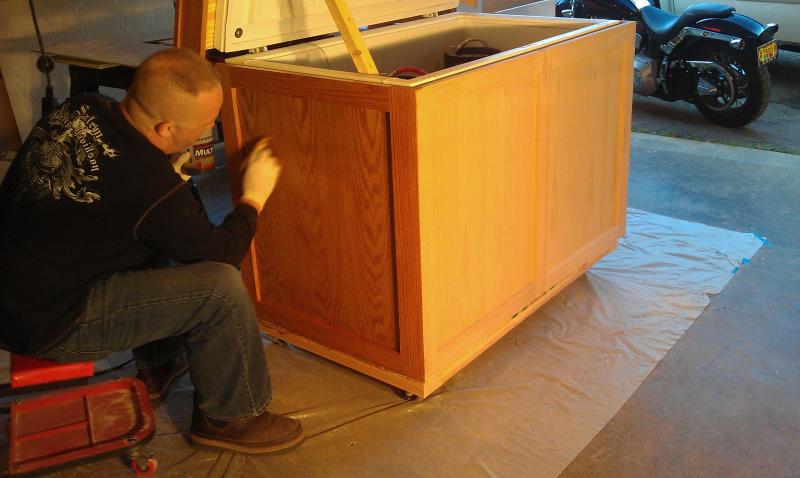

Staining w/ a 50/50 mix of Minwax Golden oak 210B and Neutral 209.

Staining is finished.

After four coats of Minwax Fast Drying Polyurethane Clear Semi-Gloss. If you look closely you can see the area that I routered out to recess the stainless drip tray.

OP
BigLuke

BigLuke

Well-Known Member
Joined
Feb 25, 2011
Messages
79
Reaction score
5
Location
Chattanooga
Now the tiling begins.

The top is nearly balanced, but I still use the prop stick just in case.

The grout is complete.

The finsihed product.

The first pint pulled. Fat Belgian Amber Ale (Fat Tire Clone) Not a minute too soon, I finished this just 5 hours prior to our halloween party.

OP
BigLuke

BigLuke

Well-Known Member
Joined
Feb 25, 2011
Messages
79
Reaction score
5
Location
Chattanooga
I like that you reserved the tap on the right for dispensing water :D
LOL!:D For those who prefer "quantity" over "quality"! Plus, I am not completely comfortable letting others beer bong my homebrew!


EdWort

Well-Known Member
Joined
Jul 14, 2006
Messages
11,895
Reaction score
447
Location
Bee Cave, Texas
Sweet! Imitation is the best form of flattery! Jester must be like a proud Papa!


flyfishnc

Well-Known Member
Joined
Feb 25, 2009
Messages
107
Reaction score
0
Looks sweet! Did you move the hinges of the freezer or leave them in their factory position? Is your coffin insulated in any way?


Eric


kappclark

Well-Known Member
Joined
Sep 2, 2006
Messages
1,590
Reaction score
8
Location
Southern VT
Proud to say I have used that famous keezer of Jester's..and the brew was fabulous.

Your clone is first-rate

OP
BigLuke

BigLuke

Well-Known Member
Joined
Feb 25, 2011
Messages
79
Reaction score
5
Location
Chattanooga
Looks sweet! Did you move the hinges of the freezer or leave them in their factory position? Is your coffin insulated in any way?


Eric
The hinges are in the stock location, although I do have to remove them to get the monster through the doorway! I did insulate the coffin with 3/4" pink foam insulation and am currently building a small 110 fan box to draw cold air from the bottom into the coffin. I haven't decided on wether to have it turn on with the compressor or just manually swithc it on. Either way will be just as easy. I will post more pics once complete.


thrust

Well-Known Member
Joined
Sep 18, 2009
Messages
58
Reaction score
0
Location
state college, pa
What size is your drip tray and where did you purchase it? I'm having a difficult time locating an affordable tray that's also wide enough.

Your keezer looks great!

OP
BigLuke

BigLuke

Well-Known Member
Joined
Feb 25, 2011
Messages
79
Reaction score
5
Location
Chattanooga
thrust,

It is a 24" flush mount version that I found on Amazon. I don't think that they carry it anymore, but I believe that I only paid around $50 for it delivered.

Thanks!


AZOTH99

Well-Known Member
Joined
Dec 19, 2011
Messages
75
Reaction score
1
Location
Hampton


I really like this build, Awesome that you didn't have to mess with building a collar.

Can you show how you ran your lines up to the tap? how are you cooling your lines running up as well?




Toymaker

Arrgh!
Joined
Feb 3, 2012
Messages
147
Reaction score
26
Location
Livonia
Nice Job!!! I didn't know those regulators would work lying down like that..I'll have to remember that for future projects...:)


DuffyBros

Well-Known Member
Joined
Mar 22, 2011
Messages
112
Reaction score
2
Location
Orland Park
I'm halfway thru my build. I have 7 kegs. The problem I'm running into is all the moisture building up is causing mold/mildew. I bought one of the largest wireless dehumidifiers on amazon but didn't notice a difference. Im thinking about adding a fan or possibly a second dehumidifier. Any other suggestions or advice?

I like brewing not scrubbing with bleach lol!

OP
BigLuke

BigLuke

Well-Known Member
Joined
Feb 25, 2011
Messages
79
Reaction score
5
Location
Chattanooga
DuffyBros,

I was having the same problem at first. Then I discovered that there were still air gaps in my coffin. Once I taped and insulated the coffin, I eliminated all of the air gaps, and this virtually eliminated the excess moisture. It used to be so bad that I had to run the wet/dry vac to get rid of all the water. Now it is nearly dry to the touch! I recommend that you track down any air leaks and get them sealed up. I used aluminum tape used in HVAC systems in my coffin then lined it with 2 layers of pink 3/4" insulation. For the access panel I offset the layers in a step pattern to ensure a tight seal. Like I said nearly no moisture at all now. I am very happy!


Fishn-tin-sean

Active Member
Joined
Jan 4, 2014
Messages
28
Reaction score
1
Location
San Jose
Freaking nice build!

I am really digging the one piece lid/cover and not using a collar.

Do you any pics of the hoses being routed/pulled through the lid?
