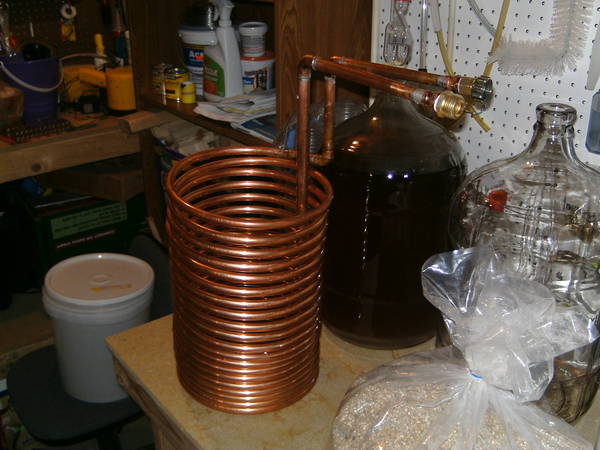

After watching Bobby_M's youtube video, I decided to build my own immersion chiller. I ordered 50' of 1/2" tubing from coppertubingsales.com. $43 shipped, which is a lot cheaper than the big box stores.

I had some 1/2" straight copper pipe left over from finishing my basement, so I picked up some 1/2" to 3/8" reducers to attach to the refrigeration tubing (thanks Bobby_M for the heads-up that refrigeration tubing is measured by O.D., while straight tubing is measured by I.D.).

The only part I had trouble with was trying to solder 5/8" barbed garden hose adapters. I drilled them out to 1/2", but could not get a leak-free connection. After trying to re-solder several times, I gave up on that. Instead, I had some 1/2" threaded adapters that I soldered onto the ends of the tubes and picked up garden hose adapters that fit onto the threaded adapters. These were Watts A-660 (female swivel hose adapter) and A-668 (male hose adapter).

It passed the leak test tonight. I washed it in soap and water and will boil it in a water/vinegar mix tomorrow morning and let it sit for a couple hours. Then, it will be ready for it's first run tomorrow night. Can't wait! :ban:


OP
hughes_brews

hughes_brews

Well-Known Member
Joined
Feb 16, 2008
Messages
88
Reaction score
2
Location
Washington Twp.
No, just a 30 quart turkey fryer for now. It is overkill now, but I am looking to upgrade to 60 quart soon so I can do 10 gallon batches. If I need more height later, I can stretch the coils a little and cut/add to the straight piece.


Jewrican

Well-Known Member
Joined
Aug 24, 2008
Messages
887
Reaction score
8
Location
GA
i just did mine too, but instead of hose adapters I am going to do barbs and pick up a pump (petsmart for 20 bucks :) ) and pump ice cilled water through the chiller.
