My Brutus ten clone build

HomeBrewTalk.com - Beer, Wine, Mead, & Cider Brewing Discussion Community.

Help Support Homebrew Talk:

lotwookie

Member
Joined
Sep 28, 2011
Messages
22
Reaction score
0
Location
Canton
I'm starting to build my brutus ten build inspired by jlandin and Lonnie Mac. Figured that i'd follow suite and add my timeline. If you are looking to build your own system i highly recommend Lonnie Macs build specs from BYO magazine and reading Josh's thread on his build. he has been extremely helpful in this process. Here's his thread Jlandin's brutus build

OP
lotwookie

lotwookie

Member
Joined
Sep 28, 2011
Messages
22
Reaction score
0
Location
Canton
Before... Old keg shell thats been sitting in the basement for years waiting for a project

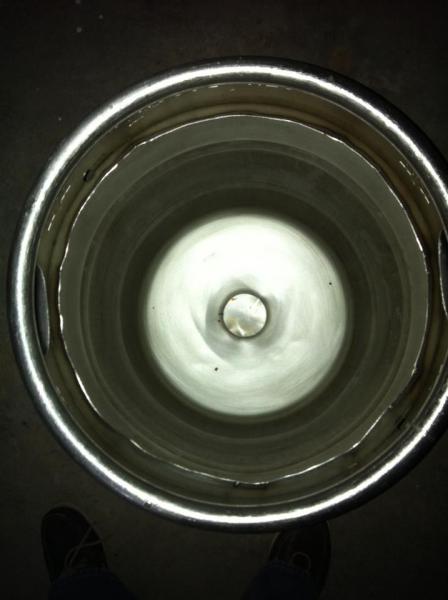

Cut the top off the shell using plasma cutter

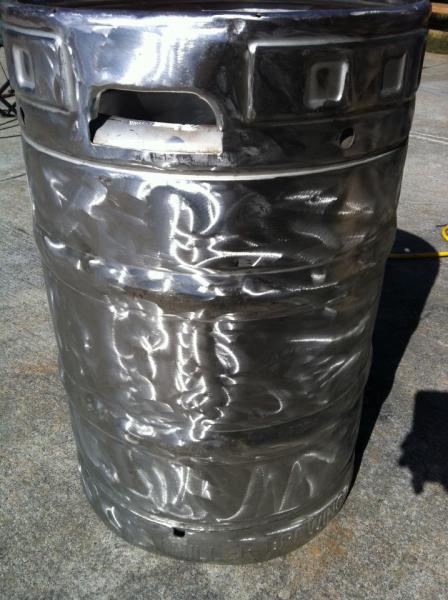

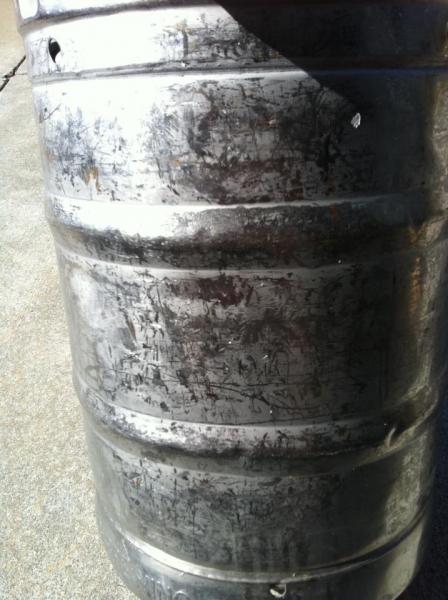

Grinded the shell down to the raw shiny steel. I liked the way the grinded down metal looked so i went ahead and did this to all three shells. The keg shells took about 15 minutes each to cut and grind.






OP
lotwookie

lotwookie

Member
Joined
Sep 28, 2011
Messages
22
Reaction score
0
Location
Canton

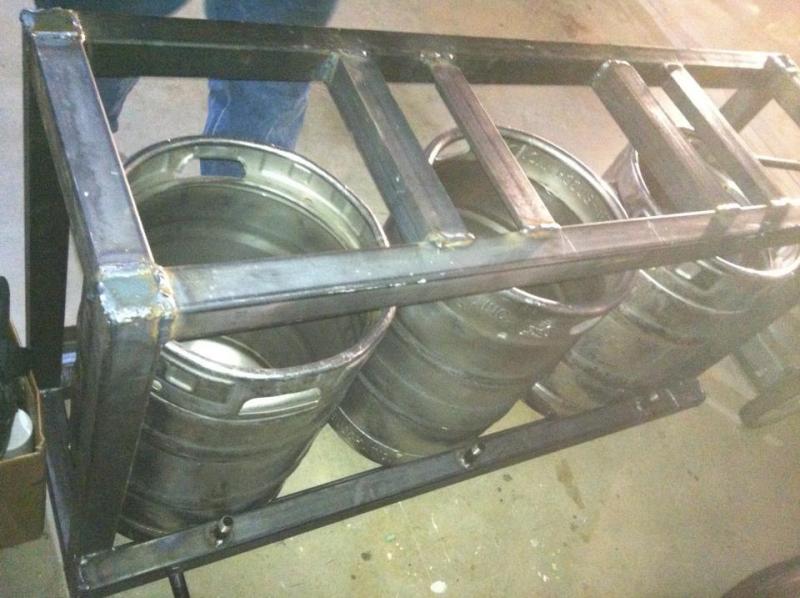

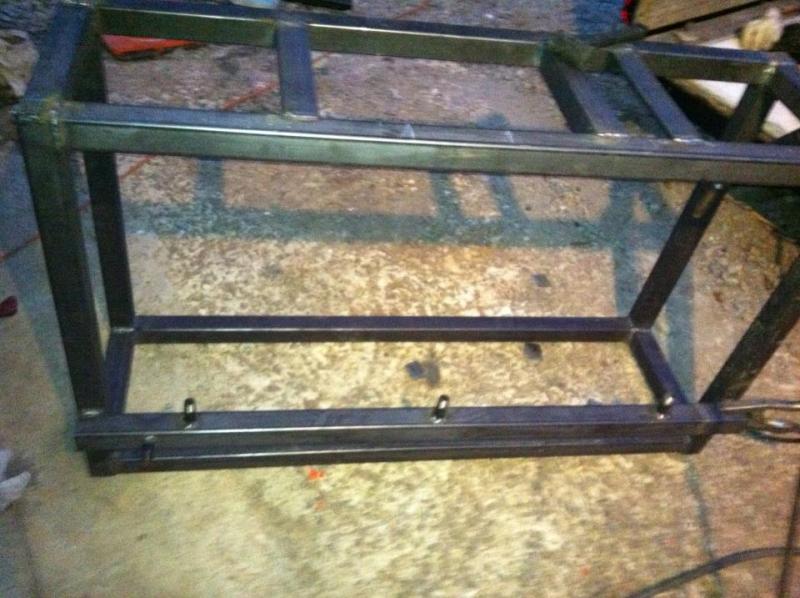

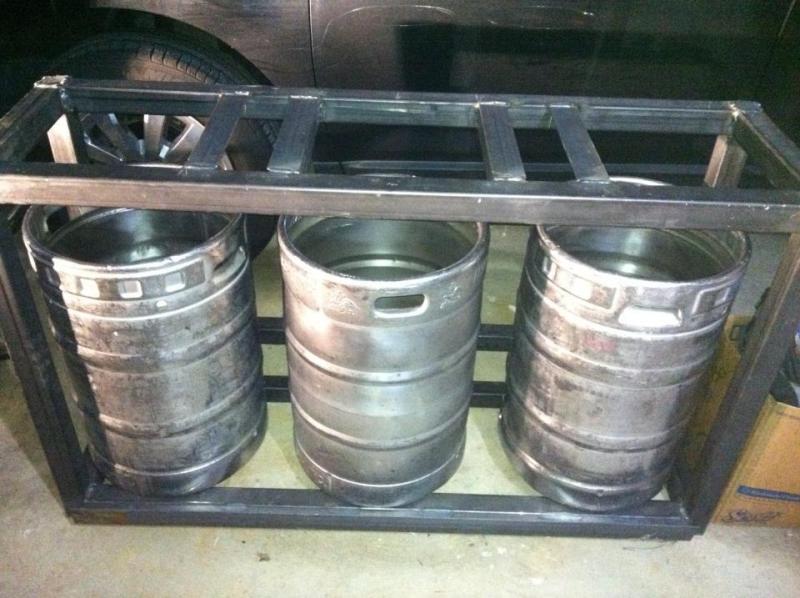

I went with Josh's idea for storage. i liked how it would take up less space.






OP
lotwookie

lotwookie

Member
Joined
Sep 28, 2011
Messages
22
Reaction score
0
Location
Canton

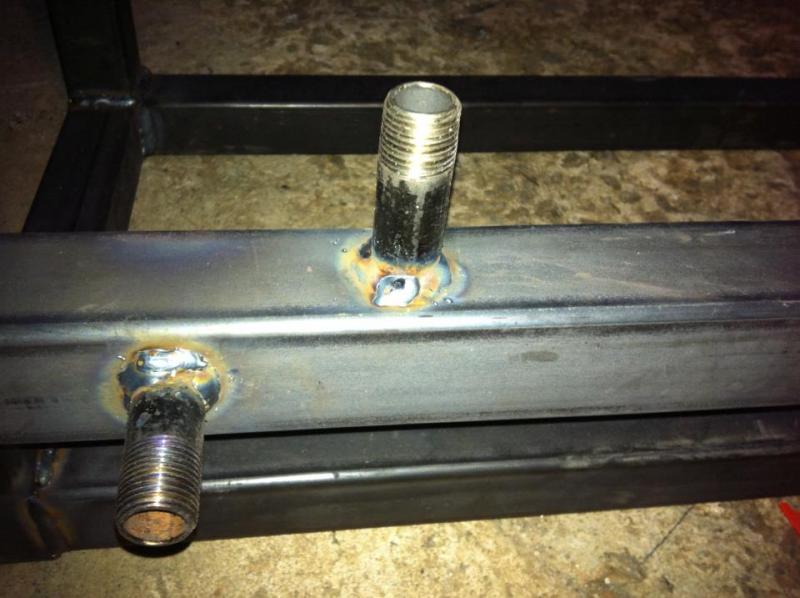

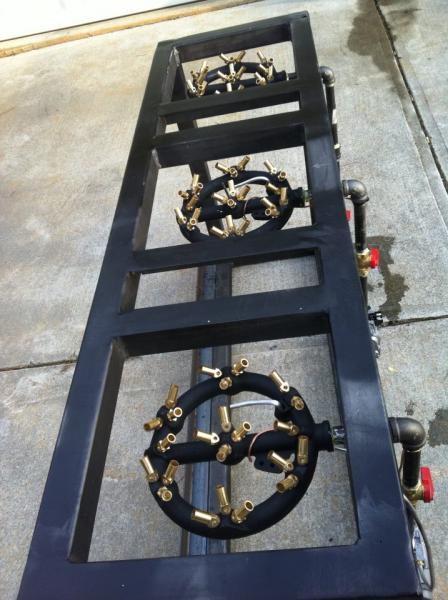

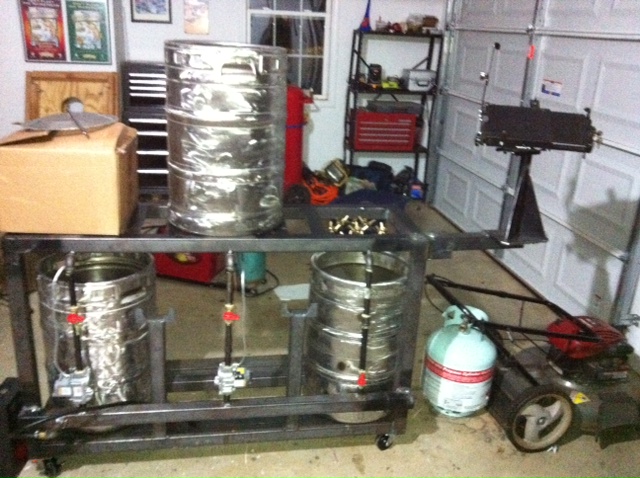

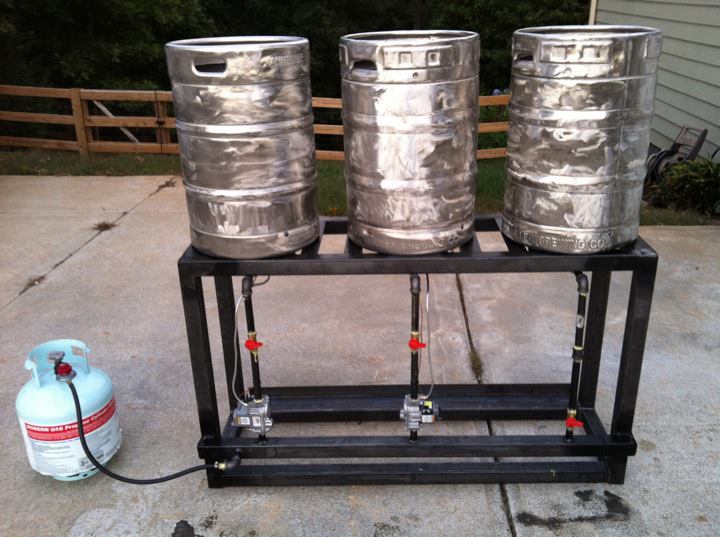

Week 1 1/2 complete. Burners, brew stand, pilot assembly, gas valves.







kh54s10

Supporting Member
HBT Supporter
Joined
Aug 6, 2011
Messages
18,714
Reaction score
5,448
Location
Edgewater

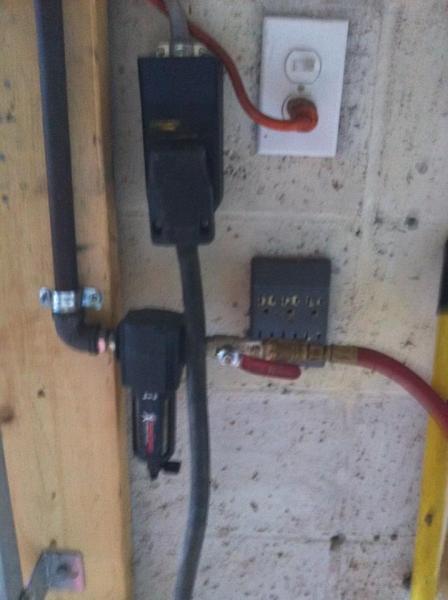

Is that a gas line running right in front of all that electrical??? in the first picture. Looks like a very bad installation to me. Even if it is water right next to those outlets it looks like a disaster waiting to happen. Not to mention against all building codes.

Looking again, I am not familiar with the equipment.. Air??


bluestang50

Well-Known Member
Joined
Jan 24, 2011
Messages
49
Reaction score
2
Location
Cumming
Is that a gas line running right in front of all that electrical??? in the first picture. Looks like a very bad installation to me. Even if it is water right next to those outlets it looks like a disaster waiting to happen. Not to mention against all building codes.

Looking again, I am not familiar with the equipment.. Air??
Looks to be air.

OP
lotwookie

lotwookie

Member
Joined
Sep 28, 2011
Messages
22
Reaction score
0
Location
Canton
Is that a gas line running right in front of all that electrical??? in the first picture. Looks like a very bad installation to me. Even if it is water right next to those outlets it looks like a disaster waiting to happen. Not to mention against all building codes.

Looking again, I am not familiar with the equipment.. Air??
Ha yeah it's an air line. Not my house not my equipment. I assume it's code we live in Georgia and Georgia is known for being backwards.


BryngelBrau

Active Member
Joined
Sep 9, 2010
Messages
27
Reaction score
4
Location
Arlington
Have you test fired the burners? It looks like you have a high pressure regulator attached to low pressure furnace valves.

OP
lotwookie

lotwookie

Member
Joined
Sep 28, 2011
Messages
22
Reaction score
0
Location
Canton
Have you test fired the burners? It looks like you have a high pressure regulator attached to low pressure furnace valves.
I have tested them. Work fine. i need to remove a few of the jets and i plan on going with a totally different regulator. (I jacked that one off my old turkey fryer). Still have to build the control box, have a few spots to touch up welding, and paint.
