I hemmed and hawed on which Bayou Classic to buy; the SQ14 or the SP10. For me, a struggle point was the wind screen or lack thereof. Lots of folks said it was easy to add a windscreen but I'm not always so handy.
But, it's rreeaall easy so I had to post in case someone else out there is wondering about this now.

(The following has been added from my last post in this thread)
I found what is called a "Starting Collar" in the roof venting section of Home Depot. This specific one was 8" and seemed the perfect size in both diameter and height. I think it's a Master Flow SCF8. It has a bunch of tabs which I bent to help get into position. I then used the same tabs to attach it to the bar that the burner is also attached to. I had to drill two holes for attaching this collar and that was the hardest part. Some #8x1/2 sheet metal screws are holding this on perfectly.
A pair of tin snips made quick work of the notching required to go over the burner neck.

More detail on how I attached the SCF8:
Basically, I used a couple of the tabs for attaching the SCF8 to the rails that hold the burner. I think I drilled 1/8" holes if I remember right. The screws were sheet metal so they are pretty forgiving. You will want to drill a hole that is appropriate for the screw size you get no matter what. I uploaded two new pics to further illustrate the attachment.

SCF8 at HomeDepot











Jrod

Well-Known Member
Joined
Sep 30, 2011
Messages
133
Reaction score
4
Location
Florence
I think I have found my next project! Thank you very much for the simple fix.


GNBRennes

Active Member
Joined
Mar 31, 2012
Messages
40
Reaction score
0
Location
Green Bay
what kind of metal is it made of?

I really need something like this since its always windy in my backyard.


discooby

Well-Known Member
Joined
Dec 15, 2010
Messages
356
Reaction score
5
Location
♦ Las Vegas ♦
Is it galvanized? What’s the thickness? Looks like roof flashing for a duct fan…? Have you cooked w/it yet? Looks like melting might be a problem…???


smokewater

Well-Known Member
Joined
Dec 19, 2010
Messages
202
Reaction score
5
Location
Winston Salem
Is it galvanized? What’s the thickness? Looks like roof flashing for a duct fan…? Have you cooked w/it yet? Looks like melting might be a problem…???
Nice idea OP.

I imagine metal duct piping designed for wood stoves or prefab fireplaces would be ideal for this application. My neighbor (who saves bottles for me and has drank lots of my beer) is a certified chimney sweep. May have to hit him up for some scrap chimney pipe.


GNBRennes

Active Member
Joined
Mar 31, 2012
Messages
40
Reaction score
0
Location
Green Bay
While I was up north today at the cabin I saw some metal tubing just like that and grabbed it. Ill see how well it holds up after a couple of brews.


starrfish

Well-Known Member
Joined
Oct 27, 2008
Messages
1,978
Reaction score
36
Location
Florence, SC
I have the same issue with my burner send me A PM I want to make what you did! ( new place shouldn't have wind issue but I want plans anyway!
doing this ASAP!

OP
Nagorg

Nagorg

If a frog had wings...
HBT Supporter
Joined
Dec 19, 2011
Messages
1,875
Reaction score
778
Location
DFW
Thanks for the feedback. I have used it once so far and it worked like a champ. No problems at all brewing outside.

I found what is called a "Starting Collar" in the roof venting section of Home Depot. This specific one was 8" and seemed the perfect size in both diameter and height. I think it's a Master Flow SCF8. It has a bunch of tabs which I bent to help get into position. I then used the same tabs to attach it to the bar that the burner is also attached to. I had to drill two holes for attaching this collar and that was the hardest part. Some #8x1/2 sheet metal screws are holding this on perfectly.
A pair of tin snips made quick work of the notching required to go over the burner neck.

SCF8 at HomeDepot

It is galvanized steel but I don't really think that's of any concern. It hasn't even discolored from my last brew day. If I am not mistaken, you need to be careful welding on galvanized steel because the vapor is harmful. I'm getting nowhere near welding temps during my boil.


Phisher

Member
Joined
Dec 5, 2012
Messages
8
Reaction score
0
I just added my Nagorg windscreen to my SQ 14 tonight and fired her up. Well done, Nagorg!

My first all-grain batch will be brewed tomorrow!



OP
Nagorg

Nagorg

If a frog had wings...
HBT Supporter
Joined
Dec 19, 2011
Messages
1,875
Reaction score
778
Location
DFW
Thanks Phisher, looks like you did a great job with yours. Happy Brewing today!!


Bulls Beers

Well-Known Member
Lifetime Supporter
Joined
Sep 15, 2007
Messages
3,293
Reaction score
176
I hemmed and hawed on which Bayou Classic to buy; the SQ14 or the SP10. For me, a struggle point was the wind screen or lack thereof. Lots of folks said it was easy to add a windscreen but I'm not always so handy.
But, it's rreeaall easy so I had to post in case someone else out there is wondering about this now.

(The following has been added from my last post in this thread)
I found what is called a "Starting Collar" in the roof venting section of Home Depot. This specific one was 8" and seemed the perfect size in both diameter and height. I think it's a Master Flow SCF8. It has a bunch of tabs which I bent to help get into position. I then used the same tabs to attach it to the bar that the burner is also attached to. I had to drill two holes for attaching this collar and that was the hardest part. Some #8x1/2 sheet metal screws are holding this on perfectly.
A pair of tin snips made quick work of the notching required to go over the burner neck.

More detail on how I attached the SCF8:
Basically, I used a couple of the tabs for attaching the SCF8 to the rails that hold the burner. I think I drilled 1/8" holes if I remember right. The screws were sheet metal so they are pretty forgiving. You will want to drill a hole that is appropriate for the screw size you get no matter what. I uploaded two new pics to further illustrate the attachment.

SCF8 at HomeDepot

Look how nice and new that burner looks...Mine looks a hundred years old.
Nice wind screen. I think I'll make one today. I usually just wrap some sheet metal around the whole burner, but that's cool too...


GTaylor

Well-Known Member
Joined
Sep 1, 2011
Messages
199
Reaction score
8
Location
Avon
Did the same thing except used the 10 inch collar instead. Also, if you don't want to have to drill you can set it in the tab side up and have them interlock with the pot supports.

Have used mine on several brews with great success and no problems with the heat melting or warping anything.


Broncobum

Well-Known Member
Joined
Dec 12, 2009
Messages
105
Reaction score
3
Location
Dirty Jerz
If you use the 6" version, it is tight enough you don't even need to screw it down. This is mine I did a while ago with the 6".



davebstock

Well-Known Member
Joined
Jan 15, 2013
Messages
74
Reaction score
8
Have any of you had any issues with the quality of the manifold or the fact it is held on with one bolt? I'm just looking for reassurance that I bought a good burner. Got it yesterday and the manifold looks cheap.

OP
Nagorg

Nagorg

If a frog had wings...
HBT Supporter
Joined
Dec 19, 2011
Messages
1,875
Reaction score
778
Location
DFW
Are you talking about the burner and how it's attached to the frame by one bolt? If so then no, I haven't had any issues at all with that. I'd say you got a good burner if it's a Bayou Classic SQ 14.


Marc77

Well-Known Member
Joined
Jun 13, 2011
Messages
491
Reaction score
78
Location
Kansas City
For those using the starting collar or anyone thinking about using the starting collar I'd advise against it.

It's made of galvanized steel and cooking on that releases toxic chemicals. You may not notice it to much but it can cause health problems.

https://en.wikipedia.org/wiki/Metal_fume_fever

MikeInMKE brought this to my attention and I'm glad he did!


dp_brew

Well-Known Member
Joined
Nov 15, 2012
Messages
49
Reaction score
0
Location
Plymouth
Thanks for info ill be taking mine off for next batch. Switch to alum ill bend a sheet to fit. As shield.


Broncobum

Well-Known Member
Joined
Dec 12, 2009
Messages
105
Reaction score
3
Location
Dirty Jerz
I just did a burn off, much like the one you should do to get rid of the toxic black paint on the burner stand. You can see in my pics the amount of surface rust on my surround. If the galvanized coating were still there, there would be no rust.
I once welded on a piece of galv.metal by mistake, and know what it does to you. Not fun.
I don't see a problem if you do a heavy burn with a pot full of water to disperse the heat horizontally. My ring will glow red if I really get it going. I am not worried, And I certainly don't feel the fume effects drinking my beer.



For those using the starting collar or anyone thinking about using the starting collar I'd advise against it.

It's made of galvanized steel and cooking on that releases toxic chemicals. You may not notice it to much but it can cause health problems.

https://en.wikipedia.org/wiki/Metal_fume_fever

MikeInMKE brought this to my attention and I'm glad he did!


amandabab

Well-Known Member
Joined
Mar 27, 2012
Messages
1,971
Reaction score
245
Location
spokane
For those using the starting collar or anyone thinking about using the starting collar I'd advise against it.

It's made of galvanized steel and cooking on that releases toxic chemicals. You may not notice it to much but it can cause health problems.

https://en.wikipedia.org/wiki/Metal_fume_fever

MikeInMKE brought this to my attention and I'm glad he did!
just fire it hot the first time, exactly like the paint burn-off run, then don't worry about it.

OP
Nagorg

Nagorg

If a frog had wings...
HBT Supporter
Joined
Dec 19, 2011
Messages
1,875
Reaction score
778
Location
DFW
I just woke from a fever and noticed these thread updates.... :p

In all seriousness, I really don't think you have much if anything to worry about related to fumes in this application. I've used mine many times now with no ill effect. I actually did reference the potential for harmful vapor/fumes from galvanized steel in an earlier post. But, to each his own and I certainly don't slight anyone for being concerned about health issues. Mine works great so I thought I'd share the idea.


orangemen5

Well-Known Member
Joined
Sep 26, 2012
Messages
394
Reaction score
28
If your outside your not really breathing many fumes in anyway. I'm never standing over my pot for long when it's boiling anyway. I just check it when it's time to add hop additions. Then I'm off to do something else.


Marc77

Well-Known Member
Joined
Jun 13, 2011
Messages
491
Reaction score
78
Location
Kansas City
If all I need to do is a really high temp burn off then I still might do that. The idea of having a windshield is high and if you burn most to all of the harmful stuff off the first few times anyway then meh.

I do however stand over top of my brew more often than not. Usually followed by an outburst of boil [email protected] you, boil!!!


squash1978

Well-Known Member
Joined
Aug 9, 2008
Messages
98
Reaction score
15
Location
Pittsburgh
Based on another post, I picked up this stainless steel adjustable cake ring from Amazon to use as wind shield:

http://www.amazon.com/dp/B0039A0LYI/?tag=skimlinks_replacement-20

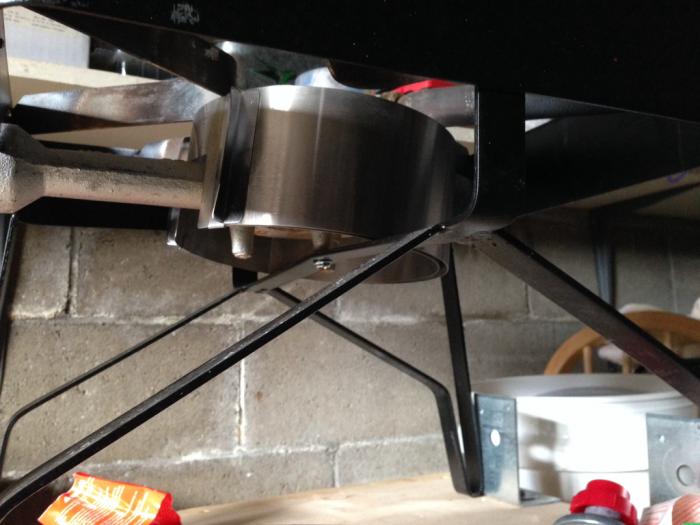

I then cut a notch out of it so that it would fit over the burner and the fit is almost perfect. The height of the ring is about 1/2 inch shorter than the gap under the burner. I cut mine so that it would be flush with the bottom of the stand, so I needed to add some sort of spacer underneath the cake pan so that it sits flush with the bottom of the burner stand. I haven't fired it up yet but I have no reason to believe that it won't work.


Sent from my iPad using Home Brew

ImageUploadedByHome Brew1392430209.020057.jpg


ImageUploadedByHome Brew1392430224.528312.jpg


ImageUploadedByHome Brew1392430239.345992.jpg

Last edited by a moderator:

squash1978

Well-Known Member
Joined
Aug 9, 2008
Messages
98
Reaction score
15
Location
Pittsburgh
I figured out a solution for filling the 1/2 inch gap between my cake ring and the bottom of the frame. If I stack a bunch of washers together they fit in the gap perfectly and prop the cake ring flush up against the top of the frame. I'm going to super glue the washers together and then use a rare earth magnet on the other side of the frame to hold the "spacer" in place. Two of these on either side should keep the cake ring nice and stable.


Sent from my iPad using Home Brew

ImageUploadedByHome Brew1392554723.822309.jpg


RexlerLepp

Member
Joined
Feb 25, 2011
Messages
20
Reaction score
0
Location
Portland
I curious if other people have found success with the cake ring or if they have found other ways to do it.


squash1978

Well-Known Member
Joined
Aug 9, 2008
Messages
98
Reaction score
15
Location
Pittsburgh
Did you read the original post in this thread? It wasn't a cake ring...

I believe Rexler is referring to my post in the thread (#30). I used a stainless steel cake ring to create a wind screen for my burner.

I've been using it for 6 months now and can say that it works perfectly. I haven't had any problems with it at all.


Sent from my iPhone using Home Brew


JSG

New Member
Joined
Sep 5, 2015
Messages
2
Reaction score
0
I know this is an old thread but why not just use stove pipe made for wood heaters. It would be easy to manipulate and cut and they make connectors that would be a similar size to the one at the beginning of this thread.

OP
Nagorg

Nagorg

If a frog had wings...
HBT Supporter
Joined
Dec 19, 2011
Messages
1,875
Reaction score
778
Location
DFW
I know this is an old thread but why not just use stove pipe made for wood heaters. It would be easy to manipulate and cut and they make connectors that would be a similar size to the one at the beginning of this thread.
There are several solutions for adding a windscreen to an SQ14. I started this thread to show what I did for mine and report that it's an easy thing to do. I've had no issues with mine either despite others concern for the galvanized metal.

So, use what works for you and feel free to post your own solution in this thread. That gives others that find their way here several choices for how they want to solve the problem.

  • Like
Reactions: JSG

vallonswayla

Well-Known Member
Joined
Oct 23, 2013
Messages
124
Reaction score
11
I believe Rexler is referring to my post in the thread (#30). I used a stainless steel cake ring to create a wind screen for my burner.

I've been using it for 6 months now and can say that it works perfectly. I haven't had any problems with it at all.


Sent from my iPhone using Home Brew
just wanted to see if you were still using this setup and happy with it. i found another stainless steel cake ring on amazon that was 1/2 inch taller than the one that you used and needed to mod. wonder if it will be flush so no adjustments(washers) would be necessary. will post an update.

here is the cake ring i bought:
https://www.amazon.com/gp/product/B01DNUZHU6/?tag=skimlinks_replacement-20
