I have the monster mill MM2-2.0 and it needs more power and slower speed than most. With gear drive, the torque goes up when speed goes down. I'm sure that is obvious but it means I had to be selective with surplus motors. This mill needs 160-180 inch pounds if you want to crush anything at any gap. Since I only have a motor with 140inlb, it stalls with a lot rye or carapils if I try to crush very fine. I'm running 63 RPM but would go to about 100 or 120 if I could hand pick. Again, a 2" roller runs grain faster than the 1.25 or 1.5" rollers at the same rpm.


jammin

Well-Known Member
Lifetime Supporter
Joined
Jun 19, 2011
Messages
2,968
Reaction score
992
Location
Meridian
^i fought some battles powering my mill as well (mm3 2.0). Pulleys wouldn't cut it.

My reducer is 15:1 which cuts RPM's to 116. It will start with a loaded hopper of whatever I throw at it.


Lumpyyyyy

Well-Known Member
Joined
Jan 12, 2012
Messages
241
Reaction score
6
Location
Windham
I have the monster mill MM2-2.0 and it needs more power and slower speed than most. With gear drive, the torque goes up when speed goes down. I'm sure that is obvious but it means I had to be selective with surplus motors. This mill needs 160-180 inch pounds if you want to crush anything at any gap. Since I only have a motor with 140inlb, it stalls with a lot rye or carapils if I try to crush very fine. I'm running 63 RPM but would go to about 100 or 120 if I could hand pick. Again, a 2" roller runs grain faster than the 1.25 or 1.5" rollers at the same rpm.


At what RPM would you need the 160-180 inch-lbs? My thought was 300 rpm was preferred, but that would require like a 3/4 hp motor which nobody seems to be using here.


Robg773

Well-Known Member
Joined
Jun 19, 2012
Messages
126
Reaction score
13
I've got a MM3-2.0 and I'm using a 1hp 1725rpm motor with an 10:1 reducer with output torque 515in lbs. At approx 172 rpm. I wired my setup with fwd and rev and can cold start with the hopper full.


CaptainDucman

Well-Known Member
Joined
Sep 22, 2011
Messages
63
Reaction score
29
Location
Palm Harbor
Jpicasso, sorry for putting this here, but I couldn't upload the pics in the PM reply.





Want2BS8ed

Well-Known Member
Joined
Feb 23, 2014
Messages
47
Reaction score
12
I've got a MM3-2.0 and I'm using a 1hp 1725rpm motor with an 10:1 reducer with output torque 515in lbs. At approx 172 rpm. I wired my setup with fwd and rev and can cold start with the hopper full.


+1 Same here...

M


alphaomega

Well-Known Member
Joined
Jul 10, 2013
Messages
1,041
Reaction score
461
You win. Close the thread.

How can that be a winner? It is obviously photoshopped.
Sure, I'm a dirty bastard, but there is no way an actual milling station (never mind the house) that is that clean :)
I wouldn't even dare to use that, out of fear of someone coming rushing at me with the vaccum, cursing at me.
JK, that is a very sweet build @drunkenmonk !


Drumminguy81

Well-Known Member
Joined
Jun 19, 2015
Messages
709
Reaction score
248

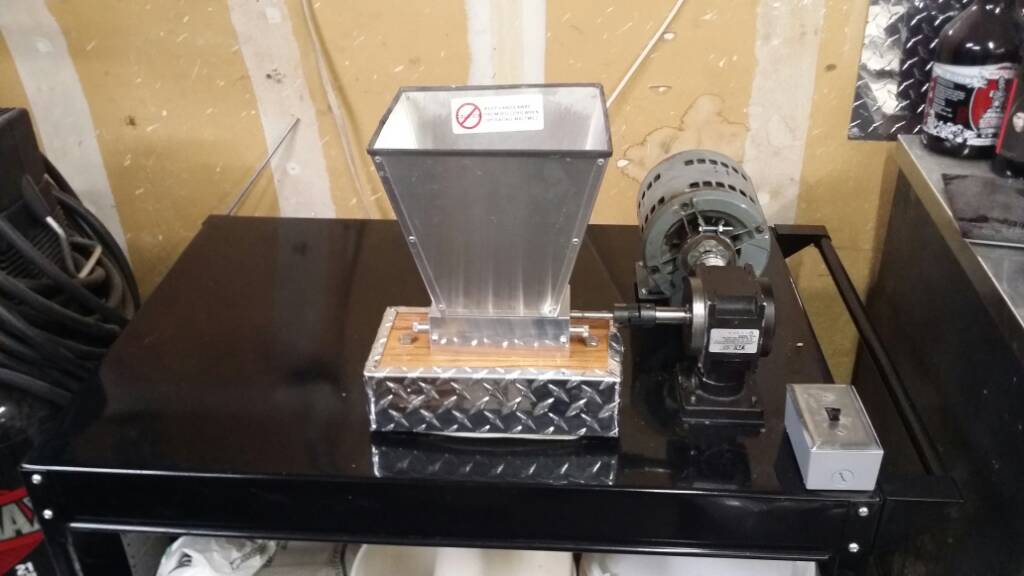

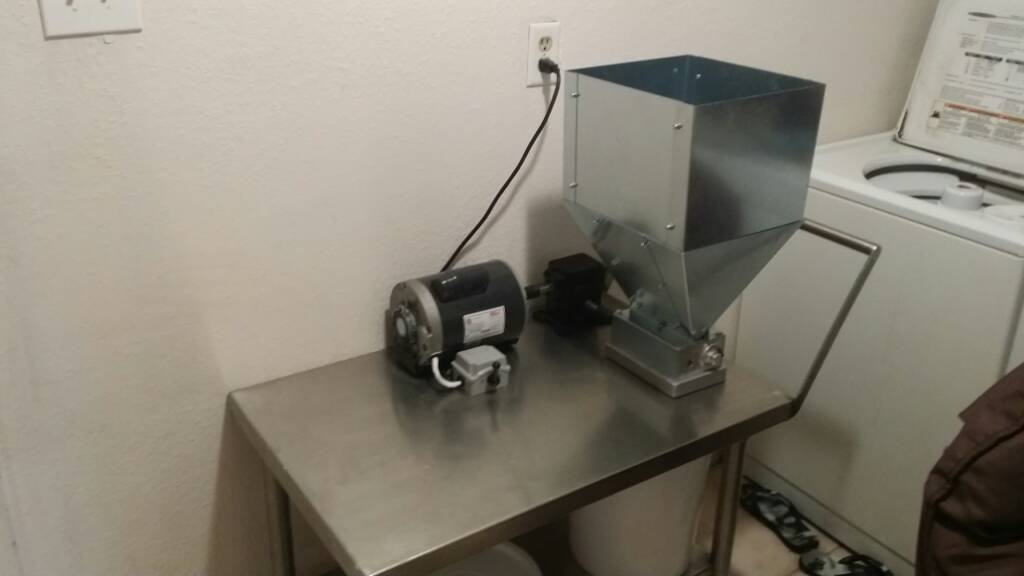

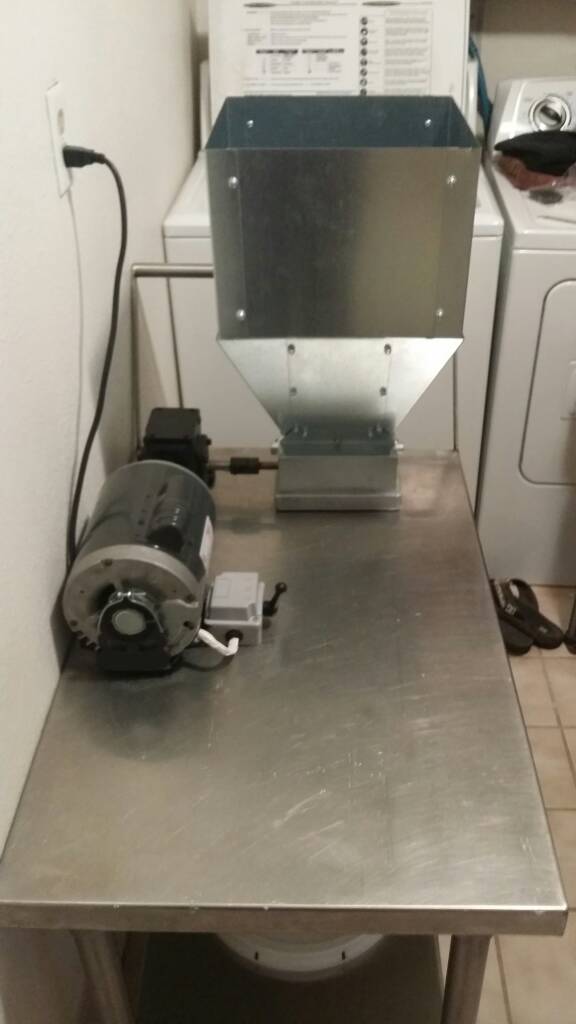

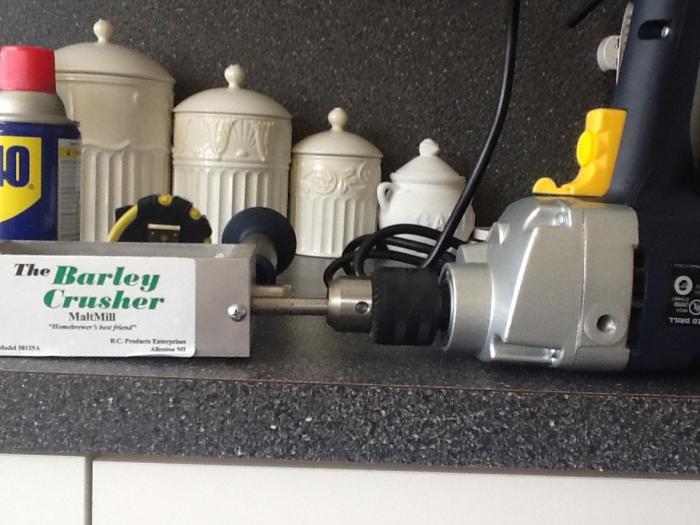

So in the last 7 months I started milling my own grain for the first time. My roommate bought me a barley crusher as a gift to help expand our brewing and with my need to do everything a little over the top right away I wanted to motorize it and build a cart for it. It worked excellent for our 10 gallon batches just powered through the grain but I quickly realized the barley crusher wasn't designed for the amount of brewing we were quickly ramping up to. I then made the decision to upgrade kettles to 30 gallon and knew the little barley crusher would never last. I experimented and it took me over half an hour to mill the 55 lb of grain I needed for a 20 gallon batch. After that I decided to upgrade to a monster mill mm2 pro and build a whole new setup for it to improve on my first design. So enough with the talking here are the pics! The first couple are my first barley crusher mill and second couple are the new monster mill!

View attachment 1453088514509.jpg

View attachment 1453088531821.jpg

View attachment 1453088545258.jpg

View attachment 1453088556552.jpg

View attachment 1453088567978.jpg


beerman70

Member
Joined
Feb 21, 2014
Messages
7
Reaction score
3

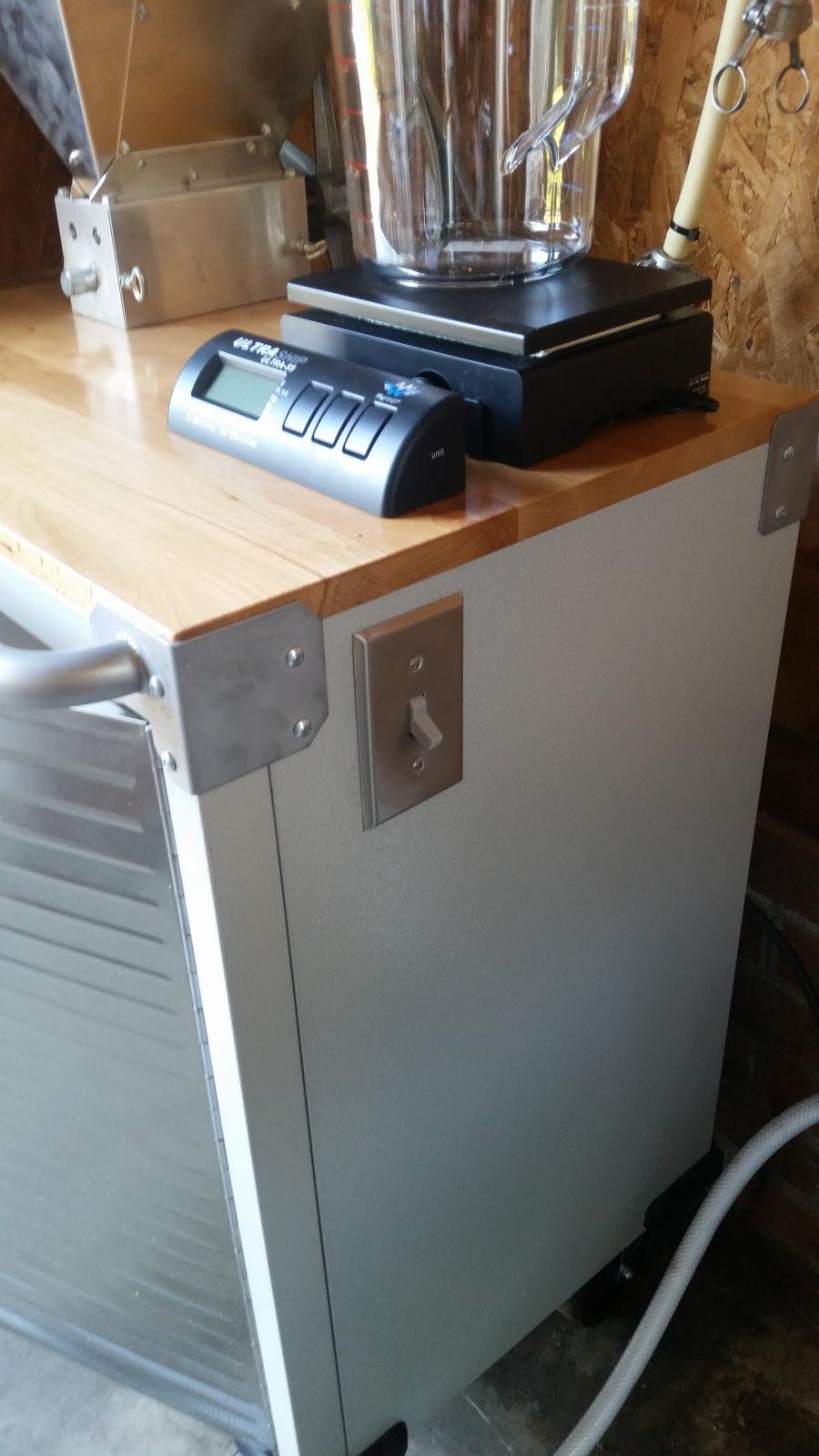

Here is my grain mill build. I didn't want this taking up space when not in use, so I made it multi functional. table- grain mill station- bottle capping station. Made from wood pallets. The motor was an old washing machine motor. I got the sheave specs off a byo magazine website article. IMG_4256.jpg



IMG_4253.jpg The table was an aborted bar stool bench project I did for my keezer.


biertourist

Well-Known Member
Joined
Oct 8, 2012
Messages
884
Reaction score
143
Location
Woodinville
I'm currently in the process of motorizing my Monster MM2 with an American Ale Works Power Grinder and using an Ikea Stenstorp Kitchen Cart as my table.
http://www.ikea.com/us/en/catalog/products/70267473/

The Stenstorp kitchen cart's are available pretty regularly on CL for about half price of new and because of their flat pack construction, you can just lift off the top stainless shelf and remove the front bar so you can easily slide a 5 gallon bucket under your mill. Then you've still got the shiny stainless bottom shelf which looks great in the brewery.

I've seen these carts used on CL from $60 - $120 and I don't know an easier way to get a better looking mill table with a couple of integrated casters, stainless shelf and butcher block top. I haven't seen this done on here yet, but in the next 1 to 2 weeks I hope to be posting my pictures.

My only hiccup so far is just how high up the shaft of the PowerGrinder is off of the surface of the table- I'm having to raise the mill a good 3"; I'm afraid the Chinese supplier may have started providing slightly different motors than the original PowerGrinders because I haven't seen anyone else who's had to create such a huge spacer before. Note: These things appear to be drop-shipped straight from China, so anyone who's good at search criteria on Alibaba can probably find a beast of a motor for a good deal.


Adam


chixxi

Member
Joined
Mar 31, 2015
Messages
15
Reaction score
25
You definitely win the most unique / interesting and probably "most compact" award!

Are those 1" rollers in that mill?? Give us the scoop on the motor you're using, too!


Adam

Thanks.

The rollers in that mill are 70mm, about 2,75 inches. The advantages of such big rollers is that they don't need to be synchroniced by a gear cause the grain gets pulled in very nicely. The disadvantage is that you need quite a powerfull motor.

My motor is an SEW 400 Volts with 0,30 KW with about 150 rpm. It could turn faster since the producer of the mill recomeends up to 300 rpm.

This mill will propably survive longer then me. They are hand made in germany and completly in stainless steel. Amazing customer support if ever something breaks. But as you propably already guessed, not cheap at all.


biertourist

Well-Known Member
Joined
Oct 8, 2012
Messages
884
Reaction score
143
Location
Woodinville
My mill is raised 2 3/4" and my motor is raised 1/4" for a grand total of 2 1/2". Pretty sure mine shipped out of Colorado.

Thanks for posting this Rossi, makes me feel like I'm not all alone on my build. That picture alone gives me so much peace of mind!


72westie

Member
Joined
Mar 12, 2014
Messages
18
Reaction score
0
I ended up getting a Cereal Killer mill for Christmas. I assembled it up and mounted it on a old microwave cabinet that I was going to throw out.




The other day I decided to try and motorize this beast. A friend of mine gave me a motor from a old furnace. I pulled it out and it ended up being a 1/2hp 1050rpm motor. I had a machinist friend make me a bushing to fit the Cereal Killer 10mm shaft with the OD of 1/2" to fit the 9" pulley I bought. I ran a 2" pulley on the motor and ended up with a 1.45 ratio and the large pulley running at 233.3 RPM's. Worked out pretty good, I had most everything I needed laying around the shop. The main expense was the belt and pulleys, about $51.00 from Grainger. Works like a champ! :ban:





biertourist

Well-Known Member
Joined
Oct 8, 2012
Messages
884
Reaction score
143
Location
Woodinville
On a very related subject; What are the best solutions you've seen for keeping dust down?


-Some sort of rail solution that the bucket slides on to?

I'm thinking of just buying a Gamma Seal Lid from Home Depot for about $8 and cutting a mill body-shaped, rectangular hole in the lid and screwing it onto the under side of the top and then screwing a bucket onto the ceiling, but I'm open to any real simple, real effective and real cheap solutions. (Particularly if they're attractive or visibly hidden.)

A full hopper of crushed grain unfortunately doesn't fit into a single 5 gallon bucket so I'd have to buy 2 gamma seal lids and swap buckets 75% of the way through a typical grist or else buy a $30 7 gallon bucket.

Why the @#[email protected]#%@# are 7 gallon buckets like 5x more expensive than 5 gallon buckets?


Adam


Want2BS8ed

Well-Known Member
Joined
Feb 23, 2014
Messages
47
Reaction score
12
A full hopper of crushed grain unfortunately doesn't fit into a single 5 gallon bucket so I'd have to buy 2 gamma seal lids and swap buckets 75% of the way through a typical grist or else buy a $30 7 gallon bucket.

Why the @#[email protected]#%@# are 7 gallon buckets like 5x more expensive than 5 gallon buckets?


Cool idea, but I'm not sure the gamma lid could handle the weight/stress over time.

Also, U.S. Plastics has 10-gallon buckets for less than $10.

M


Stehag

Well-Known Member
Joined
Aug 23, 2012
Messages
46
Reaction score
36
Location
Skane
I used my garden shredder:)

I replaced the crushing wheels against a self-constructed mill wheels.


I tried with a gap of 0.8mm, but had to increase it to 1.5 mm for good results.

It is not fast, but I do not need to stand beside when it grinds.


MrNatural

The Original, beware of imposters.
Joined
Dec 31, 2010
Messages
531
Reaction score
91
Location
Elverta
Mobility is not creating a Monster. :D
Man, that is a sweet stand. Need to check out my scrap stock.

Requirements depends on the mill - the number of rollers, roller diameters and roller length are going to dictate how much power is required to get things started with a full bin of grain.

But, fwiw, my two-roller 1.25" BC mill gets along with a 177 rpm 40 inch-pound gear motor...

Cheers!
Looking to motorize my MM-3, I recently picked up one of these https://www.grainger.com/product/DAYTON-AC-Gearmotor-115-230-Nameplate-1LPW6. (I'll dispense with the sermon on mixing Jameson and EBay) Pic below among other in-progess stuff.

Anyway, I got concerned about using 156 RPM / 77 inlb after seeing all the 1 HP brutes folks are building.
You both have given me hope.:mug:
Another question for everyone. I see a pretty even mix of single multi-pole switches and and separate power/direction switches.
I was leaning toward a toggle for power and rocker for direction and then got thinking I could slam it into reverse under power. Guess you could eff up with single switch too, but wondered about experiences/preferences.

Thanks, Dale



Robg773

Well-Known Member
Joined
Jun 19, 2012
Messages
126
Reaction score
13
The guys at monster recommend 1hp motor for mm3. I wired for reverse because i could and I've heard of mills getting stuck on a rock or hard grain although i haven't experienced it. I used a drum switch so i would only have one switch and also both directions. Believe it arounf $70. Hope that helps.


MrNatural

The Original, beware of imposters.
Joined
Dec 31, 2010
Messages
531
Reaction score
91
Location
Elverta
The guys at monster recommend 1hp motor for mm3. I wired for reverse because i could and I've heard of mills getting stuck on a rock or hard grain although i haven't experienced it. I used a drum switch so i would only have one switch and also both directions. Believe it arounf $70. Hope that helps.
Appreciate the input, it kind of helps. Just hoping the Monster guys advocate overkill to reduce tech support load from folks trying to use automotive power window motors:) Good to know reverse is not a frequent mode.
I'm still on the fence regarding switches, but pretty certain I'm not postured for a $70 model in the event I go with single switch.
Thanks, Dale


Robg773

Well-Known Member
Joined
Jun 19, 2012
Messages
126
Reaction score
13
You could use an on/off light switch. Cheap and efficient. Just depends on your setup.


MrNatural

The Original, beware of imposters.
Joined
Dec 31, 2010
Messages
531
Reaction score
91
Location
Elverta
You could use an on/off light switch. Cheap and efficient. Just depends on your setup.

Definitely an option and already have box of various switches. Really a matter of deciding on my setup :D


bigken462

Well-Known Member
Joined
Oct 24, 2013
Messages
751
Reaction score
166
I just ordered a Monster Mill3 yesterday. Since I will be buying everything to motorize this. Can someone provide the recommended size motor, pulley sizes etc.

Right know, I'm leaning toward pulley drive, but I would like to have the information for a direct drive with gear reduction just to help make a better decision.

I have a old motor off a Craftmans wood lathe laying around somewhere and while it's been several years since I've messed with it, I think it's a standard 1/4hp motor. Not sure if this would work or not.

Initially I was just going to use a drill, but even then I would have to buy it. For just a few bucks more, I could pick up a Harbor Freight motor I think.

Anyway, any suggestions on what I should be looking for would help me out a bunch.

Ken
