Mini Glycol Circulator For Taps. NEED ADVICE!!

HomeBrewTalk.com - Beer, Wine, Mead, & Cider Brewing Discussion Community.

Help Support Homebrew Talk:

RabbitHole

Active Member
Joined
Dec 31, 2017
Messages
35
Reaction score
10
Hey fellas!!
I decided that I was tired of waisting beer pouring straight foam from my warm lines and finally built this little circulator to push cold water through the loop of beer line I pre installed into my taps when I installed them.
Everything is well insulated including the tower. So my thought was I wouldn't need to have the lines freezing cold, because it is such a short run of less than three feet of line to the end of the loop!! so I through this together real quick last night and shoved it in the keezer around 5pm... 12hours later the pressure and return line aren't even remotely cool to touch like the rest of the beer lines in the keezer.
  • So what I think my first problem is the pump is probably creating heat and the water will never get cold enough!!!
  • Second is, I think the beer line is to thick to transfer heat (or in this case coolness) to the other beer lines in the loop.

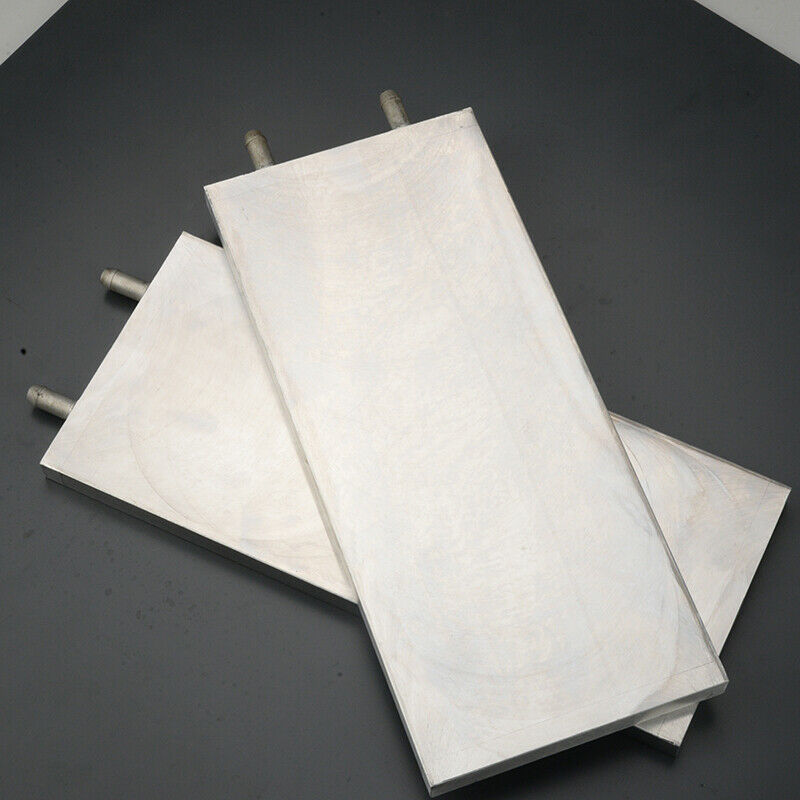

  • I found these large Cooling plates that I could install against the wall of the keezer with heat sink tape. it would probably instantly solve the problem. but they are $50Bucks

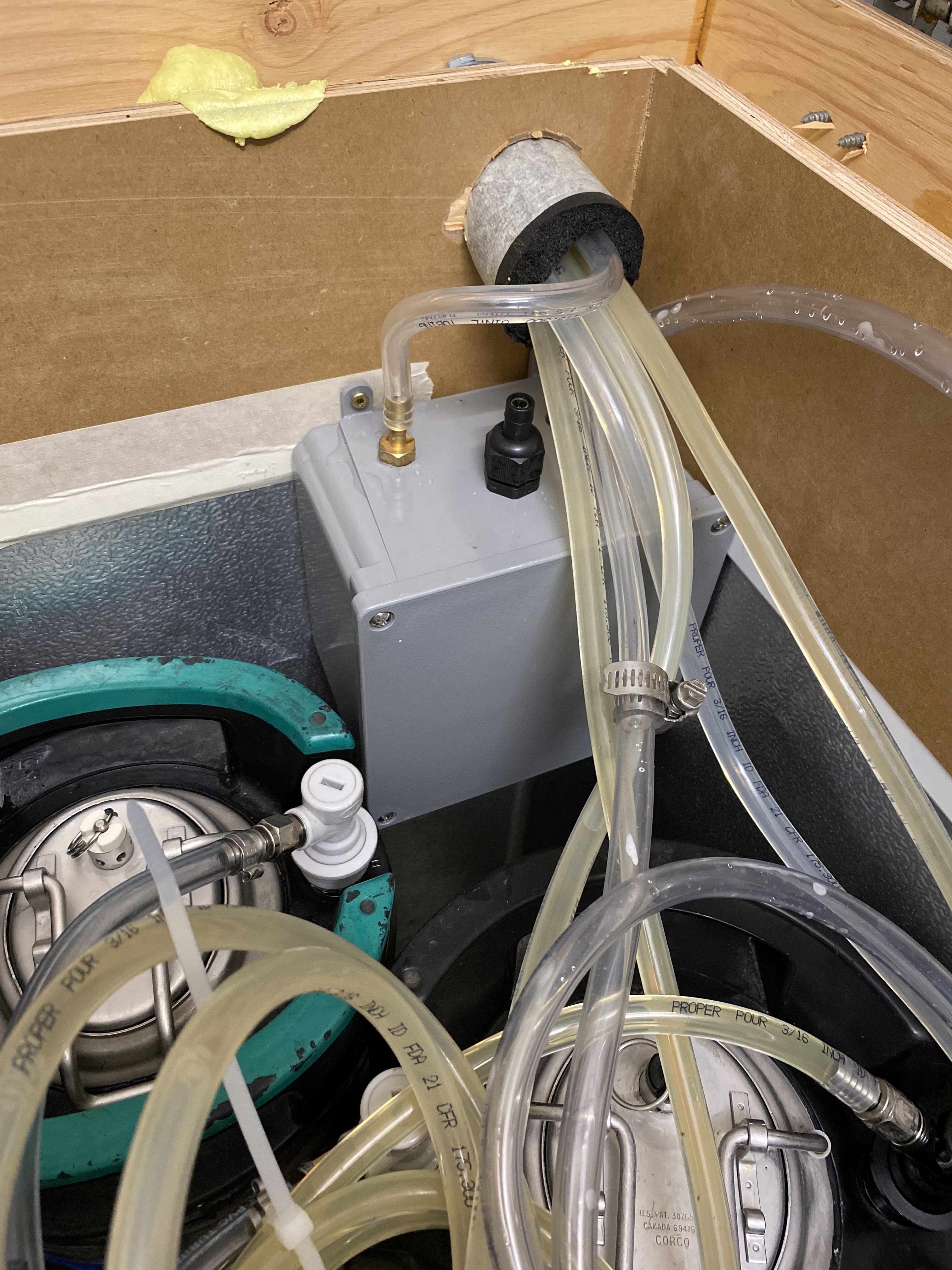

Its just Small Box So thats Part of the problem!!


I think the other problem is that it sits up high where all the heat is!!

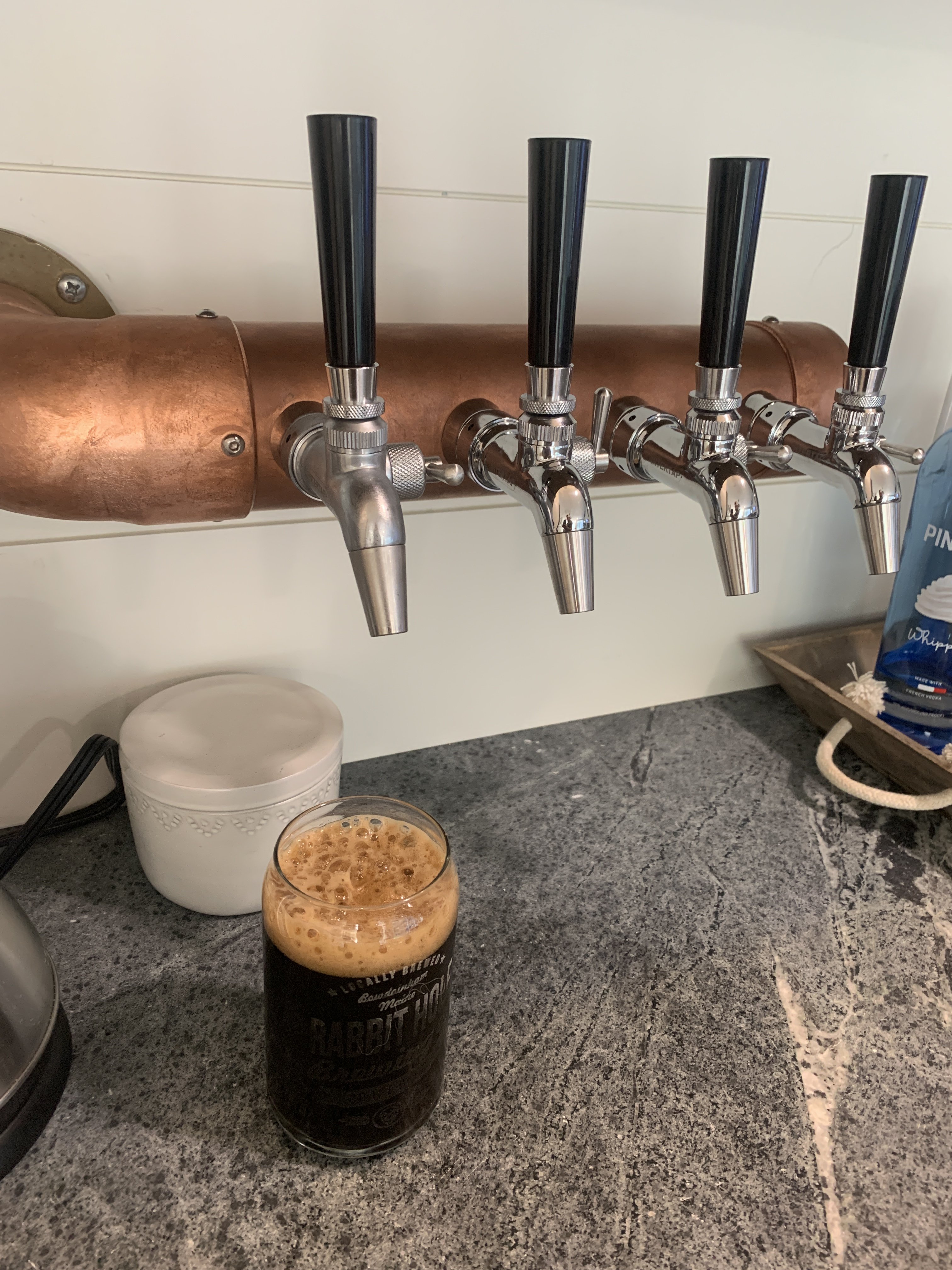

These are the taps. Everything is lined with insulation including the tower



Thanks for any suggestions!!!!


Tallgrass

Well-Known Member
Joined
Sep 8, 2017
Messages
73
Reaction score
37
Location
Bottom Right PA
I tried something similar recently using the same pump but with a 7 gallon fermonster. The temperature (6 gallons of water) increased 10 degrees overnight. I have a longer trunk line but suspect it was the pump creating heat. I have since moved that little pump into my DIY A/C chiller that averages 35f and the problem is solved.

I can't hear my chiller in the basement but wouldn't want it on the other side of the wall as your setup seems to be. Someone on this site has a small freezer with a glycol reservoir and external pump. That might be a good quiet option for you.


Nummisoft

Member
Joined
Mar 27, 2018
Messages
10
Reaction score
2
I think the other problem is that it sits up high where all the heat is!!
I think the biggest problem is poor heat transfer between air and glycol. I would add a heat exchanger like the ones used with pc water cooling. That and a fan would make glycol a lot colder.
