Made a bottle washer!

Homebrew Talk - Beer, Wine, Mead, & Cider Brewing Discussion Forum

Help Support Homebrew Talk:

day_trippr

"This Space For Rent"
Joined
May 31, 2011
Messages
37,479
Reaction score
20,331
Location
Stow, MA
Yeah you did! :mug:

Details for your fellow bottlers will likely be appreciated :)

Cheers!

OP
Karpool

Karpool

Member
Joined
Feb 18, 2021
Messages
18
Reaction score
27

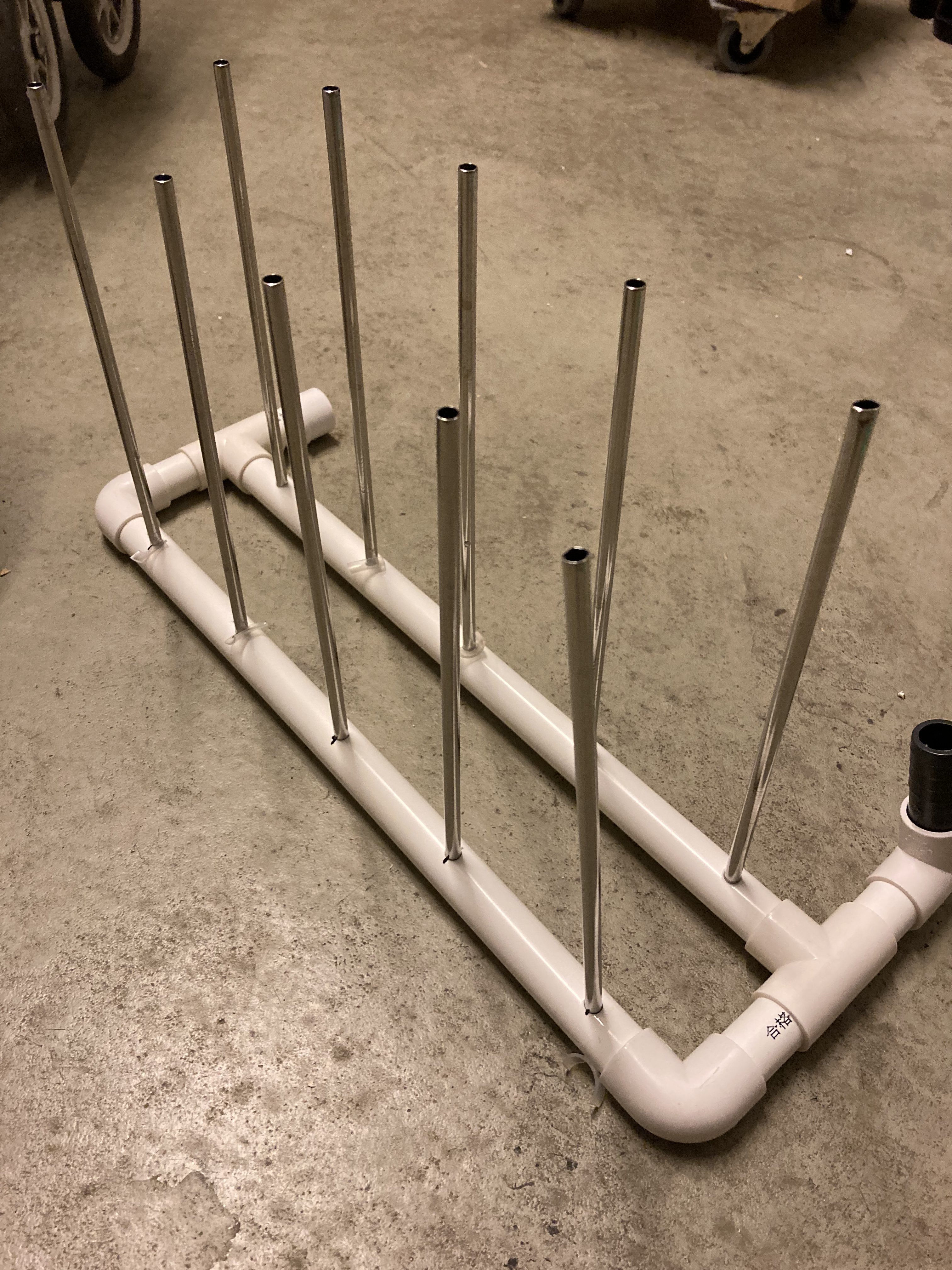

I got 10’ of 3/4 pax (pvc) with corner pieces and t-connectors. 2 - 12 packs of red pens from the dollars store and a 3/4 inch FNPT X FHT PVC Swivel to connect the hose. I had the fastrack (they’re pretty cheap on Amazon) and measured it all out. I got the adhesive recommended for pvc. It dries REALLY fast.
I already had a 1/4 hp pump for when I’m running my chiller. Instead of continuously running water I make ice the night before and recirculate the water through the chiller. Cut off a piece of garden hose to run from the pump to the wash rack and it worked like a charm.
I’m pretty pumped 😉


Stormcrow

Supporting Member
HBT Supporter
Joined
Apr 14, 2020
Messages
446
Reaction score
445
I got 10’ of 3/4 pax (pvc) with corner pieces and t-connectors. 2 - 12 packs of red pens from the dollars store and a 3/4 inch FNPT X FHT PVC Swivel to connect the hose. I had the fastrack (they’re pretty cheap on Amazon) and measured it all out. I got the adhesive recommended for pvc. It dries REALLY fast.
I already had a 1/4 hp pump for when I’m running my chiller. Instead of continuously running water I make ice the night before and recirculate the water through the chiller. Cut off a piece of garden hose to run from the pump to the wash rack and it worked like a charm.
I’m pretty pumped 😉
Did you use the pvc glue to secure the pen tubes to the manifold? I'm thinking of building a second bottle washer. The cpvc uprights I used on my original won't work with my flip top bottles. I'm so spoiled by using the bottle washer that I can't hardly force myself to mess with bottle I have to clean by hand anymore.


tripelthelightfantastic

Well-Known Member
Joined
Oct 21, 2021
Messages
48
Reaction score
106

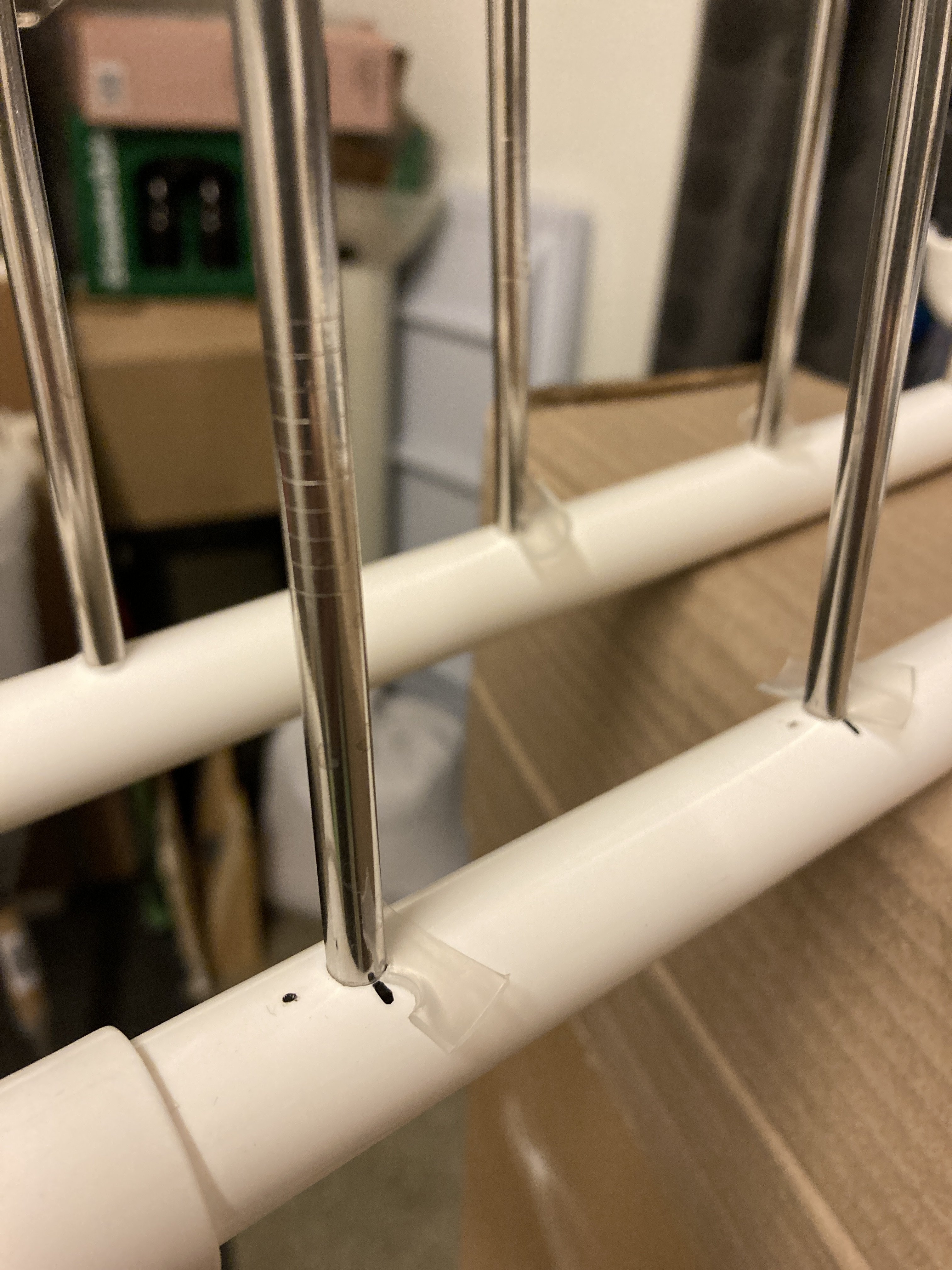

Some of them are snug without any help, for the others I put a small piece of silicon tube over the hole then push the straw in, making a tight seal


Attachments

tripelthelightfantastic

Well-Known Member
Joined
Oct 21, 2021
Messages
48
Reaction score
106
Another thing-if the straw is pushed too far in the hole the water pressure coming out of the straw is not enough. Not sure on the physics of it but at a guess, the further in the pvc pipe it is, the less of the water pressure in the pvc pipe is usable to push water up the straw

OP
Karpool

Karpool

Member
Joined
Feb 18, 2021
Messages
18
Reaction score
27
Did you use the pvc glue to secure the pen tubes to the manifold? I'm thinking of building a second bottle washer. The cpvc uprights I used on my original won't work with my flip top bottles. I'm so spoiled by using the bottle washer that I can't hardly force myself to mess with bottle I have to clean by hand anymore.
Yes, I used the glue.
