Hey guys!
I'm trying to get a solution together to use a sankey keg with my ball lock corny setup. I've been reading and looking at posts here (and everywhere!) and have found some parts lists, but most are so old that the links don't work. So as of right now I have some parts but can't quite get what I want to work! The idea being I want to use my ball lock disconnects for my home brew kegs, and just be able to pop them onto a sankey keg, but I have a pretty low height restriction so I can't just use a regular sankey tap with these:


So, what I have now in my possession is:


Which has screw in barbed ends. Using this post I ordered the parts listed and have them in hand:
but the elbows from mcmaster are too small for the MRBrew Coupler I have. Do I simply need a different coupler?

So, what I'm looking for help with, has somebody built one of these recently and still have their complete part list? Thank you guys in advance!

-Dave

OP
sniperd

sniperd

Well-Known Member
Joined
Jun 5, 2011
Messages
302
Reaction score
65
Location
New Hampshire
I've got those parts coming, I guess the tricky part is the threads on the low profile coupler. I don't know how I can tell what the threads are. My last resort is there is a plumbing store about 40 minutes from me, you know the kind, a few old guys, and parts are in mason jars with handwritten labels, :) I suspect if I just go there they can make it all happen, but it has been hit and miss. I'm hoping somebody has built one of these though and I just can order what I need.


dirkomatic

Well-Known Member
Joined
Sep 6, 2011
Messages
374
Reaction score
83
Location
Blacksburg
I've got those parts coming, I guess the tricky part is the threads on the low profile coupler. I don't know how I can tell what the threads are. My last resort is there is a plumbing store about 40 minutes from me, you know the kind, a few old guys, and parts are in mason jars with handwritten labels, :) I suspect if I just go there they can make it all happen, but it has been hit and miss. I'm hoping somebody has built one of these though and I just can order what I need.
My guess is either 1/4 or 1/8 MPT


DuncB

Well-Known Member
Joined
Jun 5, 2019
Messages
1,418
Reaction score
656
Location
Paremata New Zealand
I use these very successfully and they are reasonably low. Also you can have a floating dip tube and don't need to worry about taking the spear in and out to clean and the fiddling with the non return valves for closed transfer.



NTBeer

Well-Known Member
Joined
Apr 24, 2012
Messages
137
Reaction score
140
Location
Chicago
+1 for @DuncB solution. I use this to use sankey kegs as fermenters. Think I bought mine through Ebay or perhaps Aliexpress though. Cheapest SS, pressure capable fermenter solution over 5 gallons I've found.


DuncB

Well-Known Member
Joined
Jun 5, 2019
Messages
1,418
Reaction score
656
Location
Paremata New Zealand
+1 for @DuncB solution. I use this to use sankey kegs as fermenters. Think I bought mine through Ebay or perhaps Aliexpress though. Cheapest SS, pressure capable fermenter solution over 5 gallons I've found.
You'll find my posts Room with a brew with this solution even cheaper for a pressure fermenter and you can watch your brew!


Ki-ri-n

Well-Known Member
Lifetime Supporter
Joined
Oct 14, 2009
Messages
678
Reaction score
203
Location
Richfield
I've got those parts coming, I guess the tricky part is the threads on the low profile coupler. I don't know how I can tell what the threads are. My last resort is there is a plumbing store about 40 minutes from me, you know the kind, a few old guys, and parts are in mason jars with handwritten labels, :) I suspect if I just go there they can make it all happen, but it has been hit and miss. I'm hoping somebody has built one of these though and I just can order what I need.
You quoted my post! My guess too is that the Mr brew threads are 1/4 and/or 1/8 npt. You would just need the npt to flare fitting if you have everything else.

I haven't built another one since that very first one. I had noticed the links were now outdated but never went back to try and update it with the latest info. Seems like that changes way too often and fast.

OP
sniperd

sniperd

Well-Known Member
Joined
Jun 5, 2011
Messages
302
Reaction score
65
Location
New Hampshire
You quoted my post! My guess too is that the Mr brew threads are 1/4 and/or 1/8 npt. You would just need the npt to flare fitting if you have everything else.

I haven't built another one since that very first one. I had noticed the links were now outdated but never went back to try and update it with the latest info. Seems like that changes way too often and fast.
Excellent! So pretend I'm a 5 year old. Could you link me to the parts I'm missing? :) I'm a pretty good brewer but as soon as it comes to threads and such I'm lost. About 10 years ago when I got all my kegging stuff setup I knew it all, but a lot of time (and beer) has come since then. What exactly are the npt to flare fittings I may need? :)


BBBF

Well-Known Member
Joined
Aug 16, 2008
Messages
1,700
Reaction score
212
Location
Chicago
I've built a few of these. You can get by with 1/8NPT x 1/4Male Flare to 1/4Female Flare x 9/32-18 keg post adapter to 9/32-18 keg posts. Don't forget the flare washer. It'll be a really tight fit on some sanke kegs and the plastic corny fittings will be resting on the sanky handles.


It would be ideal to use a 1/8NPT X 1/4 Street elbow to 1/4NPT x 9/32-18 keg post adapter to 9/32-18 keg posts. Then you can angle the keg posts so the plastic clears the sanke keg, but the street elbow is more expensive and harder to find.



Knightshade

Which way is up again??
Lifetime Supporter
Joined
Mar 31, 2020
Messages
551
Reaction score
508
Is it accurate that a sankey adapter w/something like this won't work then? This is the solution I use for commercial kegs so that I don't have to change out ball lock fittings in the kegerator.



dirkomatic

Well-Known Member
Joined
Sep 6, 2011
Messages
374
Reaction score
83
Location
Blacksburg
OP
sniperd

sniperd

Well-Known Member
Joined
Jun 5, 2011
Messages
302
Reaction score
65
Location
New Hampshire
If you go with that, please post back with the results. I'd be curious how it works out for you.
And it looks great!

My part list is:

https://smile.amazon.com/gp/product/B07N8CJ6D1/ - Kegco Keg Coupler, D System, Nickel (low profile) it says nickel but the parts touching beer are stainless steel

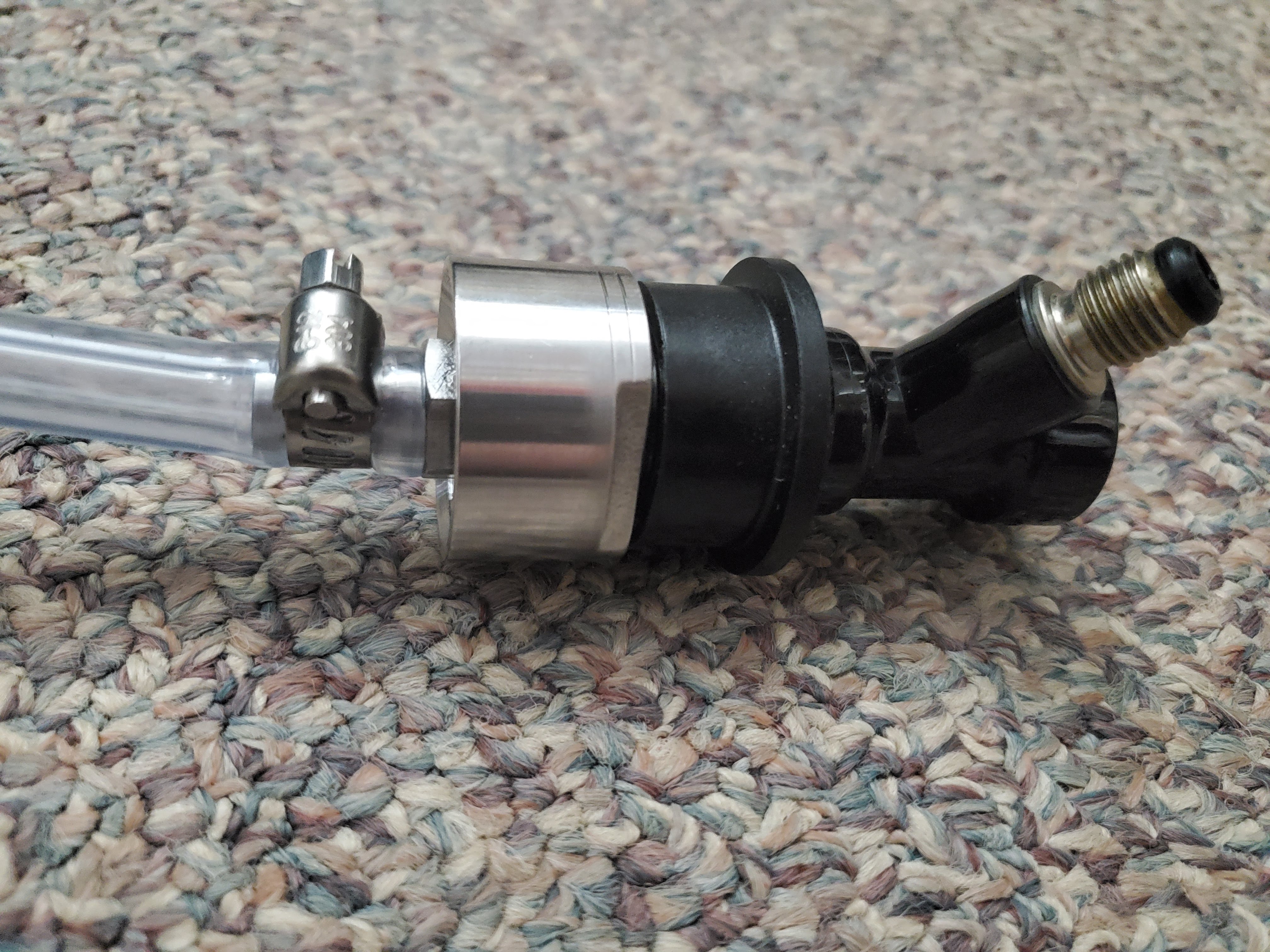

Stainless Ball Lock Soda Bottle Carbonator / Carbonation Cap with Interior BARB - STAINLESS BALL LOCK SODA BOTTLE CARBONATOR / CARBONATION CAP WITH INTERIOR BARB - two of these, note that the caps are the same, either can be used with liquid or gas. Neat, this is the key component. I put a picture up of it. It is basically the same as: https://smile.amazon.com/gp/product/B01M7VKJWJ/ - FERRODAY Ball Lock Keg Coupler Adapter - Sankey to Ball Lock Quick Disconnect Conversion Kit Fits to A D S G Type Keg Coupler FPT 5/8 Thread Stainless Steel Gas & Liquid Post for Homebew, but has a little barb screw in.

liquid tubing - from LHBS

gas tubing - from LHBS

worm clamps (4) - from LHBS

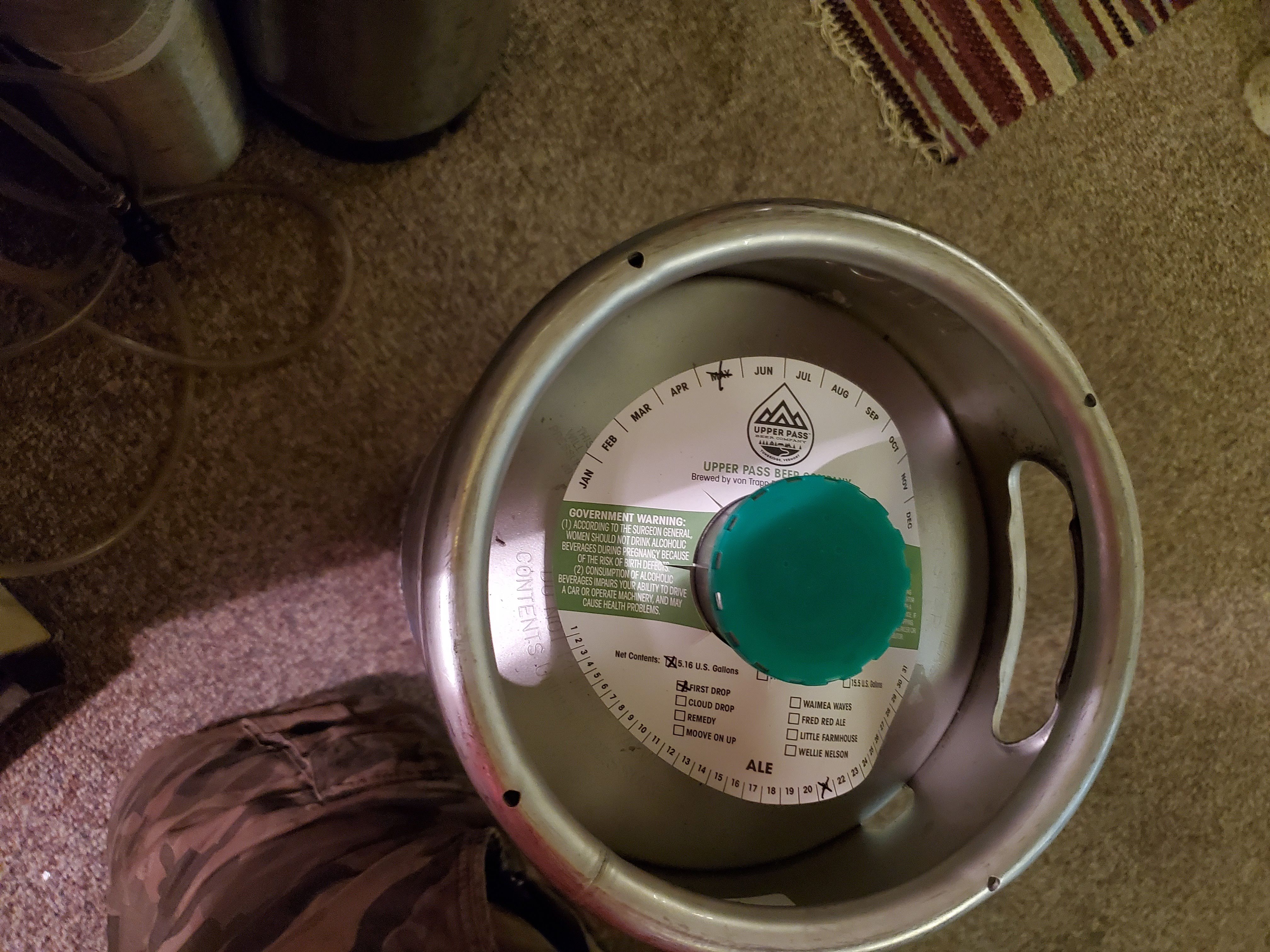

Now I just need a sankey keg :)
