I have my electric brewery up and running. On my first brew day, all went well except I am getting a serious amount of condensation in my condensate hood.

The hood is 5' long x 2' wide x 1' tall. It is 2 ft. from the top of my pots. I have 6" ducting setup. There hole in the hood is centered in the top and there are two 90 degree elbows to get the exhaust to fun to my duct run. The overall length of run is 25 feet. I am using a 347 CFM 6" inline fan.

I am guessing that the 347 CFM is not sufficient for removing all of the steam, but I'm trying to figure out what CFM I need to prevent the excessive condensation and/or if there is anything else I should be doing in order to help prevent this excessive condensation.

Lastly, does anyone know if I add another fan in line with the current fan, will that boost the overall ability to remove the steam? or is the CFM not additive?

The only fans I can find with a high CFM are larger diameter, so I'm wondering if I should install reducers in the duct line (6"->10") and install a 10" fan in a small section of the duct run?

Any advice is greatly appreciated!


jddevinn

Got 99 Problems but beer ain't one
HBT Supporter
Joined
Feb 14, 2010
Messages
1,335
Reaction score
446
Location
Concord
CFM is dependent on pressure drop in the line (and is not additive). 90°s are going to push the pressure drop up a good bit.

Any "low points" are going to collect condensate!

OP
D
Joined
May 15, 2011
Messages
159
Reaction score
13
Location
San Francisco
Thank you for feedback.

I know it is not 100% additive, but do you happen to know how to calculate equivalent CFM of two fans in series with one another?

Also, technically the opening in the hood is the lowest point in the entire system. Is that a bad design?


doug293cz

BIABer, Beer Math Nerd, ePanel Designer, Pilot
Staff member
Mod
Lifetime Supporter
Joined
May 14, 2014
Messages
10,829
Reaction score
6,959
Location
Renton
Two fans can help overcome the pressure drop due to the long duct run and 90˚ turns. I would think it would work best with the fans at least 1/2 the total duct run apart. If you put them close together, you won't get much benefit.

Condensation can collect in any point where the duct sags from a positive slope from the inlet to outlet. Any such sags that can't be eliminated should have weep holes drilled (1/8" is enough) and a way to deal with the drips from the weep holes.

Brew on :mug:


lschiavo

This space for rent.
Lifetime Supporter
Joined
Sep 2, 2009
Messages
5,240
Reaction score
1,456
Location
Upper Peninsula
Is the steam escaping the hood? If not, I'd think that you are probably moving enough air.

Do you have a source for makeup air? Fans work far better when they aren't pulling a vacuum.

Condensation happens with temperature difference. Is your hood or vent piping insulated? That could help a lot.

I would expect to see at least some condensation on a "condensate" hood. What method are you using to drain it away?

OP
D
Joined
May 15, 2011
Messages
159
Reaction score
13
Location
San Francisco
Thanks for feedback all!

There is a lot of condensation in the condensate hood. So much so, that it is dripping off the hood and back into my kettles. I do not have any baffles on my condensate hood, it is a simple stainless steel box with a vent hole at the top.

What I'm wondering is if I get high CFM, will that suck the steam out faster and minimize the amount of condensation that is occuring?

For makeup air, I do not have a separate intake, but there is a double door opening with both doors open in the brewery and I left the back door of my house open, so I think there was sufficient makeup air getting into the room.

I have not insulated my ducting, but will try doing so. The condensate hood has a drain built in and a small lip/trough running around the bottom to channel condensate to that drain. The thing is that the condensate is just dripping off the top surface and not making its way down the sidewalls.

For the weep holes, is it just a small hole in the ducting with a collection vessel underneath?


doug293cz

BIABer, Beer Math Nerd, ePanel Designer, Pilot
Staff member
Mod
Lifetime Supporter
Joined
May 14, 2014
Messages
10,829
Reaction score
6,959
Location
Renton
For makeup air, I do not have a separate intake, but there is a double door opening with both doors open in the brewery and I left the back door of my house open, so I think there was sufficient makeup air getting into the room.
Should be plenty of makeup air.

I have not insulated my ducting, but will try doing so. The condensate hood has a drain built in and a small lip/trough running around the bottom to channel condensate to that drain. The thing is that the condensate is just dripping off the top surface and not making its way down the sidewalls.
If the top of the hood is horizontal, then condensation will collect and drip. This is why most hoods have sloped tops, so that condensation will run to the walls, and then down to the drip trough.

For the weep holes, is it just a small hole in the ducting with a collection vessel underneath?
Yes.

Brew on :mug:


lschiavo

This space for rent.
Lifetime Supporter
Joined
Sep 2, 2009
Messages
5,240
Reaction score
1,456
Location
Upper Peninsula
I'm not sure that moving more air will solve the dripping problem. It sounds like you have plenty of air flow and makeup air.

I would probably start with modifying the hood to collect the condensate better and try to insulate it somehow. Lowering one end of the hood so it's not completely horizontal could help direct the water to the low end.

Post a few pics if you can.

OP
D
Joined
May 15, 2011
Messages
159
Reaction score
13
Location
San Francisco
Here are some pics.

I added aluminum duct tape to the inlet hood joint in order to make it a smoother transition. I also tilted the hood to slope toward the drain to promote condensate running to that location. Going to give it a try again in a week or so and see if any of that helped.

Thank you for all the advice. Please chime in if pictures help you think of some other possibilities.

Ventilation Hood.jpg

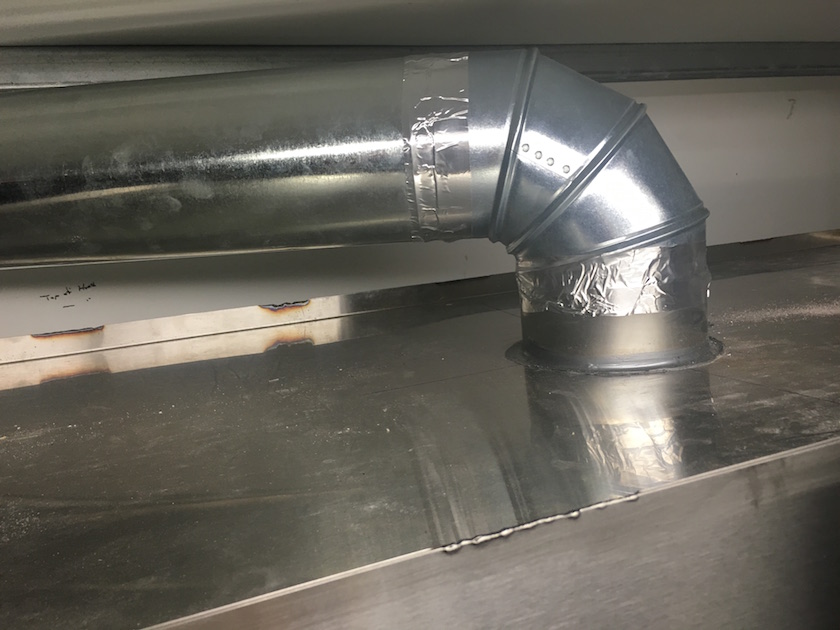

90 degree elbow at top.JPG


90 degree elbow to fan.jpg

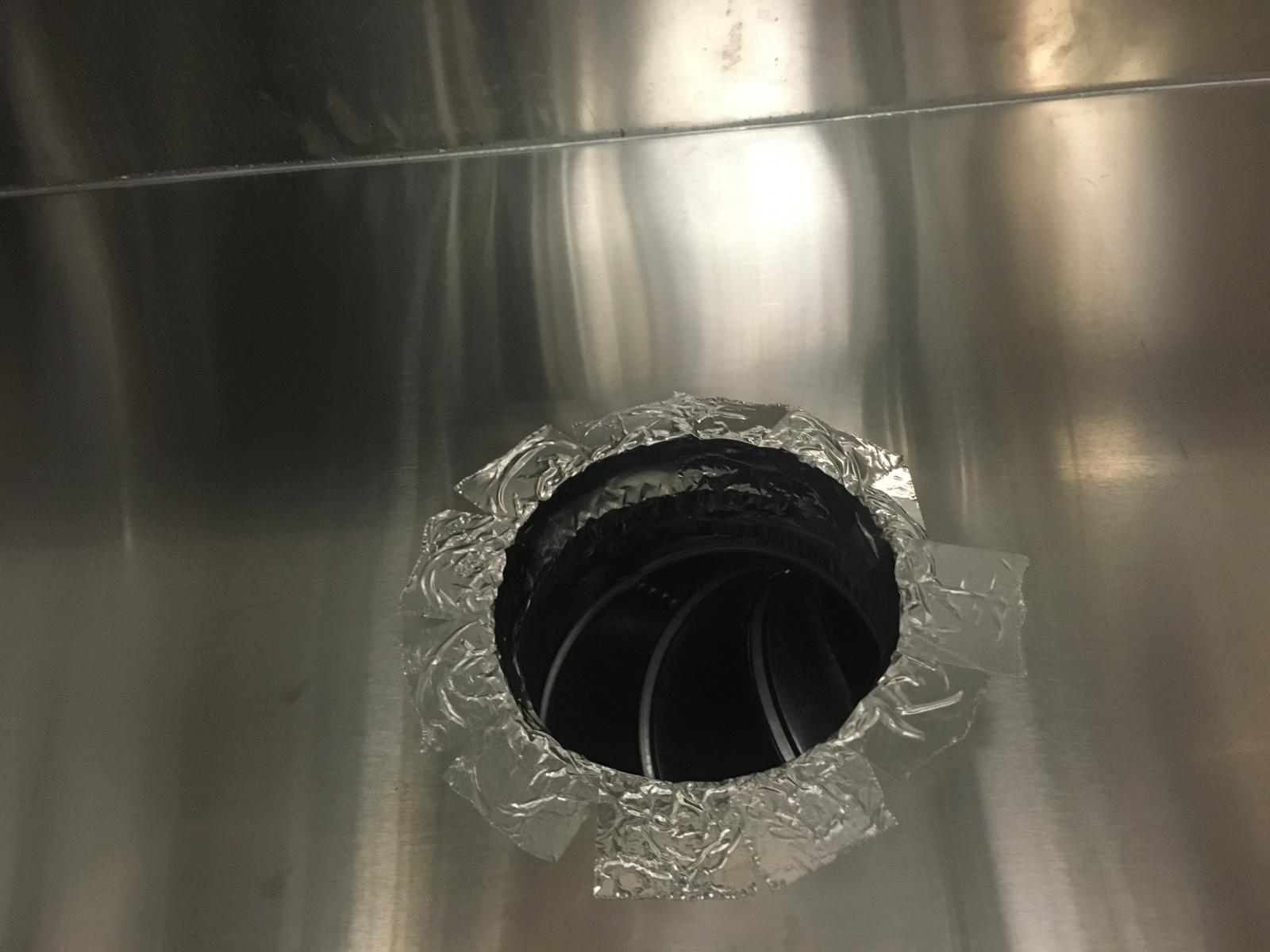

duct hood inlet.jpg

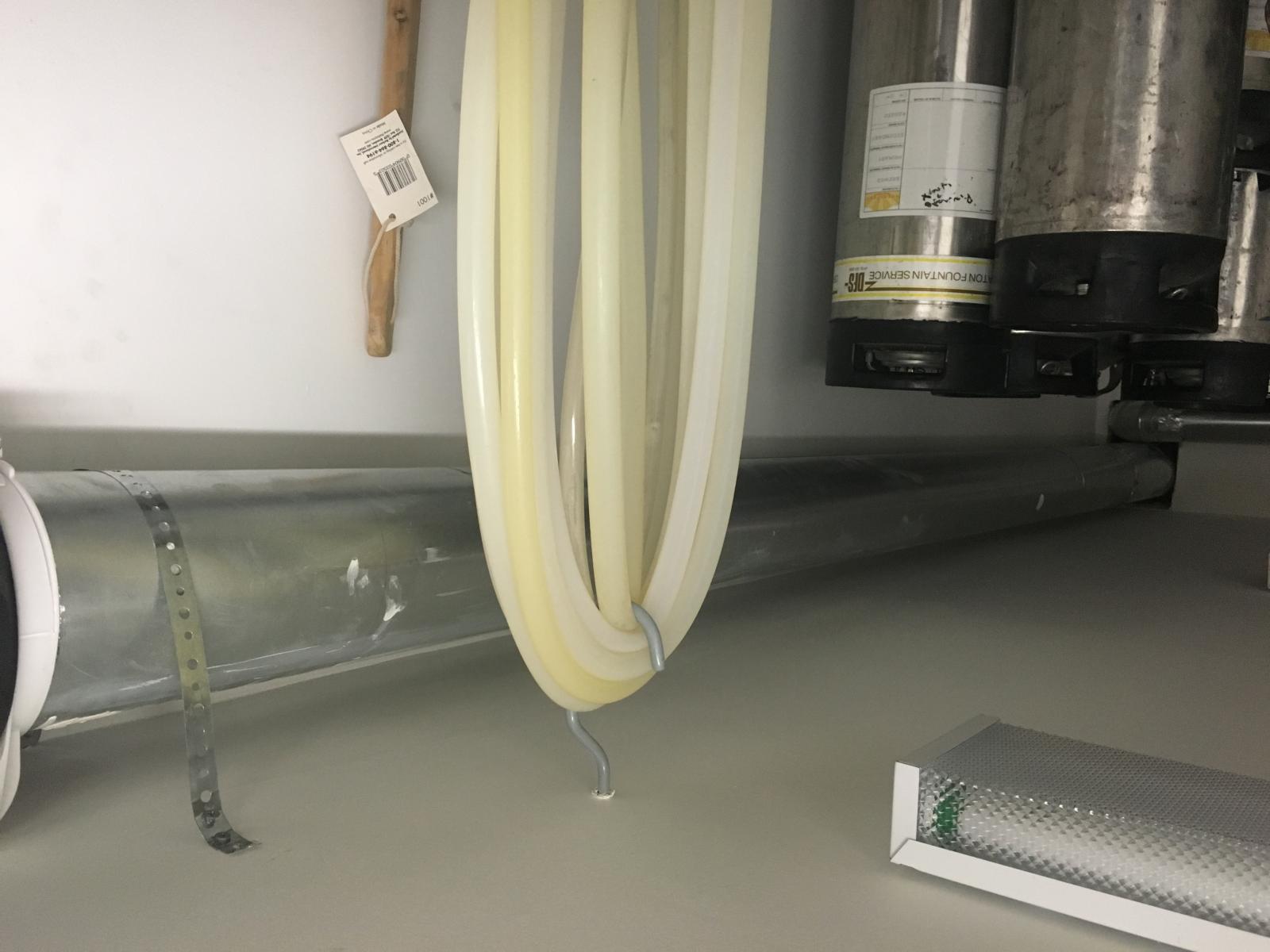

straight duct run.jpg
