Let’s see you PLC Automation setup.

HomeBrewTalk.com - Beer, Wine, Mead, & Cider Brewing Discussion Community.

Help Support Homebrew Talk:

Straykiller

Active Member
Joined
Jul 11, 2017
Messages
34
Reaction score
2

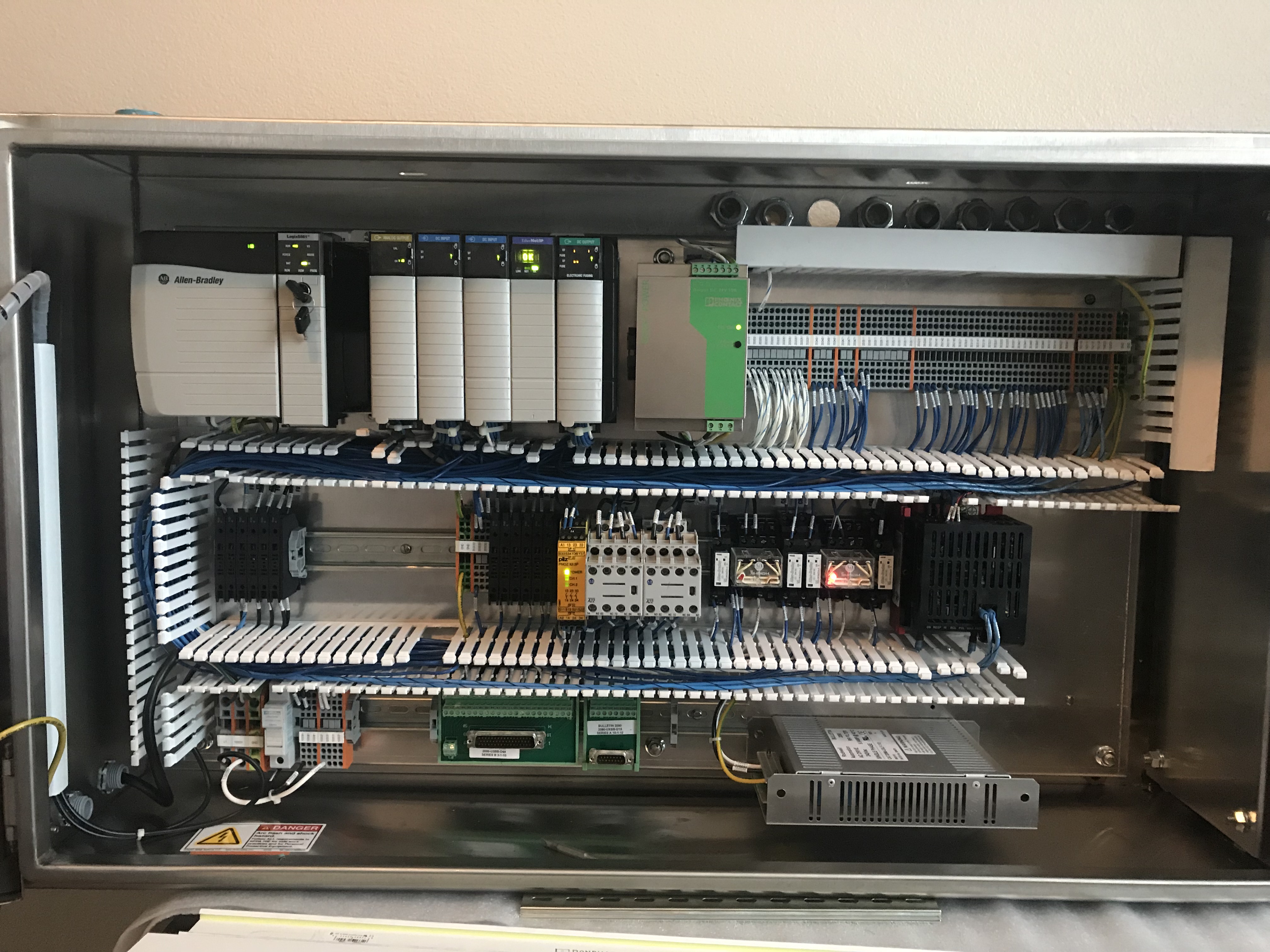

Hey guys I’ve been planning on converting my system to an all electric rims system controlled via plc. I had a Micrologix1100 I originally slated to do the job but ran across a steal on eBay. I was able to purchase a nice stainless control panel with albeit older but much higher end equipment. If any of you are using a plc for you Automation I would love to see it for inspiration. I’m going to begin coding soon but still have to buy the required parts to convert to electric. Dont forget to post them sexy PLc Pics.


OP
S

Straykiller

Active Member
Joined
Jul 11, 2017
Messages
34
Reaction score
2
Guess there’s not a lot of PLC’s being used. Does anyone have a reccomendation for proportional Solid state relays that can be used with a 4-20mA signal? This is the main thing I’m unsure of and wondering what others are using for their heating elements. Thanks


ClaudiusB

Well-Known Member
Joined
Dec 30, 2007
Messages
1,547
Reaction score
531
Location
El Paso
If any of you are using a plc for you Automation I would love to see it for inspiration. Dont forget to post them sexy PLc Pics.
No sexy pictures, my setup is for propane.
I use multiple PLCs in my setup most are tied together through Ethernet for peer to peer communication.
A few pics, not shown keg and bottle filler PLCs.

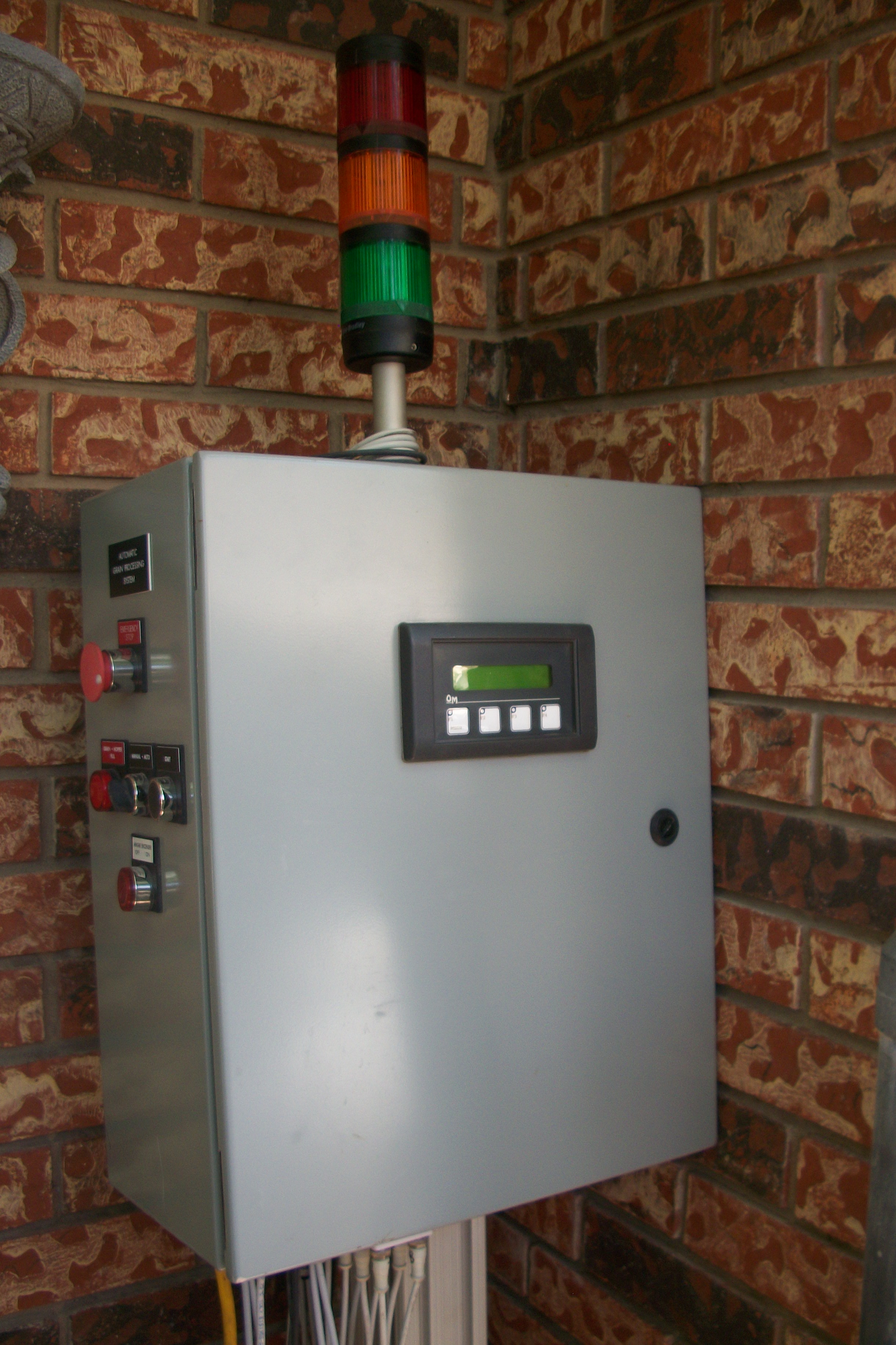

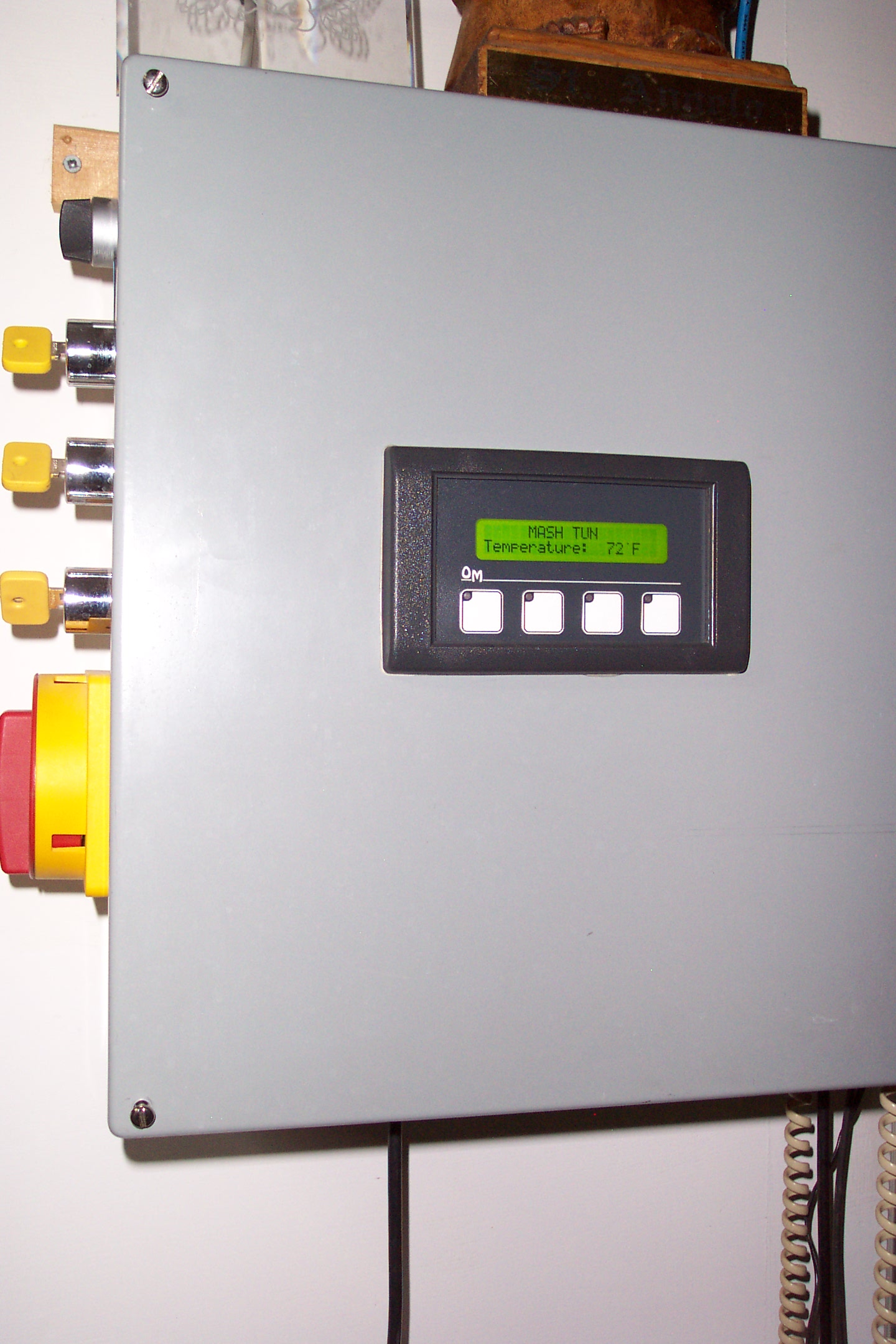

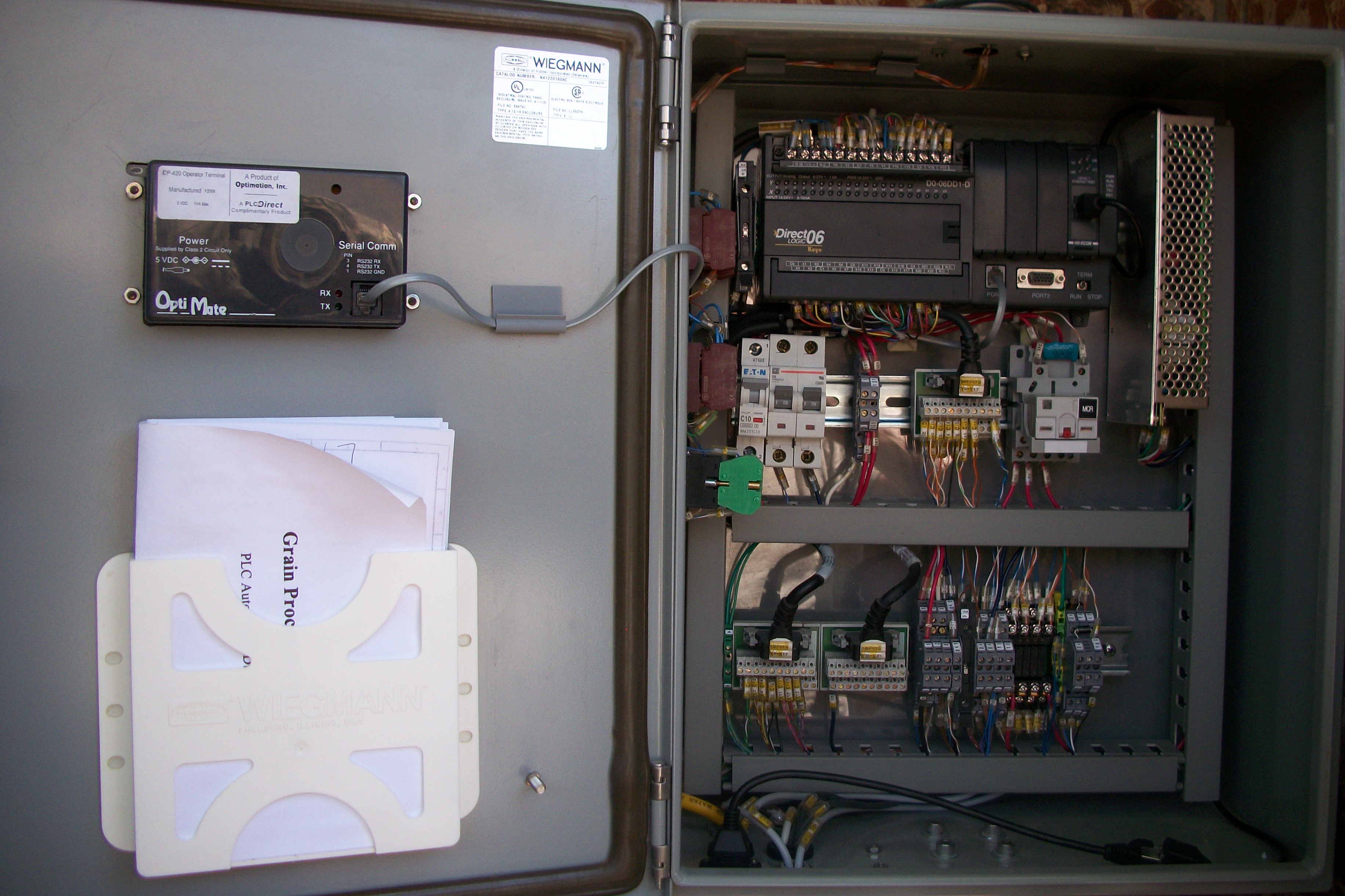

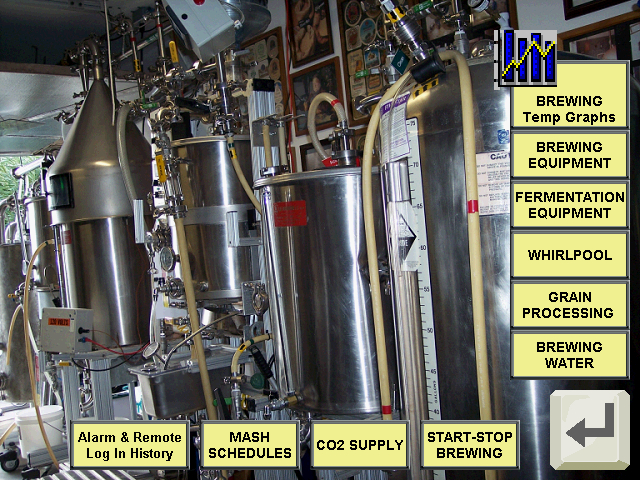

#1 & 2 brewery PLC, #3 Cornie keg washer, #4 & 5 Automatic grain dispensing, #6 & 7 Control room.
Enclosure2013.jpg PLC_Enclosure.jpg August2014 (2).jpg 2018-1.JPG 2018-3.JPGMenu.jpgNoControl.jpg

OP
S

Straykiller

Active Member
Joined
Jul 11, 2017
Messages
34
Reaction score
2
Very impressive thanks for sharing. That’s awesome, I’ve only dealt slightly with the automation direct plc’s how you like them? They are pretty popular, I run into one every now and then on jobs. I like the idea of a keg washer, I think you just added to my future to do list lol.


ClaudiusB

Well-Known Member
Joined
Dec 30, 2007
Messages
1,547
Reaction score
531
Location
El Paso
Very impressive thanks for sharing. That’s awesome, I’ve only dealt slightly with the automation direct plc’s how you like them? They are pretty popular, I run into one every now and then on jobs. I like the idea of a keg washer, I think you just added to my future to do list lol.
I do like Automation Direct PLCs, easy to use.
I started in 1995 with an IDEC but was too limited. I never liked Allen Bradley and local support in 1995 was very costly.


fredz0003

New Member
Joined
May 11, 2012
Messages
2
Reaction score
0
Lots of people don't use PLC's because big brands are expensive on the hardware side and even more expensive on the software side. I probably wouldn't go with a Logix controller is just too much for a brewing system. AB has Micro800 or even old micrologix series would have been enough. Siempre has of course S7-1200 at very affordable prices, and if you can't afford the software use a VM if they have trials, and remember to take snapshots save your programs on your host machine. What do you do for a living the cabinet setup is pretty good, got even a safety relay!


gypsylore

New Member
Joined
Jul 23, 2018
Messages
2
Reaction score
1
Sorry to resurrect an old(ish) thread. Just wanted to add that the AB Micro800 series not only has decent software but it's free as well. They are also fairly cheap as far as PLC's go. I certainly recommend looking into that series if that's the direction you're aiming to go.
