Hi ! I’m new to the kegging world ;) I have 4 ball lock corny kegs and a 2 corny kegerator. I bought the kegerator off FB Marketplace. I need to change beer lines. Is there a resource somewhere that lists all the fittings I’ll need ? Looks like a few QD’s for the beer and air lines. I’m thinking of changing to the duotight connecters and tubing … worth it ?


JJinMD

Supporting Member
HBT Supporter
Joined
Mar 9, 2021
Messages
128
Reaction score
153
The duotight tubing (evabarrier) makes balancing much easier. The duotight fittings you would need depends on what type of fittings you currently have on there.


camonick

Mediocre brewer... Expert drinker
HBT Supporter
Joined
Oct 25, 2018
Messages
3,385
Reaction score
16,949
Location
Northeast CO
Hi ! I’m new to the kegging world ;) I have 4 ball lock corny kegs and a 2 corny kegerator. I bought the kegerator off FB Marketplace. I need to change beer lines. Is there a resource somewhere that lists all the fittings I’ll need ? Looks like a few QD’s for the beer and air lines. I’m thinking of changing to the duotight connecters and tubing … worth it ?
There isn’t any kind of list I’m aware of. While the basic operation is the same, there are many different configurations. If you’re basically starting from scratch, I’d definitely use the Duotight style connectors and 4mm EVABarrier tubing. Use it for both your liquid and gas lines. Length of line is irrelevant for the gas, but use 6-9 feet (closer to 9 in my opinion) for the liquid lines.

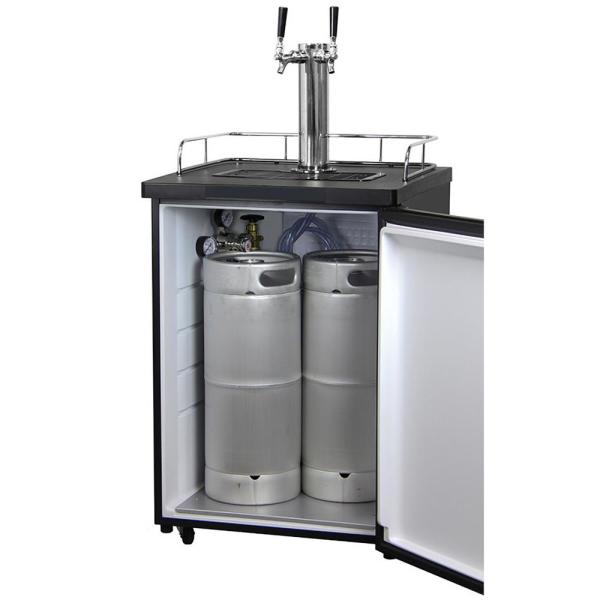

Is it this style of kegerator you’re working with?

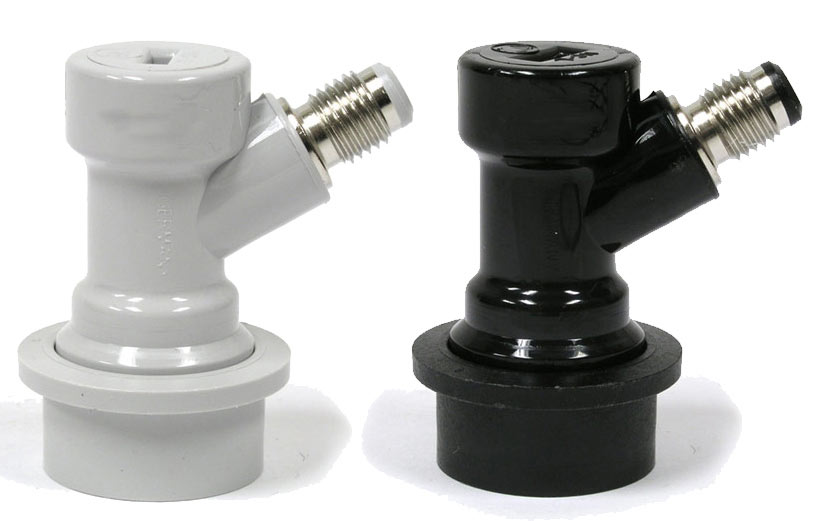

1. If so, you’ll for sure need at least 2 sets of MFL ball lock disconnects.

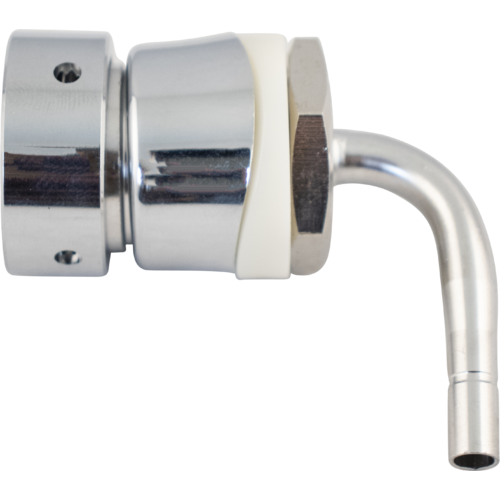

2. You might want to try to replace the tower shanks with these.

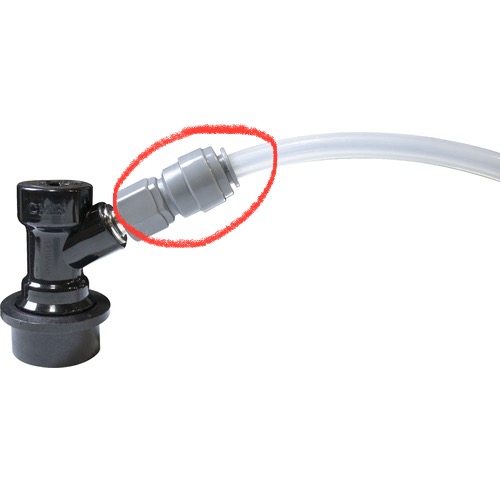

3. Duotight compatible tailpiece reducer 6.5 mm x 8 mm for above.^

4. And as many 1/4” flare X 8mm fittings to make necessary connections.
What kind of fittings are on your regulator? Are you going to use a Y splitter or manifold to supply CO2 to each keg? Those accessories may need different connections depending on style.
I’m not necessarily endorsing them, but you can see the different options on MoreBeer’s Duotight Fittings page.
@day_trippr might be able to help with advice also.

OP
Merz69

Merz69

Well-Known Member
Joined
Nov 6, 2021
Messages
80
Reaction score
84
Huge help camonick !! I think I have a Manifold as shown below. I was wondering about the faucets - the tubing comes out perpendicular to the tower - one does not even have a clamp on it - the other is a perlic.


camonick

Mediocre brewer... Expert drinker
HBT Supporter
Joined
Oct 25, 2018
Messages
3,385
Reaction score
16,949
Location
Northeast CO
That manifold will work just fine. It even already has male flare fittings on it so the 1/4” flare X 8mm fittings will work perfectly there.

OP
Merz69

Merz69

Well-Known Member
Joined
Nov 6, 2021
Messages
80
Reaction score
84
There isn’t any kind of list I’m aware of. While the basic operation is the same, there are many different configurations. If you’re basically starting from scratch, I’d definitely use the Duotight style connectors and 4mm EVABarrier tubing. Use it for both your liquid and gas lines. Length of line is irrelevant for the gas, but use 6-9 feet (closer to 9 in my opinion) for the liquid lines.
Is the 4mm or 5mm ID better for beer line ? 5mm is closer to the standard 3/16” ID line

OP
Merz69

Merz69

Well-Known Member
Joined
Nov 6, 2021
Messages
80
Reaction score
84
Is the 4mm or 5mm ID better for beer line ? 5mm is closer to the standard 3/16” ID line


Knightshade

<Insert Snarky Comment Here>
Lifetime Supporter
Joined
Mar 31, 2020
Messages
989
Reaction score
1,136
Location
SoCal
4mm for the beer line. Skip to about 6 minutes into this video and he goes over line length, connectors, etc. I realize it sounds like you’re building your own, but principles still apply.



camonick

Mediocre brewer... Expert drinker
HBT Supporter
Joined
Oct 25, 2018
Messages
3,385
Reaction score
16,949
Location
Northeast CO
Is the 4mm or 5mm ID better for beer line ? 5mm is closer to the standard 3/16” ID line
4mm… it’s a smaller diameter, which creates more restriction, which allows you to use shorter lengths to achieve the same results.
