Just got an O2 tank...

HomeBrewTalk.com - Beer, Wine, Mead, & Cider Brewing Discussion Community.

Help Support Homebrew Talk:

Zenmeister

Active Member
Joined
Oct 28, 2018
Messages
41
Reaction score
27
Location
Kirkland
and the NPT connection to my CO2 Regulator isn't the same. I have been using the special reverse theaded regulator with my Home Depot O2 tanks, but this looks like a standard NPT thread, but doesn't work. Is there a special O2 tank I need to get, or do I need to get a different regulator?


day_trippr

"Now brewing exclusively with Hydrohydroxic Acid"
Joined
May 31, 2011
Messages
35,119
Reaction score
17,010
Location
Stow, MA
Some pictures of said regulator and new cylinder might just be helpful.

In advance of that...if you are going from the red cylinders to something larger you may have either a cga870 (small cylinders) or a cga540 (larger) cylinder valve.
My 20cf O2 cylinder sports the latter.

Neither of those is NPT, btw. cga 540 uses a 3/4”-16UNF-2A thread, while cga 870 uses 1/2"-14 NGT...

Cheers!

OP
Z

Zenmeister

Active Member
Joined
Oct 28, 2018
Messages
41
Reaction score
27
Location
Kirkland

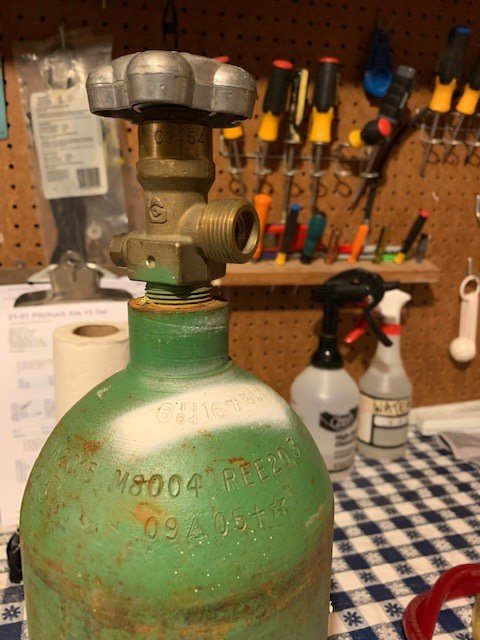

See photo. I am not sure what kind of thread it is, but I do not know these cylinders either.

O2 Tank.jpg


day_trippr

"Now brewing exclusively with Hydrohydroxic Acid"
Joined
May 31, 2011
Messages
35,119
Reaction score
17,010
Location
Stow, MA
Looks like a cga 540 valve. Is that a 20 cubic foot cylinder?

Cheers!

OP
Z

Zenmeister

Active Member
Joined
Oct 28, 2018
Messages
41
Reaction score
27
Location
Kirkland
I think so. The receipt for the tank says 5-lb high pressure cylinder. Do you have any suggestions as to what I should get as far as connections?


drgonzo2k2

Really Awesome User
Lifetime Supporter
Joined
Jan 14, 2015
Messages
1,090
Reaction score
315
Location
Santa Cruz
I think you're going to need something like this, which is what I have connected to my tank. Then I just have some hose connected to the barb, and that connects to my aeration wand.


day_trippr

"Now brewing exclusively with Hydrohydroxic Acid"
Joined
May 31, 2011
Messages
35,119
Reaction score
17,010
Location
Stow, MA
Clearly a cga 540 compatible regulator is required. Can be simple and relatively inexpensive, or not so inexpensive with an integrated flow meter.

At the low end you could go with something like this: https://www.amazon.com/Nuvälsa-Ozone-Therapy-Oxgen-Regulator/dp/B07K36793T which is similar to the item linked above. At the other end you could go with something like this: Regulator for Oxygen Flowmeter with 1/2 - 15 LPM - CGA-540 Nut and Nipple Inlet Connection

I bought one of the latter off eBay around 13 years ago, having recognized I had been hooked up to the exact same unit in hospital once, so I figured it was reliable :)



Cheers!


greyghost

Well-Known Member
Joined
Dec 22, 2011
Messages
206
Reaction score
71
Location
Woodinville
I think you're going to need something like this, which is what I have connected to my tank. Then I just have some hose connected to the barb, and that connects to my aeration wand.
Get this. Been using mine for about 3 years with no problems. Still on the same tank.


IslandLizard

Progressive Brewing
Staff member
Mod
Lifetime Supporter HBT Supporter
Joined
Jan 9, 2013
Messages
16,756
Reaction score
6,887
Location
Pasadena, MD
I think you're going to need something like this, which is what I have connected to my tank. Then I just have some hose connected to the barb, and that connects to my aeration wand.
I have one similar to that, also green, but it adjusts from 1/32 l/m to 8 l/m. I've only been using between 1/32 l/m (yeast starters) for 4-8 minutes and 1/8 l/m (5.5 gallon batches in a 6.5 gallon brew bucket) also for 4-8 minutes.
That's what I would look for.

1/2 l/m is way too fast, causing large bubbles on the surface, which is O2 that didn't get dissolved, and is lost to the air. A mere rippling, breaking the surface, is plenty fast already.

Now... 20 cu.ft. of O2 is a large volume (28.3 liters per cu.ft.), so even wasting 3/4 of it may not be a big issue. I reckon at my frugal usage rate, that 40 cu.ft tank will last around a lifetime of oxygenating wort. :bigmug:
