John Guest PTC connector cracked. How tight is tight enough? Opinions solicited.

Homebrew Talk - Beer, Wine, Mead, & Cider Brewing Discussion Forum

Help Support Homebrew Talk:

balrog

Supporting Member
HBT Supporter
Joined
Nov 26, 2013
Messages
4,370
Reaction score
4,652
I have not completely overhauled everything I have to PTC.
I end up switching the handful of PTC connectors I have around, whether to feed gas, transfer beer, whatever.

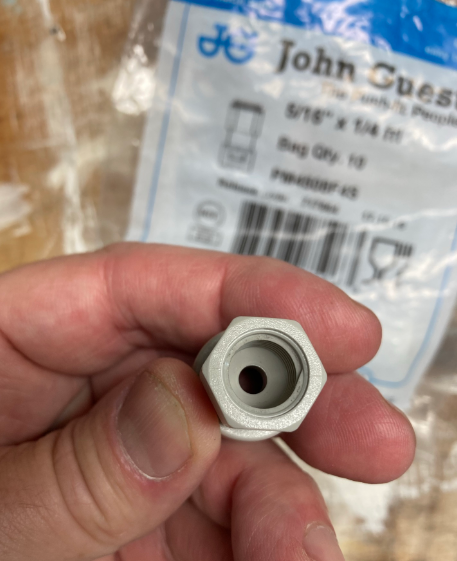

Did I crank one one of the MFL joints too tightly? It cracked and leaks, gas or liquid.


Luckily I do have a couple spares.



Spundit

Insert Witty Comment Here
Joined
Jun 15, 2021
Messages
72
Reaction score
83
Location
Western NY
Yes, you probably torqued it a bit too much although it is possible it was defective.

I use the Duotight fittings (similar design) and crank to just past finger tight. I haven't had one crack or leak yet but that may just be luck.

Joined
May 24, 2008
Messages
380
Reaction score
69
Location
Woodstock
Finger tight and a 1/4 turn more with a wrench going slowly. Some people are worried about their tubing coming out and install keepers so ring stays out. Just make sure the tubing is home (bottom of slide in area)


day_trippr

"This Space For Rent"
Joined
May 31, 2011
Messages
37,501
Reaction score
20,346
Location
Stow, MA
I have a metric crapton of PTC connectors in service having switched every beer, gas and rinser lines in a keezer and three fridges to EVABarrier tubing back in 2019. Nearly all are John Guest, but I do have some Duotights and DMfit parts as well. I would hand tighten then do a dunk test and wrench-tighten a bit at a time until any leak stopped. The only one I managed to crack was a Duotight 1/4" FFL to 8mm tubing. It was totally obvious at the instant it happened and it was totally my fault, got distracted and forgot where I was with it.

I'm a huge fan of dunk-testing everything possible. Over three keezer builds I've found all kinds of leaks that way...

Cheers!


Bobby_M

Vendor and Brewer
HBT Sponsor
Joined
Aug 3, 2006
Messages
25,674
Reaction score
4,980
Location
Whitehouse Station
Best practices... light coat of keg lube on the threads and flare point of the opposing fitting. Hand tight, check for leaks (99% chance of none). 1/8th turn, check for leaks.
