Is CraftbeerPi still available or is there a better option?

HomeBrewTalk.com - Beer, Wine, Mead, & Cider Brewing Discussion Community.

Help Support Homebrew Talk:

btbonser

Well-Known Member
Joined
Dec 14, 2010
Messages
64
Reaction score
31
Location
Lamar, Missouri
I currently have an electric 3 vessel HERMS system which is based off of The Electric Brewery's 30A Control Panel build and have been using is for years. I now want to step up to a PC based control system. I'm not a programmer but I do know my way around a computer. I have looked through a lot of the different threads on here and I like the RaspberryPi with the CraftbeerPi expansion but can't seem to find the CraftbeerPi board online. Is this expansion board still available? Is there something better out there? Are these types of expansion boards necessary?


ZeSlammy

Well-Known Member
Joined
Mar 27, 2020
Messages
49
Reaction score
18
It seems like Manuel and CherryPhil will have some soon (Europe though). In the meantime some of us are working on boards too. Will post here when done.


crane

Well-Known Member
Lifetime Supporter
Joined
Sep 20, 2011
Messages
1,182
Reaction score
420
Location
San Diego
I you are looking for something "better", take a look at Brucontrol. It is pretty much limitless with what you can do with it. I even wrote FW for the nodeMCU to add devices that are not natively supported. And with the HTTP data exchange interface you can tie this into all sorts of other things like automatically importing recipes from beersmith using node red.


rkhanso

Well-Known Member
Joined
Jan 24, 2017
Messages
549
Reaction score
128
Location
Plymouth, MN - terrible tap water for brewing
I'm having trouble getting CBPi4 installed on a Pi Zero W. I'm not a programmer and am below average in Linux. I'm a user, not a developer/programmer.

Any ideas from the output below? Or maybe I just need to wait until it's officially released?

Following the directions at CraftBeerPi

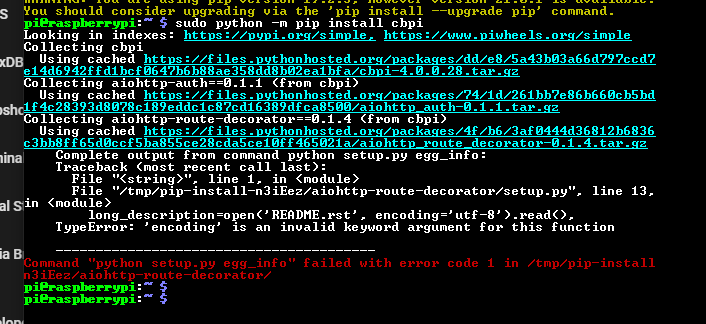

After sudo pip install cbpi
I get:
[email protected]:~ $ sudo pip install cbpi
Looking in indexes: [URL]https://pypi.org/simple[/URL], [URL]https://www.piwheels.org/simple[/URL]
Collecting cbpi
Using cached [URL]https://files.pythonhosted.org/packages/dd/e8/5a43b03a66d797ccd7de14d6942ffd1bcf0647b6b88ae358dd8b02ea1bfa/cbpi-4.0.0.28.tar.gz[/URL]
Collecting aiohttp-auth==0.1.1 (from cbpi)
Using cached [URL]https://files.pythonhosted.org/packages/74/1d/261bb7e86b660cb5bdb1f4c28393d8078c189eddc1c87cd16389dfca8500/aiohttp_auth-0.1.1.tar.gz[/URL]
Collecting aiohttp-route-decorator==0.1.4 (from cbpi)
Using cached [URL]https://files.pythonhosted.org/packages/4f/b6/3af0444d36812b68367c3bb8ff65d0ccf5ba855ce28cda5ce10ff465021a/aiohttp_route_decorator-0.1.4.tar.gz[/URL]
Complete output from command python setup.py egg_info:
Traceback (most recent call last):
File "<string>", line 1, in <module>
File "/tmp/pip-install-lPYWOK/aiohttp-route-decorator/setup.py", line 13, in <module>
long_description=open('README.rst', encoding='utf-8').read(),
TypeError: 'encoding' is an invalid keyword argument for this function

----------------------------------------
Command "python setup.py egg_info" failed with error code 1 in /tmp/pip-install-lPYWOK/aiohttp-route-decorator/





After sudo pip install https://github.com/Manuel83/craftbeerpi4/archive/master.zip
I get:
[email protected]:~ $ sudo pip install [URL]https://github.com/Manuel83/craftbeerpi4/archive/master.zip[/URL]
Looking in indexes: [URL]https://pypi.org/simple[/URL], [URL]https://www.piwheels.org/simple[/URL]
Collecting [URL]https://github.com/Manuel83/craftbeerpi4/archive/master.zip[/URL]
Downloading [URL]https://github.com/Manuel83/craftbeerpi4/archive/master.zip[/URL]
- 50.6MB 1.7MB/sKilled
[email protected]:




After sudo pip install Manuel83/craftbeerpi4
I get:
[email protected]:~ $ sudo pip install [URL='https://github.com/Manuel83/craftbeerpi4.git']Manuel83/craftbeerpi4[/URL]
Looking in indexes: [URL]https://pypi.org/simple[/URL], [URL]https://www.piwheels.org/simple[/URL]
Collecting [URL='https://github.com/Manuel83/craftbeerpi4.git']Manuel83/craftbeerpi4[/URL]
Downloading [URL='https://github.com/Manuel83/craftbeerpi4.git']Manuel83/craftbeerpi4[/URL]
| 194kB 1.2MB/s
Cannot unpack file /tmp/pip-unpack-s9im6y/craftbeerpi4.git (downloaded from /tmp/pip-req-build-q6nOW4, content-type: text/html; charset=utf-8); cannot detect archive format
Cannot determine archive format of /tmp/pip-req-build-q6nOW4[/CODE]

Last edited:

Alt

Well-Known Member
Lifetime Supporter
Joined
Jul 12, 2013
Messages
134
Reaction score
32
Location
Santa Rosa, CA
Please post the output to:

python —version

and

pip list

The separator in front of version consists of double hyphens (minus signs).

If those error, try:

python3 —version

and

pip3 list


Alt

Well-Known Member
Lifetime Supporter
Joined
Jul 12, 2013
Messages
134
Reaction score
32
Location
Santa Rosa, CA
Start here: Python for Windows

If CBPi4 is the only reason you are installing Python, I suggest the latest Python version supported by your Windows version. Be aware that CBPi will not run on Python 2. You need one of the Python 3 variants for CBPi4.

FWIW, I have CBPi4 installed on MacOS Catalina with Python 3.9 for evaluation/development purposes. I installed Homebrew to manage my Python versions and then I setup a virtual environment using Venv in which to install and work with CBPi4.

Last edited:

trindade

Member
Joined
Dec 13, 2013
Messages
21
Reaction score
0
Start here: Python for Windows

If CBPi4 is the only reason you are installing python, I suggest installing the latest Python version supported by your Windows version. Be aware that CBPi will not run on Python 2. You need one of the Python 3 variants.

i have CBPi4 installed on MacOS Catalina with Python 3.9 for evaluation/development purposes.
I already installed Python, but I can't install CBPi4.
What are the installation steps?


Alt

Well-Known Member
Lifetime Supporter
Joined
Jul 12, 2013
Messages
134
Reaction score
32
Location
Santa Rosa, CA
I already installed Python, but I can't install CBPi4.
What are the installation steps?
Open the Windows PowerShell (or Windows Command Prompt).

Navigate to your directory of choice.

Type: sudo pip install https://github.com/Manuel83/craftbeerpi4/archive/master.zip
(enter above command on a single line)

After installation is complete, type: cbpi setup

After setup is complete, type: cbpi start

Open your web browser of choice on the same machine and enter the address:

0.0.0.0:8000
(0.0.0.0 is your local machine and :8000 is the default port)


rkhanso

Well-Known Member
Joined
Jan 24, 2017
Messages
549
Reaction score
128
Location
Plymouth, MN - terrible tap water for brewing
Please post the output to:

python —version

and

pip list

The separator in front of version consists of double hyphens (minus signs).

If those error, try:

python3 —version

and

pip3 list
[email protected]:~ $ python3 --version
Python 3.7.3
[email protected]:~ $ pip3 list
Package Version
----------------- -----------
appdirs 1.4.3
asn1crypto 0.24.0
astroid 2.1.0
asttokens 1.1.13
automationhat 0.2.0
beautifulsoup4 4.7.1
blinker 1.4
blinkt 0.1.2
buttonshim 0.0.2
Cap1xxx 0.1.3
certifi 2018.8.24
chardet 3.0.4
Click 7.0
colorama 0.3.7
colorzero 1.1
cookies 2.2.1
cryptography 2.6.1
cupshelpers 1.0
cycler 0.10.0
decorator 4.3.0
docutils 0.14
drumhat 0.1.0
entrypoints 0.3
envirophat 1.0.0
ExplorerHAT 0.4.2
Flask 1.0.2
fourletterphat 0.1.0
gpiozero 1.5.1
guizero 0.6.0
html5lib 1.0.1
idna 2.6
ipykernel 4.9.0
ipython 5.8.0
ipython-genutils 0.2.0
isort 4.3.4
itsdangerous 0.24
jedi 0.13.2
Jinja2 2.10
jupyter-client 5.2.3
jupyter-core 4.4.0
keyring 17.1.1
keyrings.alt 3.1.1
kiwisolver 1.0.1
lazy-object-proxy 1.3.1
logilab-common 1.4.2
lxml 4.3.2
MarkupSafe 1.1.0
matplotlib 3.0.2
mccabe 0.6.1
microdotphat 0.2.1
mote 0.0.4
motephat 0.0.3
mypy 0.670
mypy-extensions 0.4.1
nudatus 0.0.4
numpy 1.16.2
oauthlib 2.1.0
olefile 0.46
pantilthat 0.0.7
parso 0.3.1
pexpect 4.6.0
pgzero 1.2
phatbeat 0.1.1
pianohat 0.1.0
picamera 1.13
pickleshare 0.7.5
picraft 1.0
piglow 1.2.5
pigpio 1.44
Pillow 5.4.1
pip 18.1
prompt-toolkit 1.0.15
psutil 5.5.1
pycairo 1.16.2
pycodestyle 2.4.0
pycrypto 2.6.1
pycups 1.9.73
pyflakes 2.0.0
pygame 1.9.4.post1
Pygments 2.3.1
PyGObject 3.30.4
pyinotify 0.9.6
PyJWT 1.7.0
pylint 2.2.2
pyOpenSSL 19.0.0
pyparsing 2.2.0
pyserial 3.4
pysmbc 1.0.15.6
python-apt 1.8.4.3
python-dateutil 2.7.3
pyxdg 0.25
pyzmq 17.1.2
qtconsole 4.3.1
rainbowhat 0.1.0
reportlab 3.5.13
requests 2.21.0
requests-oauthlib 1.0.0
responses 0.9.0
roman 2.0.0
RPi.GPIO 0.7.0
RTIMULib 7.2.1
scrollphat 0.0.7
scrollphathd 1.2.1
SecretStorage 2.3.1
semver 2.0.1
Send2Trash 1.5.0
sense-emu 1.1
sense-hat 2.2.0
setuptools 40.8.0
simplegeneric 0.8.1
simplejson 3.16.0
six 1.12.0
skywriter 0.0.7
sn3218 1.2.7
soupsieve 1.8
spidev 3.4
ssh-import-id 5.7
thonny 3.3.5
tornado 5.1.1
touchphat 0.0.1
traitlets 4.3.2
twython 3.7.0
typed-ast 1.3.1
uflash 1.2.4
unicornhathd 0.0.4
urllib3 1.24.1
wcwidth 0.1.7
webencodings 0.5.1
Werkzeug 0.14.1
wheel 0.32.3
wrapt 1.10.11
[email protected]:~ $
[email protected]:~ $ python --version
Python 2.7.16
[email protected]:~ $ pip list
Package Version
----------------- -----------
arandr 0.1.9
asn1crypto 0.24.0
automationhat 0.2.0
blinker 1.4
blinkt 0.1.2
buttonshim 0.0.2
Cap1xxx 0.1.3
certifi 2018.8.24
chardet 3.0.4
Click 7.0
colorama 0.3.7
colorzero 1.1
configparser 3.5.0b2
cookies 2.2.1
cryptography 2.6.1
drumhat 0.1.0
entrypoints 0.3
enum34 1.1.6
envirophat 1.0.0
ExplorerHAT 0.4.2
Flask 1.0.2
fourletterphat 0.1.0
funcsigs 1.0.2
gpiozero 1.5.1
gyp 0.1
idna 2.6
ipaddress 1.0.17
itsdangerous 0.24
Jinja2 2.10
keyring 17.1.1
keyrings.alt 3.1.1
MarkupSafe 1.1.0
mcpi 0.1.1
microdotphat 0.2.1
mock 2.0.0
mote 0.0.4
motephat 0.0.3
numpy 1.16.2
oauthlib 2.1.0
olefile 0.46
pantilthat 0.0.7
pbr 4.2.0
phatbeat 0.1.1
pianohat 0.1.0
picamera 1.13
picraft 1.0
piglow 1.2.5
pigpio 1.44
Pillow 5.4.1
pip 18.1
pycairo 1.16.2
pycrypto 2.6.1
pyflakes 2.0.0
pygame 1.9.4.post1
PyGObject 3.30.4
pyinotify 0.9.6
PyJWT 1.7.0
pyOpenSSL 19.0.0
pyserial 3.4
pyxdg 0.25
rainbowhat 0.1.0
requests 2.21.0
requests-oauthlib 1.0.0
responses 0.9.0
RPi.GPIO 0.7.0
RTIMULib 7.2.1
scrollphat 0.0.7
scrollphathd 1.2.1
SecretStorage 2.3.1
sense-emu 1.1
sense-hat 2.2.0
setuptools 40.8.0
simplejson 3.16.0
six 1.12.0
skywriter 0.0.7
sn3218 1.2.7
spidev 3.4
touchphat 0.0.1
twython 3.7.0
unicornhathd 0.0.4
urllib3 1.24.1
Werkzeug 0.14.1
wheel 0.32.3
[email protected]:

OP
btbonser

btbonser

Well-Known Member
Joined
Dec 14, 2010
Messages
64
Reaction score
31
Location
Lamar, Missouri
I am currently testing CBPi 4 on both a Mac Mini with Catalina.7 and a RasPi 3B with latest Pi OS. Be aware it is still in pre-release development.
Any idea how long until it's officially released?


rkhanso

Well-Known Member
Joined
Jan 24, 2017
Messages
549
Reaction score
128
Location
Plymouth, MN - terrible tap water for brewing
Hello @Alt --
I had trouble running that command - errors.
I ran an update/upgrade and tried sudo pip3 install https://github.com/Manuel83/craftbeerpi4/archive/master.zip again. Same results.
Keep in mind, I'm using a Pi Zero W--- in case that makes a difference.



Then I tried an update and upgrade and get errors. Maybe I should start over with a re-flash of the SD card?

[email protected]:~ $ sudo apt full-upgrade
Reading package lists... Done
Building dependency tree
Reading state information... Done
Calculating upgrade... Done
The following packages will be upgraded:
lxplug-bluetooth raspberrypi-sys-mods rpi-eeprom thonny
4 upgraded, 0 newly installed, 0 to remove and 0 not upgraded.
3 not fully installed or removed.
Need to get 0 B/1,261 kB of archives.
After this operation, 547 kB of additional disk space will be used.
Do you want to continue? [Y/n] y
dpkg-deb (subprocess): decompressing archive member: lzma error: compressed data is corrupt
tar: This does not look like a tar archive
tar: Exiting with failure status due to previous errors
dpkg-deb: error: tar subprocess returned error exit status 2
Traceback (most recent call last):
File "/usr/share/apt-listchanges/DebianFiles.py", line 124, in readdeb
output = subprocess.check_output(command)
File "/usr/lib/python3.7/subprocess.py", line 395, in check_output
**kwargs).stdout
File "/usr/lib/python3.7/subprocess.py", line 487, in run
output=stdout, stderr=stderr)
subprocess.CalledProcessError: Command '['dpkg-deb', '-f', '/var/cache/apt/archives/lxplug-bluetooth_0.20_armhf.deb', 'Package', 'Source', 'Version', 'Architecture', 'Status']' returned non-zero exit status 2.

During handling of the above exception, another exception occurred:

Traceback (most recent call last):
File "/usr/bin/apt-listchanges", line 281, in <module>
main(config)
File "/usr/bin/apt-listchanges", line 96, in main
pkg = DebianFiles.Package(deb)
File "/usr/share/apt-listchanges/DebianFiles.py", line 215, in __init__
parser.readdeb(self.path)
File "/usr/share/apt-listchanges/DebianFiles.py", line 128, in readdeb
{'what': file, 'errmsg': str(ex)}) from ex
NameError: name 'file' is not defined
E: Invalid archive member header
E: Prior errors apply to /var/cache/apt/archives/lxplug-bluetooth_0.20_armhf.deb
E: Invalid archive signature
E: Internal error, could not locate member control.tar.{zstlz4gzxzbz2lzma}
E: Prior errors apply to /var/cache/apt/archives/raspberrypi-sys-mods_20210310_armhf.deb
E: Invalid archive member header
E: Prior errors apply to /var/cache/apt/archives/rpi-eeprom_11.10-1_armhf.deb
E: Invalid archive member header
E: Prior errors apply to /var/cache/apt/archives/thonny_3.3.6-1+rpt1_all.deb
debconf: apt-extracttemplates failed: No such file or directory
dpkg-deb (subprocess): decompressing archive member: lzma error: compressed data is corrupt
tar: This does not look like a tar archive
tar: Exiting with failure status due to previous errors
dpkg-deb: error: tar subprocess returned error exit status 2
dpkg: error processing archive /var/cache/apt/archives/lxplug-bluetooth_0.20_armhf.deb (--unpack):
dpkg-deb --control subprocess returned error exit status 2
dpkg-deb: error: '/var/cache/apt/archives/raspberrypi-sys-mods_20210310_armhf.deb' is not a Debian format archive
dpkg: error processing archive /var/cache/apt/archives/raspberrypi-sys-mods_20210310_armhf.deb (--unpack):
dpkg-deb --control subprocess returned error exit status 2
dpkg-deb (subprocess): decompressing archive member: lzma error: compressed data is corrupt
tar: This does not look like a tar archive
tar: Exiting with failure status due to previous errors
dpkg-deb: error: tar subprocess returned error exit status 2
dpkg: error processing archive /var/cache/apt/archives/rpi-eeprom_11.10-1_armhf.deb (--unpack):
dpkg-deb --control subprocess returned error exit status 2
dpkg-deb (subprocess): decompressing archive member: lzma error: compressed data is corrupt
tar: This does not look like a tar archive
tar: Exiting with failure status due to previous errors
dpkg-deb: error: tar subprocess returned error exit status 2
dpkg: error processing archive /var/cache/apt/archives/thonny_3.3.6-1+rpt1_all.deb (--unpack):
dpkg-deb --control subprocess returned error exit status 2
Errors were encountered while processing:
/var/cache/apt/archives/lxplug-bluetooth_0.20_armhf.deb
/var/cache/apt/archives/raspberrypi-sys-mods_20210310_armhf.deb
/var/cache/apt/archives/rpi-eeprom_11.10-1_armhf.deb
/var/cache/apt/archives/thonny_3.3.6-1+rpt1_all.deb
E: Sub-process /usr/bin/dpkg returned an error code (1)
[email protected]:~ $

Last edited:

Alt

Well-Known Member
Lifetime Supporter
Joined
Jul 12, 2013
Messages
134
Reaction score
32
Location
Santa Rosa, CA
@rkhanso, I am far from a Unix/Linux expert but your latest output looks like there may be an issue with your RPi OS installation or at least your python environment configuration. Are you running the Lite or Desktop OS? If you don’t have anything to lose on the SD card, I would wipe it clean and start fresh with the latest OS image from the RPi Foundation. Then let’s try installing CBPi from PyPi instead of Github:

sudo pip install cbpi

You won’t have the lastest build but that doesn’t really matter at this point in development - PyPi currently has build 28. We just want to get you to the point you can install, setup and run it. You can upgrade later. The most recent merge to build 31 fixed some things but temporarily broke others.

If anyone else sees it differently, please chime in. In the meanwhile I will look this weekend to see if I have a Zero W lying around and try an install myself. I know I have at least one Zero somewhere but not sure if I have a Wifi model.

Last edited:

Alt

Well-Known Member
Lifetime Supporter
Joined
Jul 12, 2013
Messages
134
Reaction score
32
Location
Santa Rosa, CA
Any idea how long until it's officially released?
Your guess is as good as anyone else’s. Manuel began work on version 4 a little over two years ago. But to be fair, it sounds like life took precedence for about a year or so. Activity began again in earnest this January and he’s been feverishly pushing out new features and functionality since then. Others who wrote and shared plug-ins for version 3 have started porting some of those over to version 4. If I were to wager a guess, I would predict a first release build sometime this May or June.


rkhanso

Well-Known Member
Joined
Jan 24, 2017
Messages
549
Reaction score
128
Location
Plymouth, MN - terrible tap water for brewing
Hello @Alt.
I've tried it on a Pi 4 and also get errors. I think I'll just wait until the official release of CBPi4. Or use something else. I'd like to get Bru Control, but it's hard for me to justify that price to the wife.

On the Pi4:
[email protected]:~ $ sudo pip install cbpi
Looking in indexes: https://pypi.org/simple, https://www.piwheels.org/simple
Collecting cbpi
Using cached https://files.pythonhosted.org/pack...47b6b88ae358dd8b02ea1bfa/cbpi-4.0.0.28.tar.gz
Collecting aiohttp-auth==0.1.1 (from cbpi)
Using cached https://files.pythonhosted.org/pack...1c87cd16389dfca8500/aiohttp_auth-0.1.1.tar.gz
Collecting aiohttp-route-decorator==0.1.4 (from cbpi)
Using cached https://files.pythonhosted.org/pack...f465021a/aiohttp_route_decorator-0.1.4.tar.gz
Complete output from command python setup.py egg_info:
Traceback (most recent call last):
File "<string>", line 1, in <module>
File "/tmp/pip-install-pRX0pl/aiohttp-route-decorator/setup.py", line 13, in <module>
long_description=open('README.rst', encoding='utf-8').read(),
TypeError: 'encoding' is an invalid keyword argument for this function

----------------------------------------
Command "python setup.py egg_info" failed with error code 1 in /tmp/pip-install-pRX0pl/aiohttp-route-decorator/
[email protected]:~ $


[email protected]:~ $ sudo pip install https://github.com/Manuel83/craftbeerpi4/archive/master.zip
Looking in indexes: https://pypi.org/simple, https://www.piwheels.org/simple
Collecting https://github.com/Manuel83/craftbeerpi4/archive/master.zip
Using cached https://github.com/Manuel83/craftbeerpi4/archive/master.zip
cbpi requires Python '>=3' but the running Python is 2.7.16
[email protected]:~ $



I thought I installed Python3 successfully.
[email protected]:~ $ python -V
Python 3.8.0
[email protected]:~ $


Alt

Well-Known Member
Lifetime Supporter
Joined
Jul 12, 2013
Messages
134
Reaction score
32
Location
Santa Rosa, CA
Using cached https://github.com/Manuel83/craftbeerpi4/archive/master.zip
cbpi requires Python '>=3' but the running Python is 2.7.16
[email protected]:~ $

I thought I installed Python3 successfully.
[email protected]:~ $ python -V
Python 3.8.0
[email protected]:~ $
Partially successful. A fresh install of RPi OS should leave you with:

$ python -V
Python 2.7.16
$ pip -V
pip 18.1 from /usr/lib/python2.7/dist-packages/pip (Python 2.7)

$ python3 -V
Python 3.7.3
$pip3 -V
pip 18.1 from /usr/lib/python3/dist-packages/pip (Python 3.7)

I am guessing you upgraded python3 from 3.7 to 3.8 and the upgrade process aliased python=python3 but did not alias pip=pip3. You can still alias pip but there can be reasons to not do that. Below we are going to run pip using python -m so that pip is explicitly linked to your python 3.8.

First, let's make sure you do not have any cbpi4 related packages installed.

$ python -m pip list

If you see cbpi and cbpi4ui then uninstall those.

$ sudo python -m pip uninstall cbpi cbpi4ui

Now run a fresh install:

$ sudo python -m pip install cbpi

Do not try to install latest build from Github just yet, let's get cbpi 4.0.0.28 installed from PyPi working first. PyPi will do a better job of correcting any dependency issues you may have.


trindade

Member
Joined
Dec 13, 2013
Messages
21
Reaction score
0
Open the Windows PowerShell (or Windows Command Prompt).

Navigate to your directory of choice.

Type: sudo pip install https://github.com/Manuel83/craftbeerpi4/archive/master.zip
(enter above command on a single line)

After installation is complete, type: cbpi setup

After setup is complete, type: cbpi start

Open your web browser of choice on the same machine and enter the address:

0.0.0.0:8000
(0.0.0.0 is your local machine and :8000 is the default port)
I managed to make the first command: pip install https://github.com/Manuel83/craftbeerpi4/archive/master.zip
after the download and installation run the command cbpi setup and nothing happens

OP
btbonser

btbonser

Well-Known Member
Joined
Dec 14, 2010
Messages
64
Reaction score
31
Location
Lamar, Missouri
What’s everyone using to step down the 110v AC in their control panel to the 5.1v 2.5A required for the raspberry Pi?


Alt

Well-Known Member
Lifetime Supporter
Joined
Jul 12, 2013
Messages
134
Reaction score
32
Location
Santa Rosa, CA
I managed to make the first command: pip install https://github.com/Manuel83/craftbeerpi4/archive/master.zip
after the download and installation run the command cbpi setup and nothing happens
@trindade, I have no real familiarity with Python on Windows and don't want to lead you down a labyrinth of rabbit holes. It might be best to post your issue here on GitHub and let's see what Manuel or others more knowledgeable then me have to say before we pursue this further.


rkhanso

Well-Known Member
Joined
Jan 24, 2017
Messages
549
Reaction score
128
Location
Plymouth, MN - terrible tap water for brewing
Partially successful. A fresh install of RPi OS should leave you with:

$ python -V
Python 2.7.16
$ pip -V
pip 18.1 from /usr/lib/python2.7/dist-packages/pip (Python 2.7)

$ python3 -V
Python 3.7.3
$pip3 -V
pip 18.1 from /usr/lib/python3/dist-packages/pip (Python 3.7)

I am guessing you upgraded python3 from 3.7 to 3.8 and the upgrade process aliased python=python3 but did not alias pip=pip3. You can still alias pip but there can be reasons to not do that. Below we are going to run pip using python -m so that pip is explicitly linked to your python 3.8.

First, let's make sure you do not have any cbpi4 related packages installed.

$ python -m pip list

If you see cbpi and cbpi4ui then uninstall those.

$ sudo python -m pip uninstall cbpi cbpi4ui

Now run a fresh install:

$ sudo python -m pip install cbpi

Do not try to install latest build from Github just yet, let's get cbpi 4.0.0.28 installed from PyPi working first. PyPi will do a better job of correcting any dependency issues you may have.
[email protected]:~ $ python -V


Python 3.8.0
[email protected]:~ $ pip -V
pip 18.1 from /usr/lib/python2.7/dist-packages/pip (python 2.7)
[email protected]:~ $

[email protected]:~ $ python3 -V
Python 3.7.3
[email protected]:~ $ pip3 -V
pip 18.1 from /usr/lib/python3/dist-packages/pip (python 3.7)
[email protected]:~ $

[email protected]:~ $ python -m pip list
Package Version
---------- -------
pip 19.2.3
setuptools 41.2.0
WARNING: You are using pip version 19.2.3, however version 21.0.1 is available.
You should consider upgrading via the 'pip install --upgrade pip' command.
[email protected]:~ $



Alt

Well-Known Member
Lifetime Supporter
Joined
Jul 12, 2013
Messages
134
Reaction score
32
Location
Santa Rosa, CA
Here’s how I successfully installed Craftbeerpi4 on my Pi Zero W.

Flashed new image of Rpi OS Lite to SD Card:
  • I used the Raspberry Pi Imager for this exercise, but typically use Etcher.
Set WLAN SSID & password; selected localization language.country code.character set (en.US.UTF-8); keyboard; WLAN country code; and enabled SSH & 1-Wire:
  • sudo raspi-config
Remove Python2 - probably not necessary, but I did:
  • sudo apt-get remove python
  • sudo apt autoremove
Install additional Python3 packages:
  • sudo apt-get install python3-pip
  • sudo apt-get install python3-rpi.gpio # not really necessary at this point as cbpi will install as needed
  • sudo apt-get install python3-smbus # this one probably not necessary but could be handy in the future
Install CBPI4:
  • sudo pip3 install cbpi
Setup CBPi4:
  • cbpi setup
Ran into a numpy error during setup and corrected issue as instructed here:
  • sudo apt-get install libatlas-base-dev
Reran setup:
  • cbpi setup
Launch Craftbeerpi4:
  • cbpi start
Success or so I thought. Couldn’t connect to Pi Zero IP address (x.x.x.x:8000). Then realized I couldn’t SSH into my Zero either. Changed SSID & password from guest wifi to internal wifi by rerunning raspi-config, but all that did was create an alternative connection.

Edited wpa-supplicant to remove guest wifi network configuration:
  • sudo nano /etc/wpa_supplicant/wpa_supplicant.conf
delete and save
network={​
ssid=“guest….”​
psk=“….”​
}​

Reboot and run:
  • cbpi start
Enter Pi Zero IP address and CBPi port (x.x.x.x:8000) in web browser of choice on another device logged into the same wifi network as Pi Zero and voila! CBPi4 is more responsive running on the Pi Zero than I expected; however, installation and setup were painfully slow compared with a Pi 3B, let alone an i5 Mac Mini.

Last edited:

rkhanso

Well-Known Member
Joined
Jan 24, 2017
Messages
549
Reaction score
128
Location
Plymouth, MN - terrible tap water for brewing
@Alt, I followed your steps exactly and still get a problem. I'm trying this on a Pi Zero W.

After cbpi setup I got this:

[email protected]:~ $ cbpi setup
Traceback (most recent call last):
File "/usr/local/bin/cbpi", line 6, in <module>
from cbpi.cli import main
File "/usr/local/lib/python3.7/dist-packages/cbpi/cli.py", line 9, in <module>
from cbpi.utils.utils import load_config
File "/usr/local/lib/python3.7/dist-packages/cbpi/utils/__init__.py", line 1, in <module>
from cbpi.utils.utils import *
File "/usr/local/lib/python3.7/dist-packages/cbpi/utils/utils.py", line 1, in <module>
from cbpi.utils.encoder import ComplexEncoder
File "/usr/local/lib/python3.7/dist-packages/cbpi/utils/encoder.py", line 4, in <module>
from pandas import Timestamp
File "/usr/local/lib/python3.7/dist-packages/pandas/__init__.py", line 17, in <module>
"Unable to import required dependencies:\n" + "\n".join(missing_dependencies)
ImportError: Unable to import required dependencies:
numpy:

IMPORTANT: PLEASE READ THIS FOR ADVICE ON HOW TO SOLVE THIS ISSUE!

Importing the numpy C-extensions failed. This error can happen for
many reasons, often due to issues with your setup or how NumPy was
installed.

We have compiled some common reasons and troubleshooting tips at:

https://numpy.org/devdocs/user/troubleshooting-importerror.html

Please note and check the following:

* The Python version is: Python3.7 from "/usr/bin/python3"
* The NumPy version is: "1.20.1"

and make sure that they are the versions you expect.
Please carefully study the documentation linked above for further help.

Original error was: libf77blas.so.3: cannot open shared object file: No such file or directory

[email protected]:~ $


I did this to correct it, then CBPI would start OK.
sudo apt-get install libatlas-base-dev

Last edited:

Alt

Well-Known Member
Lifetime Supporter
Joined
Jul 12, 2013
Messages
134
Reaction score
32
Location
Santa Rosa, CA
@rkhanso, if I am reading you correctly you now have cbpi4 running on your Pi Zero? The error you posted with correction was covered in my instructions. It is not a cbpi4 issue per se, but rather a Raspi OS - Python setup issue. I ran into the same issue and worked through it, as it sounds like you have done as well.

FYI, there may be issues with the step control in cbpi4 build 33 with the latest merged pull request from a contributor which was intended to manage the state of steps at the basic controller level. Either it didn’t properly account for passing the running state to each step instance or I may have some work around left in my installation which that upgrade did not overwrite. No one has commented about this on GitHub so I suspect it may be in my installation. Hopefully I can find some time tonight to do a full uninstall/install and then see if it persists.


rkhanso

Well-Known Member
Joined
Jan 24, 2017
Messages
549
Reaction score
128
Location
Plymouth, MN - terrible tap water for brewing
Thanks for the help Alt. I'm going to give up on it for now though. CraftbeerPi 3 is working OK for me for now. Don't put in any effort on this on my account.
I also need to plan another brew and actually brew again soon.

For a long time, I gave up all hope on CraftbeerPi3 and the future of CraftbeerPi in general since it was radio silence for so long on it. I didn't see any updates for a long time.

I've since changed over to Fermentrack for my fermenter controller (but still have my CraftbeerPi3 fermenter controller still working, but unused). When CraftbeerPi4 is officially released, I'll likely switch over to it. Or maybe look at BruControl down the road if I can save up some $$ for it.
But until then, CBPi3 is still humming along.

Top
