Ok, so I have a years worth of brewing under my belt and I'm ready to attempt a more streamline temp control setup. Up until now I've been doing the swamp cooler.

Could someone take a look at my drawing and give me a few suggestions? Please don't cut me up too much, I am no artist. Also, I've never done anything like this before, so I may have something completely wrong.

How it works:

A stainless steel immersion coil in the fermenter attached to the lid. Both ends of the coil are attached to 2 lines whose ends are in an electric cooler of some sort. I have a pump hooked to the IN-line and to a Inkbird temp regulator. There is a thermowell installed on the lid. The regulator has a temp probe that fits down into the thermowell.

The idea is to set the temp on the regulator and have it toggle power ON/OFF to the pump.

I live in California, so a heating element isn't needed for the styles I'm brewing.

Any thoughts? I looked for videos or even pictures and came up dry. Perhaps I'm using the wrong search string.




Kerrbrewer

I just wanna brew!
Joined
Feb 27, 2016
Messages
216
Reaction score
40
Location
TX Hill Country
I could see how this could work. I wouldn't really want that coil in my wort. I'd be scared of some kind of infection. That's just me, I'm a lil OCD when it comes to sanitization. Have you thought of using this setup to chill a swamp cooler bath? I think James Spencer of Basic brewing has plans for a system called low tech lagering. Someone sells a device that does exactly what your setup would do but it's pricey. I built my own version of the son of fermentation chamber and easily ferment in the low 50's in my house.


BeardedBrews

Well-Known Member
Joined
May 11, 2015
Messages
1,265
Reaction score
557
Location
Tacoma
Have you thought of using this setup to chill a swamp cooler bath?
You mention you already have a swamp cooler, you could easily use the same design just plumb it into the swamp cooler instead of the immersion chiller. Pump into the top of the swamp and back out near the bottom to keep it mixed a bit.


Phunhog

Well-Known Member
Joined
Sep 1, 2008
Messages
2,088
Reaction score
207
That is what I have been doing for years.....temperature controlled swamp cooler. Works really well!!


GQT

Well-Known Member
Joined
Jul 13, 2015
Messages
252
Reaction score
40
Location
Guangzhou
Been using this sort of setup for quite some time. Works fine.

OP
safedude

safedude

Well-Known Member
Joined
Nov 3, 2015
Messages
103
Reaction score
7
Nice!! Is it essentially the same as the pic I drew? Is it a coil? If I were to do that - my problem is that my fermenter is a conical on legs. How would you suggest I submerge this in a swamp cooler?

Thanks!



rgreenberg2000

Well-Known Member
Joined
Feb 16, 2014
Messages
112
Reaction score
45
Location
Redwood City
Your drawing is exactly how I have my FTSS set up with my Chronical (except the pump is submerged in the ice water in the cooler.) Works great!


OP
safedude

safedude

Well-Known Member
Joined
Nov 3, 2015
Messages
103
Reaction score
7
Wow! That picture looks like it was pulled right from my mind. I really appreciate the response! I have yet to buy the pump. I'll look into submersible pumps. What kind do you have?


rgreenberg2000

Well-Known Member
Joined
Feb 16, 2014
Messages
112
Reaction score
45
Location
Redwood City
Wow! That picture looks like it was pulled right from my mind. I really appreciate the response! I have yet to buy the pump. I'll look into submersible pumps. What kind do you have?
The one I'm using came with the FTSS that SS BrewTech sells for their Chronical. It's a pretty basic looking pump. I'm sure that any small aquarium pump should do the job....if you go to www.ssbrewtech.com, you should be able to find pics of the pump listed with the FTSS.

Rich


Brad2287

Well-Known Member
Joined
Apr 2, 2012
Messages
223
Reaction score
53
Location
Denver

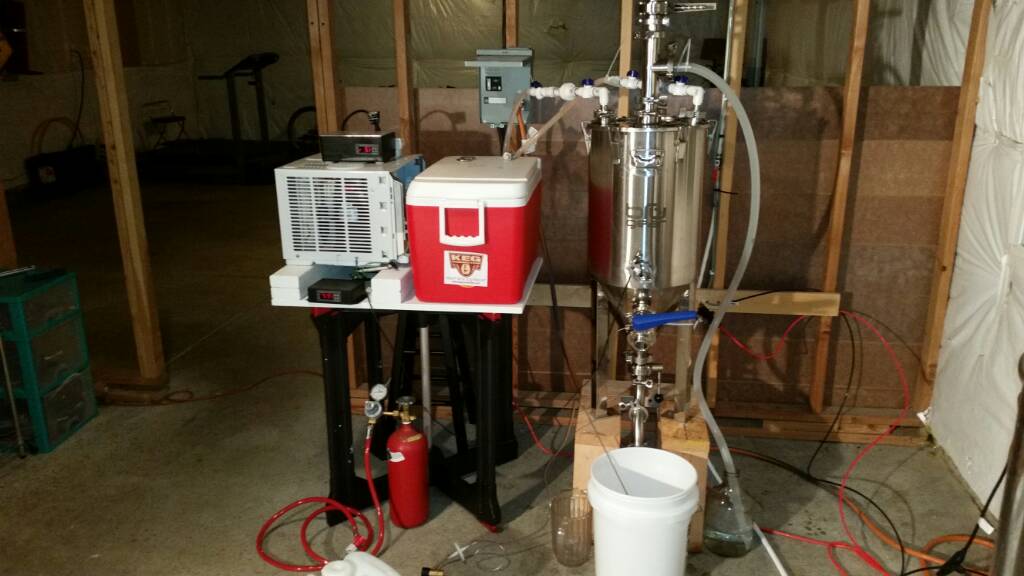

I also have a very similar setup. Biggest differance is I use an AC unit to cool the water/propylene glycol bath. I don't have to add ice or replace cold water and can cold crash down to 33 F no problem. There are several others that have almost identical setups or slight variations.

View attachment 1460114574597.jpg


BeardedBrews

Well-Known Member
Joined
May 11, 2015
Messages
1,265
Reaction score
557
Location
Tacoma
Your drawing is exactly how I have my FTSS set up with my Chronical (except the pump is submerged in the ice water in the cooler.) Works great!
I am so glad you posted, I saw your picture in another thread and wanted to link it, but for the life of me I couldn't find it!
