And you don't add the line he mentions, you change it, from acm0 to USB0


Dgratiot

Active Member
Joined
Jan 29, 2016
Messages
28
Reaction score
6
Okay so I've got the address down! Now when I try to program the hex file to my arduino it returns with 'warning: cannot receive version number from controller. Your controller is either not programmed or running a very old version of BrewPi. Please upload a new version of brewpi to your controller.' What now?! This is substantially harder than expected!


Dgratiot

Active Member
Joined
Jan 29, 2016
Messages
28
Reaction score
6
I GOT IT! Ive never been more excited about something...Geeeze! That was some work! I connected my arduino to my PC and flashed it with XLoader, plugged back into the pi and reformatted there! Should be good to go, running to the hardware store now for a project box, and some screws to get my hardware together!

OP
FuzzeWuzze

FuzzeWuzze

I Love DIY
Joined
Jun 19, 2012
Messages
3,140
Reaction score
458
Location
Newberg
And you don't add the line he mentions, you change it, from acm0 to USB0
True, now that i think about it, the config.cfg must be overrides and you can edit it in the defaults.cfg as long as you dont also have a different setting in the config.cfg that would override it.

The config.cfg isnt really used in Wheezy but is in Jessie to override the default www path.

OP
FuzzeWuzze

FuzzeWuzze

I Love DIY
Joined
Jun 19, 2012
Messages
3,140
Reaction score
458
Location
Newberg
Okay so I've got the address down! Now when I try to program the hex file to my arduino it returns with 'warning: cannot receive version number from controller. Your controller is either not programmed or running a very old version of BrewPi. Please upload a new version of brewpi to your controller.' What now?! This is substantially harder than expected!
In the future when this happens its generally because theres something(or nothing) programmed onto the chip itself.

Usually opening your arduino in the Arduino IDE for Windows, opening the default "Blank" sketch and uploading that to your Arduino will fix that problem. A lot of the cheap chinese knockoffs just seem to solder down the Atmel chip and ship it off rather than putting a blank sketch on it.


Diver4life

Active Member
Joined
Nov 12, 2012
Messages
39
Reaction score
0
So randomly my sensors stopped working and now when I try to find them it doesn't show any A4 addresses. It won't find any sensors


Diver4life

Active Member
Joined
Nov 12, 2012
Messages
39
Reaction score
0
Could I have fried the board? It says the script is still running but no sensors are detected and I've tried 5 different sensors

OP
FuzzeWuzze

FuzzeWuzze

I Love DIY
Joined
Jun 19, 2012
Messages
3,140
Reaction score
458
Location
Newberg
Are you sure your resistor or something didnt get disconnected or anything? If you used a new resistor are you sure you used 4.7k?


day_trippr

"This Space For Rent"
Joined
May 31, 2011
Messages
37,494
Reaction score
20,348
Location
Stow, MA
Is there anything of interest in the BrewPi log?
I've never blown an AVR pin though I've certainly "challenged" them often enough...

Cheers!


wbarber69

Well-Known Member
Joined
Oct 13, 2013
Messages
2,191
Reaction score
263
Is there anything of interest in the BrewPi log?

I've never blown an AVR pin though I've certainly "challenged" them often enough...



Cheers!

You should try doing anything with a Ramps board. im on my 4th mega on my first homebrew 3d printer ;( and im not even finished yet.


VictorBrew

Well-Known Member
Joined
Aug 1, 2014
Messages
50
Reaction score
11
Thanks to all that contribute ... excellent thread. I was up and running within a day using the info in this thread and primarily the wiki (Thanks FuzzeWuzze).

Running 2015-05-05-raspbian-wheezy and just a couple of quick questions as I start to use BrewPi.

1) A read a few bits here and there about 'Disabling Power Mgmt' to help with wifi stability. Is this old info or still recommend (how?)? Note - Cron job wifichecker is running.

2) Can you point me in the right direction (posts or other) regarding suggested or lessons learned modifications to the actual BrewPi settings within the 'Advanced Settings' under the 'Maintenance panel' ... or do most folks just leave them alone with the defaults?

3)When I want to convert over to multiple chamber config with the multiple Arduinos, is it recommended to start fresh with a clean 2015-05-05-raspbian-wheezy install and the steps in the wiki or can I modify my existing single chamber setup and retrofit?

Thanks again for the BrewPi community here HBT.

Rob

OP
FuzzeWuzze

FuzzeWuzze

I Love DIY
Joined
Jun 19, 2012
Messages
3,140
Reaction score
458
Location
Newberg
Thanks to all that contribute ... excellent thread. I was up and running within a day using the info in this thread and primarily the wiki (Thanks FuzzeWuzze).

Running 2015-05-05-raspbian-wheezy and just a couple of quick questions as I start to use BrewPi.

1) A read a few bits here and there about 'Disabling Power Mgmt' to help with wifi stability. Is this old info or still recommend (how?)? Note - Cron job wifichecker is running.

2) Can you point me in the right direction (posts or other) regarding suggested or lessons learned modifications to the actual BrewPi settings within the 'Advanced Settings' under the 'Maintenance panel' ... or do most folks just leave them alone with the defaults?

3)When I want to convert over to multiple chamber config with the multiple Arduinos, is it recommended to start fresh with a clean 2015-05-05-raspbian-wheezy install and the steps in the wiki or can I modify my existing single chamber setup and retrofit?

Thanks again for the BrewPi community here HBT.

Rob
1) Not sure, i dont use Wifi
2) Most people leave them the same, they shouldnt need to be adjusted.
3) There is work being done by user Ame here on HBT(and im trying to help!) to get a RPI only BrewPi up and running. Its close but a lot of testing is required and that just takes time. Hopefully at that point Multiple arduinos wont be required and setting up multiple chambers using the various GPIO pins on a single RPI will be possible. Its still speculation at this point, but its technically possible (and fairly easy?) with the code hes working on. But again...testing :) So maybe by the time your ready to start doing multiple chambers it will be ready.


VictorBrew

Well-Known Member
Joined
Aug 1, 2014
Messages
50
Reaction score
11
3) There is work being done by user Ame here on HBT(and im trying to help!) to get a RPI only BrewPi up and running. Its close but a lot of testing is required and that just takes time. Hopefully at that point Multiple arduinos wont be required and setting up multiple chambers using the various GPIO pins on a single RPI will be possible.
Excellent news on the side project, thanks for sharing the info. I have got a second RPI sitting around that is just waiting for some alpha testing cycles ...

Keep us posted and many thanks for your hours of contributions on this topic ; I would have been lost without your wiki.

Rob


day_trippr

"This Space For Rent"
Joined
May 31, 2011
Messages
37,494
Reaction score
20,348
Location
Stow, MA
[...]Running 2015-05-05-raspbian-wheezy and just a couple of quick questions as I start to use BrewPi.

1) A read a few bits here and there about 'Disabling Power Mgmt' to help with wifi stability. Is this old info or still recommend (how?)? Note - Cron job wifichecker is running.[...]
I've never run the wifichecker, don't think it's actually needed, and have read that it causes its own set of issues.

3)When I want to convert over to multiple chamber config with the multiple Arduinos, is it recommended to start fresh with a clean 2015-05-05-raspbian-wheezy install and the steps in the wiki or can I modify my existing single chamber setup and retrofit?
No need to start anything "over". There are two BrewPi rooted file structures, one at /usr/brewpi, the other at /var/www. I simply moved the files to newly created subordinate folders (eg: /usr/brewpi/brewpi1 and /var/www/brewpi1), made the adjustments to the configuration files for the relocated structures, and got that running as the first "instance".

Then I cloned those folders to new ones (eg: /usr/brewpi/brewpi2 and /var/www/brewpi2), adjusted the configuration files for that instance, added another line to /etc/udev/rules.d/99-arduino.rules for another Uno with the appropriate serial number, then got that running as the second "instance".

Using that template I quickly got four BrewPi instances running...

Cheers!


VictorBrew

Well-Known Member
Joined
Aug 1, 2014
Messages
50
Reaction score
11
No need to start anything "over". ...

Cheers!
Thanks for the info on your approach. Makes sense, but I might reach out when I get to that point. I will spend a couple of brews working through the behavior and nuances of a single chamber, but you gave me the insight I was hoping for and a good place to start.

Thx


day_trippr

"This Space For Rent"
Joined
May 31, 2011
Messages
37,494
Reaction score
20,348
Location
Stow, MA
There's a long winded write-up I did on it somewhere here...

[much Google-Fu later]

https://www.homebrewtalk.com/showpost.php?p=6314307&postcount=1393

The part about symlinks should be replaced using serial numbers instead.
I wrote that up somewhere, too, but even Google can't find it.

But this should give you an idea on what the eventual /etc/udev/rules.d/99-arduino.rules file should have in it.

Code:
SUBSYSTEM=="tty", KERNEL=="ttyACM*", ATTRS{serial}=="85336303532351F0A031", SYMLINK+="brewpi1", GROUP="brewpi"
SUBSYSTEM=="tty", KERNEL=="ttyACM*", ATTRS{serial}=="754373038303510BF870", SYMLINK+="brewpi2", GROUP="brewpi"
SUBSYSTEM=="tty", KERNEL=="ttyACM*", ATTRS{serial}=="5543131323835130B160", SYMLINK+="brewpi3", GROUP="brewpi"
SUBSYSTEM=="tty", KERNEL=="ttyACM*", ATTRS{serial}=="55431313238351104021", SYMLINK+="brewpi4", GROUP="brewpi"
You find the serial numbers using the same udevadm command...

Cheers!

[edit] Still can't find the original, but here I posted the gist of the ATTRS{serial} thing.


indianajns

Well-Known Member
Joined
Oct 15, 2013
Messages
99
Reaction score
2
My BrewPi has always kept my ferm temps between .1-.3 F. Today something has changed and I have not made any adjustments. It is now swinging .5. If my set temp is 64 it will now swing between 63.5 and 64.5. It used to swing between 63.8 and 64.2. Any thoughts as to why the sudden change?

OP
FuzzeWuzze

FuzzeWuzze

I Love DIY
Joined
Jun 19, 2012
Messages
3,140
Reaction score
458
Location
Newberg
Usually wider swings are

1) Your ferm chamber isnt sealed, my door sometimes opens on its own ...
2) Your probe if in a thermowell may have been pulled out slightly so its measuring the air more than the beer and throwing brewpi off.


wbarber69

Well-Known Member
Joined
Oct 13, 2013
Messages
2,191
Reaction score
263
And it's now spring so ambient air temperature will begin to rise possibly throwing off the pid a bit. I'd let it run, maybe it'll balance back out in its own. but definitely check the probe in the thermowell.


VictorBrew

Well-Known Member
Joined
Aug 1, 2014
Messages
50
Reaction score
11
Has anybody else run into browser incompatibility from the iPhone or iPad? I have tried Safari, Chrome, Firefox, Dolphin on the iphone and they all have the intermittent 5 Sec of showing the text in the LCD window (upper left) and then 5 seconds of 'Cannot Receive LCD text from Python Script'. It basically toggles from showing that the script is running to showing that it is not, every 5 secs. The BrewPi install is running fine and the script never actually stops. The behavior does not exist on any of the browsers from the Mac, so I am certain it is an Phone browser incompatibility issue. I can duplicate the issue using Safari on the Mac (Chrome and Firefox work with no issues), but all browsers on the iPhone seem to have this issue. Ideas?


GrogNerd

mean old man
Joined
Oct 3, 2012
Messages
8,226
Reaction score
6,454
Location
Sterling, VA
Has anybody else run into browser incompatibility from the iPhone or iPad? I have tried Safari, Chrome, Firefox, Dolphin on the iphone and they all have the intermittent 5 Sec of showing the text in the LCD window (upper left) and then 5 seconds of 'Cannot Receive LCD text from Python Script'. It basically toggles from showing that the script is running to showing that it is not, every 5 secs. The BrewPi install is running fine and the script never actually stops. The behavior does not exist on any of the browsers from the Mac, so I am certain it is an Phone browser incompatibility issue. I can duplicate the issue using Safari on the Mac (Chrome and Firefox work with no issues), but all browsers on the iPhone seem to have this issue. Ideas?
I get this on my Win7 PC running Opera


Asmodeus

Member
Joined
Mar 5, 2016
Messages
17
Reaction score
3
I get this on my Win7 PC running Opera
I believe the reason is a bug in the way that the browser expect data and while I have not corrected it it can be supressed by changing a timeout value in the python script from 5 to 60. After that Safari, MS Edge work as fine as Crome at least for me.

-Ill see if I can digout exactly where this is.

Btw, I have set up a development environment and can compile hex codes, so I made a self resetting display (every five minutes) using i2c and rotary encoder. I had a lot of emi from using sainsmart relays, as one do not know where on the frequency they will be activated .Tbd is to switch display on and of by using the rotary encoder or other button. One can also use a ldr to set the display to match ambient light connected to pins on the i2c driver.

Skål /A


CaptnDelta

Well-Known Member
Joined
May 7, 2014
Messages
164
Reaction score
26
Has anybody else run into browser incompatibility from the iPhone or iPad? I have tried Safari, Chrome, Firefox, Dolphin on the iphone and they all have the intermittent 5 Sec of showing the text in the LCD window (upper left) and then 5 seconds of 'Cannot Receive LCD text from Python Script'. It basically toggles from showing that the script is running to showing that it is not, every 5 secs. The BrewPi install is running fine and the script never actually stops. The behavior does not exist on any of the browsers from the Mac, so I am certain it is an Phone browser incompatibility issue. I can duplicate the issue using Safari on the Mac (Chrome and Firefox work with no issues), but all browsers on the iPhone seem to have this issue. Ideas?
In /etc/apache2/apache2.conf, change the KeepAliveTimeout from 5 to something higher (I used 99), seems that fixes the issues with safari on iOS. Restart apache2 via

sudo service apache2 restart

Cheers,
-Th


cegan09

Supporting Member
HBT Supporter
Joined
Dec 16, 2015
Messages
934
Reaction score
354
I need to vent for a second. My whole fermentation chamber setup blew up. Made a beer last night, put in the chamber, and the stupid Pi wouldn't boot. Kernel Panics. Awesome. left it and went to bed.

Fixed it today. Couldn't fix the Pi so I wiped it and started over. FuzzeWuzze your new wiki and install are awesome. Got the Pi running, reset to legacy branch, thought I was good. Nope, wouldn't talk to the arduino. Arduino works fine, I can flash it through the IDE, but it refuses to talk to either of my brewpi Pi's. Finally gave up and replaced the uno with a new one, which worked. Awesome. Then I got to fight with it not saving devices again. Fixed that with an EEPROM reset. Finally have the chamber working again. What a morning.

OP
FuzzeWuzze

FuzzeWuzze

I Love DIY
Joined
Jun 19, 2012
Messages
3,140
Reaction score
458
Location
Newberg
Are you guys having your PI's die using crappy SD cards or putting it somewhere its overheating or something?

I ran my original image for well over a year or two before i wiped it to rewrite the install instructions.

And its some cheap ****ty Class 4 Kingston 8Gb card i got for $5 on Amazon.


cegan09

Supporting Member
HBT Supporter
Joined
Dec 16, 2015
Messages
934
Reaction score
354
No, using a good quality 16gig class 10 card. It's not even in a case right now until I can get around to laser cutting a custom one to house everything. I think it's probably my fault. I needed an outlet the other day, decided nothing could go wrong by just unplugging the pi. Wondering if that corrupted the card.


Asmodeus

Member
Joined
Mar 5, 2016
Messages
17
Reaction score
3
Glad I jumped on the bandwagon and got me one.:)

I thought the SD card corruption was a long gone bug by now though? Ive never had that occur and have not been kind to my Pi1 nor the new.

/A


VictorBrew

Well-Known Member
Joined
Aug 1, 2014
Messages
50
Reaction score
11
In /etc/apache2/apache2.conf, change the KeepAliveTimeout from 5 to something higher (I used 99), seems that fixes the issues with safari on iOS. Restart apache2 via

sudo service apache2 restart

Cheers,
-Th
Perfect ... that worked. Many thanks!


gromitdj

Well-Known Member
Joined
Feb 7, 2008
Messages
1,587
Reaction score
570
Location
Orange County
I needed an outlet the other day, decided nothing could go wrong by just unplugging the pi. Wondering if that corrupted the card.
You should not just unplug the pi without a proper shutdown, or SD card corruption is almost inevitable. Ask me how I know.


OneImpBrewery

Well-Known Member
Lifetime Supporter
Joined
Jan 31, 2013
Messages
176
Reaction score
15
Wanted to say thanks for all of the hard work on the post. I followed the guide and did some more searching through the thread to do the legacy install and it worked great!

You guys rock!

Happy Brewing
-Imp


stansoid

Well-Known Member
Joined
Oct 17, 2014
Messages
118
Reaction score
33
Location
Sudbury
Hey FuzzeWuzze (and everyone else who contributed to this),

Thanks for the tutorial and the work you did on this... I managed to build this largely from parts I had laying around. Finally have a real use for my old Raspberry pi!

This looks like it will be a wonderful upgrade from my STC-1000. I am paying the old STC-1000 forward by donating it to a friend of mine who is getting started in the hobby.

Going to take it for a test run with a saison this evening. Overly involved, 8 day, 16 step fermentation temperature schedule, here I come :)

The build being tested:



The final product:





jspain3

Well-Known Member
Joined
Aug 21, 2014
Messages
273
Reaction score
74
Location
Alpharetta

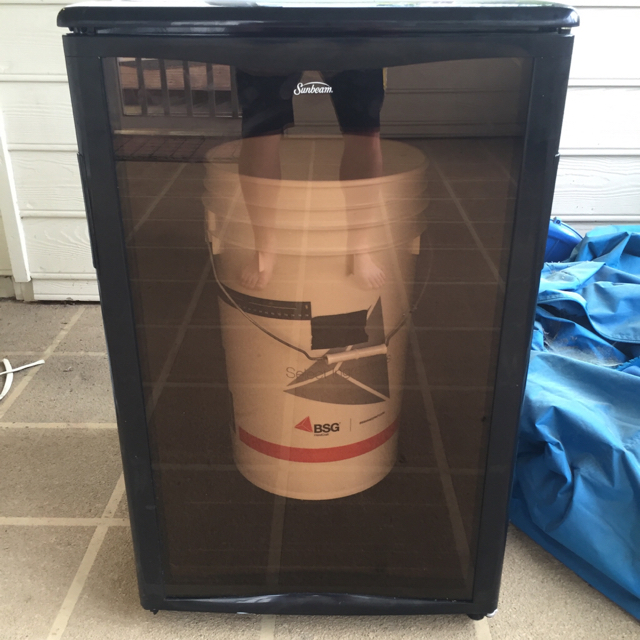

That is a sweet fridge! What Make/model is that?
It's a Sunbeam SA 12752. I saw it listed for $40 and jumped all over it. :ban:

Testing it out with the BrewPi attached today, and so far, it seems to work pretty well. It cooled a glass of water to 38 degrees last night! :rockin:

edit: My ferm bucket didn't quite fit sitting on the shelf level with the hump, but with the flat-faced door, I was able to remove the hump-level shelf and the bucket fits on the next half shelf down. I'll probably put an aquarium heater on the bottom shelf.
