I was incredibly unclear, sorry about that.

What I meant was: Connect the HC-05 to your USB to TTL converter and get it connected to a terminal session and talking properly. Then do "stuff" to it to see if you can make it act weird. Reset it, pull the power, on/off/on/off/on rapid cycles, etc. See if it spits out any jibberish to the screen.

If for instance it spits out an "E", "S" or "C", it's gonna wipe out settings on the Arduino.

Joined
Jan 19, 2013
Messages
3,522
Reaction score
1,460
Location
Kansas City
Is it time? It might be time. Time for something new in the world of BrewPi Arduino. Thanks to @CadiBrewer for putting up with my crazy ideas, a new shield is born!

This is v1.3, code named: "The One Shield." I can't see where we can do anything different with the Arduino Uno. Perhaps most significantly, this shield provides hardware support for an I2C display (there's important information about this below). There are other improvements which I think you guys are gonna dig.

BrewPi Arduino Uno Shield v1.3 (I2C/RevC) Changelog:
  • (NEW) Four-pin I2C header. No more having to use that 16-pin ribbon! A mere 4 wires to connect your display. (Yes, the previous parallel LCD is supported as well.)
  • (NEW) Rotary encoder header - No more having to figure out which Arduino header pins to use! There's also a rotary encoder breakout (thanks @gromitdj!) to make that easier to wire up.
  • (CHANGE) LED headers - The old headers were one pin each for heat and cool, connected to a pull-up resistor. That worked fine with "normal" setups, but the wiring was not straightforward for what I call "mere mortals." And, if you used non-inverted outputs for heat and cool (such as with SRs) you found yourself in a strange position. These headers are three-pin: VCC <-> D5/6 <-> GND. This means if you are using "normal" inverted outputs, you connect your LEDs to VCC and the center pin for either LED. If you are using non-inverted outputs, you connect the LEDs to GND and the center pin for either LED.
  • (CHANGE) Relays: This change re-orders the pins to match the typical relay headers.
  • (NEW) OneWire Selection: One each three-pin header to switch between A0 or A4 for the One-Wire bus. You must use A0 if you are using I2C. Not sure why Elco ever used A4 but that's one of the hard-wired I2C pins for the Arduino so a chance was necessary.
  • (CHANGE) Power: Version 1.2 split the power for the LCD and used the ICSP header to power the LCD backlight to reduce LCD scrambling. By all accounts that had no impact. On some Arduino clones (as well as the combo ESP8266/ATmega328P boards) have the ICSP header in a different place, which ended up requiring jumpers to apply power to the LCD, and/or creating a shorting point with the pins hitting an unexpected place on the controller board. This has been re-combined with the power and ground points looped together to form a single larger bus. In addition, from v0.2.11 of the Arduino firmware, there is a timer which resets the LCD display every 180 seconds to get rid of any scrambling.
  • (NEW) Break-Out Board support: An RJ45 to allow for a remote break-out board. This uses an Ethernet cable (which is straight-through) as opposed to the smaller RJ11 (telephone cord) because phone cords are cross-over by default. The pin-out supports @Thorrak's original breakout boards, however support for remotely placing the heat/cool relays is also included. A breakout board supporting all of this is in development:
    • Pin 1 - Unused
    • Pin 2 - Unused
    • Pin 3 - VCC
    • Pin 4 - OneWire Data (A4 or A0)
    • Pin 5 - GND
    • Pin 6 - Door (D4)
    • Pin 7 - Cool (D5)
    • Pin 8 - Heat (D6)
  • (NEW) Door pins: The original Arduino firmware has support for a contact switch which detects when the door is open. I don't know of many folks using this but adding two pins for that was easy enough since we already put it on the RJ45.
  • (NEW) Alarm: The original firmware has VERY basic support for an alarm (piezo speaker). Right now, it only beeps when the Arduino resets but maybe we can do something more with it later.
  • (CHANGE) Parallel LCD header: Even though the old header was 16-pins, we only used 12 of them. Using a straight 16 was simpler and kept people form screwing things up too bad but we needed the room. So, the parallel LCD header is now split into two 6-pin headers. This does give the benefit of making this connection much easier to route as bending two 6-wire ribbons is a lot easier than a 16-wire one.
  • (NEW) LCD Backlight always-on: If one used the v1.2 board with no rotary encoder or at least a switch, the LCD would time-out and not be able to be turned back on. Added R13 to keep the backlight always-on in those cases. To make use of this functionality, REMOVE R12 and ADD R13.
If you want to use the I2C there are two important things you need to keep in mind!
  1. I2C support is a separate firmware image and only available in version 0.2.12. As of right now (6/1/19) this is a beta image, but I should be ready to release it soon. Firmware 0.2.12 requires BrewPi Scripts/WWW v0.5.2.1 which is currently in the Devel branch.
  2. You MUST select "A0" on the One-Wire selector.
When configured for I2C this is technically a new shield definition (I2C). When configured for the parallel LCD it works as an updated RevC.

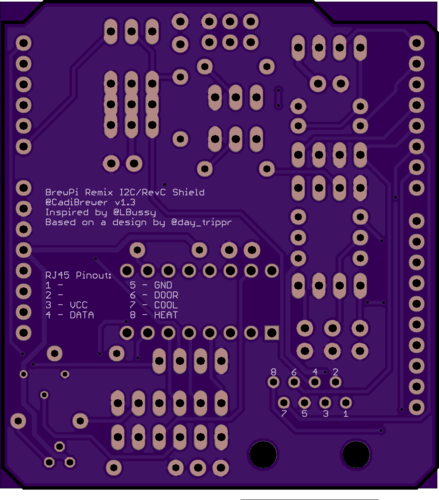

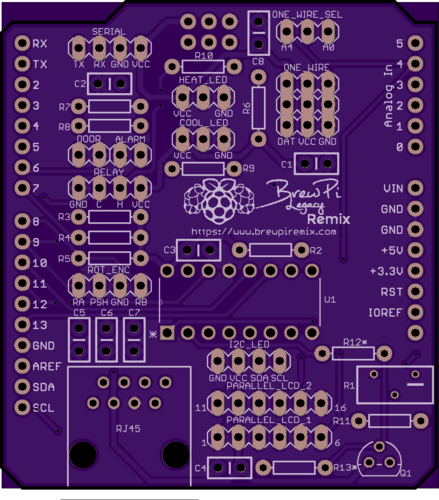

Here's some PCB porn:



I have not yet uploaded the Eagle files to the BrewPi Remix website, but if you want to get a jump on things, get some board quickly (but maybe for a few extra bucks); I've uploaded the files to OshPark (hence the purple board.) The BOM is there as well, including a link to a BOM on Mouser which contains most of the parts needed.

This board should rightfully be considered an Alpha release, since none exist in the wild yet. Three people have reviewed the design however, and it builds on a successful predecessor for the more complicated circuits. I have the boards on order, should be assembling next weekend. I was way too excited not to share in this thread, however. As soon as they are tested, I'll make a release post on the Mega Thread.

As with most things related to electronics on this project, a HUGE thanks to @day_trippr for his original design, his assistance which was given to @CadiBrewer for versions 1.1 and 1.2, and for answering my stupid questions finalizing v1.3.

Last edited:
OP
day_trippr

day_trippr

"This Space For Rent"
Joined
May 31, 2011
Messages
37,470
Reaction score
20,322
Location
Stow, MA
For the record, Lee had a full-nelson grip on this effort :D
My contribution was finding one show-stopper bug and then general assurance he was totally on the right track.
Board looks great!

Cheers! :mug:

Joined
Jan 19, 2013
Messages
3,522
Reaction score
1,460
Location
Kansas City
Well, I said it was an alpha ... ;)

No issues with the v1.3 design, as far as I know it works. I did however make a small change that I think will make it easier for folks. Instead of removing R12 and adding R13 if there's no pushbutton/encoder, I added a jumper cap for selection. I thought that would make it more flexible for folks if they change their design around. You no doubt would have some pin strip and a cap laying around anyway so no added cost for the hobbyist.

Updated design here for v1.3.1, all the rest of the notes apply. If you ordered yesterday and logged in just to see this change already ... sorry. If it makes you feel any better I ordered yesterday too. :)


Car Ramrod

Well-Known Member
Joined
Jan 24, 2019
Messages
117
Reaction score
16
Well Lee, I ordered a set of boards and will help you out if you need.

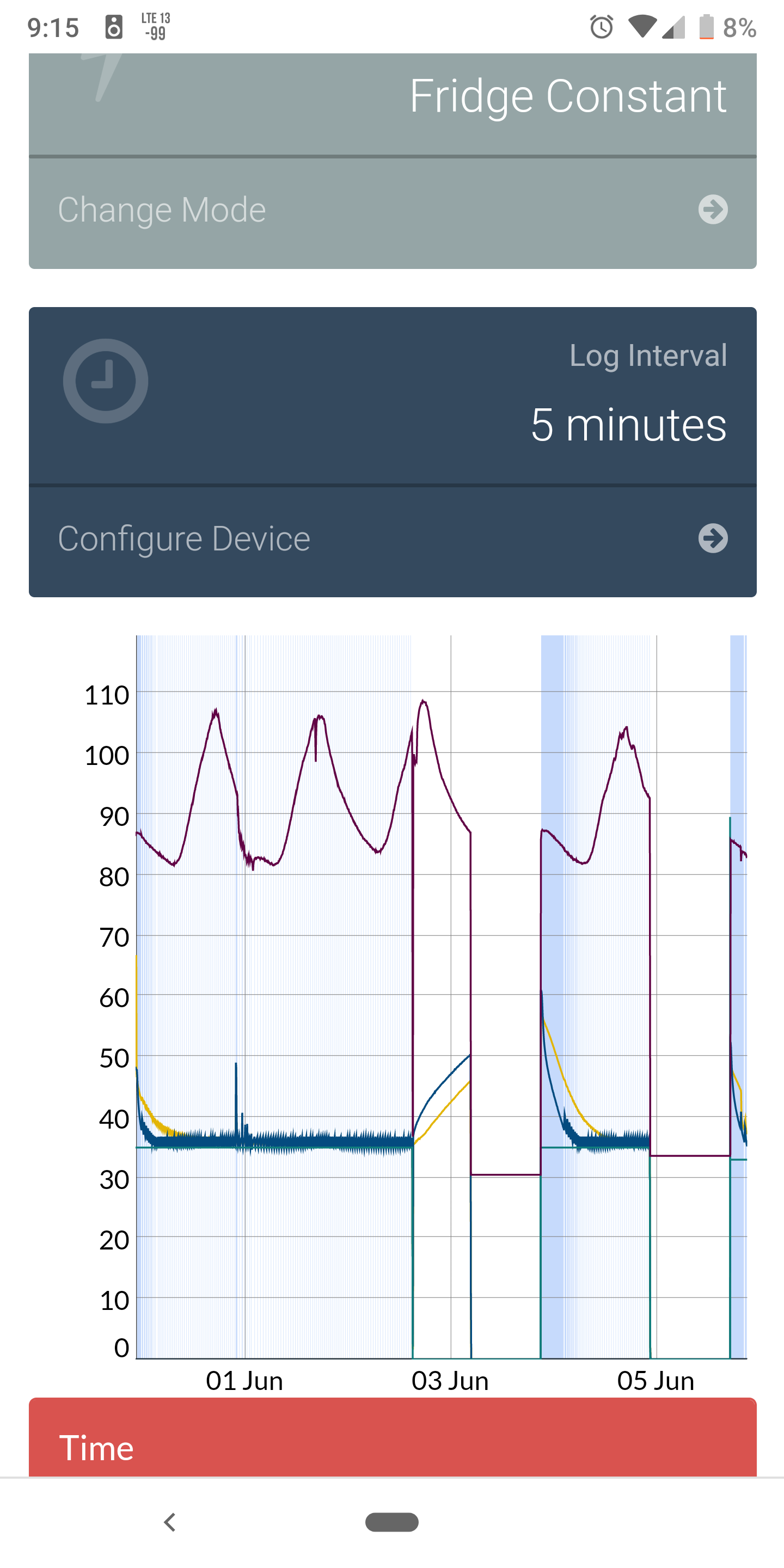

So back to the issue I am having. I set my box up and let it run. About 3 days in it deleted everything again. Fermentrack read the same as the screen, no sensors and celsius. But it still had the correct pins and everything set up in the settings. Once I unassigned one of the probes it unassigned everything and the screen showed fahrenheit. I was able to reset everything and let it run again. It happened again 2 days later. I had logging on so I'm able to show you the graph. Is there a log I can pull out and look at?

Don't mind the ambient temp, lol. I'm in South Louisiana and it has been super hot here and even hotter in the garage.

So I believe you still think it is a Bluetooth issue as I didn't movie the box at all so I doubt it is a shorting issue. I'm not very terminal savvy, so while I understood what you said do to I don't know the exact way to do it.

Also I looked high and low in fermentrack for the "wipe Arduino clean" bit couldn't find it. Should I get brewpi remix up and running to use this feature. Note I am using an non adruino brand Uno.


Attachments

Joined
Jan 19, 2013
Messages
3,522
Reaction score
1,460
Location
Kansas City
You should be able to use screen or another tool to issue the command if it’s not available in Fermentrack (although I gotta believe it’s there somewhere). I’ll drop you some notes here in a bit when I get to the office.


zipfly

Member
Joined
Aug 17, 2011
Messages
18
Reaction score
2
Location
norwich
Any chance you could upload the Gerber files for the latest version please? Costs a lot to order from the US to uk, would rather use a local board supplier to keep costs down.
Thanks
Dave


Car Ramrod

Well-Known Member
Joined
Jan 24, 2019
Messages
117
Reaction score
16
Thanks Lee.

Zio, I believe he said he would upload the files soon. Seems like this is early in the development and just olpit it one place so a couple people can get it together and test it before it is widely available.

Joined
Jan 19, 2013
Messages
3,522
Reaction score
1,460
Location
Kansas City
So I believe you still think it is a Bluetooth issue as I didn't movie the box at all so I doubt it is a shorting issue. I'm not very terminal savvy, so while I understood what you said do to I don't know the exact way to do it.

Also I looked high and low in fermentrack for the "wipe Arduino clean" bit couldn't find it. Should I get brewpi remix up and running to use this feature. Note I am using an non adruino brand Uno.

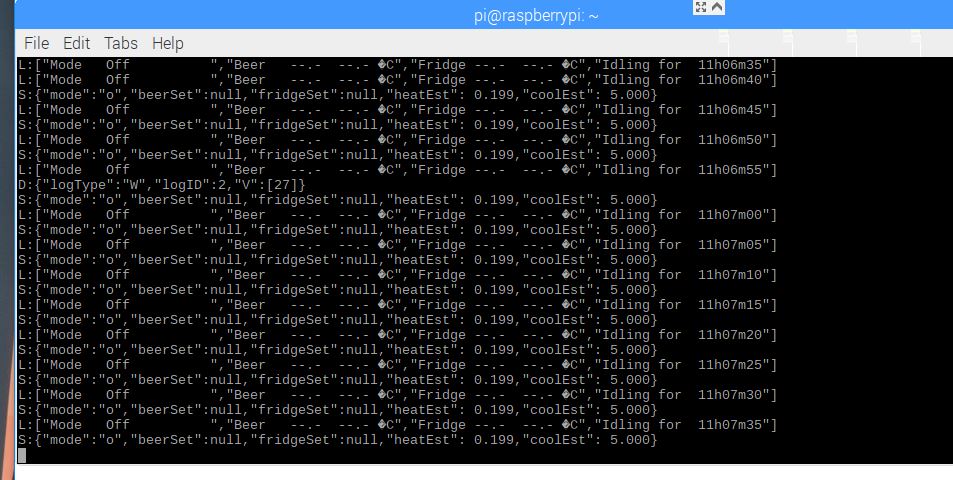

First, install screen:

sudo apt install screen

Run the following:

sudo screen /dev/rfcomm0 57600
(assuming your BT device is rfcomm0)

From here you can issue the command "E" which will erase eeprom.
Any chance you could upload the Gerber files for the latest version please? Costs a lot to order from the US to uk, would rather use a local board supplier to keep costs down.
I'll upload the Eagle files as soon as I have the fabrication in my hands to check the first run. In theory that will be tomorrow. I'll assemble on Saturday so by Sunday if things go well. I could export the Gerbers from Eagle, but I have no way of verifying their accuracy after that process so I'd prefer to allow the user to do that/be responsible for it.


Car Ramrod

Well-Known Member
Joined
Jan 24, 2019
Messages
117
Reaction score
16
So it cut out 2 more times this weekend. Im going to hard wire it to confirm if it is the bluetooth module. Then start from scratch with those.

Joined
Jan 19, 2013
Messages
3,522
Reaction score
1,460
Location
Kansas City
Another board update: I have the 1.3 (not the 1.3.1) boards in my hands. So, if/when I get some time to get up to my office and do some soldering, I have something to solder on. I'm still hoping that the 1.3.1 boards show up soon though.


Ajes

Well-Known Member
Joined
Mar 31, 2019
Messages
95
Reaction score
22
Hey guys.
With LBussys help I've managed to get the beta version of BPiRemix installed, and my i2c lcd running on pin A4/5.

Now I have a question about the workings of brewpi...

I got a pi-zero-w with arduino uno. I got two SSR's hooked up to pin 5 and 6 on the positive side, and common ground on the other. Also got temp probes set up and reporting correctly.

I know the SSR's can be controlled, 'cause when I set up things, they will turn on if I don't choose non-inverted.
So far so good - I got brewpi up and running, and want to test it out.
So I go to the lower part of the webinterface, choose f.ex. the fridge constant tab, and punch in something lower than what the probes are reporting - like 7 degrees C, then "apply". The lcd and the webinterface shows "Fridge Const."
In my mind, this should make the controller call for cooling (since the probes report 24 degrees), but it keeps sitting at "idling" - it doesn't seem to start trying to lower the temperature, and the temperature on the right in the display just keeps showing: --.-
Have I misunderstood how it works?

Last edited:
Joined
Jan 19, 2013
Messages
3,522
Reaction score
1,460
Location
Kansas City
The controller will idle for a time based on a few different things; sometimes it will wait for peak and there's a few other things that will show up when you think it should be flipping a relay. Ultimately, let it sit and it should decide to do something after those timers run out. How long have you let it sit like that?

I'll be able to have a look here in a few ... I have everything torn apart right now. :)


Ajes

Well-Known Member
Joined
Mar 31, 2019
Messages
95
Reaction score
22
I think yesterday I tried setting the beer constant to 70 degrees celsius for the fun of it, and it idled for around 14 minutes before I gave up.


Ajes

Well-Known Member
Joined
Mar 31, 2019
Messages
95
Reaction score
22
by the way - just throwing something out there - how about a button on the webui, that turns the pi off?
(so I can be lazy and not ssh into it to sudo poweroff)
(or is this already implemented somewhere I didnt look??)

Joined
Jan 19, 2013
Messages
3,522
Reaction score
1,460
Location
Kansas City
by the way - just throwing something out there - how about a button on the webui, that turns the pi off?
(so I can be lazy and not ssh into it to sudo poweroff)
(or is this already implemented somewhere I didnt look??)
That's been done before - unfortunately that means the www-data user has root access which is A Bad Thing™. I've got another way to do it but it's lower on the list. It is on the issues list on the GitHub so I'm reminded all the time.

Joined
Jan 19, 2013
Messages
3,522
Reaction score
1,460
Location
Kansas City
Definitely an issue here somewhere that I was not able to get figured out today. Traveling in the morning so tomorrow night is the soonest I will be able to look at it again. Sorry for the delay. I blame it on the cat - she must have walked over my keyboard. :)


Ajes

Well-Known Member
Joined
Mar 31, 2019
Messages
95
Reaction score
22
Dont sweat it. Take your time - and thanks a bunch for all your work on this.

Joined
Jan 19, 2013
Messages
3,522
Reaction score
1,460
Location
Kansas City
Quick update for you guys:

I intended to get the new boards tested out over the weekend. A combination of things led to me to get about 90% done with the I2C path and about 80% done with the parallel LCD path. I'm getting the dreaded 85°C reading from the sensors and I've had this issue before with this batch of sensors so I need to buy more. It's probably just the sensors but I don't want to tell you guys it's all tested and find an issue after.

Since posting the boards on OshPark I've moved a couple silk-screen legends to keep them from getting obscured by components, and flipped a trace to get rid of a via. Nothing functional, just stuff I could not leave well enough alone. I'm not going to upload 1.3.1a yet till I get it to 100%.

Last edited:

Ajes

Well-Known Member
Joined
Mar 31, 2019
Messages
95
Reaction score
22
Quick update for you guys:

I intended to get the new boards tested out over the weekend. A combination of things led to me to get about 90% done with the I2C path and about 80% done with the parallel LCD path. I'm getting the dreaded 85°C reading from the sensors and I've had this issue before with this batch of sensors so I need to buy more. It's probably just the sensors but I don't want to tell you guys it's all tested and find an issue after.

Since posting the boards on OshPark I've moved a couple silk-screen legends to keep them from getting obscured by components, and flipped a trace to get rid of a via. Nothing functional, just stuff I could not leave well enough alone. I'm not going to upload 1.3.1a yet till I get it to 100%.
I've been getting some funky 85 degrees error too with the sensors currently on my breadboard.
I'm not sure it's the sensors though - I just put together a photon "spark" on my breadboard, and it reports temps correctly with the same sensors.

Joined
Jan 19, 2013
Messages
3,522
Reaction score
1,460
Location
Kansas City
None of the OneWire work has changed .... unless the avr libraries from the vendor changed but that’s a pretty drastic mistake to make. Anything is possible though.

I just know when I go to one sensor it works, then I can add a second, then a third. It’s very weird.


Car Ramrod

Well-Known Member
Joined
Jan 24, 2019
Messages
117
Reaction score
16
Just getting back to all of this. Had a ton of work come up then hospital visits with my wife. So @LBussy Is there a resistor/capacitor list into which C/R slots they go. Im assuming they are the same labels as Cadi's board, just he resistors arent listed.


Car Ramrod

Well-Known Member
Joined
Jan 24, 2019
Messages
117
Reaction score
16
I have the BOM and all the pieces, just confirming the resistor and capacitor designation R1,R2,.... Is the same as the other shields.
