how many Corny kegs will a 5lb tank do?

Homebrew Talk - Beer, Wine, Mead, & Cider Brewing Discussion Forum

Help Support Homebrew Talk - Beer, Wine, Mead, & Cider Brewing Discussion Forum:

bracconiere

Jolly Alcoholic
HBT Supporter
Joined
Jan 19, 2018
Messages
26,460
Reaction score
16,148
Location
S.AZ
Well after all this flat beer I'm just looking for a good place to take a leak.😁
you could always have done this! post a picture of the head in what are you drinking now!



:mug:


BigDave1303

Well-Known Member
Joined
Mar 21, 2020
Messages
98
Reaction score
72
Location
UK
The other thing I noticed when I put a new tank on is that it's already just above the red line. I usually just do a tank exchange with my local Brewer store So I'm going to talk to my guy and see what the deal is otherwise I might take it and just get it filled
I question this when I exchanged my last co2 bottle. I was told its the pressure remaining not the fill level. I used to work for the ambulance service, all our oxygen bottles show the amount of gas remaining not the pressure. Don't know why o2 & co2 are different.


doug293cz

BIABer, Beer Math Nerd, ePanel Designer, Pilot
Staff member
Mod
HBT Supporter
Joined
May 14, 2014
Messages
13,820
Reaction score
10,926
Location
Renton
I question this when I exchanged my last co2 bottle. I was told its the pressure remaining not the fill level. I used to work for the ambulance service, all our oxygen bottles show the amount of gas remaining not the pressure. Don't know why o2 & co2 are different.
Oxygen (& nitrogen, hydrogen, helium, argon, etc.) all remain as gases when compressed, and the pressure is proportional to the amount of gas in the cylinder. CO2 is an odd duck, as it liquefies when compressed, so in a full cylinder you have mostly liquid CO2, as well as some gas in the headspace. Thus you have liquid and gas in equilibrium with each other. Whenever this is the case, the pressure depends only on the temperature of the CO2, not how much there is. So, changing the temperature of the CO2 cylinder will change the pressure. When the liquid is gone, then the CO2 gas behaves more other gases, and the pressure is proportional to the amount of CO2 in the cylinder. So, when the gauge starts dropping (at constant temperature) that means all the liquid CO2 is gone, and your tank is almost empty.

Brew on :mug:


Graham H

Member
Joined
Jun 5, 2022
Messages
8
Reaction score
8
I recall reading in another post that starsan has a negative effect the Duotight fittings. It can cause them to fail prematurely. Might have been from soaking. So maybe to be safe use dish soap and water instead to test for leaks.
I think Duotight upgraded to a newer plastic, specifically to address this issue.

OP
OP
The Mad Brewer

The Mad Brewer

The mad brewer
HBT Supporter
Joined
Jan 8, 2022
Messages
156
Reaction score
132
Spoke to my Brew shop guy today, He had some good advise, 1st disconnect the In connection at the keg end (I m not sure what you call them) and put the end in a glass of water wioth Co2 on, if there is a leak there they will bubble, then as my kegs empty, during cleaning put some pressure on the keg and turn it upside down in a bucket of water, an look for bubbles.
If the taps or the connection at the out end leaks I should have a pool of beer, if I disconnect the out connection at the keg if something is leaking I should see beer bubbles. then spray and bubble test the rest.
Also try disconnecting the in at the Kegs and let them sit for 3 days and check for pressure. Just turning off the valve (what I was doing) isn't valid as negative pressure can be there and can keep it from leaking with the valve off. I did all these except the upside down keg test in a bucket.
No leaks.

The other variable is the tank is in the Keezer at temps of 40F I moverd this out and the gauge should go up. On my next fill I will defiantly check weights.


Airborneguy

Retired and Brewing
HBT Supporter
Joined
Sep 24, 2009
Messages
11,093
Reaction score
1,298
Location
Central Jersey
I set to work this morning immediately after I got home from hunting. Pipe dope fixed the manifold end nut leak, but when I charged the system I found another damned leak on the valve off the manifold for the line I’d been using. I could’ve sworn I’d check all of them. Well I pipe doped up that sucker too, and SO FAR, everything looks good. I supposed I’ll know in a few hours if my pressure is still dropping. Fingers crossed.

Thanks all for the help.


BigDave1303

Well-Known Member
Joined
Mar 21, 2020
Messages
98
Reaction score
72
Location
UK
Thanks for t
Oxygen (& nitrogen, hydrogen, helium, argon, etc.) all remain as gases when compressed, and the pressure is proportional to the amount of gas in the cylinder. CO2 is an odd duck, as it liquefies when compressed, so in a full cylinder you have mostly liquid CO2, as well as some gas in the headspace. Thus you have liquid and gas in equilibrium with each other. Whenever this is the case, the pressure depends only on the temperature of the CO2, not how much there is. So, changing the temperature of the CO2 cylinder will change the pressure. When the liquid is gone, then the CO2 gas behaves more other gases, and the pressure is proportional to the amount of CO2 in the cylinder. So, when the gauge starts dropping (at constant temperature) that means all the liquid CO2 is gone, and your tank is almost empty.

Brew on :mug:
Thanks for explaining this. My pressure gauge sits just above 50 bar from new until almost empty. During the summer heatwave the pressure went up to approx 80 bar & dropped back to normal after the heatwave.


balrog

Supporting Member
HBT Supporter
Joined
Nov 26, 2013
Messages
5,758
Reaction score
8,243
when the gauge starts dropping (at constant temperature) that means all the liquid CO2 is gone, and your tank is almost empty.

Brew on :mug:

My pressure gauge sits just above 50 bar from new until almost empty. During the summer heatwave the pressure went up to approx 80 bar & dropped back to normal after the heatwave.

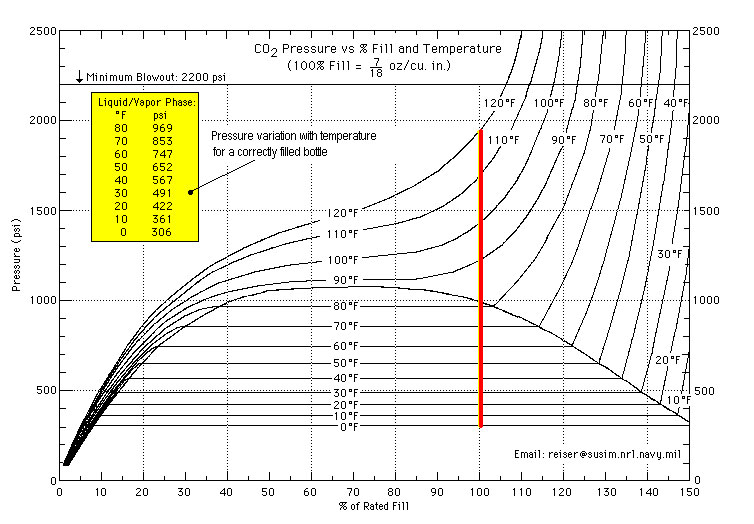

(at least) one post by @day_trippr has a chart showing tank pressure vs fill here. I think I can drop it here


Bobby_M

Vendor and Brewer
HBT Sponsor
Joined
Aug 3, 2006
Messages
26,698
Reaction score
6,936
Location
Whitehouse Station
You cannot use the high pressure gauge to watch for gas loss, AT ALL. It's basically binary and doesn't move until the liquid is all gone. The way you check IF you have a leak is to disconnect all the QDs from the kegs. Set your regulator pressure to a round number, say 30psi. Shut the tank valve off and see if the low pressure gauge bleeds down from 30psi. If it holds perfectly for an hour, you don't have a leak in any of the gas plumbing. Of course that doesn't diagnose any keg leaks.


seatazzz

Well-Known Bloviator & Pontificator
HBT Supporter
Joined
Feb 4, 2016
Messages
3,557
Reaction score
6,761
Location
Seattle
You cannot use the high pressure gauge to watch for gas loss, AT ALL. It's basically binary and doesn't move until the liquid is all gone. The way you check IF you have a leak is to disconnect all the QDs from the kegs. Set your regulator pressure to a round number, say 30psi. Shut the tank valve off and see if the low pressure gauge bleeds down from 30psi. If it holds perfectly for an hour, you don't have a leak in any of the gas plumbing. Of course that doesn't diagnose any keg leaks.
^This. If you have a system with NO leaks, your high pressure gauge should never move until the liquid co2 starts to be used up, i.e. converts to gas (liquid=pressure, gas=no pressure). Sounds like you're finding more small leaks every time one gets found and fixed. The best way to detect leaks, is to go about it systematically; as @Bobby_M says above, start with the tank/regulator, and the valve on the regulator closed. Then work your way down the line; next, you would have the line open from the regulator to the manifold but all the manifold valves CLOSED. Depending on how many valves your manifold has, test each one, with the others closed. No leaks? Ok! Next is the connectors on the lines to the keg; if you are using worm clamps, be careful about tightening them too much, as they can cut the line if too tight. For duotights, disconnect them and inspect the line for cracks or big scratches; I have them, and removing/reattaching them multiple times can wear the lines out (I use evabarrier line). No leaks there? Next it's the disconnects (assuming you are using corny kegs). They can fail, oh yes I know. Using a spritz of starsan each time you attach them helps the moving parts stay lubricated and connect better. Now the fun part; the keg itself. Keg o-rings (not just the big one for the lid, but all of them) are cheap and easily replaced. Use the soapy water spritz to check the entire top of the keg, from the pressure relief valve, the posts, and the lid. The best way to do this is to have a way to submerge the entire keg in water, which isn't always feasible; I consider it a last-ditch effort if all signs point to the keg being the issue. Another culprit that I just recently discovered is the lid itself; if it doesn't seal tight enough, you're going to lose co2 from under the lid no matter how much keg lube is used. All eight of my kegs are used, some quite old; a couple of them will NOT seal with certain lids. A quick fix I found was to take the feet off the lid, and reduce the space inside each foot with something that will handle the pressure. I used hard plastic sewing pin heads because that's what I had, but it has worked well for the two carbonation lids I got from Amazon, that didn't want to play well with two of my kegs. This is a tough one to find, especially if you force carbonate; the higher pressure with force carbonating will seal the lid, but once that pressure is dropped to serving pressure, the lid will loosen and there goes your co2. Hope this helps.
