How do you cut your square tubing? Angle Grinder?

Homebrew Talk - Beer, Wine, Mead, & Cider Brewing Discussion Forum

Help Support Homebrew Talk:

Twang

Well-Known Member
Joined
Jan 29, 2009
Messages
192
Reaction score
3
I don't have a lot of tools, but am prepared to buy what I need to build my Brutus 10 clone. Since I will be purchasing an angle grinder...

Will an angle grinder with cutting wheel be capable of cutting all the square tubing? How did you cut yours?


EarthBound

Well-Known Member
Joined
Mar 20, 2010
Messages
1,063
Reaction score
13
Location
Beer Capital of the World
Yes, it will be. It won't be striaight, but that's OK if you try to grind it flat after cutting and if you're a good welder. :)
I cut mine using one of those big-ass bandsaws. Bandsaw, chop saw, miter saw... those are the way to go. You could pick up a saw on CL, borrow a buddy's saw, or use a buddy's saw to save your money.


Homercidal

Licensed Sensual Massage Therapist.
Lifetime Supporter
Joined
Feb 10, 2008
Messages
33,310
Reaction score
5,717
Location
Reed City, MI
Currently I use a cut-off disc. I wanted a chop saw for X-mas, but I didn't get it. Til I get one, the cut-off disc works ok, just have to straighten the cut afterwards. The chop saw would be better for angles though. And faster.


Bensiff

Well-Known Member
Joined
Mar 13, 2008
Messages
4,835
Reaction score
411
Steel isn't cheap so no use skimping out on tools and end up with bad angles and a sloppy looking brew rig. If money is tight I would rent something that can give you reliable angles or maybe pick up a HF chop saw to keep the price down.


weizen

Well-Known Member
Joined
Aug 2, 2008
Messages
73
Reaction score
0
Location
Central Va
Chopsaw, just go nice and slow or there is the risk of the "blade" flexing and making un- square cut


Photomask

Well-Known Member
Joined
Nov 3, 2009
Messages
132
Reaction score
1
Location
Deepinaheartatexas
There's a multitude of ways to cut steel tubing including an old-fashioned hacksaw. An angle grinder with a welder's razor blade will do it but not accurate or repeatable. It's also very expensive per cut. A portaband does well with straight cuts in small tubing but requires skill to get accurate repeatable cuts and doesn't do well with miter cuts. An abrasion chopsaw is fairly repeatable if you don't force it, price per cut is kind of high. A coldsaw does very well but is also very expensive and the blades will put you in the poor house. For price per cut to get accurate repeatable cuts, straight and miter, a horizontal bandsaw is hard to beat. And to answer your question... That's what I use.



Lonnie Mac

Well-Known Member
Joined
Nov 28, 2006
Messages
304
Reaction score
10
Location
Bacliff, TX
For a very quick one-off cut, I used my angle grinder with a steady hand. Makes a great cut!

For 95% of the main cutting though, I must confess I had access to a diamond blade cold saw! :)


DevilsCreekBrewing

Well-Known Member
Joined
Sep 20, 2009
Messages
214
Reaction score
1
Location
Cambridge Ontario
I borrowed a chop saw from a friend. A band saw would be a great thing to have, but space is at a premium for me already.

Chop saws are nice, cheap, rentatable, decent cuts, don't take up much space.


dozer4412

Well-Known Member
Joined
Aug 7, 2009
Messages
55
Reaction score
0
Location
Madison WI
A real simple and inexpensive way to do it is have the metal company your buying the tubing from cut everything to length. This is what I did and for an extra $10 everything was to length and square.


camiller

Well-Known Member
Joined
Apr 12, 2007
Messages
1,907
Reaction score
50
Location
Omaha, NE
Build a jig to hold the angle grinder. Could probably do it with a hinge and a couple scraps of wood.


onelegout

Well-Known Member
Joined
Feb 17, 2009
Messages
248
Reaction score
6

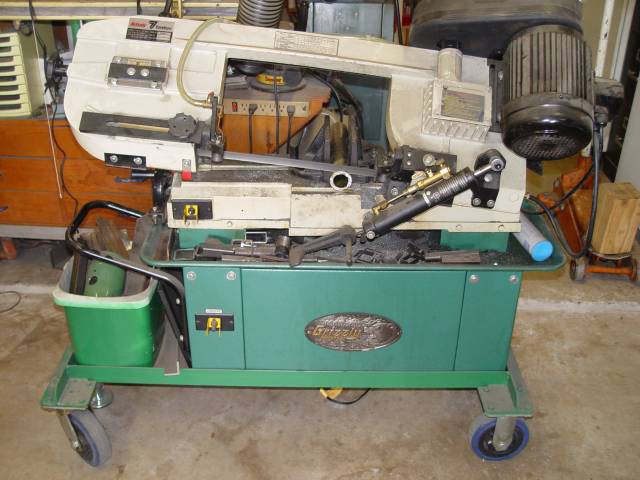

I was lucky enough to get to use a huge horizontal band saw at my friend's dad's workshop (He's a farmer) - it cut so cleanly, and perfectly straight!


However, if possible you should definitely get the metal company to cut it to size, it will make a huge difference! I bought my metal in 3m and 1.5m lengths without realising how difficult it would be to cut. I also got regular box section instead of the perfectly square stuff, which made it much harder to weld, especially since I had never welded before.


Marsdude

Well-Known Member
Joined
Jan 22, 2010
Messages
469
Reaction score
2
Location
Fort Collins, CO
A chop saw is the cheapest way to cut your tubing straight. Harbor Freight has them for $50. Amazon for $69. I bought mine at Home Depot, I don't know what they are selling for there but I built a steel framed 60' x 100' metal building with it and it still works fine.
