Hello everyone,

I received bought a pump for my homebrew setup. How does everyone control the speed of the pump? I’ve found so few mini chips with knobs but no idea what to pick.
Stats:
  • Name: Solar Water pump
  • Brushless motor
  • Material: Plastic
  • Color: Black
  • Input/Output: 1/2 "male thead
  • Voltage: 12 V DC
  • Nominal Maximum Current: 1000MA
  • Power: 22 W
  • Max Flow: 800 L/H
  • Max Water Seat: 5 m
  • Max circulation water temperature: 100 ° C

It only has a motor +/- and power +/-, no third wire. Or a brake. No idea what I’m doing View attachment 715452View attachment 715453View attachment 715454View attachment 715455

OP
B

BeirKaiser

Well-Known Member
Joined
Jul 4, 2014
Messages
82
Reaction score
11
With a ball valve on the outflow side. So, not controlling the pump speed; it runs full throttle. The valve controls the flow though which it reall what you are after...
Yeah but on a ball valve you’re increasing the pressure in order to reduce slow. I’d rather just makes the motor go slower than have pressure washer


Vale71

Well-Known Member
Joined
Nov 1, 2018
Messages
3,397
Reaction score
1,770
Whats the concern? Its pretty much the normal way to regulate flow with a water pump.
It's actually the least recommended way to regulate flow with a water pump.


Vale71

Well-Known Member
Joined
Nov 1, 2018
Messages
3,397
Reaction score
1,770
Why do you say that? I suppose it could depend on the pump but this is a home-brew thread and using a ball valve is quite common.
Cavitation will happen and it will ruin your pump even when home brewing. Common does not always equal best. As a matter of fact I find the opposite is (alarmingly) often the case.

Plus ball valves have non-linear response and this can make getting exactly the flow rate you need very hit and miss. Plus they need to be disassembled and cleaned every time. And the list goes on...


Nagorg

If a frog had wings...
HBT Supporter
Joined
Dec 19, 2011
Messages
1,724
Reaction score
628
Location
DFW
Cavitation typically only happens when starving the pump from the intake side. I've been using a ball valve on the outflow side of my chugger for years and never had any problems.

Besides, what kind of flow control do you need? I struggle to understand the need for the type of precise control that you are referencing.


Vale71

Well-Known Member
Joined
Nov 1, 2018
Messages
3,397
Reaction score
1,770
For example in a recirculating infusion system? Increasing the flow by even a small amount past the optimal point can easily result in a stuck mash and that's really the worst that can happen in a recirculating system. I'm assuming the OP has something like that in mind.

OP
B

BeirKaiser

Well-Known Member
Joined
Jul 4, 2014
Messages
82
Reaction score
11
I struggle to understand the need for the type of precise control that you are referencing.
I’m not worried about precision, the is defaulted at 800L/h on my pump and I don’t need to restrict the flow and increase pressure. I don’t need to power pressure wash my grains when sparging.

This is the one I'm using:

Thank you, good to know someone else had the same idea. Now I just need to find a brushless version


Birrofilo

Well-Known Member
Joined
Jan 8, 2021
Messages
316
Reaction score
134
Location
Rome
With a ball valve on the outflow side. So, not controlling the pump speed; it runs full throttle. The valve controls the flow though which it reall what you are after...
If the pump is of the kind with a "magnetic transmission" (trascinamento magnetico), the pump does actually run at the reduced speed which is dictated by the ball valve, and there is no risk of damage.

This is a common solution which is also in-built inside many "all-in-one" kettles.

A pump with some kind of solid transmission would instead be stressed by the ball valve and it's the pump speed which must be controlled.


Vale71

Well-Known Member
Joined
Nov 1, 2018
Messages
3,397
Reaction score
1,770
If the pump is of the kind with a "magnetic transmission" (trascinamento magnetico), the pump does actually run at the reduced speed which is dictated by the ball valve, and there is no risk of damage.
That's not what happens at all. Look up how a magnetic drive pump actually works, for example here:


The small pumps we use are of the "canned motor" type.


Birrofilo

Well-Known Member
Joined
Jan 8, 2021
Messages
316
Reaction score
134
Location
Rome
That's not what happens at all. Look up how a magnetic drive pump actually works, for example here:

I don't see the connection between what you say and the document you link.

OP
B

BeirKaiser

Well-Known Member
Joined
Jul 4, 2014
Messages
82
Reaction score
11

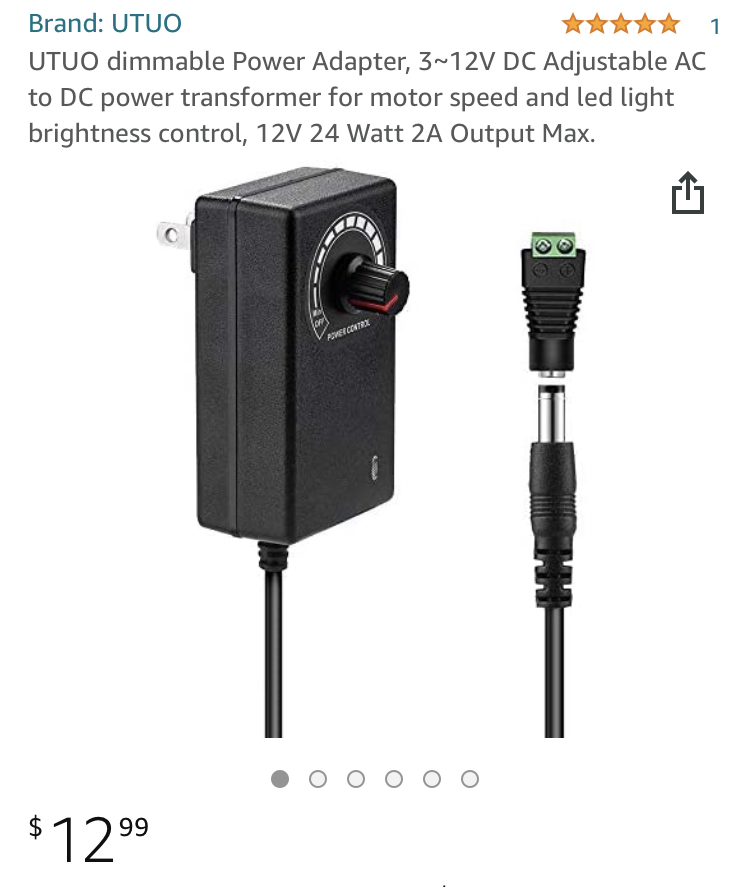

Thank you for everyone that helped! I contacted several companies, most of which in broken English, but I finally found a solution! Two birds with one stone in fact! This will control my pump and convert it to AC!



day_trippr

"Now brewing exclusively with Hydrohydroxic Acid"
Joined
May 31, 2011
Messages
35,086
Reaction score
16,957
Location
Stow, MA
"Transmission" may be a bit strong of an analog for how a "mag-pump" works, I prefer "variable slip clutch" :)
But, indeed, that is a side benefit of the design - the primary benefit being not having to deal with shaft seals in a fairly hostile application (pumping near boiling acidic sugar water).

btw, the linked article doesn't even discuss the clutch effect...

Cheers!


Birrofilo

Well-Known Member
Joined
Jan 8, 2021
Messages
316
Reaction score
134
Location
Rome
"Transmission" may be a bit strong of an analog for how a "mag-pump" works, I prefer "variable slip clutch" :)
But, indeed, that is a side benefit of the design - the primary benefit being not having to deal with shaft seals in a fairly hostile application (pumping near boiling acidic sugar water).

btw, the linked article doesn't even discuss the clutch effect...

Cheers!
I know, the word is "drive", but as a foreign writer I don't always have the correct term at hand.

But the point is that the magnets will try to spin the pump at a certain speed, but the pump will turn only at the speed which is allowed by the ball valve, and without any damage.


TheMadKing

Western Yankee Southerner and Brew Science Nerd
HBT Supporter
Joined
Jun 17, 2015
Messages
3,587
Reaction score
1,583
Location
Gainesville
Magnetic couplings can indeed decouple and save your motor from an overload condition, but the impeller does not very its speed depending on the pressure demands on the system. When decoupling occurs, the impeller just stops, then you have to turn your pump off to allow the magnets to recouple and then it will work again unless there is too much resistance on the impeller.

A PWM pump DOES allow for very precise control of flow, as well as greater energy efficiency, and longer pump life. Throttle valves are far more common, and far more widely used in industry and there is absolutely nothing wrong with them.

The non-linearity of ball valves can be mitigated by using a linear control valve (gate valve) and it will get you more than enough precision for brewing. The Blichmann Riptide pumps come standard with these valves and I love mine.

Turns out everyone is right here.. ish

Here are some helpful links





chipmunk

Well-Known Member
Joined
Aug 28, 2019
Messages
57
Reaction score
32
Magnetic couplings can indeed decouple and save your motor from an overload condition, but the impeller does not very its speed depending on the pressure demands on the system. When decoupling occurs, the impeller just stops, then you have to turn your pump off to allow the magnets to recouple and then it will work again unless there is too much resistance on the impeller.
I’ll add that contrary to what is commonly thought, the maximum load on pump motors is usually at full flow conditions and not when throttled down.


jddevinn

Got 99 Problems but beer ain't one
HBT Supporter
Joined
Feb 14, 2010
Messages
1,403
Reaction score
536
Location
Concord
Cavitation will happen and it will ruin your pump even when home brewing. Common does not always equal best. As a matter of fact I find the opposite is (alarmingly) often the case.
That's not what happens at all. Look up how a magnetic drive pump actually works, for example here:


The small pumps we use are of the "canned motor" type.
Blitchmann, March, Chugger all disagree with you and state to use the valve on the outlet to control flow. This style pump will not cavitate unless they are starved (valve on inlet) or not bled.

.



BarryBrews

Well-Known Member
Joined
Oct 16, 2019
Messages
111
Reaction score
65
Location
MONCURE

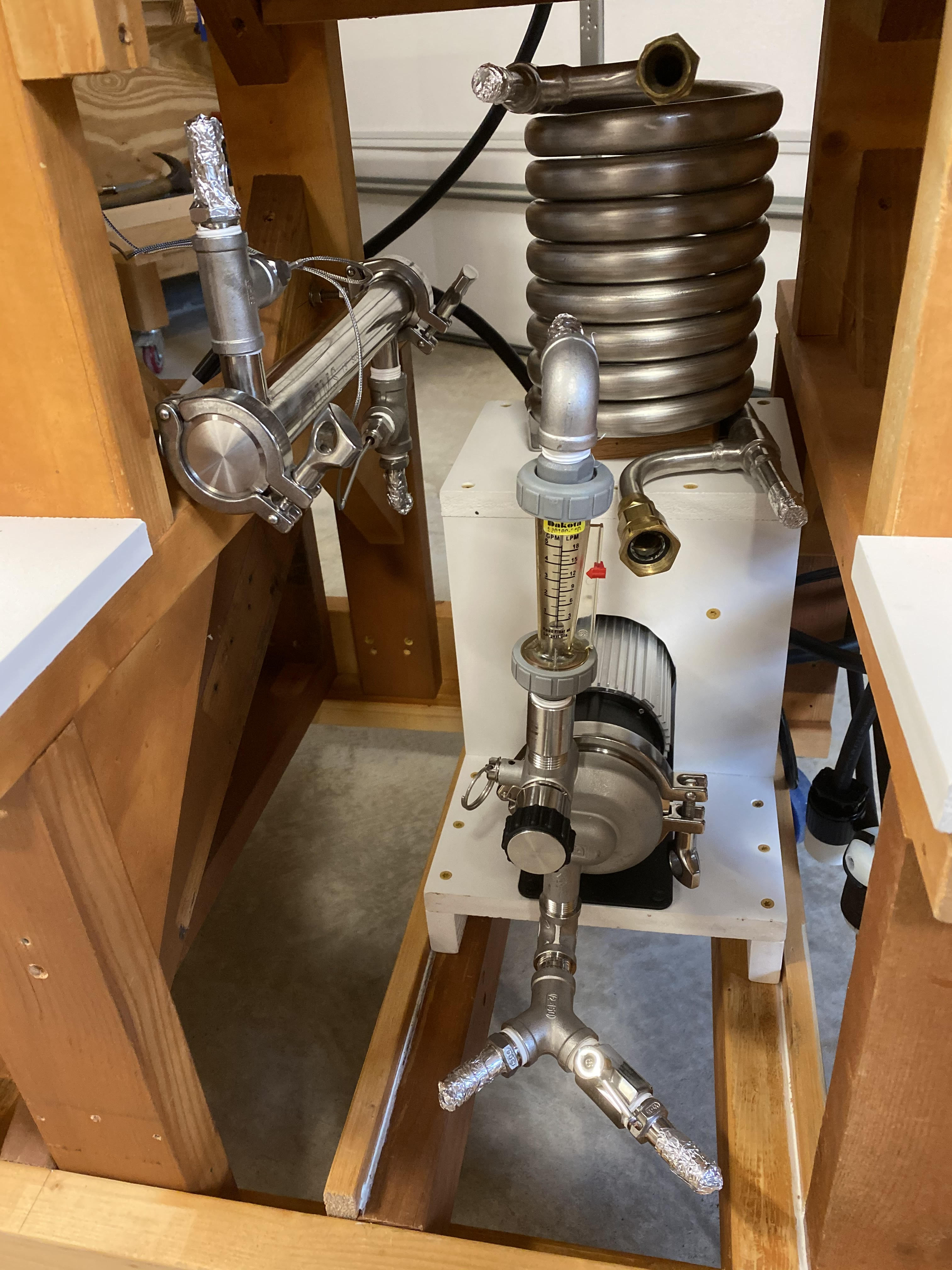

I'm sure the engineers at Blichmann knew what they were doing when they added the outlet control valve. With my flow meter (see attached photo) and the outlet valve control, I get total flow control and reproducibility. Plus the Blichmann pump is soooo quiet! Literally, except for the first 75 minutes of the 90 minute boil, the pump runs continuously throughout the brew day. I really feel this is a top drawer set up and if amortized over 200 brews would only cost $1.50 per brew day. So, after you are sure you love brewing, you should think long term when it comes to your equipment as most of it could last generations.


Attachments

Toto's

Well-Known Member
Joined
Nov 23, 2018
Messages
82
Reaction score
38
Location
Montreal, Canada
Well me i did a DIY variable outlet, i added a dimmer to the outlet for the simple reason that i find is loud but i have a valve at the output as well. 😅
I think that there is no problem to control the output with a valve but at the end
Do what makes you happy 😎


50calshooter

Well-Known Member
Joined
Jan 1, 2013
Messages
124
Reaction score
89
Pumps made for brewing are designed to have the out put flow regulated. You never regulate the speed of a pump by regulating the motor. It is an A.C. motor and is not designed to have the voltage or speed altered. D.C. motors are a different breed-you alter the output by altering the Direct Current voltage.
