Hello everyone, I have been trying to get ahold of corey for a while from hosehead, and no response. Not sure what's going on, but i have a question, maybe someone can answer here. I have a hosehead controller 5BC i think, with the first raspberry pi that was wifi capable, i think the 3. I spent a day brewing, shut down, cleaned my equipment, and fired the system back up to roll boiling water through my lines, and the controller stopped working. It said it couldn't find the IP address for the raspberry pi. I've tried everything, including the instructions in the controller to completely re-install the software, no avail. Does anyone have any suggestions? I have to get 2 beers for our xmas party ready to rock, and i'm wondering, should i just go buy a new controller now and hope i get it asap? I can't find anything with 50 amp for 2 heater elements, so i'd have to completely redo my electrical box to support 2 30 amp plugs as well as add 2 new outlets and wire myself, for anything i'm finding on google. Any advice would be amazing!!

my email is [email protected] if anyone has any good advice to offer, thanks much, in a time pinch here, lol.
If you would be interested in converting your controller to BruControl, you could swap the internal RPi for an ESP-32 microcontroller (about $15) and be up and running pretty quickly. I realize it’s a different system with some learning curve, but since you have the power hardware already, it’s a potential option.


carrsgarage

Well-Known Member
Joined
Apr 19, 2018
Messages
69
Reaction score
4
If you would be interested in converting your controller to BruControl, you could swap the internal RPi for an ESP-32 microcontroller (about $15) and be up and running pretty quickly. I realize it’s a different system with some learning curve, but since you have the power hardware already, it’s a potential option.
@BrunDog - I've got a Hosehead that has served me pretty well, but I REALLY like what you've done with BruControl and have been considering upgrading for a while. Is it really as simple as swapping the Pi for an ESP-32? The only thing that's been holding me back is the investment in more hardware and a computer to run the software on.

Joined
Dec 19, 2014
Messages
5,601
Reaction score
1,635
Location
West Palm Beach
I haven't actually done it... and I can't find any pictures online of the insides, but in theory these are the considerations:

  • The ESP32 needs 5V power... either through the pins or the USB connector. Assuming the RPi was powered the same way, you should be good to go.
  • The ESP32 is a 3.3V device, as is the RPi. Just need to make sure the SSRs and/or relays inside don't over-current the ESP32. Assuming the RPi's I/O could power those devices, so should the ESP32.
  • The 1-wire sensors should work OK... remember to include the pull-up resistor.
  • IIRC, the hosehead was connecting via Ethernet? The RPi has WiFi too, just not sure if it was used. If it was inside a metal enclosure, then the signal will be crappy. I would suggest an ESP32U which has the external antenna port. That plus the external antenna and you can connect via WiFi really well.
If you post a picture of the inside of the unit, I might be able to offer other thoughts. One note of concern as I recall for the Hosehead... it has no interlocks for the outputs, which means one of the legs will always be full hot. Not a huge issue but something worth noting as you connect and disconnect heating elements.


carrsgarage

Well-Known Member
Joined
Apr 19, 2018
Messages
69
Reaction score
4
I'll try to get some pictures up later today. I've had mine open numerous times and I'm pretty sure it's still apart.


carrsgarage

Well-Known Member
Joined
Apr 19, 2018
Messages
69
Reaction score
4
@BrunDog

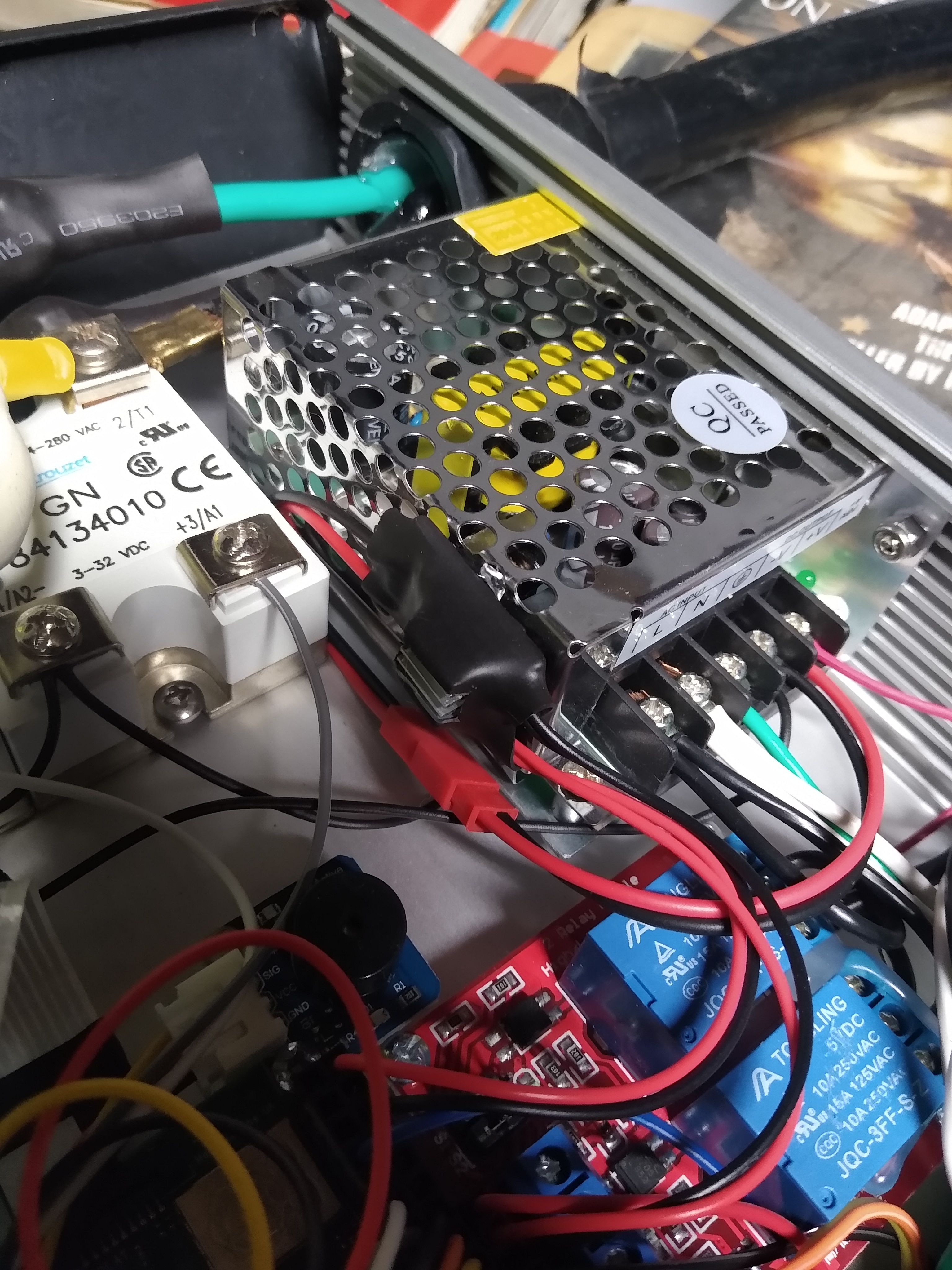

Here's what I see:

120 VAC (Pumps and Pi) Side:
120 VAC through an On/Off switch into a DC Power Supply.
The 120 VAC also runs from the On/Off switch into the Commons of a 2 Relay Module. The Normally Open contacts of the 2 Relay Module are connected to the 2 Pump outlets.
From the DC Power Supply, power runs through something small with a heat sink on it, then to the 2 Relay Module and the Raspberry Pi.
Power comes off the 2 Relay Module power pins and goes through a 100ma - 500ma 5x20mm fuse to the 1-wire jack. There is a resistor between the +DC terminal and the terminal that runs back to the Pi.
Inputs 1 & 2 on the 2 Relay Module run to GPIO pins on the Pi.

240 VAC (Heating Elements) Side:
Black wire - to the 2/T1 lugs of the SSRs.
Red wire - spliced to the white wire of each of the NEMA 6 outlets.
Green wire - spliced to the green wire of each of the NEMA 6 outlets.
The black wire of each NEMA 6 outlet is wired to 1/L1 on one of the SSRs.
4/A2- of the SSRs is wired to an On/Off switch, then to the DC Power Supply. Also wired to this switch is the top-mounted cooling fan.
+3/A1 of each SSR is wired to a GPIO pin on the Pi.

And there you have it.

IMG_20211202_123929227.jpgIMG_20211202_123944424.jpgIMG_20211202_123951563.jpgIMG_20211202_123957177.jpgIMG_20211202_124003986.jpg

Joined
Dec 19, 2014
Messages
5,601
Reaction score
1,635
Location
West Palm Beach
Allow me a safety marshal minute… With all due respect to the developer, I feel the need to disclaim the relative danger inherent in the design (from what I can see). The 50A supply is shared without any current limitations down circuits which are meant for, and should be capped at, 30A. The full 50A can go through the SSRs and into to heater outputs. That means that much current *can* make its way to the elements.

Assuming the wires supporting those circuits are 10 AWG, they will be are overloaded. Maybe they just get hot, but the terminals and respective posts will probably overheat and fail rapidly, potentially damaging their connections and causing a fire. In combination with a lack of circuit interrupt, you have multiple potential risk points between always hot legs and current overload.

That said, if you are cool with this high voltage design, the low voltage part is relatively easy. Assuming that heat sink module outputs 5V or 3.3V, either can power the ESP32. The power to the 1-wire should be 3.3V - not 5V (the RPi GPIO pins are 3.3V - it’s possible ther are seeing 5V here.

Pardon me here: ironic that there is a fuse to the 1-wire sensors, but the 50A input is free to roam…

Last edited:

repetesbh

New Member
Joined
Jan 8, 2022
Messages
4
Reaction score
0
Could be that the sd card got corrupted. I had my controller die after a power surge along with my temperature sensors. Got a new card, reloaded, replaced the sensors. One way to check is to open it up and connect the HDMI port to a tv or monitor, turn it on and see if it boots.
My Hosehead just started reporting it could not find my sensor for my yellow/BK. It still recognized the HLT and MT sensors. I think I have either a corruption issue or a bad sensor. How difficult was it to replace the sensors? How much reprogramming did you need to do?

Any help/advise would be great.
Cheers!


Attachments

Joined
Nov 6, 2008
Messages
22
Reaction score
7
My Hosehead just started reporting it could not find my sensor for my yellow/BK. It still recognized the HLT and MT sensors. I think I have either a corruption issue or a bad sensor. How difficult was it to replace the sensors? How much reprogramming did you need to do?

Any help/advise would be great.
Cheers!
Probably a bad sensor since the rest of the system is working. I don't have a Hosehead, I built my own controller and used Strangebrew. The sensors are DS18B20 one wire sensors, you can find them on Amazon and various other places. Then you'd have to change the address associated with the sensor for the BK.


repetesbh

New Member
Joined
Jan 8, 2022
Messages
4
Reaction score
0
Probably a bad sensor since the rest of the system is working. I don't have a Hosehead, I built my own controller and used Strangebrew. The sensors are DS18B20 one wire sensors, you can find them on Amazon and various other places. Then you'd have to change the address associated with the sensor for the BK.
A sensor issue is better than I thought. How do you change the address associated with the sensor?
