Been looking to make my own charcoal for awhile now.
Finally rounded up all the materials i needed to build it, (as in salvage, no cost.)

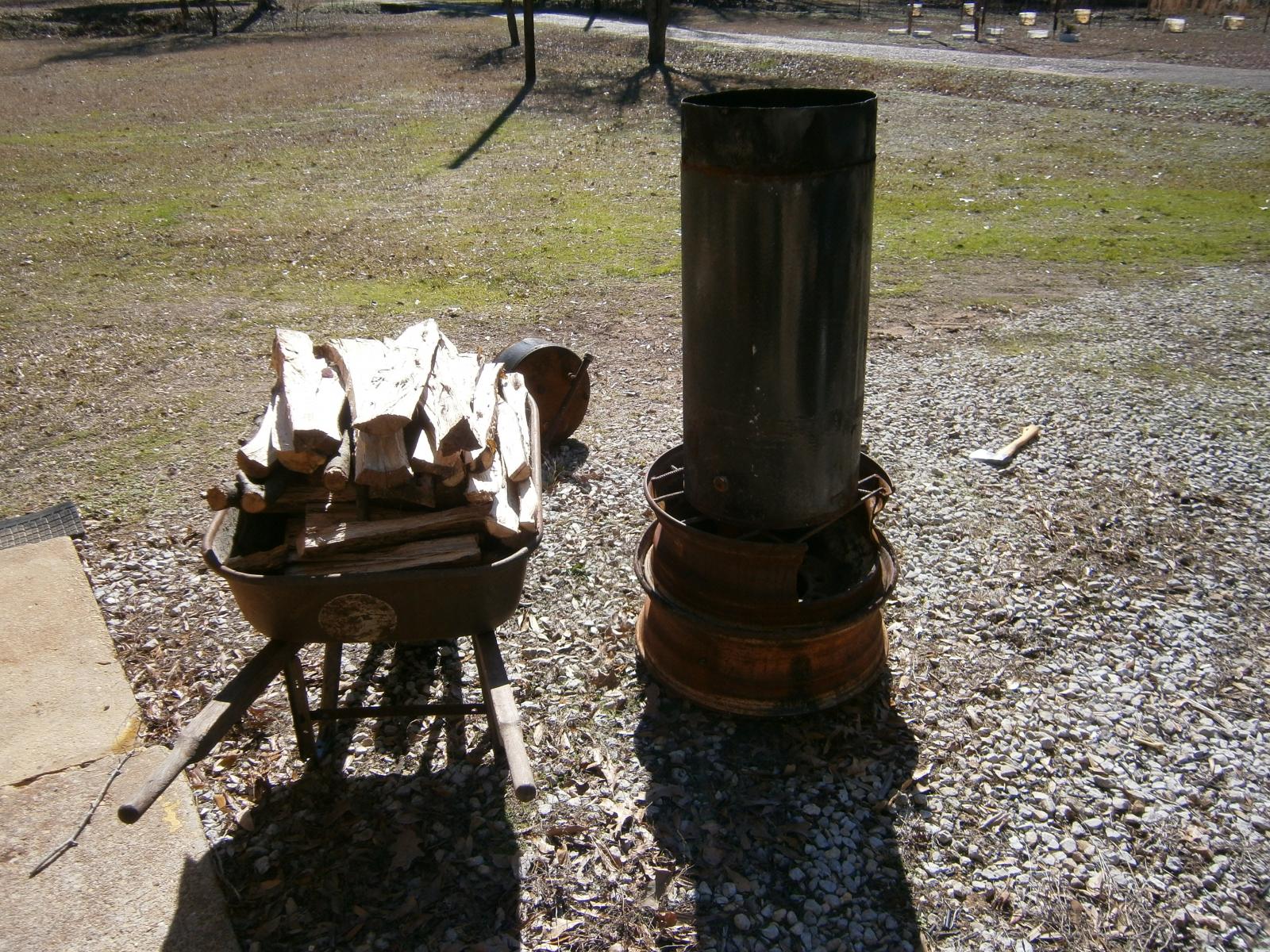

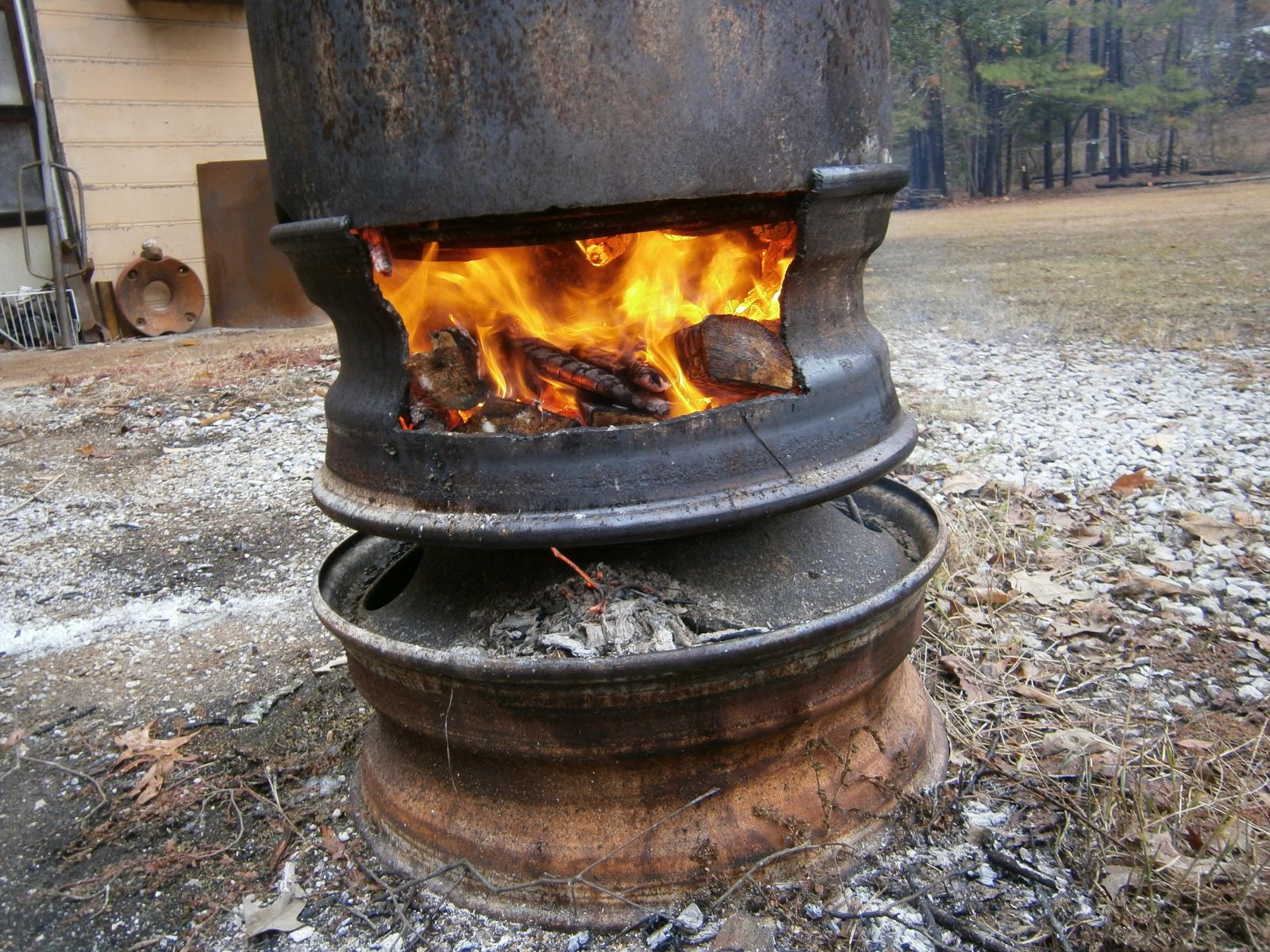

For the base I used an old tractor/trailer 22.5 rim, it is the right size for a barrel to fit just inside the lip.
I cut a section out to feed in the fuel wood, and welded some rebar in for the charcoal chamber to sit on.
For the barrel I just cut off the bottom to make a retainer sleeve for the fuel wood and its heat.
For the charcoal chamber I used an old 40 gal. water heater, cut an 11 inch band out, then cut 1/2 inch out of the band to weld it back inside the radius to make an overlap fit for the top.
I then used the water in and out connections to put to a pipe that feeds volatile vapors back to the fire under the chamber.
All that was left then was to close up any other holes to the chamber and it was ready to try out.
Worked very well and I'm well pleased with the result.

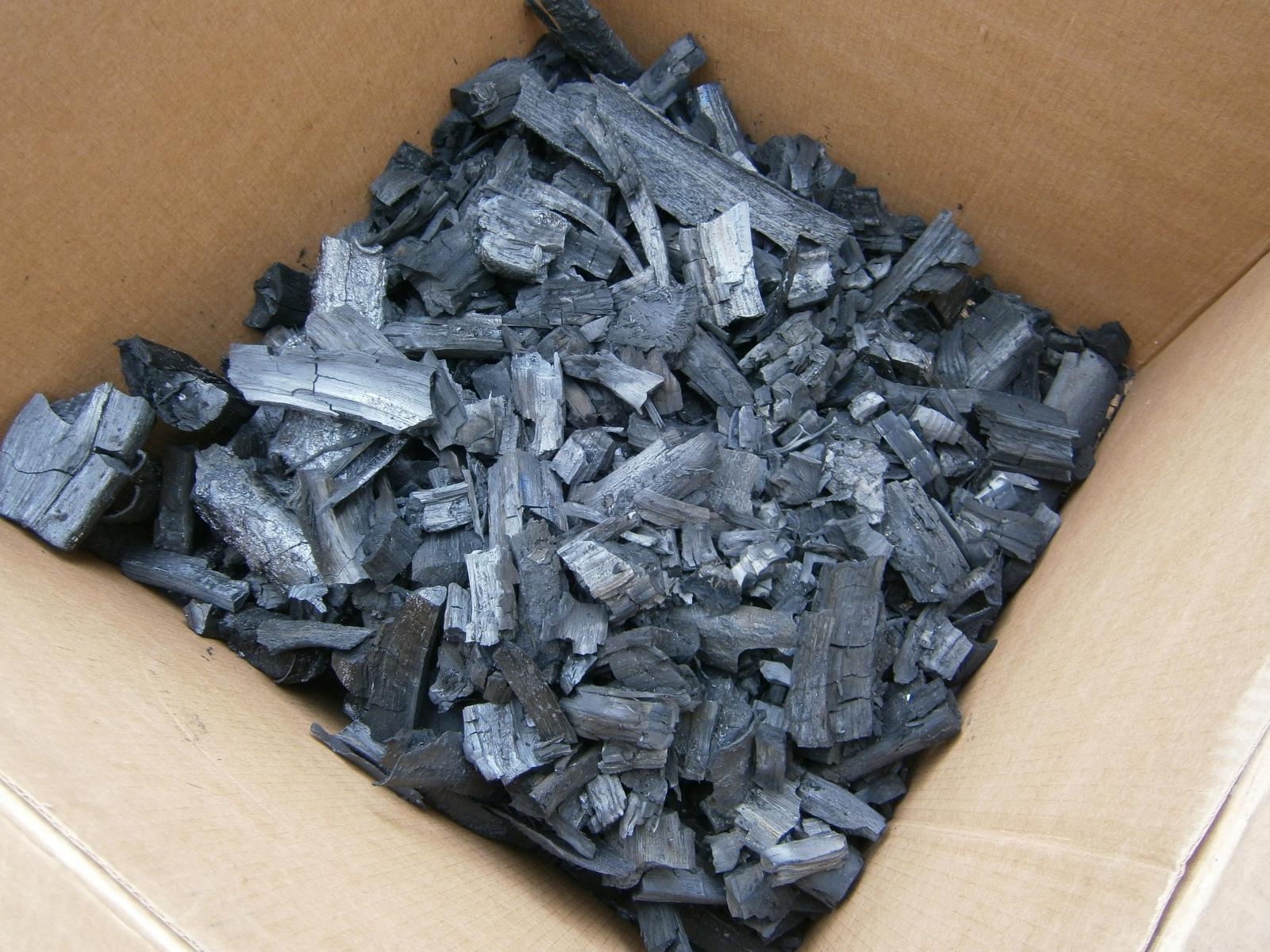

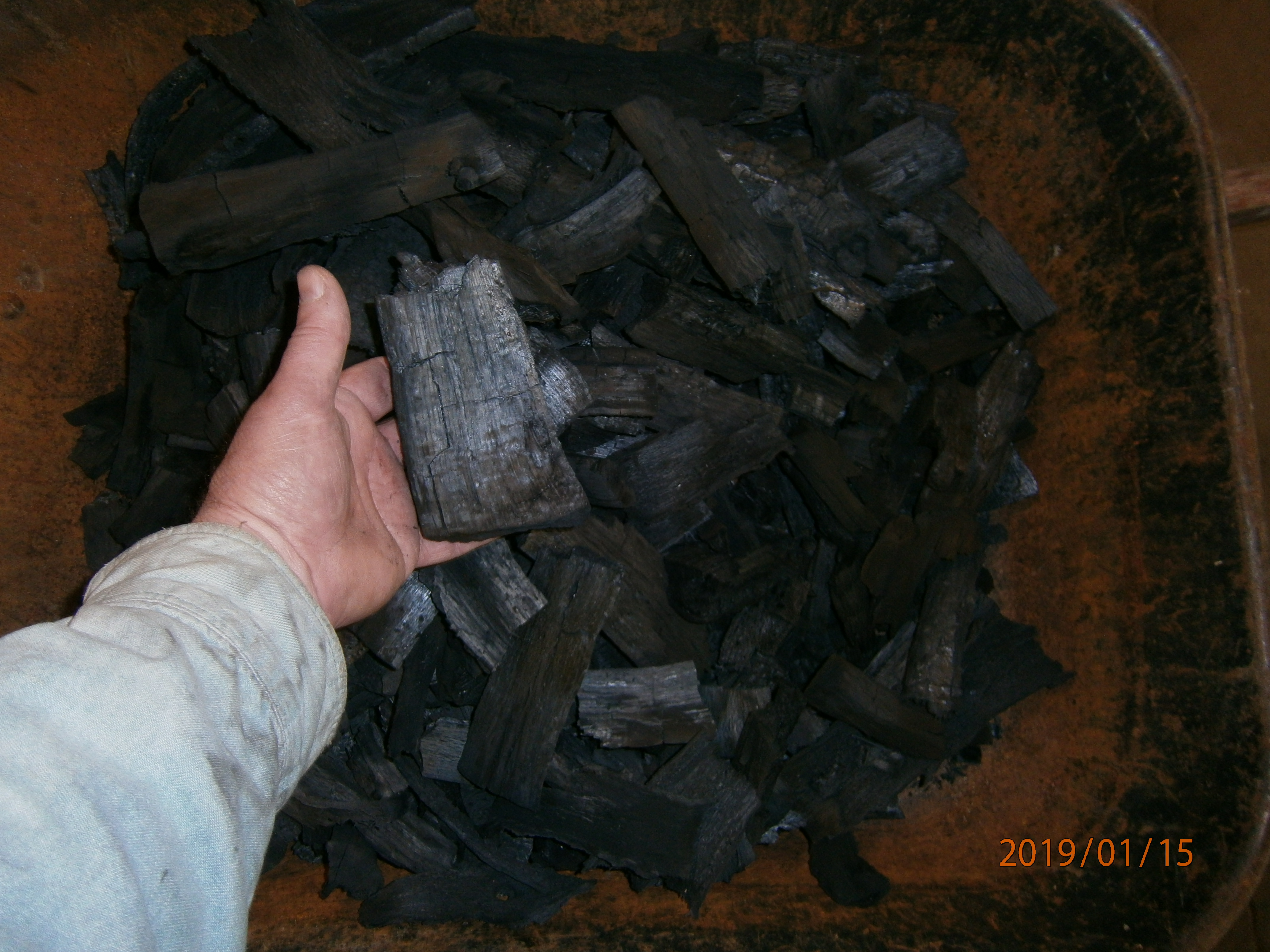

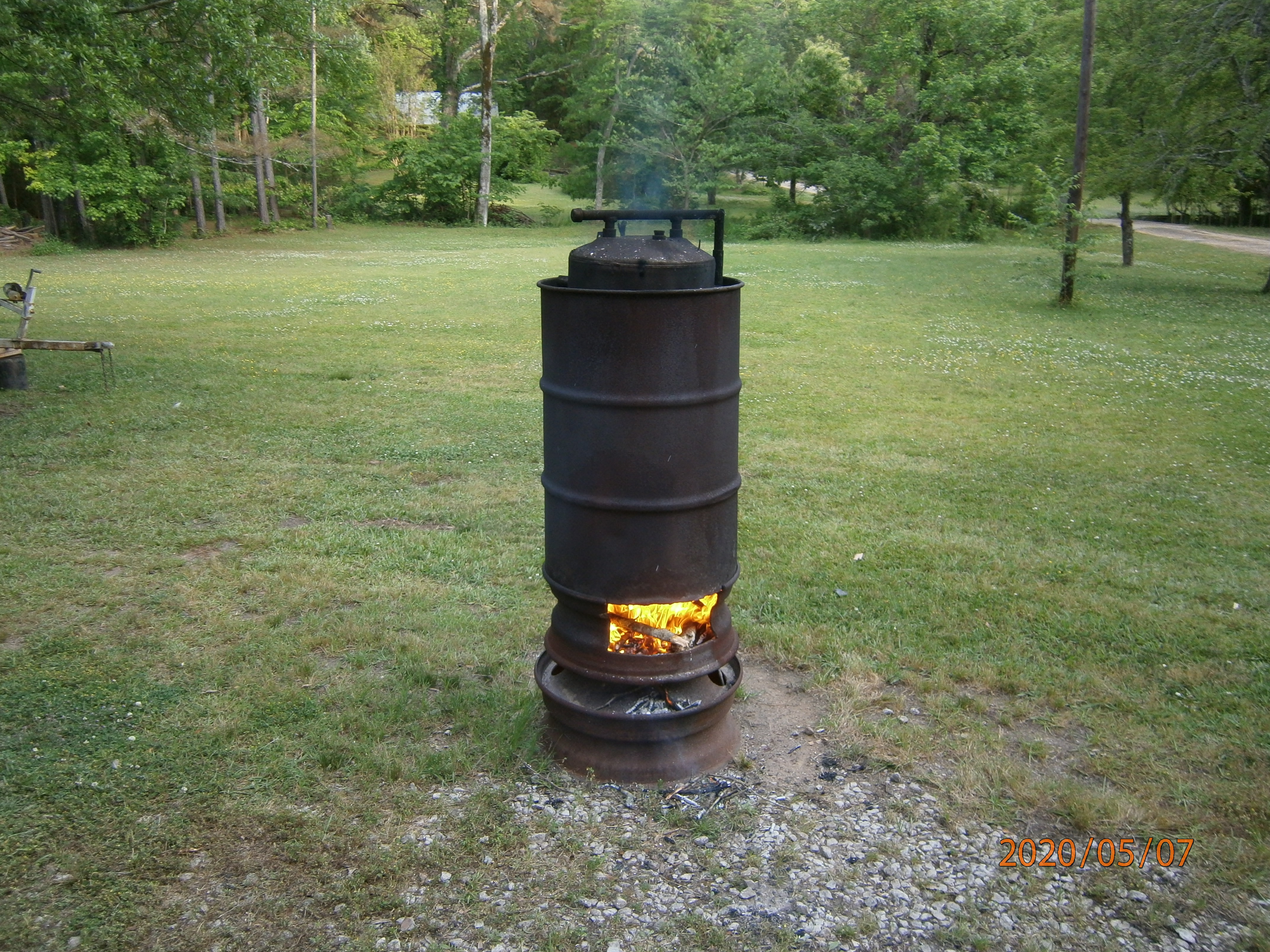

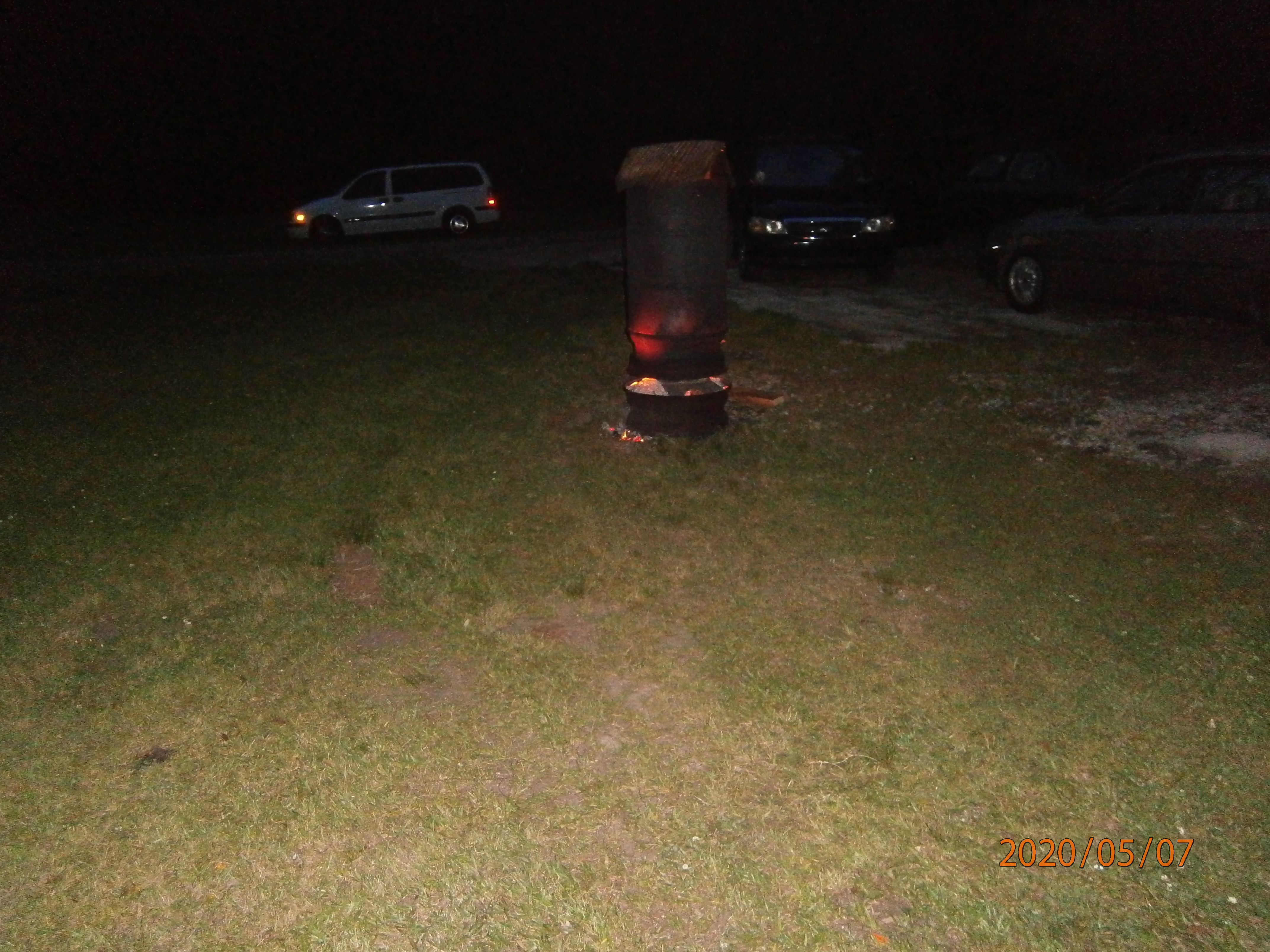

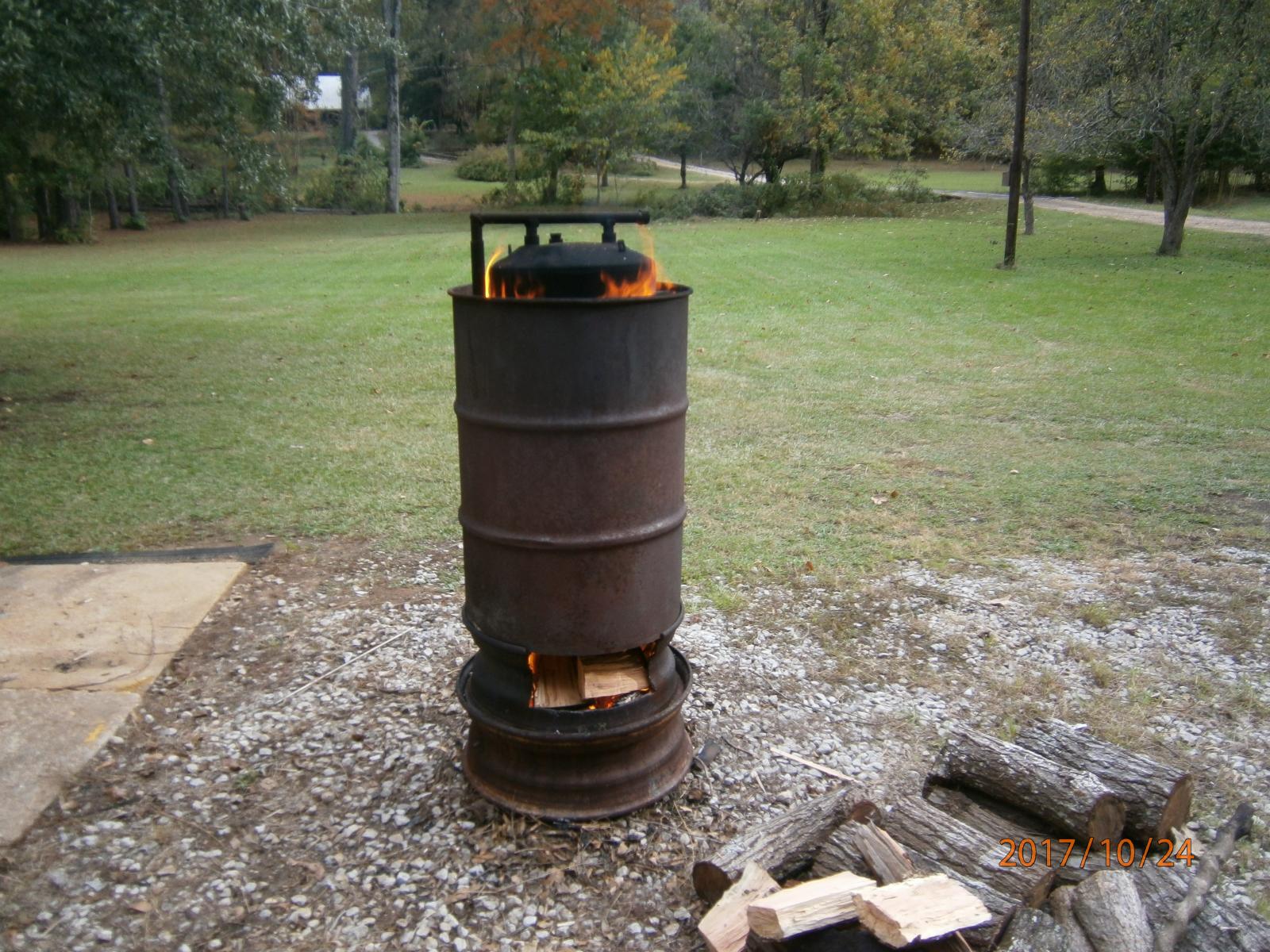

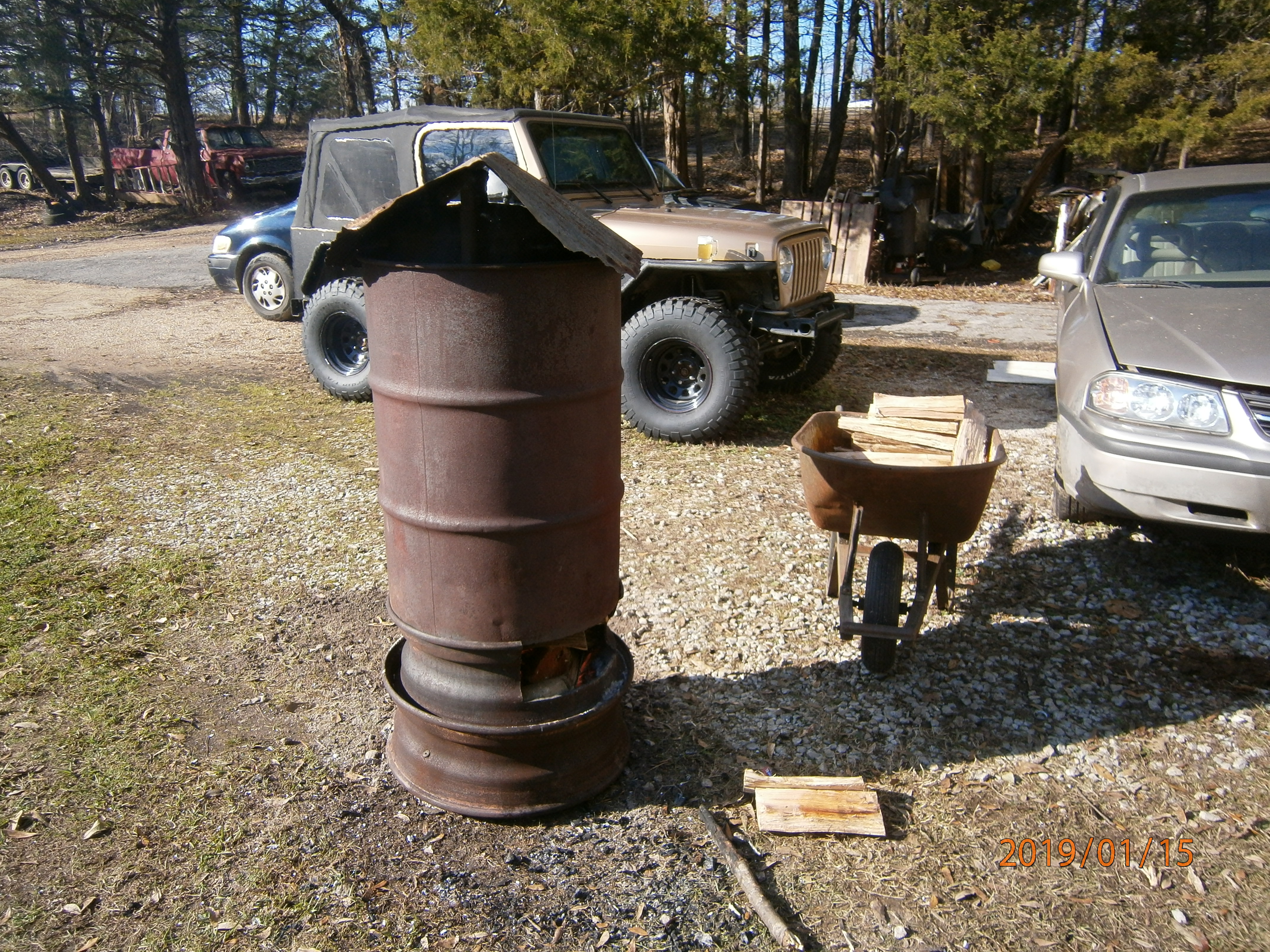

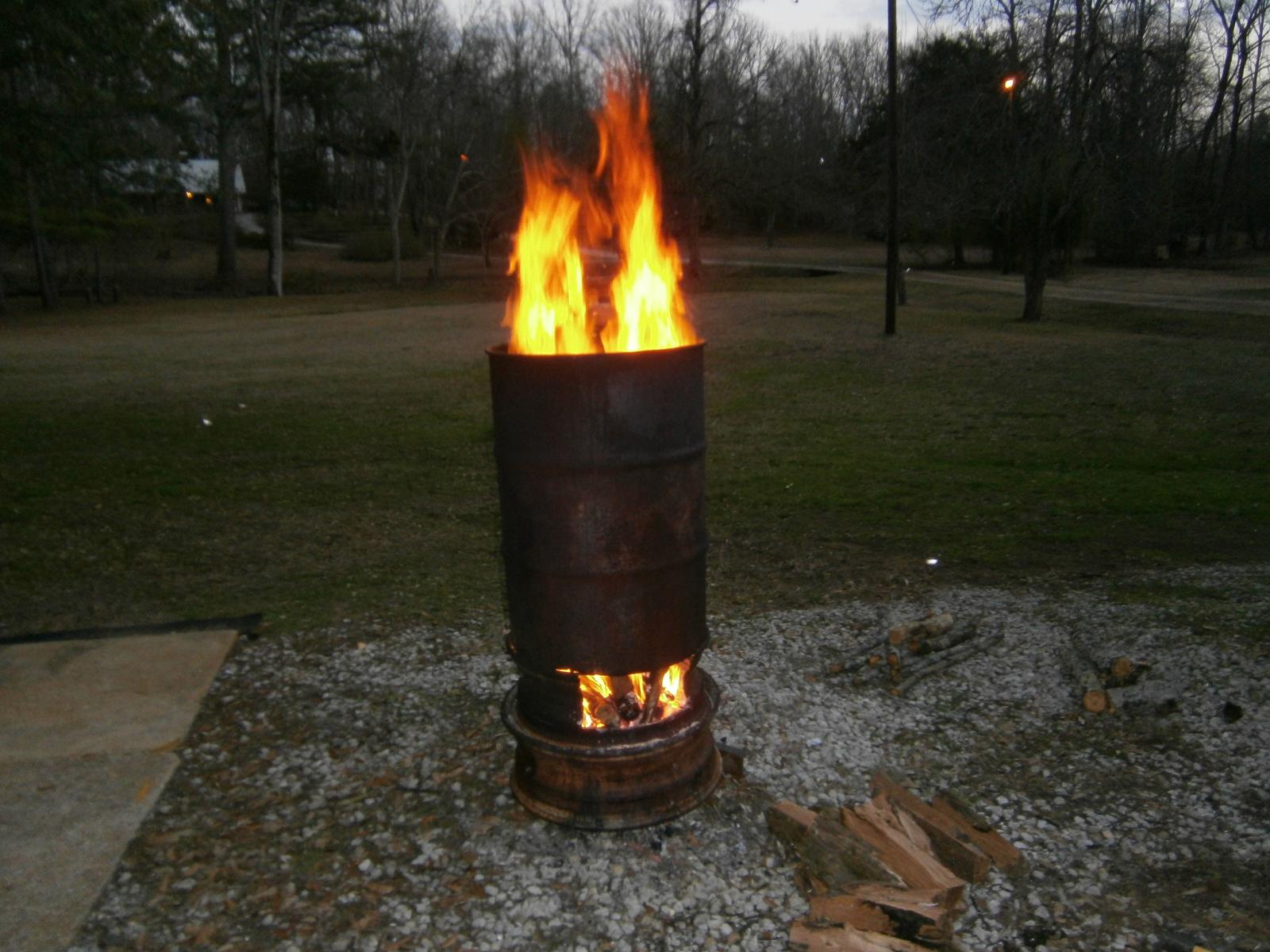

Here are a few pictures of my "cooker" and the charcoal.
Did not have my camera with me during building or firing, sorry bout that.
