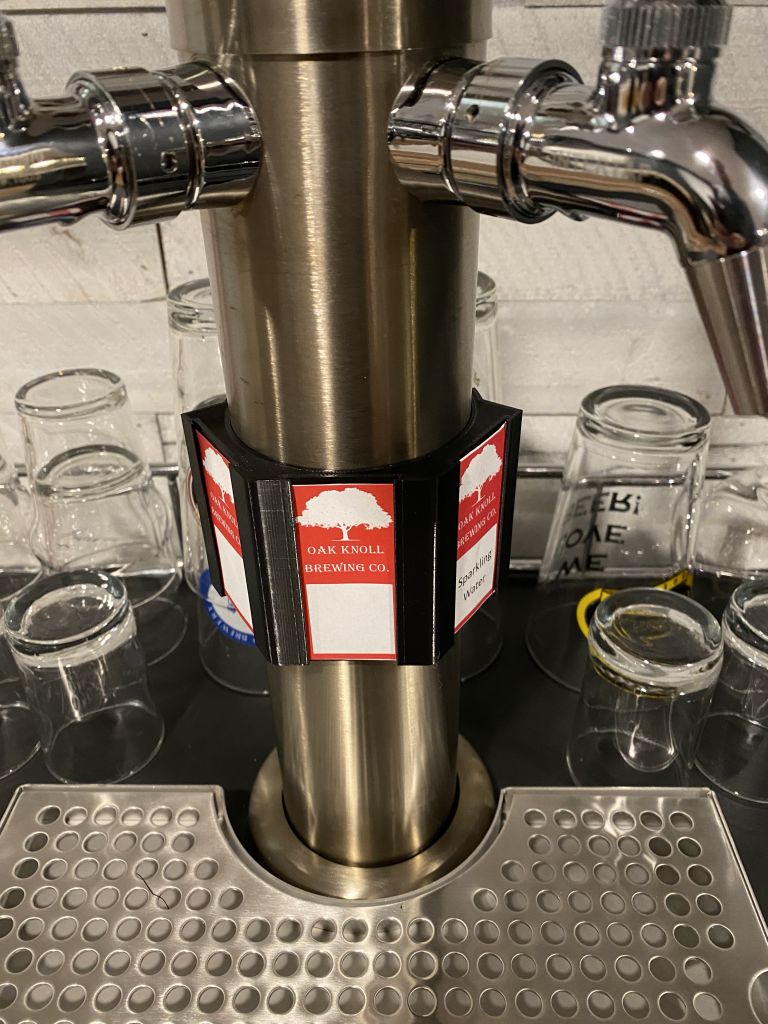

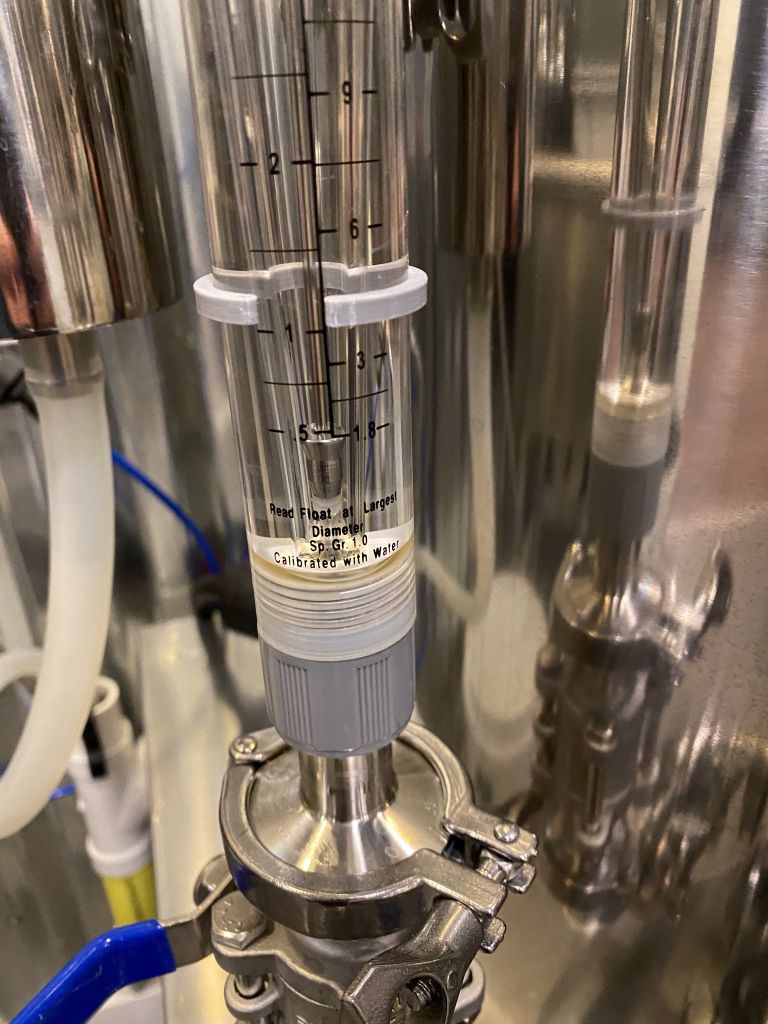

Couple silly little things I printed up today. First is a marker for the flow meter I recently picked up out of the classifieds here. Second is some temporary camlock plugs since they were out of stock at Brewhardware. Both printed in PETG for slightly better performance but neither use will really see significant heat. The outside of the flowmeter only really gets slightly warm and the plugs are just to serve mostly to serve as hose hangars.


Attachments

Dr_Jeff

Supporting Member
HBT Supporter
Joined
Dec 13, 2011
Messages
1,247
Reaction score
663
Location
Henagar, Alabama
I am thinking about getting a 3D printer.
What does one need to look for feature wise?
I've seen them that support 2 or 3 filaments and color change, restart, filament out detection
screw drive vs. belt drive,
open source firmware,
touch screen vs. dial
various print sizes
one had 2 extruders
another came with five spare extruder tips - how long does an extruder tip last?
I like the ones that are 90-95% assembled, really not interested in full assembly, seems like too much of a pita

any other things that I am missing, feel free to toss in ideas or things I need to think about


matt_m

Supporting Member
HBT Supporter
Joined
Oct 6, 2017
Messages
1,074
Reaction score
489
I debated it a year. Almost bought an Ender 3, considered a Prusa, then the Ender 3 V2 came out. I bought that and added an upgraded extruder. better bed springs and a few other things for about another $50 extra Last week I flashed a Raspberry PI I had and bought the parts necessary to add Octoprint with a camera, maybe another $20 excluding the Pi. I need an enclosure but haven't figured out what I want yet and I'll probably add a BL Touch for automatic bed leveling. Assembly was easy and I was printing good prints 24 hours after delivery.


Bigdaddyale

Well-Known Member
Joined
Aug 29, 2011
Messages
1,403
Reaction score
317
Location
Rowland Heights
I love my Ender 3-I got a good deal on it. I bought the laser add on and want to trick it out with Octoprint and all the other bells and whistles

Joined
Jan 19, 2013
Messages
3,573
Reaction score
1,487
Location
Kansas City
I am thinking about getting a 3D printer.
What does one need to look for feature wise?
Many of them are chasing the features forwarded by Prusa (and people will argue about that but I've been watching knock-offs chase them for years.) Technically Prusa is RepRap so open source, but they have been innovating and releasing most of it to OpenSource so they are at the tip of the spear. This means that they are a little more expensive (it's a real company with real people) but you will often find the features and ideas more fully baked and supported with a Prusa.

So, you asked about features. Look at the Prusa site and then look for other companies supporting the same. Nearly every printer on the market will do 99% of anything you would ever want to do these days. Don't get dazzled by a print bed that's 20mm larger and think that's going to matter. I've been "restricted" to 250x250x200 for as long as I've had a printer and there have been maybe one or two times I had to change my plans. Larger prints are exponentially slower, so scaling things down and/or printing them in pieces is often a better plan. Most all print models are tailored to the same class/size of print bed.

One thing on my latest printer that I would really miss if I didn't have it anymore is the textured magnetic flexible removable bed. The textured bed was a game-changer for me - I highly recommend it. It seems small but it made a big difference in print finish and my ability to get challenging prints off the bed.
I've seen them that support 2 or 3 filaments and color change, restart, filament out detection
I keep telling myself that color change is something I need, yet I've never had it. You can do a layer-based color change with most single-color printers now. If you look at these coasters, you will see what I mean:



Restart has been incredibly helpful. Filament out detection is relatively new for printers and some works better than others. @Thorrak has a model older than mine and his did not work correctly but mine does. If you let the filament run out you are almost guaranteed a partial teardown.
screw drive vs. belt drive,
open source firmware,
touch screen vs. dial
various print sizes
one had 2 extruders
A screw drive is technically more precise, but it's all about the package and the capabilities of the printer. Don't judge a printer solely by what you think the creator should have done - look at how they work. The belt drive on my printer is quiet, precise, and easy to work with. The printer firmware has progressed to the point where it outputs one of the best print qualities available. So long as the software (firmware) and the hardware are well-suited to each other, things will go well.

I love OpenSource, and these printers would not even exist were it not for them. That said, aside from philosophical differences, there's not a reason to worry about this unless:
  1. You intend to customize your firmware; or
  2. The printer you choose is so new/flawed that you will depend upon a robust community support model
I spoke about the print size above. In the Prusa line, there's a mini and a regular one. Having said "size doesn't matter" I'm going to turn right around to say I'd get the standard Prusa (or another brand around that size) for brewing-related projects.

Touch screen vs dial only matters while you set it up. After that, you can use something like Octoprint and you rarely will use the printer controls. This is not an area where I would spend time or money worrying about it.

Two extruders is a color print choice. It seems like a great idea ("no waiting for filament changes!") but in practice, it reduces your bed size along the Y-axis by 2X the distance between the nozzles. It's only ever going to be something you want if you have very specific and frequent color print needs. It's also more difficult to calibrate and keep that way.
another came with five spare extruder tips - how long does an extruder tip last?
I never have had to change a nozzle. So long as you are not constantly printing abrasive filament, you won't either for the practical life of the printer. I tried to change one once for a not very good reason and I won't do it again.
I like the ones that are 90-95% assembled, really not interested in full assembly, seems like too much of a pita
I'd encourage you to re-think this. 3D printing is not and will never be (at least in our lifetime) like buying a computer printer. Tinkering is required and encouraged. To that end, building yourself one (like the Prusa kit) is recommended and not too bad if you give yourself the time and a decent workspace to do it. You will learn things about your printer that may be helpful later on.
any other things that I am missing, feel free to toss in ideas or things I need to think about
It's obvious by now that I have and recommend a Prusa. It's more expensive than most of the others, and "they make you put it together." This is my second Prusa and I am not at all sorry I've spent the money. "Buy once, cry once."

Do look around though. Look for the community and how it is supported. How frequent are the commits in the firmware and other software repositories? This is an indication of how actively supported the printer is.

I know people with Enders, and I know they like them. Knowing what I know and seeing both I would buy another Prusa. Not trying to knock anyone here, and it is a slightly religious/political argument, but you asked for opinions.


Thorrak

Supporting Member
HBT Supporter
Joined
Feb 7, 2016
Messages
3,005
Reaction score
1,893
Location
New York, NY
I've got a Prusa at the moment after having had a Lulzbot and a Makerbot. The Prusa is my favorite by far.

For the Makerbot, the model I had was a relatively old one that used a proprietary "hot end assembly" which was attached by magnets. Great idea if you view the hot end as a consumable part that will need frequent replacing - in practice, it was a solution looking for a problem that introduced an additional potential source of error. There were a number of other issues as well, but

The Lulzbot was a fair step up from the Makerbot, but required the use of 2.85mm filament (rare!), had a bed leveling mechanism that required the nozzle to be clear of any (electrically) insulating material (eg plastic) at the start of each print, and was incredibly loud. Again - each of these decisions had their advantages, but in practice finding the larger size filament was difficult, the fact that the nozzle head had to be clear of filament to properly level the printer meant that auto-leveling rarely worked the first time, and the noise meant that I had to limit printing in our small apartment to the daytime when nobody would be home.

While the Prusa hasn't been perfect (the bed leveling with the MK2 caused all kinds of trouble) the progression with the MK3 has solved almost all the problems I had with the original model. It helps that they also sell upgrade kits - once you buy a Prusa, you can always upgrade it to the latest model for relatively little cost.



Restart has been incredibly helpful. Filament out detection is relatively new for printers and some works better than others. @Thorrak has a model older than mine and his did not work correctly but mine does. If you let the filament run out you are almost guaranteed a partial teardown.
Can confirm - had to do a partial teardown to fix things after the filament ran out, got ground down in the hotend by the extruder gear, and refused to come back out. Not pleasant.


matt_m

Supporting Member
HBT Supporter
Joined
Oct 6, 2017
Messages
1,074
Reaction score
489
I find something new every day.

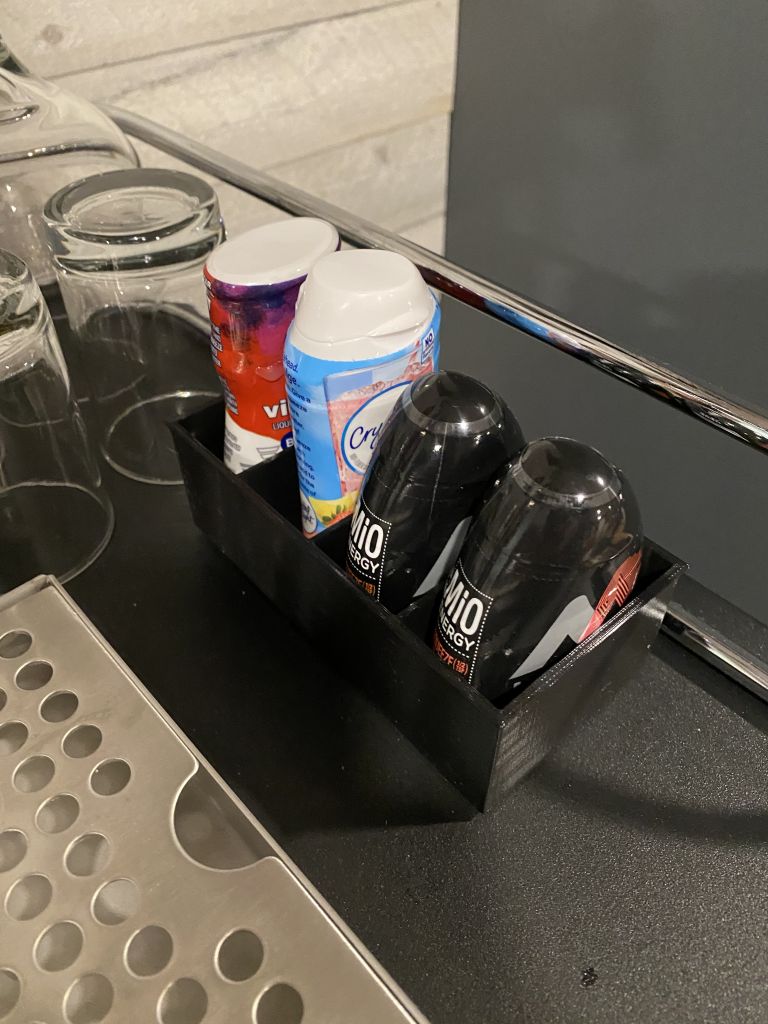

Holder for flavorings for some hard seltzer we keep on tap.

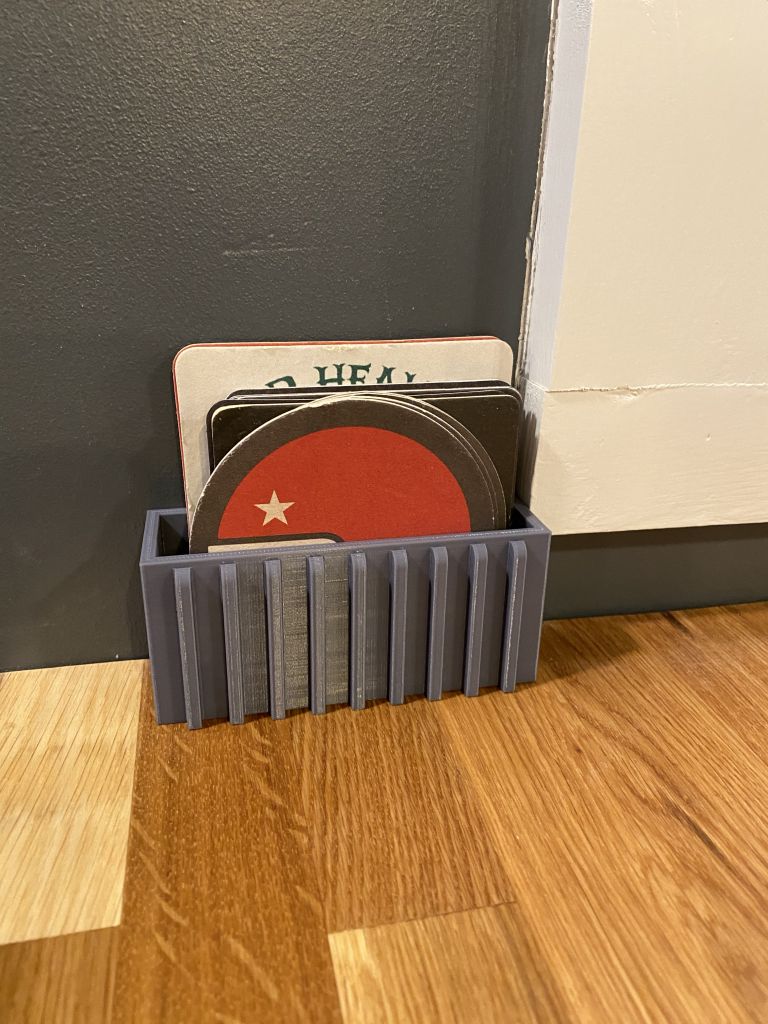

Holder for coasters. Basement has a garage theme, this is inspired by the fins on the old aluminum housing ignition modules.

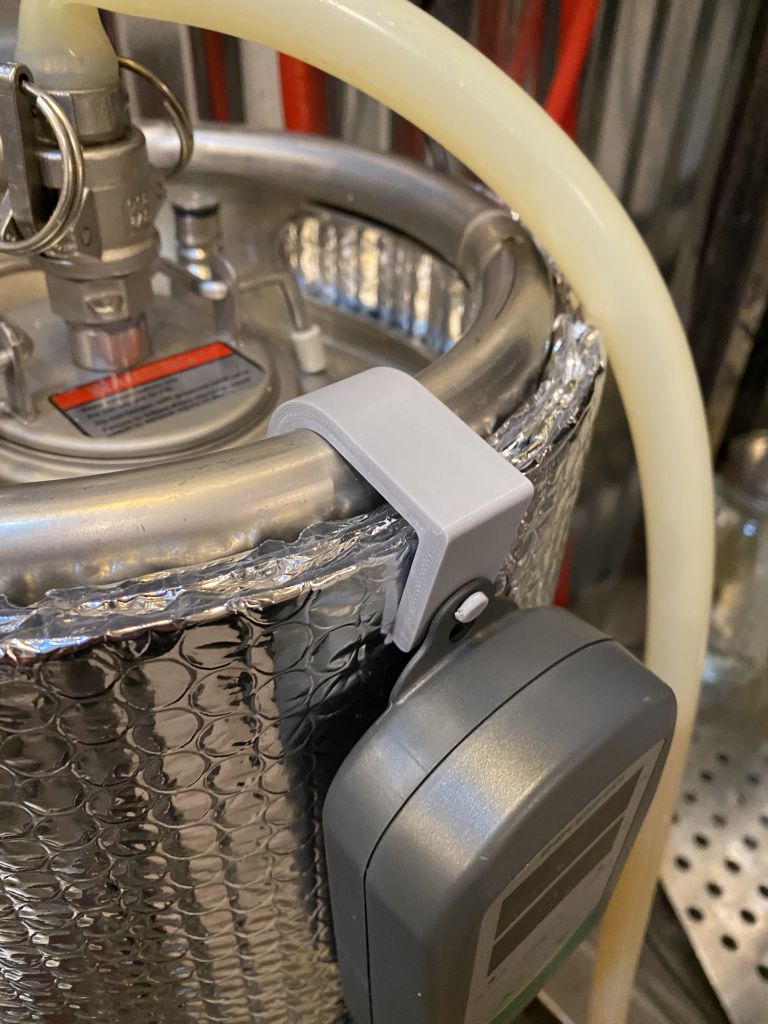

Hanger for an Inkbird on my new Kviek fermenter/brite tank printed in PETG. If that doesn't hold up I'll reprint with a hole I can tap for a machine screw.


Joined
Jan 19, 2013
Messages
3,573
Reaction score
1,487
Location
Kansas City

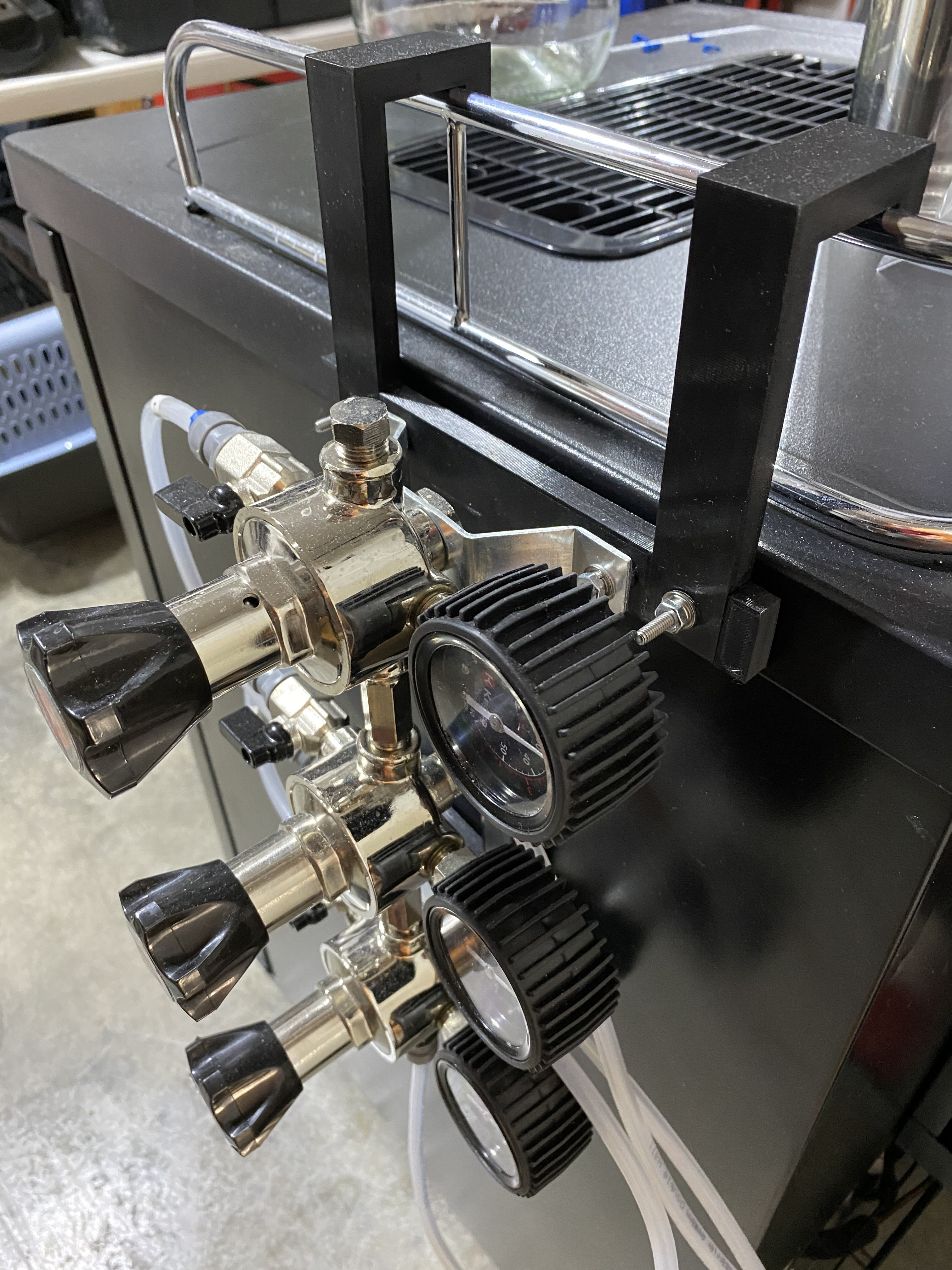

I keep forgetting to post this one:



Obviously (I think) it's a hanger for my triple CO2 manifold. The hanger parts have lasted > 8 months so they lived through a summer in my (attached) garage without warping. It's in three parts and bolted together:



IIRC, I did the U-hanger parts in a relatively high infill, 80% sticks in my mind. They are printed in PETG which is my new favorite (now that I have a magnetic/removable bed).


matt_m

Supporting Member
HBT Supporter
Joined
Oct 6, 2017
Messages
1,074
Reaction score
489
Ironically a regulator mount is on my list. I need something totally different but the way you did those bolts solves my last remaining issue. Thanks for posting!


matt_m

Supporting Member
HBT Supporter
Joined
Oct 6, 2017
Messages
1,074
Reaction score
489

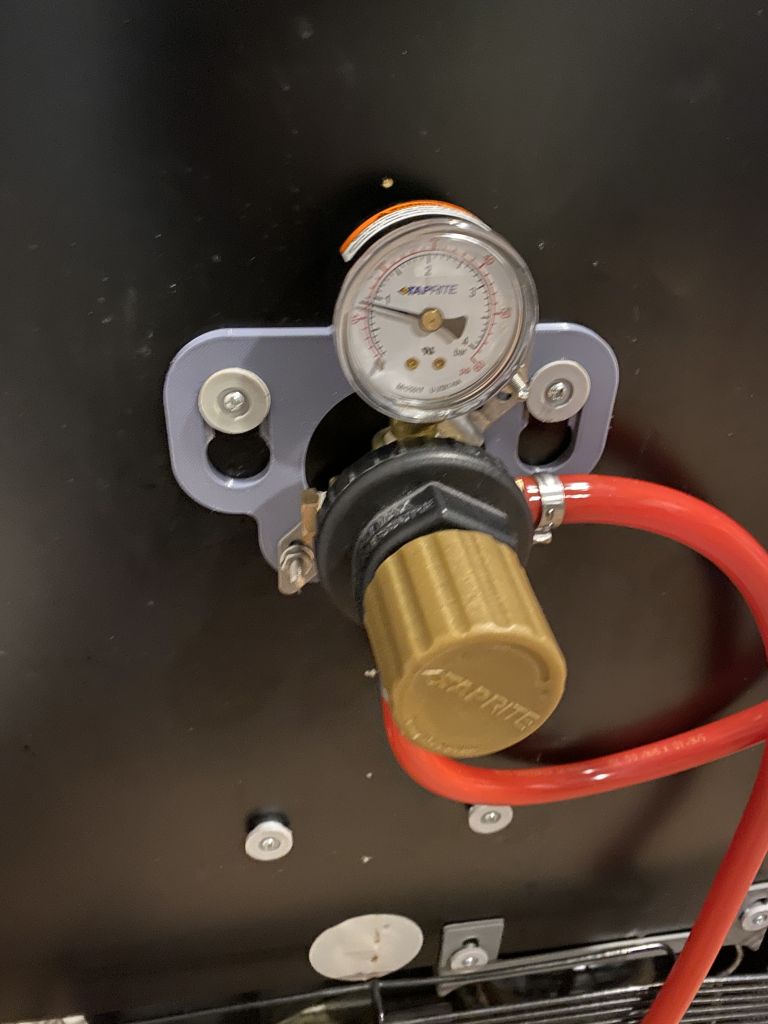

Regulator mount for the back of a Kegland kegerator. They ship with a CO2 tank holder that drops on 4 mounts, I repurposed 2 for a secondary regulator.



NickTheGreat

Well-Known Member
Joined
Apr 17, 2012
Messages
1,225
Reaction score
424
I really shouldn't be in this thread. It makes me really want one of these things.

I come from an engineering/3D modelling background, so I've always followed 3D printing from afar.

My daughters have a dollhouse that is missing some furniture. I think a 3D Printer would work really well for that, don't you? :cool:


bscuderi

Well-Known Member
Joined
Feb 27, 2009
Messages
134
Reaction score
18
Location
Phoenix

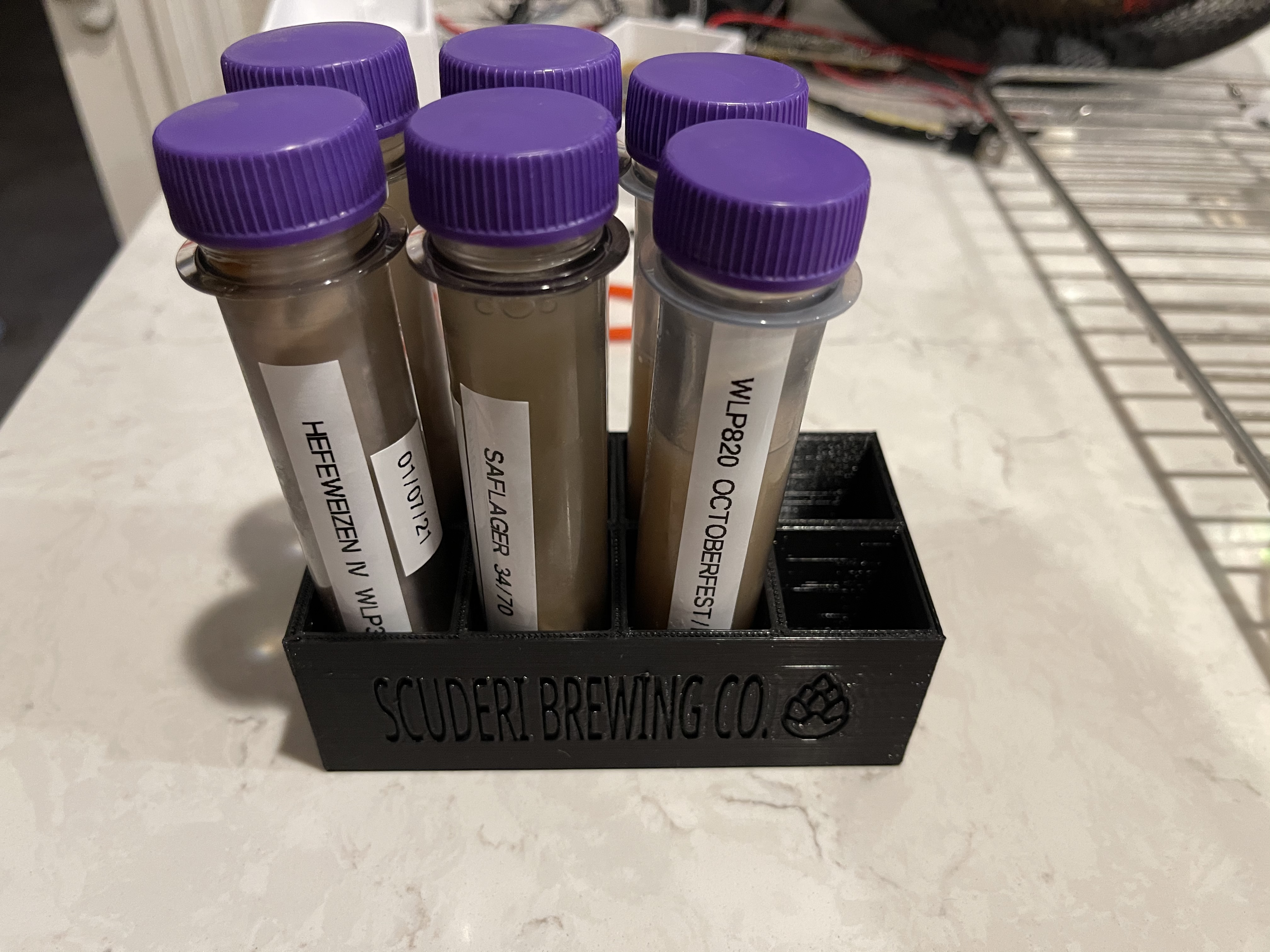

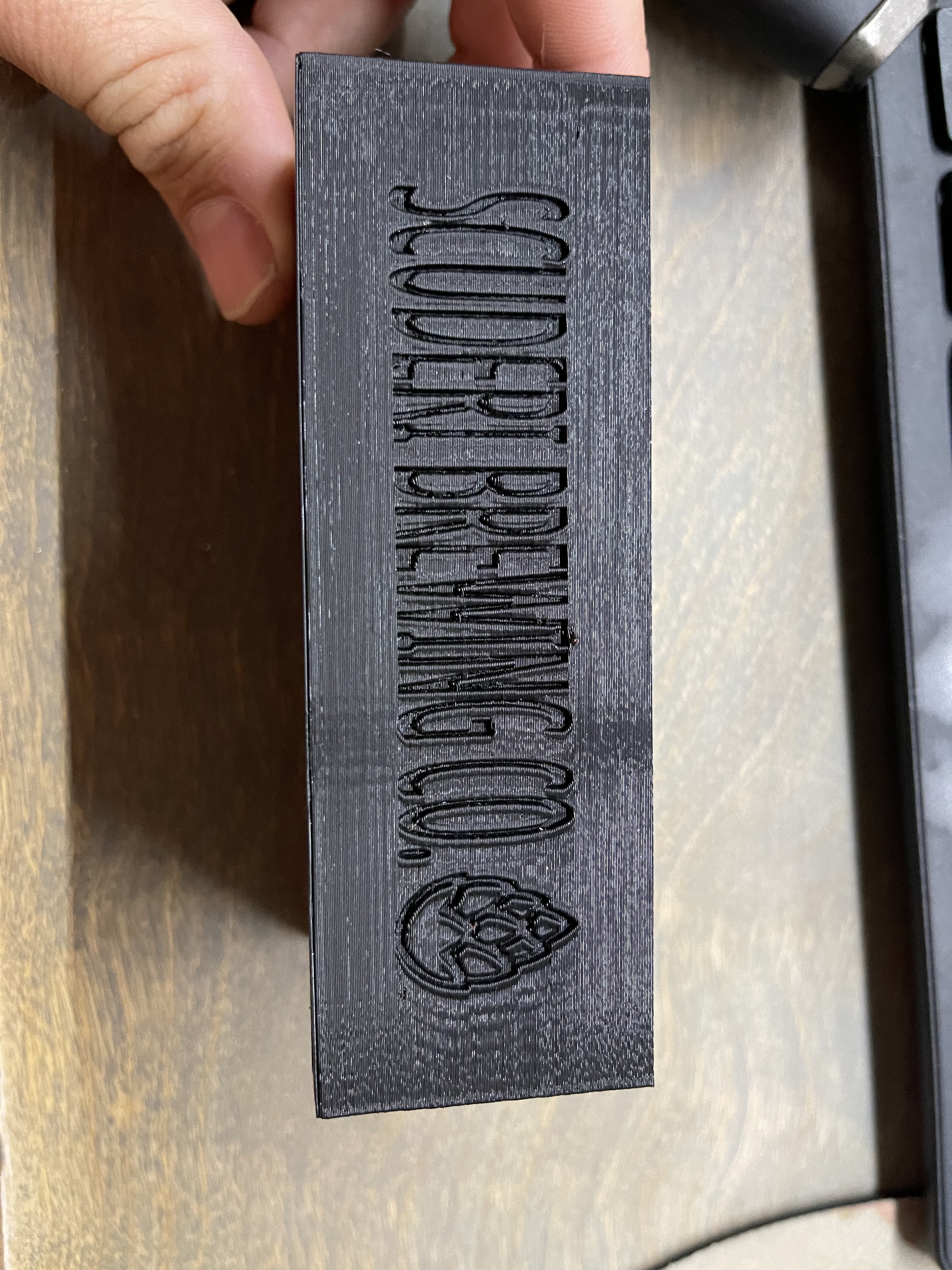

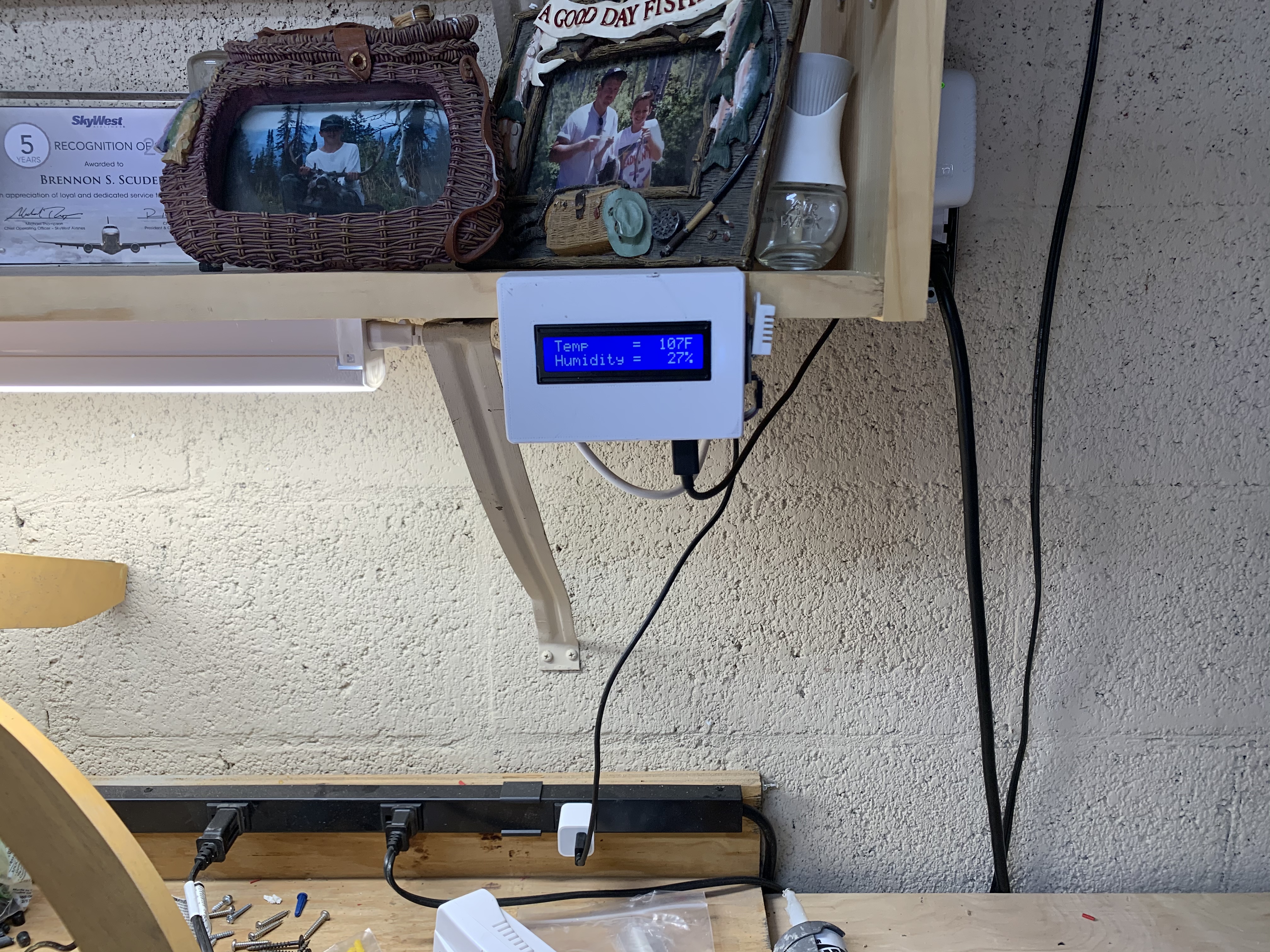

I just want to say that I think this thread is under rated. Haha it was interesting to see some of the well known members that have helped out here over the years had posted some of the stuff I’ve printed or tweaked off thingiverse. I’ve mainly printed a lot of cases for electronics in my brewery. Pi cases arduino esp8266 stuff. Temp probe holders brewery tap displays aka tablet wall mounts etc. also I’ve designed clips to hold auto syphons and wine thief’s to a pegboard. Printed out this cool hand to hold tubing on a pegboard. I made a custom tray to hold yeast tubes from my overbuilt starters. Displays on my brewpi fridges. A case and display for a ln external brewpi box that I think was @Thorrak design. Keep them coming people. If anyone wants the pegboard clips I was thinking of putting them on thingiverse.


Attachments

verboten

With Low Expectations, you're rarely disappointed
Joined
Jul 21, 2011
Messages
452
Reaction score
257
Location
Monroe, MI
I now have this wonderful piece of machinery in my lab. I need to learn it, but of course we have already produced tap handles lol


verboten

With Low Expectations, you're rarely disappointed
Joined
Jul 21, 2011
Messages
452
Reaction score
257
Location
Monroe, MI
It definitely is, The crazy thing is that nobody knows how to use it!! I have a general idea, so I’ll start playing with it soon.


bscuderi

Well-Known Member
Joined
Feb 27, 2009
Messages
134
Reaction score
18
Location
Phoenix

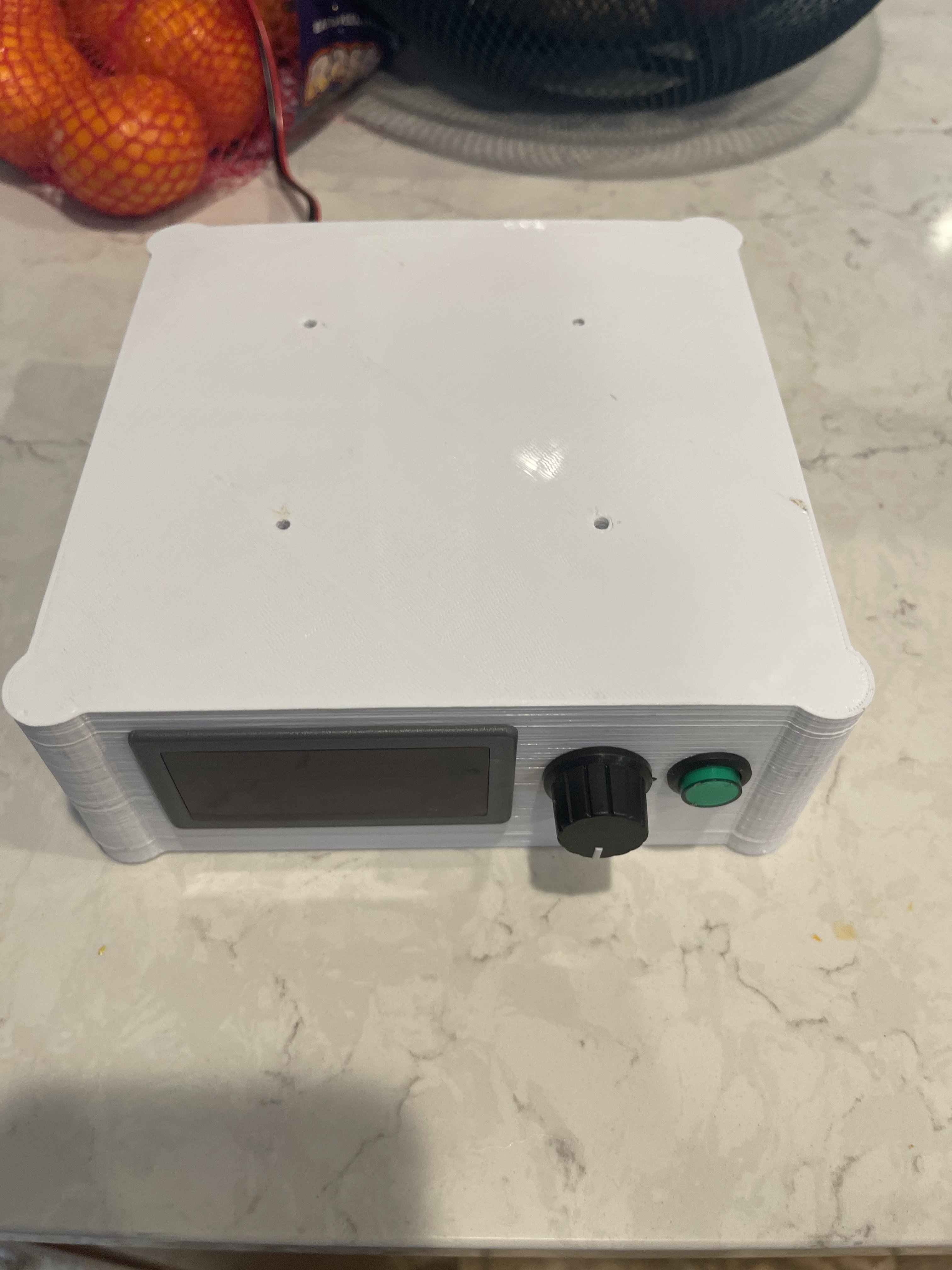

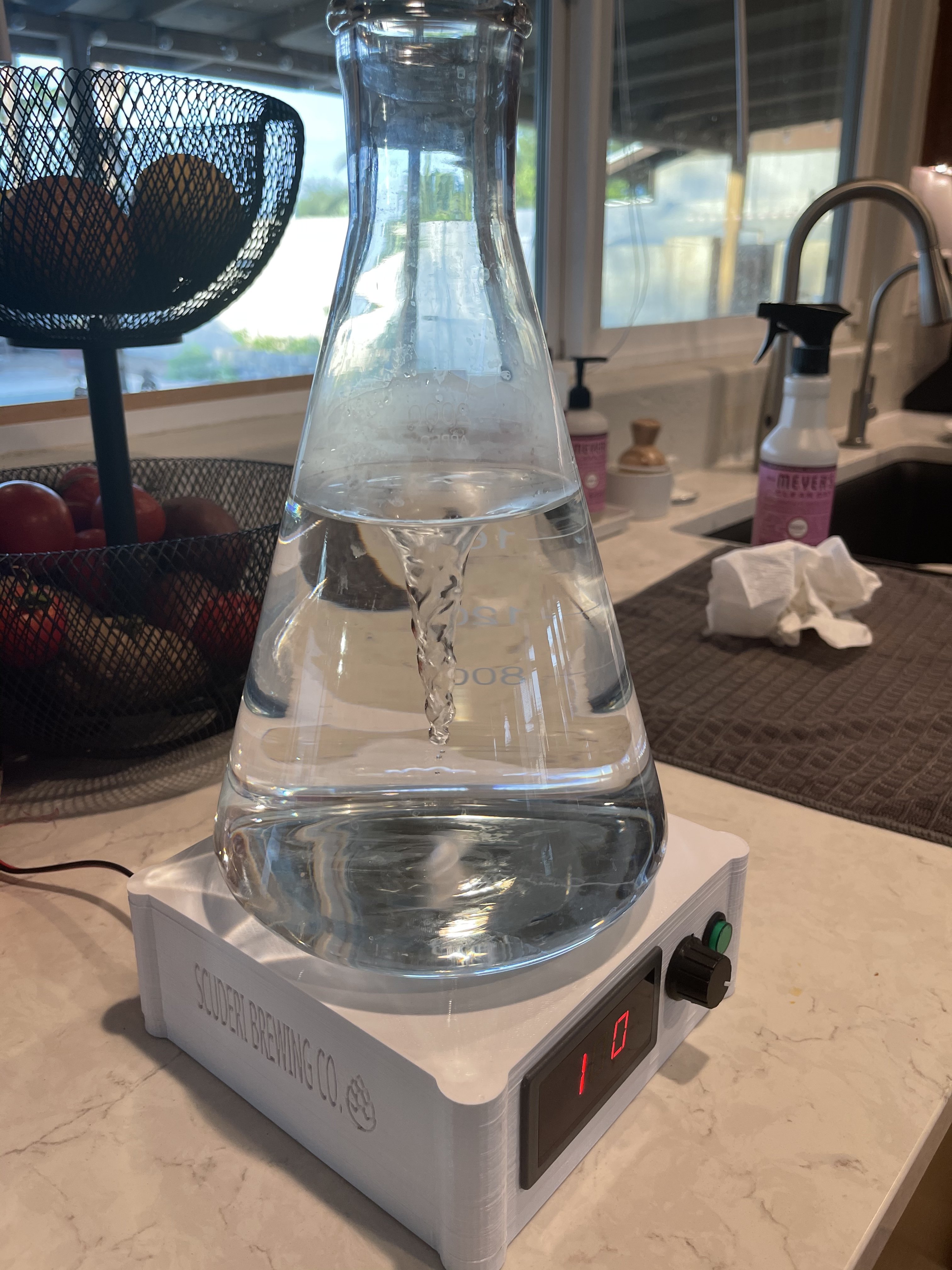

Redesigned and built one of the stir plates on thingiverse to have a the fan fully enclosed and print in one piece instead of glueing the top on. As well as added a base that screws on and the screws counter sink in and get covered by little rubber pads to keep it from vibrating and sliding. If I print it again I’ll remove the screw holes up top I thought I might need to screw down through and secure the fan with a nut but I was able to do it from the inside with just a short screw threaded in and grabbed tight enough. So if I reprint I’ll make the top completely solid but for now I’ll maybe throw some silicone in those screw holes. But It works great and I think it looks well engineered :)


Attachments

NitrogenWidget

Well-Known Member
Joined
Apr 30, 2017
Messages
770
Reaction score
380
Location
WNY

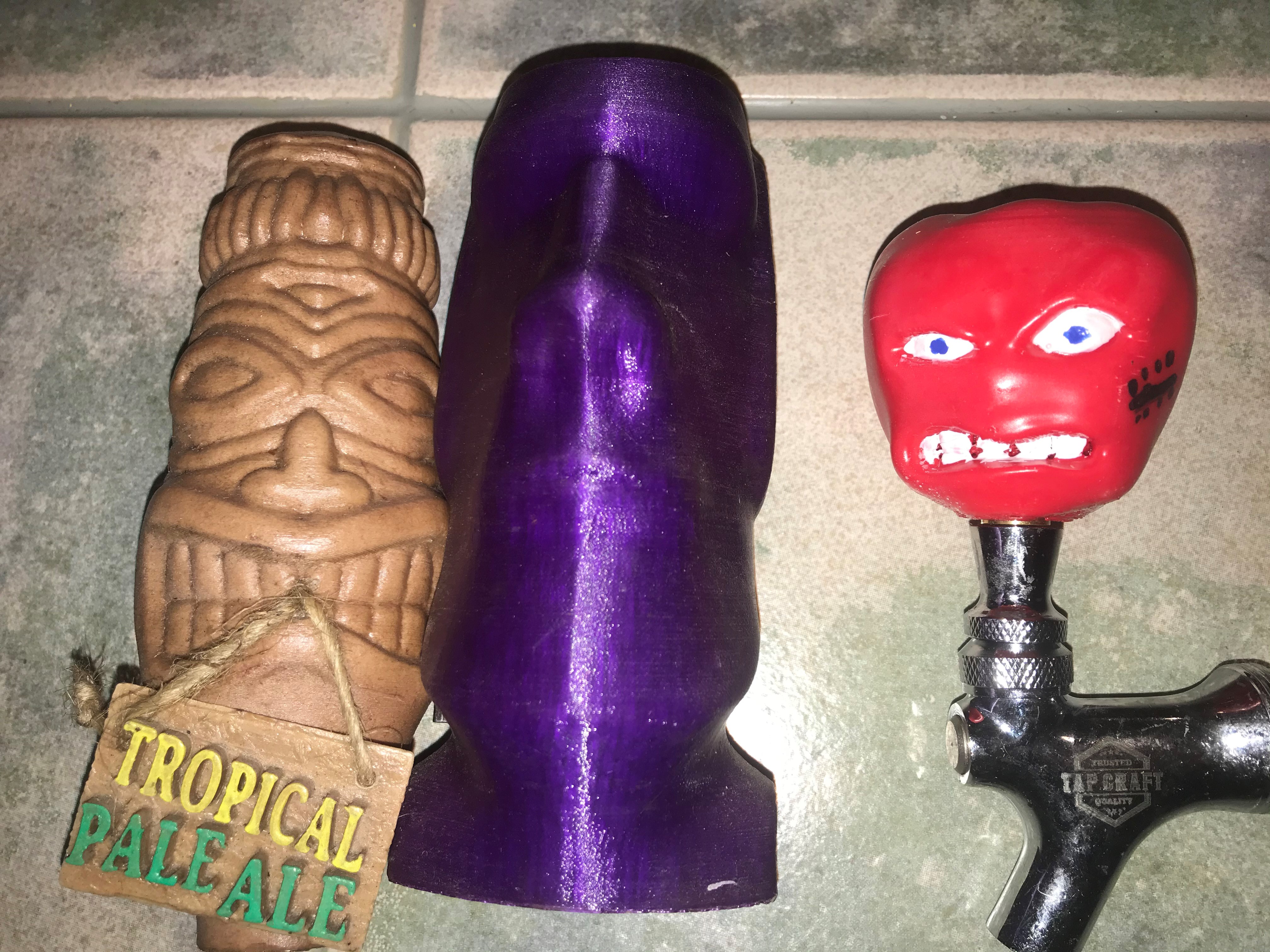

few taps i've printed up.
the tiki is wood filament, the Easter island head is pet-g and for my blueberry wheat, the apple is for my hard cider. it's ABS that i vapor smoothed. once smoothed though it didn't take acrylic paint well. i had to blob it on then clear coat it.
I did not design these. i just found models on thingi-verse and adapted them to take a tap thread insert.
I did buy the apple model for a few bucks on some other model sight.


Attachments

Brewbuzzard

Supporting Member
HBT Supporter
Joined
Dec 22, 2014
Messages
1,396
Reaction score
2,060
Location
Dallas
Redesigned and built one of the stir plates on thingiverse to have a the fan fully enclosed and print in one piece instead of glueing the top on. As well as added a base that screws on and the screws counter sink in and get covered by little rubber pads to keep it from vibrating and sliding. If I print it again I’ll remove the screw holes up top I thought I might need to screw down through and secure the fan with a nut but I was able to do it from the inside with just a short screw threaded in and grabbed tight enough. So if I reprint I’ll make the top completely solid but for now I’ll maybe throw some silicone in those screw holes. But It works great and I think it looks well engineered :)
That is sweet


bscuderi

Well-Known Member
Joined
Feb 27, 2009
Messages
134
Reaction score
18
Location
Phoenix
few taps i've printed up.
the tiki is wood filament, the Easter island head is pet-g and for my blueberry wheat, the apple is for my hard cider. it's ABS that i vapor smoothed. once smoothed though it didn't take acrylic paint well. i had to blob it on then clear coat it.
I did not design these. i just found models on thingi-verse and adapted them to take a tap thread insert.
I did buy the apple model for a few bucks on some other model sight.
The wood one looks awesome. I haven’t attempted wood pla yet but that has to be one of the best uses I’ve seen. That really looks like wood!


NitrogenWidget

Well-Known Member
Joined
Apr 30, 2017
Messages
770
Reaction score
380
Location
WNY
The wood one looks awesome. I haven’t attempted wood pla yet but that has to be one of the best uses I’ve seen. That really looks like wood!
Thanks.
it did come out surprisingly good.
I rubbed it down with a little Oak wood stain (it took some of the color) then clear coated it.


NitrogenWidget

Well-Known Member
Joined
Apr 30, 2017
Messages
770
Reaction score
380
Location
WNY
I just ordered a "new" type of wood that doesn't actually have wood in it. Something something foam something ... no idea. I'll let you know how it works.
I can't keep up with all the new filaments that have come out recently.

Joined
Jan 19, 2013
Messages
3,573
Reaction score
1,487
Location
Kansas City
Okay - I got 18.5 hours into a 19-hour print and apparently caught a power failure. For those who do not know - that means a ruined print. Yeah.

That said this is a fine shape if you can get it to print, but there are some things I'd do differently if I were designing it. The outside radius where the mount merges into the chute is a PIA to print and probably needs supports. Supports are generally bad, especially where it's on a visible portion of the print. Then, the entire inside of the mount needs support, so that's a PIA. If I can talk myself into running this print again, I might do some tweaking there.

Joined
Jan 19, 2013
Messages
3,573
Reaction score
1,487
Location
Kansas City
It printed, and I made one for my friend who still uses a Corona mill. It's ~50 meters of filament or about 150g. That makes filament only about $3.30 for the print. Getting the freaking supports to work was a HUGE PIA. It requires a pile of supports in the "face" area and getting those to break out while still reasonably supporting it was a crapshoot. The inside is semi-rough but I guess nobody will ever see it and it's not like it needs to be sterilized.



No, I didn't do that on purpose. I woke up to the printer beeping because the black ran out. Looks kinda cool though.

Given that it's a 19-hour print, I think you're going to have problems finding someone to print many of them.


Jhedrick83

Supporting Member
HBT Supporter
Joined
Dec 28, 2020
Messages
305
Reaction score
370
Location
Ol' Rocky Top
It printed, and I made one for my friend who still uses a Corona mill. It's ~50 meters of filament or about 150g. That makes filament only about $3.30 for the print. Getting the freaking supports to work was a HUGE PIA. It requires a pile of supports in the "face" area and getting those to break out while still reasonably supporting it was a crapshoot. The inside is semi-rough but I guess nobody will ever see it and it's not like it needs to be sterilized.

View attachment 739150

No, I didn't do that on purpose. I woke up to the printer beeping because the black ran out. Looks kinda cool though.

Given that it's a 19-hour print, I think you're going to have problems finding someone to print many of them.
Well thank you, sir! If I had know it would be such a PITA, I wouldn’t have asked.

I must say, I do like the two tone. Makes me think of an old muscle car.


tomakana

Well-Known Member
Joined
Jun 20, 2017
Messages
65
Reaction score
18
Location
Southeastern PA

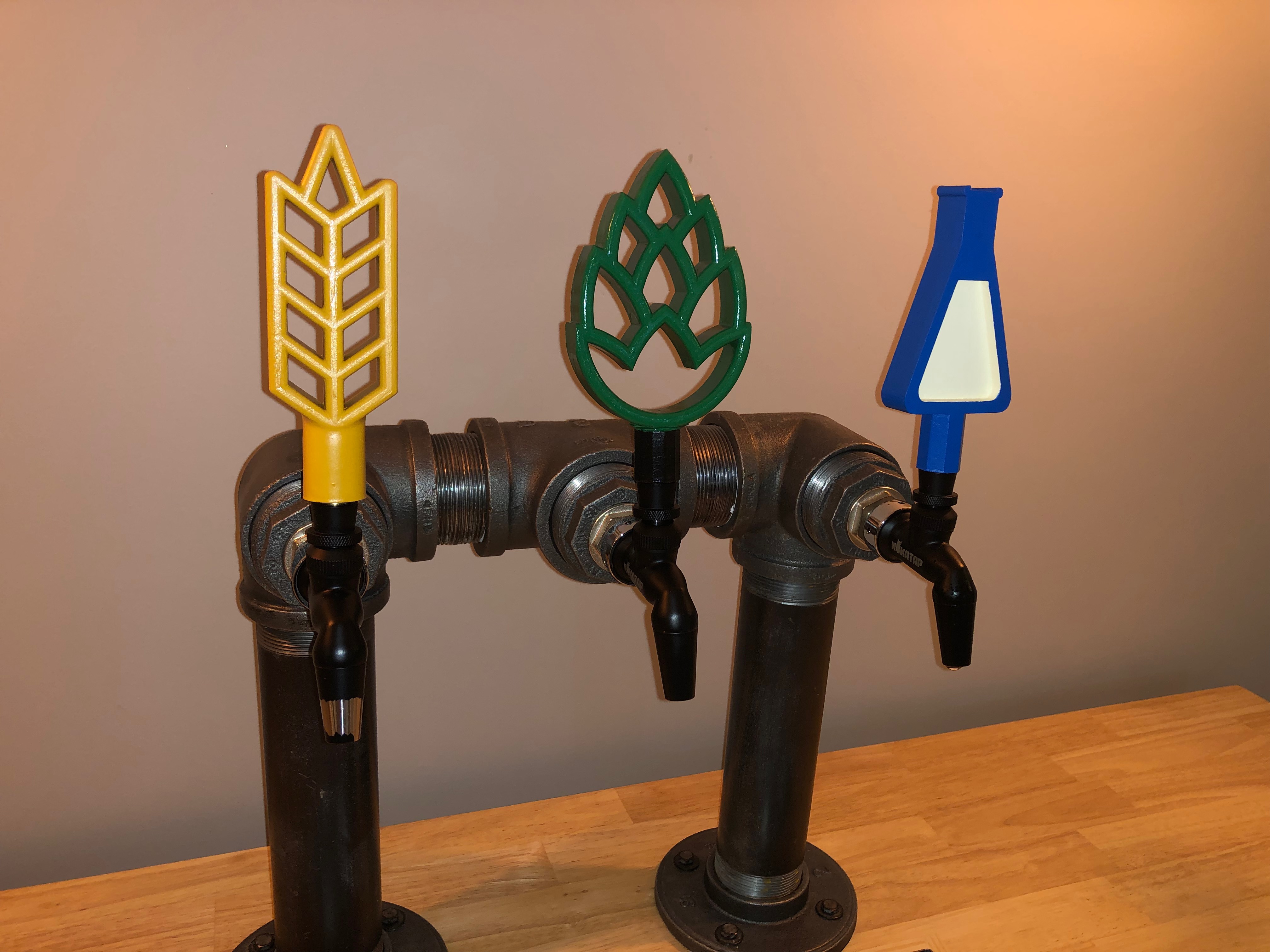

Been playing with my son's new 3D printer - made some Elements of Brewing tap handles for the new keezer. Technically missing "water" but since I've only got 3 taps, had to leave one out. These were printed on a Voxelab Proxima 6.0 resin printer, painted with cheap acrylics, and sealed with clear spray - pretty simple, but I really like how they turned out! They're modified versions of designs I found on Thingiverse, which I'll link to if I get a chance.

Going to start doing themed groups of taps - I have low-poly busts of Yoda and Vader done for a Star Wars group, but still have to decide on a third.


Attachments

Brewdog80

Supporting Member
HBT Supporter
Joined
Sep 17, 2021
Messages
85
Reaction score
83
I had drilled holes in my mini fridge's door for taps a long while ago. In my return to brewing, I added a tower and 3d printed a set of plugs for front door, but then get the bright idea to just run the co2 lines through those holes. so I redesigned the hole covers to have a hole for the lines. Way easy and works fine. Then some tap handles and a drill tray. Live my printer
