Help with fridge for lagering (pics)

HomeBrewTalk.com - Beer, Wine, Mead, & Cider Brewing Discussion Community.

Help Support Homebrew Talk:

Somerville

Well-Known Member
Joined
Aug 6, 2005
Messages
205
Reaction score
0
Location
San Mateo, California
Hey I have this mini fridge laying around and thought maybe I could use it for lagering (with the correct external temp. controller). Yet, when I open it, the bottom is not big enough for a fermenter because a big square is going into it...the freezer part is on top and is taking up room, plus the shelves on the door (butter holder) eliminate alot of room too...is there anything I can do to it to make it able to fit a fermenter and carboy (not at the same time). Thanks...here are some pics...the can of soda is for size comparison...thanks again.





Sir Sudster

Well-Known Member
Joined
May 27, 2005
Messages
1,030
Reaction score
2
Location
Buda, Tx
Make a platform out of plywood that lays on the shelf. then put your fermenter on the platform.


bikebryan

Well-Known Member
Joined
Mar 21, 2005
Messages
556
Reaction score
4
Location
Alexandria, VA
Sudster said:
Make a platform out of plywood that lays on the shelf. then put your fermenter on the platform.
That alone won't work. The freezer at top takes up too much room so a five gallon fermenter or carboy, plus airlock, won't fit.

I've read posts (and seen pictures) where folks say they have carefully bent the freezer floor up to the top of the mini-fridge. If you try it, you have to be careful not to seriously crimp the refrigerant tubes in it, and you most certainly DO NOT want to crack them.


Dude

Well-Known Member
Lifetime Supporter
Joined
Jan 15, 2005
Messages
8,768
Reaction score
116
Location
Ramstein-Miesenbach
bikebryan said:
That alone won't work. The freezer at top takes up too much room so a five gallon fermenter or carboy, plus airlock, won't fit.

I've read posts (and seen pictures) where folks say they have carefully bent the freezer floor up to the top of the mini-fridge. If you try it, you have to be careful not to seriously crimp the refrigerant tubes in it, and you most certainly DO NOT want to crack them.

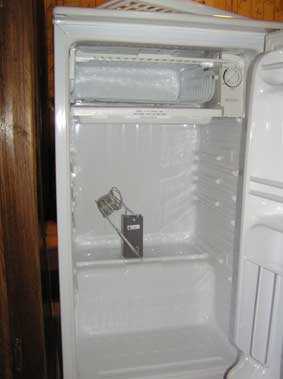

That's what I did to mine. Worked like a charm.
I also built a shelf (like Sudster suggested) so the door would shut. I'm proud of my ingenuity to make the fridge work. :)


Sir Sudster

Well-Known Member
Joined
May 27, 2005
Messages
1,030
Reaction score
2
Location
Buda, Tx
It's hard for me to tell from the pics the total size of this thing.

You could buy 2.5 gallon carboys that would fit. Split your batches ..but that might be a pain. But , it would work.

OP
Somerville

Somerville

Well-Known Member
Joined
Aug 6, 2005
Messages
205
Reaction score
0
Location
San Mateo, California
Thanks yeah...that would be kind of a hassle and I would have to spend more money lol. The freezer part isnt very airtight which means that perhaps they kind of share temperatures or something...I could take off all the freezer parts but then Im not really sure how a external temp controller will handle that...with the top being really cold and the bottom being less...I dont know...perhaps I could drill out some of the box caving in...it has some of the electricals in it that i can see from the back but for the most part i think its hollow...ill examine :D thanks guys


bikebryan

Well-Known Member
Joined
Mar 21, 2005
Messages
556
Reaction score
4
Location
Alexandria, VA
Somerville said:
Thanks yeah...that would be kind of a hassle and I would have to spend more money lol. The freezer part isnt very airtight which means that perhaps they kind of share temperatures or something...I could take off all the freezer parts but then Im not really sure how a external temp controller will handle that...with the top being really cold and the bottom being less...I dont know...perhaps I could drill out some of the box caving in...it has some of the electricals in it that i can see from the back but for the most part i think its hollow...ill examine :D thanks guys
These small refrigerators don't have "airtight" freezers. Refrigerant is circulated through the coils in the walls of that tiny little freezer, which is how it works. You can't remove the freezer without breaking the coolant lines, meaning you then just have a box that won't chill since all the coolant will be gone.


Bsquared

Well-Known Member
Lifetime Supporter
Joined
Oct 8, 2006
Messages
1,823
Reaction score
70
Location
San Diego
About 6months ago I moved to a new place, and had to consolidate my full size keg-o-rator, so I built this one Keg mini. It works fine, but It is a tight fit for the CO2, keg and fittings as you can see.

First thing was to remove the door panel and cut out the shelfs so you can re-attach the door seal.


Disassemble the connections for the freezer, then you can vary gently bend down the coolant tubing so the freezer unit can be bent back ageist the back of the fridge.
My new project is to convert this mini-fridge for lagering . But like you I realized it wont fit a primary fermenter, but it will fit a 5gal keg if I take out the Door. I also am looking into these as a Primary, Square 5 to 6gal plastic carboys I need to measure the in side of my new Fridge to see if have to modify it for these to fit. They are FDA certified for food so they will work well if they fit.




shelves.http://www.bayteccontainers.com/5galsqplju.html


Bsquared

Well-Known Member
Lifetime Supporter
Joined
Oct 8, 2006
Messages
1,823
Reaction score
70
Location
San Diego
:rockin: I took the measurements from my mini and the Baytech containers and they will fit with out modification! the dimensions of the space above the compressor housing is 12L X 15W X 16T, with the 5gal container is 9 3/4 X 14 1/2.

If I modify the freezer I can fit the 6gal size

also I found this Igloo cargo container

http://www.igloo-store.com/product_detail.asp?T1=IGL+CARGO+6G&HDR=fullbeverage

And It will fit if I remove the door shelfing.

I guess the question is if these containers are suitable for a Primary fermentation vessel?
