I'm having an issue with my CO2 system lately. Since upgrading to a larger tank I've had to refill it four times in three months. Most of those refills I can explain but now I've come to a situation that I don't understand. The high pressure side of my regulator well go to zero if I shut the tank valve, while the low pressure side of the regulator will stay at 10 psi.
I've replaced all of my tubing, clamps and fittings. The only thing left is a regulator leak. Has anyone experienced this situation?


day_trippr

Moderna Or Bust! :D
Joined
May 31, 2011
Messages
36,678
Reaction score
19,331
Location
Stow, MA
If the high pressure side dives to zero, there's a hella big leak somewhere. What happens if you shut off the output valve?
I would start by removing the regulator and checking to see if there's a viable gasket inside the regulator coupler nut...

Cheers!

OP
bstacy1974

bstacy1974

Well-Known Member
Joined
Dec 7, 2010
Messages
393
Reaction score
193
Location
Fairbanks
I have a gasket between the regulator and tank. When you say output valve, which side? Main tank output or regulator output?
The tank has been in use for about a month. I noticed the pressure was lower than I expected. So I shut off the tank valve yesterday. When I got a beer tonight the high pressure gauge was at zero but the low pressure was at 10.
When I open the tank valve, high pressure gauge goes up. Close the valve, it immediately drops.


Joeywhat

Well-Known Member
Joined
Feb 10, 2009
Messages
288
Reaction score
82
Location
Farmington, MI
Put your hand tight over the tank valve with it open and let it sit for a second. Push it on there real tight to get a good seal. Does it make a sound when you let go? If it does it sounds like the tank valve is leaking.


day_trippr

Moderna Or Bust! :D
Joined
May 31, 2011
Messages
36,678
Reaction score
19,331
Location
Stow, MA
^That^ would not address the issue, presuming the regulator coupler seals tight. Indeed, if the cylinder valve had a leaking stem packing such that pressure was leaking through the output, the OP would not likely see the high pressure gauge drop to zero with the cylinder valve allegedly closed.

It's similar to a leaky gas poppet with a gas QD attached. There may be a latent issue, but as long as the QD seals to the post, no gas is actually lost.

I have a gasket between the regulator and tank.
Good! Are you securely tightening the coupler nut? If you can spin the regulator, tighten the coupler more :)

When you say output valve, which side? Main tank output or regulator output?
That would be the low pressure side - most regulators have a "shut-off" valve on their output.

The tank has been in use for about a month. I noticed the pressure was lower than I expected. So I shut off the tank valve yesterday. When I got a beer tonight the high pressure gauge was at zero but the low pressure was at 10.When I open the tank valve, high pressure gauge goes up. Close the valve, it immediately drops.
Yeah, something is hugely wrong if the high pressure side drops immediately. I mean, to the point you should be able to at least hear where the leak is - either at the cylinder coupler or some part of the regulator assembly...

Cheers!

OP
bstacy1974

bstacy1974

Well-Known Member
Joined
Dec 7, 2010
Messages
393
Reaction score
193
Location
Fairbanks
Gotcha. I'll give it a try tomorrow.
I played around with it a little more. I closed the outlet valve of the regulator. Made an adjustment to lower the outlet pressure, then opened the tank valve. The high pressure gauge went up, I closed the tank valve, and the pressure held.
I did this a few more times, bleeding off the pressure each time. The pressure is holding.
I closed all the valves but left pressure on the regulator. I'll see if it holds overnight.


day_trippr

Moderna Or Bust! :D
Joined
May 31, 2011
Messages
36,678
Reaction score
19,331
Location
Stow, MA
fwiw, I have had regulators that had leaks around things like low pressure gauge stems and even a PRV valve stem (that one was uber slow and a pita to find). BUT, none of them dropped the high pressure rail quickly - these took many days to bleed out.

I have 5 primary CO2 regulators in service between a keezer and three brewery fridges and the worst of them takes about a week to bleed the high pressure rail to zero after a shut-off. I've been planning on taking a look at that.

The thing is folks tend to treat these gas systems as something mystical, but at the end of the day, if all of the seals, O-rings, gaskets and diaphragms are working properly, a system should only give up gas to actual "work" - like carbonation or dispensing. And a closed system should never evidently leak...

Cheers!

Last edited:
OP
bstacy1974

bstacy1974

Well-Known Member
Joined
Dec 7, 2010
Messages
393
Reaction score
193
Location
Fairbanks
I ended up buying a new regulator rather than continue to chase issues.

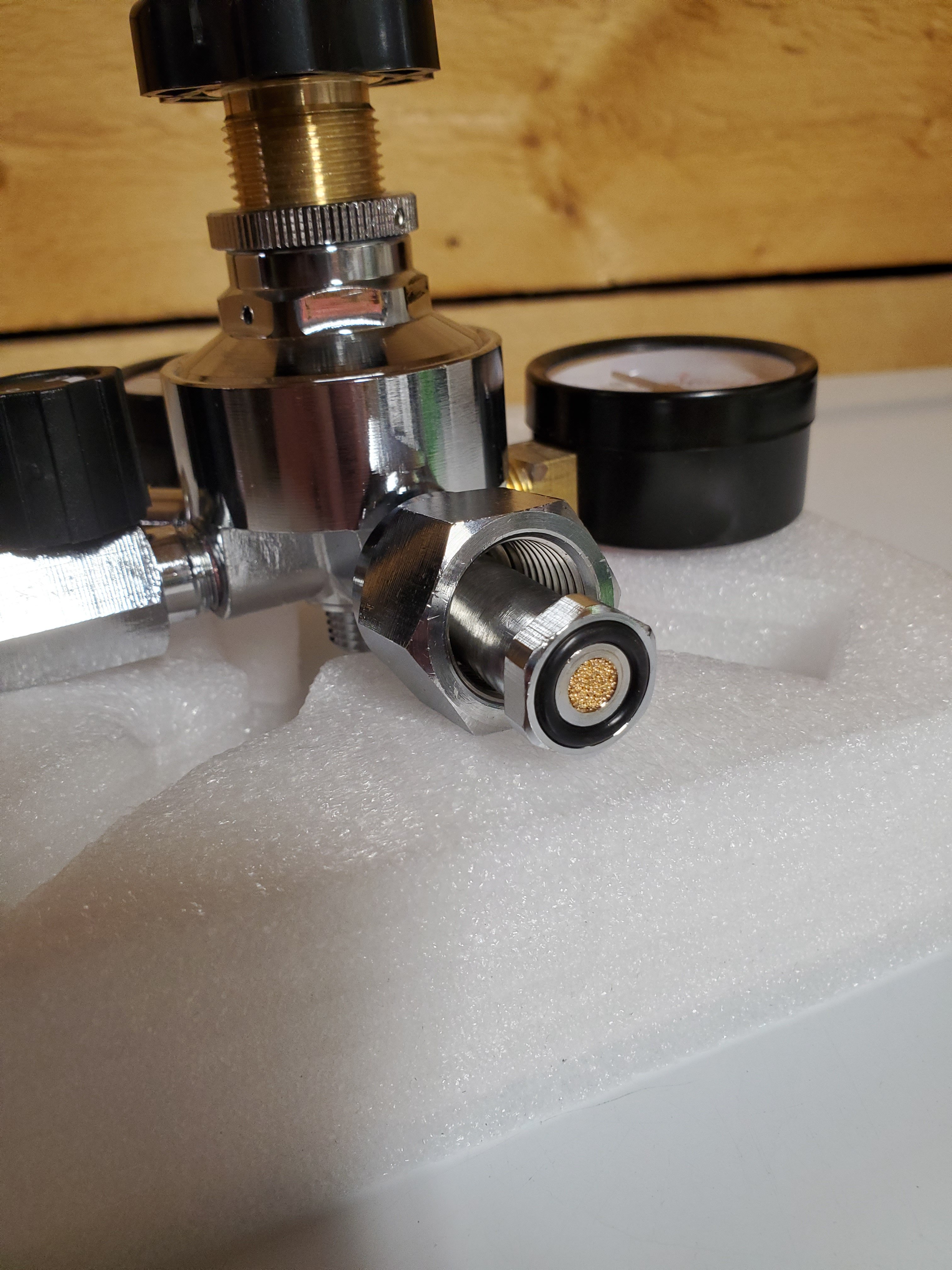

Quick question. The new regulator has an oring on the stem that connects to the tank. Do I still need to use a plastic washer when I connect?
I'm getting a new tank of gas today and want to make sure it doesn't empty while on a trip this weekend.


Brewski_59

https://www.facebook.com/narcosisbrew/
Joined
Mar 30, 2009
Messages
180
Reaction score
40
Location
Boynton Beach
I ended up buying a new regulator rather than continue to chase issues.
Quick question. The new regulator has an oring on the stem that connects to the tank. Do I still need to use a plastic washer when I connect?
I'm getting a new tank of gas today and want to make sure it doesn't empty while on a trip this weekend.
View attachment 726408
No I think this is meant to be washerless


Brewski_59

https://www.facebook.com/narcosisbrew/
Joined
Mar 30, 2009
Messages
180
Reaction score
40
Location
Boynton Beach
Agreed, the o-ring replaces the washer. Same idea, slightly different method.

I would suggest finding more o-rings. You don't have to replace them all to often but once in a while will be a good idea.
In addition to having spares, lubrication is important for O ring life. If you have some keglube, It wouldn't be a bad idea to use a little film on the surface of the O ring prior to installing on the tank

OP
bstacy1974

bstacy1974

Well-Known Member
Joined
Dec 7, 2010
Messages
393
Reaction score
193
Location
Fairbanks
In addition to having spares, lubrication is important for O ring life. If you have some keglube, It wouldn't be a bad idea to use a little film on the surface of the O ring prior to installing on the tank
Yes. Thank you. I've solved many problems as a water plant operator with just a little oring grease! I lube every oring I find.


bracconiere

Jolly Alcoholic
HBT Supporter
Joined
Jan 19, 2018
Messages
14,342
Reaction score
6,720
Location
S.AZ
I wouldn't do both. The O-ring may not compress it enough. I'd do one or the other. More isn't always better.

seems to work for me and my tap-rite, with o-ring. i've found with steel tanks they have a huge groove right where the o-ring is supposed to make a seal. so i need the washer.


jerrylotto

Well-Known Member
Joined
Apr 15, 2020
Messages
280
Reaction score
175
Location
North Chelmsford
Your tank might be compatible with a perma-seal. Otherwise, the grooved tank outlets are supposed to have an O-ring - 3/8 x 9/16 x 3/32 is a common size. If you exchange tanks where you refill, check that the o-ring isn't missing before you take the new tank.
