Grinding Slots in Copper Tube for Collection Manifold

HomeBrewTalk.com - Beer, Wine, Mead, & Cider Brewing Discussion Community.

Help Support Homebrew Talk:

Moonpile

Well-Known Member
Joined
Apr 5, 2007
Messages
667
Reaction score
2
Location
Pasadena, MD
So I used a grinder to cut a lot of slots in copper tube for my new collection manifold, but the slots seem a bit wider than others I've seen. Am I going to have problems with this?

http://picasaweb.google.com/justin.cann/MoonpileSBeerPix/photo#5168362281046800242

(Anyone else have trouble embedding pix from Picassa?)

In case anyone's interested: I created a little jig with some 2x4 parts and a holesaw, which ensured that the grinder would make consistent cuts about half way through. Nailed it to a stump in my backyard because the pipe was too long for the workbench in my shed. In this picture, I was standing off to the left, straddling the pipe and swiping the grinder across the pipe to make a slot. Then I'd advance the pipe, swipe again, and so on.

OP
Moonpile

Moonpile

Well-Known Member
Joined
Apr 5, 2007
Messages
667
Reaction score
2
Location
Pasadena, MD
Bobby_M said:
How wide is the wheel? 1/16" is the thinnest that I know of but I think you have a 1/8".
I would say it's 1/8". Went through 2 and a half of them slotting about 110" of pipe.


bradsul

Flyfisherman/brewer
Lifetime Supporter
Joined
Sep 12, 2006
Messages
4,889
Reaction score
42
Location
Ontario, Canada
Those slots look pretty wide, I think you'll get an awful lot of husks into your kettle. If you can't get the wheel Bobby_M mentions you might want to just go with a hack saw. It won't take long to cut slots in copper.

OP
Moonpile

Moonpile

Well-Known Member
Joined
Apr 5, 2007
Messages
667
Reaction score
2
Location
Pasadena, MD
So am I doomed to failure with this rig, or is it worth trying?


FlyingHorse

Well-Known Member
Lifetime Supporter
Joined
Mar 27, 2007
Messages
1,852
Reaction score
15
Location
Evanston IL
I'd try it. As long as you're not completely shredding your husks during the crush, you should still ger a good filter bed...just might take a little longer. And I'd make sure the slots are facing the bottom of the MLT.


mazdamike

Member
Joined
Feb 3, 2008
Messages
14
Reaction score
0
Ok first get a spring binder for copper tubeing. Then rotate the pipe to the left or right (slots on side) and bent the tube in same direction. This should cause all the slots to close most of the way up.

OP
Moonpile

Moonpile

Well-Known Member
Joined
Apr 5, 2007
Messages
667
Reaction score
2
Location
Pasadena, MD
mazdamike said:
Ok first get a spring binder for copper tubeing. Then rotate the pipe to the left or right (slots on side) and bent the tube in same direction. This should cause all the slots to close most of the way up.
I'm having problems finding a picture of a "spring binder" to envision what you're suggesting. Any pix?

The finished tubing needs to be straight. I can see how twisting it might close up the slots and leave it straight, and I can see how bending it would close up the slots, but it wouldn't be straight.

OP
Moonpile

Moonpile

Well-Known Member
Joined
Apr 5, 2007
Messages
667
Reaction score
2
Location
Pasadena, MD
Ok, I'm just going to wait to see if there's anyone who actually has used a mani made with an 1/8" cutoff wheel. Did it work or did it fail?


conpewter

Well-Known Member
Joined
Nov 2, 2007
Messages
5,085
Reaction score
57
Location
East Dundee, Illinois
I don't have that kind of manifold but could you get a supply line for a washing machine and take off the stainless braid and put it around your manifold?

OP
Moonpile

Moonpile

Well-Known Member
Joined
Apr 5, 2007
Messages
667
Reaction score
2
Location
Pasadena, MD
orfy said:
I think he meant spring bender.

Well, if this new manifold fails in my rectangular cooler, I'll get one of those benders and make a circular copper mani out of it for use in a keggle.

One of my brewing buddies pointed out that if this new manifold fails to adequately stop particulate, we can run out into a long nylon grain bag. So I'll be trying to use this next time (which sadly won't be until Mar 9!).

OP
Moonpile

Moonpile

Well-Known Member
Joined
Apr 5, 2007
Messages
667
Reaction score
2
Location
Pasadena, MD
So we brewed with this manifold last weekend. It worked but I think those slots are just a little bit too big. We vorlaufed five gallons or so and could still see chunks of husk and grain in there, so we ran off through a long nylon grain bag. The bag didn't actually catch a whole lot of stuff, but I'm sure we should be glad it wasn't in the kettle.

I guess I'm going to remake it with a thinner wheel on my grinder. The other option would be to cover the copper tubes with S/S braid, but that would probably be more expensive than just buying another $13 tube and a few thin wheels.

On the plus (?) side we drained the mash and the batch sparge about as fast as the cooler would drain if it were just full of water.


CEMaine

Well-Known Member
Joined
Nov 26, 2007
Messages
141
Reaction score
0
Location
Cape Elizabeth, Maine

CEMaine

Well-Known Member
Joined
Nov 26, 2007
Messages
141
Reaction score
0
Location
Cape Elizabeth, Maine
Moonpile said:
So am I doomed to failure with this rig, or is it worth trying?
The cooper always has scrap value. Not sure of exact figures but, if people will steal it like they are, it must be pretty good.


Gnome

Well-Known Member
Joined
Dec 3, 2006
Messages
201
Reaction score
7
Location
Atlanta/ Phoenix
Go to H Depot and get a paper thin cut off wheel for your grinder. It will cut 1/16" slots, wort clears in a quart or two.

OP
Moonpile

Moonpile

Well-Known Member
Joined
Apr 5, 2007
Messages
667
Reaction score
2
Location
Pasadena, MD
Gnome said:
Go to H Depot and get a paper thin cut off wheel for your grinder. It will cut 1/16" slots, wort clears in a quart or two.
Actually, I was just at Home Depot yesterday buying stuff for a room I'm finishing up. I also got another 1/2" copper tube. Looked at the cut off wheels and the thinnest they had was 1mm, which I'm pretty sure is what I used the first go around. Maybe I was making the slot wider by not holding the grinder still?


JoePolvino

Active Member
Joined
Feb 12, 2008
Messages
34
Reaction score
1

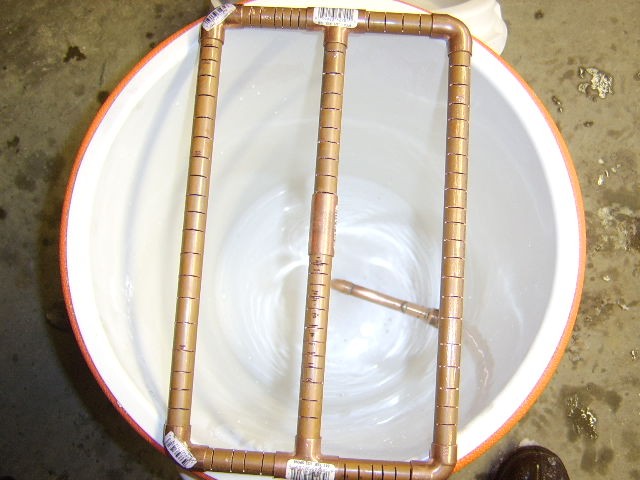

Try using a sawz-all. I did this to my manifold:


It cut effortlessly through the copper and the joints. This fits in a 5 gallon round igloo.


springer

Well-Known Member
Joined
Feb 12, 2008
Messages
4,737
Reaction score
33
Location
Wappingers falls NY
I used a hacksaw Copper is very soft and it took all of about 10 minutes to do. I was going to us a 48QT Coleman cooler but went with the 10 gallon Igloo from HD ..
