For the Evabarrier & DuoTight folks

Homebrew Talk - Beer, Wine, Mead, & Cider Brewing Discussion Forum

Help Support Homebrew Talk:

Dr_Jeff

Supporting Member
HBT Supporter
Joined
Dec 13, 2011
Messages
1,670
Reaction score
1,129
Location
Henagar, Alabama


No jinky extra fittings and they are low profile, so kegs can be stacked.


PCABrewing

Recreational Brewer
Joined
Oct 28, 2021
Messages
483
Reaction score
459


No jinky extra fittings and they are low profile, so kegs can be stacked.
The 90 degree exit is a nice feature!


matt_m

Supporting Member
HBT Supporter
Joined
Oct 6, 2017
Messages
1,282
Reaction score
600
Tool-less cleaning would be huge for transfer hoses too, especially on beers with massive dry hops.


pvpeacock

Well-Known Member
Joined
Mar 20, 2013
Messages
1,848
Reaction score
1,262
Location
Palos Verdes Estates
Just got a set of these. Very nice quality. They will work great for my rolling Igloo cooler that fits 2 1/2 and 3 gallon kegs because the lid will now shut all the way with the low profile disconnects. In addition, it is nice to be able to simply slide the hoses in without barbs or clamps. I'm not sure I will use these in my keezer since I have lots of space between the keg tops and the keezer lid. With that space, I kind of like the beer and gas lines angling up particularly when I have the keezer maxed out with kegs. Nice product at a good price.


Carolina_Matt

Well-Known Member
Joined
Jan 24, 2018
Messages
461
Reaction score
243
Has anybody tried these? I ordered a gas ball lock from Morebeer to see how it is. It looks fine, and it's red like in the picture. But for the life of me, I can't get it to connect to the gas post. Out of curiosity I tried it on the beer post and it worked. I tried one multiple kegs and it wouldn't go on any gas posts.

Are these colored incorrectly?


pvpeacock

Well-Known Member
Joined
Mar 20, 2013
Messages
1,848
Reaction score
1,262
Location
Palos Verdes Estates
I've only hooked up my beer disconnects and they work fine. While I bought a few gas disconnects, I have not tried them because my regulators have barbed fittings and I didn't want to hassle trying to put the Eva Barrier hose on the barbs. When I get home, I will see if my gas disconnects fits on my gas posts and report back.


Knightshade

<Insert Snarky Comment Here>
Lifetime Supporter
Joined
Mar 31, 2020
Messages
1,111
Reaction score
1,427
Location
Over the hill, and through the woods..

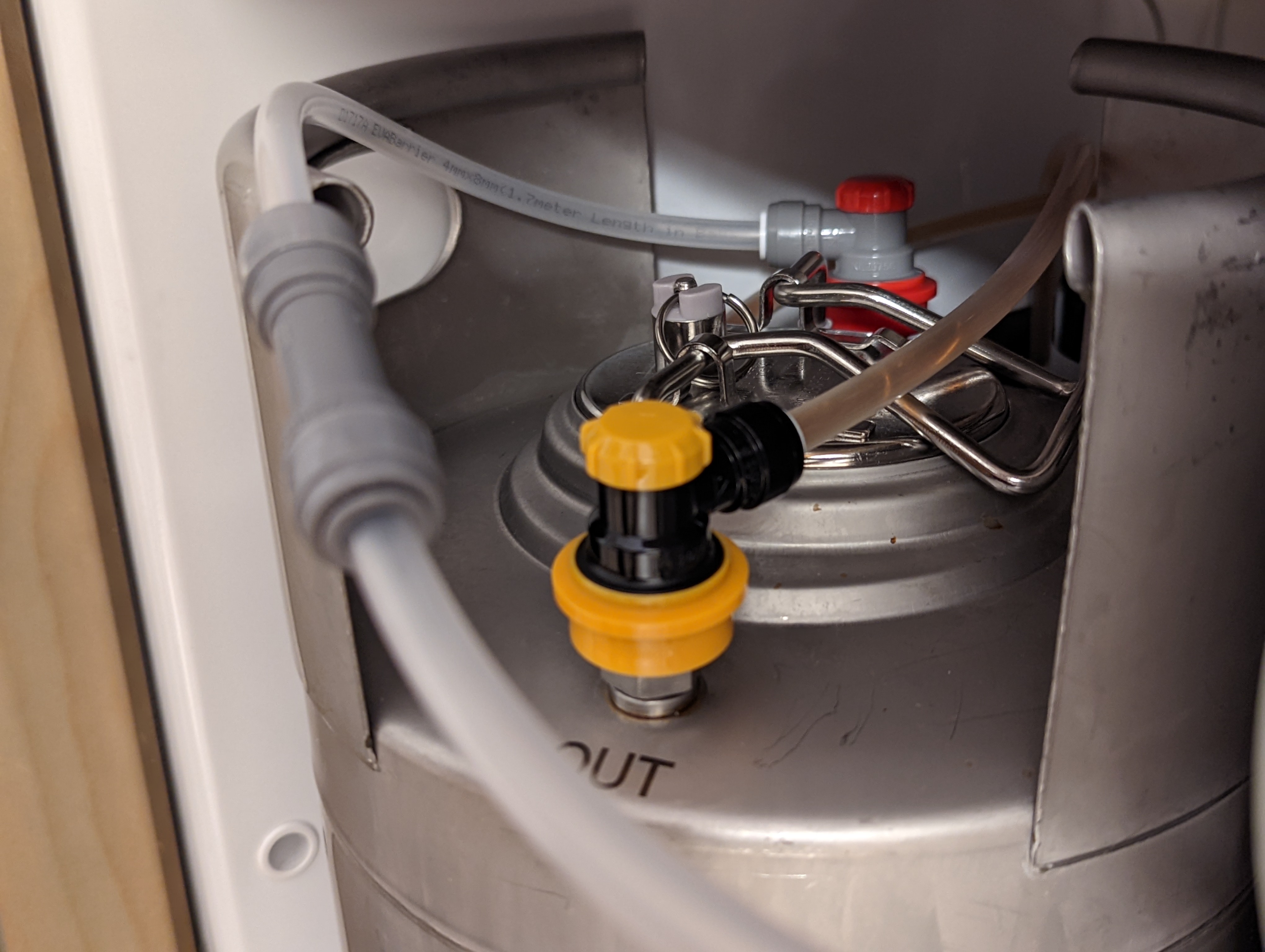

Took the opportunity to re-apply some keg lube when I switched a couple of mine out, but they went on w/o issue. Just hooked up the kegs on the front left and back right so replaced them when I was sanitizing the lines.


tracer bullet

Supporting Member
HBT Supporter
Joined
Aug 10, 2020
Messages
1,140
Reaction score
974
Location
Minnesota
Yeah I was going to suggest the lube as well. Crazy what a difference it can make. Just to be sure.

Verify the posts are in the right spots as well since they are very slightly different diameters. Although... hmm that probably won't matter but to be sure.


k-os

Supporting Member
HBT Supporter
Joined
Jan 4, 2019
Messages
381
Reaction score
215
Location
Wisconsin
Has anybody tried these? I ordered a gas ball lock from Morebeer to see how it is. It looks fine, and it's red like in the picture. But for the life of me, I can't get it to connect to the gas post. Out of curiosity I tried it on the beer post and it worked. I tried one multiple kegs and it wouldn't go on any gas posts.

Are these colored incorrectly?

The red gas disconnects hooked up fine to both of the kegs I used them on. Liquid disconnects worked well also.


cactusgarrett

Well-Known Member
Joined
Apr 8, 2008
Messages
2,199
Reaction score
804
Location
Madison, WI
hooked up the kegs

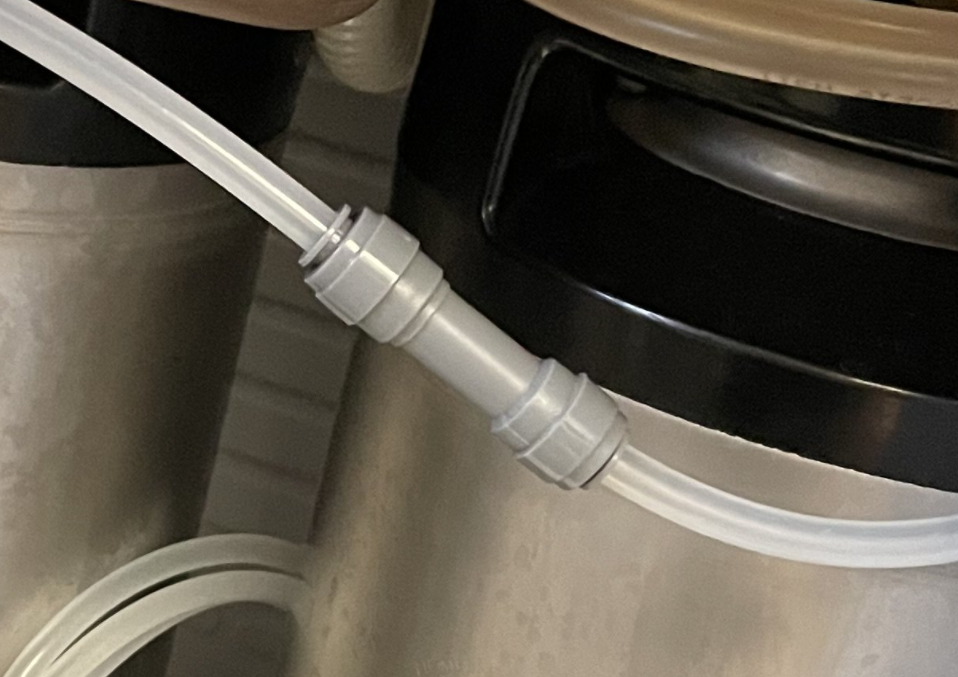

Sorry to go off-topic, but I'm looking to convert over to the DuoTight and EVABarrier. I've seen these in-line pieces on a lot of people's gas lines. Can you comment as to what it is? Check valve to prevent beer going back up into the gas line?



day_trippr

"This Space For Rent"
Joined
May 31, 2011
Messages
38,198
Reaction score
21,241
Location
Stow, MA
I does looks like a Duotight check valve, which given its placement would prevent a beer back-up...


Cheers!


wepeeler

Supporting Member
HBT Supporter
Joined
May 31, 2018
Messages
1,131
Reaction score
2,187
Location
CT
Been looking at changing my entire keg system over to Evabarrier and duotight fittings. Might have to just pull the trigger...


pvpeacock

Well-Known Member
Joined
Mar 20, 2013
Messages
1,848
Reaction score
1,262
Location
Palos Verdes Estates
Checked my gas disconnects last night. They worked fine on all my empty kegs. One was a little tight, but no problems.


pvpeacock

Well-Known Member
Joined
Mar 20, 2013
Messages
1,848
Reaction score
1,262
Location
Palos Verdes Estates
I wish Eva Barrier hose came in a different color for gas. I like my red gas hoses and am reluctant to switch them particularly since my gas manifolds are all barbed and I don't want to hassle trying to push the Eva Barrier hose over the barbs. I do love the Duotight fittings and Eva Barrier hoses for my beer lines, however.


Knightshade

<Insert Snarky Comment Here>
Lifetime Supporter
Joined
Mar 31, 2020
Messages
1,111
Reaction score
1,427
Location
Over the hill, and through the woods..
Sorry to go off-topic, but I'm looking to convert over to the DuoTight and EVABarrier. I've seen these in-line pieces on a lot of people's gas lines. Can you comment as to what it is? Check valve to prevent beer going back up into the gas line?

View attachment 759006

@day_trippr already addressed it, but that is exactly what it is. Came in handy when I was disconnecting that little mini keg too as I had completely over-carbed some hop water last night.


berstuck

Member
Joined
May 3, 2020
Messages
5
Reaction score
4
5mm works fine on barbs, just use a blow dryer real quick to stretch it over. I personally hate duotight fittings because they caused me to lose 2 kegs of beer and made a mess of my kegerator, but the EVA barrier tubing is cheap and durable.


jwill911

Supporting Member
HBT Supporter
Joined
Mar 12, 2021
Messages
117
Reaction score
356
Question for the Duotight brain trust; can the gauges in the Duotight regulators be flipped 180 degrees? I just built a gas regulator board for my Kegerator and the gauges are upside down I want to flip them. I know you can change the gauges from 0-60 to 15, 30, 150 psi. Anyone flipped them?
Thanks


jwill911

Supporting Member
HBT Supporter
Joined
Mar 12, 2021
Messages
117
Reaction score
356
Is it possible to re-zero the gauges? I was pretty careful removing and re-installing them but one reads ~10 psi at rest. Did I fubar it?


k-os

Supporting Member
HBT Supporter
Joined
Jan 4, 2019
Messages
381
Reaction score
215
Location
Wisconsin
Is it possible to re-zero the gauges? I was pretty careful removing and re-installing them but one reads ~10 psi at rest. Did I fubar it?

I believe if you pull the gauge out again you can manually move the needle to re-zero.

See the below video from Kegland that explains how to adjust it.


DrinkFresh

Well-Known Member
Joined
Feb 27, 2020
Messages
51
Reaction score
27
Location
New York
I have just hooked these up to my torpedo kegs, and they fit rather well, love the low profile, will add keg lube just to make sure thanks to this thread!

Happened to also have converted everything to Duotight and EVABarrier myself recently, along with the check valves from each keg to my new regulator.

I have noticed an odd resistant hissing sound (a bit like a balloon deflating), which I think I've pinpointed to these check valves not backing CO2 past them from the keg. The regulator, perhaps as expected, doesn't show the pressure dropping and equalizing when I released pressure from a keg, like it did when I did not have the check valves.

Have you noticed that @Knightshade or other folks too? Not sure if it's these smaller gas EVABarrier lines or the new regulator helps cause this but I haven't experienced this before.



Carolina_Matt

Well-Known Member
Joined
Jan 24, 2018
Messages
461
Reaction score
243
I guess I just got a dud. Morebeer is sending me a new one, so hopefully that works as well as the ones you guys have.

Mine got a little weirder. On one of my 2.5 gallon kegs, this fits both the beer and the gas post. On one 5 gallon keg, it only fits the beer post (even though it's a gas disconnect). On other kegs, it doesn't fit either one.


McMullan

wort maker
HBT Supporter
Joined
Dec 22, 2015
Messages
1,244
Reaction score
1,365
I guess I just got a dud. Morebeer is sending me a new one, so hopefully that works as well as the ones you guys have.

Mine got a little weirder. On one of my 2.5 gallon kegs, this fits both the beer and the gas post. On one 5 gallon keg, it only fits the beer post (even though it's a gas disconnect). On other kegs, it doesn't fit either one.
Mine seem to function fine, but I'm not too impressed with how they're quite awkward to connect/disconnect on genuine Cornelius posts. Even with a little lube it takes some force, epecially with the liquid side, requiring two hands. Maybe they need to wear in? I think I'll stick with regular CMB disconnects generally and save these low profile ones from Kegland for stacking smaller kegs, which is what I wanted them for mainly.


k-os

Supporting Member
HBT Supporter
Joined
Jan 4, 2019
Messages
381
Reaction score
215
Location
Wisconsin
@DrinkFresh I’ve never had the mini regulators connected without the check valves in place so I’m not certain of the behavior difference without.

@k-os I didn’t realize they had started making digital gauges…guess I know what is next on my list of things to purchase..

Let me know if you find a place selling them in the States. I haven't found one yet.


tracer bullet

Supporting Member
HBT Supporter
Joined
Aug 10, 2020
Messages
1,140
Reaction score
974
Location
Minnesota
So, these come for multiple size hoses? I see 4mm, I think, in a picture above. Morebeer seems to only have 8mm. Wasn't sure if I'm just bad at searching, maybe it's just what they have at the moment?


k-os

Supporting Member
HBT Supporter
Joined
Jan 4, 2019
Messages
381
Reaction score
215
Location
Wisconsin
So, these come for multiple size hoses? I see 4mm, I think, in a picture above. Morebeer seems to only have 8mm. Wasn't sure if I'm just bad at searching, maybe it's just what they have at the moment?

The 4mm you see on the hose is the internal diameter. I've only seen 8mm (OD of hose) available so far in the states. I believe Kegland also has a version for 9.5mm hose, but not yet available in the states that I've seen.


day_trippr

"This Space For Rent"
Joined
May 31, 2011
Messages
38,198
Reaction score
21,241
Location
Stow, MA
morebeer.com carries at least three different EVABarrier lines, including the 4, 5 and 6.3mm ID.
They apparently don't have the 3mm ID line yet...



Cheers!


khannon

Guy who really knows where his towel is.
HBT Supporter
Joined
Feb 21, 2016
Messages
501
Reaction score
391
Location
Amherst
Haven't done mine up quite this nice yet, but if you have(access to) a 3D printer, there are some great duotight organizers and locking clips.
Not my design, but pretty cool.



Attachments

  • duotight organizer.jpg
    duotight organizer.jpg
    54.7 KB · Views: 25

jwill911

Supporting Member
HBT Supporter
Joined
Mar 12, 2021
Messages
117
Reaction score
356
I replicated that somewhat on a smaller scale. I re-drilled the holes to more center the valves on the board. I only have a need for three valves currently but can add one more if needed.
IMG_2519 (1).JPG
