Fast and Cheap Wort Chiller

HomeBrewTalk.com - Beer, Wine, Mead, & Cider Brewing Discussion Community.

Help Support Homebrew Talk:

jeffj502

Member
Joined
Dec 30, 2013
Messages
14
Reaction score
1

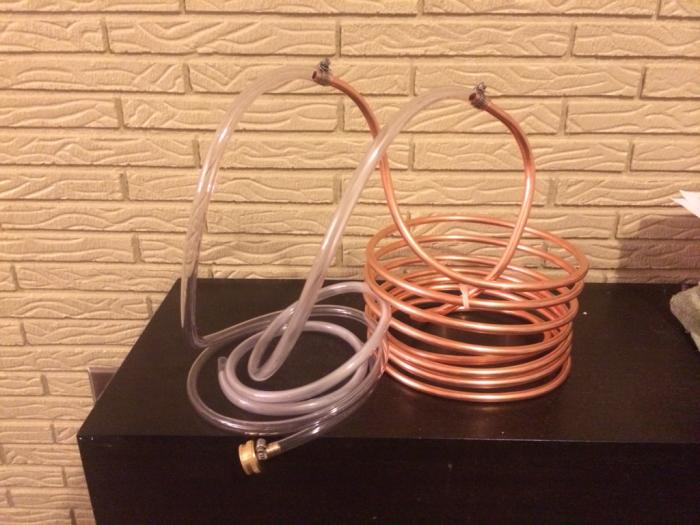

I really didn't set out to make a step by step instructional guide but really with just a bit on ingenuity and creativity anyone can figure this out.

This chiller literally took me more time to purchase the materials in Home Depot than to actually assemble it.

Materials:

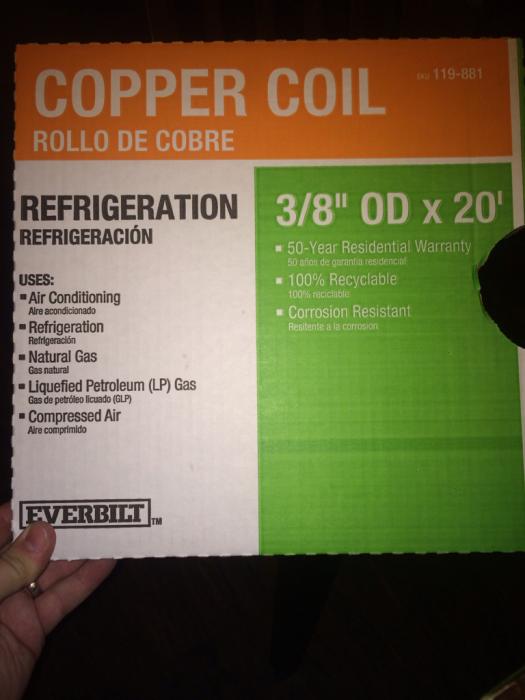

20' feet of 3/8" OD Copper Coil (I wanted 25' but that's all they had!)

Garden hose adapter 3/4" FH x 3/8" ID

10' Clear Vinyl 1/2" OD and 3/8" ID

3 - 3/8" hose clamps

1 - White Zip Tie

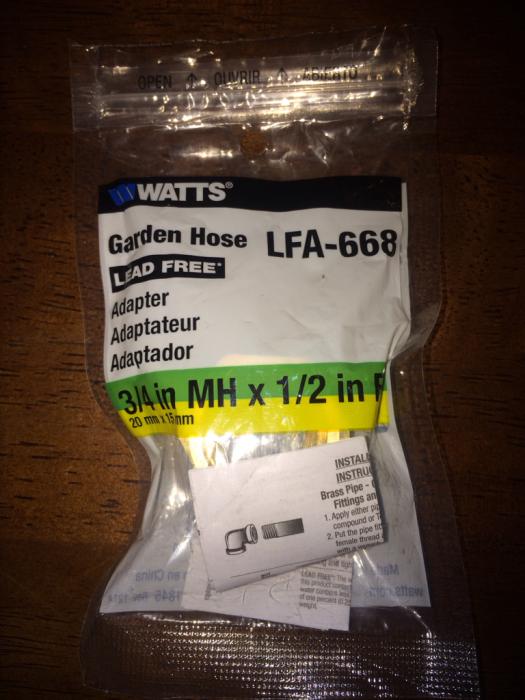

1 - Garden House Apdapter for faucet 3/4" MH x 1/2" FIP

1 - Pot smaller than your brew pot to form the copper

ImageUploadedByHome Brew1391647459.403250.jpgImageUploadedByHome Brew1391647339.564881.jpgImageUploadedByHome Brew1391647356.557446.jpgImageUploadedByHome Brew1391647371.564181.jpgImageUploadedByHome Brew1391647382.873279.jpg
ImageUploadedByHome Brew1391647565.145934.jpg


Sent from my iPhone using Home Brew


Chadwick

Well-Known Member
Joined
Feb 2, 2013
Messages
822
Reaction score
197
Location
Campton
Out of curiosity, what did all of these materials cost you?

OP
J

jeffj502

Member
Joined
Dec 30, 2013
Messages
14
Reaction score
1
Around $40 but it could be even cheaper because you could go to a plumber supply house and get even cheaper prices.

I found an economy wort chiller online for $35 plus shipping but this way I was able to custom fit it to my new pot.


Sent from my iPhone using Home Brew


max384

Well-Known Member
Lifetime Supporter
Joined
Sep 8, 2010
Messages
1,850
Reaction score
807
Location
Hazleton, PA
This is basically just what I did, except I used 50' of copper.

One suggestion though. I'd use about three hose clamps on the tubing on the end where the water flows into the chiller. On mine, it would slowly leak no matter how tight I tightened the hose clamp, until I added a couple more clamps. Now's it's completely water tight. The leak was so slow that during a test run I never noticed it. It was only when I was actually chilling the wort that I noticed a few drops dripping into the wort.

OP
J

jeffj502

Member
Joined
Dec 30, 2013
Messages
14
Reaction score
1
Thanks for the feedback. I used three clamps I just didn't take pictures of all three. But glad you said something cause if I didn't I'd definitely have a leak!


Sent from my iPhone using Home Brew
