EVA Barrier on 1/4" Barb

Homebrew Talk - Beer, Wine, Mead, & Cider Brewing Discussion Forum

Help Support Homebrew Talk:

slurms

Well-Known Member
Joined
Jul 7, 2020
Messages
154
Reaction score
135
Location
Capital District, NY
I'm building myself a kegerator and am looking to upgrade the gas lines to EVA Barrier. I bought a few 1/4" gas line disconnects and wanted to put it on the gas main line outside of the freezer to easily disconnect the tank from. Does anyone have any experience with getting the EVA Barrier line over a 1/4" barb? Looks like the 6mm ID line is closest to 1/4" so I assume that would work. But any luck using the 5mm line? Dare I ask, 4mm?

Also, think that the disconnects are even worth adding to the gas line? They seem like they could be convenient.

OP
slurms

slurms

Well-Known Member
Joined
Jul 7, 2020
Messages
154
Reaction score
135
Location
Capital District, NY
I may have just came across a groundbreaking epiphany. I have to swap out the 5/16" barb on the regulator out-line to a 1/4" flare fitting, then the corresponding Duotight flare fitting can just get unscrewed. So, unnecessary for the disconnects in the first place...


Holden Caulfield

Well-Known Member
Joined
Apr 21, 2020
Messages
254
Reaction score
236
Does anyone have any experience with getting the EVA Barrier line over a 1/4" barb? Looks like the 6mm ID line is closest to 1/4" so I assume that would work. But any luck using the 5mm line? Dare I ask, 4mm?
Many have attached the 5mm to 1/4" barb with good success. A swaging tool helps with the process after warming the tube in boiling water. Picture below.
I may have just came across a groundbreaking epiphany. I have to swap out the 5/16" barb on the regulator out-line to a 1/4" flare fitting, then the corresponding Duotight flare fitting can just get unscrewed. So, unnecessary for the disconnects in the first place...

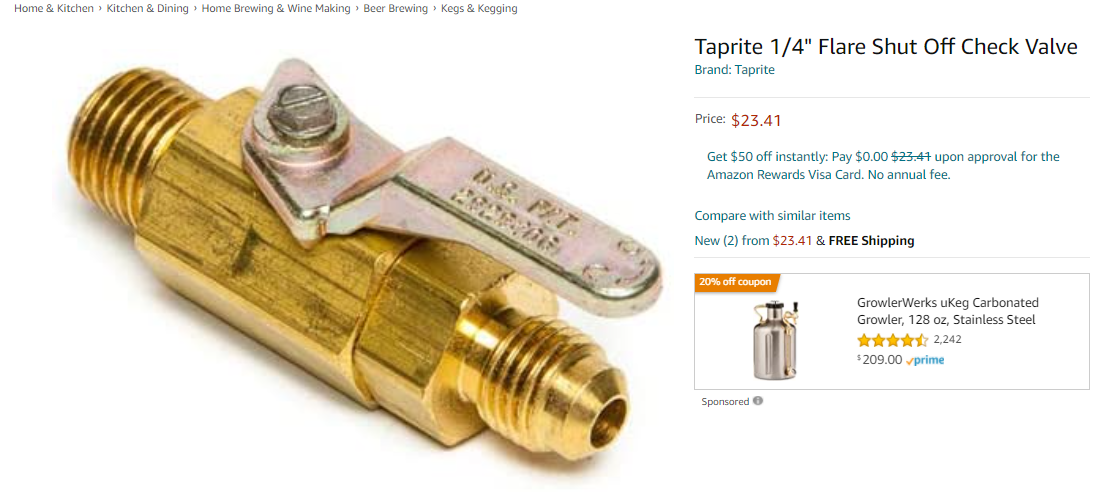

It may be difficult to impossible to remove just the barb from a regulator shutoff. I have two Taprites and have been unable to do so. If that is your case, you can remove the entire barbed shutoff and replace with a flared. A bit more expensive but it will solve your problem. Picture below.





Bobby_M

Vendor and Brewer
HBT Sponsor
Joined
Aug 3, 2006
Messages
25,544
Reaction score
4,767
Location
Whitehouse Station
I may have just came across a groundbreaking epiphany. I have to swap out the 5/16" barb on the regulator out-line to a 1/4" flare fitting, then the corresponding Duotight flare fitting can just get unscrewed. So, unnecessary for the disconnects in the first place...
You mean swap the entire valve out.. The barb is an integral part of the valve's function and cannot be swapped out.


DuncB

Well-Known Member
Joined
Jun 5, 2019
Messages
1,631
Reaction score
811
Location
Paremata New Zealand
I have duotight on my regulator to the 8mm OD EVA barrier line. Then to the ball lock connector. I have put a bulkhead gas post into the fridge side so that the gas can be connected on and off. My cylinder is outside the keg fridge.
But the regulator came with a fitting for the duotight connector although it could be swapped for a barbed connector.


marc1

Supporting Member
HBT Supporter
Joined
Jun 19, 2010
Messages
988
Reaction score
624
Location
OH
I may have just came across a groundbreaking epiphany. I have to swap out the 5/16" barb on the regulator out-line to a 1/4" flare fitting, then the corresponding Duotight flare fitting can just get unscrewed. So, unnecessary for the disconnects in the first place...
FYI, some people have had problems with the Duotight flare fittings cracking and causing a leak. Perhaps there were bad batches, or a design flaw, or they were over tightened. I have them on gas and liquid connections and have had no problems (knock on wood).
If you get them, I recommend the little plastic crescent pieces to lock them in place.
I believe John Guest makes fittings that also work with EVA Barrier, and have no reports of failures here.


DuncB

Well-Known Member
Joined
Jun 5, 2019
Messages
1,631
Reaction score
811
Location
Paremata New Zealand
Touch wood I have been okay, and have also used on the Nitro side as well with higher pressure.
They don't like the tubing bent acutely after coming out of the connectors.


Bobby_M

Vendor and Brewer
HBT Sponsor
Joined
Aug 3, 2006
Messages
25,544
Reaction score
4,767
Location
Whitehouse Station
FYI, some people have had problems with the Duotight flare fittings cracking and causing a leak. Perhaps there were bad batches, or a design flaw, or they were over tightened. I have them on gas and liquid connections and have had no problems (knock on wood).
If you get them, I recommend the little plastic crescent pieces to lock them in place.
I believe John Guest makes fittings that also work with EVA Barrier, and have no reports of failures here.
Agree there have been reports of this and in all cases the user described wrench tightening. The recommended practice is keg lube on the threads, hand tight, check for leaks, 1/16th of a turn further to stop the leak. I had John Guest fittings on my 7 faucet kegerator and changed them out to Duotight because the double oring seal deals with flexes of the tubing a lot better than the single oring on the JG.

Realize that there are over 10,000 duotight fittings out in service. You'll find a few reports of cracking here and there but 5000+ users don't all post that they've had a good experience with them.


eric19312

Supporting Member
HBT Supporter
Joined
Dec 5, 2012
Messages
3,583
Reaction score
2,123
Location
Long Island
Manifolds are not all that expensive. I know lots of folks manage to get EVA onto those barbs with heat, swaging tools etc but the easy path is to get a new manifold and go with the flare fit duotight fittings. You will love them.


marc1

Supporting Member
HBT Supporter
Joined
Jun 19, 2010
Messages
988
Reaction score
624
Location
OH
Agree there have been reports of this and in all cases the user described wrench tightening. The recommended practice is keg lube on the threads, hand tight, check for leaks, 1/16th of a turn further to stop the leak. I had John Guest fittings on my 7 faucet kegerator and changed them out to Duotight because the double oring seal deals with flexes of the tubing a lot better than the single oring on the JG.

Realize that there are over 10,000 duotight fittings out in service. You'll find a few reports of cracking here and there but 5000+ users don't all post that they've had a good experience with them.
I used the Duotight instructions that recommend a wrench (but limit how much to tighten):

OP
slurms

slurms

Well-Known Member
Joined
Jul 7, 2020
Messages
154
Reaction score
135
Location
Capital District, NY
You mean swap the entire valve out.. The barb is an integral part of the valve's function and cannot be swapped out.
Yes, that is what I meant. Though I'm thinking it's not worth it and just stretch the tubing over the barb.

Also, I know I've heard it's an integral part of the valve, but why is that? Is there something inside the barb that does something with the valve?


Joeywhat

Well-Known Member
Joined
Feb 10, 2009
Messages
292
Reaction score
85
Location
Farmington, MI
In some cases it's the valve seat, so it's what the movable valve seals against when it's closed. A different fitting may not have the correct seat depth or not have the correct profile for the valve, so the valve may not operate at all, or it may not seat correctly.
