Looking for some in site on the diagram for the temp sensor. Does it matter which wire goes in either side? My probe doesn't seem to be marked with anything so its kinda hard to tell. Thanks in advance.


bbarr21

Well-Known Member
Joined
Sep 22, 2010
Messages
99
Reaction score
7
Location
Fuquay-Varina
BrewBug said:
Here are a couple pics of my finished controller. I wanted it to be smaller in size and I managed to fit it in a 6x4x2" project box.
Really like the outlet cut outs, must have been a pain but I wish I'd seen this first


abarhan

Well-Known Member
Joined
Nov 6, 2011
Messages
137
Reaction score
9
Location
Seattle
Any ideas why my GFI would pop when some thing is plugged in the cold outlet? The unit turns on and functions fine but the hot outlet is on when the cold light is on and if u plug some thing in the cold side the GFI pops. What gives?


bbarr21

Well-Known Member
Joined
Sep 22, 2010
Messages
99
Reaction score
7
Location
Fuquay-Varina
Ok ok ok I started finally, couldnt wait for the controller so I got most everything else done

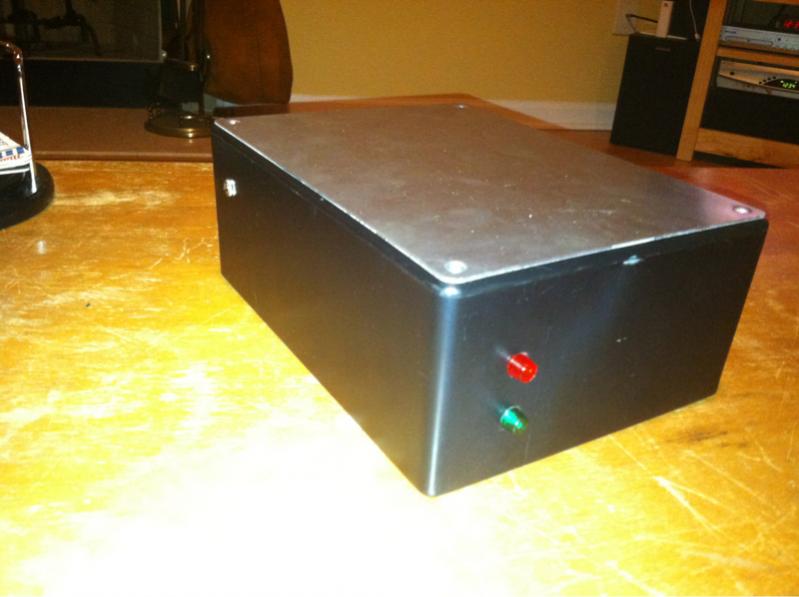

Front with stainless top, 3 mm phone jack in back left for temperature probe, hot cold wired in parallel with outlet after temperature switch

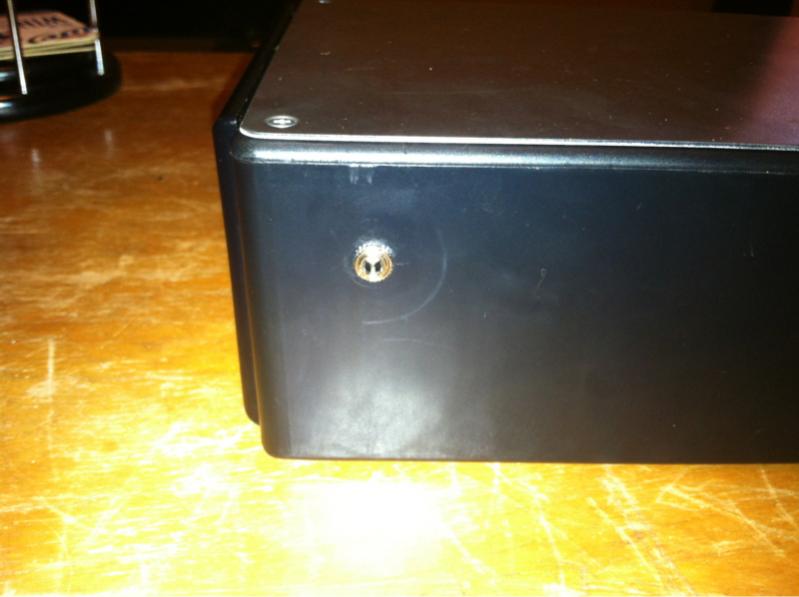

Probe connection

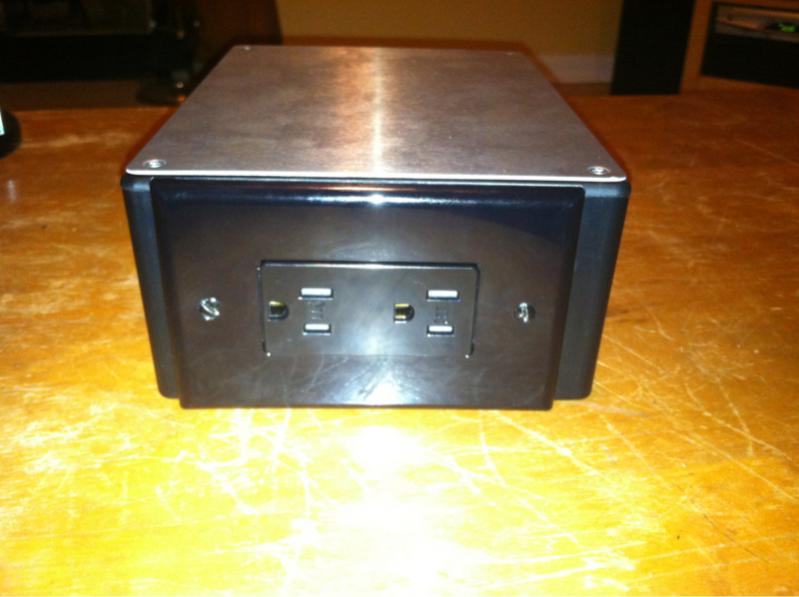

Outlets hot cold (left right)

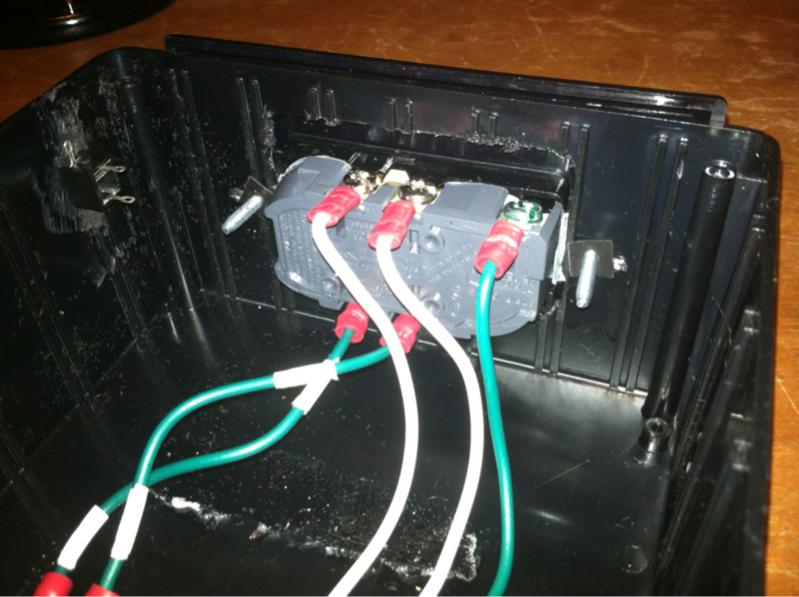

Wires to outlet


Most of wiring through bus ready for controller and main power in


Probe connected with 3 mm phone jack

I think I like it better with just the black top


zachattack

Well-Known Member
Joined
Mar 6, 2012
Messages
2,808
Reaction score
321
Any ideas why my GFI would pop when some thing is plugged in the cold outlet? The unit turns on and functions fine but the hot outlet is on when the cold light is on and if u plug some thing in the cold side the GFI pops. What gives?
Sounds like you miswired it, I'd re-check everything! It might be easiest to remove all the wires and start over again. The GFI tripping means that you crossed ground and neutral somewhere along the way.


bassmaster911

Well-Known Member
Joined
Jun 5, 2010
Messages
118
Reaction score
5
Location
missouri
Sounds like you miswired it, I'd re-check everything! It might be easiest to remove all the wires and start over again. The GFI tripping means that you crossed ground and neutral somewhere along the way.
I agree and it could also be your fridge tripping the gfci if that is what you have plugged into the cold side.


abarhan

Well-Known Member
Joined
Nov 6, 2011
Messages
137
Reaction score
9
Location
Seattle
I was just testing it with a cell phone charger so no fridge yet. I only broke the hot tab on the outlet, do both need to be broke? As far as the tab goes should I take the screws off all the way off and make sure nothing else is connecting them? I also just looked at the diagram again and i think i misread the diagram and did not hook up the green wire to the green ground screw, hooked it to the cool outlet itself. That has to be my issue.

I am using a 10A PC power cord and 12/2 wire. I have read some comments on surging and burning contacts my Keezer, has listed at 1.7 running amps should I be ok?

Thanks for all the help


raouliii

Well-Known Member
Joined
Aug 8, 2011
Messages
1,007
Reaction score
121
Location
Ponchatoula
... I also just looked at the diagram again and i think i misread the diagram and did not hook up the green wire to the green ground screw, hooked it to the cool outlet itself. That has to be my issue.....
That's it.

A GFCI functions by comparing the current in the hot and neutral path and if it is not equal, it trips. You were sending current throught the ground. Not a safe thing to do and a GFCI makes sure that you can't.


abarhan

Well-Known Member
Joined
Nov 6, 2011
Messages
137
Reaction score
9
Location
Seattle
OK so I fixed the ground issue and the GFI is not tripping any more. I thought I had it only to be greeted by this: The cold outlet never has juice to it and the "hot side" has juice when it is heating and cooling? Any ideas? Clearly im a dumb ass.


GhettoDickens

Active Member
Joined
Oct 28, 2011
Messages
35
Reaction score
0
Location
Boulder
Question:

I am building a Son of a Fermentation Chamber, and in the main PDF everyone seems to use for instructions it explicitly states not to use a temperature controller like this. Why not? I have one of these built already that I use to control my FermWrap...so why can't I use it to power a computer fan in my Son of a Fermentation Chamber? Am I missing something?


tre9er

Well-Known Member
Joined
Jan 25, 2012
Messages
4,367
Reaction score
253
Location
Lincoln
OK so I fixed the ground issue and the GFI is not tripping any more. I thought I had it only to be greeted by this: The cold outlet never has juice to it and the "hot side" has juice when it is heating and cooling? Any ideas? Clearly im a dumb ass.
Did you program the unit?


abarhan

Well-Known Member
Joined
Nov 6, 2011
Messages
137
Reaction score
9
Location
Seattle
Yea set it up tested it but the concern comes from the cold outlet not working and the hot outlet is getting juice when it should be "heating" and "cooling"


raouliii

Well-Known Member
Joined
Aug 8, 2011
Messages
1,007
Reaction score
121
Location
Ponchatoula
OK so I fixed the ground issue and the GFI is not tripping any more. I thought I had it only to be greeted by this: The cold outlet never has juice to it and the "hot side" has juice when it is heating and cooling? Any ideas? Clearly im a dumb ass.
Can you post a picture?


abarhan

Well-Known Member
Joined
Nov 6, 2011
Messages
137
Reaction score
9
Location
Seattle
Got it, turns out the plug was reversed. I should have just thought about it and used what I know instead of trying to replicate the image. Thanks for everyone's help!


Yaason

Well-Known Member
Joined
Jun 11, 2012
Messages
70
Reaction score
4
Location
Reno
Yeah. It looked like you had your neutral wires going to your hot side on one outlet, and the two hot wires going to the same neutral.


Nagorg

If a frog had wings...
HBT Supporter
Joined
Dec 19, 2011
Messages
1,931
Reaction score
818
Location
DFW

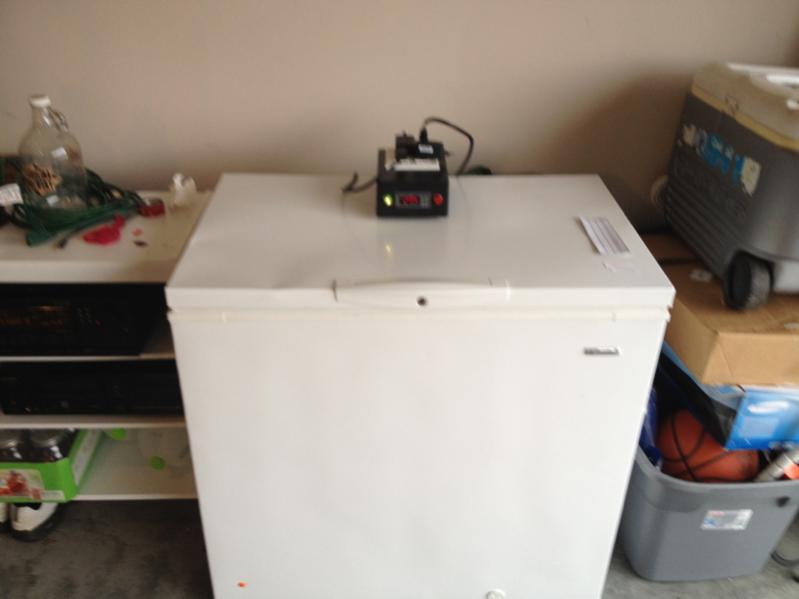

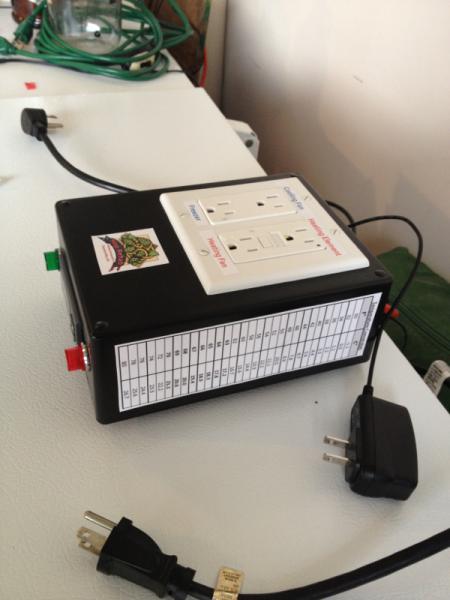

I have my STC 1000 controller finished thanks to the posts on this forum! Great ideas... I did incorporate 120v neon lights from Radio Shack to give me a visual for the outlets being hot. Very cool...

Now I just need to find a good deal on a used upright freezer so I can put this thing to work!
:D


cinderbike

Well-Known Member
Joined
Sep 10, 2010
Messages
262
Reaction score
5
Got my controller yesterday, booyah! Heading to 'The Shack' for a project box and then I'll start building. I'll probably make up a blog post for this sometime soon, stay tuned.


tre9er

Well-Known Member
Joined
Jan 25, 2012
Messages
4,367
Reaction score
253
Location
Lincoln
Got mine setup for cooling only Saturday. Fridge goes from 60-62 then kicks on. Basement doesn't get much below 60, even in winter, so for now I'm not going to worry about heat. When I do I may use reptile tape around the bottom sides of the fridge.


tre9er

Well-Known Member
Joined
Jan 25, 2012
Messages
4,367
Reaction score
253
Location
Lincoln
Also, FWIW I got a PVC 6x6x4 box for $12 at Menards and I think I can fit 4 sets of outlets and 2 STC's in it.


barryfine

Well-Known Member
Joined
Apr 9, 2012
Messages
143
Reaction score
6
Location
Harrisburg
Here is my newest temperature controller! I built a fermentation chamber with 3 built into before, but this was my first standalone unit. I used a 4x4x2 junction box from lowes. Instead of using wall outlets, I just wired up extension cords to keep the box small and tidy. Here are some pics:





And here is the chamber it's going to be controlling:



tre9er

Well-Known Member
Joined
Jan 25, 2012
Messages
4,367
Reaction score
253
Location
Lincoln

tre9er

Well-Known Member
Joined
Jan 25, 2012
Messages
4,367
Reaction score
253
Location
Lincoln
Here's my temporary setup. Cooling only and I have room for another STC and more outlets







cinderbike

Well-Known Member
Joined
Sep 10, 2010
Messages
262
Reaction score
5
Well, got everything wired up yesterday:




Worked as hoped, turned on the chest freezer, shut it off when it reached temp.

However... I'm guessing this is due to the chest freezer being empty (no thermal mass) but when testing it, when it reached the target temp of 15 degrees C it shut off power to the freezer, but the temp continued to drop for a few minutes. I assume with some carboys full of beer/water etc in there this won't be a problem?


zachattack

Well-Known Member
Joined
Mar 6, 2012
Messages
2,808
Reaction score
321
Well, got everything wired up yesterday:




Worked as hoped, turned on the chest freezer, shut it off when it reached temp.

However... I'm guessing this is due to the chest freezer being empty (no thermal mass) but when testing it, when it reached the target temp of 15 degrees C it shut off power to the freezer, but the temp continued to drop for a few minutes. I assume with some carboys full of beer/water etc in there this won't be a problem?
Where's the temp probe?

The way these freezers work is the walls get very cold, so you're seeing a lag as the cold walls chill the air then the cold air chills the probe. It's like when you pull a turkey out of the oven, the internal temp continues to rise for a bit. Since a carboy/keg has a lot of thermal mass the liquid temp change should be pretty small.


cwi

Banned
Joined
Jun 21, 2010
Messages
847
Reaction score
37
Location
Austin
However... I'm guessing this is due to the chest freezer being empty (no thermal mass) but when testing it, when it reached the target temp of 15 degrees C it shut off power to the freezer, but the temp continued to drop for a few minutes. I assume with some carboys full of beer/water etc in there this won't be a problem?
Never run freezers/fridges empty, especially using these controllers and with the probe only measuring air temp. Tape the probe to a container of something, then insulate on top of it. Always set the ASD (F3) to its max. Load in some jugs of water to add additional mass if you don't have enough beer.


cinderbike

Well-Known Member
Joined
Sep 10, 2010
Messages
262
Reaction score
5
Never run freezers/fridges empty, especially using these controllers and with the probe only measuring air temp. Tape the probe to a container of something, then insulate on top of it. Always set the ASD (F3) to its max. Load in some jugs of water to add additional mass if you don't have enough beer.
Just did it to test it out, it's turned off right now until I brew this weekend. That's what I planned on though.


smittygouv30

Well-Known Member
Joined
Sep 25, 2011
Messages
332
Reaction score
21
Location
Fayetteville
Finally finished mine. Not the smoothest project I've completed but I enjoyed the process. I ended up using a separate outlet for the fan and the lights. I had a hard time finding 120V fan/lights, so I went with 5V for both (hence the separate outlet). This is also my first experience with GFCI outlets so that added another layer of challenge.

Bottom line is that it works great, just a few bumps along the way.









raouliii

Well-Known Member
Joined
Aug 8, 2011
Messages
1,007
Reaction score
121
Location
Ponchatoula
Since I just did a little experimenting with my 110vac/STC1000, I thought I would post some information.

The transformer provides a 12.8:1 (115:9) step down. This 9vac is then rectified by diodes and smoothed with a capacitor to 13.4vdc. The 13.4vdc is used to power the electronics and the relays. The relays are spec'd to operate at a minimum of 9vdc.


We've seen many posts associated with members obtaining the wrong version of this controller. A post in another thread shows that the transformer in the 220vac version is 23:1 (230:10) step down. If one were to apply 110vac to this transformer the result would be a 5vac output which, using the same rectification ratio, would be rectified to about 7.5vdc. While this may be enough to operate the electronics , the relays, spec'd at a minimum of 9vdc, would not function consistently or not at all. This is why the 220vac version will not operate correctly on 110vac.

FWIW


emjay

Well-Known Member
Joined
Jan 7, 2011
Messages
12,769
Reaction score
1,718
Location
Toronto
raouliii said:
Since I just did a little experimenting with my 110vac/STC1000, I thought I would post some information.

The transformer provides a 12.8:1 (115:9) step down. This 9vac is then rectified by diodes and smoothed with a capacitor to 13.4vdc. The 13.4vdc is used to power the electronics and the relays. The relays are spec'd to operate at a minimum of 9vdc.
https://www.homebrewtalk.com/photo/transformer-55782.html https://www.homebrewtalk.com/photo/relays-55781.html

We've seen many posts associated with members obtaining the wrong version of this controller. A post in another thread shows that the transformer in the 220vac version is 23:1 (230:10) step down. If one were to apply 110vac to this transformer the result would be a 5vac output which, using the same rectification ratio, would be rectified to about 7.5vdc. While this may be enough to operate the electronics , the relays, spec'd at a minimum of 9vdc, would not function consistently or not at all. This is why the 220vac version will not operate correctly on 110vac.

FWIW
Because we were all dying to know why it wouldn't work on the wrong power source ;)
