DYI fermentation chamber

HomeBrewTalk.com - Beer, Wine, Mead, & Cider Brewing Discussion Community.

Help Support Homebrew Talk:

bruce_the_loon

Well-Known Member
Joined
Nov 21, 2015
Messages
640
Reaction score
436
Location
Port Elizabeth, South Africa
After a few years of brewing, I finally got around to start building my fermentation chamber. Now before anyone starts on using fridges etc for a chamber, in South Africa decent second-hand fridges are rare and new ones would have cost me about six times what I've spent on it.

I got hold of a working second-hand water cooler which turned out to have a mini-fridge as well. After much stripping of threads, swearing and tearing apart, I got the compressor unit and the full cooling circuit out intact. Powered it up and it chilled. Part one of the mission completed.

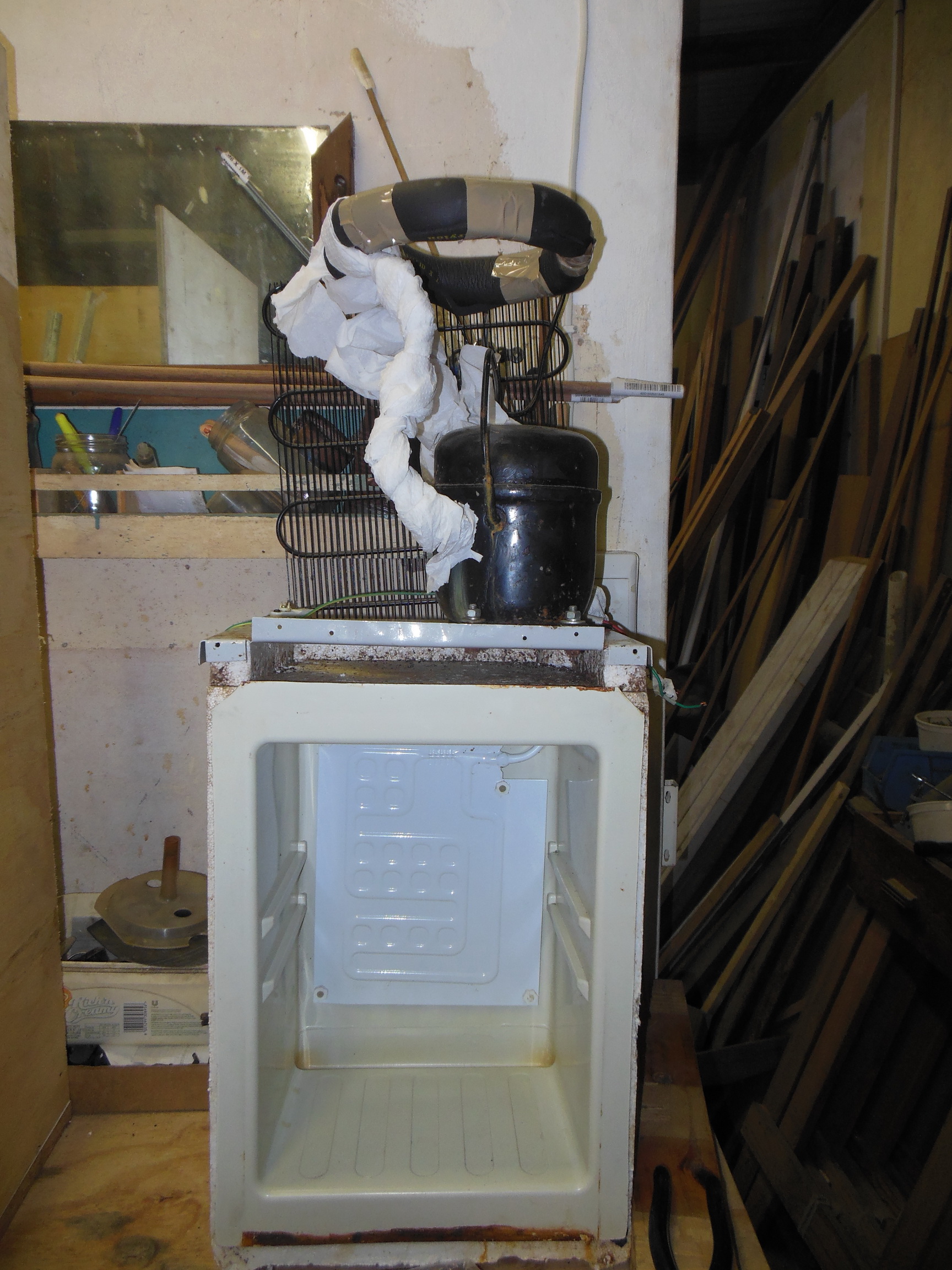

Photo 1 - Compressor and cooling circuit extracted from the water cooler.

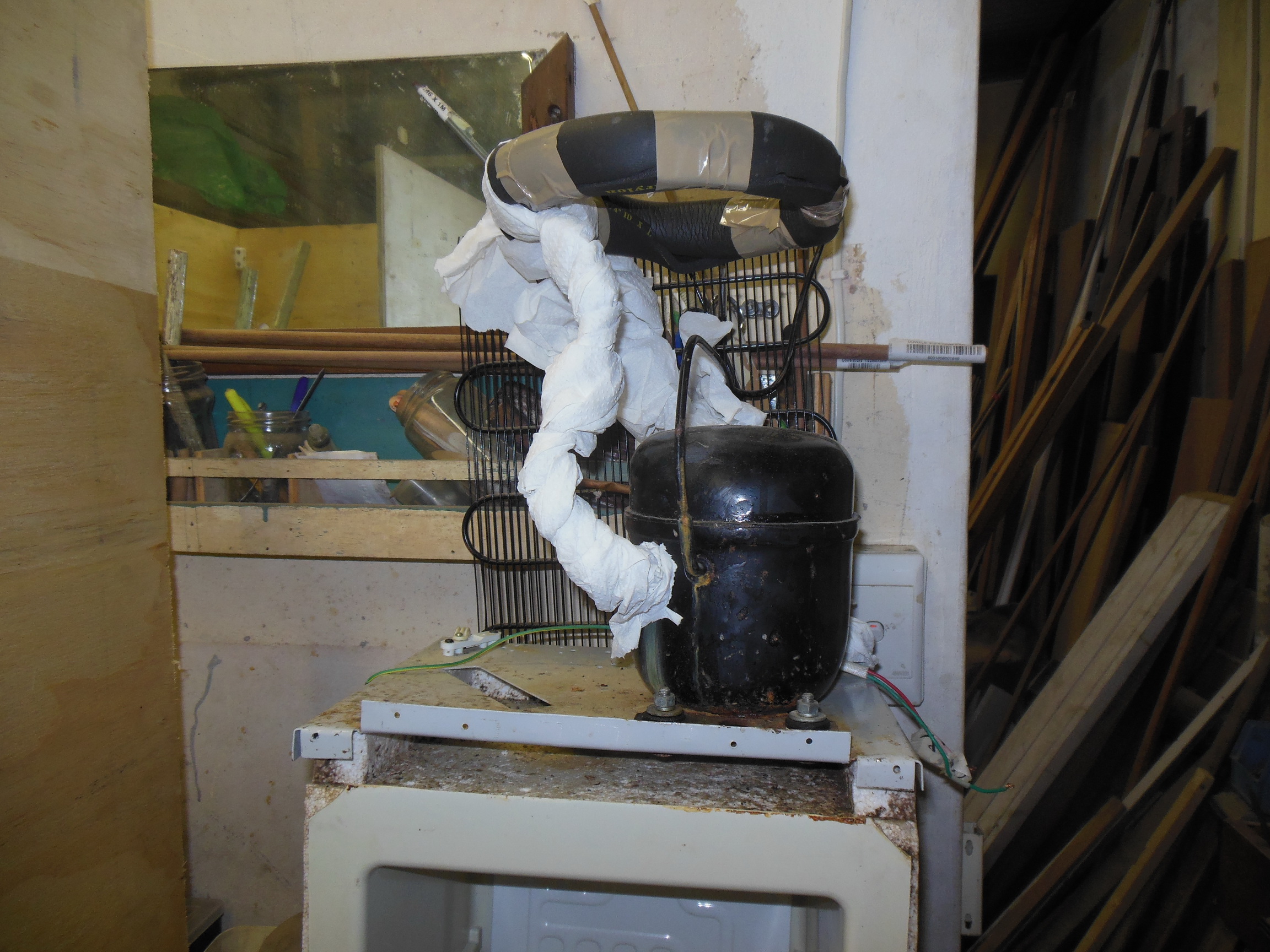

Photo 2 - Closeup of compressor and upper cooling circuit. Currently wrapped in foam insulation and paper towel for testing.

Next I rigged up the STC1000 controller to switch the compressor, wrapped the upper cooling circuit, which had been wound around the water bowl, in insulation and placed the temp probe from the controller into a container of water inside the mini-fridge and closed the door. Shifted the temps around a few times and the mini-fridge heat exchanger panel was able to handle temps down to 3°C.

Started to build the chamber itself today. Cut some 10mm ply to size and mounted the sides and rear to the baseboard. Internal dimensions of the chamber are 45cm x 45cm x 90cm (18" x 18" x 36") which will have an effective size of 35cm x 35cm x 80cm (14" x 14" x 32") once the insulation has been fitted.


Photo 3 - Front view of the partially assembled chamber with the port for the mini-fridge chamber cut out.

Insulation is going to be 50mm Isotherm which is a polyester flexible blanket with an R of 0.79. I've used this around my fermenter before. If that doesn't work out, then 35mm polystyrene sheeting is the fallback plan.


Photo 4 - Rear view of the partially assembled chamber with the port for the mini-fridge chamber cut out.

The next step is to fabricate a chamber to enclose the chilling coils that had been wound around the water tank in the cooler. This chamber will be ported into the rear of the fermentation chamber like the mini-fridge chamber and fans will circulate air around both the chilling coils and the chiller plate. The STC1000 will be mounted above the chamber itself with the temperature probe inside the chamber to be secured to the fermenter (or even placed into a thermowell if I ever get around to it.)


Photo 5 - Partially assembled chamber with my Mangrove Jack's 5g stainless steel fermenter.

Next few days will be spent on finishing the chamber construction, mounting the compressor and chiller circuits and figuring out which epoxy sealer to use to waterproof the inside of the chamber before insulating. Then there will be the electrics and the cursing and the testing. More pictures as the various stages are reached.

PS - All the rust on the compressor pipes is from the hot water heater plumbing in the water cooler (which had a hot water function as well) that decided to rust out.

Edit: changed photos to full size

Last edited:

Kahler

Well-Known Member
Joined
Oct 6, 2010
Messages
409
Reaction score
42
Location
San Diego
Subscribed. Interested to see the finished result.
Sounds like you found a great solution!

OP
bruce_the_loon

bruce_the_loon

Well-Known Member
Joined
Nov 21, 2015
Messages
640
Reaction score
436
Location
Port Elizabeth, South Africa
Not much visually accomplished this update. Adjusted the chamber width slightly to fix a bad math issue by taking 10mm off the width. Struggled to find a suitable plastic box to fit the upper chiller ring, gave up and decided to fabricate straight out of expanded polystyreme foam board. Which wasn't in stock at any of the hardware stores, so decided to recycle some of the monitor and computer packing material to fabricate the insulated box to duct the upper chiller into the chamber. Not the smoothest construction ever, but it will be hidden anyway.


Photo 6 - Partially completed upper chiller coil housing assembled from recovered polystyrene.

One pipe from the coil will feed out through the slot visible in the short section and the other feeds through the bottom panel which has to be glued to the rest of the box once fitted in place.

Next step with the chamber is waterproofing as we have high humidity sometimes and condensation concerns abound. After discussions with a like-minded mob of technical, mechanical and tinkering experts, I settled on a couple of coats of polyester resin with fiberglass matting to seal the edges where the boards meet. First coat has been applied to the inside of the chamber except for where the port for the upper chiller needs to be cut.

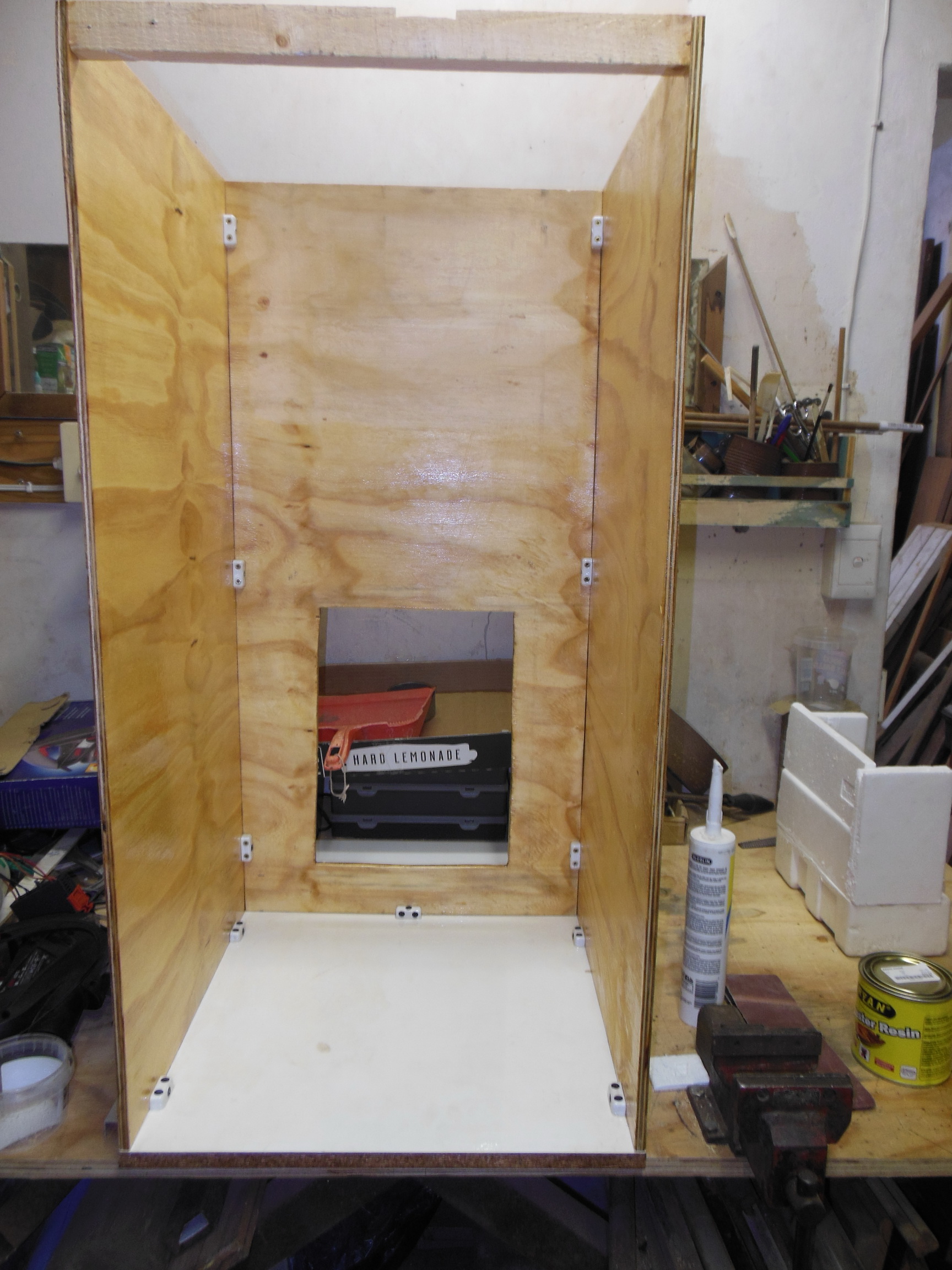

Photo 7 - First coat of polyester resin applied to the plywood and melamine surfaced boards for waterproofing. Shiny compared to the earlier photo.

Still to do today, maybe.
  • Apply rust converter to any surface rust spots on the compressor plate.
  • Design the mounting system for the compressor plate.
  • Find an artistically suitable case to mount the STC-1000 inside.
I've decided to edge the chamber with 19mm aluminium angle and face it with 19mm aluminium channel. Outer plywood surfaces, sides, door, roof and side panels for the compressor, will be varnished with clear yacht varnish.


Knightshade

Which way is up again??
HBT Supporter
Joined
Mar 31, 2020
Messages
465
Reaction score
379
This is cool..and I'm always amazed how straight some people can cut with hand tools. I sure as $!# can't. My FC is as crooked as a...<insert noun>

I think the only part of your post that I can relate to however is:

"After much stripping of threads, swearing and tearing apart," <-----I'm good at that stuff.

OP
bruce_the_loon

bruce_the_loon

Well-Known Member
Joined
Nov 21, 2015
Messages
640
Reaction score
436
Location
Port Elizabeth, South Africa
This is cool..and I'm always amazed how straight some people can cut with hand tools. I sure as $!# can't. My FC is as crooked as a...<insert noun>

I think the only part of your post that I can relate to however is:

"After much stripping of threads, swearing and tearing apart," <-----I'm good at that stuff.
The main cuts on the plywood and the base were done on a table saw with guides, the port cut in the middle of the back was cut using a jigsaw and you can see the wandering lines there. There is trim going over that, so I don't care too much. If I had to do the long cuts with a handsaw, they would resemble a Norwegian coastline.

Amidst the stripping of threads is the memorable bolt into a nut welded to the frame, except the frame around the nut has rusted and now the nut spins freely inside a space only accessible when the bolt has been removed. That's when you worship the angle grinder.

OP
bruce_the_loon

bruce_the_loon

Well-Known Member
Joined
Nov 21, 2015
Messages
640
Reaction score
436
Location
Port Elizabeth, South Africa
Quick update for today, finished the upper chiller containment box and fitted it to the chiller coil on the refrigeration unit. Once the glue has dried overnight, the system will be positioned, the port in the rear panel cut out and the next layers of polyester resin applied. All during gaps between online meetings.

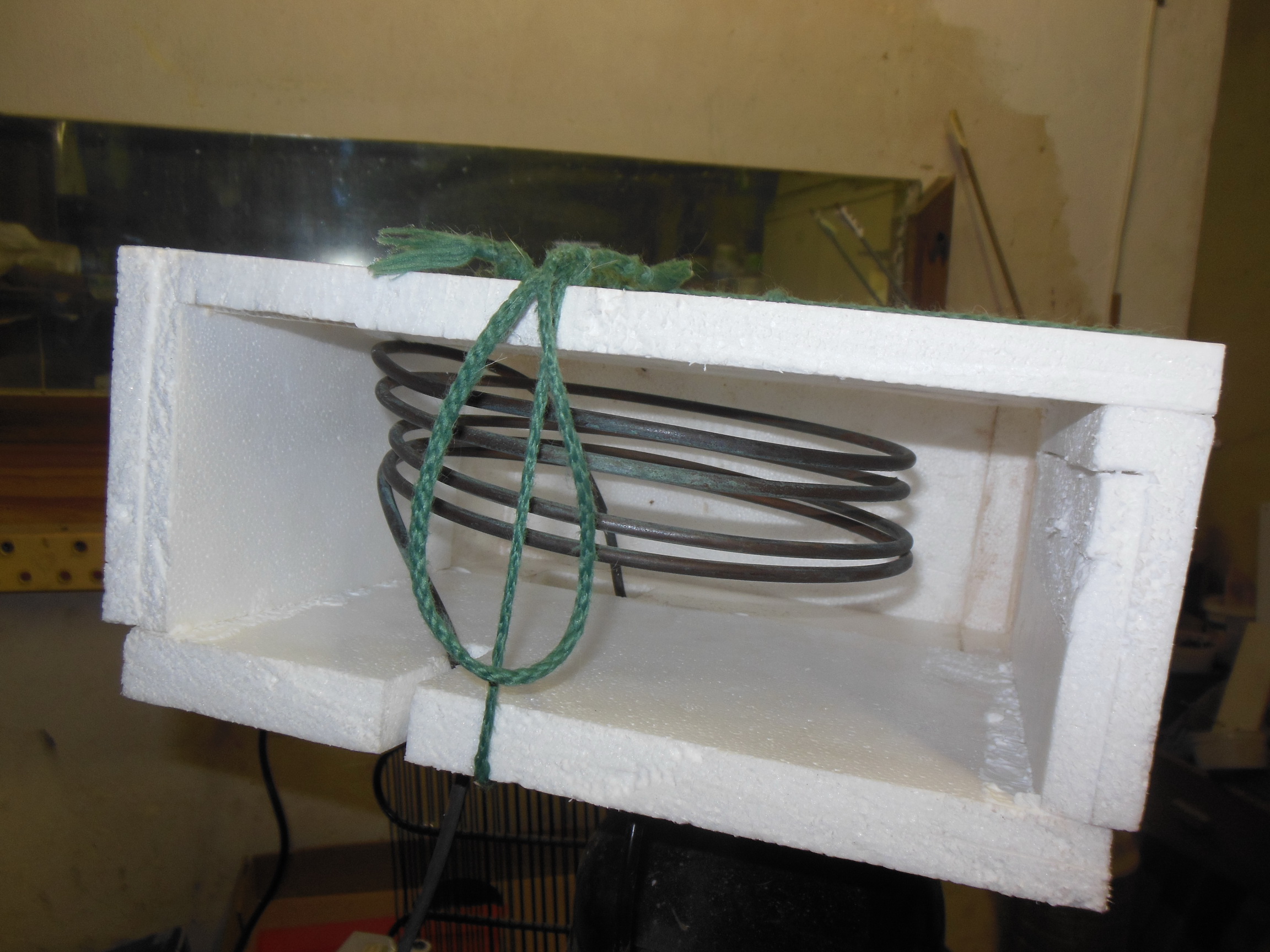

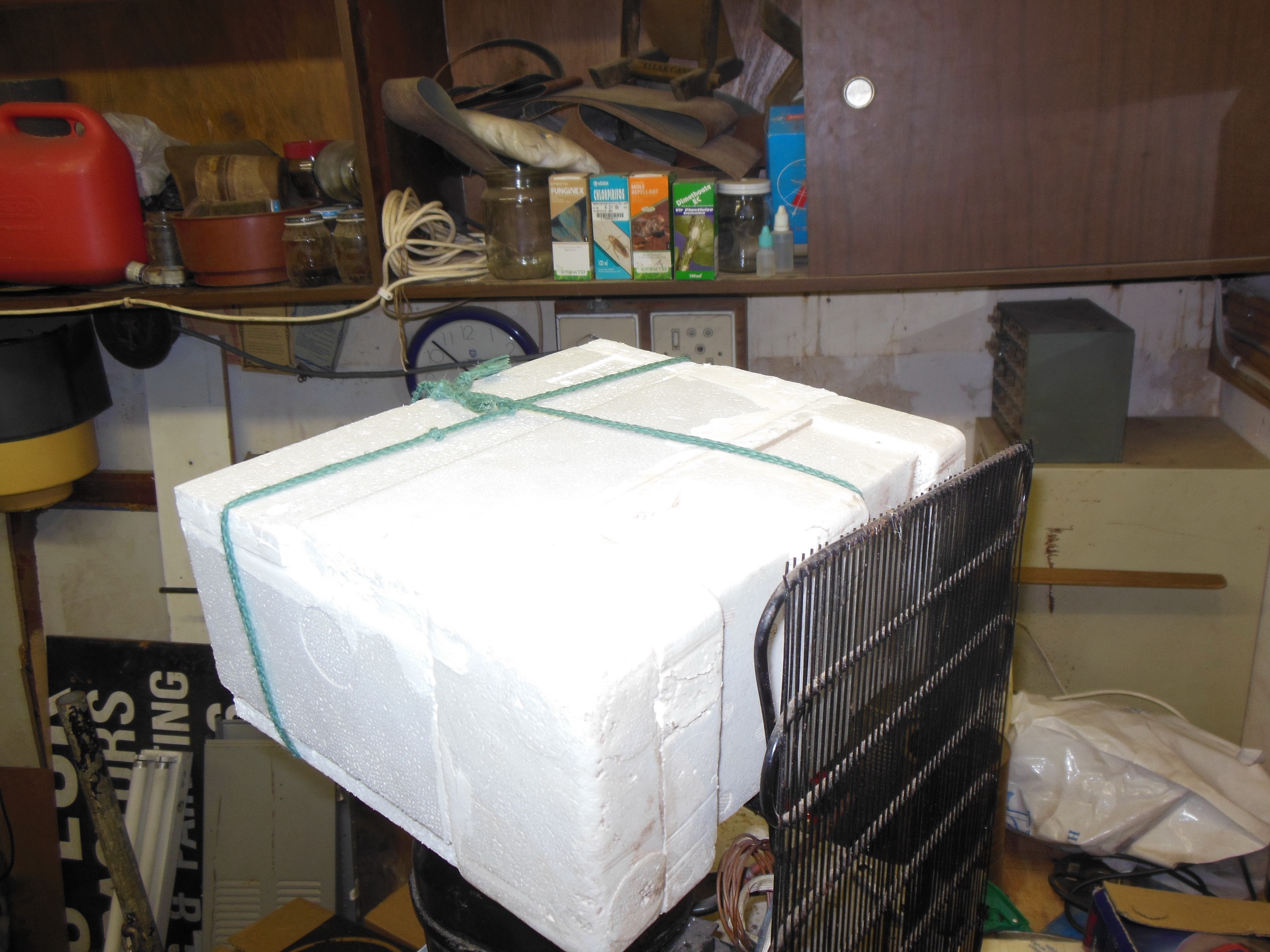

Photo 8 - Upper chiller box in place with string holding the bottom panel in place while the glue dries.


Photo 9 - Upper chiller box from the back. Acrylic filler used to fill some holes and smooth out the divots in the previously-utilized EPS.

No More Nails works wonders on EPS, nice rigid bond after a couple of hours.

Once the glue has dried, one or two more side pieces of EPS need to go on to increase the thickness in a couple of places and a couple of lengths of foam refrigeration pipe insulation to insulate the exposed chiller pipes.

OP
bruce_the_loon

bruce_the_loon

Well-Known Member
Joined
Nov 21, 2015
Messages
640
Reaction score
436
Location
Port Elizabeth, South Africa
Big steps accomplished today. Got the compressor and chiller boxes mounted and tested at last.

Test fitted the compressor platform to get the resting position of the upper chiller box and jigsawed the port out of the rear panel.

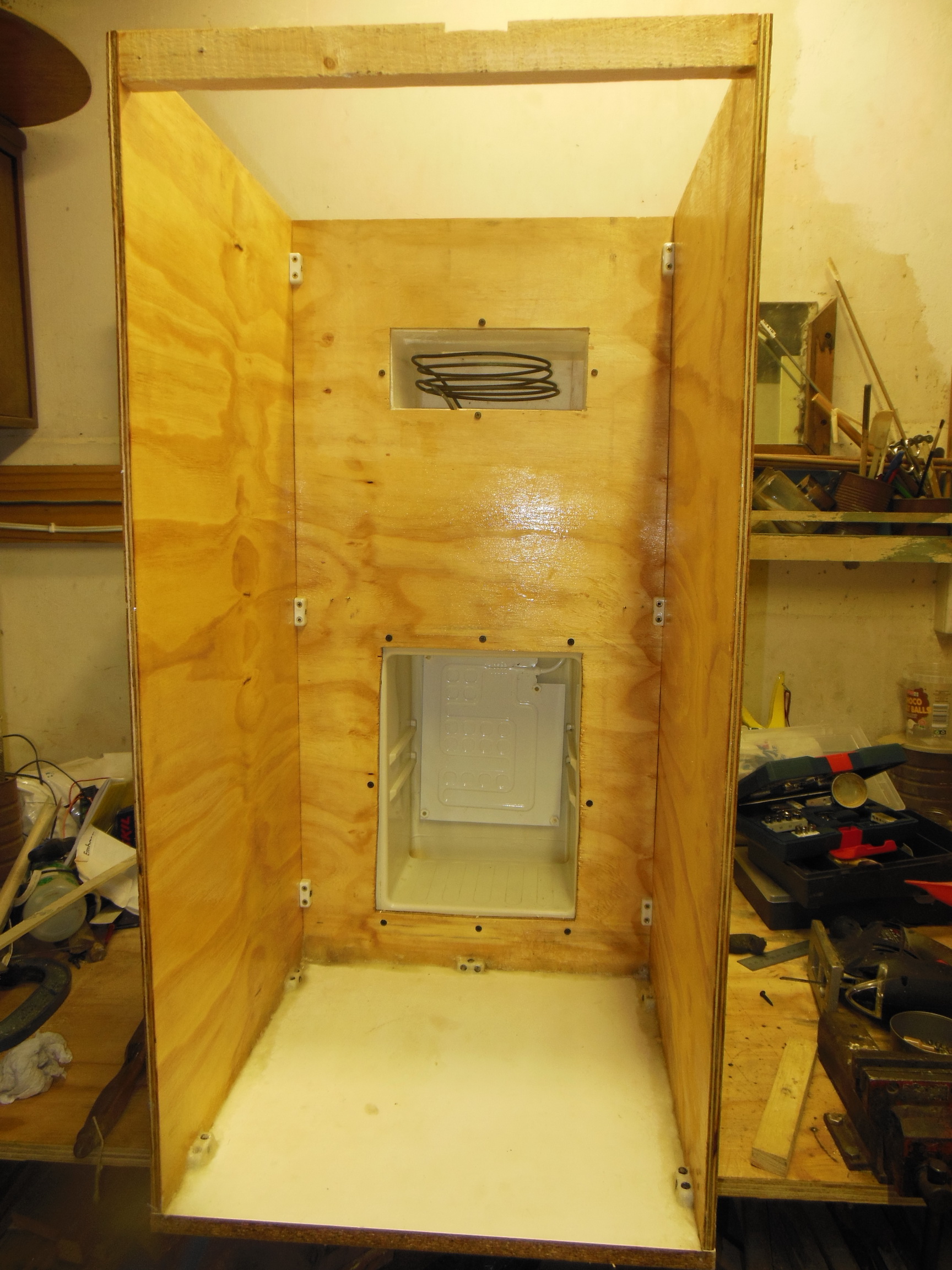

Photo 10 - Rear panel with both ports cut out and ready to start mounting the chiller assembly.

Bought some 40mm x 15mm galvanized angle brackets, mounted two onto the rear panel and riveted them to the compressor mounting plate. Then cut some 19mm aluminium angle bar to length and riveted an angle bracket to each to make the rear compressor mounts. Screwed them into the baseboard and riveted to the compressor mounting plate. Now the compressor is solidly mounted.

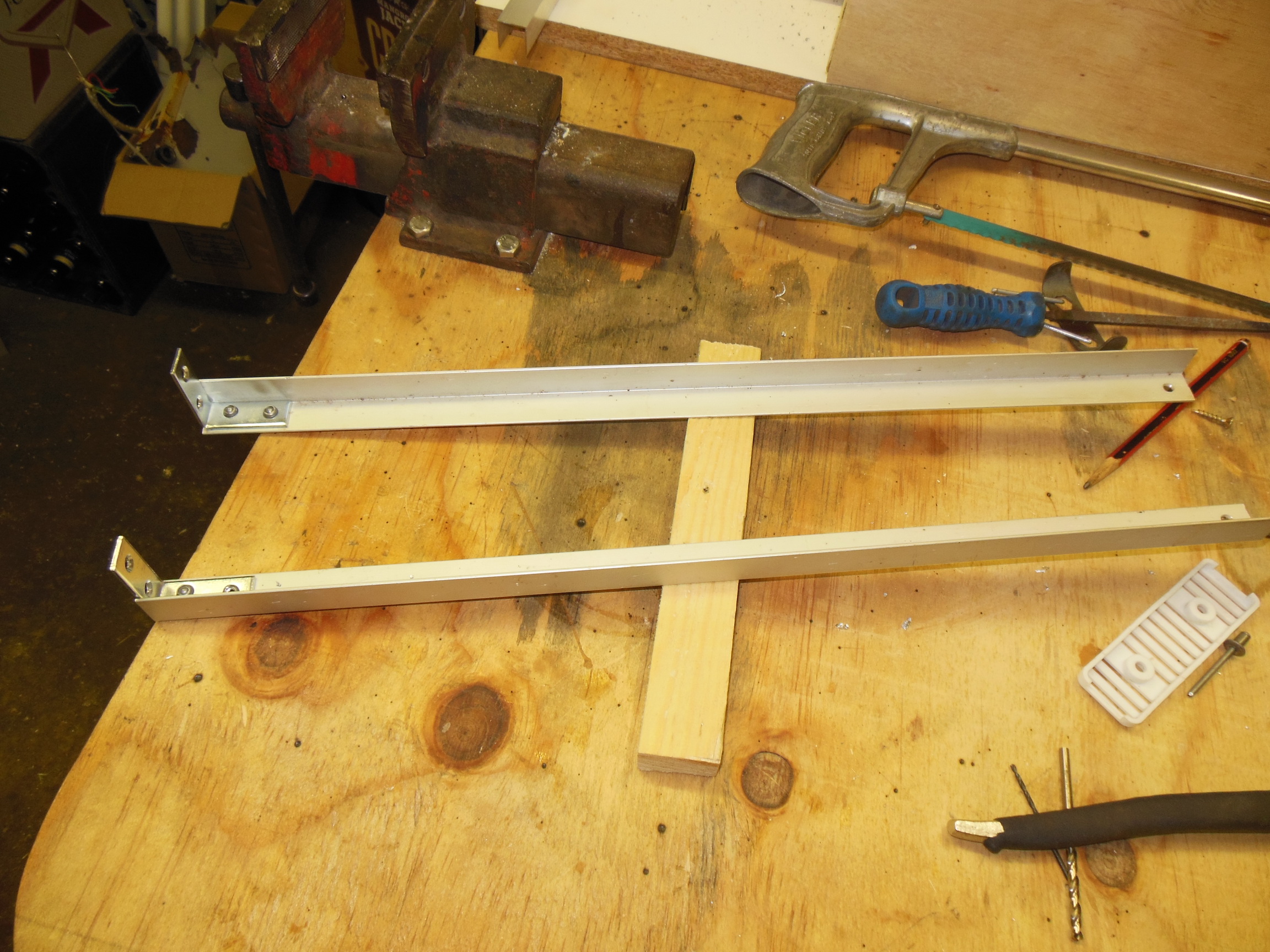

Photo 11 - Freshly fabricated compressor mounting bars.

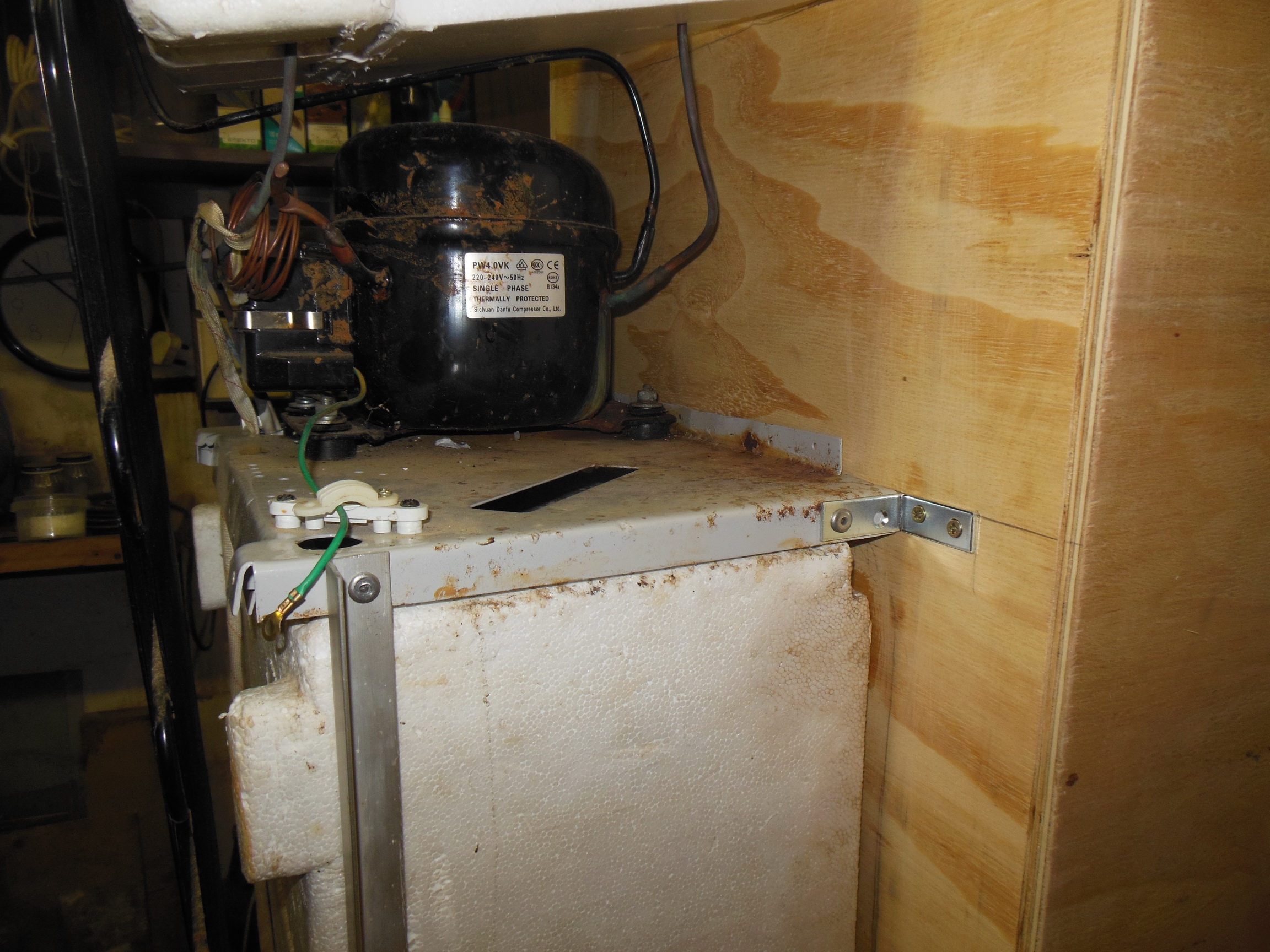

Photo 12 - Right side view of the mounted compressor plate.

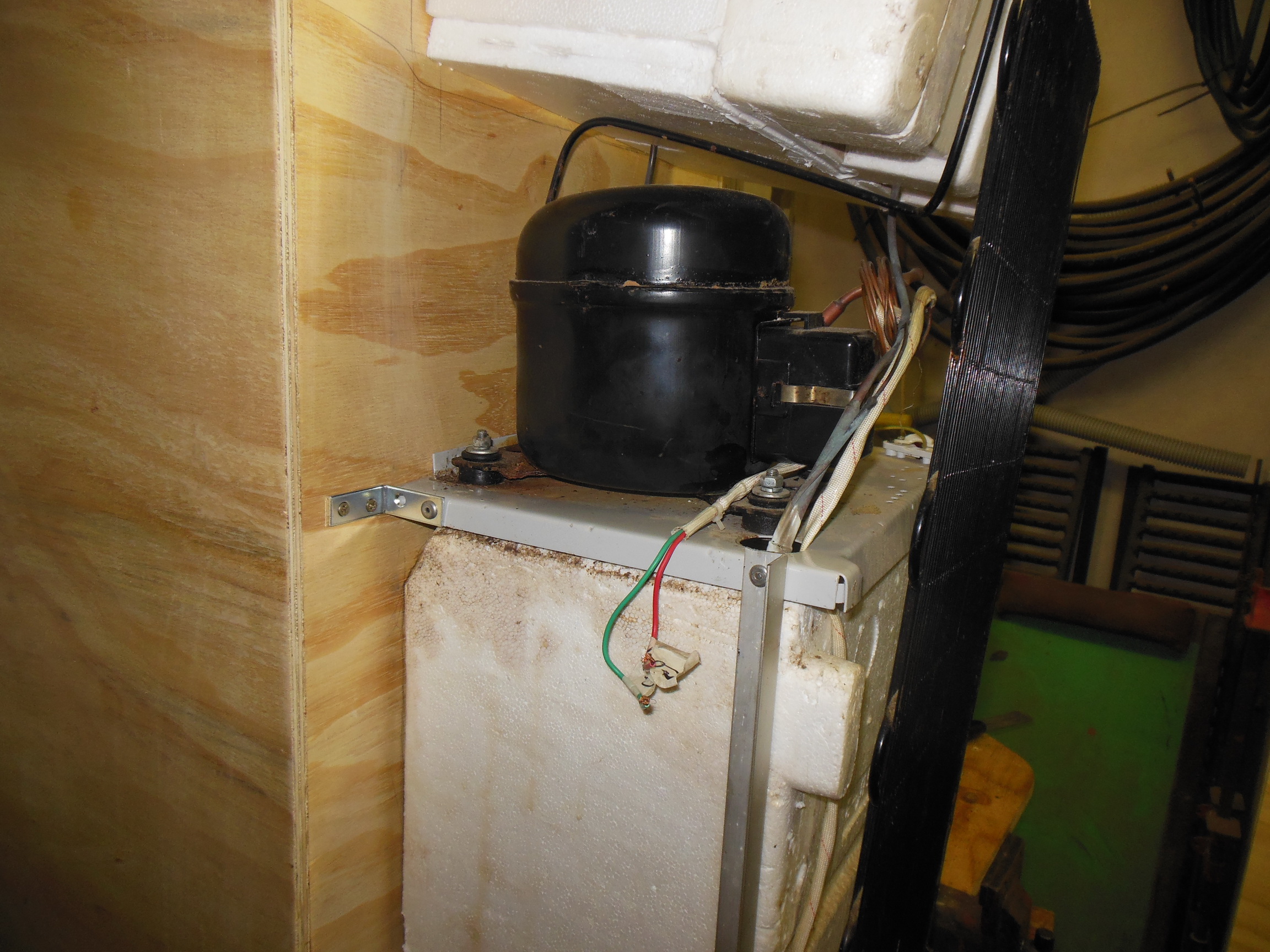

Photo 13 - Left side of the compressor mountings. Managed to drill the rivet hole for the rear mount without hitting the chiller lines by inserting a piece of flat steel bar as a shield.

With the compressor secured, it was time to mount the chiller boxes onto the rear panel. The bottom one has a hard plastic shell, so it was pulled into place with a few chipboard screws from the inside.

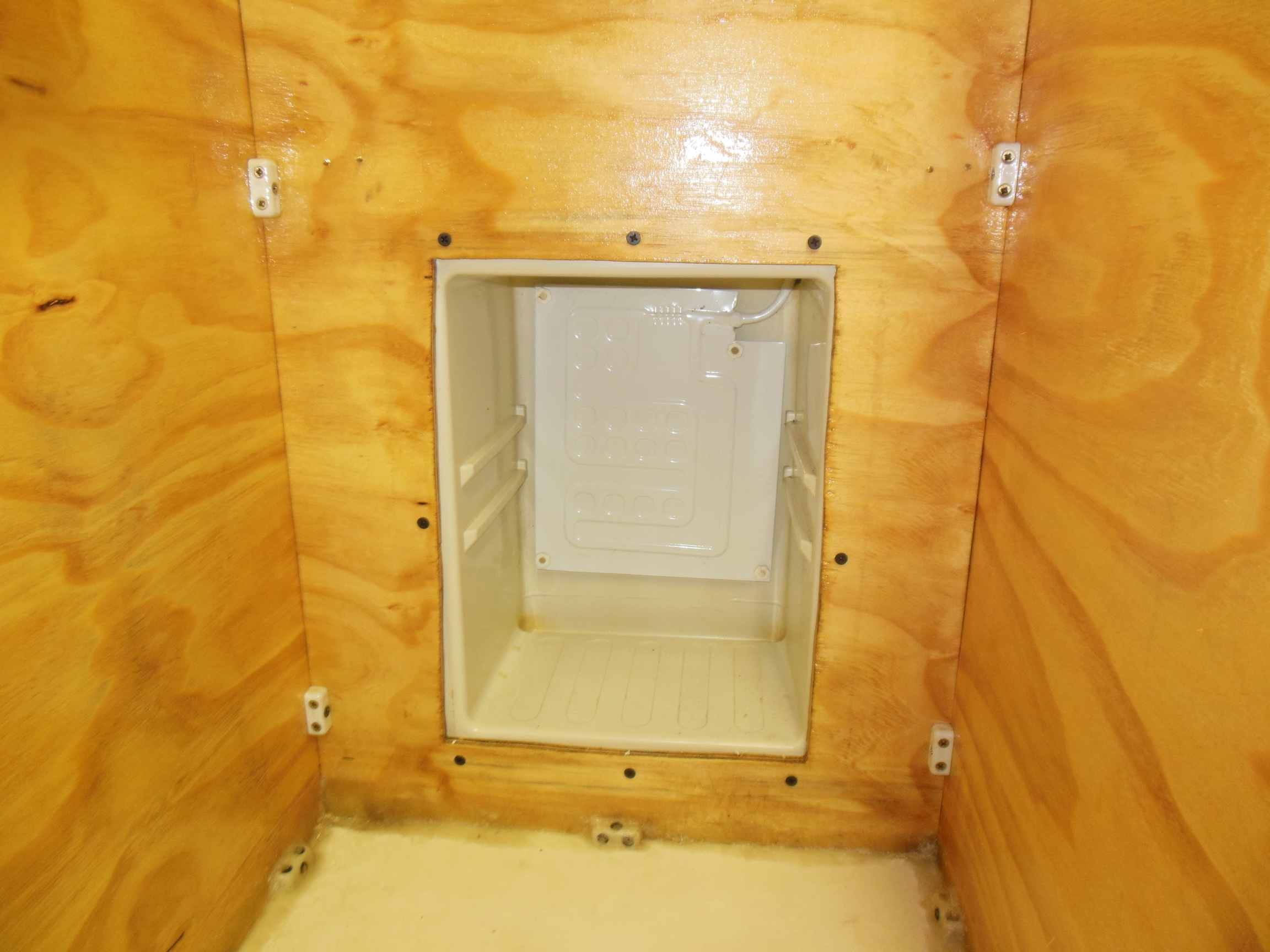

Photo 14 - Lower chiller box secured to the rear panel.

The upper box is a polystyrene box and chipboard screws won't work. So a bead of silicone sealer was run around the outside of the port and the box pushed into place and held temporarily with a couple of long screws.


Photo 15 - Upper chiller box mounted and silicone sealed in place.

To be continued in another post as I have too many pictures.

OP
bruce_the_loon

bruce_the_loon

Well-Known Member
Joined
Nov 21, 2015
Messages
640
Reaction score
436
Location
Port Elizabeth, South Africa
Continued from the previous post.

With the entire chiller assembly mounted, I remounted one of the frame bars from the dismantled water cooler onto the compressor plate and secured the radiator panel to it.


Photo 16 - Fully mounted chiller assembly from the right.

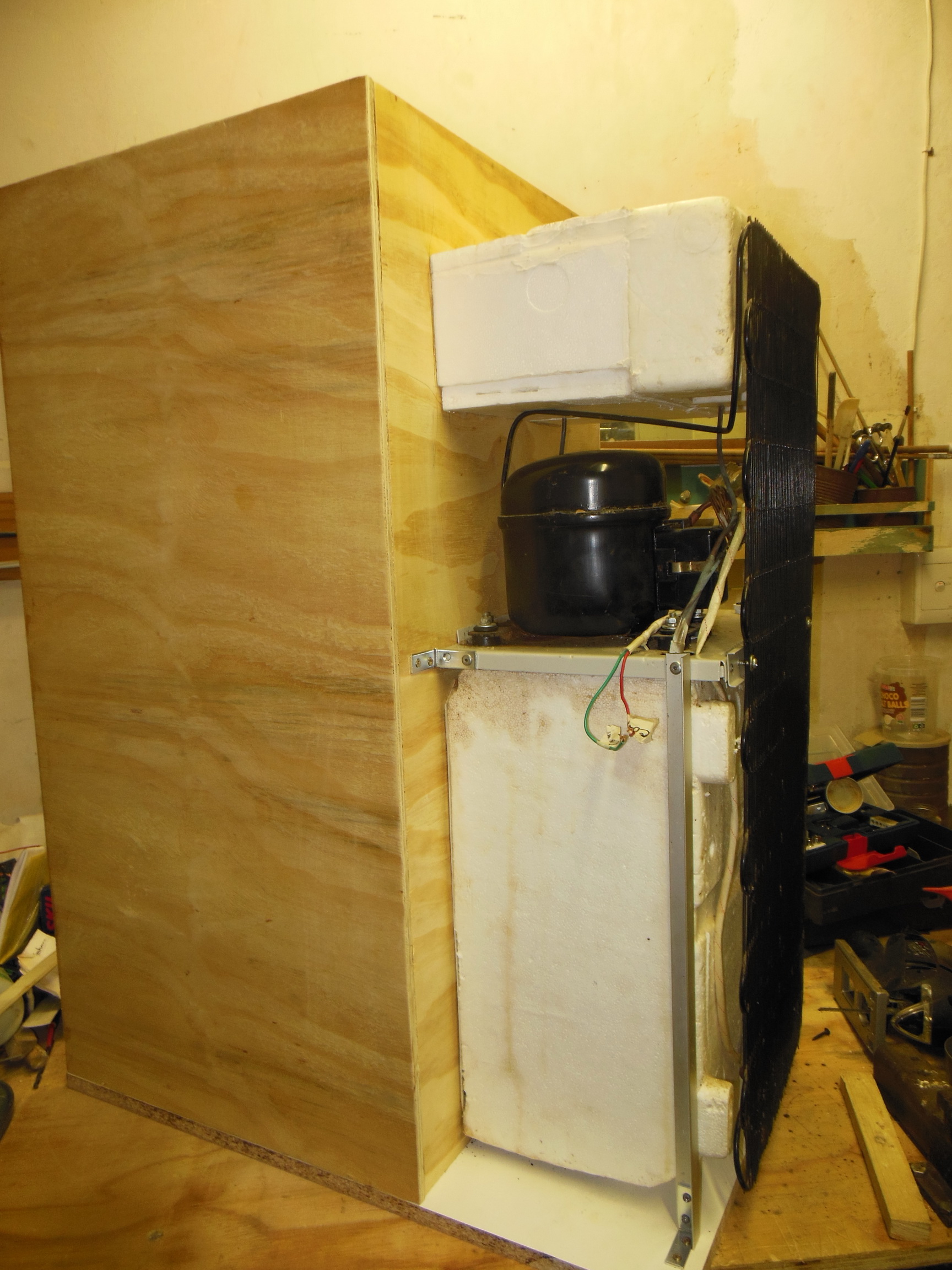

Photo 17 - Fully mounted chiller assembly from the left side.

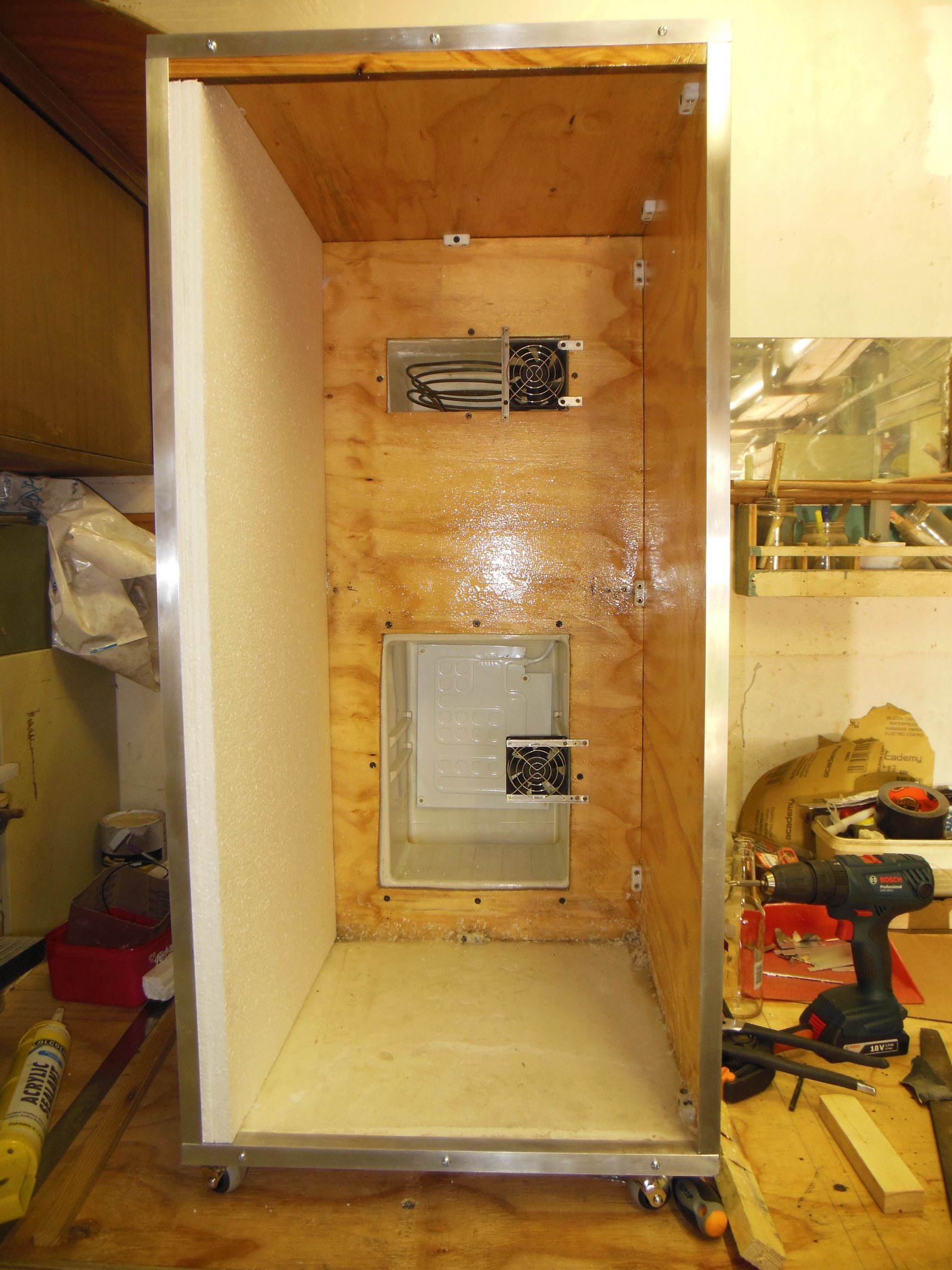

Photo 18 - Fully mounted chiller assembly from inside the chamber. Note the fingerprint trapped under the polyester layer on the baseboard.

After all that fiddling and moving of chiller pipes, it was now necessary to test the chiller to make sure the danged thing still works. Grabbed the STC 1000, still wired from the testing after the dismantling phase, and wired it to the compressor wires. Switched it on and discovered that the air temperature in the workshop was a balmy 32°C, one of those ridiculously hot and humid summer days.

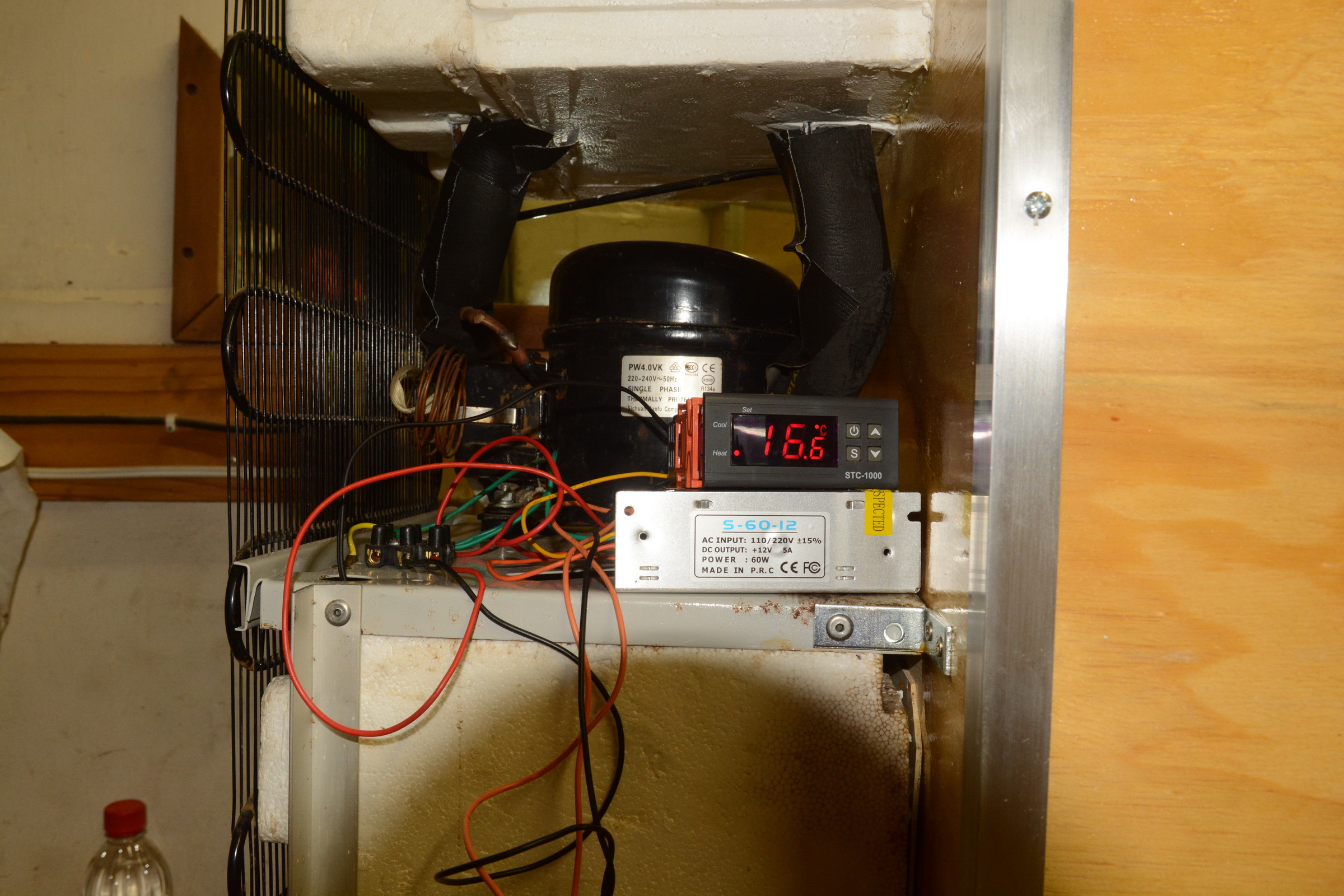

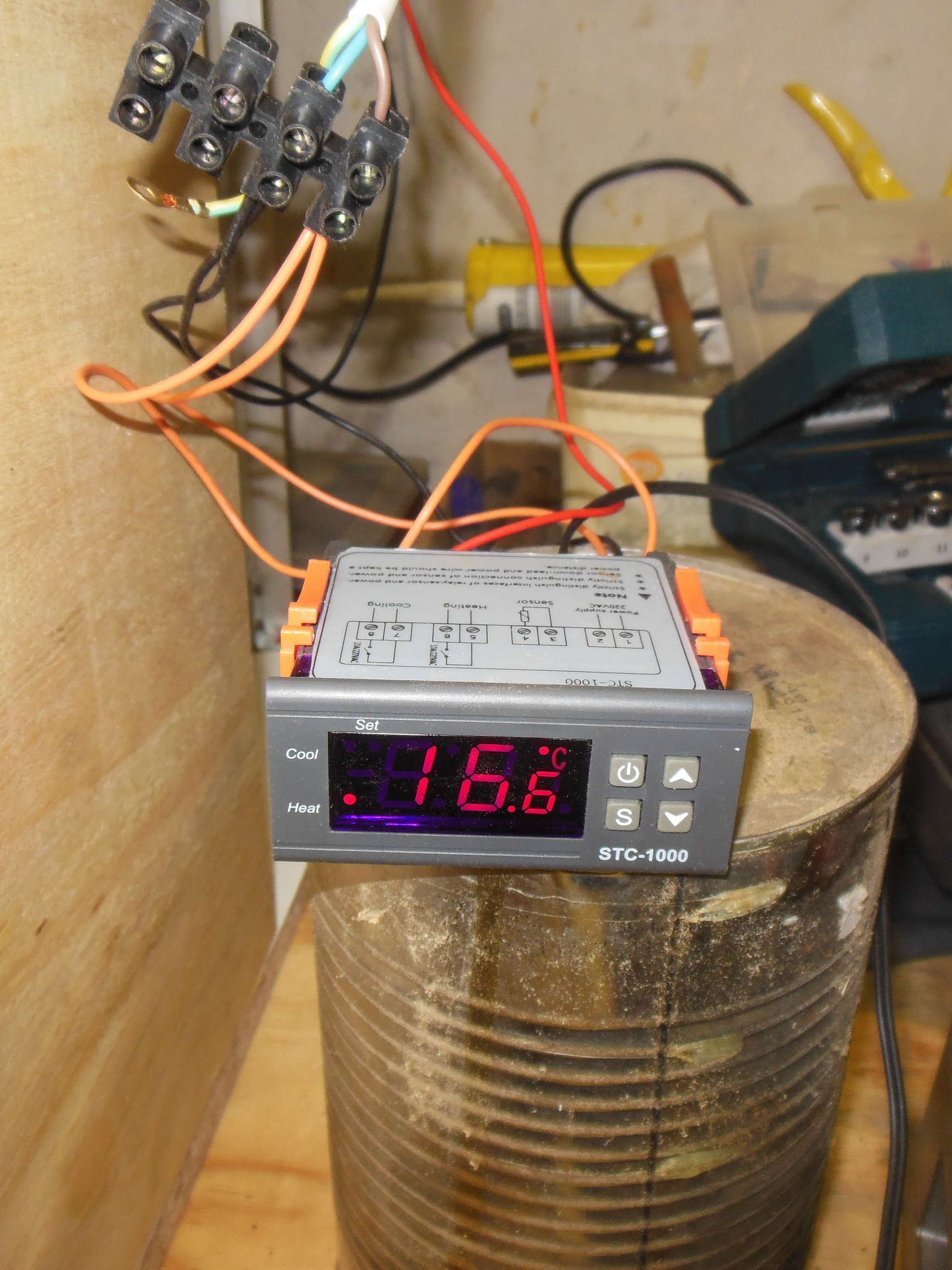

Photo 19 - STC 1000 at the start of the chiller test.


Photo 20 - STC 1000 once the upper chiller box reached the set temp

The cooling test was done with the probe inside the upper chiller box and with both ports into the main chamber blocked off as the chamber is still open to the air. Took about 12 minutes to drop from the 26°C to the 17°C set point.

Next is to finish off the fibreglass sealing at the bottom of the chamber, it needs a second coat of resin, apply the polyester resin coat to the plywood around the upper port and start making the top of the box, the compressor assembly covers and the door.


Zemillard90

Well-Known Member
Joined
Jun 17, 2018
Messages
52
Reaction score
36
Awesome work! My first fermentation chamber was a wall AC unit in a boxed-off area. Yours is much more polished and looks like it will work well!

Cheers!

OP
bruce_the_loon

bruce_the_loon

Well-Known Member
Joined
Nov 21, 2015
Messages
640
Reaction score
436
Location
Port Elizabeth, South Africa
Quick update on the project. Spent most of the working time on the chamber varnishing and finishing the various faces. Decided not to post repetitive pictures to see who could spot the difference between two and three coats.

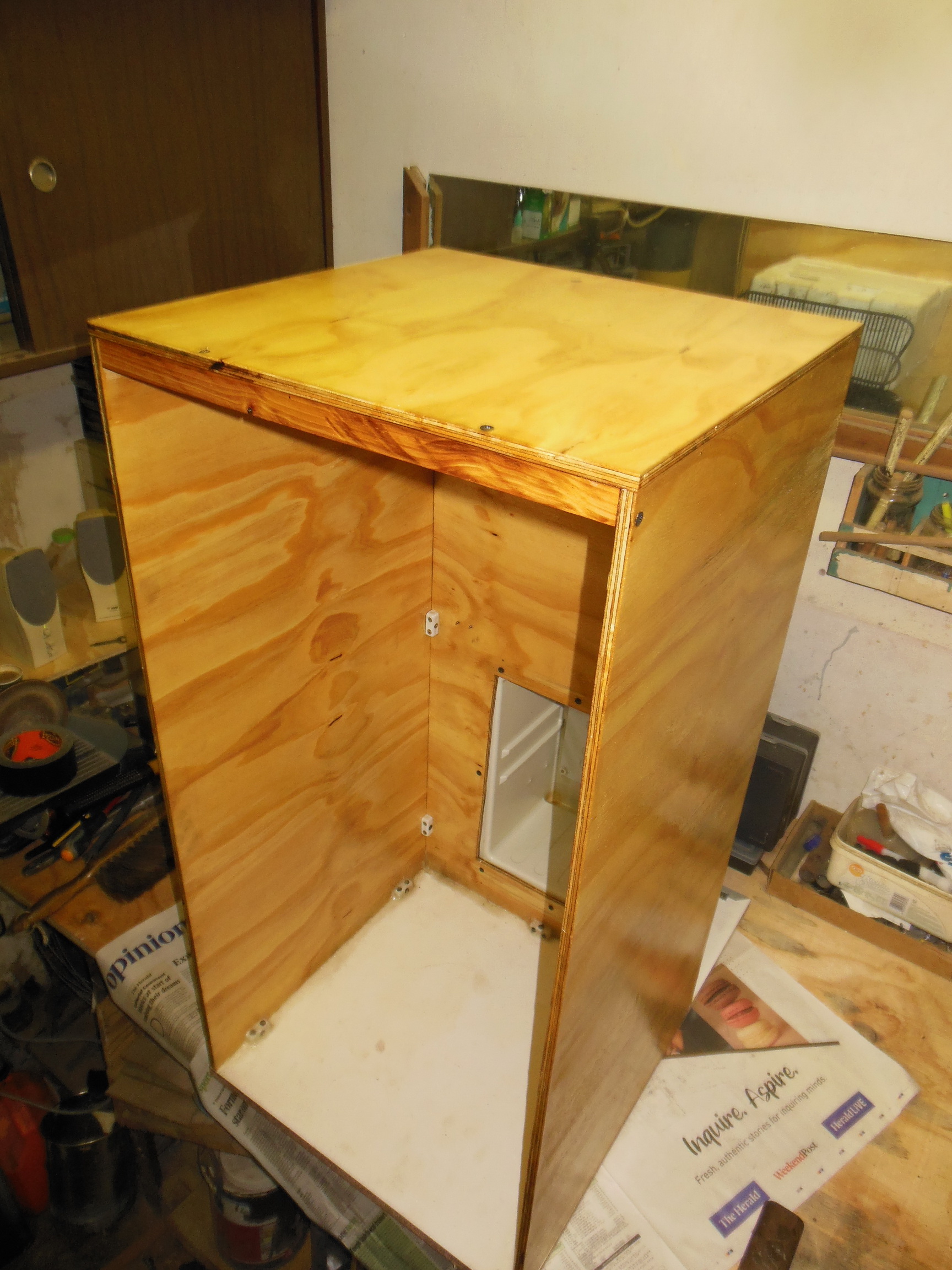

Photo 21 - Upper view of the top and sides with their three coats of varnish.


Photo 22 - Rear view of the chamber with three coats of varnish applied. Also note the bottom bracket installed for the radiator.

Once the varnishing was completed, some insulation was temporarily wrapped around the cold circuit pipes that were exposed at the back of the chamber. A cooling test with one 80mm circulating fan was undertaken and based on those results, separate circulation fans are needed for the upper and lower chiller boxes. Will go hunting for another defunct PC power supply to salvage one from this week.

Started on the aluminium edge trim for the chamber working to complete one side today before the heat drove me from the workshop. Depending on the type of edge, it is either 19mm square U channel or 19mm angle, both held in place with 3.5mm x 10mm self-tapping cheese head screws.


Photo 23 - Detail of the bottom trim. Right side is the U channel and left side is the angle.

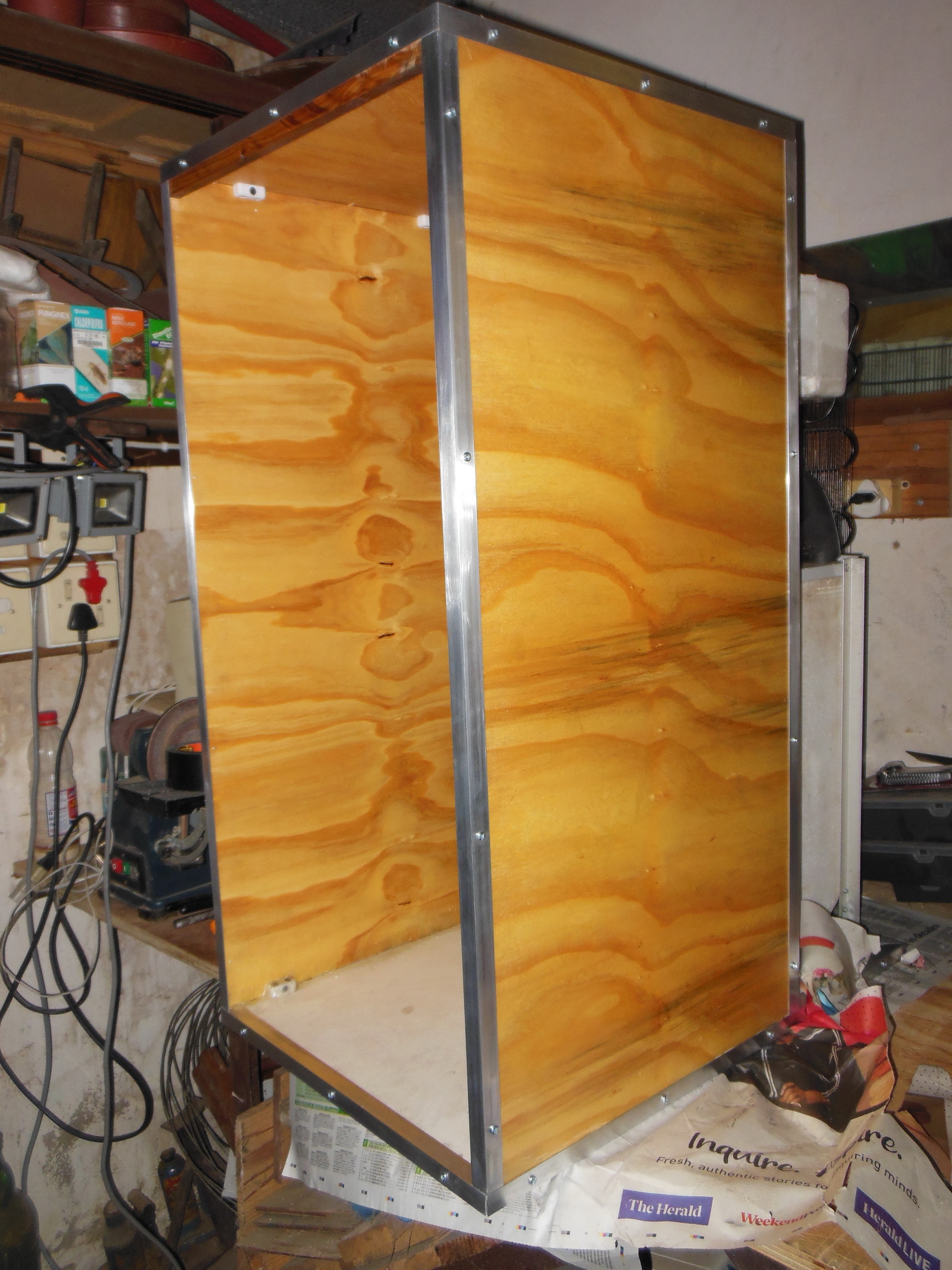

Photo 24 - Partially completed side trim. Top trim and rear vertical trim is in place.

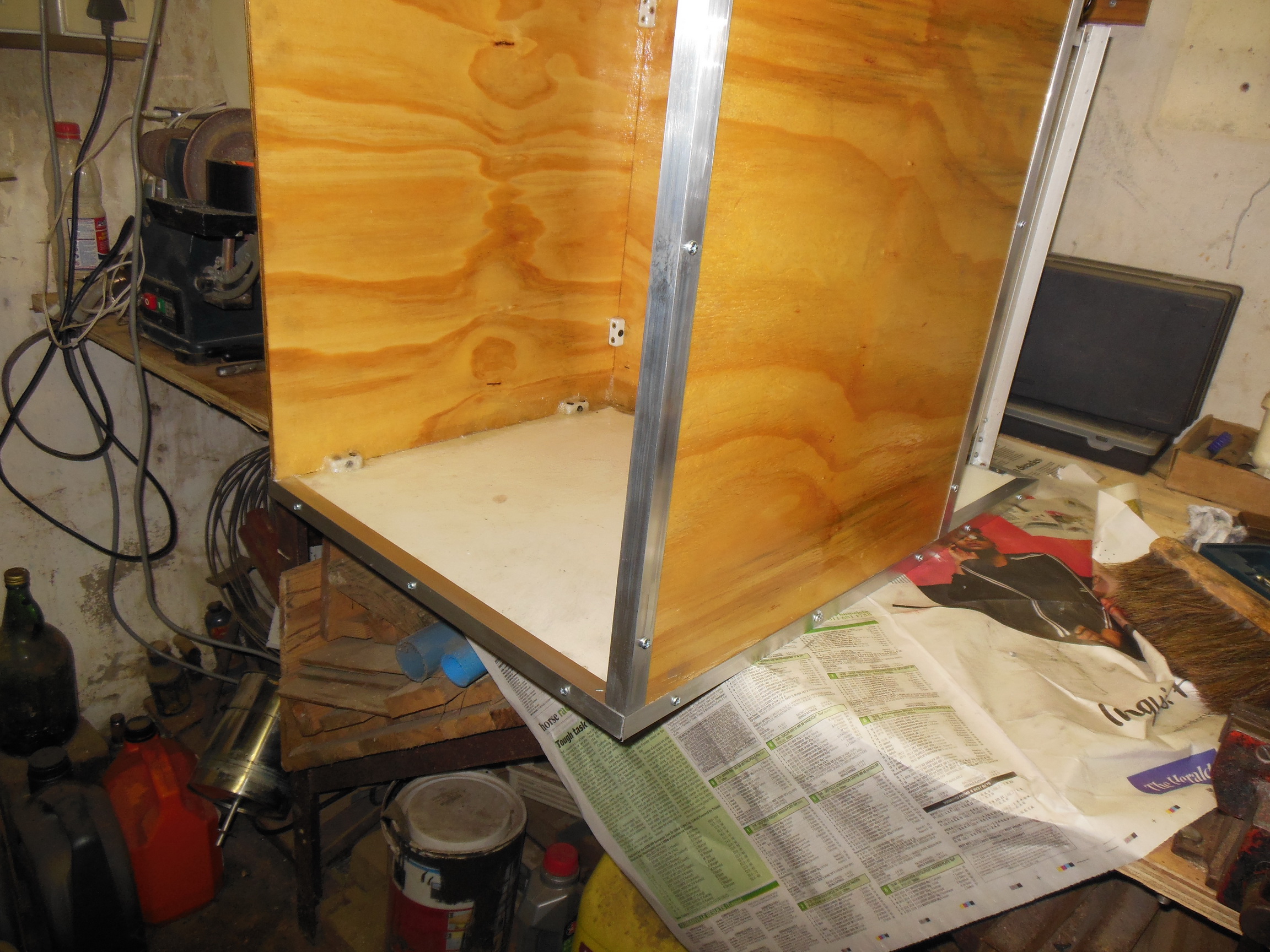

Photo 25 - Upper view of completed side trim. Butt joints where the vertical meets the horizontal because I wasn't going to try and mitre 45° cuts in two directions. Top trim has 45° mitre cuts for the top circuit.


Photo 26 - Lower view of completed side and lower front trim.

Tomorrow, continuing on with the trim application on the top and other side. Following that, looking at the door structure and how to hinge and latch it.

Also to-do is a 35mm layer of expanding polyurethane foam on the bottom to provide an insulation layer that is hard enough for the fermenter to sit on and to investigate the insane feasibility of using same expanding foam to do the sidewall and roof insulation layers instead of either the polyester fiber blanket or polystyrene sheeting as discussed previously.

OP
bruce_the_loon

bruce_the_loon

Well-Known Member
Joined
Nov 21, 2015
Messages
640
Reaction score
436
Location
Port Elizabeth, South Africa
Finished fitting the rest of the trim, closed the last couple of gaps in the upper chiller box and positioned the fan for the upper chiller box.


Photo 27 - Left side view.


Photo 28 - Frontal view


Photo 29 - Right side view


Photo 30 - Mounting position for the upper chiller box fan. Wires routed outside via a small hole in the chiller box.

Door needs to be cut to size, sealed with polyester resin on the inside face and varnished on the outside. Also hunting suitable aluminium profile to edge the door nicely.

Coming along nicely I think.


Pozzi

Supporting Member
HBT Supporter
Joined
Jul 29, 2020
Messages
41
Reaction score
18
I'm really interested to see how this works when it's done, I have a water cooler that's in good working order and I no longer need. I'm keen for the project if it works!


Ragman

Well-Known Member
Joined
May 22, 2020
Messages
189
Reaction score
85
Location
Hamlin
This looks incredible! What ingenuity! Great job! Cant wait to see the finished product.

OP
bruce_the_loon

bruce_the_loon

Well-Known Member
Joined
Nov 21, 2015
Messages
640
Reaction score
436
Location
Port Elizabeth, South Africa
Quick update, slow movement again. Got the front door cut to size, sealed, varnished and ready to apply the trim.

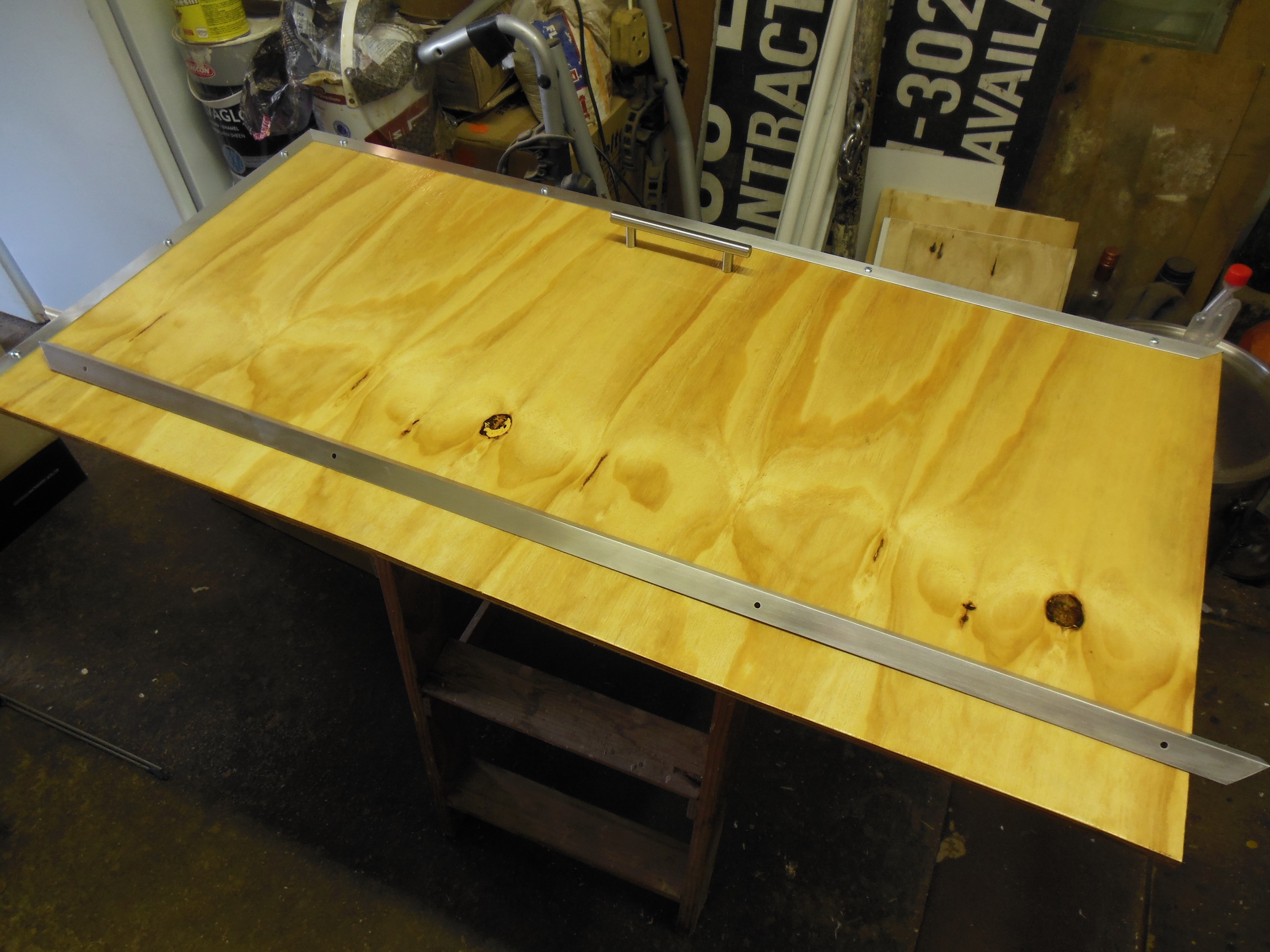

Photo 31 - Door with first trim fixed into place. All going according to plan to finish the door today.


Photo 32 - Door with one long edge trim fitted and with the second long edge ready to mount.

Ran into an issue with the second long edge, put the trim in place and found that there was significant rocking along the length. Ran a straight edge along the door and found a 12cm long section that was up to 3mm outside the straight edge. Rasped it down to flat and reapplied the varnish. Going to put the second and third coats back on the rasped section tomorrow before I can fit the trim strip. Grrrrr.

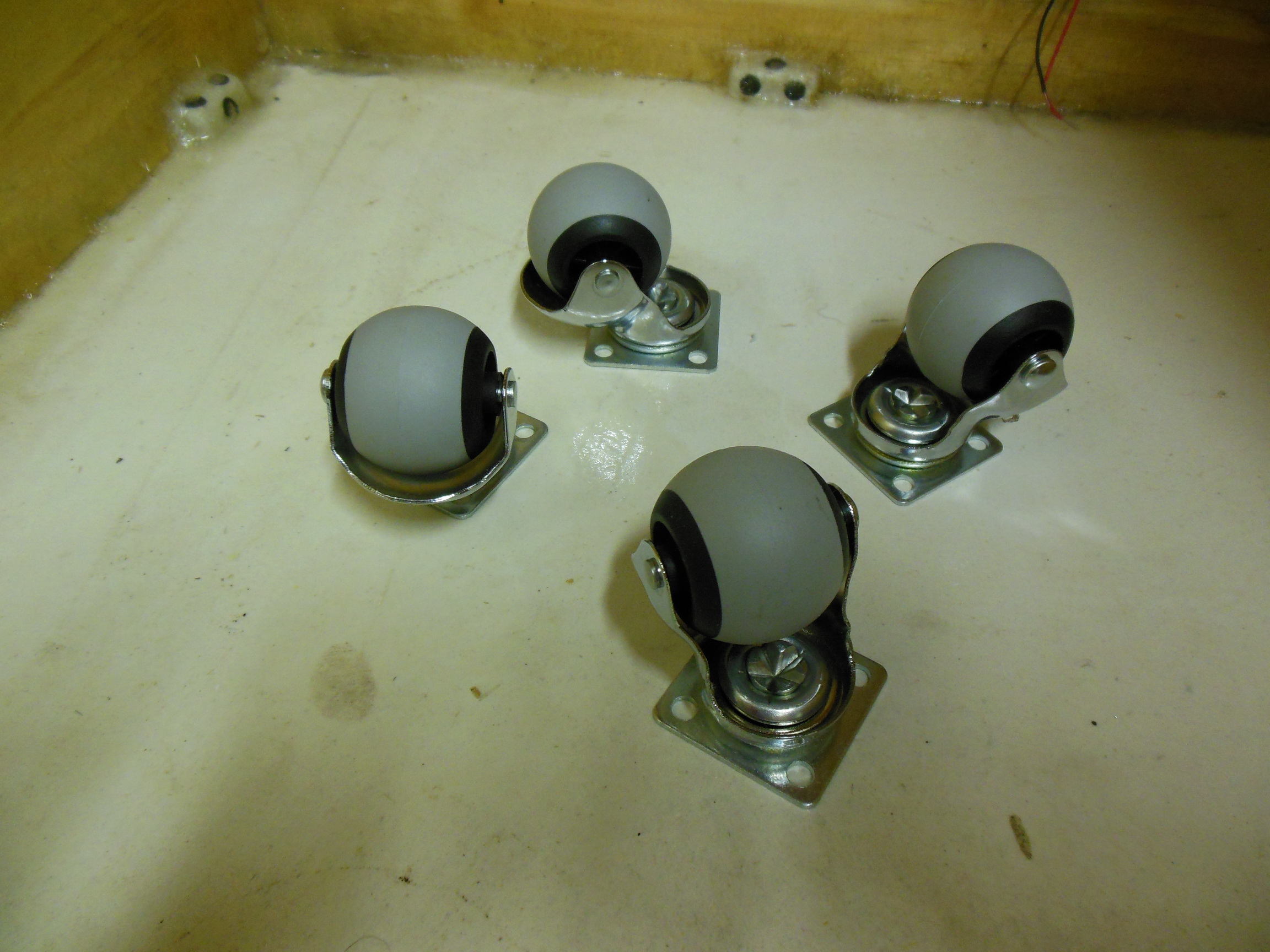

Photo 33 - Casters to allow the whole chamber to be wheeled around.

Got hold of the casters and mounting hardware for the chamber. Rubber wheels to be secured to the baseboard with 5mm self tappers.

Also got hold of the second fan, am waiting for the delivery of a pair of finger protection grills as I've already hurt myself catching a spinning fan as it fell. Also in the same order is a miniature 12V power supply for the fans and a DC to DC USB converter board to power the RPi that records the Tilt from the 12V supply.

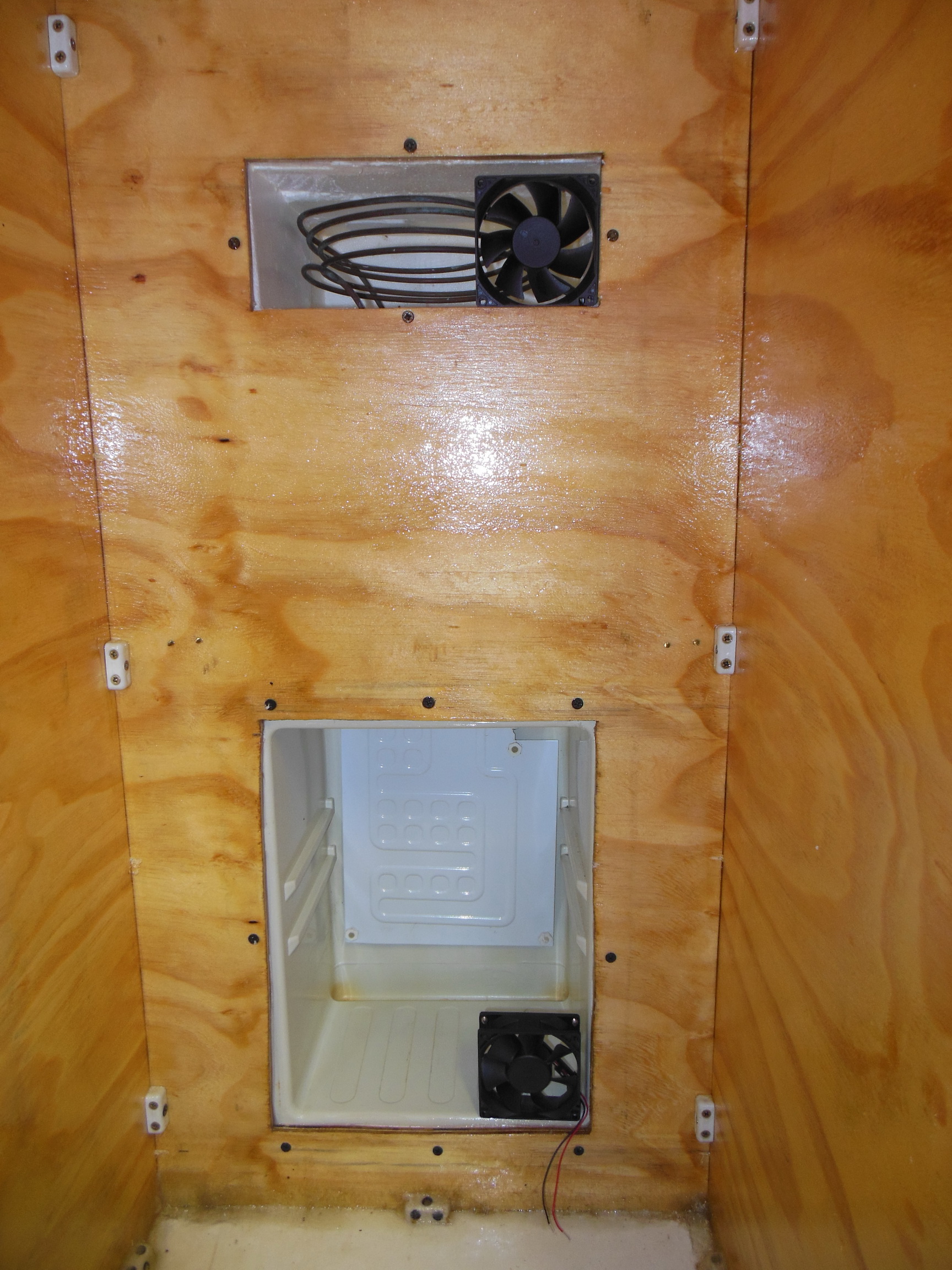

Photo 34 - Both fans roughly in place and needing mounting.

More to follow in the next couple of days.

OP
bruce_the_loon

bruce_the_loon

Well-Known Member
Joined
Nov 21, 2015
Messages
640
Reaction score
436
Location
Port Elizabeth, South Africa
More updates. Got the door finished and a layer of the expanding spray foam on the bottom. It shaves well with the rasp and hacksaw blade, but is still kind of saggy under load. Will see how it goes after a day or so to see if it gets harder all the way through. Otherwise, I've found where I can get expanded polystyrene sheeting of a suitable size.

Photo 35 - Door with all trim installed.

Photo 36 - Inside of the door with the foam seal tape in place. Might have to double up on the width to fit the insulation sheeting into the doorway.

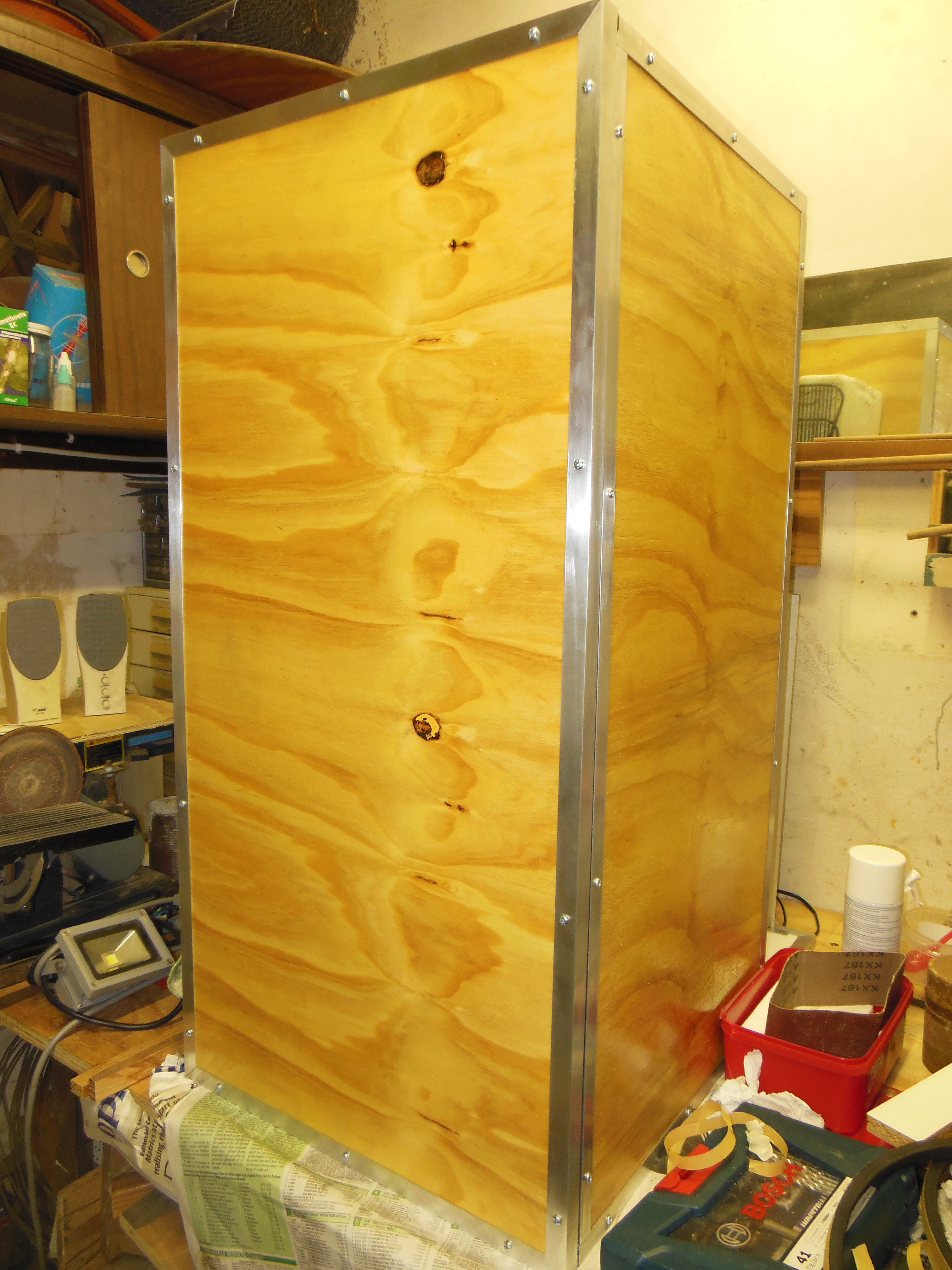

Photo 37 - Door pretending to be attached to the chamber. Held in place by 1/4" strip of Gorilla tape.

Photo 38 - Expanding spray foam. Reached the right depth I wanted and it shapes well. Trial shaping in the back left. Bit saggy under pressure.

Next steps, procure some EPS sheeting, some latches to hold the door on and figure out the hinge mountings on the door.

Also, see what the spray foam does after a day of hot curing, 28°C days at the moment and decide whether to complete the spray or replace with EPS sheeting.

OP
bruce_the_loon

bruce_the_loon

Well-Known Member
Joined
Nov 21, 2015
Messages
640
Reaction score
436
Location
Port Elizabeth, South Africa
Today's partial update. Removed the expanding spray foam as it wasn't up to supporting the load of a fully loaded fermenter. Started sagging a bit. So decided to go with EPS on the bottom as well. Hopefully that works.

Mounted the casters underneath the cabinet and the two fans including finger protection grills inside. Started fitting the insulation, but the heat of the day beat me back eventually. Cooler and rainy weather tomorrow, so should be able to finish the insulation.

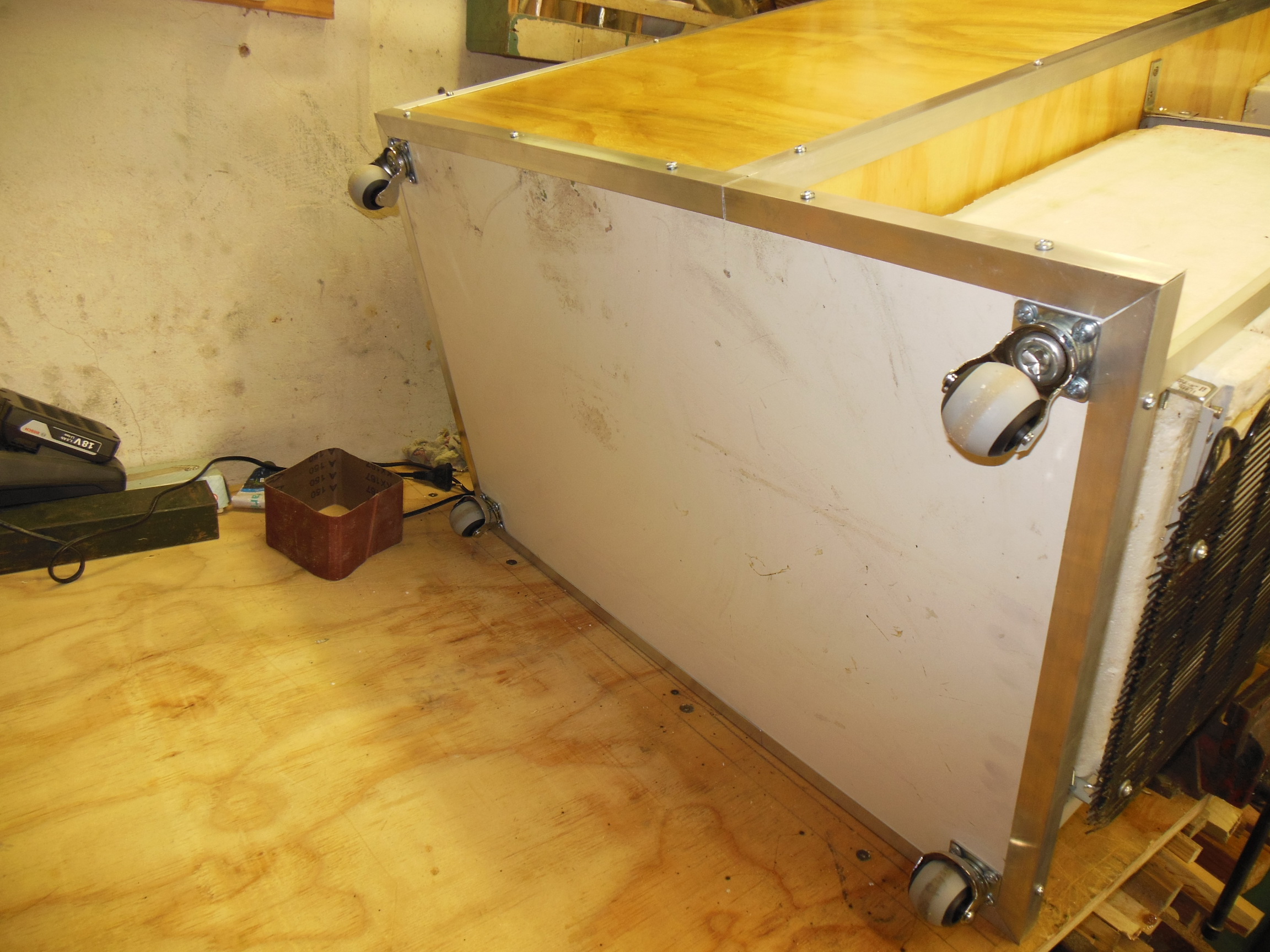

Photo 39 - First two casters attached to the base.


Photo 40 - Close-up details of one of the casters.


Photo 41 - All four casters mounted on the base. Can now swing it around on the bench easily.

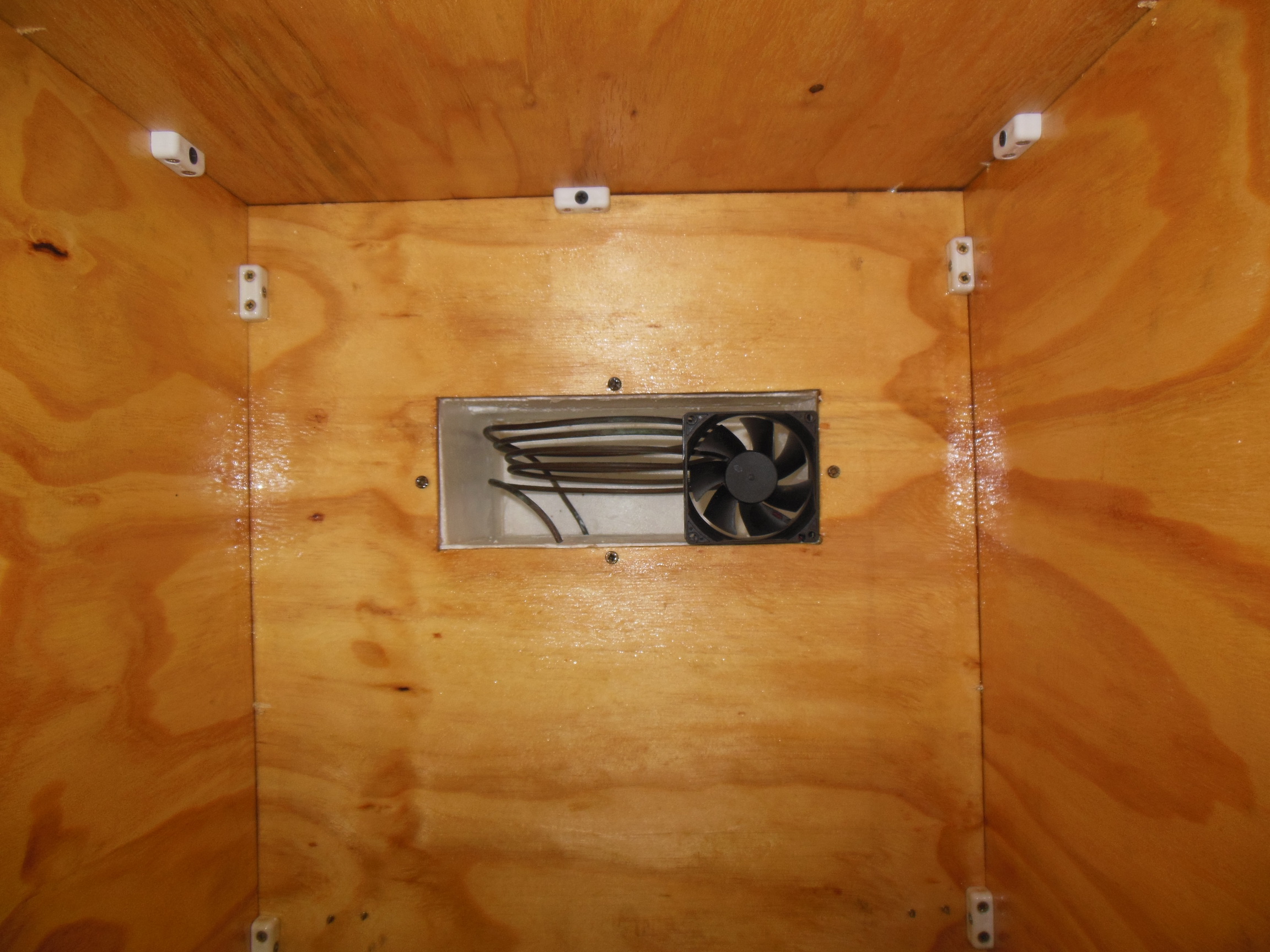

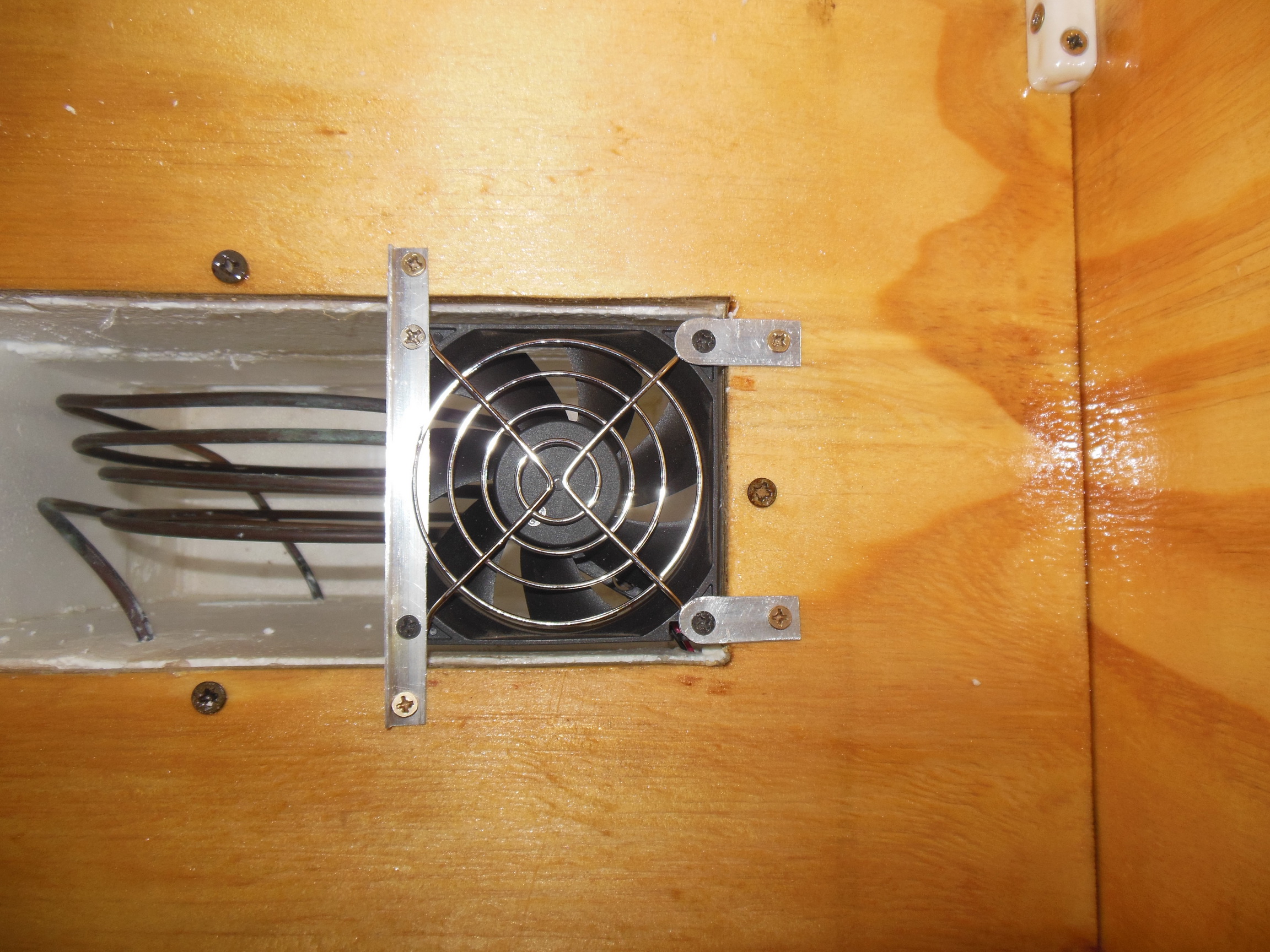

Photo 42 - Upper chiller fan mounted and cable routed out.

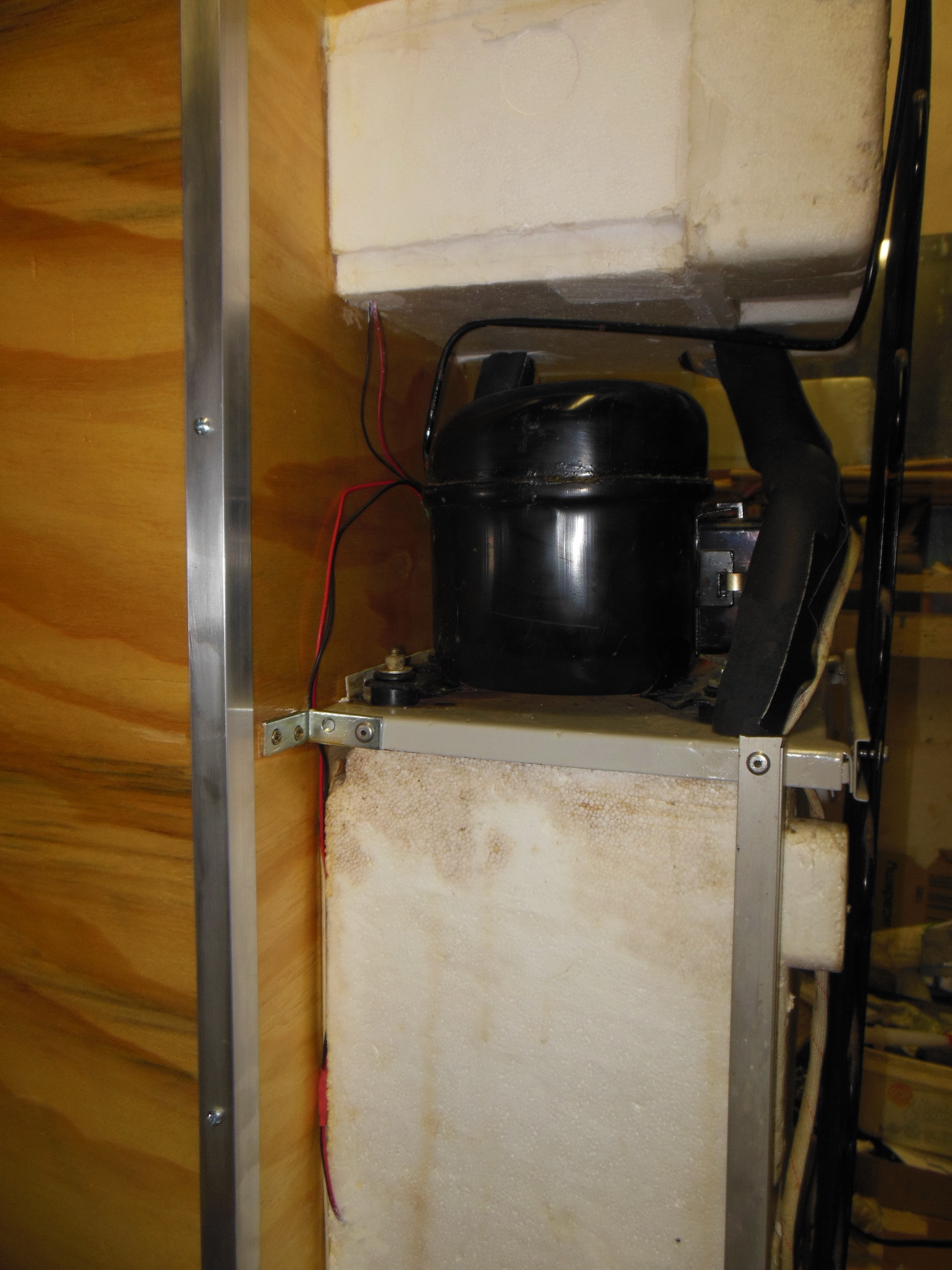

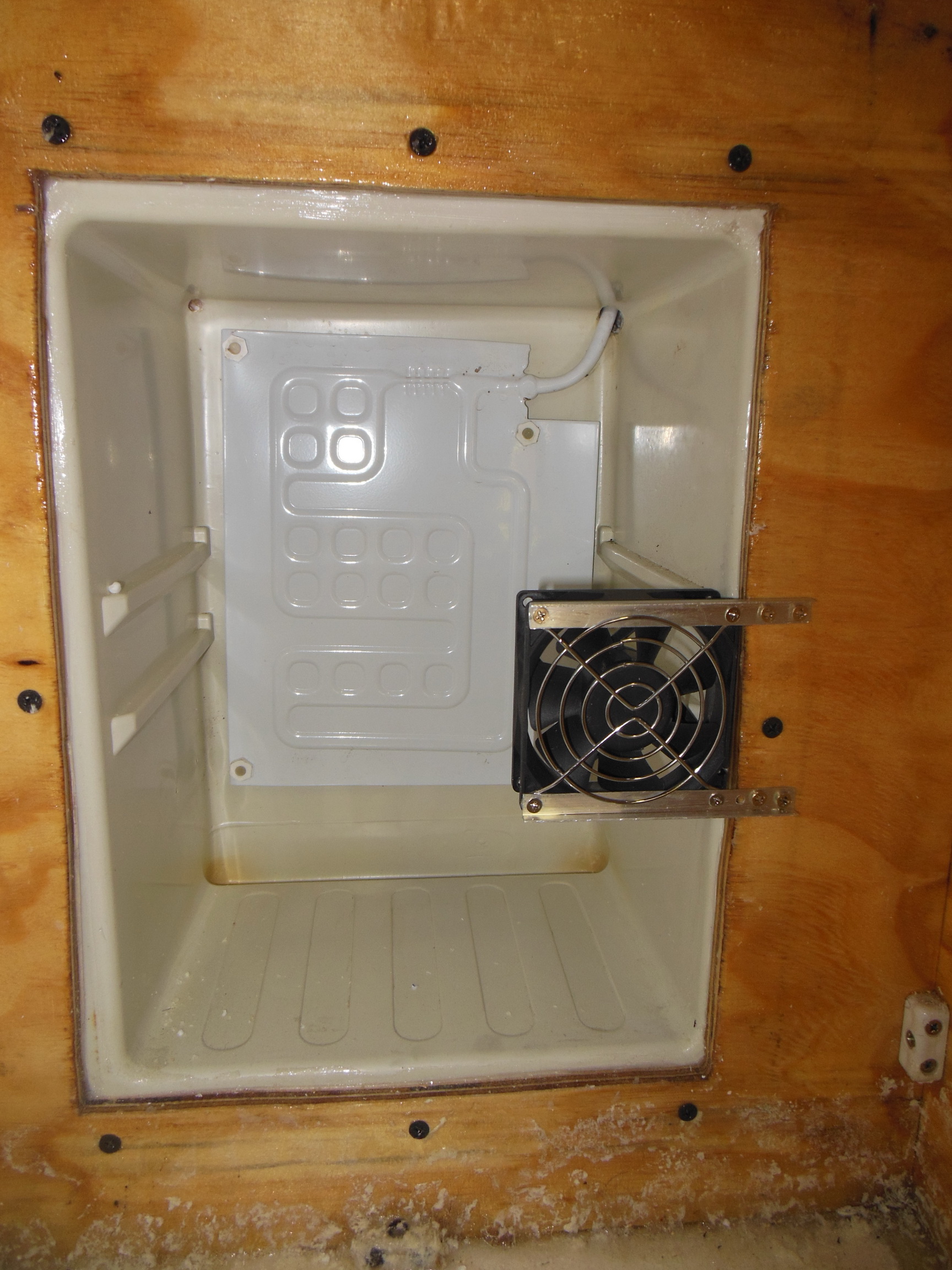

Photo 43 - Lower chiller fan mounted.


Photo 44 - Close-up details of the lower fan mounting.


Photo 46 - Cabinet with both fans mounted and the left side EPS insulation cut and fitted.

Once all the internal insulation is in place, the door insulation panels will be fitted so the two sections slot together as the door closes. Once that is finished, temporary wiring needs to be done before a fermenter will be placed inside, the door strapped into place and a cooling test done. Almost there.

OP
bruce_the_loon

bruce_the_loon

Well-Known Member
Joined
Nov 21, 2015
Messages
640
Reaction score
436
Location
Port Elizabeth, South Africa
Got it to run and hold temperature today.

Finished the installation of the side, bottom and top insulation, wired up the fan power supply and the STC-1000 to the compressor and ran a closed chamber test. Dropped a bottle of water from 22.6°C to 18.0°C set temperature in under two hours.


Photo 47 - Installed the right side insulation next. Same process as the left.

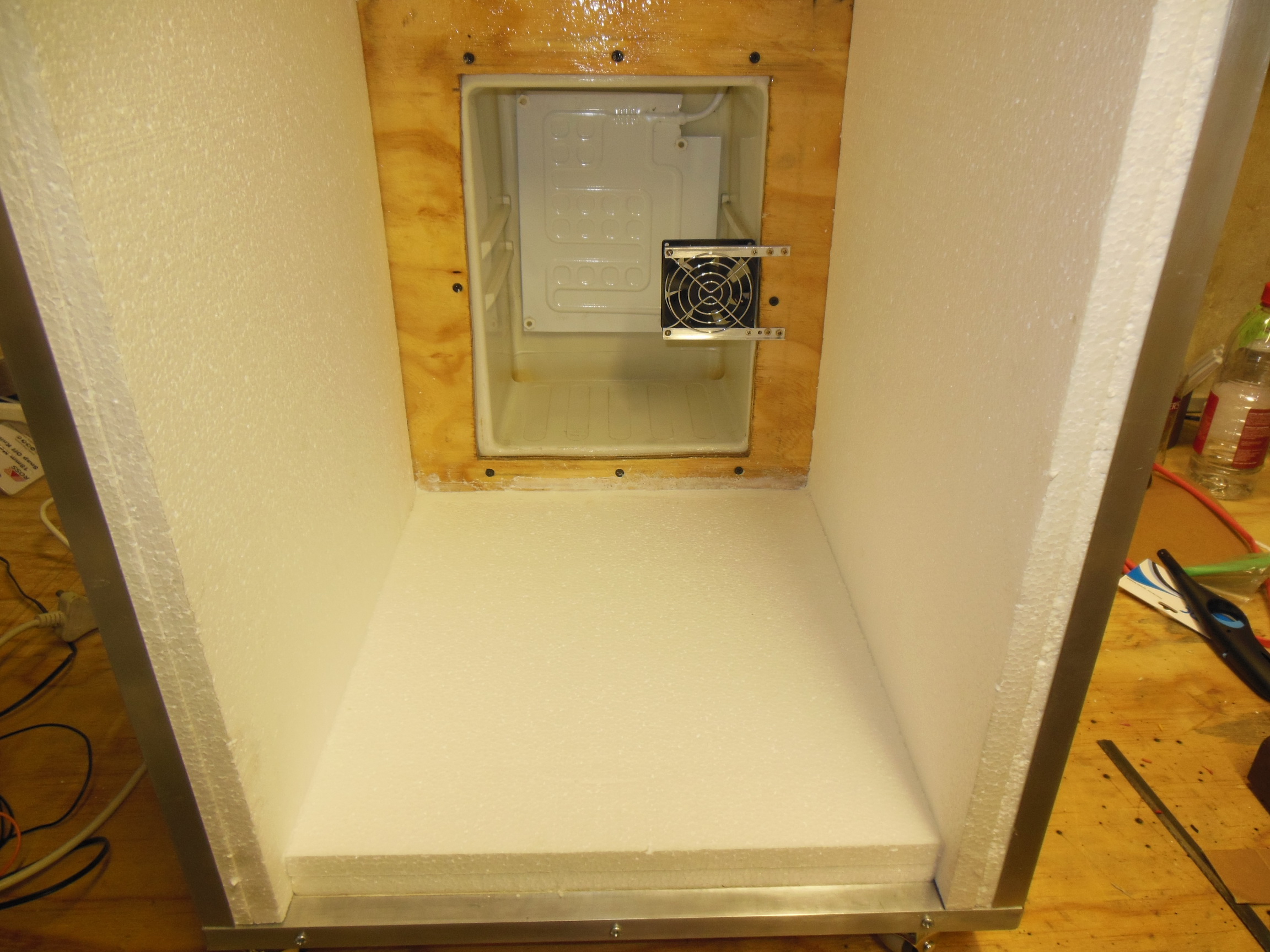

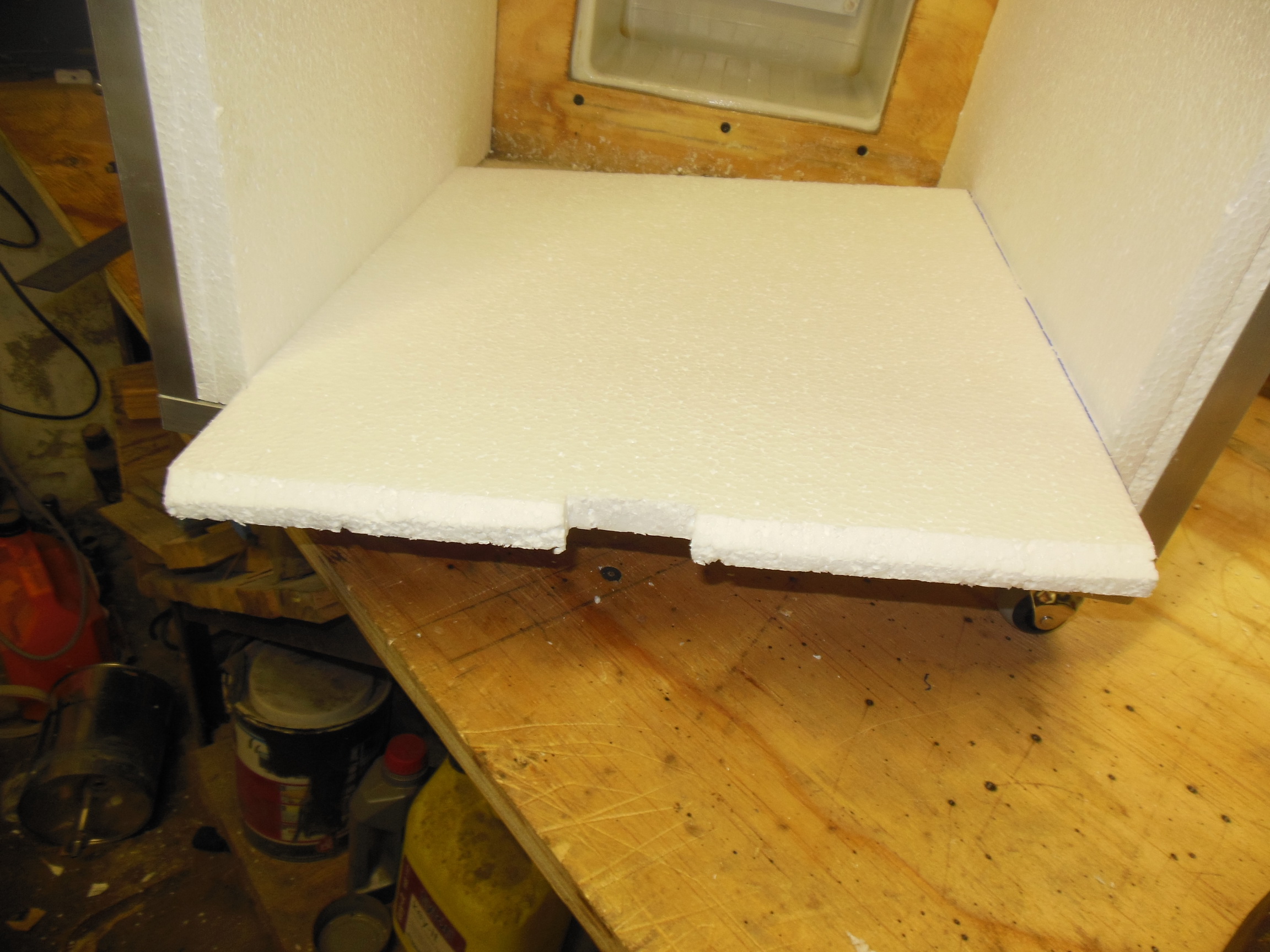

Photo 48 - First later of the bottom insulation. Beveled to fit around the fibreglass sealing edge.


Photo 49 - Bottom insulation installed and sealed in place. Recessed to allow for the door insulation to slot in.


Photo 50 - Roof insulation installed and recessed.

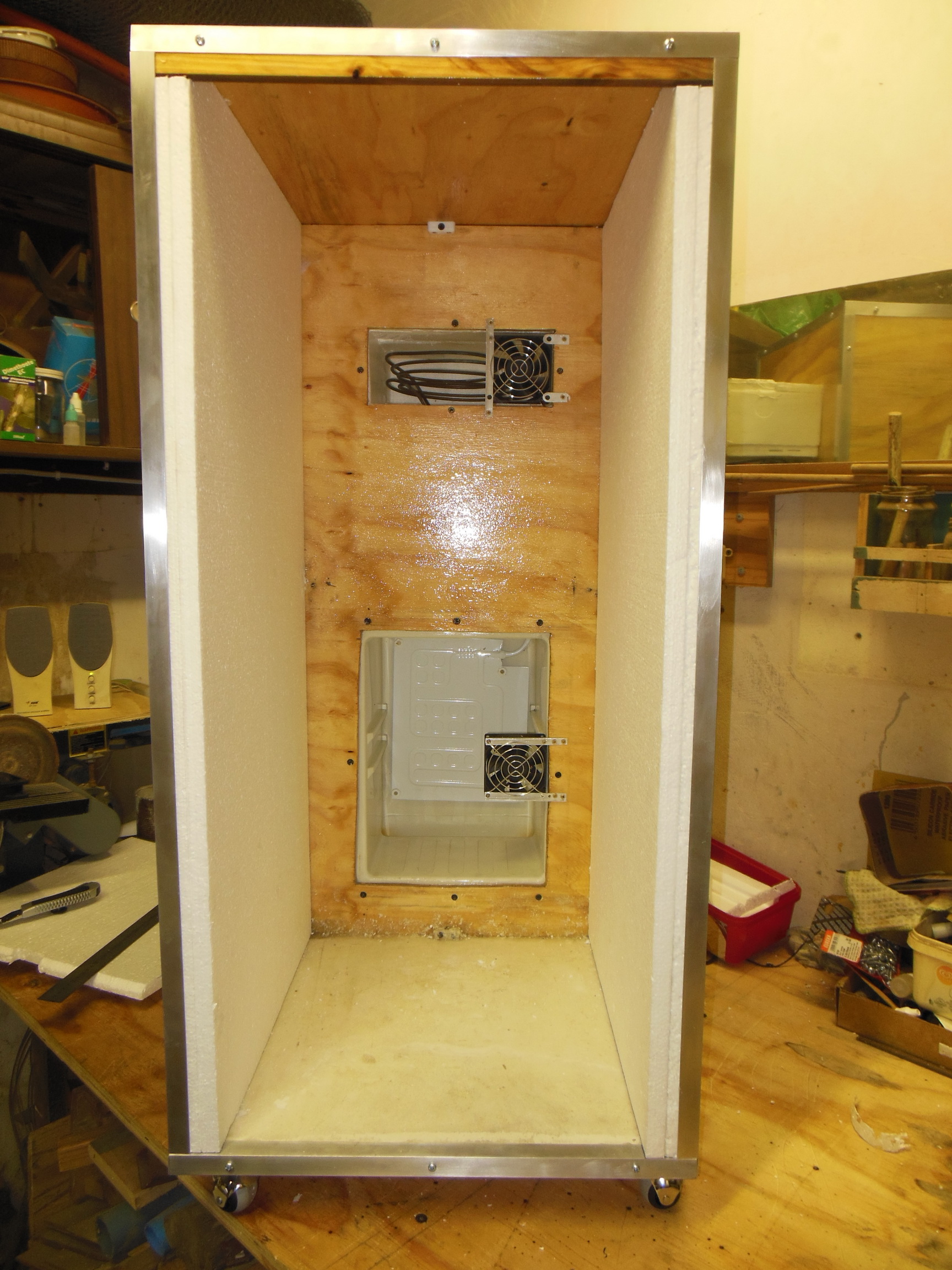

Photo 51 - Full view of the side, floor and roof insulation completed. STC 1000 probe run through an old thermostat hole in the mini-fridge chamber.


Photo 52 - Fan wiring soldered, heat-shrunk and "neatly" routed.


Photo 53 - Start of the cooling test. 22.6°C at the time of the photo.


Photo 54 - Post cooling test. Sensor in bottle of water reached 18.0°C and shut off the compressor. Air temp in the chamber itself was at 16.6°C

So the whole thing appears to work reasonably. Still need to test with a full fermenter and see how it handles the changed airflow patterns around the fermenter. That needs to wait until I finish crafting the front and back insulation and get the door mounted.

Had a casualty today, the Nikon S6300 point-n-shoot that's been taking most of these photos had a lens drive gear that's been giving issues for a few years now finally let go. Was a nice lightweight camera that worked nicely alongside the big Nikon DSLR which I've reverted to. And apparently Nikon only does a small handful of compact point-n-shoot cameras now.

Joined
May 19, 2020
Messages
219
Reaction score
212
Location
Keizer
Looks awesome so far! Glad you were able to get a test in and see where it's at. It's a bummer your trusty cam died on ya. Excited to hear how it does with a loaded fermenter.

OP
bruce_the_loon

bruce_the_loon

Well-Known Member
Joined
Nov 21, 2015
Messages
640
Reaction score
436
Location
Port Elizabeth, South Africa
Running a temperature maintenance test. Seems to be pretty good at the job.

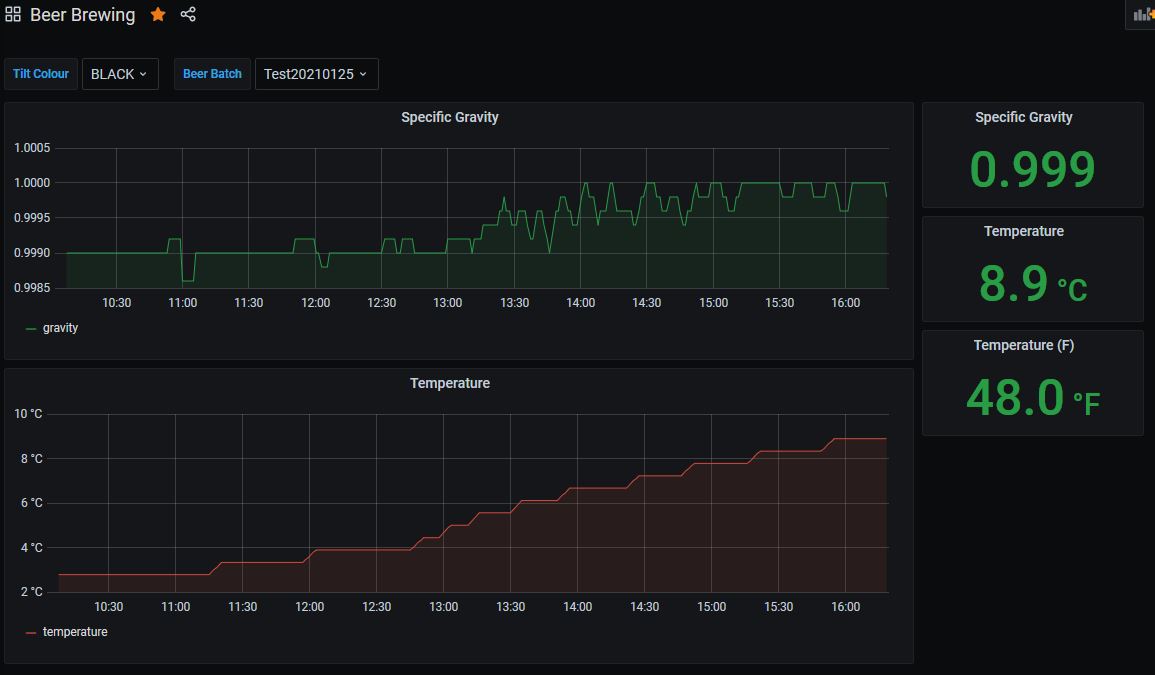

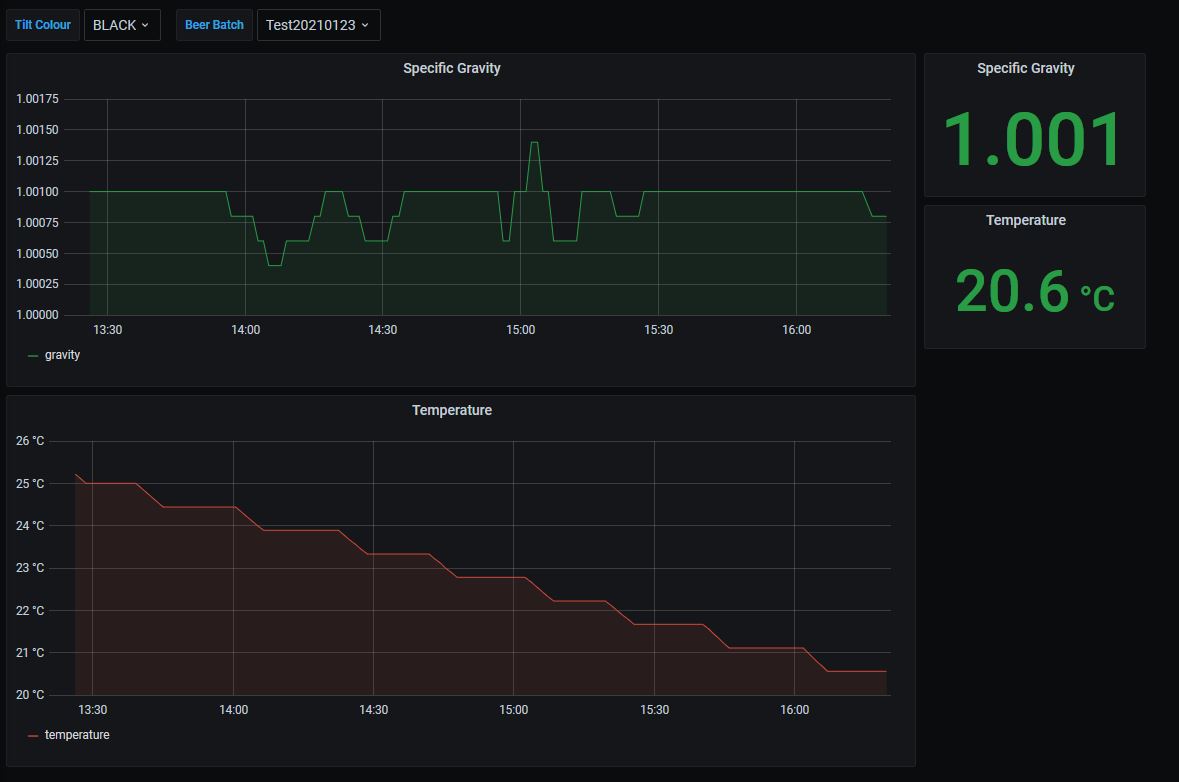

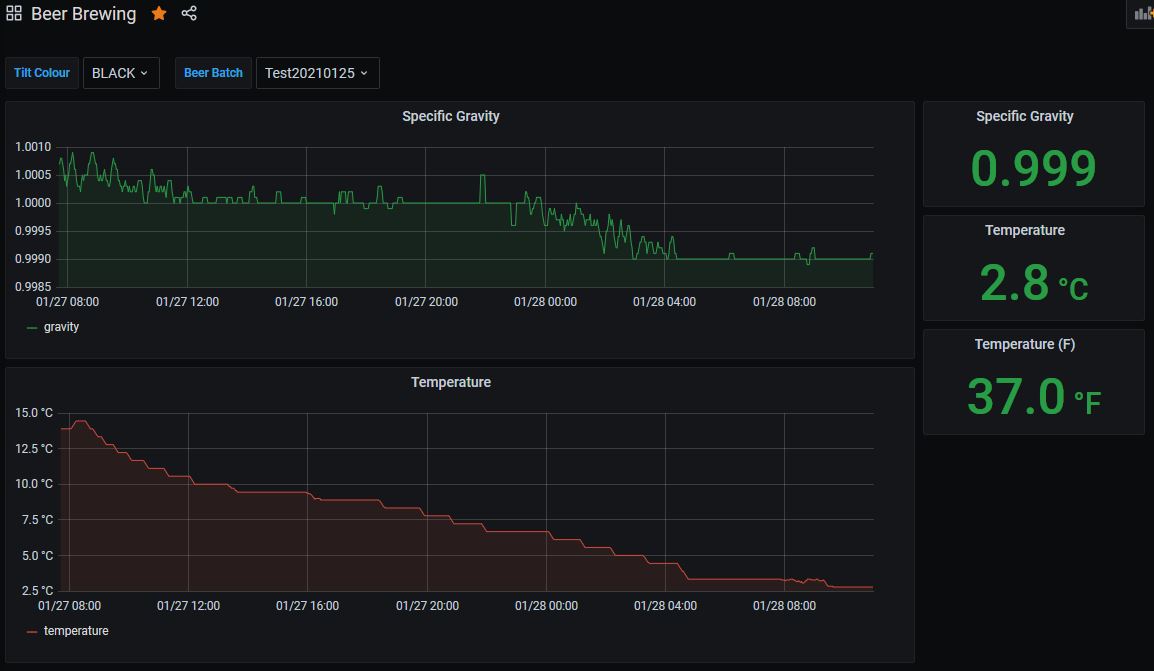

Diagram 1 - Tilt plot of temperature inside the fermenter for the first 3ish hours.


Diagram 2 - Tilt plot of temperature inside the fementer with steady maintenance from about 17h20 onwards.


I think I need to insulate the sensor a bit better than it is now, there is still some air-temperature swing happening on the STC-1000 display.

OP
bruce_the_loon

bruce_the_loon

Well-Known Member
Joined
Nov 21, 2015
Messages
640
Reaction score
436
Location
Port Elizabeth, South Africa
More temperature and cooling tests with graphs from the Tilt.

First, dropping to 18°C and holding for several hours, changing the STC-1000C's differential from 0.5° to 1° with no visible difference to the temperature as measured inside the fermenter by the Tilt. Duty cycle in holding mode with differential of 0.5° is about 2 minutes on, 7 minutes off and differential of 1° is about 3 minutes on and 13 minutes off.


Diagram 3 - Temperature maintenance plot from Tilt data.

Next I began a series of stepped temperature drops to see how low I can get the fermenter. Following online advise to use steps to reduce the load on the compressor. First I set the target temp to 12°C and let it reach there and get to the maintenance duty cycle, then dropped it to 9°C. When I went to bed last night, I switched the compressor off to see how well the insulation contains the temperature. It climbed back from 10°C to 14° over 7 hours without maintenance.


Diagram 4 - Stepped temperature drops and insulation cold retention test plot.

Today I've been running from the 14°C plateau stepping down to 12°C, 9°C, 5°C and then to 3° letting the fermenter reach equilibrium each time. It is currently on the step to 5°C. Will post those results as soon as they are completed.

It does look like this will be able to cold-crash nicely as well as maintaining the temperature profile for the actual fermentation without taxing the small compressor. A power monitor on the compressor shows it is pulling 0.177kVA at 230V when running.

Going to start building the power system housing now and looking at the effect of active air movement on the radiator of the chiller.

OP
bruce_the_loon

bruce_the_loon

Well-Known Member
Joined
Nov 21, 2015
Messages
640
Reaction score
436
Location
Port Elizabeth, South Africa
Testing finished for now. I am a happy camper.

Ran a cold-crash test and got it down from 14°C to 2.8°C as measured by the Tilt over a 26 hour period. Forced air cooling of the radiator is definitely needed to both ramp up the chill speed and to get it down to below 6°C without running the compressor completely. I will put in a couple of 50mm blower fans that are used on 3D printers to push flow over the radiator.


Diagram 5 - Cold crash temperature plot from the Tilt.

I powered off the compressor system and then let it warm up from any ambient source. It took 6 hours for the Tilt to warm from 2.8°C to 8.9°C and that was only the upper levels of the fermenter water. After removing the fermenter, I used my digital thermometer to check and found the Tilt was accurate at the surface, but deeper in the water body, the temperature was still at 6°C, so there was some temperature stratification going on. The STC-1000C reading was 11.9°C from the sensor strapped to the fermenter and covered with some pipe lagging material at the same time.


Diagram 6 - Temperature rise with compressor off and chamber seal by the Tilt.

Still working on the electronics enclosure now that I can remove the STC-1000C and mount it. Also need to work on some joint sealing and the drains for condensation in the chiller boxes.

OP
bruce_the_loon

bruce_the_loon

Well-Known Member
Joined
Nov 21, 2015
Messages
640
Reaction score
436
Location
Port Elizabeth, South Africa
Now building the controller box. Cut the holes for the various modules and filed to fit, drilled the mounting holes and cleared out all the metal fragments that magically appeared when drilling.

Very simple circuitry, the STC-100C mounted on the front panel switching AC power to the 12V power supply and the compressor unit. Mounted a screw terminal block in the case and began wiring up. First two pictures are different stages of the wiring up process.

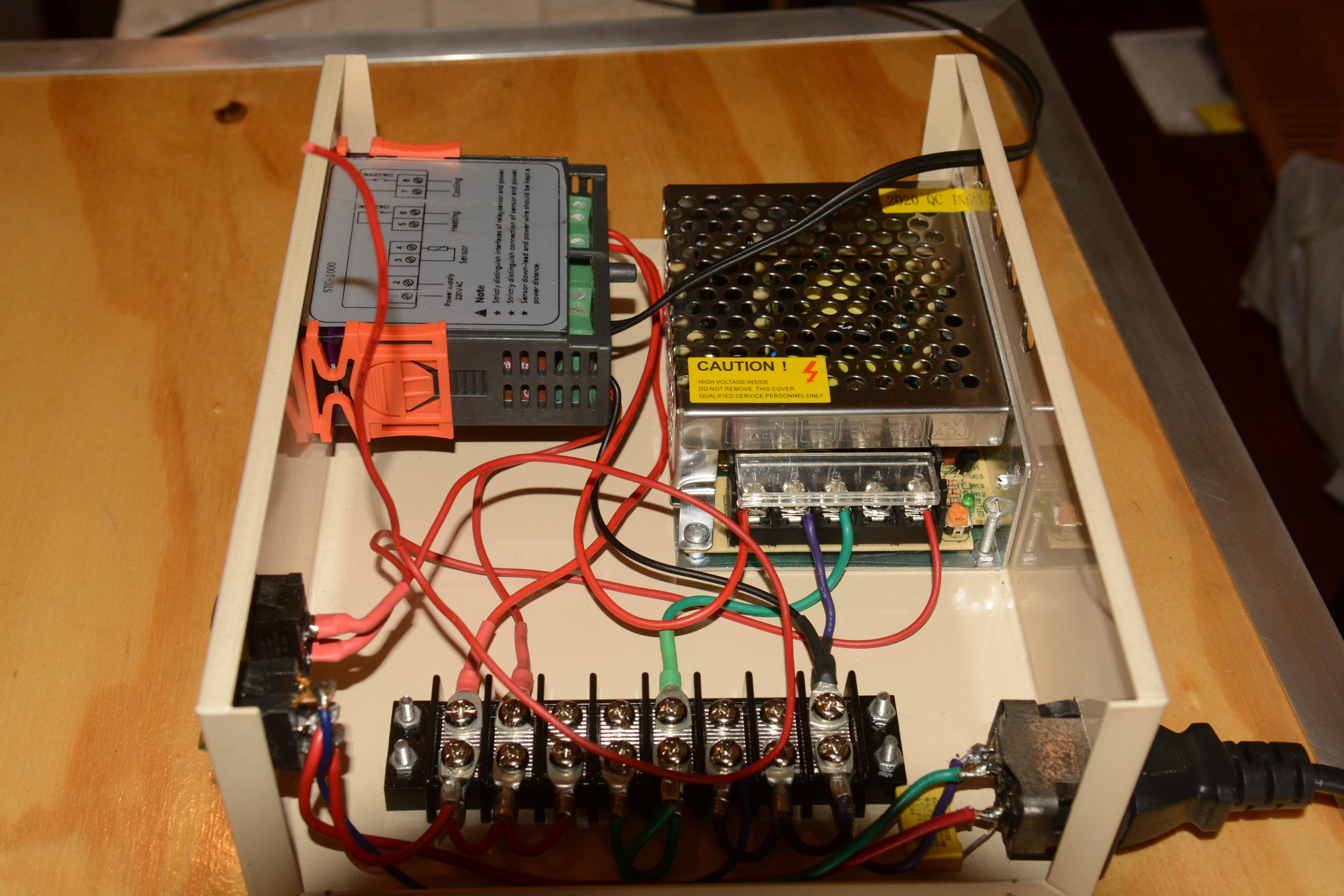

Photo 55 - Power input side wiring in place on terminal strip.


Photo 56 - Further wiring progress with cooling relay connected to live and then to the 12V PSU.

Ran a temporary hookup to the temperature sensor and powered it up. The STC-1000C is noisy when it doesn't have a temperature sensor connected. Ask my ears how they know. Controller ran as expected and closed the relay to power up the PSU and the compressor which wasn't connected.

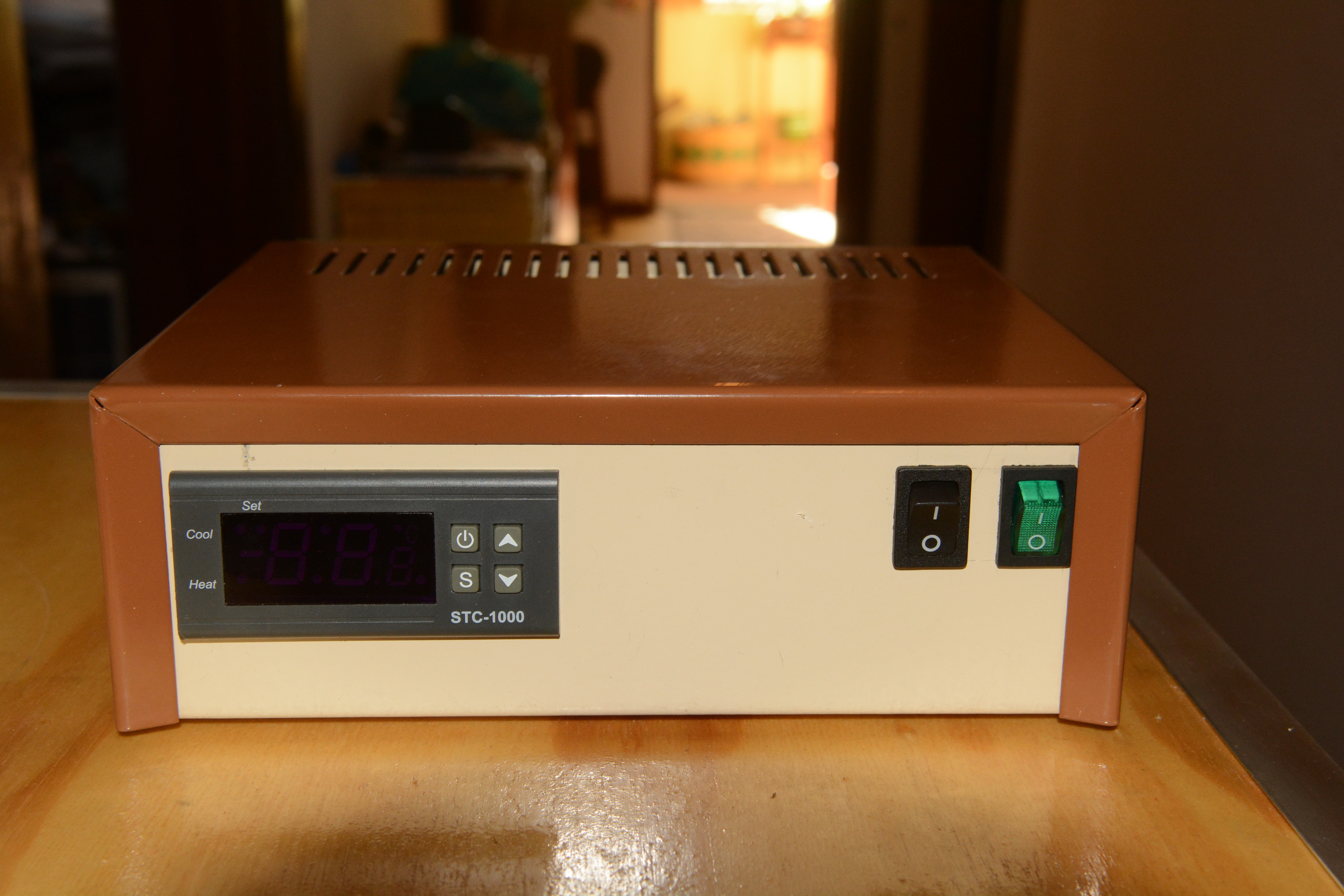

Photo 57 - Front shot of the controller running.

The green switch is the master power switch for the controller and the black switch is a 12V circuit to power the radiator blower fans when needed. The cooling tests done during the week showed the chamber able to hold fermentation temperatures without needing forced air over the radiator, but cold-crashing will need it.

Final shot is of the controller with the cover on.


Photo 58 - Controller with cover on.

Ran into an amusing design problem. I was going to power a dismantled car USB charger thingy from the 12V PSU so that the Raspberry Pi could be powered from the same place rather than running a second power cable. However I realized that since I am driving the AC into the 12V PSU via the cooling relay contacts, I would just be powering the rPi up and down all the time.

Thinking about what I'm going to do. Will likely power the PSU directly from the terminal blocks and use the relay contacts to switch another dual pole relay that switches the AC to the compressor and 12V from the PSU to the fans. That will allow the rPi to be powered as long as the green switch is on.

OP
bruce_the_loon

bruce_the_loon

Well-Known Member
Joined
Nov 21, 2015
Messages
640
Reaction score
436
Location
Port Elizabeth, South Africa
Quick update on the fermentation chamber build. Most of the wiring harness has been completed with only the two blower fans unsecured as the mounting frame is not yet completed.


Photo 59 - The lower half of the wiring harness with the AC cable to the compressor and the temperature sensor cable.

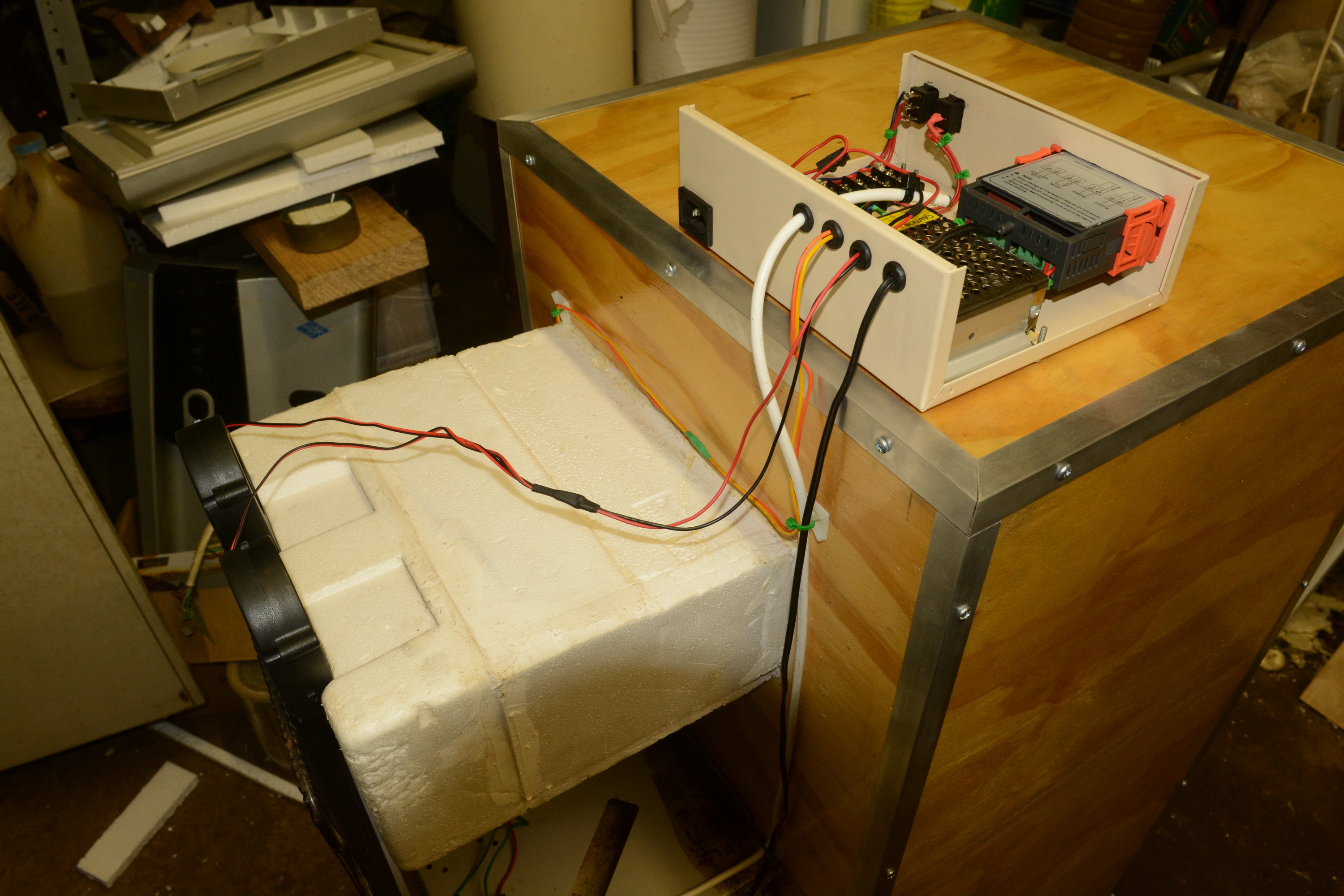

Photo 60 - Upper wiring harness with the circulation fans (orange/yellow) and blower fans (red/black) circuits.

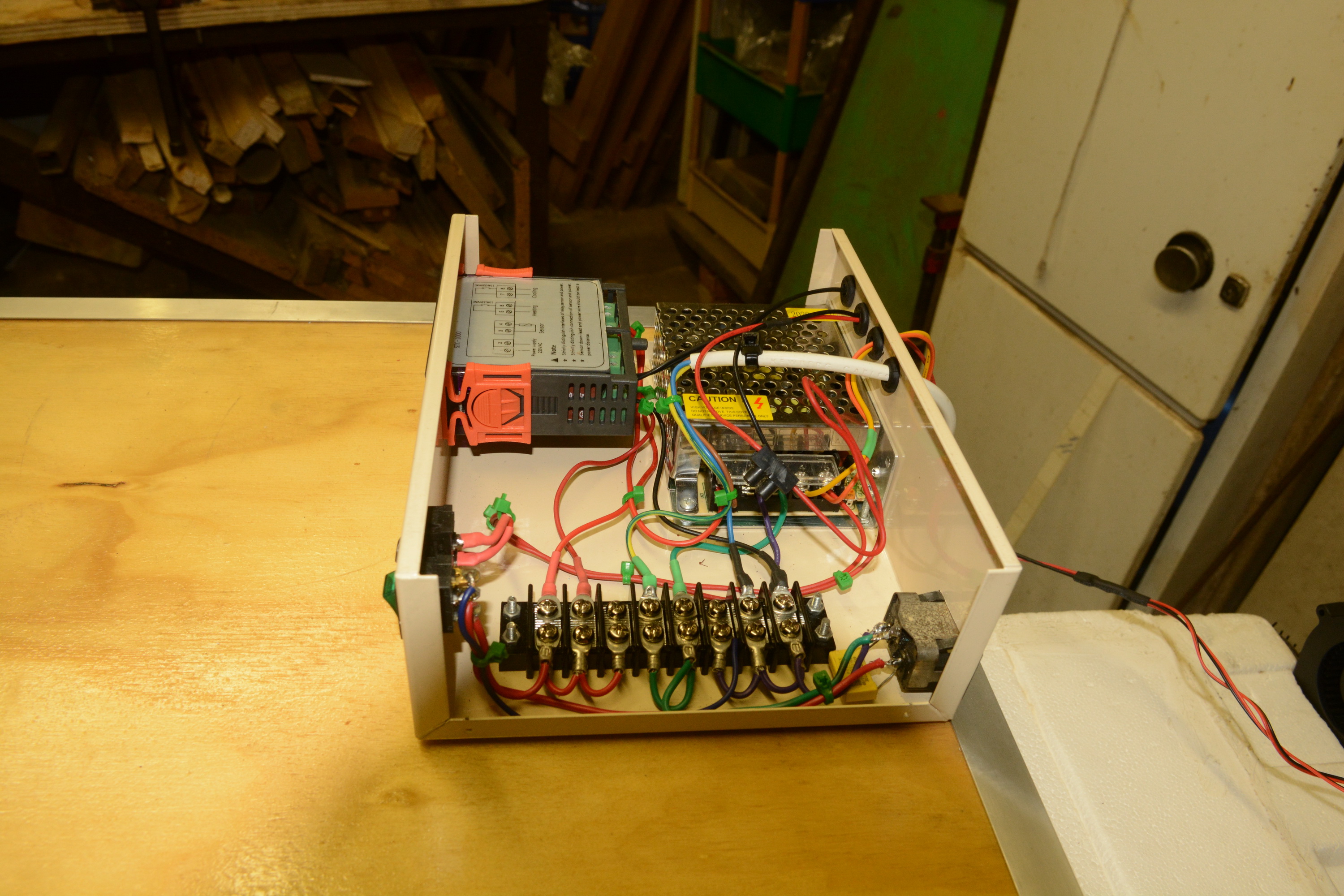

Photo 61 - The finished controller with all circuits connected.


Photo 62 - The controller with the cover on and in position on the fermentation chamber.

The door latches are on their way from Amazon via snail, tortoise and plate tectonics, but that won't delay the first brew going into the chamber this coming week. Have to finish the mounting frame for the blower fans and decide whether to put side panels on the compressor section.

Almost done.

OP
bruce_the_loon

bruce_the_loon

Well-Known Member
Joined
Nov 21, 2015
Messages
640
Reaction score
436
Location
Port Elizabeth, South Africa
This is amazing!
How are you measuring specific gravity?
I have a Tilt bluetooth hydrometer and a RaspberryPI with a Python script called PyTilt which was modified slightly to log the temp and specific gravity to a time series database called InfluxDB and then use Grafana to plot the graphs as captured about.


OP
bruce_the_loon

bruce_the_loon

Well-Known Member
Joined
Nov 21, 2015
Messages
640
Reaction score
436
Location
Port Elizabeth, South Africa
Nog 'n update (translated Yet another update)

Sorted out a few small things this day.

Installed the drain lines for the condensation traps in both chiller boxes, need to find a suitable collection box to catch the effluent; finished securing more of the wiring harness and designed some Perspex spacers to keep the upper chiller coil from vibrating when running.


Photo 63 - Upper chiller drain line glued in place.


Photo 64 - Full view of both drain lines ending where the collection tank will be located.


Photo 65 - Secured wiring and new cold circuit insulation in place.


Photo 66 - Two of the three Perspex spacers made to keep the coil from rattling against itself.

Still waiting for the Amazon package, somewhere in Dubai at the last tracking point.

OP
bruce_the_loon

bruce_the_loon

Well-Known Member
Joined
Nov 21, 2015
Messages
640
Reaction score
436
Location
Port Elizabeth, South Africa
Spent some time fabricating the blower fan mounting bracket from some aluminium angle, couple of steel brackets and the last remaining salvaged channel bar from the water cooler. Either I've lost the bottle of 4mm x 8mm rivets or I used them up during this project. So the brackets that barely carry any load had to be assembled with 5mm rivets.


Photo 67 - Assembled blower fan bracket with fans mounted and ready to be fitted to the chamber.


Photo 68 - Blower fan bracket mounted to the chamber.

Starting to run out of things to do. Most of the structural work is done and just the closing side panels are waiting. The wiring harness for the blower fans needs to be extended and I need another couple of those cable-tie mounts to finish the harness completely. Time to raid another server accessories packet at work.

The perspex brackets on the upper chiller coil eliminated the vibration I was hearing, but introduced another buzz. Placed a strategic block of EPS between the side of the coil that floated free and the floor and that eliminated all extraneous sounds. To do - Reshape and glue the EPS block in place.

The full Mangrove Jacks SS fermenter left a discernible compression ring in the EPS floor of the chamber. Either a ceramic floor tile or a sheet of rigid plastic on top of the EPS will preserve the floor.

Considering a deflector panel to bounce the cold air from the upper chiller chamber down onto the fermenter, a bit concerned that the cold air just circulates above the fermenter as there is a large open space. A deflector panel would ensure it gets into the right area.

OP
bruce_the_loon

bruce_the_loon

Well-Known Member
Joined
Nov 21, 2015
Messages
640
Reaction score
436
Location
Port Elizabeth, South Africa
The package from Amazon containing the door latches and carrying handles arrived this morning. This evening I fitted the latches and the door can now hold itself closed against the seals. The two side panels salvaged from the water cooler have been modified to fit the sides of the compressor space, de-rusted and treated with rust converter. Tomorrow they will be sprayed with a metallic paint that vaguely resembles the original paint of the side panels.


Photo 68 - Door latches mounted on top of the chamber.


Photo 69 - Close-up of a fitted door latch.


Photo 70 - All door latches fitted and secured in the locked position.


Photo 71 - De-rusted side panels with rust converter applied.


Photo 72 - Right-hand side panel test-fitted in position.

After spray-painting tomorrow, the side panels will be fitted in place and outer mounting brackets for the sides fabricated. The carry handles, necessary for moving around the house with various staircases, will be mounted, one pair on the side panels and one pair on the fermenter chamber walls.

Then all that is left is to finish the wiring harness, make a cover to fit between the side panels and doing a final sanding and varnish coat on the sides of the fermenter chamber. I think there is less than a day's work to go.

OP
bruce_the_loon

bruce_the_loon

Well-Known Member
Joined
Nov 21, 2015
Messages
640
Reaction score
436
Location
Port Elizabeth, South Africa
If I could actually get some time to do a day's work on the chamber...

Not so bad actually. Spray-painted the panels as planned, fitted them in place, finished the wiring harness and started working on the rear cover panel. The carrying handles will be mounted once the side panels are fully secured to the frame.


Photo 73 - Completed upper wiring harness with extended blower fan cables and cable-tie blocks.

.
Photo 74 - Lower wiring harness completed with cable-tie blocks.


Photo 75 - Completed controller wiring with cable-tie blocks.

That concludes the electrical portion of the project. YAY.


Photo 76 - Spray-painted side panels in all their metallic glory.


Photo 77 - Left-hand side panel mounted in place after being spray-painted.


Photo 78 - Right-hand side panel mounted in place after being spray-painted. Note the two drain lines for the condensation emerging from inside.


Photo 79 - The plywood cover for the rear section has been cut to size and test-fitted.

Varnishing of the rear cover has commenced with the first coat applied to the visible surface. Debating on whether to edge all four edges with the angle aluminium trim or just the three exposed edges.

The door has been sanded down and received its final varnish coat, It is just the two side plywood panels that need the same treatment and the visual aspects will be completed as well. Mental note, must buy masking tape tomorrow.

This has been quite the journey, developing both my woodworking skills as well as figuring out how the cooling dynamics work in the chamber. I'm pretty sure I've got a fermentation chamber that can not only maintain the set fermentation temperature, but that can cold-crash as well. While the development and construction haven't been as smooth as hoped, the project still came in at about a third of the cost of a suitable refrigerator unit in South Africa.

I'll finish this thread sometime in the next few days with the final update on the handles, rear cover, final bits and pieces and lessons learned. I will be posting a new thread about the completed fermentation chamber and the first brew as soon as it happens.

OP
bruce_the_loon

bruce_the_loon

Well-Known Member
Joined
Nov 21, 2015
Messages
640
Reaction score
436
Location
Port Elizabeth, South Africa
So the universe decided to throw some titanium wrenches in the balsa wood gears and I've not been able to get too much done since the last post.

Finished the final varnish coat on all wooden panels with the last coat on the right side going on today. With the other panels completed a couple of days ago, I could also mount the left-hand side carrying handles. The final coat takes about two days to dry, so it will be Saturday before I can mount the right-hand side carrying handles.

Also been brainstorming how to secure the temperature sensor to the fermentation chamber until I can get a thermowell from China to put it in the liquid itself. During the testing phase, I had taped a block of closed-cell insulating foam over the sensor with gorilla tape. It did the job, but the tape is a pain-in-the-butt to use repeatedly and to peel it off the foam. I've now got some self-adhesive Velcro strips, the hooks will be stuck onto the foam block and the loops on the fermentation. Hopefully it will hold the foam and sensor tightly enough against the wall of the fermenter. Any suggestions would be welcome.


Photo 80 - Left side view of the chamber with the handles mounted.


Photo 81 - Closer view of the mounted spring-loaded handles.


Photo 82 - Varnished rear cover missing the aluminium edge trim.

Still to do, edge trim on the rear cover, mounting brackets to secure the side panels to the horizontal frames holding the radiator and the right-hand side handles.

OP
bruce_the_loon

bruce_the_loon

Well-Known Member
Joined
Nov 21, 2015
Messages
640
Reaction score
436
Location
Port Elizabeth, South Africa
And it is done. Complete. Finished. Klaar. No more work.

Finished all the final bits and pieces and tightened the last two screws at 23h13 last night. This weekend I'll be brewing my first batch to have proper temperature control.

Total costing on the system including the controller came to around R2400, about $160 at our current exchange rate. The controller, box and internal parts were about R900 ($60) which would have been incurred with a standard fridge as well. Construction tally came to R1500 ($100) and I believe it looks better than a fridge would. A sweep of the local classified is showing good quality fridges in the R2500 to R3500 range ($160 to $233), so I do think I saved some cash doing it this way.

One last sweep of photos.


Photo 83 - Front right corner view

Photo 84 - Front left corner view

Photo 85 - Back left corner view

Photo 86 - Back right corner view

Top
