Drip tray attached to front of keezer?

HomeBrewTalk.com - Beer, Wine, Mead, & Cider Brewing Discussion Community.

Help Support Homebrew Talk:

bommarkm

Well-Known Member
Joined
Sep 4, 2010
Messages
50
Reaction score
1
Location
St. Louis
I am currently working on a collar for my keezer and would like to attached a drip tray to the front. I am a chick and have limited experience with DIY projects and power tools. I am pretty excited that I am even building the collar on my own.
How did you guys attached your drip tray to the front of the keezer? Not sure how to so this without drilling holes into the front.

Thanks!
Kerry


Gritsak

Well-Known Member
Joined
Aug 15, 2009
Messages
599
Reaction score
15
Heavy duty double sized adhesive tape for the brackets to the freezer...regular one side adhesive velcro to hold the drip tray to brackets.


billymeter

Well-Known Member
Joined
Apr 19, 2009
Messages
63
Reaction score
8
Location
Atlanta
You can glue it. But, you would want to glue it up with some magnets, that way you can take it off to drain it.
Wouldn't it be better to glue the magnets to the drip tray rather than the freezer?

OP
B

bommarkm

Well-Known Member
Joined
Sep 4, 2010
Messages
50
Reaction score
1
Location
St. Louis
Thanks for the suggestions. These are great. I didn't even think about the fact that I would want to remove it to clean it.


Bean

Supporting Member
HBT Supporter
Joined
Mar 1, 2009
Messages
410
Reaction score
73
Location
Philadelphia
Wouldn't it be better to glue the magnets to the drip tray rather than the freezer?
On the setup I used in college we ended up putting magnets on both the tray and the freezer. Reason being after about an hour of drinking the tray would slide down to the floor or just tip off the front. We figured it was because the metal on the freezer was to thin. If the magnets you glue to the tray are powerful enough I don't see why that would be good enough. All we had were the ones the physics labs had in them.


natehilde

Well-Known Member
Joined
Nov 3, 2006
Messages
100
Reaction score
8
Location
Colorado
I attached mine with magnets as well. My drip catcher is made from a 2" PVC elbow and an inverted 3" PVC cap. Works like a charm.


jevanden

Member
Joined
Dec 19, 2007
Messages
15
Reaction score
1
Location
midland michigan

Catt22

Well-Known Member
Joined
Jan 20, 2009
Messages
4,998
Reaction score
79

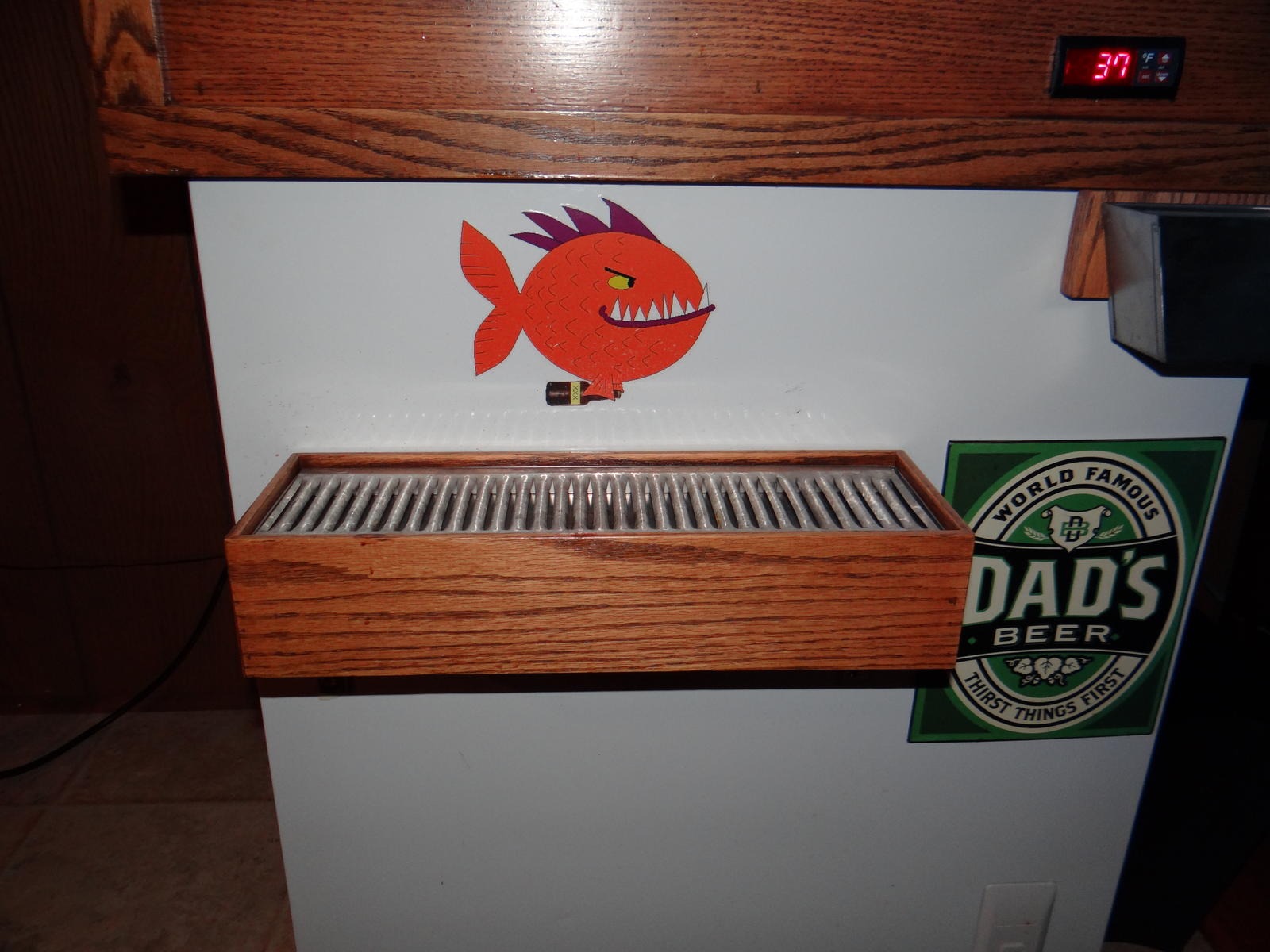

I roughed up the paint on the side of the freezer and used Gorilla glue to attach a piece of wood to it. The drip tray is held to the wood with two stainless steel screws. The drip tray backsplash has slotted holes at the top designed for just this purpose. The tray can easily be removed for cleaning by unhooking it from the screws. This isn't a very good pic, but you can see the wooden piece and part of the drip tray:



jaja

Well-Known Member
Joined
Jan 27, 2009
Messages
153
Reaction score
0
If you can build a collar you can build this. Hasn't missed a beat since I installed it and its sOOOO easy to clean.

Basically Its just a tiny version of your collar with in inside beading so you can insert a cut up roasting tray. The roasting tray sits in and I found the plastic shelf at a $2 shop up the road that gave me all my dimensions. As you can see it fits four taps. Both bits come out for easy cleaning and no need to drill into your freezer.













Atl300zx

Well-Known Member
Joined
Jun 8, 2007
Messages
737
Reaction score
3
Location
Hoplanta
i used 3M automotive double sided tape i have lieing around. You could put a full pitcher on them. The key is putting the strips in the vertical direction.


BendBrewer

Well-Known Member
Joined
Jan 26, 2010
Messages
3,126
Reaction score
81
Location
Bend
I read somewhere that the magnets in computer hard drives work like a charm. Glue 4 to the tray and those puppies should hold even with a full beer or two on it.


Atl300zx

Well-Known Member
Joined
Jun 8, 2007
Messages
737
Reaction score
3
Location
Hoplanta
I read somewhere that the magnets in computer hard drives work like a charm. Glue 4 to the tray and those puppies should hold even with a full beer or two on it.
i would ahve to agree. i used to hold a cap catcher on with one of those magnets and i would have to slide the whole catcher off the side of the kegerator to remove it. strong stuff.


mbkohn

New Member
Joined
Aug 17, 2014
Messages
1
Reaction score
0
Wouldn't it be better to glue the magnets to the drip tray rather than the freezer?
Magnets work well already on the pan but struggle to hold strong to the refrigerator. That's why you might want to glue to the fridge.


Yaason

Well-Known Member
Joined
Jun 11, 2012
Messages
73
Reaction score
4
Location
Reno
Two L-brackets with magnets glued to them, wrapped in electrical tape to help with adhesion to the freezer. Velcro attaches the drip tray to the brackets. Holds 3 full pints with no issues and I can take it off easily.


BrewDrinkRepeat

Well-Known Member
Joined
Aug 7, 2010
Messages
149
Reaction score
25
Location
Merchantville NJ
Dragging up an old thread, I know...

Heavy duty double sized adhesive tape for the brackets to the freezer...regular one side adhesive velcro to hold the drip tray to brackets.
I used 3M heavy duty outdoor mounting tape on two L brackets, rated for far more weight than the driptray even with a full beer sitting on it, but after a couple of weeks they just fell right off, sending the drip try to the floor with a loud bang.

My keezer does have a slightly textured surface (which is why magnets don't work, they just slide right down as they don't get enough grip), and I did notice that the keezer gets very warm right in the area where the brackets are mounted (coolant lines?). The tape is meant to be used outdoors, but perhaps that close / direct heating is affecting the adhesion?

I'm wondering if I scuff the keezer surface under the brackets with some sandpaper before trying the tape again, if that might help...? (That will, of course, permanently mar the surface.)

Or maybe I should give up on the idea of the mounting tape and go with glue or epoxy instead (with or without scuffing)?


RocketBrewer

Well-Known Member
Lifetime Supporter
Joined
Feb 26, 2012
Messages
528
Reaction score
171
Location
Garden Valley, CA
I agree that ease of cleaning is a must. I used a couple pine bookshelf brackets painted white and held in place with white 100% silicone. I just taped them in place till the silicone cured. A strip of velcro on top of each holds the drip tray in place until I want to clean it. This has worked out perfectly for me. You can see it by following the link in my signature if you like.

Good luck!


Stealthcruiser

Supporting Member
HBT Supporter
Joined
May 7, 2013
Messages
5,039
Reaction score
1,622
Location
Cotacachi, Ecuador
I can't call off a commercial brand, but we use a lot of 3M products at work, and I have used some "out of date" product on some of my projects.
You don't really want a "quick curing" type, better a 12 -24 hour cure, and urethane epoxies work about the best, I M O.


fj605

Well-Known Member
Joined
Oct 8, 2013
Messages
118
Reaction score
23
Location
Arvada
I wish I would've thought I'd this when I built mine, but you can get magnets that look like arrows and are ninety degree angles at the point.

I've used them for welding projects. They have plenty of holding strength.


BrewDrinkRepeat

Well-Known Member
Joined
Aug 7, 2010
Messages
149
Reaction score
25
Location
Merchantville NJ
I can't call off a commercial brand, but we use a lot of 3M products at work, and I have used some "out of date" product on some of my projects.
You don't really want a "quick curing" type, better a 12 -24 hour cure, and urethane epoxies work about the best, I M O.
Cool, thanks! I'll take a trip to the hardware store one night this week to look for some; I'd like to get this mounted before Thanksgiving.


Brackets were epoxied to freezer. They can be removed if needed.
You mean the brackets can be removed, even epoxied?



I wish I would've thought I'd this when I built mine, but you can get magnets that look like arrows and are ninety degree angles at the point. I've used them for welding projects. They have plenty of holding strength.
Those were the first thing I tried, but because my chest freezer has a textured surface they couldn't grip well enough. Even rare earth magnets slide down if you put any significant weight on them. :(
