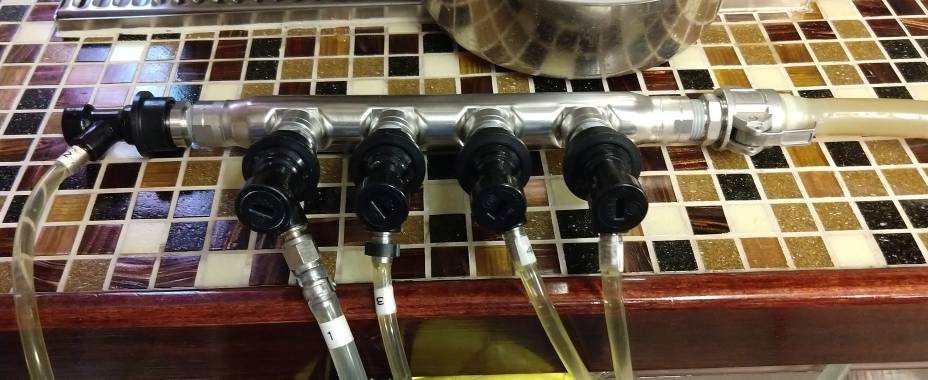

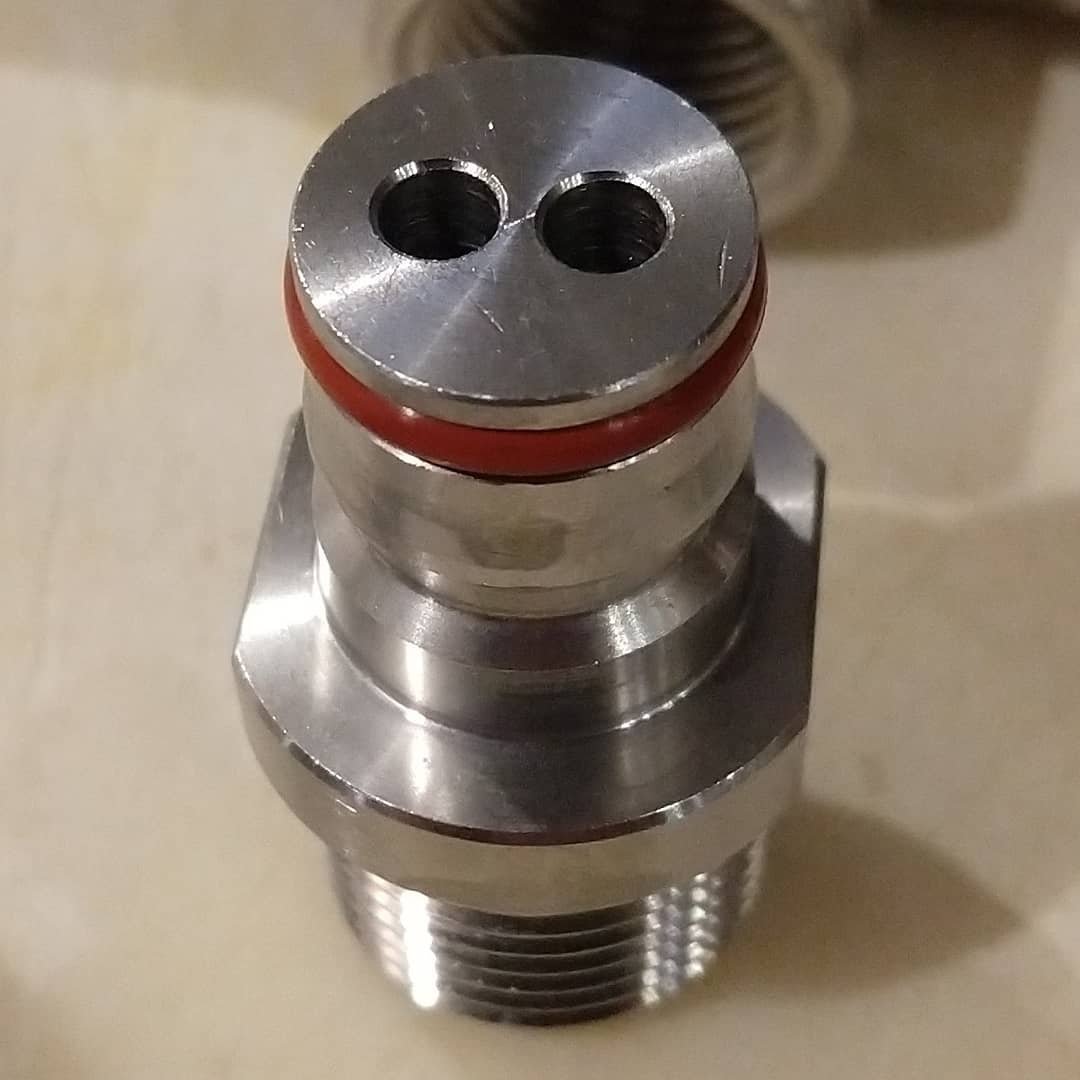

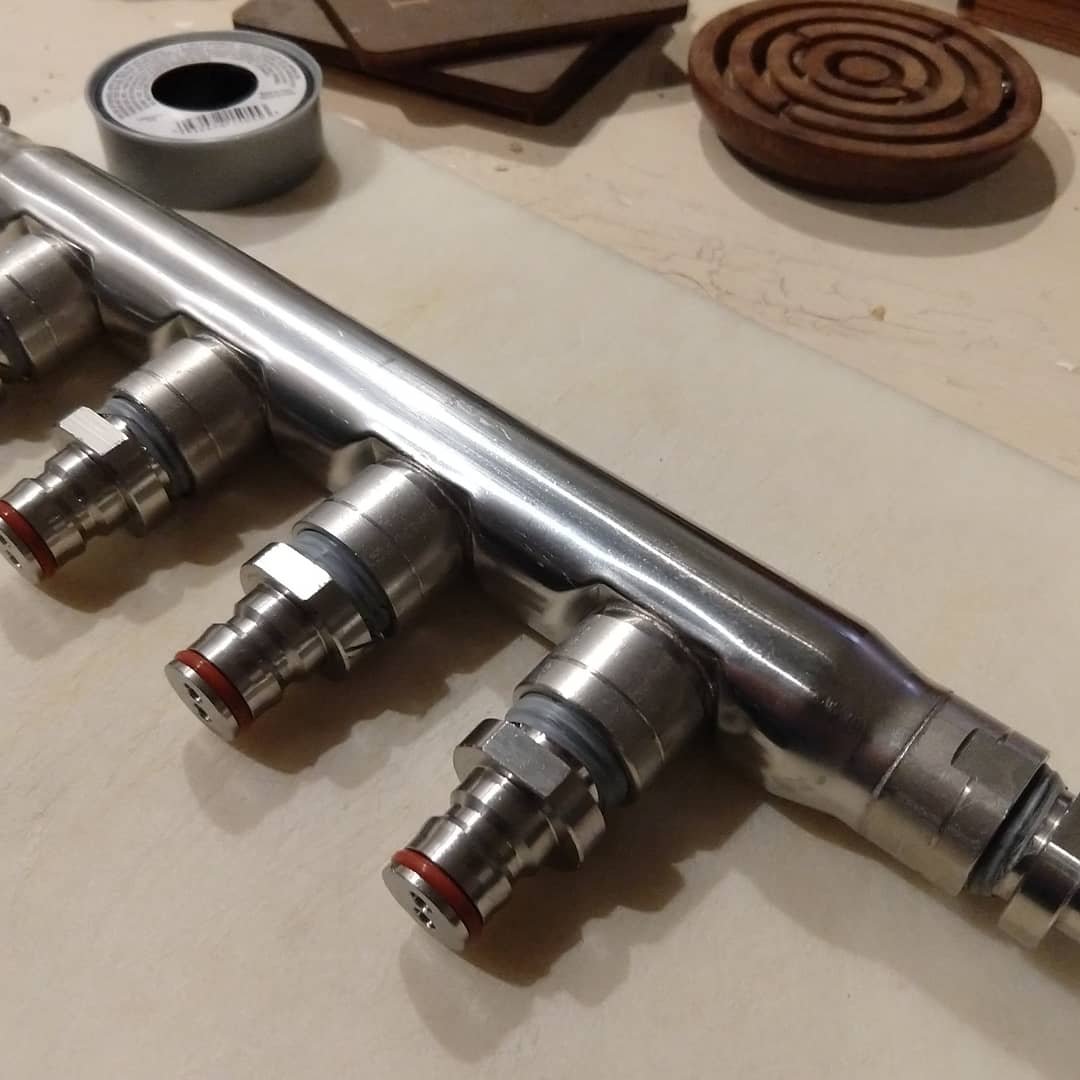

I thought I'd post a couple pics and some info regarding my new draft line cleaning manifold. It involves some of the newer threaded post fittings from Brew Hardware. I used these along with a CSST distribution manifold and a camlock fitting to make a cleaning manifold. I just used it for the first time and it worked awesome. I recirculated hot line cleaner, then flushed with hot water, then recirculated with sanitizer.

Pictures are worth 1000 words, so here are a few. Oh, and I'm not affiliated with Brew Hardware in any way, I just think Bobby has some really innovative products.



day_trippr

"This Space For Rent"
Joined
May 31, 2011
Messages
37,504
Reaction score
20,347
Location
Stow, MA
That's the bomb! Nice job :mug:

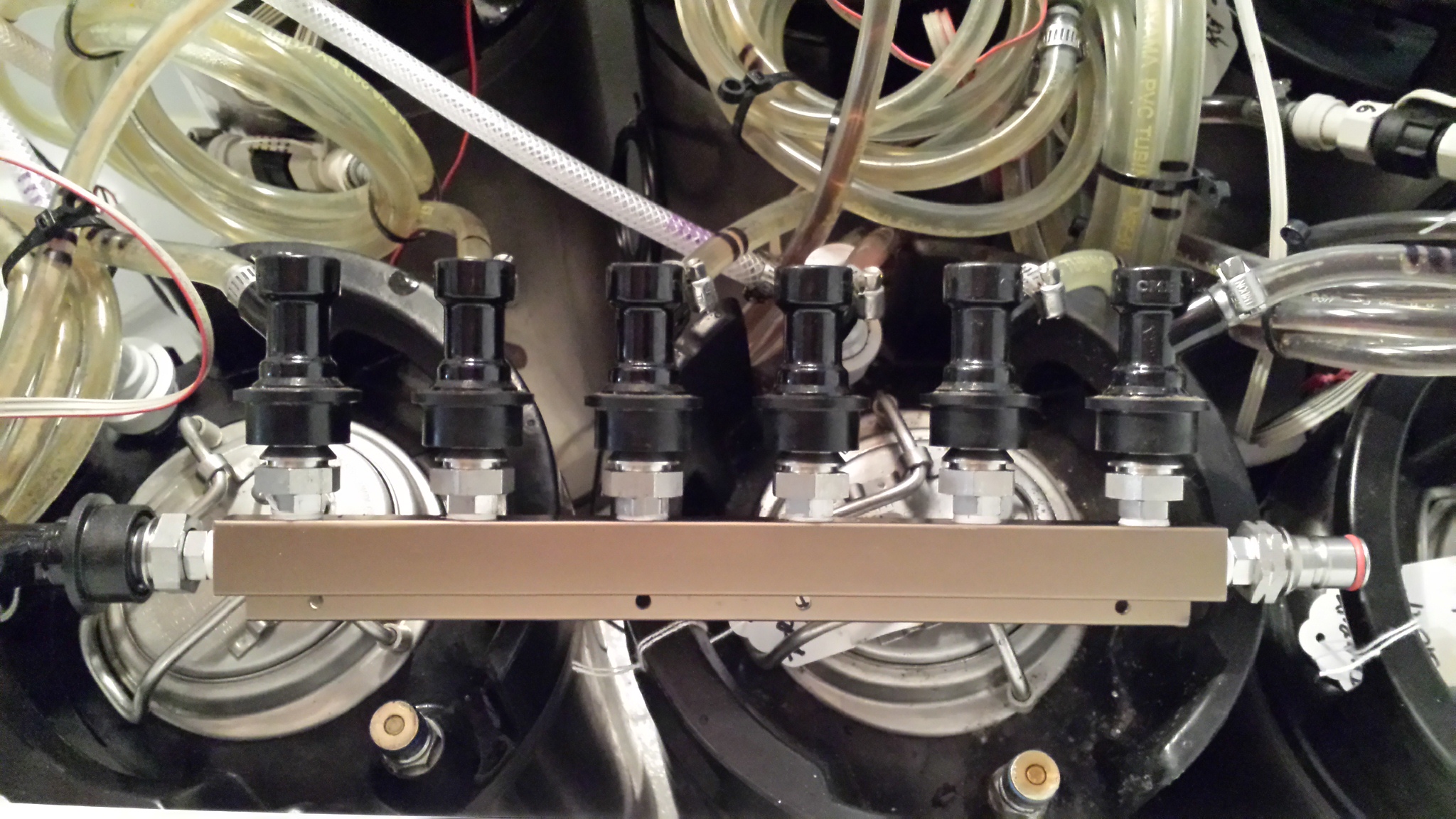

Bobby didn't have that post back when I spec'd my cleaning manifold (from chicompany.net). I'd have preferred a stainless steel manifold like yours over the aluminum. With thorough flushing during the rinse phase it hasn't shown issues running mild caustics like BLC/LLC through it so far, but still...



fwiw, I use the gas post to blow the final rinse water out of the lines/faucets using one of the gas lines...

Cheers!

Last edited:
OP
microbusbrewery

microbusbrewery

Senior Member
Joined
Jan 4, 2011
Messages
2,122
Reaction score
325
Location
West Jordan
That's the bomb! Nice job :mug: Is that

Bobby didn't have that post back when I spec'd my cleaning manifold (from chicompany.net). I'd have preferred a stainless steel manifold like yours over the aluminum. With thorough flushing during the rinse phase it hasn't shown issues running mild caustics like BLC/LLC through it so far, but still...

View attachment 601869

fwiw, I use the gas post to blow the final rinse water out of the lines/faucets using one of the gas lines...

Cheers!
That's pretty sweet too. Good to hear it's holding up.

Mine is a HomeFlex 11-050504, about $15 via Amazon. The main body is kind of thin, but I think it'll be fine as long as I don't drop it. It's reportedly made out of 304 stainless. I soaked it in PBW followed by Star San to passivate and didn't see any signs of corrosion, so it seems all good.
