DIY Fermentation Cabinet

Homebrew Talk - Beer, Wine, Mead, & Cider Brewing Discussion Forum

Help Support Homebrew Talk:

DeathBrewer

Maniacally Malty
Lifetime Supporter
Joined
Apr 9, 2007
Messages
21,787
Reaction score
317
Location
Oakland, CA
Winter isn't too bad around here. It rains a lot and the parties are dead, but at least my beer keeps cold. In fact, I'm really looking forward to making some beers with my conical now that the ambient temp in the brewhouse has gone down. Last winter i made some of my best beers ever.

But then summer came and it made a fruity, estery mess of my beers. That got me in a mood, so i bought a bunch of lumber, an AC unit, some casters, a whole mess of styrofoam and some screws.

Here's some of that mess which became my fermentation cabinet:





You wouldn't believe how i got those huge panels of foam home in my scirocco.

We started with the base:



Then screwed in the casters:


OP
DeathBrewer

DeathBrewer

Maniacally Malty
Lifetime Supporter
Joined
Apr 9, 2007
Messages
21,787
Reaction score
317
Location
Oakland, CA
beautiful, start isn't it?



at this point we realized i had made it too wide (i wanted to fit at least four carboys in there) and it wouldn't roll out the door. whoops!

It's not going to leave the building any time soon, however, so we simply constructed the rest out of their own frames, like you would do with a window. Here's the back being set up:





Here you can see it sitting on the base. This made it very easy to screw it down:



Kauai_Kahuna

Well-Known Member
Joined
May 3, 2008
Messages
2,275
Reaction score
19
Location
Hawaii
Looks good so far, please snap some pictures of the cooling setup and the finished product please. Right now I'm using an old fridge, but I can only fit two carboys in there.

OP
DeathBrewer

DeathBrewer

Maniacally Malty
Lifetime Supporter
Joined
Apr 9, 2007
Messages
21,787
Reaction score
317
Location
Oakland, CA
A nice thick, flat piece of plywood was screwed into the base before we added the panels. We put the panels together with plywood before we attached the panels to the base. The doors were made of a simple 2x4 and 2x2 frame.



Here's a pic of us holding it together. the plywood hangs over the sides enough so that we can screw it into the frame and the sides overlapped the back panel. it also made it look better, as you couldn't see the framework:



a pic from the inside after we screwed them all together:



and the outside:


OP
DeathBrewer

DeathBrewer

Maniacally Malty
Lifetime Supporter
Joined
Apr 9, 2007
Messages
21,787
Reaction score
317
Location
Oakland, CA
the plywood kept it all solid. We screwed the back panel down into the base, then screwed the sides into the back and the base:

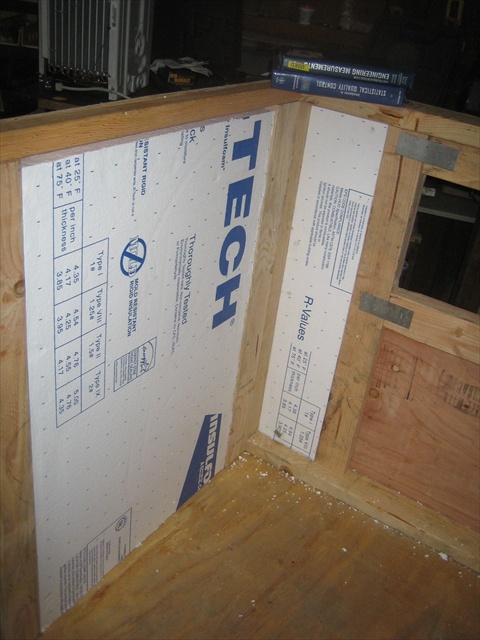

Then came adding the foam. The first part was pretty cool, just get 1.5" foam to match the 2x4 frame and cut them perfectly. We added some glue and shoved them right in:




OP
DeathBrewer

DeathBrewer

Maniacally Malty
Lifetime Supporter
Joined
Apr 9, 2007
Messages
21,787
Reaction score
317
Location
Oakland, CA
any gaps you see were filled in with liquid foam.

After we added the layers of foam inside the frame, we added a full 1.5" layer of foam on the inside and back, cutting only a hole for the AC unit.

We added the top (unfortunately i don't have pictures) overlapping the same way after we installed the foam and screwed it into the back and the sides. this made everything so solid, i could stand on it confidently.

Here is the cabinet as it is now:



We installed hinges on the door and lined around the doors with stripping. You can see the extra layers of foam here. We also put a thin piece of plywood on top of the bottom foam so it wouldn't get damaged from moving carboys in and out:



And here it is full of beer. it fits six carboys, easy. you can see the ac unit in the back and we drilled an additional whole for the cable to come out and attach to the external temperature controller.:



The foam pieces are all glued only to their individual panels, so it can be taken apart piece by piece (top, sides, and then back) and moved. We added liquid foam to seal them a bit, but nothing a razor blade won't take care of.

In addition, here is some math my friend did for the energy it would take to cool in regards to space, insulation, etc. it works pretty efficiently. it kicks on every few hours for a couple of minutes and maintains a nice ambient 58°F:


OP
DeathBrewer

DeathBrewer

Maniacally Malty
Lifetime Supporter
Joined
Apr 9, 2007
Messages
21,787
Reaction score
317
Location
Oakland, CA
anyway, that's it. all i left to do to it is add some thicker stripping (it doesn't quite get the seal i'd like) and replace the straps with something permanent. They work well but are kind of a PITA.

This was actually easy as hell to build...it only took two weekends and it was usuable immediately after construction. Now the problem is what to do with my beer when this is full! I think i'll do something for my apartment next...

Feel free to ask any questions. It's been a long time since i built this, so i may have left things out. i could also take more pictures if you want to see something specific.
Cheers! :mug:

:rockin:

OP
DeathBrewer

DeathBrewer

Maniacally Malty
Lifetime Supporter
Joined
Apr 9, 2007
Messages
21,787
Reaction score
317
Location
Oakland, CA
I've tested it down to the mid 40s, but it could probably go in the thirties. it's pretty efficient. i'm sure i could use it for lagers, but this is my ale fermentation cabinet. i hope to get a chest freezer for lagering soon...i have truck payments now, can't throw money around like i used to.


kappclark

Well-Known Member
Joined
Sep 2, 2006
Messages
1,590
Reaction score
8
Location
Southern VT
with the AC, abt how much did the project cost ? (Can you tell I am not a builder ?)


Zymurgrafi

Well-Known Member
Joined
Feb 19, 2007
Messages
2,426
Reaction score
19
Location
NEK, VT
Wonder how to adapt this to keep beer warm... For us Northerners. :D

Nice work. Kind of like a rolling walk-in.


GorGor

New Member
Joined
Sep 22, 2008
Messages
1
Reaction score
0
where's the pic of me drinking a beer whilst helping you out?

OP
DeathBrewer

DeathBrewer

Maniacally Malty
Lifetime Supporter
Joined
Apr 9, 2007
Messages
21,787
Reaction score
317
Location
Oakland, CA
hey! Gor! i edited that pic for this family environment. :D

with the AC, abt how much did the project cost ? (Can you tell I am not a builder ?)
AC unit was $100.00. i think the total cost was around $450-500.00. i bought everything new, tho. the only stuff i got free was the plywood for the sides, back and front (i bought thick, flat plywood for the base and top.)

Wonder how to adapt this to keep beer warm... For us Northerners. :D

Nice work. Kind of like a rolling walk-in.
hmm...i guess you'd have to add a heating element that wouldn't melt the foam. or just use it for lagering ;)


Sager Brewing Co.

Well-Known Member
Joined
May 11, 2008
Messages
111
Reaction score
2
Location
Genesee, ID
This is great, just want I was looking for. I have a window air unit like that from when we lived in an apartment. This is for sure my next project.


eschatz

Well-Known Member
Joined
Dec 18, 2007
Messages
3,427
Reaction score
53
Location
Terre Haute, IN
That looks great man! Have someone add it to the DIY projects sticky for sure. You earned it.

This looks pretty do-able for most people. :mug:


GroovePuppy

Well-Known Member
Joined
Sep 29, 2008
Messages
1,734
Reaction score
7
Did you need to use external control? Wouldn't the AC unit's own control work? Obviously you'd have open up to adjust.

OP
DeathBrewer

DeathBrewer

Maniacally Malty
Lifetime Supporter
Joined
Apr 9, 2007
Messages
21,787
Reaction score
317
Location
Oakland, CA
yes, i chose the external controller instead of opening up all the time. plus, the ac unit just had levels (something like 1, 2, 3, 4, etc) instead of actual temperature control.


gtg644w

Well-Known Member
Lifetime Supporter
Joined
Jan 15, 2007
Messages
72
Reaction score
0
Haha, I havent heard anyone congradulate the Mech E for remembering his Heat Transfer stuff... That gave me a smile, while I hope to never directly use it again--I had a basic understanding of what he was doing.


Tripod

Well-Known Member
Joined
Sep 12, 2008
Messages
637
Reaction score
7
Location
Atlanta, GA
yes, i chose the external controller instead of opening up all the time. plus, the ac unit just had levels (something like 1, 2, 3, 4, etc) instead of actual temperature control.
Beautiful work, man!

What kind of external temp control did you use? Was it something that came with the AC unit or did you buy something and then wire it in?

-Tripod


radtek

Well-Known Member
Joined
Dec 2, 2008
Messages
150
Reaction score
0
Location
/texas/san_antonio
I have a 5000btu AC that I was considering doing this with. My only concern is the air blowing directly on the fermenters and possible infections.

What sort of controller do you use? The Ranco?


camiller

Well-Known Member
Joined
Apr 12, 2007
Messages
1,907
Reaction score
50
Location
Omaha, NE
Shouldn't run long enough to melt the foam.

A better alternative would be to get a electric hot pad at the drug store and hook it up to the external temp controller. Heck, even a light bulb (shielded) would probably make enough heat to keep the inside warm enough.


brauhausjoe

Well-Known Member
Joined
Oct 28, 2007
Messages
309
Reaction score
2
Location
Central TX Area
Great Idea! What are the dimensions of this bad boy? I have been looking for a solution like this for a while, I was saving up for a freezer but it would only hold at most 4 carboys. Same money at least 8 carboys! I was wondering if I went a little taller, I might be able to get in a metal shelf and double the volume.

Thanks for the post.

OP
DeathBrewer

DeathBrewer

Maniacally Malty
Lifetime Supporter
Joined
Apr 9, 2007
Messages
21,787
Reaction score
317
Location
Oakland, CA
i should have taken better notes and/or posted this sooner after it was completed, as i don't have all the dimensions recorded.

i THINK this was 42" wide, 36" deep and about 40" tall...not real sure on the height :eek:

anyway, everyone's system should be built according to their needs.

i just purchased a freezer and it will only hold two carboys (but it will store lots of other stuff.) the cabinet is definitely a better way to go...cheaper, too, if you do it right.


brauhausjoe

Well-Known Member
Joined
Oct 28, 2007
Messages
309
Reaction score
2
Location
Central TX Area
42" and still holds 6 carboys. Sweet! I am in the planning stages for mine, Now I am thinking 48" wide x 48" deep x 72" high. maybe put a metal shelf in the middle?


LooyvilleLarry

Well-Known Member
Joined
Aug 27, 2008
Messages
962
Reaction score
12
Location
Louisville,KY
Shouldn't run long enough to melt the foam.

A better alternative would be to get a electric hot pad at the drug store and hook it up to the external temp controller. Heck, even a light bulb (shielded) would probably make enough heat to keep the inside warm enough.
I've heard that the pet supply places have a "ceramic light bulb" for keeping terrariums warm. That doesn't emit light.


camiller

Well-Known Member
Joined
Apr 12, 2007
Messages
1,907
Reaction score
50
Location
Omaha, NE
42" and still holds 6 carboys. Sweet! I am in the planning stages for mine, Now I am thinking 48" wide x 48" deep x 72" high. maybe put a metal shelf in the middle?
with a shelf in the middle you won't be able to walk in to get the carboy in the back :p

OP
DeathBrewer

DeathBrewer

Maniacally Malty
Lifetime Supporter
Joined
Apr 9, 2007
Messages
21,787
Reaction score
317
Location
Oakland, CA
i'm sure you could reach in there. you may have to do a lot of switching in and out at times...be careful with your back! but still...that would hold like 18 carboys!

:rockin: :rockin: :rockin: :rockin:


brauhausjoe

Well-Known Member
Joined
Oct 28, 2007
Messages
309
Reaction score
2
Location
Central TX Area
i'm sure you could reach in there. you may have to do a lot of switching in and out at times...be careful with your back! but still...that would hold like 18 carboys!:
Yea, I am thinking Meads in the hard to reach spots, they will be there longer, and the beers in the 'sweet' spots :ban:

I've heard that the pet supply places have a "ceramic light bulb" for keeping terrariums warm. That doesn't emit light.
I saw these reptile heat lamps

I was thinking of controlling it with a Love controller

If the funds come in, I hope to get started soon.

Thanks for the great idea!
