Counterflow build, caniblized from immersion chiller

HomeBrewTalk.com - Beer, Wine, Mead, & Cider Brewing Discussion Community.

Help Support Homebrew Talk:

ReuFroman

Well-Known Member
Joined
Oct 2, 2011
Messages
238
Reaction score
12
Location
Fort Collins

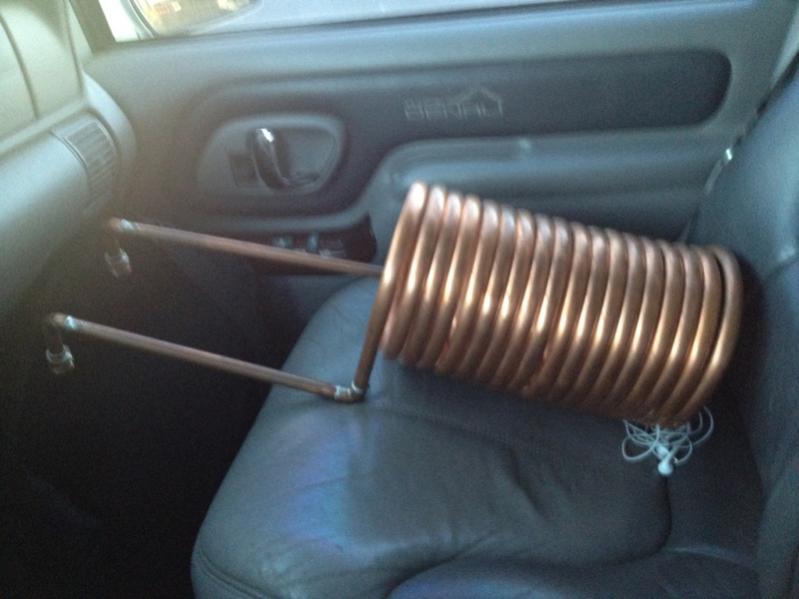

Am taking apart my immersion chiller and am making a counter flow chiller. So I went to my local hardware superstore, the lowest one. I have a 1/2 pipe for the base. See the pictures. So most of the chillers I have seen are 3/8". I hope it works well. I basically am following the instructions from the wiki but with a 1/2" female npt end so I can put the stainless steal cam lock on it. Yay pumps.

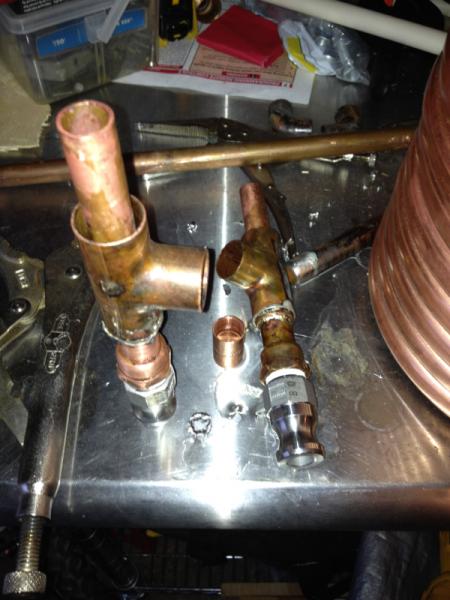

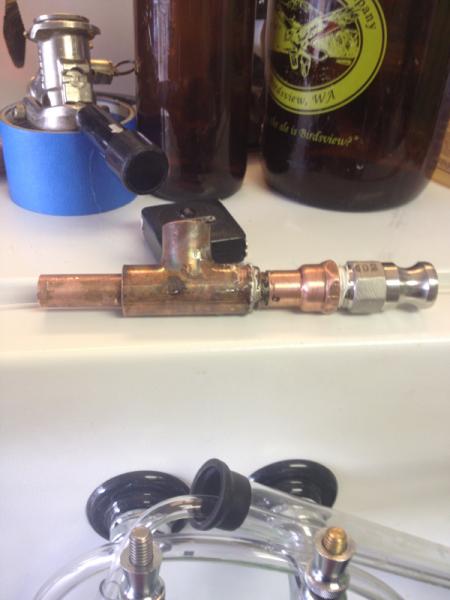

My parts list (2x)
1/2" coupler with stop
5/8" tee
1/2" - 5/8" flush stop (had to do a slight hollowing at one end as it tapers slightly 1/8" or so)
1/2" female adapter
1/2" - 8" piece of pipe (from immersion chiller)
5/8" - 50' rubber hose

I'll post Picts as I soon as I finish the pieces.





shuckit

Well-Known Member
Joined
Jul 6, 2011
Messages
213
Reaction score
13
Location
Victoria
I'm curious how this is going. I'm looking at the same conversion for my next project. I'm hoping I have a 3/8" OD IC but I'll have to measure it.

OP
ReuFroman

ReuFroman

Well-Known Member
Joined
Oct 2, 2011
Messages
238
Reaction score
12
Location
Fort Collins
So I'm drinking a sweet brown ale looking up tolerances and hydro cooling. I can lube up and jam the coil in. But it might be not cooling enough. Thoughts anyone?


phoenixs4r

Well-Known Member
Joined
Jun 16, 2011
Messages
1,545
Reaction score
80
Don't drink and research.

What's wrong with the immersion chiller?

OP
ReuFroman

ReuFroman

Well-Known Member
Joined
Oct 2, 2011
Messages
238
Reaction score
12
Location
Fort Collins
phoenixs4r said:
Don't drink and research.

What's wrong with the immersion chiller?

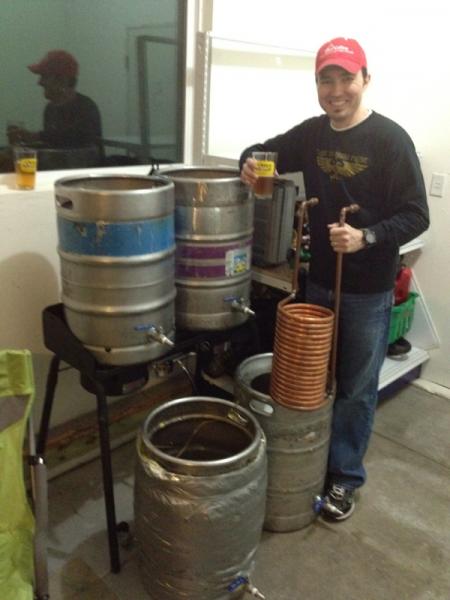

Nothing. It takes a lot of water to cool to 70 degrees.

I just wanted to build one for a while is the real reason why I went this route.


wyzazz

Well-Known Member
Joined
Aug 27, 2009
Messages
4,258
Reaction score
61
Location
Atwater, OH
This will be a nice big counterflow chiller once it's done, I look forward to seeing it!

OP
ReuFroman

ReuFroman

Well-Known Member
Joined
Oct 2, 2011
Messages
238
Reaction score
12
Location
Fort Collins

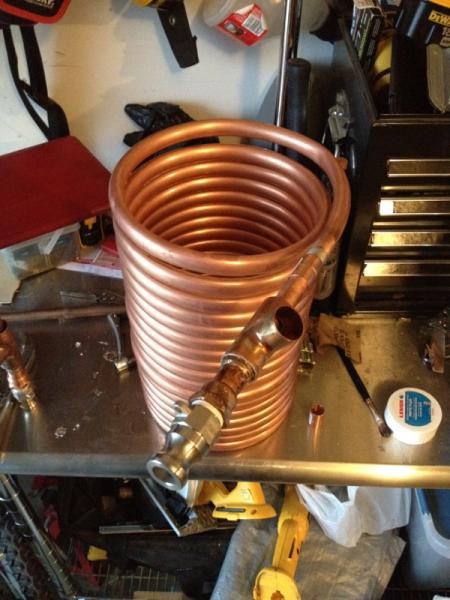

Going with a larger tube now that it's being shipped. I put a shine'n to the copper.


OP
ReuFroman

ReuFroman

Well-Known Member
Joined
Oct 2, 2011
Messages
238
Reaction score
12
Location
Fort Collins
phoenixs4r said:
Don't drink and research.

What's wrong with the immersion chiller?
Truth be told. Have a 50' stainless steel immersion chiller also. Hence what am I going to do with all this copper.

OP
ReuFroman

ReuFroman

Well-Known Member
Joined
Oct 2, 2011
Messages
238
Reaction score
12
Location
Fort Collins
Here is a quick update.

Don't (expletive) do it. I have now spent a small fortune to make a super 35' chiller. Today my wife an I spent 3 hours trying to thread the hose with what seemed like a gallon of astroglide to be thwarted about 12' from the end.

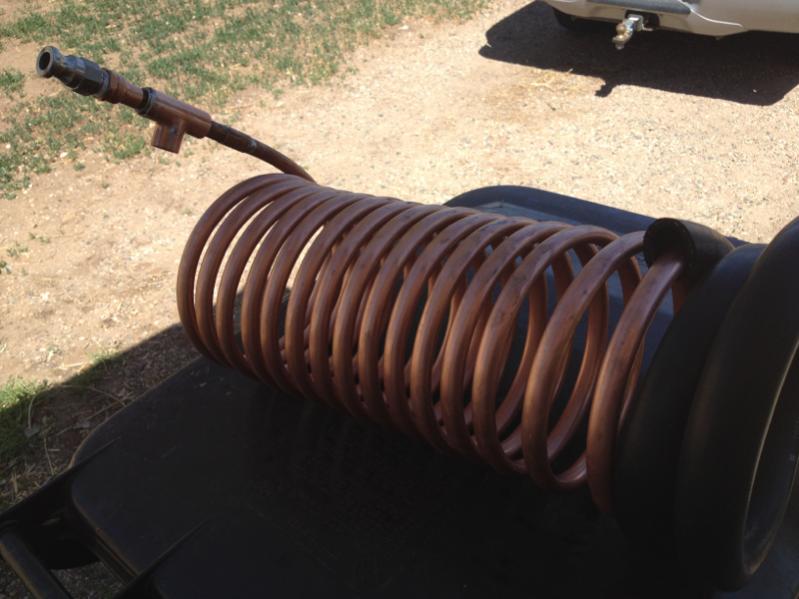

I ended up going to the local farm and ranch and getting a black 1" rubber hose for $2.00 a ft. Which was cheaper than lowes at nearly 3 a foot.

There are some pros
Your friends will marvel at your giant black 1" hose
Brag about how much you spent
Drain your boil kettle in record time

Cons
A lot of work
Expensive as hell
A lot of work
Expensive as hell
Blisters the size of quarters on your fingertips







CS223

Well-Known Member
Lifetime Supporter
Joined
Feb 23, 2012
Messages
243
Reaction score
47
Location
Gainesville
One suggestion if you feel like fighting it again. Plug the end of the hose, fold it over and stick a clamp on it etc. Connect your air compressor to the far end of the copper coil, use a ball valve & a big hose, you need lots of volume. Push the hose on the other end and when you encounter resistance, blast it with air. I've "floated" rubber tubing & sleeves on straight pipe & tubing. Don't know if it will work in this case.

OP
ReuFroman

ReuFroman

Well-Known Member
Joined
Oct 2, 2011
Messages
238
Reaction score
12
Location
Fort Collins
That is a great idea. I will have to think about it but pretty sure I will never make my own counter flow.

OP
ReuFroman

ReuFroman

Well-Known Member
Joined
Oct 2, 2011
Messages
238
Reaction score
12
Location
Fort Collins

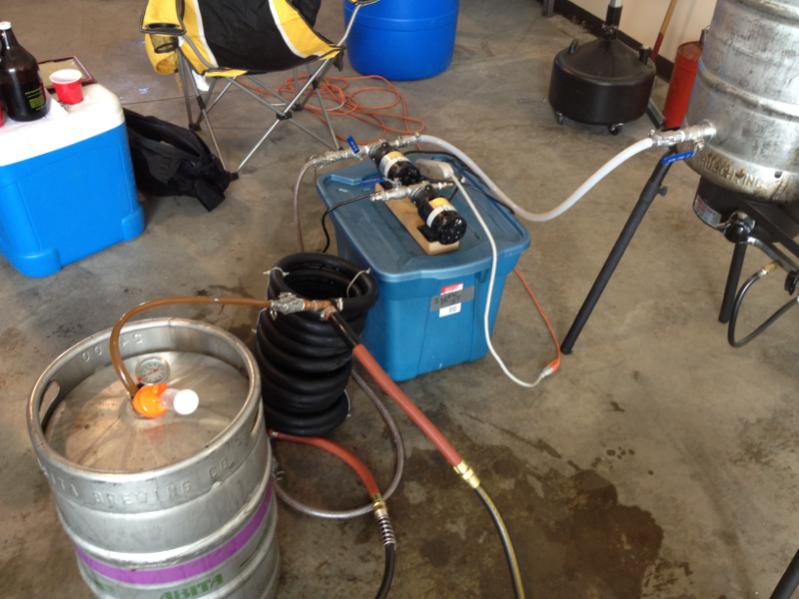

I used the black beast today. 12 gallons in 9 minutes 17 seconds. Yep fast. Really fast.

It was certainly a lot of work and will return my time pretty fast.

Overall unless you have a wish for a lot of work then take on the challenge otherwise just buy one.
