Copper manifold for 10 gal Rubbermaid cooler

HomeBrewTalk.com - Beer, Wine, Mead, & Cider Brewing Discussion Community.

Help Support Homebrew Talk:

Bitterbrush

Well-Known Member
Joined
Dec 23, 2010
Messages
113
Reaction score
4
Location
Central Oregon
I have had a few requests for instructions on how to make the manifold for my Rubbermaid cooler from Home Depot, so here you go. This type of manifold has been shown here before so I can't take credit for the original design. This works really good for me, never have had a stuck sparge with batch sparging. I'm sure it would work equally as well fly sparging also.

I soldered the sides and center of this thing together so there wouldn't be so many pieces to take apart when cleaning, it's very easy to clean. The center T is soldered at an angle up so the tubing can attach to the bulkhead hose barb. The slits are 1/4" apart. I just clamped the tubing gently in my bench vise and left about half of it sticking up out of the vise jaws, then using a 32t hacksaw blade I just went at all the 1/4" marks made on the tubing. Just don't squeeze it to tight or you will have egg shaped tubing.

My bulkhead fitting has a 1/2" stainless nipple going through the cooler wall so I just attached the female npt x hose barb to the back of it. Everything was bought at Lowes except the bulkhead assembly and the silcone tubing. The bulkhead and tubing I got from Bargainfittings.com

Materials list:

2- 7 7/8" 1/2" type M cu pipe
6- 3 9/16"
4- 90's
3- T's
1- 1/2" female NPT x 1/2" male cu adapter
1- 1/2" male NPT x 1/2" hose barb brass
1- 1/2" female NPT x 1/2" hose barb brass
1- 1/2" ID silicone tubing x 3"








ultravista

Well-Known Member
Joined
Feb 28, 2007
Messages
2,527
Reaction score
83
Location
Las Vegas
Bitterbrush - thanks for posting. I'll do the same with my 10G Rubbermaid tun.


cfbugsbunny

Member
Joined
Sep 12, 2008
Messages
21
Reaction score
3
Location
Cedar Rapids
thanks for posting. Will be soldering next weekend on this. Just purchased two HD rubbermaid coolers and really liked the manifold design.


corwin6654

Well-Known Member
Joined
Jul 9, 2010
Messages
108
Reaction score
0
Location
Hillsboro
How do you keep the silicone tubing on the barb when you are mixing in grains/stirring?

OP
B

Bitterbrush

Well-Known Member
Joined
Dec 23, 2010
Messages
113
Reaction score
4
Location
Central Oregon
How do you keep the silicone tubing on the barb when you are mixing in grains/stirring?
The tubing is tight on the barbs, never had it come off. It can't move because the manifold can't pull away as it fits tight in the bottom of the cooler.


Homercidal

Licensed Sensual Massage Therapist.
Lifetime Supporter
Joined
Feb 10, 2008
Messages
33,310
Reaction score
5,708
Location
Reed City, MI
I did that same basic design in my rectangular cooler and love it. I used the more rigid thermoplastic tubing and it allows the manifold to lift up to be cleaned. I have a 5 Gallon drink cooler that I want to use for half-batches and I may do this same thing.


milesvdustin

Well-Known Member
Joined
Feb 5, 2010
Messages
678
Reaction score
20
Location
Marion
How much leftover wort do you typically have in the bottom after mashout? Or does it suck the wort pretty dry in there? I always have a decent amount leftover with my stainless braid.

OP
B

Bitterbrush

Well-Known Member
Joined
Dec 23, 2010
Messages
113
Reaction score
4
Location
Central Oregon
milesvdustin said:
How much leftover wort do you typically have in the bottom after mashout? Or does it suck the wort pretty dry in there? I always have a decent amount leftover with my stainless braid.
Less than a pint was left. Its probably more like a cup, I never did pour it out and measure it.


milesvdustin

Well-Known Member
Joined
Feb 5, 2010
Messages
678
Reaction score
20
Location
Marion
Excellent, thanks! I am going to build this when I get back from training in Virginia. Would one of these work well with a RIMS setup?


JetSmooth

Well-Known Member
Joined
Feb 2, 2010
Messages
1,869
Reaction score
46
Location
Baltimore, MD
Would there be any advantage to an octagon made with 45 degree elbows, so it's more "round". Or would that just be more expensive due to the additional hardware?


topend

Well-Known Member
Joined
Mar 5, 2011
Messages
116
Reaction score
1
Location
Wichita
JetSmooth said:
Would there be any advantage to an octagon made with 45 degree elbows, so it's more "round". Or would that just be more expensive due to the additional hardware?
That's exactly what I have, but mine is made with cpvc and fits differently than shown in this post. Works amazingly. If anyone wants more info, I can start a new thread.


JetSmooth

Well-Known Member
Joined
Feb 2, 2010
Messages
1,869
Reaction score
46
Location
Baltimore, MD
That's exactly what I have, but mine is made with cpvc and fits differently than shown in this post. Works amazingly. If anyone wants more info, I can start a new thread.
I'd be interested in checking it out. :D


discooby

Well-Known Member
Joined
Dec 15, 2010
Messages
356
Reaction score
5
Location
♦ Las Vegas ♦

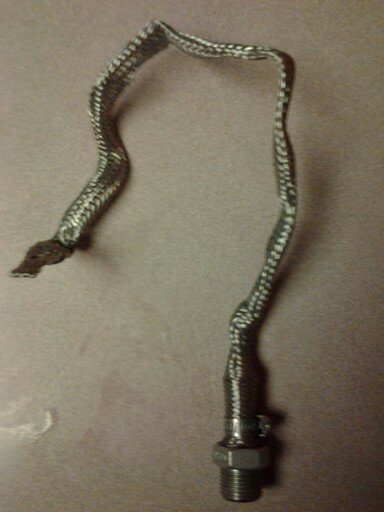

I brewed the other day and got a stuck sparge; after blowing into the silicon hose (and through the kettle screen) the end of the screen floated up to the top… this has been a headache from day one when trying to mix over 22lbs+ of crushed grain with a paddle and constantly hitting the screen. Anyway, after cleaning up the screen looked like this:

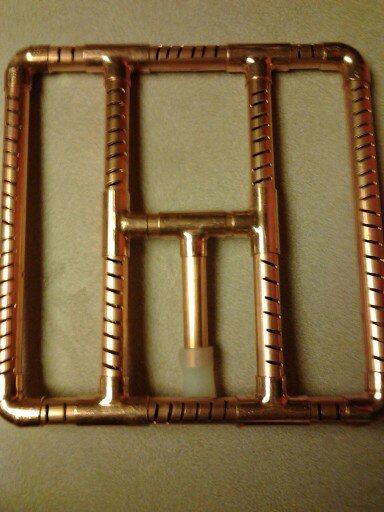

Piece of *&[email protected]!!!! But in darkness, as always, I turned to HBT for light and with the help from others I made this:


I used a dremel tool to cut the slits (used two 1/32 cutting wheels sandwiched together) and was going to solder but after testing it the pieces are air tight.

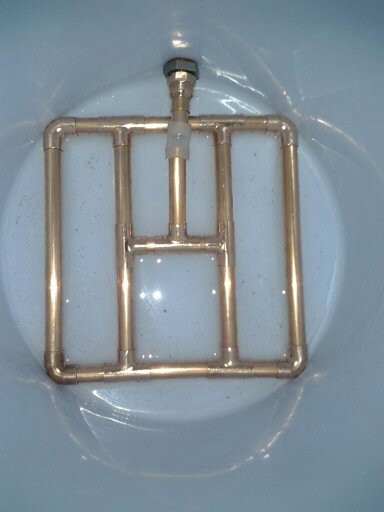

It fits snug in my 10g round cooler and my dead space went from 0.4 gallons to 0.078 gallons (or 1 ¼ cup)!!! Awesome! Thanks HBT and HBT members! :mug:

Now, does anyone know how to remove the burs that are inside the ½ inch copper pipe???


mccumath

Well-Known Member
Joined
Dec 19, 2010
Messages
1,002
Reaction score
199
Location
Idaho
discooby said:
Now, does anyone know how to remove the burs that are inside the ½ inch copper pipe???
Burrs on the inside of a copper pipe... Ah yes, here is how I got them out. I used a 12 or 20 gauge (pretty sure 20ga, but check your copper tubing size) shotgun cleaning brush (the stiff, prickly wire ones) on my drill, and ran it through the copper pieces before soldering, Worked like a charm, but ruins the cleaning brush.

Hope this helps!
Ryan M.


discooby

Well-Known Member
Joined
Dec 15, 2010
Messages
356
Reaction score
5
Location
♦ Las Vegas ♦
Burrs on the inside of a copper pipe... Ah yes, here is how I got them out. I used a 12 or 20 gauge (pretty sure 20ga, but check your copper tubing size) shotgun cleaning brush (the stiff, prickly wire ones) on my drill, and ran it through the copper pieces before soldering, Worked like a charm, but ruins the cleaning brush.

Hope this helps!
Ryan M.
That's a good idea! Would have saved me several hours using a rat tail file


discooby

Well-Known Member
Joined
Dec 15, 2010
Messages
356
Reaction score
5
Location
♦ Las Vegas ♦

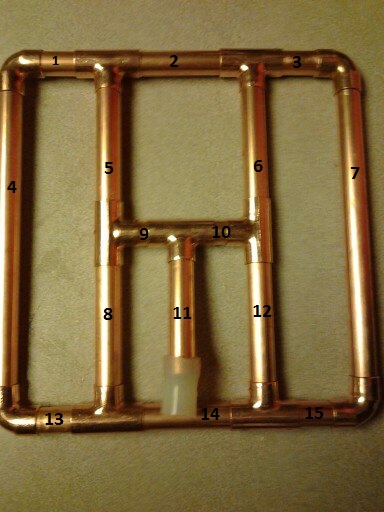

I had some requests for the dimensions for my manifold… here they are. It’s a pretty tight fit in the cooler (10gal round Rubbermaid); you need to apply some pressure to get it to seat on the bottom. I like it like that, it hasn’t moved at all while stirring. It’s not tight enough to damage the cooler though… but +1/8” on one of the pieces might make it impossible to seat.


1. 1 7/8”
2. 3”
3. 1 7/8”
4. 8 ¼”
5. 3 13/16”
6. 3 13/16”
7. 8 ¼”
8. 3 13/16”
9. 1 1/8”
10. 1 1/8”
11. 3 1/8”
12. 3 13/16”
13. 1 7/8”
14. 3”
15. 1 7/8”

NIBCO half in copper adapter.jpg
(NIBCO 1/2 in. Copper Adapter)

Copper pipe: ½” X 5’ (I believe I got away with using just one 5’ piece… i.e., I didn’t make any mistakes).
Copper elbows: 4
Copper T’s: 7
Project fun: 10+

Note that this manifold uses over 4’ of copper therefore it might make sense to get two ½” x 5’ lengths of copper in case you make a mistake (save a trip back to HD). The high-temp silicon tubing is cut to fit. Attached to the inside bulkhead is a copper female hose fitting (NIBCO ½ in. Copper Adapter… see pic) along with a short piece of pipe so that the silicon tubing slips over it.

Also, a rat-tail file worked great to remove all the burs (I picked up the “Husky 10-piece File Set“ from HD for $10.97… a steal!)

:mug:



hungry4hops

Hop to it!
Joined
Sep 19, 2011
Messages
1,006
Reaction score
129
Location
aston
just made one of these before i even attempt all-grain! ive never had a stuck sparge and i dont want to (they scare me!) thanks fo letting me steal your idea Bitterbrush!


sar_dog_1

Well-Known Member
Joined
Jul 29, 2013
Messages
251
Reaction score
18
Sweet. gonna make one next week. I made a false bottom on a water jet machine but I could not get the "dome" shape and it is horrible. After several attempts, I am giving up and going with this manifold. Sounds like I may have a winner!


LovesIPA

Well-Known Member
Joined
May 18, 2012
Messages
1,515
Reaction score
206
Location
Sacramento
Would there be any advantage to an octagon made with 45 degree elbows, so it's more "round". Or would that just be more expensive due to the additional hardware?

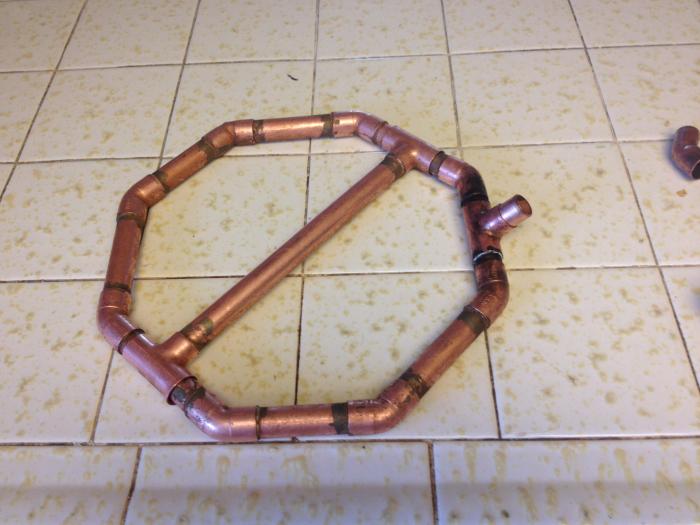

That's exactly what I ended up doing with mine. It works great. I typically get around 85% - 90% efficiency. I drilled 1/8" holes in it rather than use a hacksaw or dremel.



pattycakes223

New Member
Joined
May 29, 2013
Messages
4
Reaction score
0
I've made a copper manifold for my mash tun and I'm wondering if anyone has had an issue with oxidation. Is there a good method of cleaning these things. Maybe a solvent or something.


LovesIPA

Well-Known Member
Joined
May 18, 2012
Messages
1,515
Reaction score
206
Location
Sacramento
I rinse mine off with hot water. I don't pay any attention to the oxidation on the manifold.


T_Dub

Member
Joined
Oct 13, 2013
Messages
7
Reaction score
1
Yeah, clean it well and don't worry about it. I actually didn't solder most of mine so its a snap to clean. I just soldered a fitting on one end of each of the slotted pipes so they wont rotate. The thing fits snugly enough in my cooler that they dont come apart.


Jdaught

Well-Known Member
Joined
Nov 12, 2011
Messages
314
Reaction score
27
Location
Midlothian
Another tip is to use a tubing cutter for making the slits, no mess and no burs. Also clean them every once in a while by soaking in vinegar, removes all the tarnish/discoloration that would otherwise end up in the mash.
