Looking for suggestions to increase airflow in tower and keezer.

Just a 120mm fan?

Or do I need tubing.


day_trippr

"We live in interesting times"
Joined
May 31, 2011
Messages
33,525
Reaction score
14,656
Location
Stow, MA
Preventing stratification in the keezer and cooling a tower are two separate needs, ime. For the former I have a 120mm pc fan perched on the hump blowing across the length of the cabinet, and for the latter I have this:

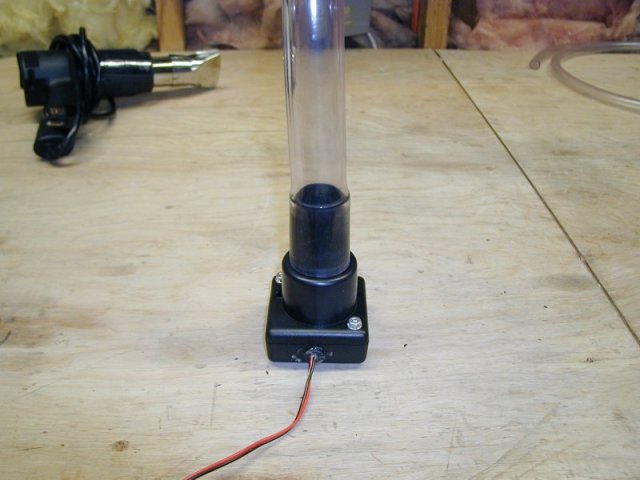

The 1" ID PVC tube is stuffed up the tower column ending in the middle of the t-box while the fan dangles down roughly in the middle of the cabinet. There's enough room inside the 3"d column for air to return from the faucet box, and the 40mm fan moves enough air to keep the tower within 10°F of the cabinet even in mid-summer...

Cheers!

OP
homebrewdude76

homebrewdude76

Well-Known Member
Joined
Jan 29, 2012
Messages
576
Reaction score
52
Location
Chesterton
My tower is close to 6" in diameter. I think I can just point a small fan towards the opening?
