Connecting my stand to house plumbing?

Homebrew Talk - Beer, Wine, Mead, & Cider Brewing Discussion Forum

Help Support Homebrew Talk:

aangel

Well-Known Member
Joined
Oct 18, 2010
Messages
568
Reaction score
65
Location
Toronto

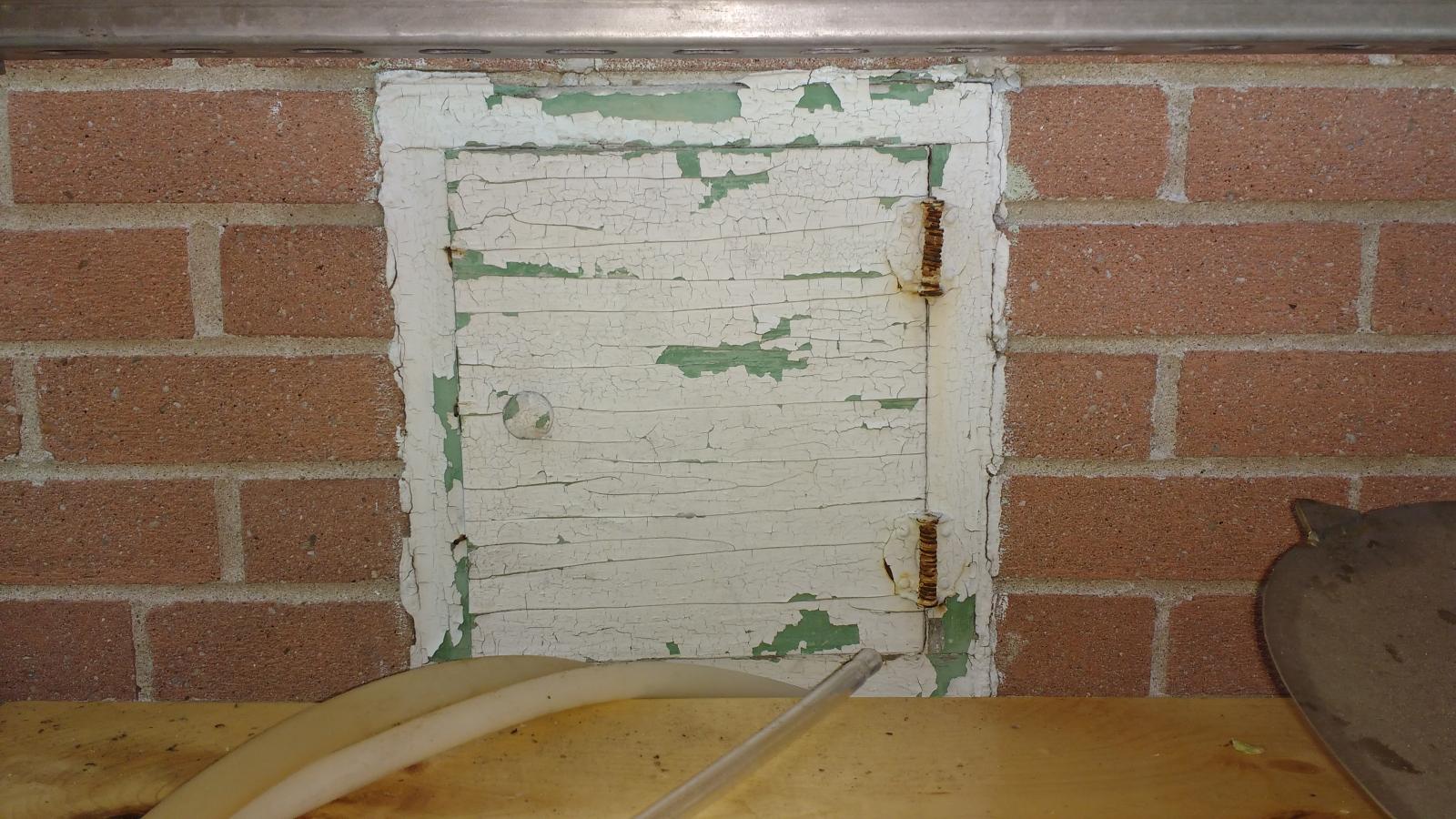

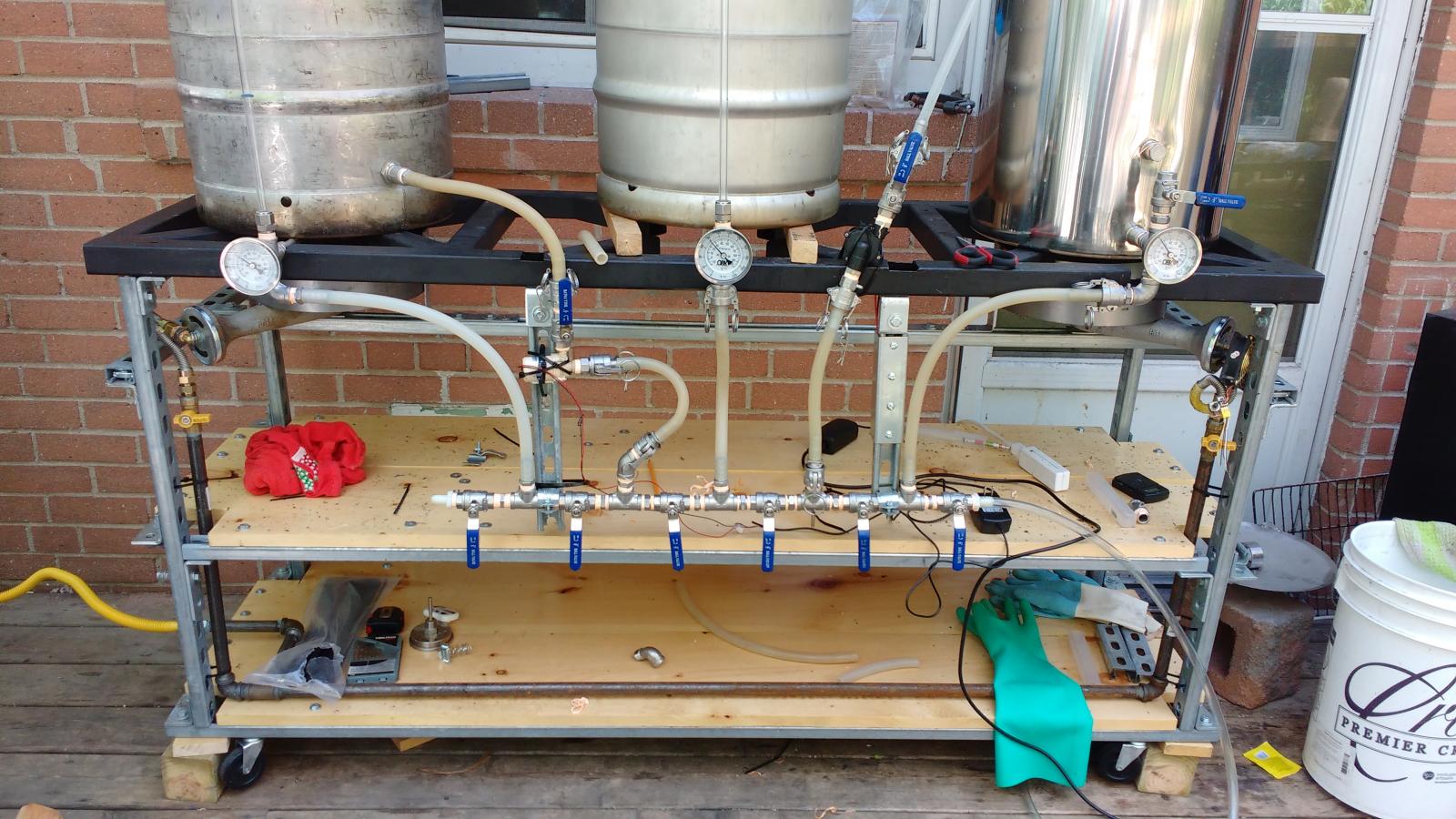

I'm looking to connect my brew stand to my house plumbing. The stand sits on my deck, immediately adjacent to my kitchen sink and plumbing. There's actually a little door built into the house to enable this kind of thing I think. I just now need to A: tap into the drain and B: tap into the hot & cold water lines. See pictures. Any advice on what I need to get / how I should do this?

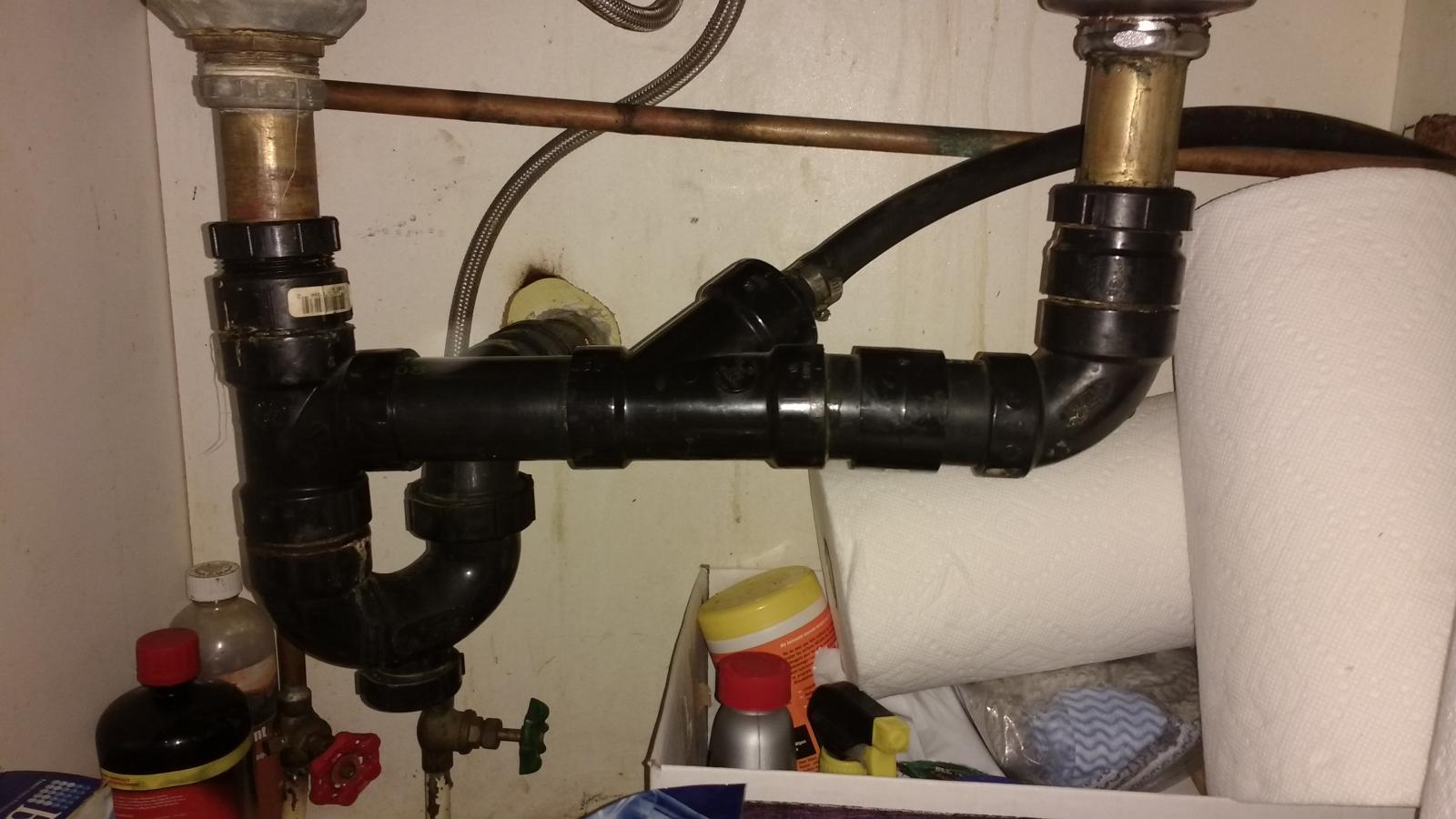

I have the pictured valve/plumbing manifold. I'm thinking of plumbing the side of that directly into the drain via a flexible dishwasher drain hose. For the water, I'm thinking of putting a garden hose style valve and outlet just inside the "door" and then using my existing drinking water hose for filling the brew pots and cleaning things out.









flars

Well-Known Member
Joined
May 21, 2011
Messages
8,625
Reaction score
2,054
Location
Medford, Wisconsin
I would keep it simple and just tap into the hot and cold water. Tapping into the drain could require traps and check valves. Wastewater could go onto the lawn or flower beds.

Joined
Jan 5, 2012
Messages
4,746
Reaction score
858
Location
Atlanta
I would keep it simple and just tap into the hot and cold water. Tapping into the drain could require traps and check valves. Wastewater could go onto the lawn or flower beds.
^^^This- but I'd add a water filter (hot water type) for your line to your HLT.

OP
A

aangel

Well-Known Member
Joined
Oct 18, 2010
Messages
568
Reaction score
65
Location
Toronto
It's too much wastewater, especially in Winter. If a dishwasher can connect safely why not a brew stand?


imasickboy

Drinkasaurus extraordinarius
Joined
Oct 29, 2007
Messages
2,355
Reaction score
2,133
Location
Landisville
As long as you connect your waste line somewhere above the trap, you should be fine.


kh54s10

Supporting Member
HBT Supporter
Joined
Aug 6, 2011
Messages
18,743
Reaction score
5,477
Location
Edgewater
Is the area heated? I got a utility sink and set it up on my porch to receive cold water from a spigot on the back of my house. I use a potable water RV hose for the connection. The sink drains into a 55 gallon plastic drum then though a soaker hose into the yard.

From the sink I ran a line through a house size water filter (carbon filter) and up to my HLT. 3 tier gravity system.

In the winter I have to drain everything to keep it from freezing.
