Hi all,

I used to have my CO2 tank inside my keezer, but now I moved it outside. So, I'm a little worried that someone will topple it over when accessing my Perlick beer faucets. I have 5, 10 and 15 lb tanks.

Does anyone have plans for building a stand to keep the CO2 tanks upright? Or, can someone recommend a commercially available one? I really can't attach this to a wall. I need a free-standing version.

Thanks!


SteveHeff

Supporting Member
HBT Supporter
Joined
Nov 17, 2012
Messages
704
Reaction score
93
Location
Merrimack
I took some 3/4" plywood and made a sleeve for my cylinder. I doubled up on the bottom thickness so it would have more weight to keep it upright. Not pretty but it works great.

Joined
May 24, 2008
Messages
377
Reaction score
67
Location
Woodstock
A restaurant plate stacker works perfect. It even has stainless springs for depth. Attach to 3/4 plywood or real wood base and it stands perfect. Go to the scrapers or a restaurant supply place. I got mine from a camp and made a beer dispenser out of stainless frame and a CO2 stand from the stacker!


mongoose33

Well-Known Member
Joined
Dec 16, 2015
Messages
8,040
Reaction score
7,691
Location
Platteville, WI

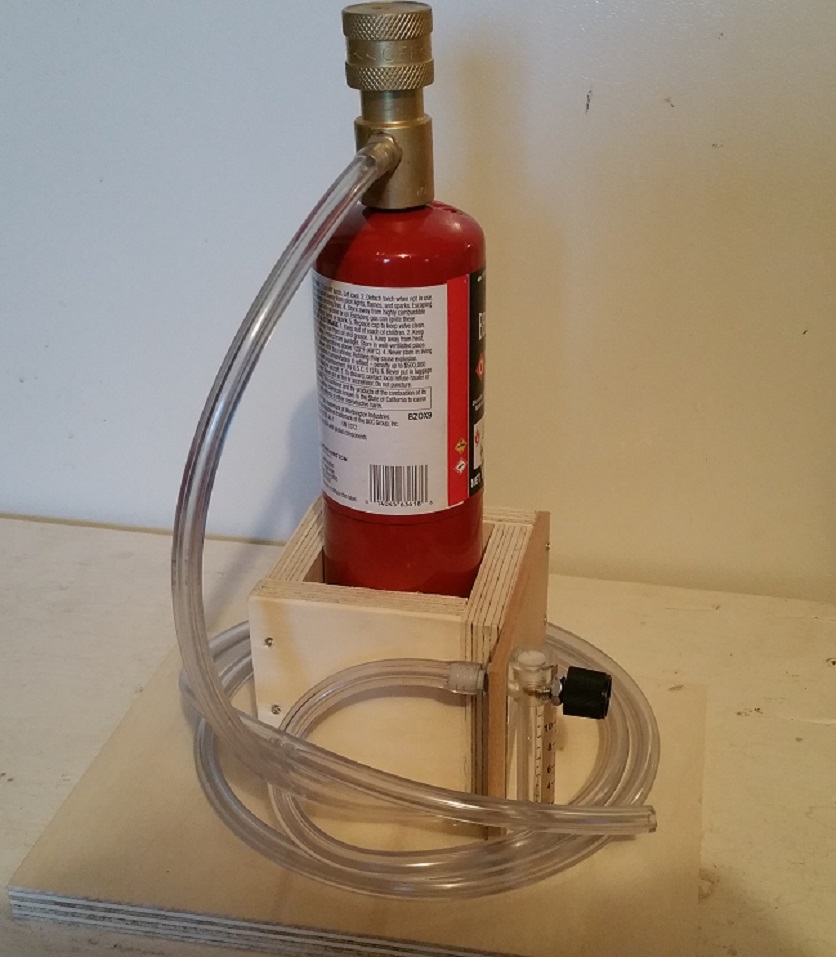

I have a sort of mini version of what I'd do if I wanted a way to prevent toppling CO2 tanks. It's essentially what I think @SteveHeff is describing above. Mine is for holding the O2 tank for oxygenating wort, but the principle applies. Couple of pics below showing it, and it would be easy to do one for a CO2 tank. Depending on where it stood, I might move the "sleeve" to a corner or, if free standing on 3 or 4 sides, put the sleeve in the middle.


OP
devils4ever

devils4ever

Well-Known Member
Joined
Sep 8, 2007
Messages
499
Reaction score
65
Location
NJ, USA
The plywood sleeve on a large base would work for me. I'll have to make adjustable for the different diameters of the tanks.


NewkyBrown

Well-Known Member
Joined
Sep 24, 2012
Messages
349
Reaction score
36
Location
Calgary
Wish I’d done this a while ago...I toppled my tank over and destroyed the regulator.


ITV

Well-Known Member
Joined
Feb 1, 2015
Messages
339
Reaction score
173
Location
Chicago Suburbs

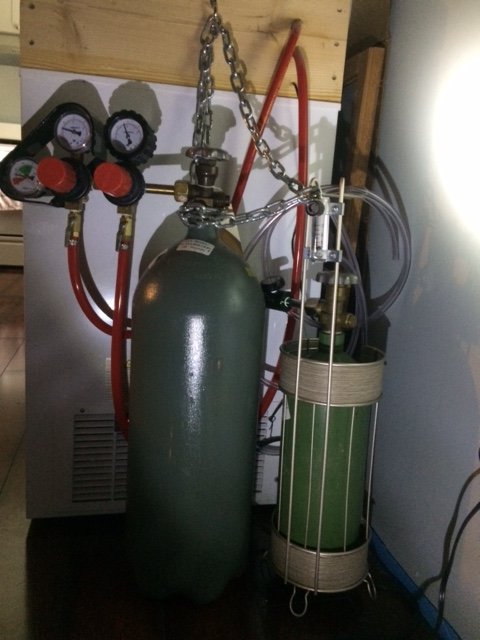

I safety chained my 20# CO2 and 10cu ft oxygen cylinder to the side of my keezer. My oxygen cylinder holder is a repurposed toilet paper holder with a flow meter attached.





VVbrewery

Well-Known Member
Joined
Aug 20, 2011
Messages
138
Reaction score
47
Location
San Tan Valley AZ
Not to hijack the thread but I was wondering how many LPM of O2 you used when oxygenating. I just got a flow meter but haven't used it yet. I'm going to have to copy your stand too to mount it.


mongoose33

Well-Known Member
Joined
Dec 16, 2015
Messages
8,040
Reaction score
7,691
Location
Platteville, WI
Not to hijack the thread but I was wondering how many LPM of O2 you used when oxygenating. I just got a flow meter but haven't used it yet. I'm going to have to copy your stand too to mount it.
I'm thinking it's about 1-2 LPM but the meter I bought wasn't the fine-control one, it goes up to, IIRC, 10 LPM, whereas I'd have liked one that went up to, say, 2 LPM. So I'm just pushing O2 through the wand, enough that I can see it break the surface, then do that for 60 seconds while swirling the wand around.

Seems to work.


day_trippr

Covid-19 Vaccine Effectivity Test Subject
Joined
May 31, 2011
Messages
35,668
Reaction score
17,956
Location
Stow, MA
fwiw, I built a few "tank nests" for my brewery, here are a couple of them:




I built two of the junior versions as there's a third CO2 system in the brewery.
I pretty much free-handed them as they're too simple to need a drawing. Fabricated from clear pine, the bottom is two layers - a solid layer with a second, "holed" layer on top to hold the bottom of the cylinder(s) - then a top with the same hole(s).
I have a pretty cool adjustable "flying cutter" I use on my drill press to cut the holes, otherwise I would have used a saber saw with a pilot hole...

Cheers!

OP
devils4ever

devils4ever

Well-Known Member
Joined
Sep 8, 2007
Messages
499
Reaction score
65
Location
NJ, USA

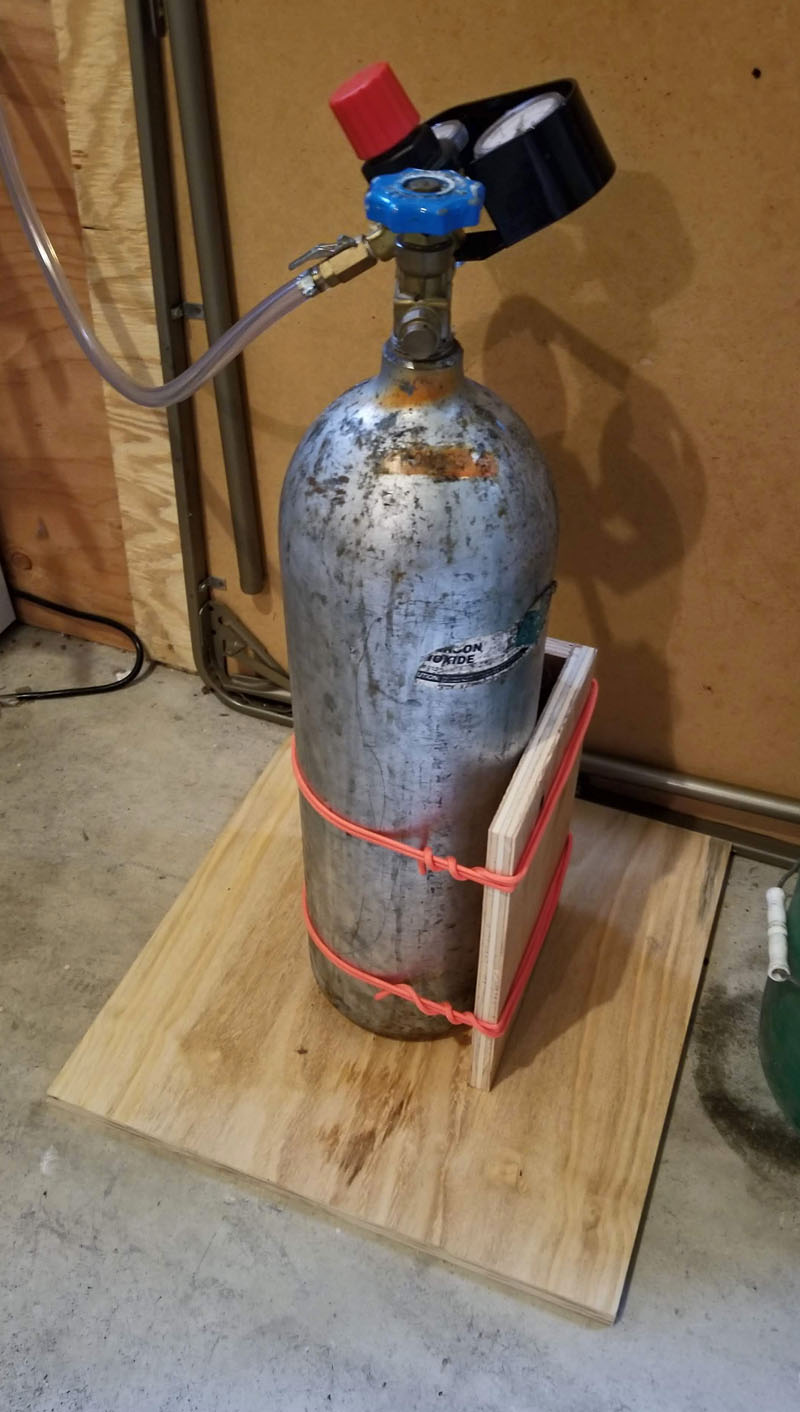

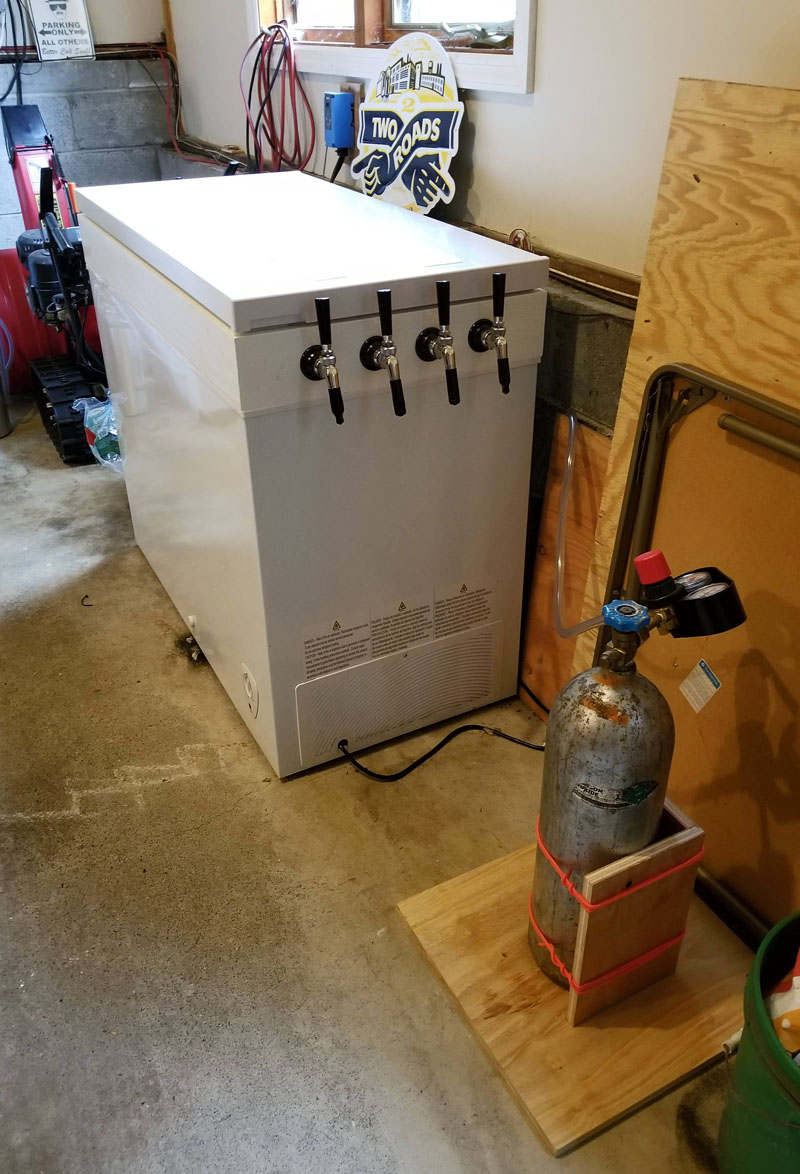

Okay, I finished my CO2 tank stand based on comments here. I used scrap 3/4" exterior plywood. The base is 18" square and the right angle uprights are 12" high by 7". This should accommodate my 5 lb, 10 lb, and the 15 lb tanks. The 15 lb tank is in the pics. I used biscuits to join the right angle on the uprights and screwed it to the base from the bottom. I used mini tie downs from Home Depot to secure the tank to the uprights.




Gozie Boy

Well-Known Member
Joined
Dec 28, 2017
Messages
223
Reaction score
169
fwiw, I built a few "tank nests" for my brewery, here are a couple of them:
View attachment 585393

View attachment 585394

I built two of the junior versions as there's a third CO2 system in the brewery.
I pretty much free-handed them as they're too simple to need a drawing. Fabricated from clear pine, the bottom is two layers - a solid layer with a second, "holed" layer on top to hold the bottom of the cylinder(s) - then a top with the same hole(s).
I have a pretty cool adjustable "flying cutter" I use on my drill press to cut the holes, otherwise I would have used a saber saw with a pilot hole...

Cheers!
This happens to be EXACTLY what I was looking for, and once again day_trippr came through! Now, I am NOT an experienced woodworker, although I do have a drill press. What kind of "fly cutters" can cut the large diameter holes which would be needed for 5, 10 and 20# tanks, and who carries these? Many thanks!


day_trippr

Covid-19 Vaccine Effectivity Test Subject
Joined
May 31, 2011
Messages
35,668
Reaction score
17,956
Location
Stow, MA
I have a "General" branded fly cutter identical to this:



Max hole size is 7-7/8", big enough to cover up to 20lb steel cylinders. Practical max material thickness is an inch.
I've had it so long I cannot remember where I got it, if I had to guess it was a Sears Craftsman carry back in the 80s, but I believe I've seen them in big box diy stores...

Cheers!


Gozie Boy

Well-Known Member
Joined
Dec 28, 2017
Messages
223
Reaction score
169
I have a "General" branded fly cutter identical to this:

View attachment 720243

Max hole size is 7-7/8", big enough to cover up to 20lb steel cylinders. Practical max material thickness is an inch.
I've had it so long I cannot remember where I got it, if I had to guess it was a Sears Craftsman carry back in the 80s, but I believe I've seen them in big box diy stores...

Cheers!
Thanks! This is great, as I was looking for a safe and cheaper alternative than buying or borrowing a router.

Coincidentally, while awaiting your reply, I stumbled across the below video, which presents a master class in how to use this tool to achieve outstanding professional results. All I could think of was "whirling blades of pain and death"! 😱 I think I will stick with a drill press and proper safety gear!
