I want to build bigger temp control fermentation chamber What size of chest freezer do I need for 2 -3 6.5 gal carboy???


RM-MN

Supporting Member
HBT Supporter
Joined
Nov 26, 2010
Messages
14,299
Reaction score
5,007
Location
Solway
I want to build bigger temp control fermentation chamber What size of chest freezer do I need for 2 -3 6.5 gal carboy???
You don't need a bigger fermentation chamber. If you put in one carboy with the controller you control its fermentation temperature. Works great. When you add a second carboy, one of them has a controller, the other runs wild. Since your beer only needs fermentation control during the first few days to control the formation of esters and fusels, when that period is over (about day 4 or 5) you can take that carboy out and let it come to room temperature while you put the next one in. If that isn't fast enough turnaround for you, you need a bigger fermentation vessel or a second fermentation chamber with its own controller.

OP
C

Cata_rebel

Active Member
Joined
Jan 12, 2017
Messages
40
Reaction score
4
Location
Countryside
You don't need a bigger fermentation chamber. If you put in one carboy with the controller you control its fermentation temperature. Works great. When you add a second carboy, one of them has a controller, the other runs wild. Since your beer only needs fermentation control during the first few days to control the formation of esters and fusels, when that period is over (about day 4 or 5) you can take that carboy out and let it come to room temperature while you put the next one in. If that isn't fast enough turnaround for you, you need a bigger fermentation vessel or a second fermentation chamber with its own controller.
I have 1 made of refrigerator I used to used it for sausage and salami
I built it whit temp control and humidity
Right now only take 1 carboy at the time and the period is about 2 weeks
I will like to do 11 gal then 5.5 anyway I'm wasting time brewing and cleaning etc even if I keep it at room temp in keg that's why I was thinking to get chest freezer for 2 carboys
I have the temp control is easy to move (inkbird 308) also easy to bypass thermostat
Cheers


Rick Crane

Supporting Member
HBT Supporter
Joined
Jul 17, 2020
Messages
27
Reaction score
5
I bought a Fridgidaire at home Depot and a Inkbird temp controller.
www.homedepot.com

Frigidaire 5 cu. ft. Chest Freezer in White-FFCS0522AW - The Home Depot
Store more of your favorite frozen foods and optimize bulk food storage with the Frigidaire 5.0 Cu. Ft. chest freezer. Great for storing large or small items, this chest freezer features a removable basket,
www.homedepot.com

https://www.amazon.com/gp/product/B01HXM5UAC/ref=ppx_yo_dt_b_asin_title_o01_s00?ie=UTF8&psc=1

One carboy or one bucket fits fine. ( 5.0 cu Feet)


_BullDog_

Well-Known Member
Joined
Sep 6, 2014
Messages
293
Reaction score
211
Location
NC
I have a 7 cu ft freezer from costco. Holds both my 6 gal and 7 gal fermonsters plus various 1 gal carboys.


Vicat

Member
Joined
Oct 21, 2020
Messages
21
Reaction score
2
Location
Evergreen
I bought a Fridgidaire at home Depot and a Inkbird temp controller.
www.homedepot.com

Frigidaire 5 cu. ft. Chest Freezer in White-FFCS0522AW - The Home Depot
Store more of your favorite frozen foods and optimize bulk food storage with the Frigidaire 5.0 Cu. Ft. chest freezer. Great for storing large or small items, this chest freezer features a removable basket,
www.homedepot.com

https://www.amazon.com/gp/product/B01HXM5UAC/ref=ppx_yo_dt_b_asin_title_o01_s00?ie=UTF8&psc=1

One carboy or one bucket fits fine. ( 5.0 cu Feet)
That is what I am looking to buy. I have an Inkbird and a heater with a fan. How do you like it so far?


deuc224

Well-Known Member
Joined
Nov 13, 2019
Messages
223
Reaction score
74
Chest freezers are hard to get right now so I luckily found a fridgidaire 12 cu. ft. one for 500 that im just gonna use to storage kegs of beer on co2.


Rick Crane

Supporting Member
HBT Supporter
Joined
Jul 17, 2020
Messages
27
Reaction score
5
That is what I am looking to buy. I have an Inkbird and a heater with a fan. How do you like it so far?

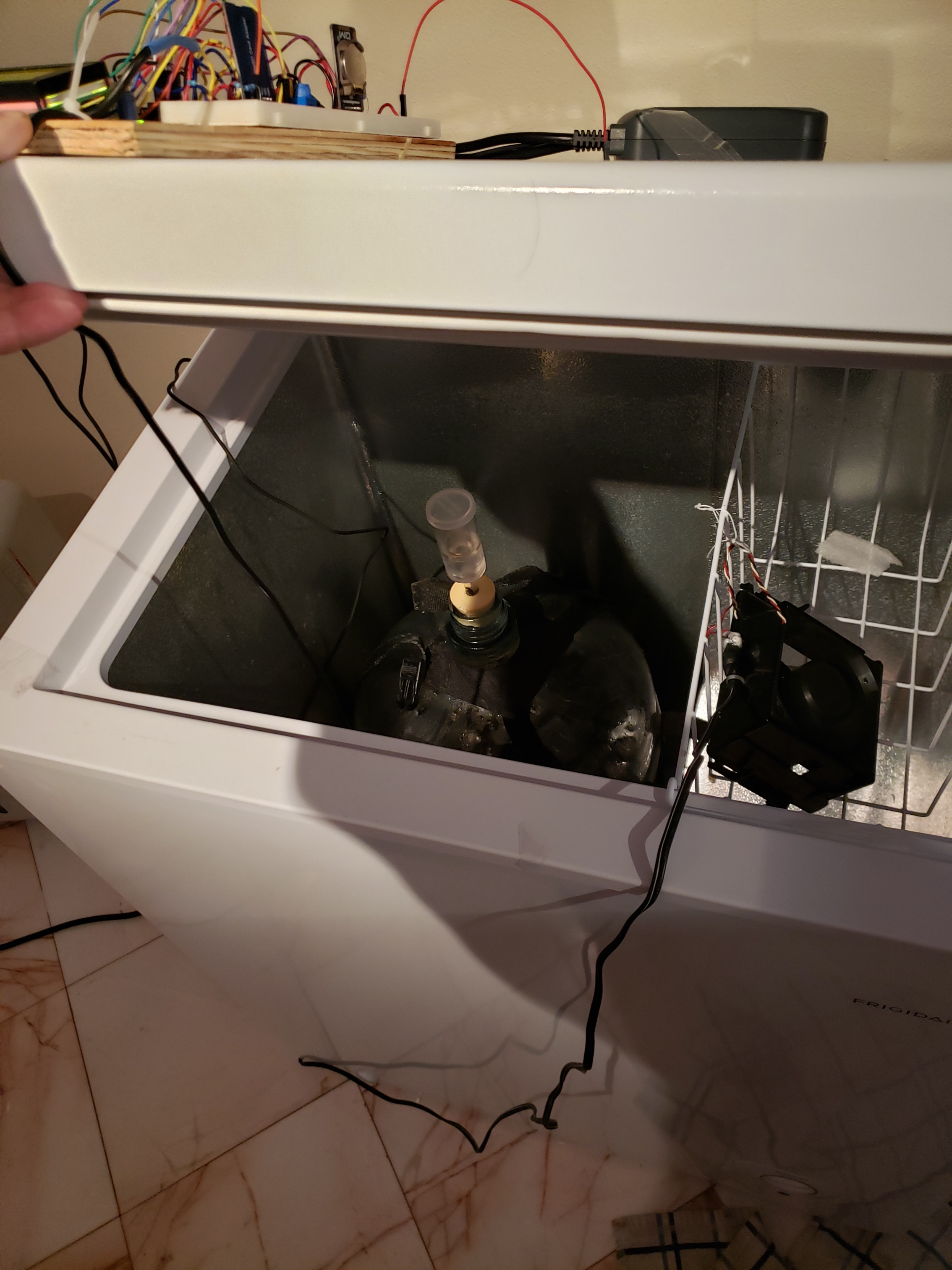

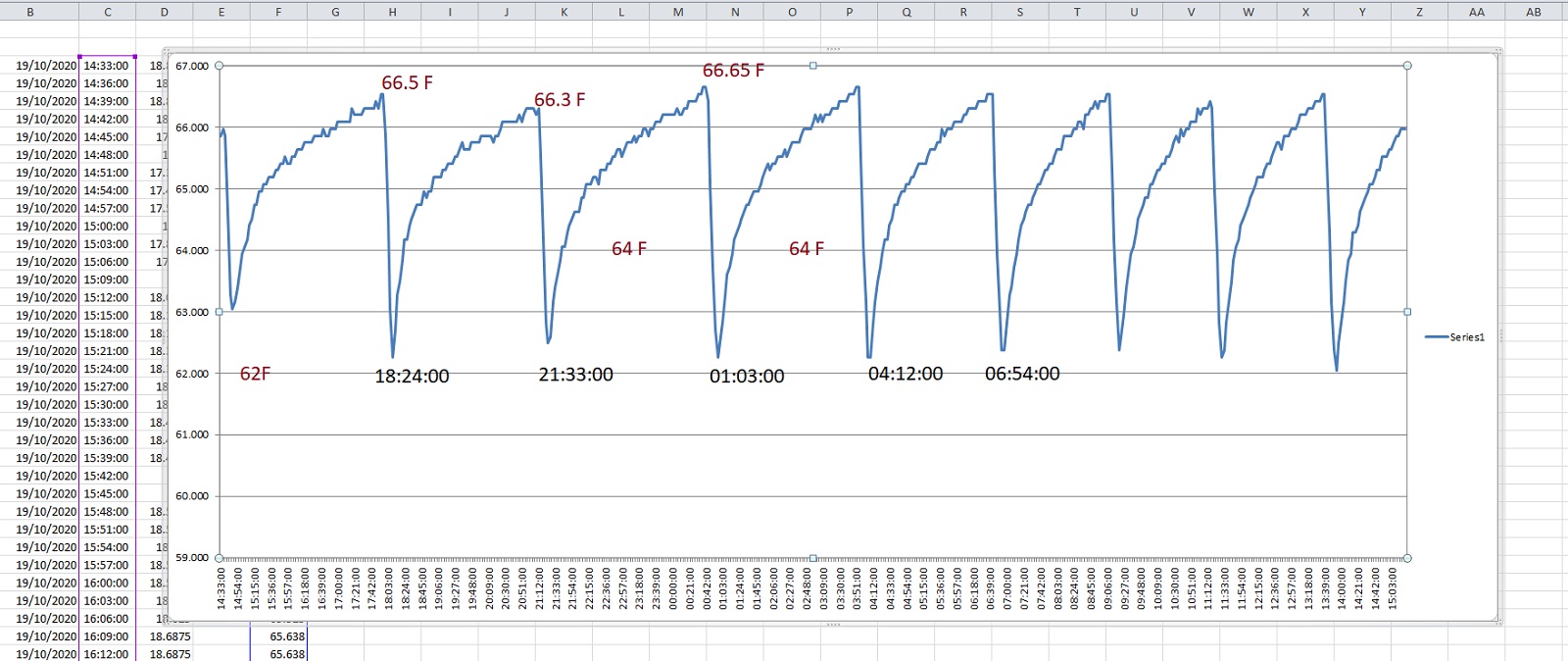

So far so good. I have my first beer fermenting, all grain Irish stout. I taped a temperature probe to the glass carboy to monitor the temp and see how the Inkbird controller and freezer behave together. Here is a graph of my temperatures over about 24 hours. The freezer temp is set to the almost lowest setting on the dial. I may crank it to the highest and make another graph. The inkbird sensor is also taped to the carboy with some foam insulation . I have the Inkbird set for 64 degrees F and my temp fluctuates 3 degrees over about 3 hours.


Attachments

Vicat

Member
Joined
Oct 21, 2020
Messages
21
Reaction score
2
Location
Evergreen
Just curious if you set the +/- 3 degrees on purpose. I was thinking of only setting it to +/- 1 degree for a black IPA that I'm going to brew.


Rick Crane

Supporting Member
HBT Supporter
Joined
Jul 17, 2020
Messages
27
Reaction score
5
The temperature fluctuation I can not control. It's just how the Inkbird works. I have turned the freezer temp up to max and have turned it down to lowest settings and there is still a 3 to 4 degree temperature swing. On the Inkbird I have also changed heating differential and cooling differential higher and lower and it does not make much difference in the temperature swing. I have my temperature probes taped to the carboy.


day_trippr

"Feeling much better now, thanks"
Joined
May 31, 2011
Messages
33,947
Reaction score
15,246
Location
Stow, MA
The temperature fluctuation I can not control. It's just how the Inkbird works. [...]
That's only because the "Differential" settings are still at their 3°F defaults.

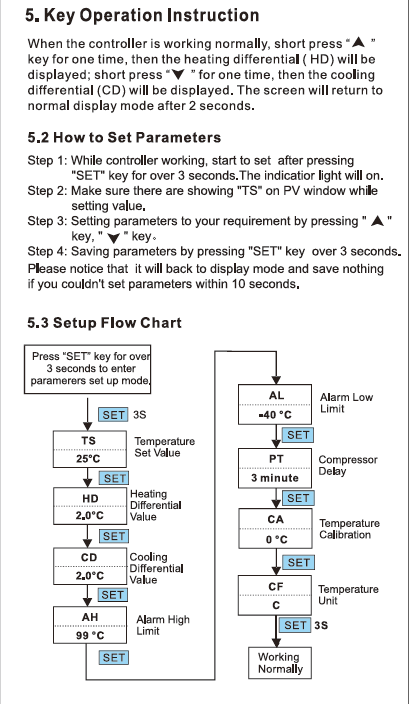

If you go through the setup procedure you can change the Differential settings (HD and CD for Heating and Cooling, respectively) to something as small as 1°F.





Cheers!


Rick Crane

Supporting Member
HBT Supporter
Joined
Jul 17, 2020
Messages
27
Reaction score
5
I will set those to ZERO and see what my temperature logger says over 24 hours. I do not believe i can maintain a constant 64 degrees 100% over time. I Mean the temp controller will kick in and drop the temp to below 64 F and turn off. The temp will rise a little above 64 before it kicks the compressor on again and the temp will fall, so there will always be some up and down over 2 weeks in the primary.


Attachments

Elric

Well-Known Member
Joined
Mar 14, 2020
Messages
355
Reaction score
983
I will set those to ZERO and see what my temperature logger says over 24 hours. I do not believe i can maintain a constant 64 degrees 100% over time. I Mean the temp controller will kick in and drop the temp to below 64 F and turn off. The temp will rise a little above 64 before it kicks the compressor on again and the temp will fall, so there will always be some up and down over 2 weeks in the primary.
if you can add a thermowell to your bung and get the temperature probe into your beer it will show less fluctuations than being taped to the side of your carboy.


day_trippr

"Feeling much better now, thanks"
Joined
May 31, 2011
Messages
33,947
Reaction score
15,246
Location
Stow, MA
I will set those to ZERO and see what my temperature logger says over 24 hours. [...]
Pretty sure 1° is the minimum differential :)

fwiw, I run my controllers with a 2°F differential then set the Set Point one degree below my target temperature. So, still a 2 degree differential to cut down on compressor cycles, but keeping the kegs within a degree of my goal...

Cheers!


Skeptonomicon

Member
Joined
Jan 19, 2020
Messages
15
Reaction score
8
Even if the inkbird is set to 1 degree, you are likely to see some larger fluctuations in the temp. This is because of the mechanical limitations of the refrigeration system. It has a lag between turning on and the evaporator coils cooling, and another lag between the coils and the air inside the unit cooling. By the time the air cools, the system has overshot the set point. You will see large swings in temp of the air, less on the side of the carboy, but almost no fluctuation of the wort. Still, taped to the side of the carboy should get you down to 1 or 2 degree fluctuations.


Rick Crane

Supporting Member
HBT Supporter
Joined
Jul 17, 2020
Messages
27
Reaction score
5
if you can add a thermowell to your bung and get the temperature probe into your beer it will show less fluctuations than being taped to the side of your carboy.
I was thinking about putting the probe in the beer. Thanks for the suggestion.


Rick Crane

Supporting Member
HBT Supporter
Joined
Jul 17, 2020
Messages
27
Reaction score
5
Pretty sure 1° is the minimum differential :)

fwiw, I run my controllers with a 2°F differential then set the Set Point one degree below my target temperature. So, still a 2 degree differential to cut down on compressor cycles, but keeping the kegs within a degree of my goal...

Cheers!

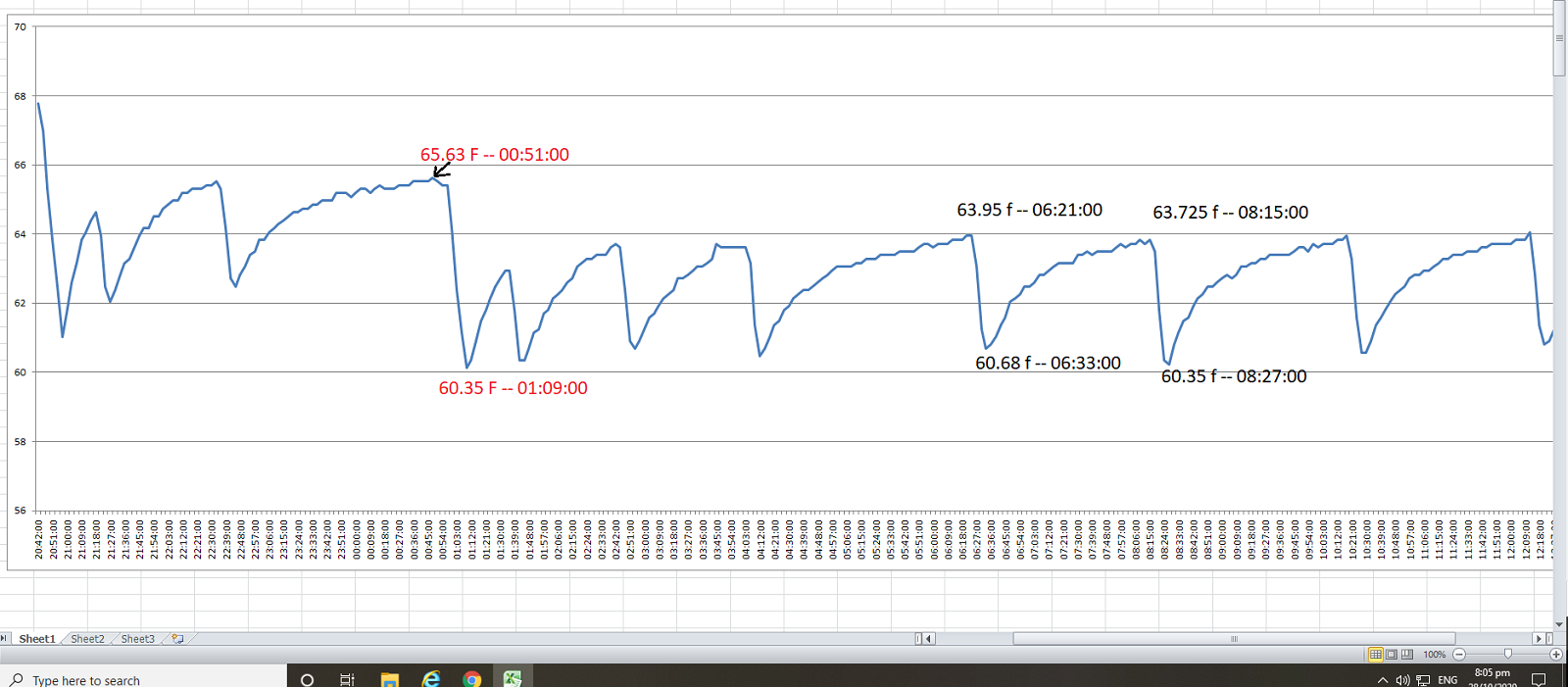

I changed the settings to +4 F for a day and made another graph It does not make a big difference I set them both to +1 F for a day and did another graph, attached. I had the temp set at 63f .


Attachments
