Hello,
I have a strange problem with my C02 lines. I recently updated from a 4 to a 6 keg keezer, and got a new 6 way manifold. For the first couple months everything has been fine, and all the C02 lines have been working. But recently one of the lines (the second in the chain) stopped pushing out any C02. I removed the ball lock disconnect and opened the valve and nothing came out. I then did the same with the other line and it worked just fine (so it's definitely not out of C02).

Does anyone have any idea why one of the lines in the manifold would just stop working?


day_trippr

"Now brewing exclusively with Hydrohydroxic Acid"
Joined
May 31, 2011
Messages
34,478
Reaction score
15,996
Location
Stow, MA
Can you post a picture of the manifold in question?
Or, do you know if the shut-off valves have integrated check valves (ie: back-flow preventers)?
If so, and they're of the spring-loaded ball style, one might have gotten stuck in closed position..

Cheers!

OP
Beeru

Beeru

AnarchoFermentalist
Joined
Oct 9, 2013
Messages
163
Reaction score
54
Location
Vancouver
Oh maybe that is it! I will check. Fingers crossed that's all it is

OP
Beeru

Beeru

AnarchoFermentalist
Joined
Oct 9, 2013
Messages
163
Reaction score
54
Location
Vancouver

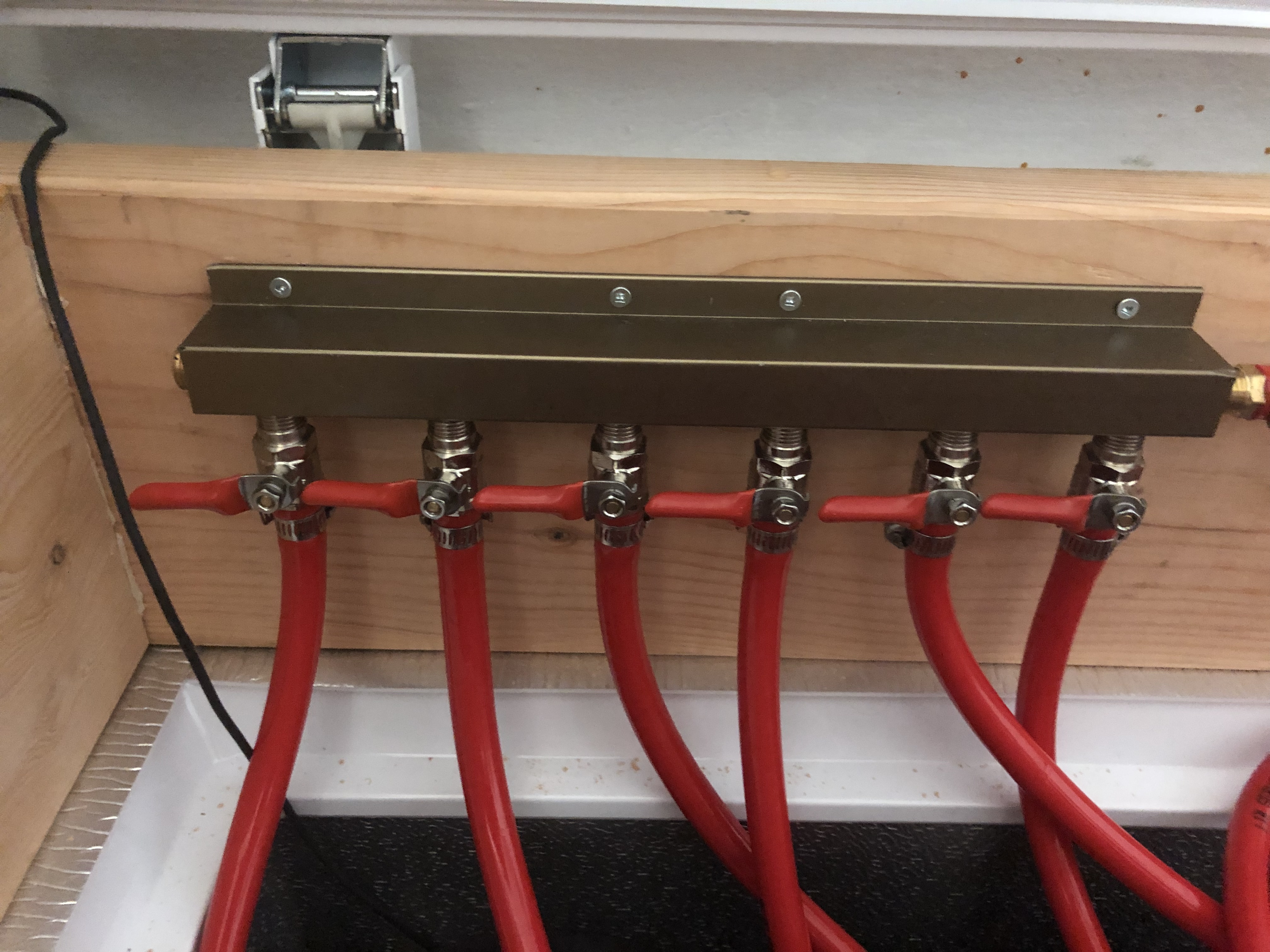

This is the manifold. I was hoping it would be easier to check if a ball was stuck but looks like I might have to take the whole thing off to be able to unscrew it. it’s the second from the left one that doesn’t work. All the rest are fine


Just checked, and the Shut offs have built in one way check valves

Joined
Jun 2, 2008
Messages
64,959
Reaction score
16,498
I have the same model, and one of mine stopped working recently as well.

Haven't spent any time trying to troubleshoot yet.

Good luck and let us know if you solve the problem.

OP
Beeru

Beeru

AnarchoFermentalist
Joined
Oct 9, 2013
Messages
163
Reaction score
54
Location
Vancouver
Apparently the solution is to crank up the psi to 30 and blast it through. That’s the first thing I tried and it didn’t work. But when I get home I’ll try cranking it to 35 or more. I will report back.

edit: the other thing to try is removing all the lines and letting it soak in hot water. The culprit is usually beer backed up in the line, or just condensation from the fridge gumming it up. I’m told that if the C02 blast doesn’t work, that’s the next step.

Last edited:

IslandLizard

Progressive Brewing
Staff member
Mod
Lifetime Supporter HBT Supporter
Joined
Jan 9, 2013
Messages
16,422
Reaction score
6,607
Location
Pasadena, MD
This is the manifold. I was hoping it would be easier to check if a ball was stuck but looks like I might have to take the whole thing off to be able to unscrew it. it’s the second from the left one that doesn’t work. All the rest are fine.
My manifolds (same look, but 4-channel) had a lot of thick cutting grease and aluminum filings in it. It's very possible the little opening on the inside of that valve got stopped up. Or the check valve ball is just stuck.

It's only 4 screws to remove the manifold, just unscrew the faulty valve and check it out. All the others can remain in place, hoses and all.
Use a few turns of teflon tape on the threads when reassembling. There is not much thread in the body so be careful not to cross threads and be gentle when torquing. Use more tape if you want it to end up facing forward. Test the whole thing for leaks.

I redid all of mine, the whole assembly was quite deplorable.

Just a note...
Leave the little red handles only in 90 degree positions; some tend to leak when left in between. I did have one leaking valve when touched at the open position, and ended up replacing it. I have not found a way to disassemble them without damaging the little plastic ball valve seat, while removing the little shaft.

OP
Beeru

Beeru

AnarchoFermentalist
Joined
Oct 9, 2013
Messages
163
Reaction score
54
Location
Vancouver
Thanks. I might have to do that. Blasting it with higher pressure C02 didn’t work for me.
