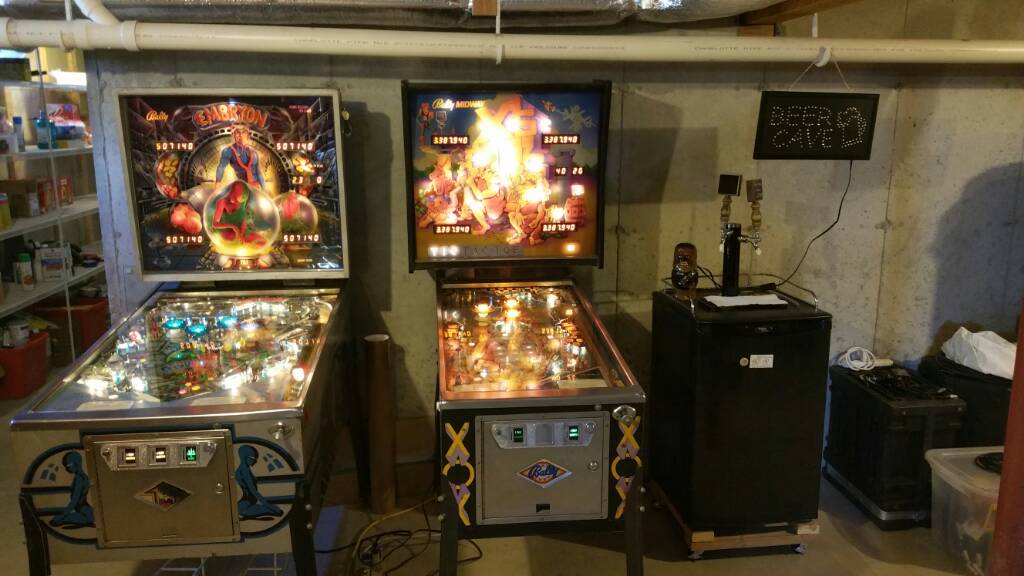

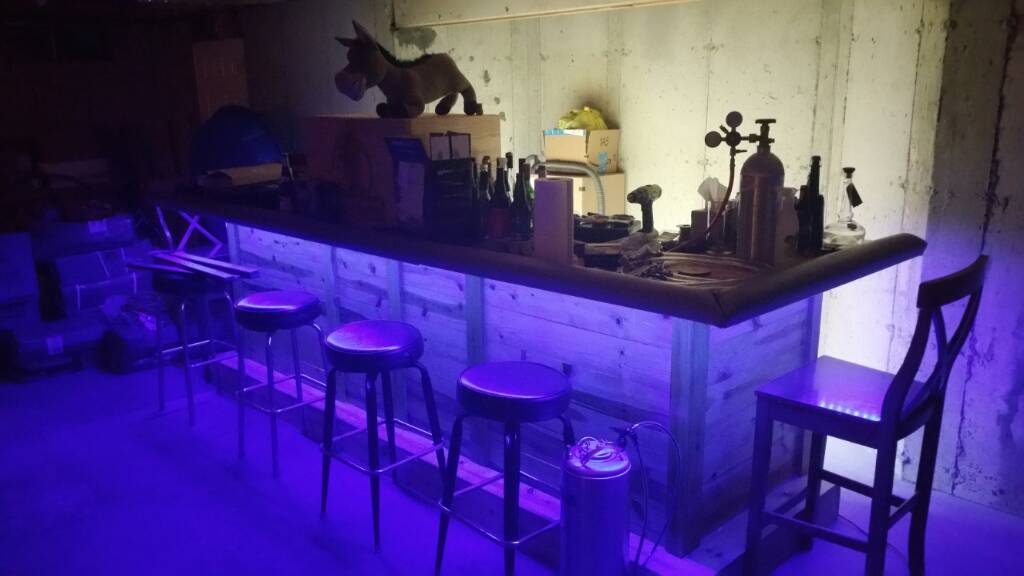

So I was able to score for $500 a 12ft custom bar made out of mostly poplar planks and 9 stools/chairs. It had a great stain finish on it. Looks amazing! CL is an amazing wasteland of stuff, just got to have the right timing it seems on there. Bought a Danby kegerator that I converted as a two tap tower with a cooling fan with hose up to the tower. The pinball machine I traveled 6 hours from my house to get. Its fully restored inside and out. Great conversation piece as well as being a cool looking game in the space.


Anyways, I want to know if anyone on here has created an automatic liquor dispense system? Similar to a product called "SideBar Beverage."
http://www.sidebarbeverage.com/6500-series-horizontal/black-base-black-spout-6500h


I would think for the cost of such a device and a little know how, I think a similar system that looks cooler and functions the same if not better, can be made with a few parts like 3/16" hoses, stoppers, 12VDC dosing pumps, a nice keypad matrix, old fashioned looking faucet for show, and some basic relay board. I could even go one step further with some arduino coding to make various mixed drinks at the touch of a button. I know a company called Berg makes such a system for professional environments, but can't see it being practical for home setups unless I really had too much disposal income to play with.

What do you think?








bleme

Well-Known Member
Joined
Jan 24, 2012
Messages
4,712
Reaction score
2,832
Location
Visalia
I'm having a hard time picturing how that Sidebar gadget doesn't leave the line full of liquor, which would mix with your next selection. Maybe by blowing some compressed air through after each one?

Edit: just read that it actually has 5 separate lines all the way through the spout.

OP
BeerBaron1985

BeerBaron1985

The Beer Baron
Joined
Sep 13, 2016
Messages
180
Reaction score
84
Location
Oakville
OP
BeerBaron1985

BeerBaron1985

The Beer Baron
Joined
Sep 13, 2016
Messages
180
Reaction score
84
Location
Oakville

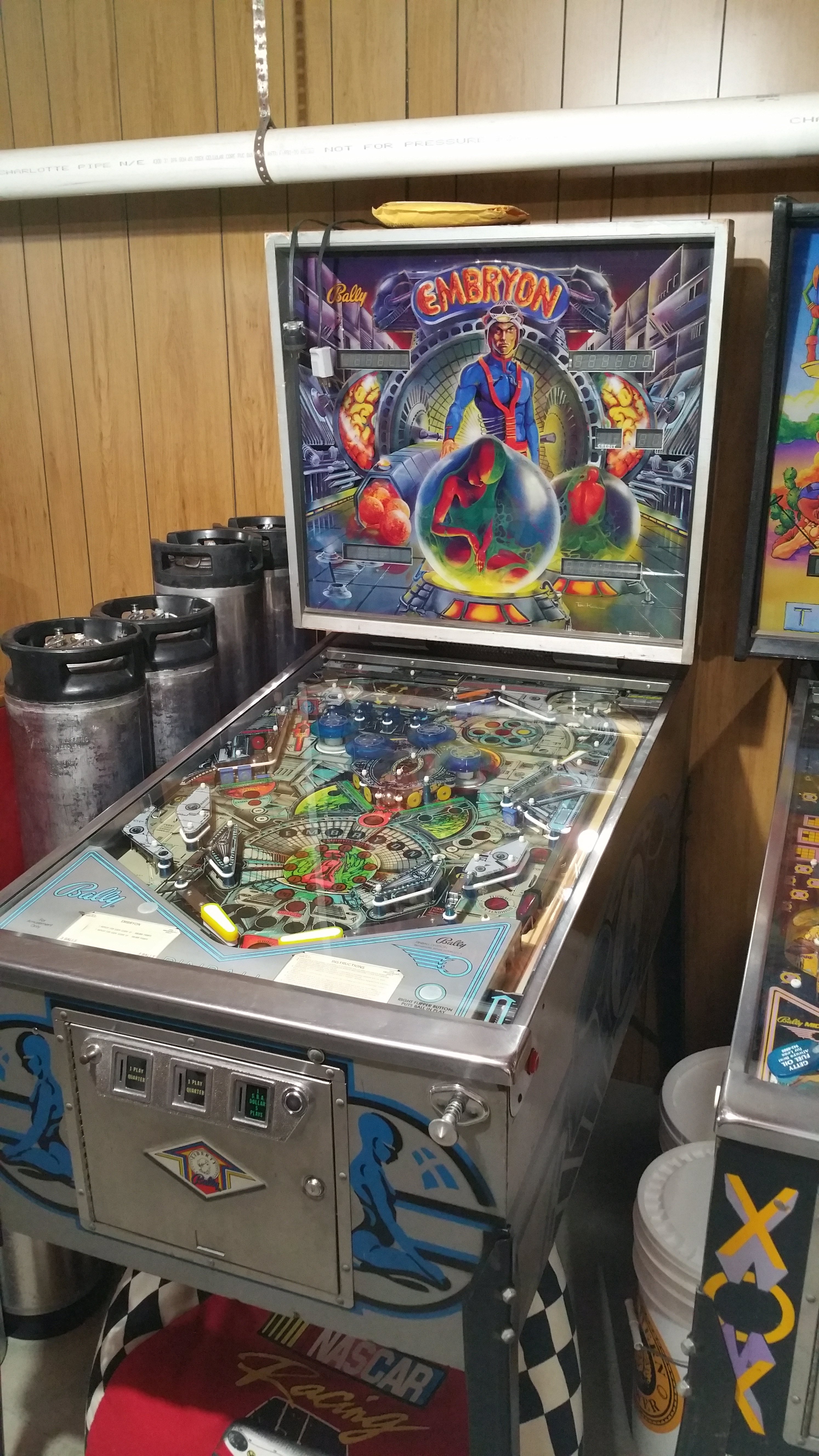

Already on there. Pinwiz1985. Did a full rebuild of the Bally Embryon pin you see there. Yes very awesome community there.

OP
BeerBaron1985

BeerBaron1985

The Beer Baron
Joined
Sep 13, 2016
Messages
180
Reaction score
84
Location
Oakville
Hey everyone!

Been awhile since updating this thread. I ran into major health issues, and two surgeries later, back to feeling like myself again.

Started to build out the home brewery downstairs.

- Got all 14 five gal kegs plus two 2.5gal kegs for cold brew coffee for the keezer

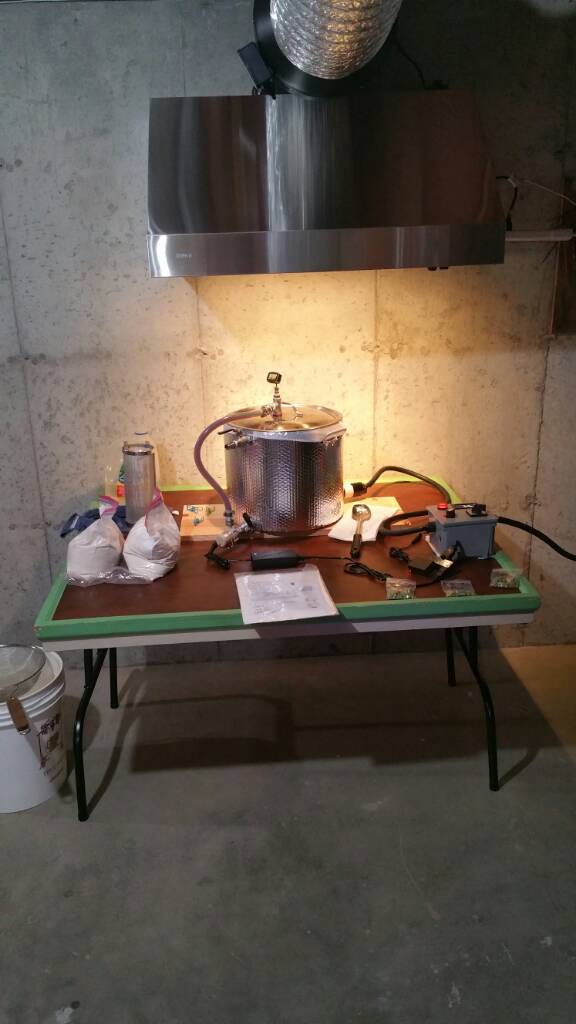

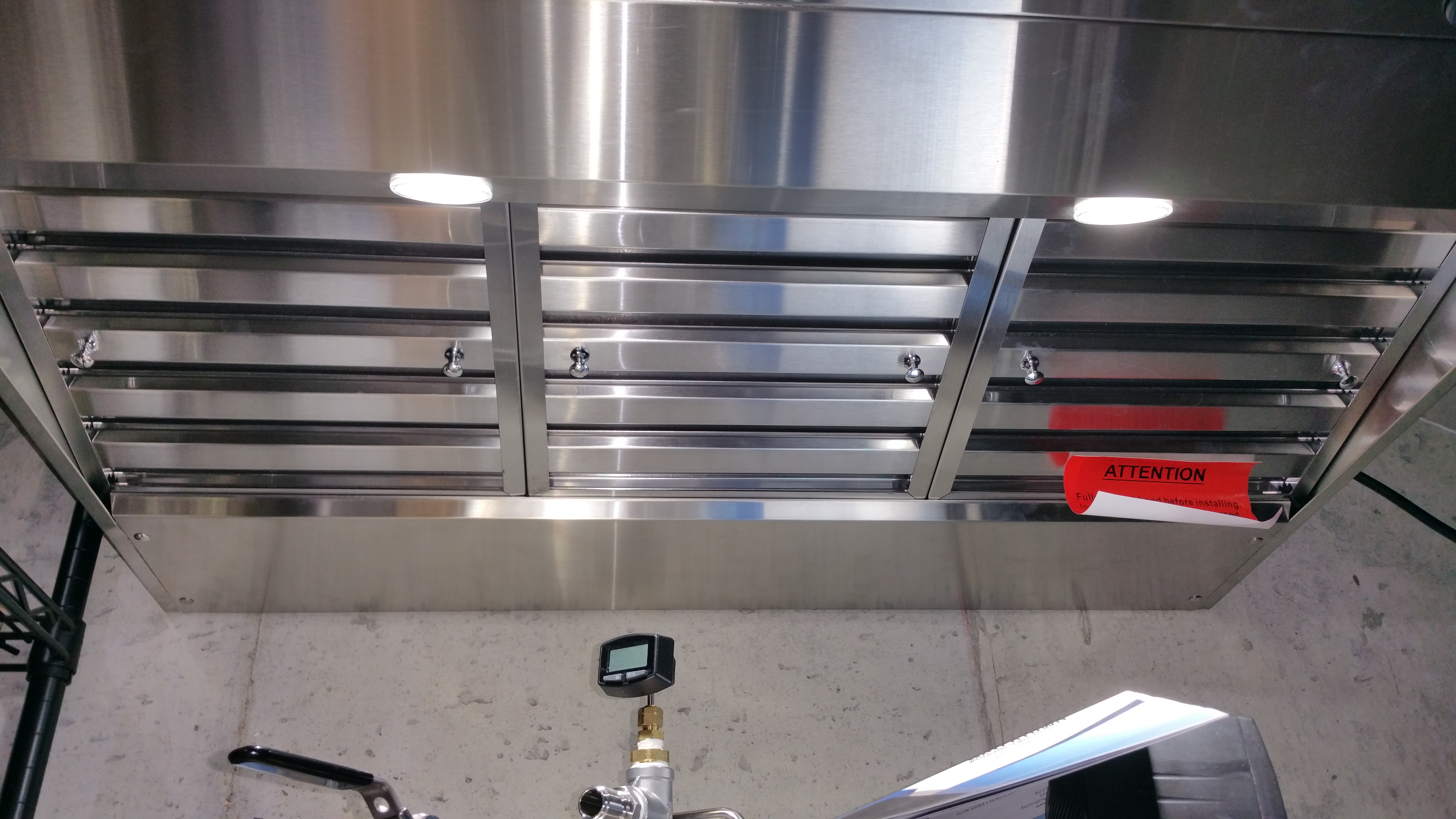

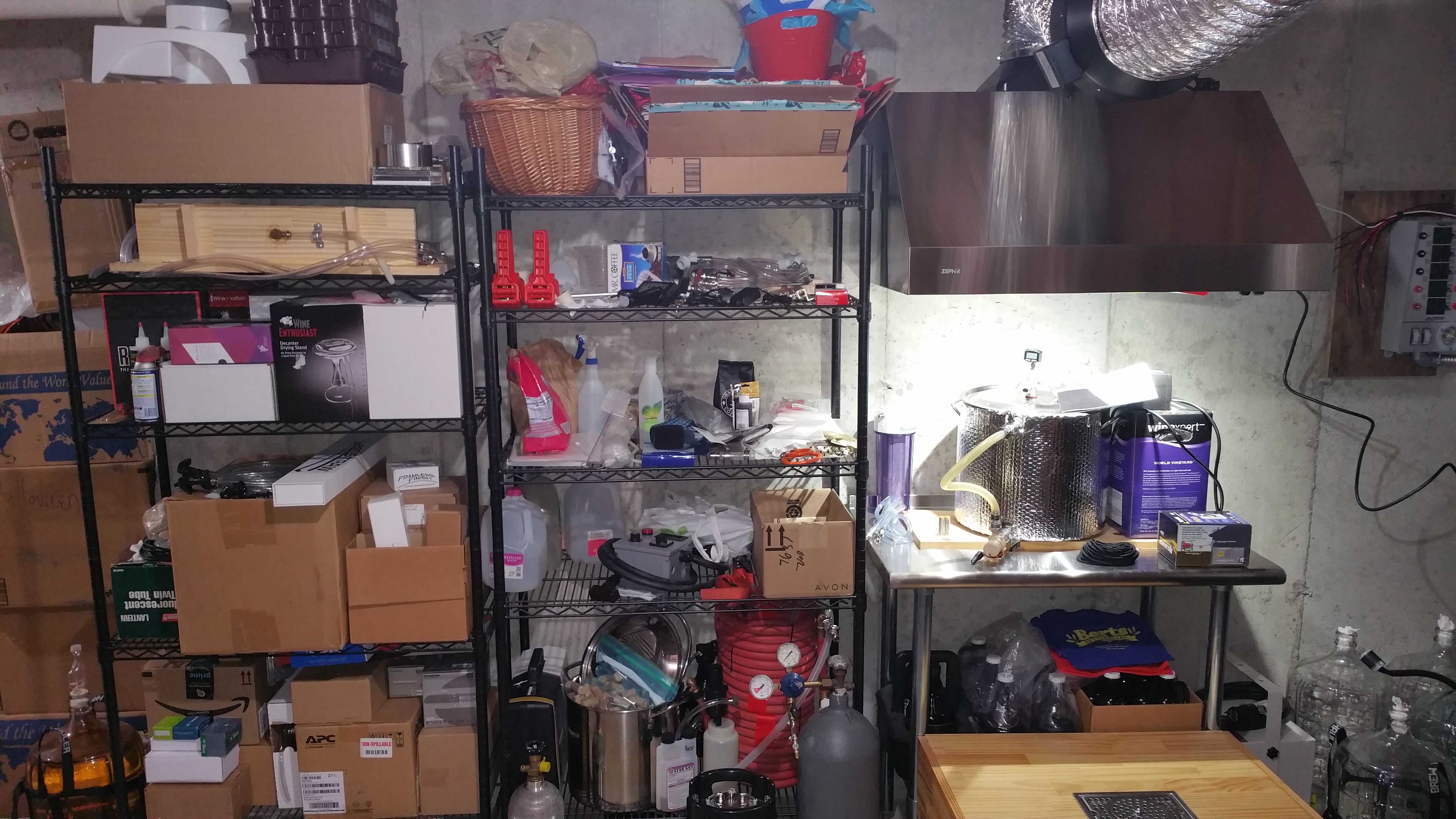

- got a stainless vent hood with 10" ducting for the boil kettle. Its a type 1 but I converted it to a type 2 condensate hood.

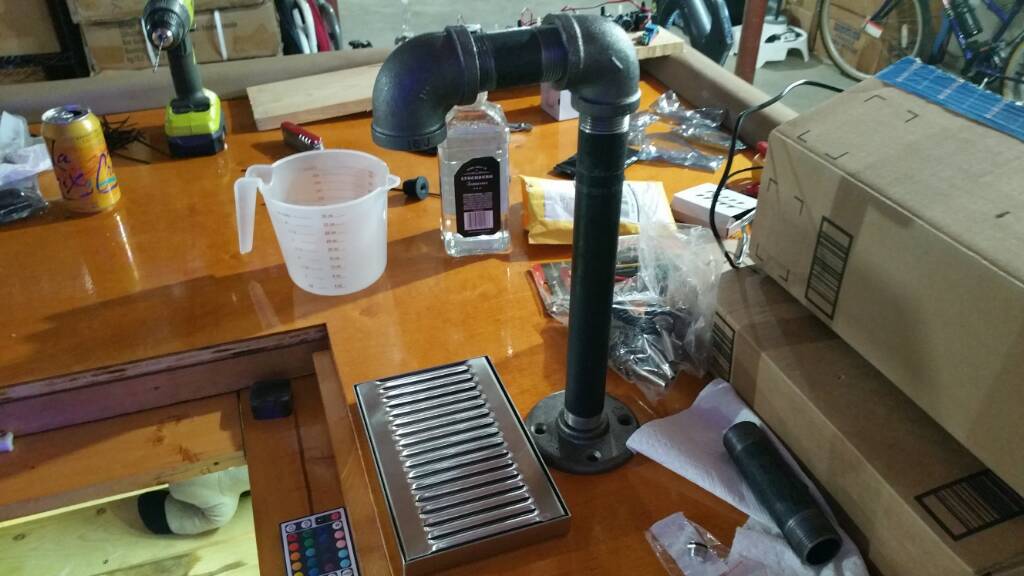

- finally got to building the automatic liquor dispenser, still working on it. Will have 6 liquors at the touch of a button soon

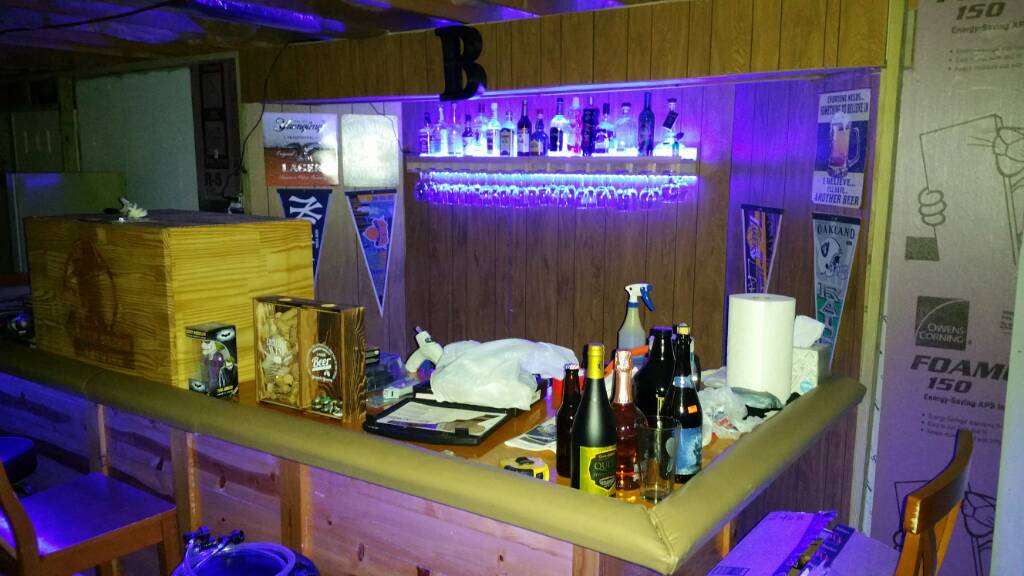

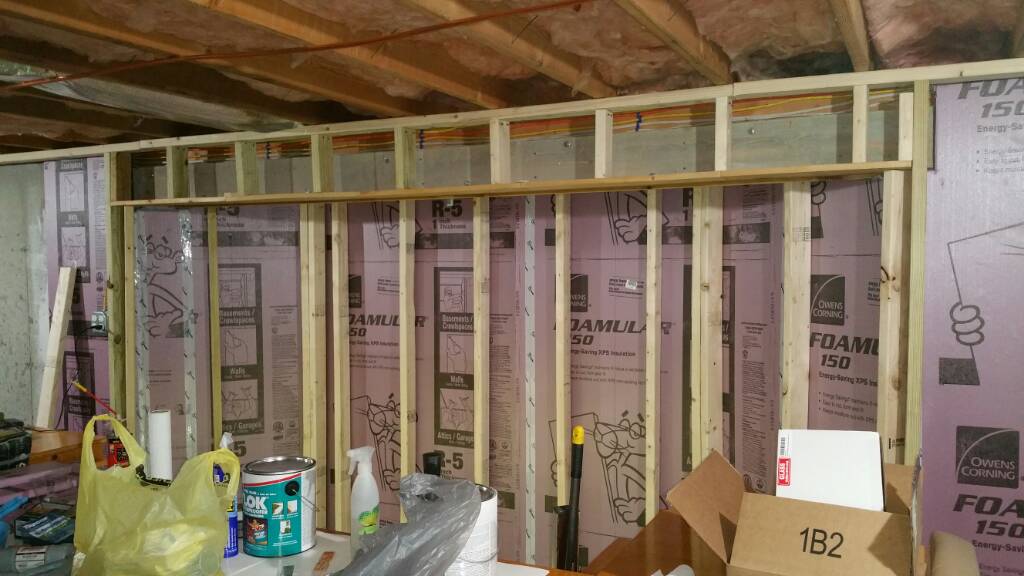

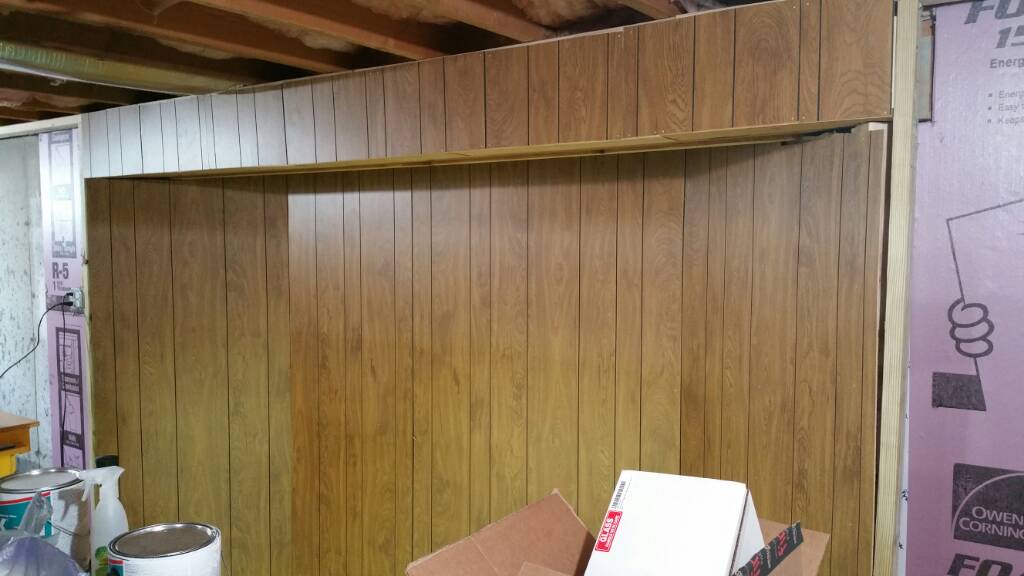

- started to finish the back wall of the bar. Properly insulated to code too. Doing a little at a time.


Still need to brew more beer, thats always the priority right? Need some respectable stainless tables for the brew area now that the space is cleared for it. I'm contemplating adding a downstairs sink.

I found a stainless 7ft table with one built in, but now in lies connecting a ventless pump with sump to my waste stack, and running pex supply line to it. The price is a good deal, he knows a friend of mine, just need to find funds DOH!

For now, im happy with the progress so far!

Do check out my youtube channel, I have been posting videos there on the basement speakeasy updates!

https://www.youtube.com/user/xboxer1985

OP
BeerBaron1985

BeerBaron1985

The Beer Baron
Joined
Sep 13, 2016
Messages
180
Reaction score
84
Location
Oakville
Hey All,

A few updates. Will have pictures soon.

- The basement now has heat!
- The new electric circuit doubles as a 240V supply for an upgraded brewery setup down the road!
- Scored a free black leather couch for sitting space
- Ordering stainless prep tables this week!

The basement area does get chilly being partially unfinished, but it doesn't go below 50 degrees. The wife approved me getting a sizeable forced fan electric heater to keep the temperature comfortable when we are all hanging out down there. That means doing some electrical upgrade work! I scored a 5k heater for $60 at a local flea market. I bought a 4 space sub panel (8 space if you use 1/2" breakers) for $22, ground bar for $5, had some free 8AWG 3 conductor plus ground wire, 50A DP breaker for $10, 30A DP for $10, an L14-30 outlet for $15, and a box/faceplate for the outlet at $5.

So now the basement speakeasy has heat! It does take a bit even with a 5k heater to get the temperature up to the mid 60's Fahrenheit. Ideally for a 1030 sq/ft basement I should have around 10k watts, and maybe down the road I upgrade the wiring again, but I don't think I will need it. The dual use with this 240V 30A circuit is now I can power a proper size electric brewery when I upgrade my kettles beyond my 5 gallon batch size! Granted I will need to swap out the standard 30A DP with a proper 30A GFCI breaker, those things are MAD MONEY at around $100!

Cost in electrical parts to run a proper 240V 30A line for an electric brewery is roughly $190, including the cost of the wire if I paid for it and the GFCI breaker. I am very familiar with electricity and confident in my work. An actual licensed electrician would charge a few hundred more to install easily.

More details soon!

OP
BeerBaron1985

BeerBaron1985

The Beer Baron
Joined
Sep 13, 2016
Messages
180
Reaction score
84
Location
Oakville
Hey All,

Well this year has certainly been one for the record books, COVID and all. Anyways, wife and I have finished up the brewery and the basement! By that I mean partially finished the walls properly insulated, and added a slew of new feature points.

I'll have more pictures soon. The only remaining elements I need to put up are more housekeeping things, such as some themed area rugs and some heavy room dividing curtains to separate the brewery/storage space from the entertainment space. It will also help with the heat in the winter.

For now, a video demo of the new automatic liquor dispenser and sink. Everything is based on 12 volts. The sink has a 5 gallon supply tank and 5 gal grey water tank. Perfect for cleaning glasses.


OP
BeerBaron1985

BeerBaron1985

The Beer Baron
Joined
Sep 13, 2016
Messages
180
Reaction score
84
Location
Oakville
New pictures!

I got a few more things to add, and will get more pictures of the bar area next. More likely will simply do a video tour of the whole place. My wife is wants a new area rug for the kitchen table, and that will be a perfect opportunity while carpet shopping to pickup some area rugs for the arcade area. When the downstairs isnt being used for entertainment I swap out the 2700K LED bulbs for some stupid bright white LEDs 100 watt equiv to really light the place up. The warmer color temp really makes the space look more inviting when everyone is downstairs.

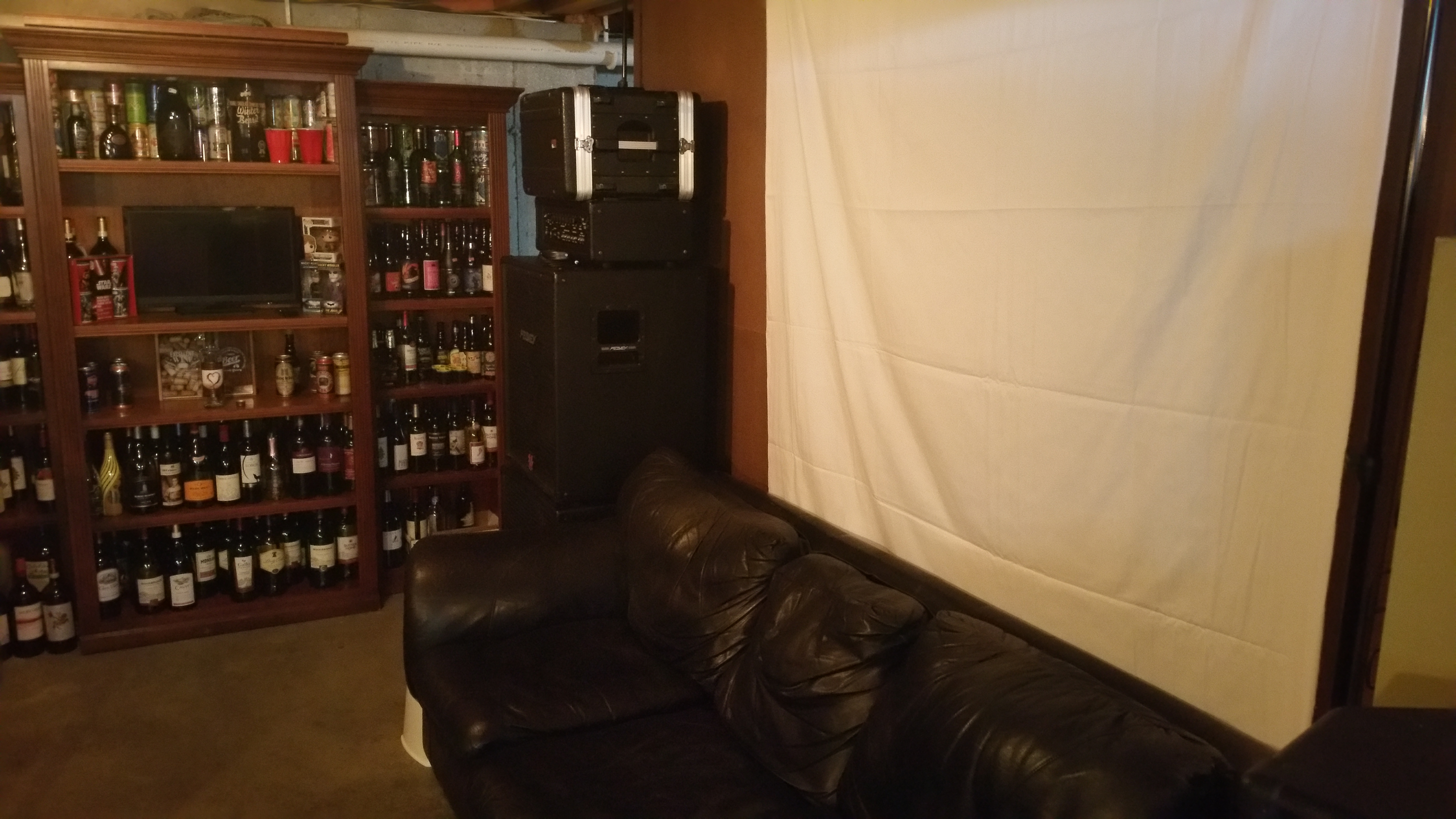

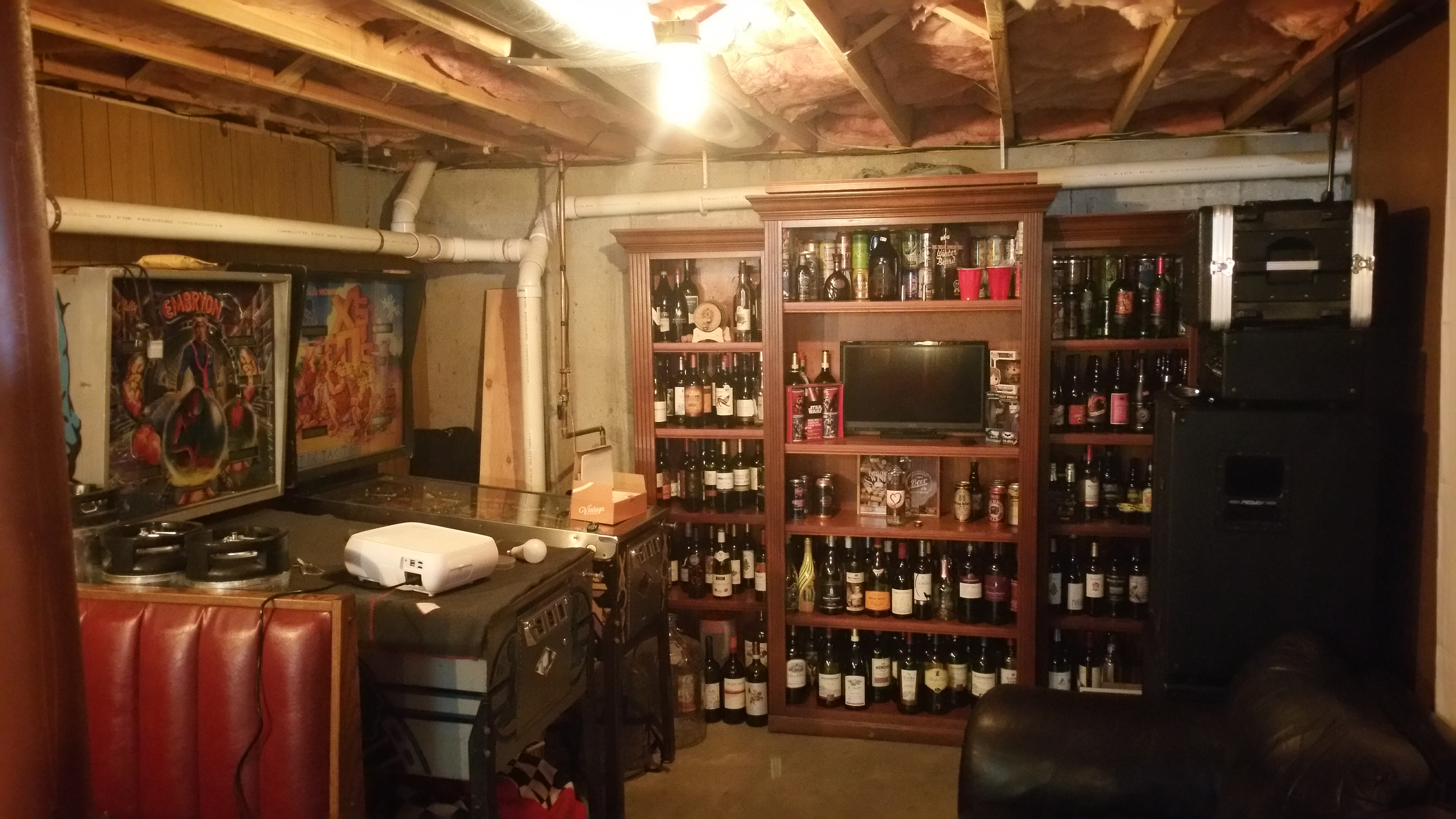

In the picture below you see the 1080P projector still on the pinball. This is now installed and projects on the screen behind the couch, and wont be interferred by people walking by unless you are stupid tall like me. I have a 4 way HDMI splitter to feed 3 TVS and the projector, and have a Wi-Fi extender for internet.

For sound I have two 1x15H monitor speakers under the pinballs pumping 200 watts of sound. We recently had Metallica live 1991 playing through a Firestick. You see the other PA gear, but its not hooked up...YET. I have a small 6 channel mixer to pipe in bluetooth, Firestick, and pretty much anything else to the sound system.


More pictures to follow on the bar and brewery area.




Last edited:
OP
BeerBaron1985

BeerBaron1985

The Beer Baron
Joined
Sep 13, 2016
Messages
180
Reaction score
84
Location
Oakville

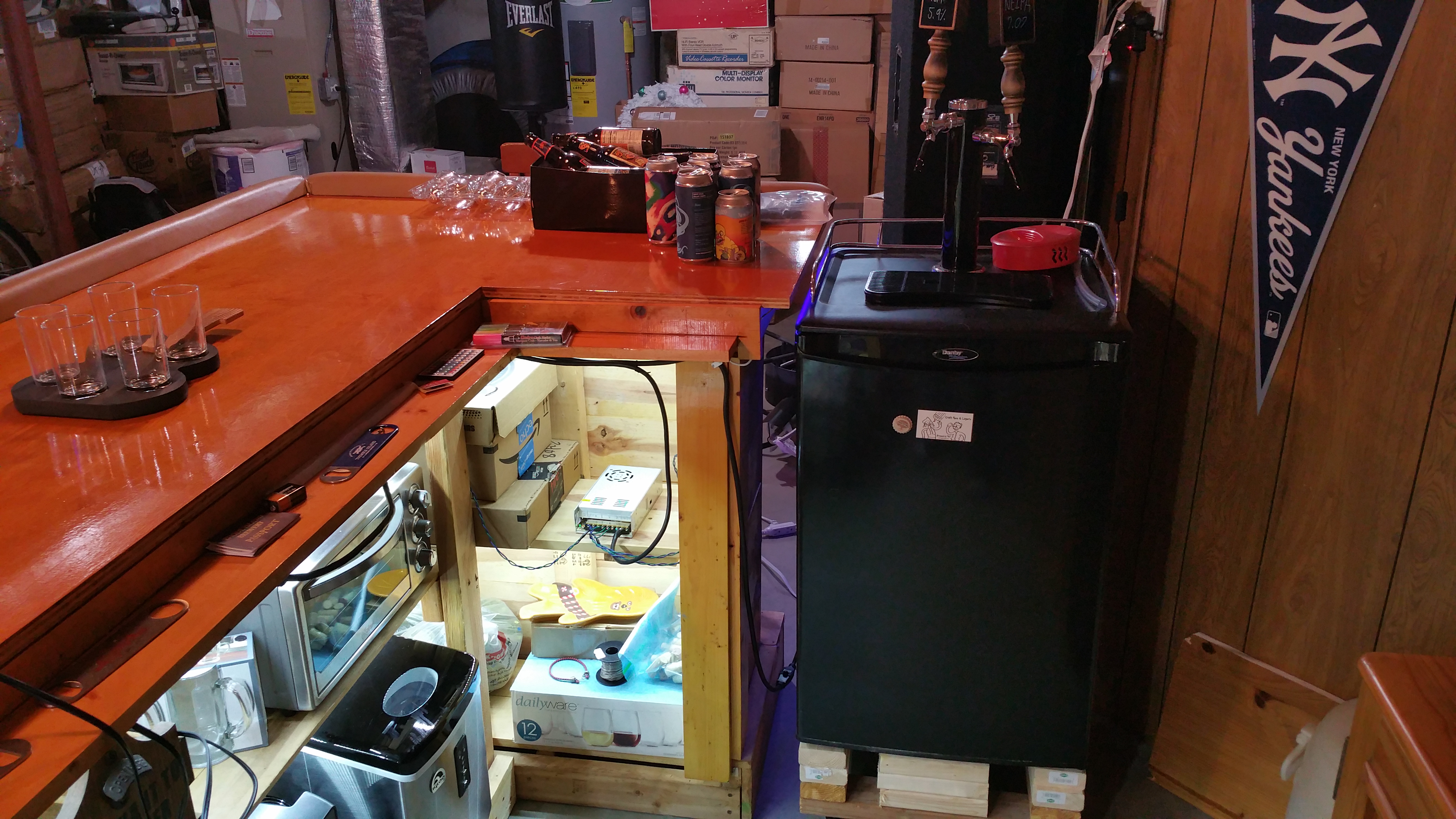

Once again. Very, very nice. Where did you get the LEDs for under the bar counter? I need these. Look at the keezer and taps!!!!

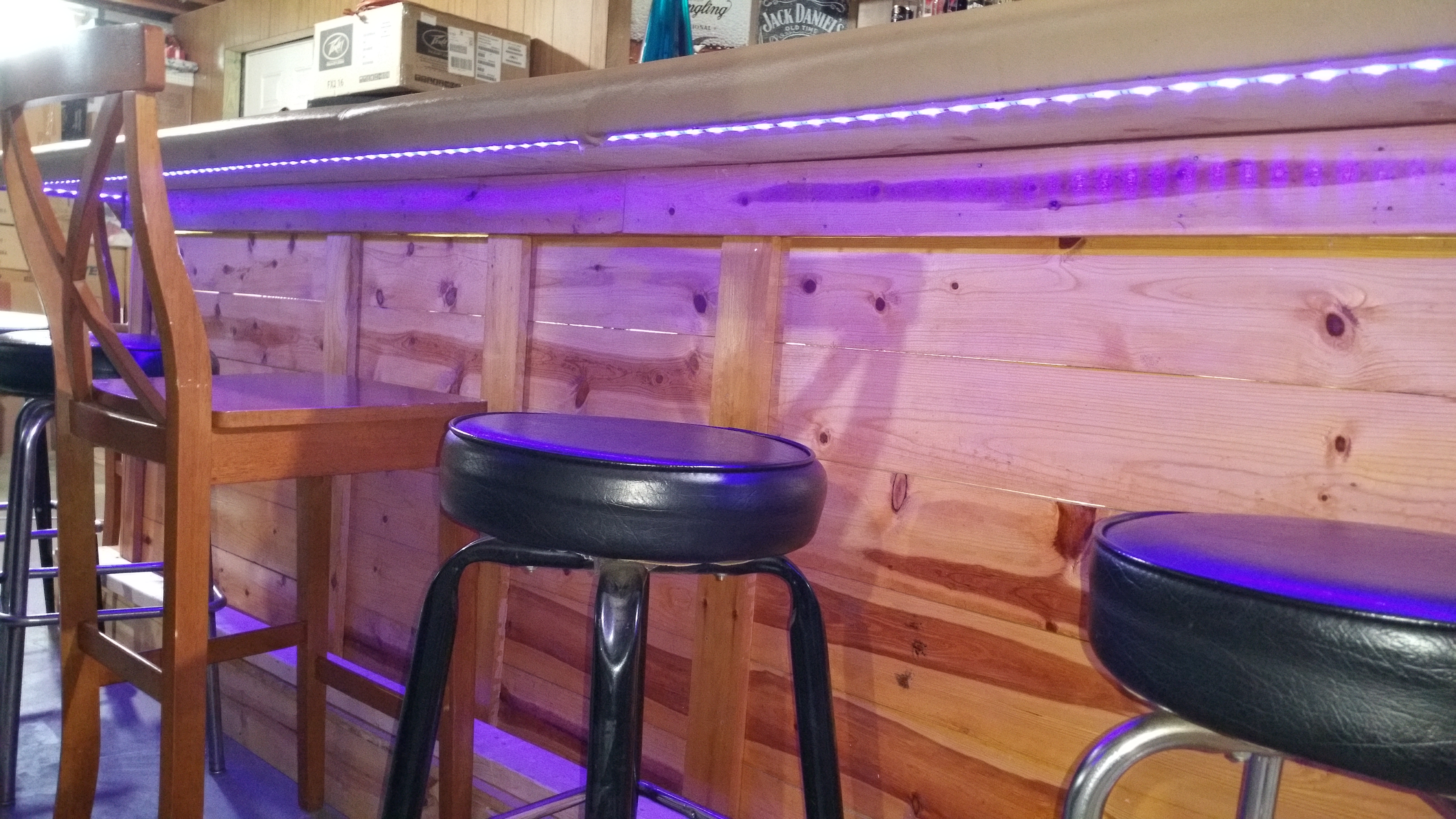

They are RGB 5050 Waterproof LEDs, easily available on Amazon. Its running off a spare 360 watt PSU, same used on the keezer.


So I have to go on record that the whole "Diner" idea is all my wife's. She has always wanted to run on, but obviously a bit impractical, so this was the next best thing. A local pizza place was remodeling, and they were giving away all the restaurant booths. We picked up all the best ones that had no rips, cleaned them up, fixed some wood issues, and presto, theres the diner! Tables were $20 bucks for the two from another diner in CT that recently closed down. The TVs on the wall were stupid cheap too as a hotel went out of business, and the manager was liquidating them off on FB to whoever wanted them, remotes, cords and all. Just bought cheap wall mounts.

The walls are all installed by me, properly insulated to code here in CT, and waterproof treated the concrete walls with Drylock. I will say its got flaws that I was able to cover up well. I'm certainly no expert, and honestly finish carpentry is tough! Its partially finished and it will stay that way, no need to finish the whole basement and pay the extra taxes.

OP
BeerBaron1985

BeerBaron1985

The Beer Baron
Joined
Sep 13, 2016
Messages
180
Reaction score
84
Location
Oakville
What a great idea about the local pizza place. I need to remember. My wife would wet her pants if I found a juke box for my bar.

IMO, you did a great job on the build.

Well....that is the next investment. When I was a kid my parents owned an AQ160SH Seeburg. It played 45's and 33-1/3's. Like my Embryon pinball I have a childhood connection to that model and someday will own it. For now, the plan is to have a bluetooth wurlitzer tabletop jukeboxes on the tables to add to the look of the space. They look sweet and not too expensive. The Seeburg I want, restored condition, is easily over $2000.

OP
BeerBaron1985

BeerBaron1985

The Beer Baron
Joined
Sep 13, 2016
Messages
180
Reaction score
84
Location
Oakville
That is awesome! Appreciate the pictures and you have a great wife . . . not sure mine would allow the "diner" approach, but I'm working on the beer man cave - great ideas!!

Pictures inspire, and what more can do but inspire!? :)


bobeer

Fermentation Specalist
Joined
Feb 21, 2012
Messages
2,772
Reaction score
738
Location
Hamilton
amazing what can be done with an unfinished basement. Looks awesome! My wife and I are going to build a bar in half of the garage. Thanks for some inspiration!

OP
BeerBaron1985

BeerBaron1985

The Beer Baron
Joined
Sep 13, 2016
Messages
180
Reaction score
84
Location
Oakville
amazing what can be done with an unfinished basement. Looks awesome! My wife and I are going to build a bar in half of the garage. Thanks for some inspiration!

You are very welcome! Much of my inspiration has come from this forum and the pinside forum. I've seen basement spaces with hidden secret doors, full bars, arcades, batting cages, mini golf greens, movie theater, and one crazy dude built a laser tag setup. Granted he converted an entire section of his house to that, but goes to show you how crazy people will go for their man caves/entertainment space.
