FOR SALE:

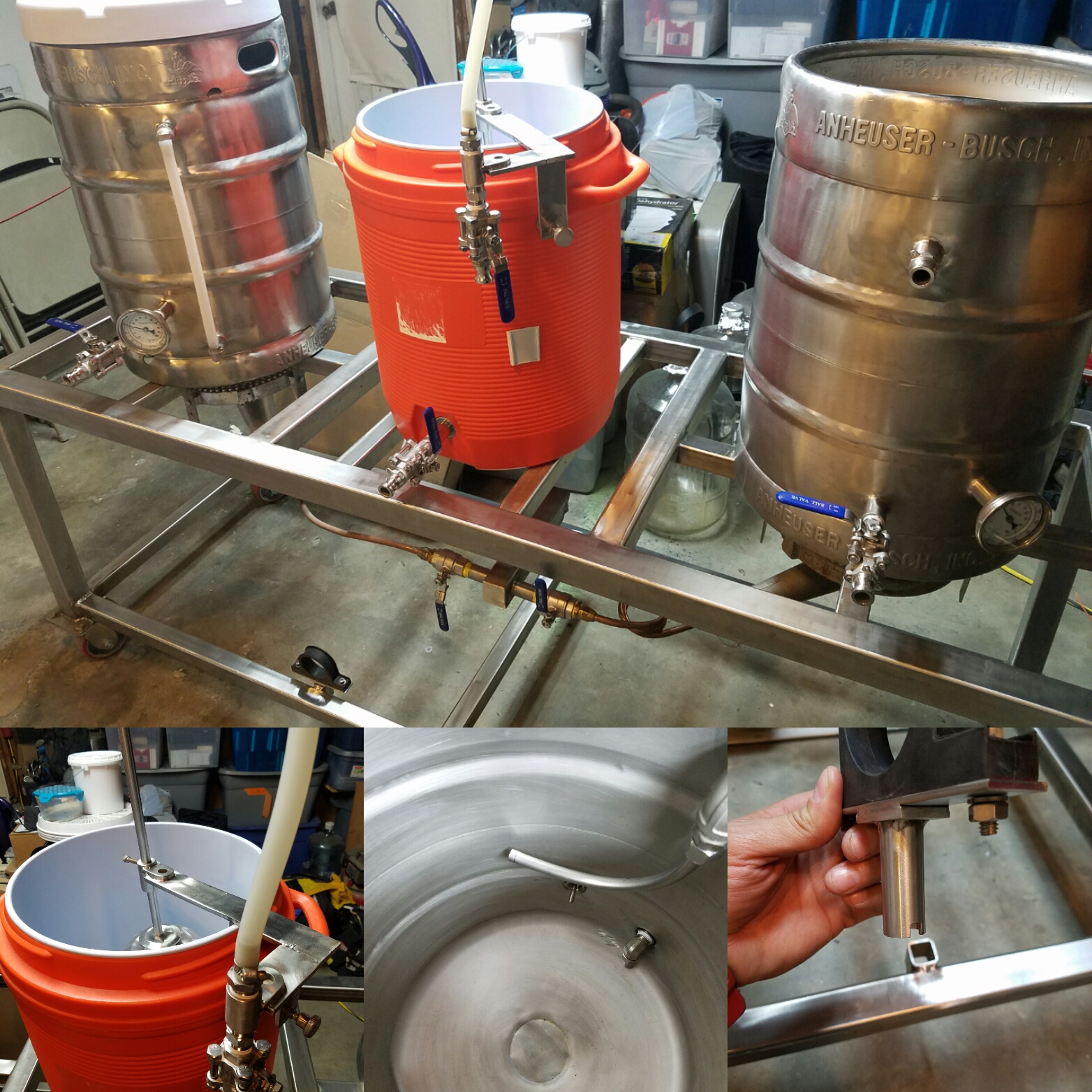

Brewtus Killer Stainless Steel Brew Rig.

$2600 FIRM - NOT PARTING OUT.


2” 304L Stainless tube, tig welded construction

76” x 28” x 30” (L x W x H)

Grizzly G8176 - 4" Heavy-Duty Swivel Caster w/ Brake

Custom Gas Manifold w/(2) two-piece ball valves and propane regulator.

(2) BG14 “Banjo” Burners ( Boil Kettle, Hot Liquor Tank)

(2) 24v Topsflo Brewing pumps w/ SS Heads and Custom Bracket

Custom Stainless Pump Mounts

SS Cam lock Disconnects

½” Silicone Hoses w/ SS Female Camlock quick connects

(2) SS Keggles

HLT- All stainless center pick-up tube, 3 pc ball valve w/ male camlock fitting, dial thermometer, silicone sight gauge, (4) ½” Full NPT Couplers sanitary tig welded for a total of (4) Ports. SS Thermowell available.

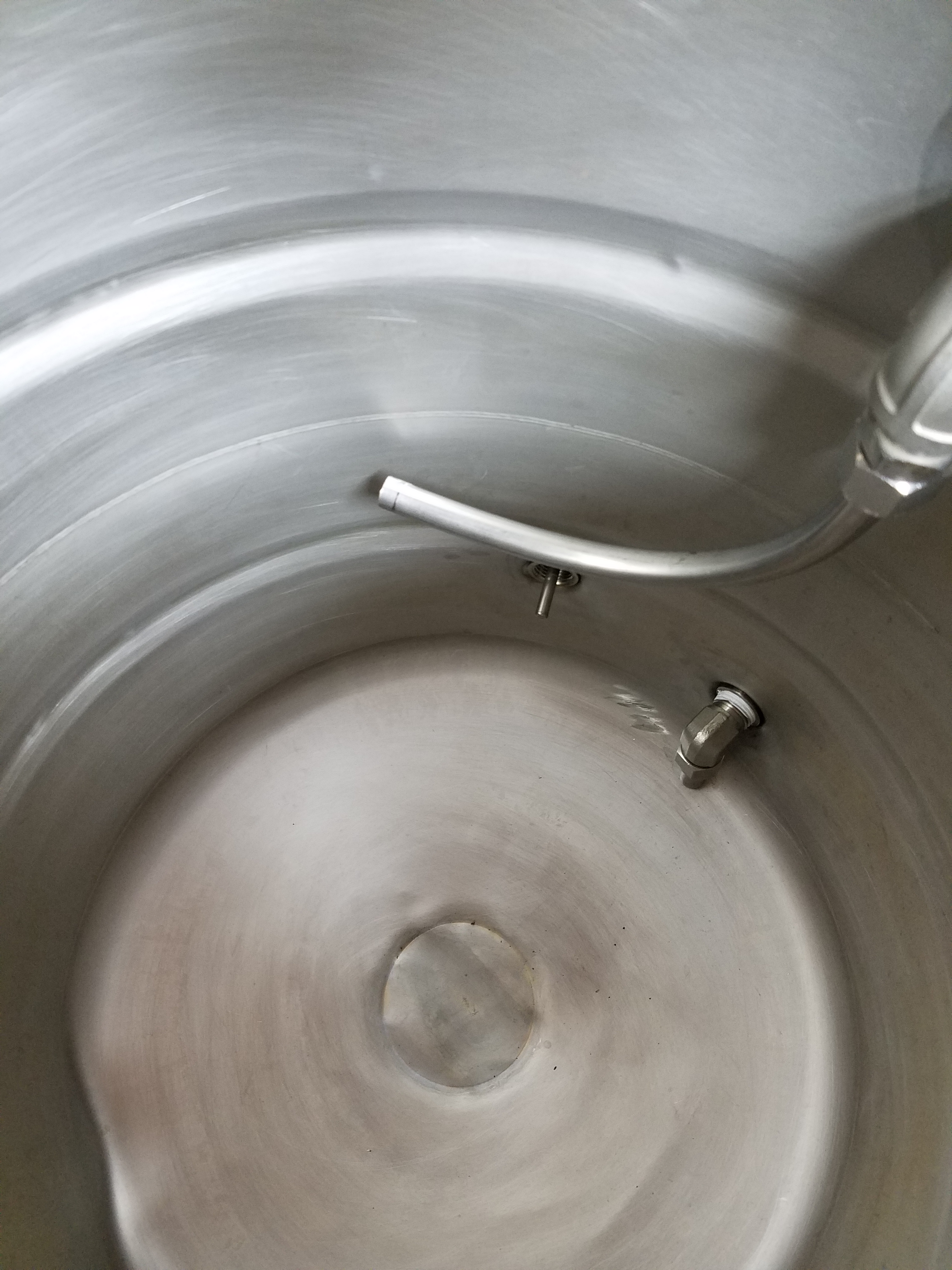

Boil Kettle - All stainless shorty pick-up tube, Dial thermometer,3 pc ball valve w/ male camlock fitting, recirc. port. (3) ½” Full NPT Couplers sanitary tig welded for a total of 3 ports. SS Thermowell available.

50’ Copper Immersion Chiller

10 Gallon Igloo Mash Tun

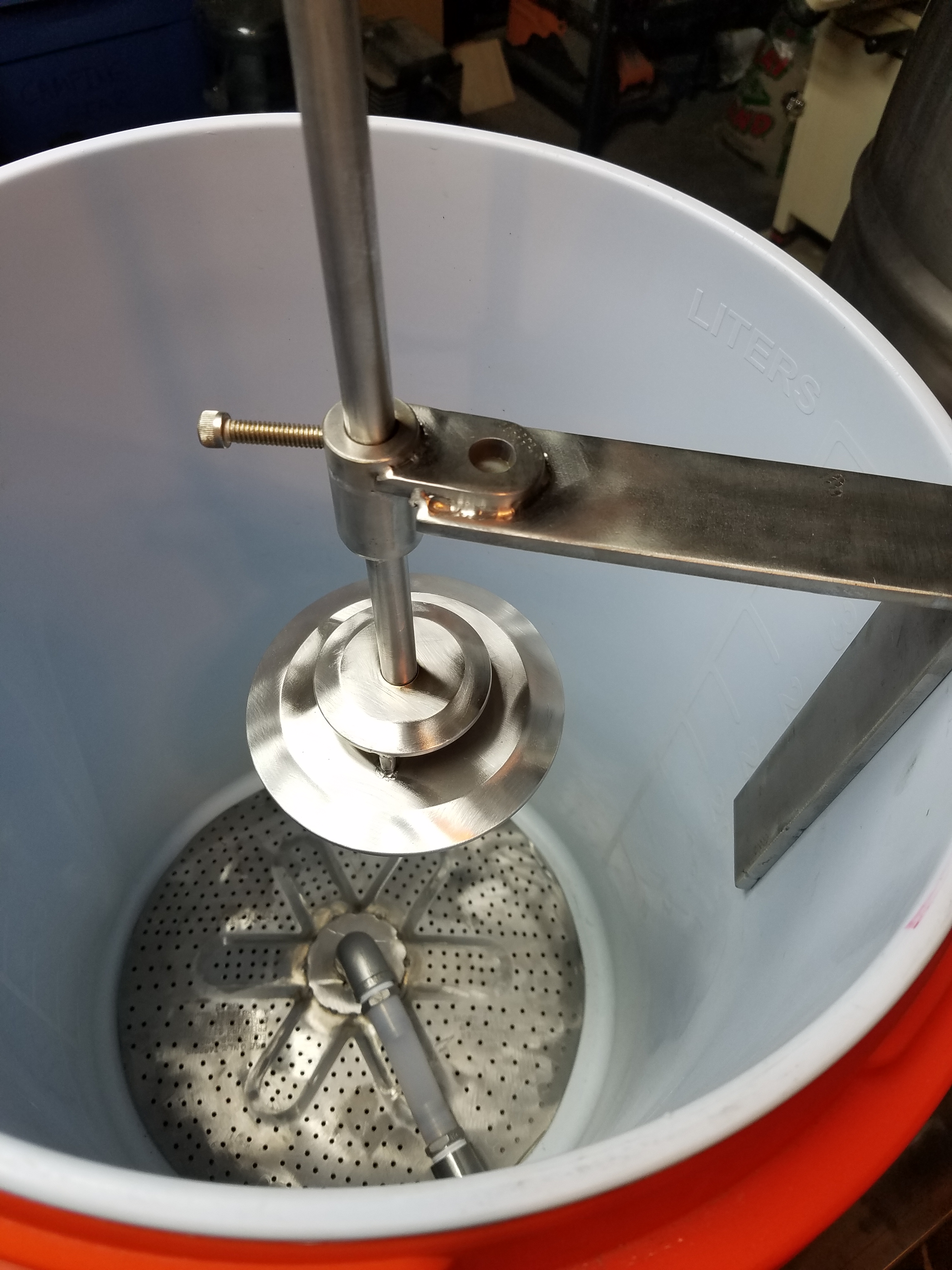

Custom built SS False Bottom with low center pick-up tube,

3 pc ball valve w/ male camlock fitting

Custom built “Ultimate Sparge Arm” clone with built-in SS 3 pc ball valve w/ male camlock fitting and thermometer. Height Adjustment to get that water right over the grain bed while sparging or vorlaufing.

Stainless Steel Control Box

12 x 12 x 6 (L x W x H)

110vac input power

(2) 24vdc output jacks (for pumps)

(2) Stainless Steel LED on/off (NC/NO) Switches

Panel has room for PID controllers and PID Temp Probe connections

(2) DC Jack power cables with PET cable Sleeving.

The design will support up to 1bbl vessels. Many great batches brewed on this rig. I am getting 78-80% efficiency with single infusion mashes. Local pick up preferred will deliver for a fee. Will not Ship. Please DM me for any questions. Cheers -Dan
