I recently purchased the below bulkhead for my 10 gallon Home Depot cooler mash tun. I am getting very little threads on the outside of the cooler to attach my ball valve. Do I have something wrong/out of order? I used a thinner nut instead of the thick one that came with the bulkhead to buy me a few threads.



Bobby_M

Vendor and Brewer
HBT Sponsor
Joined
Aug 3, 2006
Messages
26,417
Reaction score
6,360
Location
Whitehouse Station
You didn't install it correctly. Only one oring goes between the center hex and the inside cooler wall. The metal washer and nut go outside. You should also be able to remove the rubber grommet from the hole in the cooler. If you choose to leave it there, I would remove the oring from the assembly and just let the hex flange of the bulkhead rest directly on the grommet.

OP
OP
RyPA

RyPA

Well-Known Member
Joined
Feb 10, 2017
Messages
483
Reaction score
293
Location
NJ

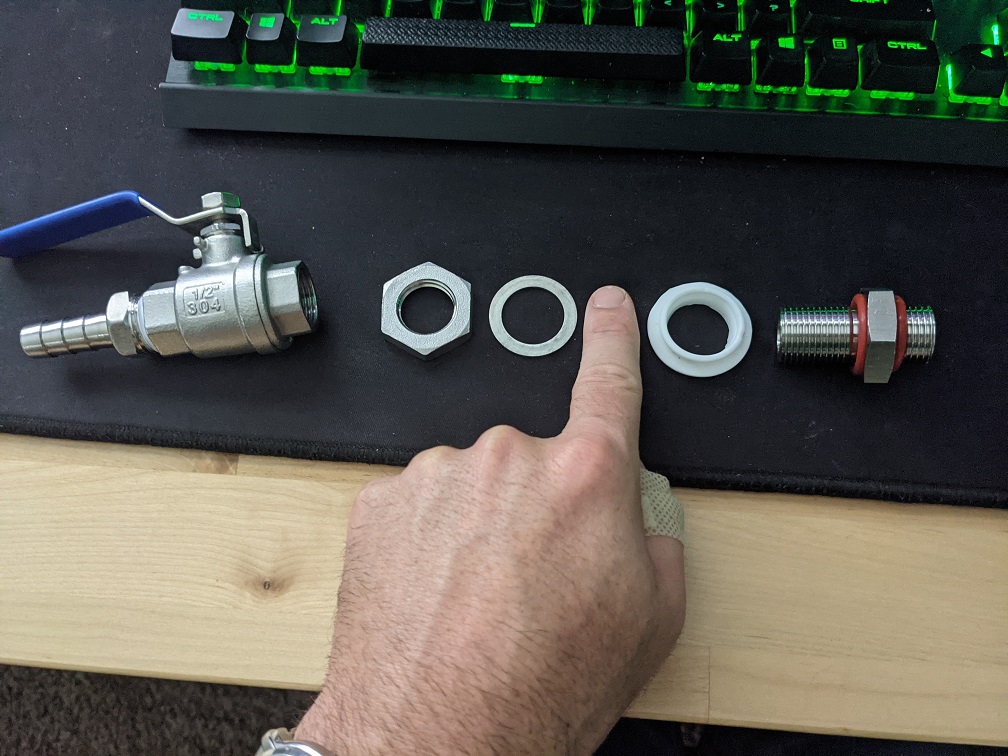

Is this the correct order, assuming my finger is the cooler wall? I removed the smaller o ring.

OP
OP
RyPA

RyPA

Well-Known Member
Joined
Feb 10, 2017
Messages
483
Reaction score
293
Location
NJ
Realizing now that I do not need any red o-rings on the inside, since I am using the factory home depot white o-ring. I think if I do bulkhead->washer->HD o-ring on the inside, it will buy me a little more room on the outside.


Bobby_M

Vendor and Brewer
HBT Sponsor
Joined
Aug 3, 2006
Messages
26,417
Reaction score
6,360
Location
Whitehouse Station
With the smaller oring removed, you will HAVE to use the white gasket but also remove the larger red oring. Double rubber is redundant.

The smaller oring we include that stacks against the larger one is meant to be installed directly through the naked opening. The smaller oring falls into the hole intentionally to center the fitting. In your case, the white grommet will provide both the centering and sealing so remove the orings fully.

OP
OP
RyPA

RyPA

Well-Known Member
Joined
Feb 10, 2017
Messages
483
Reaction score
293
Location
NJ

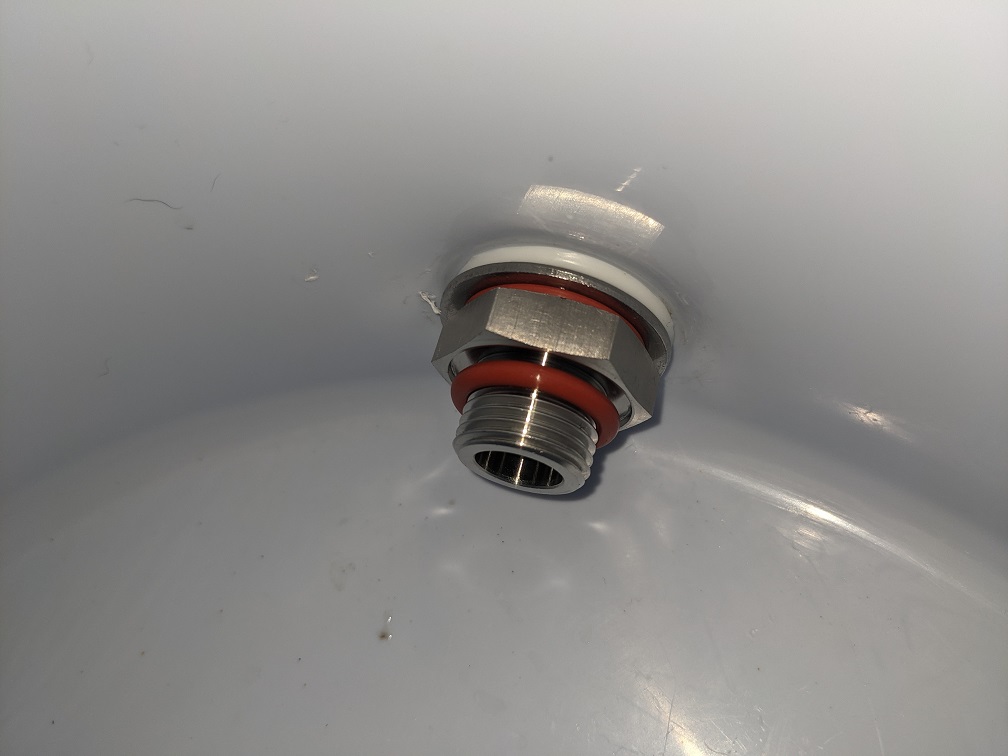

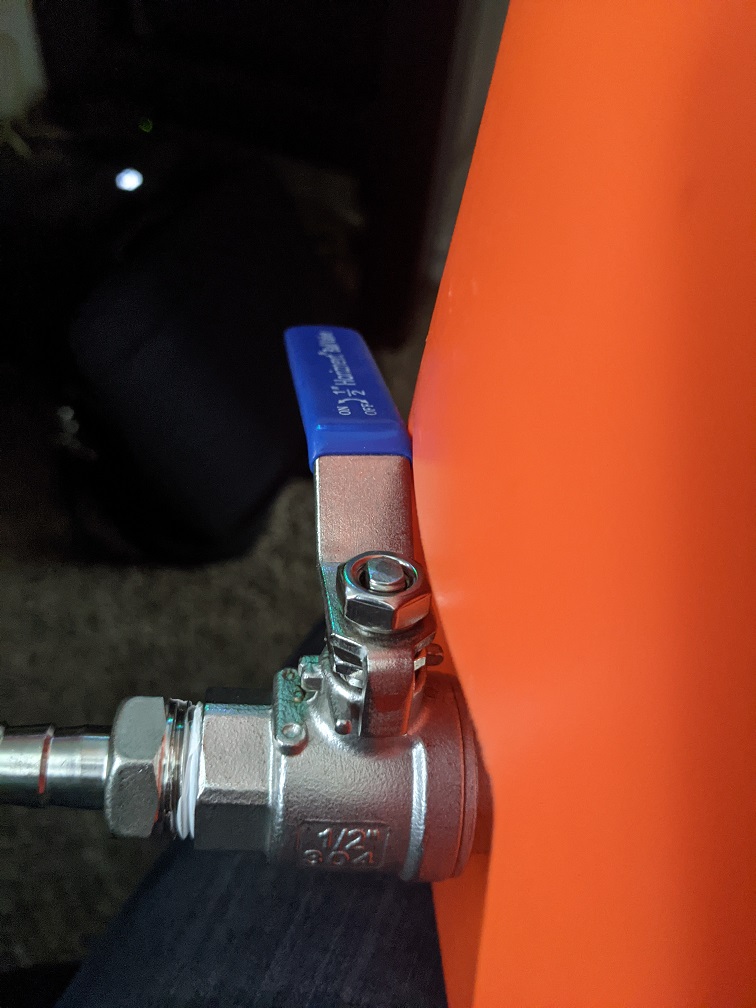

Here's where I am at now. Still not a ton of threads on the outside and my ball valve handle hits the cooler. It would be nice if this bulkhead had a few more centimeters of threads.

Can I get this to work without using the white grommet?

OP
OP
RyPA

RyPA

Well-Known Member
Joined
Feb 10, 2017
Messages
483
Reaction score
293
Location
NJ
So you're saying if I use both the small washer and large washer together, going form the inside of cooler to outside, I can eliminate the white. It doesn't seem like it would seal well without the white washer.

OP
OP
RyPA

RyPA

Well-Known Member
Joined
Feb 10, 2017
Messages
483
Reaction score
293
Location
NJ
I got it figured out, thank you for quickly responding, and for the fast shipping!

OP
OP
RyPA

RyPA

Well-Known Member
Joined
Feb 10, 2017
Messages
483
Reaction score
293
Location
NJ
Here's what I did. I think it will seal fine since there is always rubber between metal. I wanted to avoid the bulkhead rubbing against the home depot o-ring as I tightened it.

On the inside, from the wall going towards bazooka tube:

Home Depot factory white o-ring -> metal washer -> rubber o-ring that came with my ball valve -> bulkhead.

On the outside, from the wall going towards the ball valve. I added parts I had to provide more room to fully close the ball valve:

Washer -> nut -> 1/2" threaded tube -> 1/2" threaded connector -> ball valve
