Hi all,

I’m planning a brew shed (uninsulated) for my induction BIAB set up and curious what everyone’s thoughts are on walls. Aside from holding the roof up, I’d want them to be easy to clean. I was thinking of adding some sort of smooth paneling. I plan to leave a screened over gap at the top and bottom for air flow behind the wall to allow any moisture to escape. Cheap would be nice. Resistant to mildew and the steam I’ll put off would be better. What should I be sure to consider?

Thanks all!


InspectorJon

Well-Known Member
Joined
Aug 3, 2018
Messages
880
Reaction score
789
Location
Placerville
Fiberglass reinforced panels (FRP). Kind of depends on what you mean by cheap. This material is commonly used in commercial kitchens.


OakIslandBrewery

Supporting Member
HBT Supporter
Joined
Mar 19, 2011
Messages
303
Reaction score
337
Location
DePere, WI
Price wise, depending on the area of the country, 4x8 panels range from 20-40 bucks. Both styles have trim pieces to clean up edges where two panels meet or inside/outside corners. You'll need some framing behind them to support any of these panels though as they are very thin material. While you're at it I'd install some plastic peg board to hang some of your brewing items.


grampamark

“That’s what”.—She
HBT Supporter
Joined
Sep 1, 2017
Messages
13,301
Reaction score
35,286
Location
The Frozen Tundra/The Magic City
Galvanized roofing panels work well
Steel panels, whether galvanized or painted, are usually cheaper per sq. ft. than FRP, at least in this part of the world. Corrugated steel panels, which cover 2 ft in width, are usually galvanized. The wider panels, with triangular shaped ribs, called Delta rib or Pro Panel (the contours are similar) are usually painted, and are usually cheaper per sq. ft. Due to supply chain issues, YMMV. :cool:


orono

Supporting Member
HBT Supporter
Joined
Sep 10, 2019
Messages
48
Reaction score
45

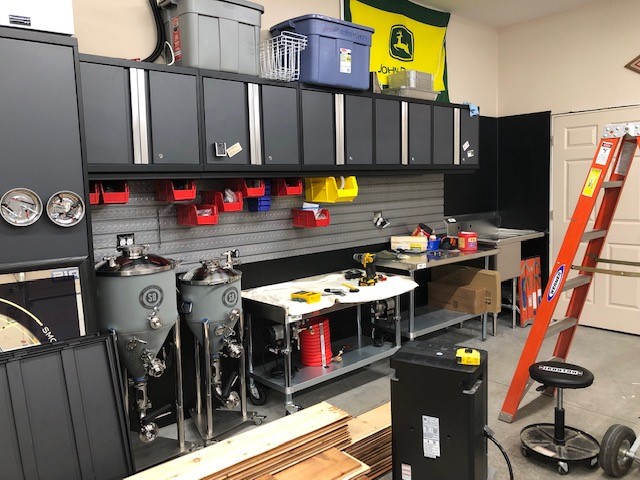

FRP works great for what you'll need it to do. Easy to work with (cuts easily, applies easily, and cleans up very easy). I chose the textured panel rather than the smooth panel since it has the increased chance to get gunk (brewing stuff, dirt, cobwebs, etc.) on the panel. I am just finishing up a brewery area build and a taproom in my out building. I used 4 x 10 sheets of black FRP from Menards (special order - they stock white). I also purchased an inside corner, several trim pieces and adhesive to attach to the wall. The cost was about $65.00 per sheet ($1.62 sq. ft.) plus trim pieces. In addition to the FRP, I put slatwall on the wall so that I can add hangers, box trays, etc. Here is a picture of the almost finished area. In my taproom area I used pine that I stained. Let me know if you would like other pictures.


Attachments

  • brewery 1.jpg
    brewery 1.jpg
    98.8 KB · Views: 0
