Bottling From Pressurized SPIKE Conical Unitank

HomeBrewTalk.com - Beer, Wine, Mead, & Cider Brewing Discussion Community.

Help Support Homebrew Talk:

kgranger

Small Wave Brewing
Joined
Apr 10, 2013
Messages
199
Reaction score
23
Location
Baltimore
I am researching the purchase of a Spike CF15 Conical Unitank, which at the end of the process will be pressurized to a desired volume of CO2. I have researched using a counter pressure bottle filler to transfer from a pressurized keg to a bottle, but I am wondering if this would work the same with the conical, and if so, what would the process look like. Or would it make more sense to pressure transfer to a keg, and then use a counter pressure bottle filler with the keg, as they are usually intended?

This would be my first experience using conicals and not naturally carbonating the bottles with sediment and priming sugar, so any info will be helpful as I learn these new processes!


4of7

60sqftbrewhouse
Joined
Apr 16, 2017
Messages
549
Reaction score
110

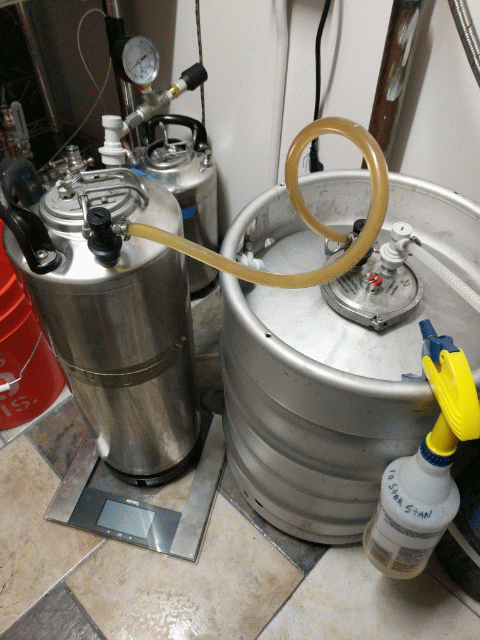

Burst_Cover_GIF_Action_20180610205250.gif i like kegs over conicals


Vale71

Well-Known Member
Joined
Nov 1, 2018
Messages
2,491
Reaction score
1,251
No reason why you shouldn't bottle directly from the conical. As the beer is already carbonated there is no advantage in doing an intermediate transfer to a keg, you only increase the risk of infection and oxygen pick-up.
That is, unless you brew frequently and need to free up the fermenter for the next batch as soon as primary is over, then you can mature in kegs and then bottle from them, but other than that there are really only disavantages to that.


mongoose33

Supporting Member
HBT Supporter
Joined
Dec 16, 2015
Messages
7,942
Reaction score
7,258
Location
Platteville, WI
One thing to note about the Spikes: they're rated to only 15psi...in fact, the prv on mine releases about 13.5 psi.

So if you're carbonating at the end of the process, that's the highest you're going to get (i.e., up to 15psi).

I typically seal up my Spike CF10 with about 7 points of gravity to go (5 gallon batch), so it self-carbonates. The PRV of course won't let it get past about 13.5....but that's not what the PSI will be when the beer is chilled.

According to the carb charts, at 14psi at 64 degrees--typical fermentation temp--I'm getting about 1.69 volumes of CO2 in the beer. Usually I'm aiming for around 2.5 volumes of CO2.

At 40 degrees serving temp, that's equivalent to about 4psi, so I have to carbonate the beer the rest of the way.

Not sure if what you meant was to carbonate the beer at serving temp (circa 40 degrees) or if you meant at ferm temp. If at ferm temp you're not going to get it past 15psi. At 64 degrees, you'd need about 28 psi to get 2.5 volumes of CO2...which you're not going to be able to do as the PRV will pop at 15psi.

Hopefully that all makes sense.


Vale71

Well-Known Member
Joined
Nov 1, 2018
Messages
2,491
Reaction score
1,251
If you're going to counterpressure fill your bottles you'll have to drop the beer to 32°F anyway. At that temperature you will achieve sufficient carbonation below 15 PSI, but of course you'll have to partially force carbonate once that temperature is reached.


mongoose33

Supporting Member
HBT Supporter
Joined
Dec 16, 2015
Messages
7,942
Reaction score
7,258
Location
Platteville, WI
If you're going to counterpressure fill your bottles you'll have to drop the beer to 32°F anyway. At that temperature you will achieve sufficient carbonation below 15 PSI, but of course you'll have to partially force carbonate once that temperature is reached.
Why 32 degrees?


Vale71

Well-Known Member
Joined
Nov 1, 2018
Messages
2,491
Reaction score
1,251
Isn't that like 0°C? At that temperature you have minimal chance of foaming. And of course, you can work with a lower CO2 pressure setting as well. Not to mention minimal O2 pickup during filling. Working at higher temperatures really has no advantage that I can think of.


Qhrumphf

Stay Rude, Stay Rebel, Stay SHARP
Lifetime Supporter
Joined
Apr 2, 2011
Messages
15,733
Reaction score
5,027
Location
Arlington (DC)
If you put a stone in there, you can fast carb it easily. Low flow of CO2 through the stone, while simultaneously blowing off out the top

You can go from partially/uncarbed to fully carbed very, very quickly this way (often less than an hour). You'll lose some volatiles this way through the gas blowing off, and without a manner of measurement (I don't know a single homebrewer with a Zahm but that doesn't mean you couldn't) you'll need to taste regularly to not overcarb.

At that point, pressure capacity becomes a non-issue.

And then to bottle just hook the filler to the racking arm instead of keg and bottle away. Just make sure you're running clear beer first. I've bottled off brite tanks with a Beer Gun before. Same exact thing.


Qhrumphf

Stay Rude, Stay Rebel, Stay SHARP
Lifetime Supporter
Joined
Apr 2, 2011
Messages
15,733
Reaction score
5,027
Location
Arlington (DC)
Also, temp-wise every filler is different. You need SOME foam generation to scrub out O2. Too cold without another method of foam generation and you may not foam enough and risk oxidation.

One mobile bottler I've dealt with insists on 36F for his rig. The canning line at my job is optimal at 30F. My experience with the Blichmann Beer Gun has been either 33F at full serving pressure or 38 at reduced pressure.


Vale71

Well-Known Member
Joined
Nov 1, 2018
Messages
2,491
Reaction score
1,251
I've never add issues making the beer foam in the bottle. It's keeping the beer well-behaved that's usually the hardest... :D


4of7

60sqftbrewhouse
Joined
Apr 16, 2017
Messages
549
Reaction score
110
Inline carb. After beer transfer ,beer at 39
.twenty minutes done.


tll77

Supporting Member
HBT Supporter
Joined
Sep 27, 2018
Messages
180
Reaction score
92
Location
Los Angeles
in fact, the prv on mine releases about 13.5 psi
I have noticed that mine opens a tad over 16psi

there is no advantage in doing an intermediate transfer to a keg, you only increase the risk of infection and oxygen pick-up.
One possible advantage I can see, the intermediate keg acts as a brite beer tank and you have less yeast making it into the bottle. You can also use the brite to fine tune your carbonation. Typically with a higher rated prv.
And, with pressurized closed transfer into properly sanitized and purged tanks, the risk for infection or o2 pick up would be quite minimal.

unless you brew frequently and need to free up the fermenter for the next batch as soon as primary is over, then you can mature in kegs and then bottle from them
This is what I will be doing with a Dubbel this morning, sorta.
Dubbel has been in primary for 14 days, and is not under pressure. I will move it with pressurized closed transfer to my brite tank and attach a spunding valve.
Then, when the beer is ready for kegs I will transfer from the brite to serving kegs.


Vale71

Well-Known Member
Joined
Nov 1, 2018
Messages
2,491
Reaction score
1,251
One possible advantage I can see, the intermediate keg acts as a brite beer tank and you have less yeast making it into the bottle.
If you have the time and don't need to free up the fermenter quickly then yeast will settle just as well in it, given time. As a matter of fact this is the whole idea behind the concept of a unitank, not having the need for brite tanks that is. :cool:


tll77

Supporting Member
HBT Supporter
Joined
Sep 27, 2018
Messages
180
Reaction score
92
Location
Los Angeles
I completely agree, which is why I have a unitank. Also, the brite tank is rated to 60psi, so I don't have to keep it as cold as the unitank to stay under the pressure threshold. I can carb in the brite tank at cellar temp(65 for me), I could never do that in the cf10.

But most importantly,
unless you brew frequently and need to free up the fermenter for the next batch as soon as primary is over
Maybe I brew too frequently.:cool:
