This is just proof that stubbornness can overcome sanity. I thought I'd post this since I saw a lot of talk and very little success stories about people putting extra taps in a 2.5" tower.

Anyways, so I picked up a BM23c in stainless steel for $85 (not working). Bought a used compressor off http://www.coldparts.com for $90 shipped. I then found an off duty air conditioning/refrigeration tech to install it for $200. Happy me, I have a great kegerator for <$400. Course like anyone who brews beer, I eventually decided I need two taps.

The BM23c has two problems, first, it has a 2.5in tower, and no room for a 3in tower, so you can't just buy a dual faucet. Second, the drip tray is really small, so even if I put in offset taps, as I've seen some people do on 2.5in towers, none of the taps would drip onto the drip tray.

Eventually, I got lucky and nabbed a shotgun tap on ebay for $30. They are normally about $100, and they aren't a hot seller anyways, so this was great luck. I then destroyed all value in the part by taking my angle grinder and cutting off most of the threads so that I could try to fit it in the tower. Even then, the beer tubes stick out too far, so they had to be bent. I originally bought a tube bender, however it requires that you have copious extra room on the tube next to where you want to bend, which I don't. The solution was to pack the tubes full of salt, tape off both ends, and then hammer it around a pipe of the right diameter. It took forever, and its hardly perfect, but it works.


http://2.bp.blogspot.com/-kyvlMkHb-.../rIZR1q7IP8Y/s320/IMG_20130804_212639_485.jpg

http://4.bp.blogspot.com/-T7Iw05UUF.../qeIxwkTxrro/s320/IMG_20130805_220241_850.jpg


DMDecoy

New Member
Joined
Jan 8, 2017
Messages
2
Reaction score
0
Location
Redmond
This is terrific. Have you been happy with it? Anything you’ve learned now that you’re (checks original post date) nine years into it?


DMDecoy

New Member
Joined
Jan 8, 2017
Messages
2
Reaction score
0
Location
Redmond
I figured it was a long shot, and really also wanted to just give the guy some kudos.

Quite honestly, when I saw his solution, I knew he had solved a problem I was racking my brain to figure out. I hadn't even heard of a shotgun tap, but I was hooked at the first glance. Two weeks later, I had a new shotgun tap, and everything else I needed to get to work.

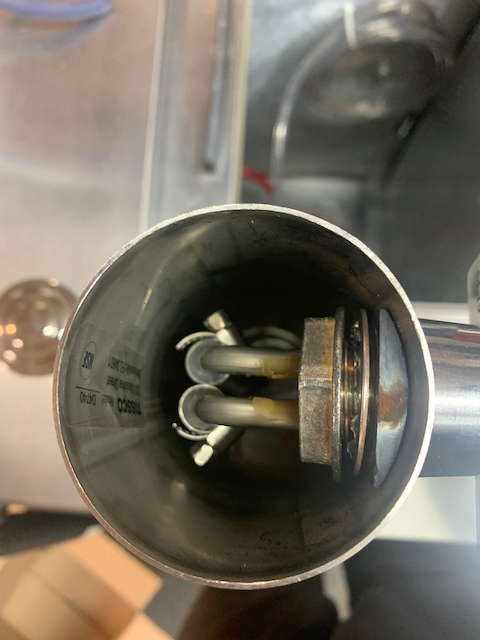

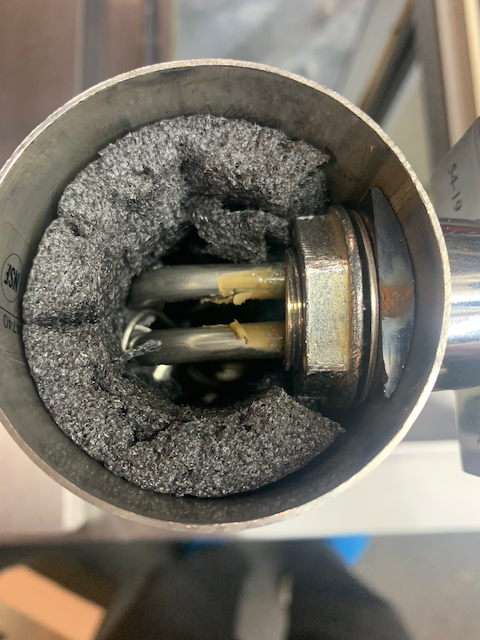

I am absolutely deLIGHTED with this solution. I essentially followed his instructions to the letter. I used a tiny cutoff wheel in a hand-held (dremel-like) rotary tool I have, and just took my time carefully cutting about half the shank away. I packed the metal tubes with salt, taped both ends, then wrapped the tubes themselves with several layers of duct-tape. Then Just started hammering away over a piece of 3/4" black pipe. It did take some time, but eventually got to almost 90 degrees.

I used the decorative ring that came with the original tap to hide the shank outside the tower.

Here's how mine turned out


Attachments

  • IMG_1423.png
    497 KB · Views: 0
  • 67339982662__C682BF24-AC4B-4C24-BE60-45072F7F3DF4.png
    524.3 KB · Views: 0
  • IMG_1411.png
    520.2 KB · Views: 0
  • IMG_1410.png
    441.8 KB · Views: 0
  • IMG_1409.png
    483.1 KB · Views: 0
  • IMG_1408.png
    494.7 KB · Views: 0
  • IMG_1407.png
    486 KB · Views: 0
  • IMG_1406.png
    405.1 KB · Views: 0
